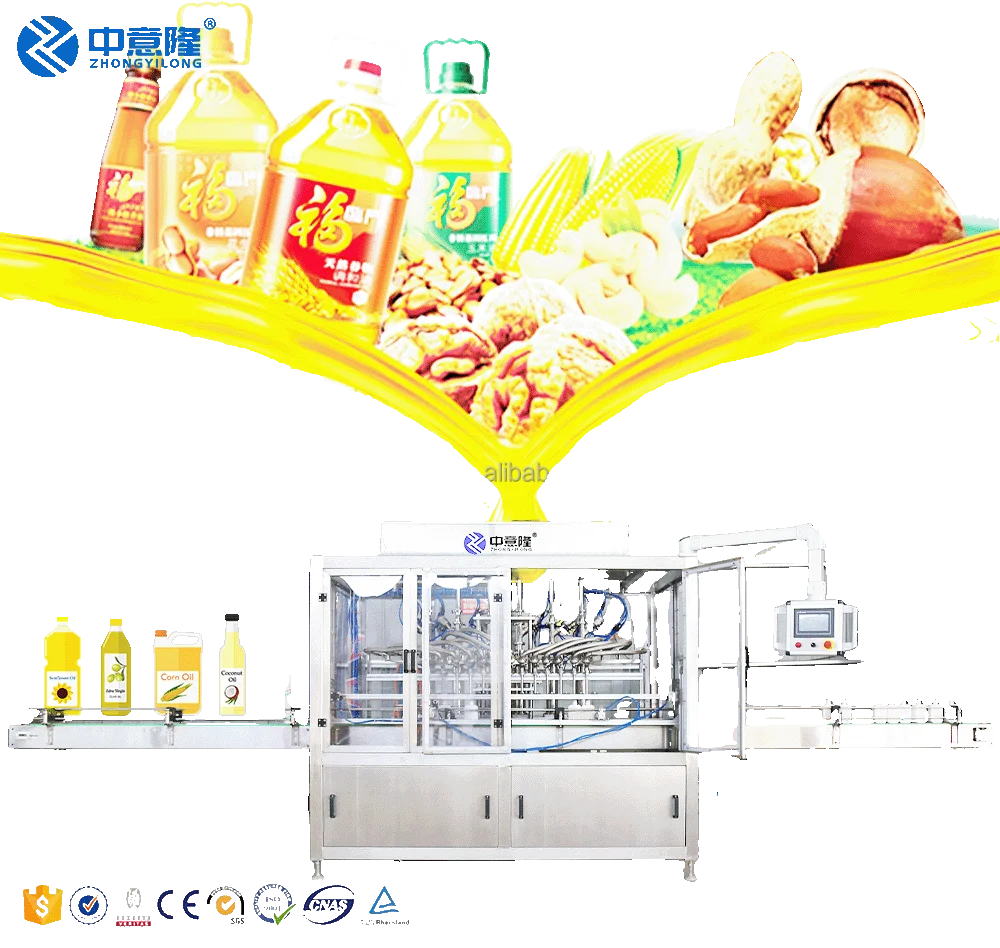

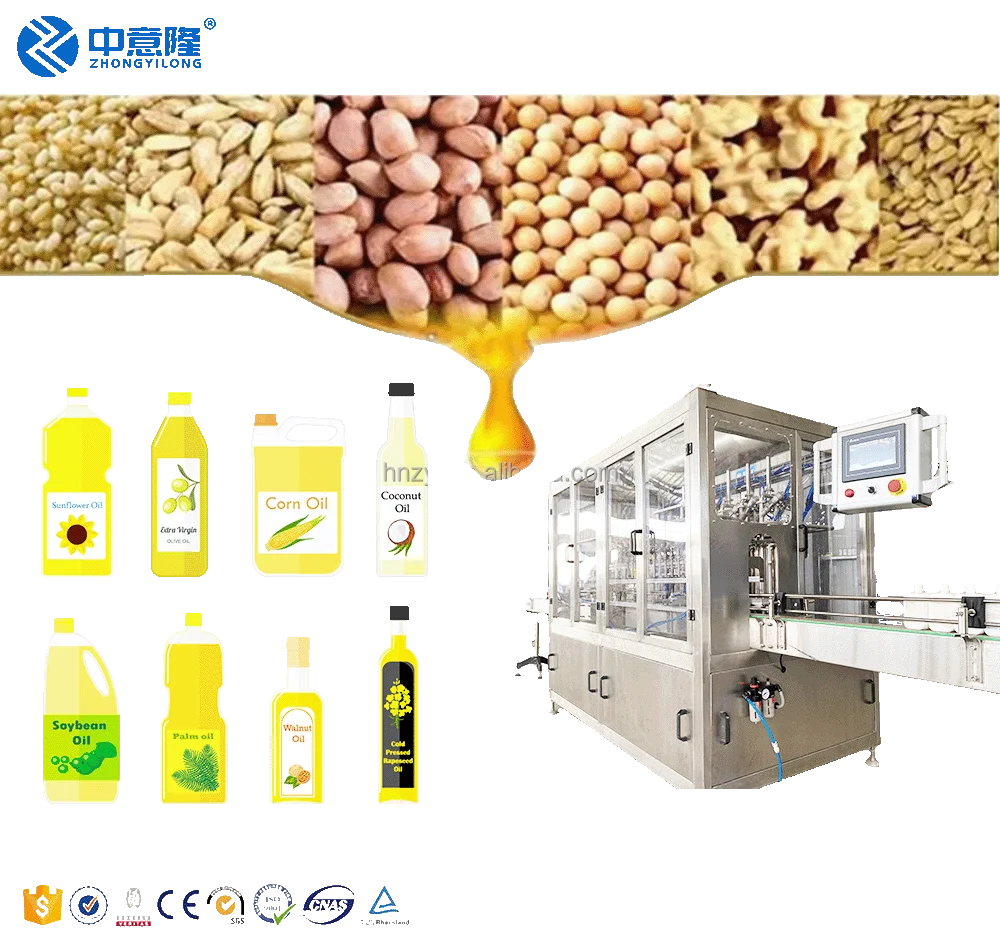

Fully High Speed automatic Edible Cooking Oil Filling Machine Sunflower Olive Oil Bottling Capping packing line Machines
Fully High Speed automatic Edible Cooking Oil Filling Machine Sunflower Olive Oil Bottling Capping packing line Machines
Fully High Speed automatic Edible Cooking Oil Filling Machine Sunflower Olive Oil Bottling Capping packing line Machines
Fully High Speed automatic Edible Cooking Oil Filling Machine Sunflower Olive Oil Bottling Capping packing line Machines
Fully High Speed automatic Edible Cooking Oil Filling Machine Sunflower Olive Oil Bottling Capping packing line Machines
Fully High Speed automatic Edible Cooking Oil Filling Machine Sunflower Olive Oil Bottling Capping packing line Machines
Fully High Speed automatic Edible Cooking Oil Filling Machine Sunflower Olive Oil Bottling Capping packing line Machines

Fully High Speed automatic Edible Cooking Oil Filling Machine Sunflower Olive Oil Bottling Capping packing line Machines

Share on (1601116631442):


Price:$4,680.00 - $4,880.00

Quantity:


Product Overview

Description









zhongyilong: A Trusted Name in filling packing Business
we provides the best filling packing euioment for business, home, and industry.
Select us for your solution Tailor made, provide you complete turnkey solution
zhongyilong’s expertise in liquid packaging ensures the perfect combination of process design and product-line engineering. With the established process design system of various liquid packaging fields such as beverages, dairy products, liquors, condiments, and daily chemical products, we can provide customized turnkey solution for your project considering different packaging forms and specific factory layouts.

The servo pump liquid filling machine adopts a servo drive system; It is also a version of the piston filling machine. The servo drive system and special three-way filling valve precisely control the amount of liquid flowing out of the distribution nozzle.
The machine's program will indicate how long the servo piston filling machine will stroke the piston at a precise and customizable speed. It is an ideal choice for filling liquids and cream products. Especially for high viscosity materials, the effect is obvious and the accuracy is high. Such as laundry detergent, hand sanitizer, lubricant, fruit juice, concentrated sauce, chili sauce, tomato sauce, sticky honey, seed coating, microemulsion, suspension, etc.




4-8-12 heads Servo Pump Viscous Liquid Piston Fully Automatic Filling Machine
The series injection type gravity type dual-use filling machine is a high-tech product researched and developed by our company.It is suitable for products of various viscosities such as water injection, semi-fluid, ointment and shampoo etc. It is widely applied for filling of products in such industries as food, cosmetics, grease, daily chemical
industry,detergent, and chemical industry etc. By adopting straight line filling model, it can be used to fill solution of different types without the need of adding any spare parts.


Products Description

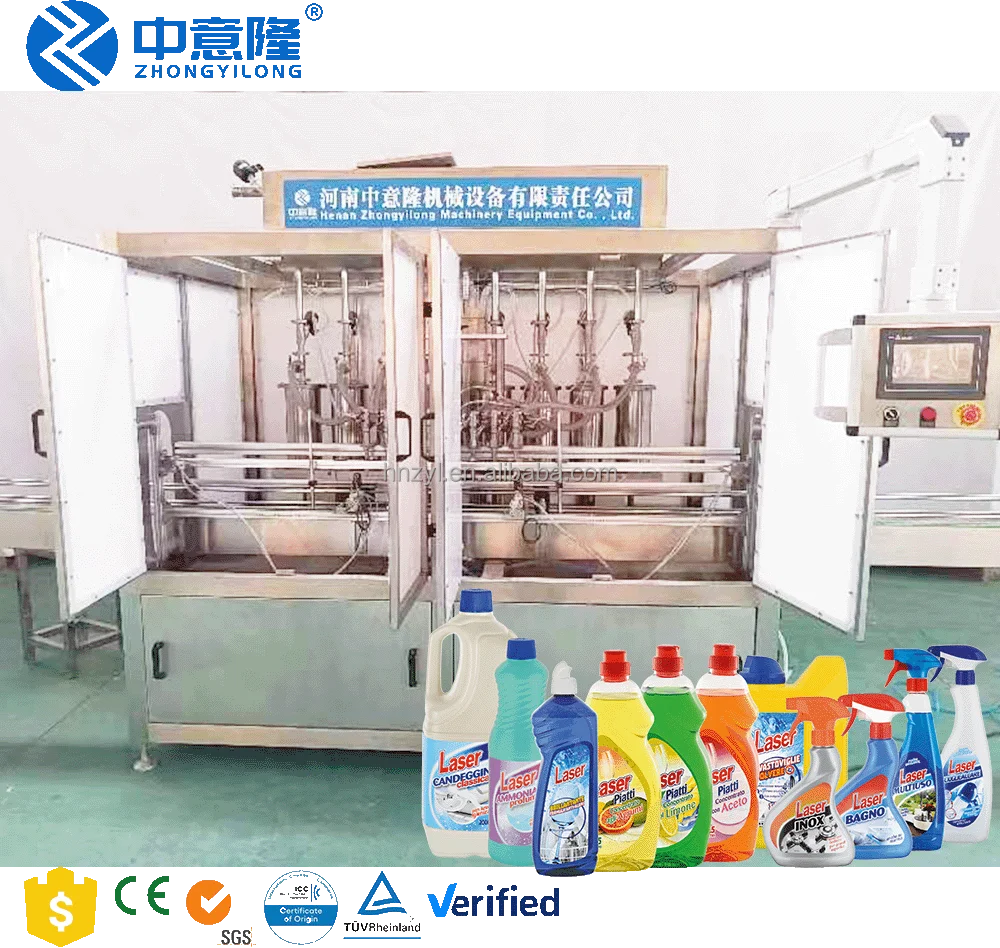

This automatic piston pump filling machine is equipped with feeding pump,this is more convenient for feeding filling material.Different filling range can be chosen and multiple filling nozzle can be customized according to operation need.


Parameters are for reference only, please contact us for detailed parameters

Automatic bottle filling machine can fill different viscosity liquid and paste,such as liquid soap and laundry detergent,liquid fertilizer,honey filling line ,motor oil and so on.The machine can be customized 4 filling heads/ 6 filling heads/ 8 filling heads/ 10 filling heads/ 12 filling heads ,16 filling heads, 18 filling heads etc, according to the filling capacity customers needed.
This is the specification of the filling machine and some details of the front and back . it use 3-3.5mm thickness food grade 316L, international brand accessories , 99.9%high filling precision , it is a good choice for liquid filling ,gel filling and paste filling.




Number of washing positions
Number of filling nozzles
Rated output (500ml)
Installed capacity (KW)
 Dimensions (length × wide × High)mm
4
4
3000BPH
3
1900×1420×2000
6
6
4000BPH
3.5
2200×1600×2300
8
8
6000BPH
4
2450×1900×2300
10
10
10000BPH
4.8
2750×2180×2300
12
12
12000BPH
7.6
4000×2300×2300
16
16
15000BPH
8.3
4550×2650×2300
18
18
20000BPH
9.6
5450×3210×2300


Features

1. This production line adopts automation technology, imported PLC, imported inspection light eye, frequency converter and other
electrical appliances, pneumatic components. It has the characteristics of high efficiency, intelligence, wide adaptability and
good stability, and is well received by users;
2. This line uses automatic bottle feeding, 4-head servo magnetic drive pump filling machine, elevator automatic capping, servo
screw cap, wafer positioning round bottle labeling machine, and bottle collection to form a fully automated production line;
3. The filling machine uses food-specific hoses and does not contain plasticizers, which is suitable for medicine, food and other
industries;
4. The piston cylinder of the filling machine adopts grinding and wear-resistant metering cylinder, which can automatically
compensate the piston seal for long life;
5. The capping machine uses a manipulator to grasp the cap, press the cap, and control the capping torque through a servo motor to
achieve the capping effect; (Optional)
6. This type of capping machine has uniform force for capping, easy to adjust the force, and it is not easy to wear the cap;
(Optional)
7. The production line has stable operation, low noise, convenient maintenance, and fully meets GMP certification requirements,
and is widely used in food, cosmetics and other industries;
8. The whole machine is made of corrosion-resistant stainless steel, which is easy to clean and disinfect, and meets the national
regulations and requirements on food machinery and food hygiene;
9. Imported PLC and 7-inch touch screen man-machine interface, production parameterized control, simple operation;
10. This kind of production line is relatively advanced, and can be improved according to the different requirements of customers,
and can be made into equipment that fully meets the needs of customers, which is safe and hygienic.
11. Suitable for of different capacity, better accuracy. 12. Can be connected with capping machine, labeling machine, etc..
13. Easy to clean and simple to operate.




Advantages Of Linear Filling Machines
Linear filling machines are workhorses with many benefits. This makes them perfect for many businesses.
Affordability
Linear machines are relatively cheap to buy and easy to install. Spare parts are cheap and readily available, especially if you source locally.
Scalability
Linear machines are highly scalable. This means a business can easily make upgrades to increase production. You can even hire extra heads to cope with seasonal production demands. It is also possible to adjust linear machines without stopping production. Moreover, product changeovers take minimal time.
Simplicity
Linear machines are well known for their simplicity and reliability. They are intuitive to use and maintain. Even if the machine breaks down, repairs are usually quick. There is often no need for specialised repair technicians. This leads to less downtime and product wastage.
Smaller
Linear filling machines have a much smaller footprint than rotary machines. This is perfect for smaller businesses and production lines where space is at a premium.
Disadvantages Of Linear Filling Machines
Linear machines are discontinuous and can’t match the highest level of production throughput that some rotary machines can achieve. Whilst it isn’t likely to affect most small to medium businesses, much larger manufacturers sometimes prefer the output of a rotary machine in their production line.
Linear liquid filling machines are perfect for small and medium companies with lower production needs. They are also useful for start-ups wanting to test the waters or companies with a range of product types

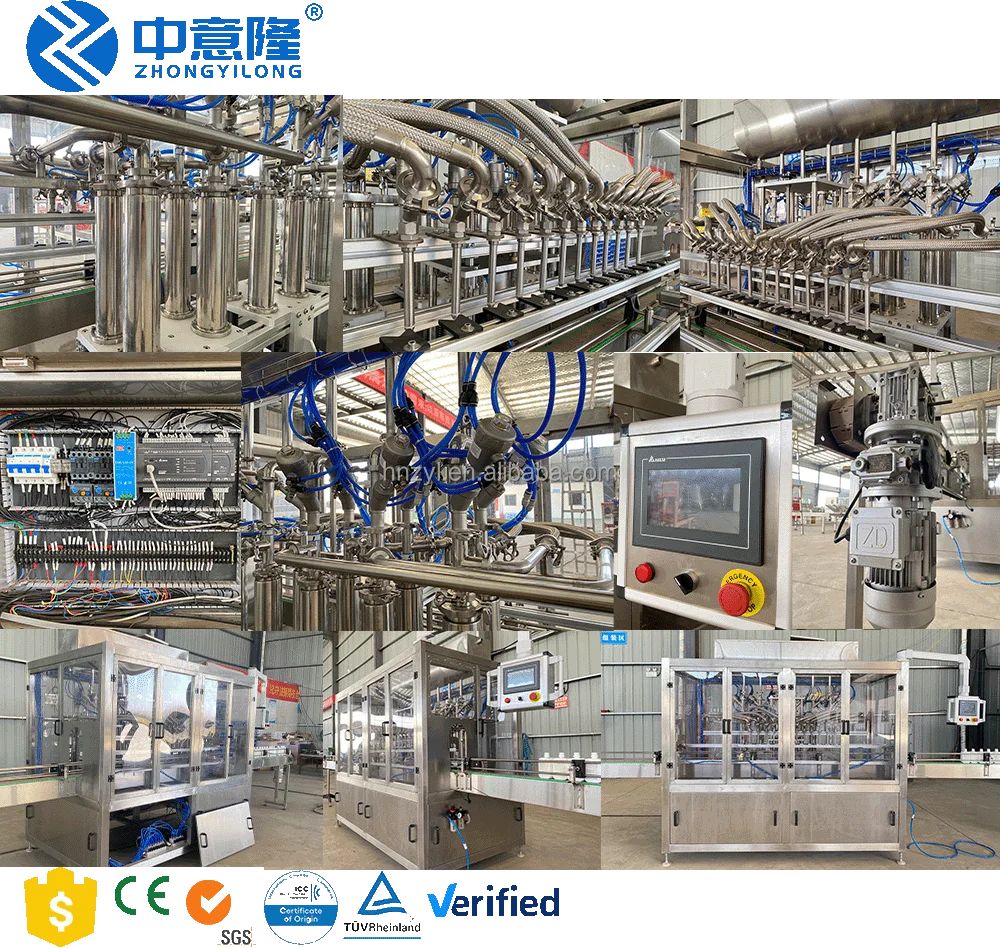

Product details

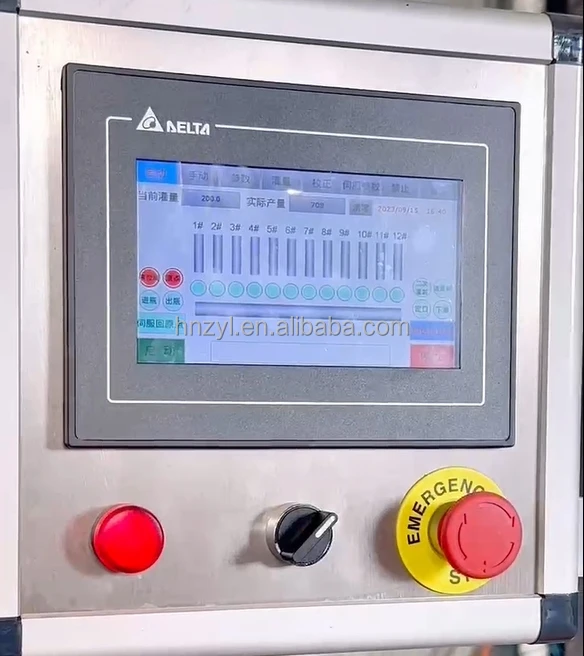

PLC Part.
Through touch screen panel,it is easy to set or adjust working parameters.The language of it can be customized as needed.The data
can be stored in panel and be reused at next time,saving time on operation process.

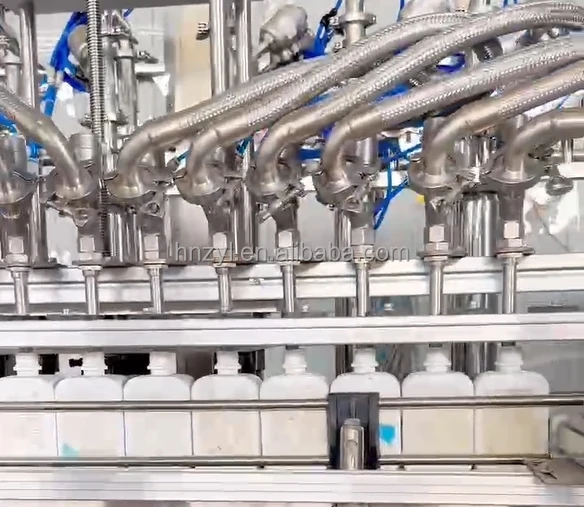

Filling Part.
Driven by servo motor,it can run stably and fill paste or liquid accurately.The filling speed can be set in two stages, enabling
it to fill foamy liquid like soybean milk.Quantity of filling heads can be customized as needed.
With large-capacity hopper,it is easier to pour materials,improving working efficiency.It can be equipped with mixer and heater,which can ensure smooth filling.
Please contact us if you need.

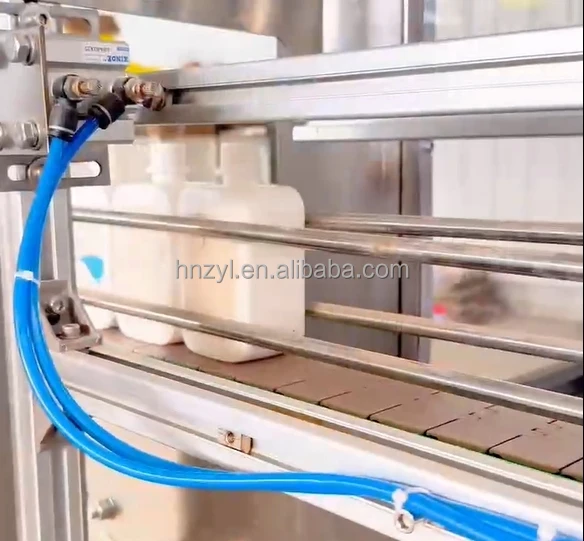

Conveyer Flat.
With chain conveyor belt,it has large loading capacity,which can transport products stably.The conveying speed and width of conveyor belt can be adjusted as needed.
The conveying is smooth, there is no relative movement between the material and the conveyor belt, which can avoid the damage to the conveying material, the structure is simple, easy to maintain, the energy consumption is small, the use cost is low.




Main configuration:
1. Frame, foot and guardrail materials: aluminum profile, 304 stainless steel
2. Pneumatic components: Taiwan brand AIRTAC
3. Program controller: aelta
4. Man machine interface: aelta 7-inch color touch screen
5. power supply: MEAN WELL
6. Relay and air switch: chnt
7. Motor frequency converter: Aelta
8. Materials of exposed parts: aluminum profile, stainless steel, anodized aluminum alloy, electroplated 45
steel and plastic parts




application






OEM/ODM


Supply bottle&label design and factory layout for free!




Why Choose Us




Related products






About us


This is us
Henan Zhongyilong Machinery is a high-tech manufacturing company specializing in automatic packaging machinery for food, beverage, and chemical products used in daily life.
Our company has specialised in food & beverage processing line for over many years and has successfully set up 300 factories for domestic and international customers.
Every day, people all over the world consume products packaged by Zhongyilong machinery solutions. Each of these packaging solutions is developed with the aim of providing consumers with the highest quality standards. We are a leading provider of equipment, services and complete solutions for packaging liquids, food, home and personal care products in PET, cans, glass and other materials.
Zhongyilong Machinery is the A to Z turnkey plant provider, we are committed to our customers' success. When you partner with us, you can be sure to get solutions that will optimise your product packaging, enhance line performance, and help you grow your business.
We lead the market in the field of liquid bottling, blow moulding, labelling, packaging machinery and process technology for water,juice,carbonated drinks,edible oil,dairy and daily care products etc.We can customize the beverage production line process and formula according to customer's requirements. We can provide fully automatic or economical solution for each customer.
We provide one-stop service to help customers build food and beverage plants: process formula, equipment selection, installation and commissioning, technical training, and after-sales service.
We look forward to your enquiry and cooperation. Welcome to inquire and visit our factory.








FAQ


Q1: Where is your factory? How can I visit your factory?
A: Our factory is located in Henan Province. If you have a travel plan, we warmly welcome you to visit our factory

Q2: Can you send me a video to show me how the machine works?
A: Of course, we made videos of each machine

Q3: How do I know your machine is designed for my product?
A: You can send us your product samples, and we will test them on the machine

Q4: How do I pay for my order?
Answer: Usually we accept L/C, D/A, D/P, T/T, Western Union, MoneyGram and cash payment

Q5: Do you have a Ce certificate?
A: For each model of machine, it has CE certification
