High Precision 10 rpm 220v 2l/min Smart Laboratory Stepper Motor Peristaltic Pump
- Category: >>>
- Supplier: Zhengzhou Xianglu Machinery Co. Ltd.
Share on (1601116849065):
Product Overview
Description
Product Description

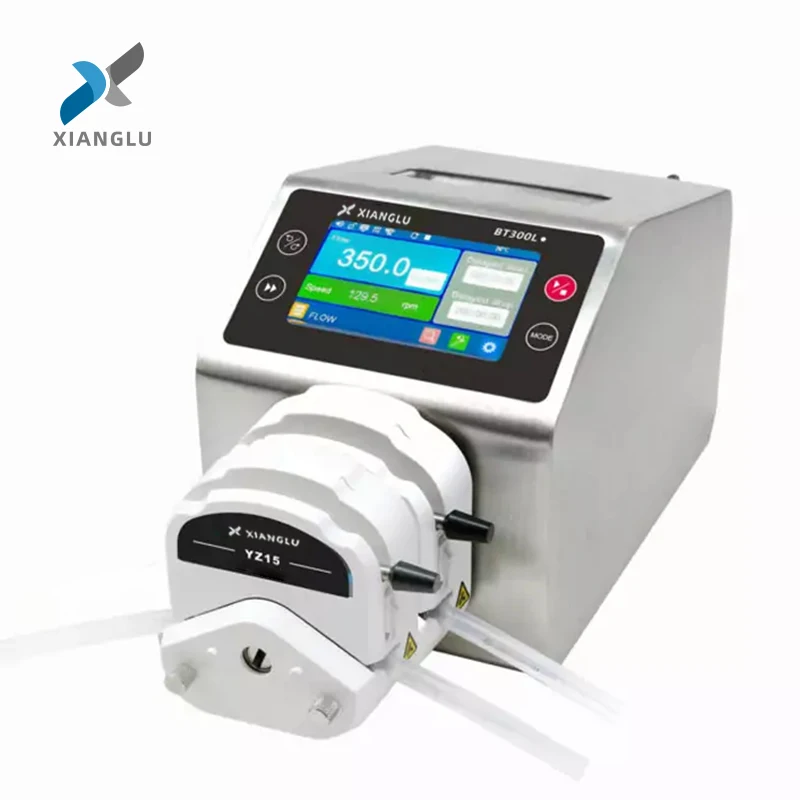

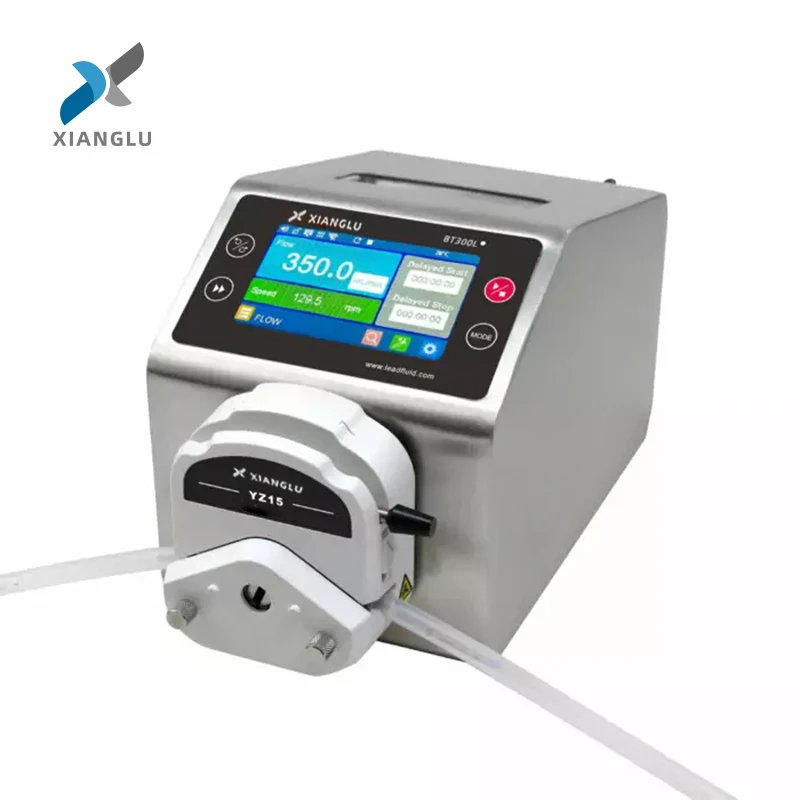

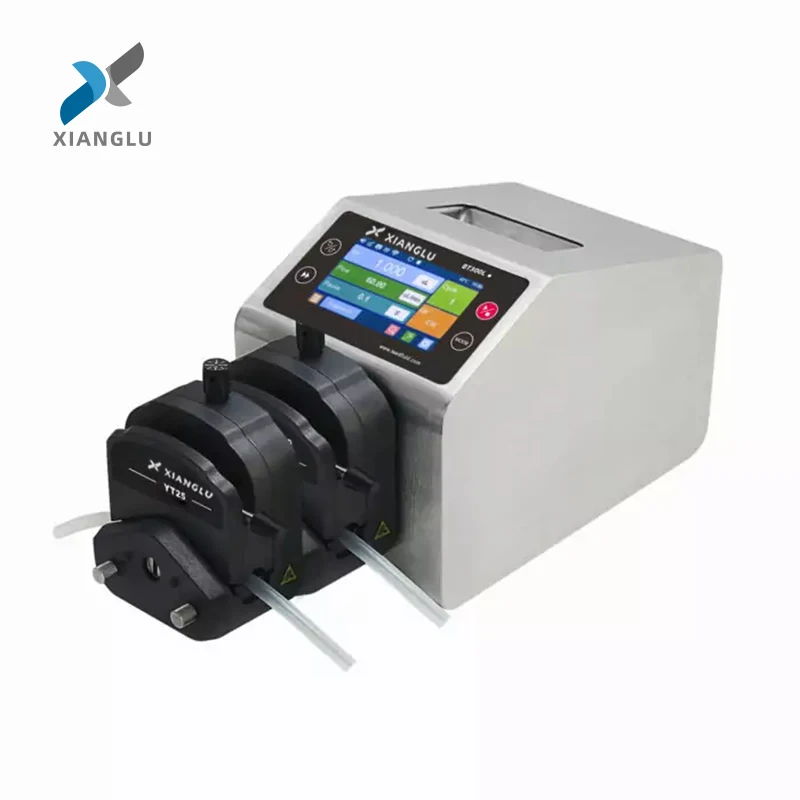

BT300L Intelligent Flow Peristaltic Pump
BT300L intelligent flow peristaltic pump, can realize high precision continuous transmission and simple quantitative function. 4.3 inch HD LCD touch screen display, simple operation. Support XIANGLU APP software,which can remotely control the pump and monitor the running status in real time. Powerful functions to meet complextransmission requirements. RS485 communication, MODBUS protocol is available, adapt to different communication equipment.
Flow: 0.005～1750mL/min
Max: 2 Channels
Category: Intelligent Flow Pumps
Tags: intelligent flow peristaltic pump, peristaltic pump manufacturer
BT300L intelligent flow peristaltic pump, can realize high precision continuous transmission and simple quantitative function. 4.3 inch HD LCD touch screen display, simple operation. Support XIANGLU APP software,which can remotely control the pump and monitor the running status in real time. Powerful functions to meet complextransmission requirements. RS485 communication, MODBUS protocol is available, adapt to different communication equipment.
Flow: 0.005～1750mL/min
Max: 2 Channels
Category: Intelligent Flow Pumps
Tags: intelligent flow peristaltic pump, peristaltic pump manufacturer
Functions and Features

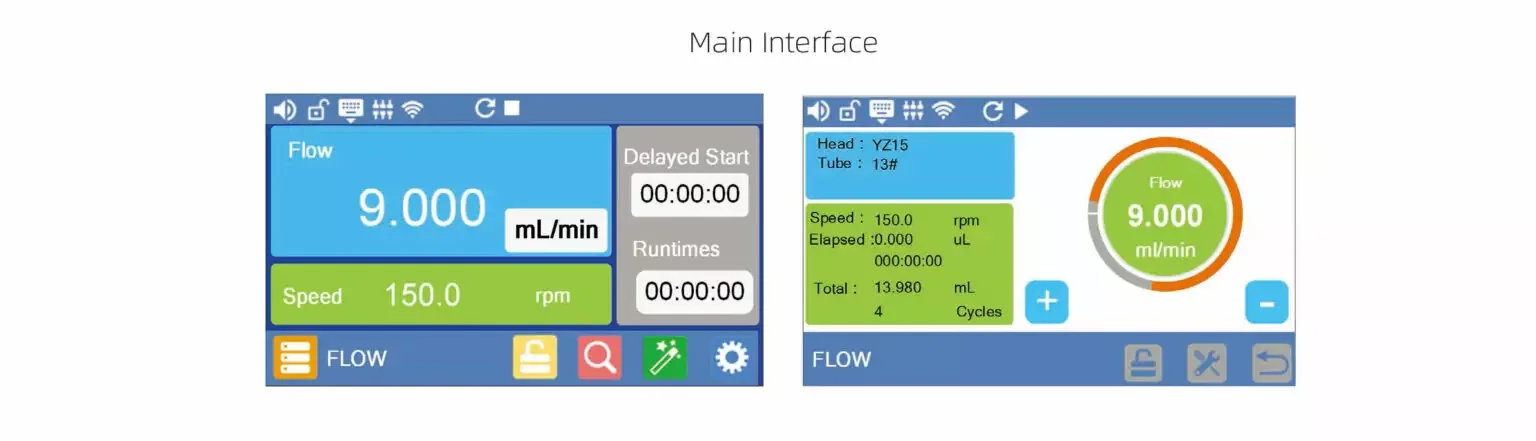

• 4.3 inch color LCD display, visual.
• Touch screen cooperates with keypads operation, bring good user experience.
• LF-Touch-OS software system, efficient and stable, has a good human-computer interaction mode. convenient product customization and upgrading.
• With the standard function such as start/stop, reversible direction,full speed, back suction, state memory, Can directly input flow or speed parameters .
• With the flow and time working mode.
• Precise flow control and display, micro-step algorithm to ensure the dispensing accuracy of different settings.
• Wizard-type flow calibration function, simple and easy to use.
• Delay start and delay stop function.
• Unique back suction function to effectively prevent liquid dripping.
• Reserved five-group dispensing parameters for time dispensing.
• Intelligent temperature control function, automatically adjust heat dissipation according to the environment, so that the equipment is always in the best state.
• WIFI control function, remote operation can be realized through the XIANGLU APP software, and has monitoring functions such as shutdown alarm and reminding to replace the pump tube.
• External analog speed regulation, external control signal control start-stop, reversible direction, dispensing, external control signal , physical isolation.
• RS485 communication, the MODBUS protocol, supporting up to 80 programming instructions, convenient connect with various control devices.
• Open multiple control parameters for OEM customized applications.
• The circuit board is sprayed with three anti paint processes to achieve dust and moisture-proof effect.
• Super Anti-interference characteristics, wide voltage design, suitable for complex power supply environment.
• 4.3 inch color LCD display, visual.
• Touch screen cooperates with keypads operation, bring good user experience.
• LF-Touch-OS software system, efficient and stable, has a good human-computer interaction mode. convenient product customization and upgrading.
• With the standard function such as start/stop, reversible direction,full speed, back suction, state memory, Can directly input flow or speed parameters .
• With the flow and time working mode.
• Precise flow control and display, micro-step algorithm to ensure the dispensing accuracy of different settings.
• Wizard-type flow calibration function, simple and easy to use.
• Delay start and delay stop function.
• Unique back suction function to effectively prevent liquid dripping.
• Reserved five-group dispensing parameters for time dispensing.
• Intelligent temperature control function, automatically adjust heat dissipation according to the environment, so that the equipment is always in the best state.
• WIFI control function, remote operation can be realized through the XIANGLU APP software, and has monitoring functions such as shutdown alarm and reminding to replace the pump tube.
• External analog speed regulation, external control signal control start-stop, reversible direction, dispensing, external control signal , physical isolation.
• RS485 communication, the MODBUS protocol, supporting up to 80 programming instructions, convenient connect with various control devices.
• Open multiple control parameters for OEM customized applications.
• The circuit board is sprayed with three anti paint processes to achieve dust and moisture-proof effect.
• Super Anti-interference characteristics, wide voltage design, suitable for complex power supply environment.
Specification
Flow range | 0.005～1750mL/min |
Speed range | 0.1～350 rpm |
Speed resolution | 0.1rpm |
Speed accuracy | ＜±0.2% |
Delayed startup time | 0.1～999.9 S/Min/H |
Delay stop time | 0.1～999.9 S/Min/H |
Dispensing time | 0.1～99.99 S/Min/H, time unit adjustable |
Dispensing number | 1~999, 0 Infinite cycle |
Dispensing interval | 0.1~999 S/Min/H |
External control signal input | (1) Start/Stop: passive contact, external control input level (5~24V) (2) Forward/Reverse: passive contact, external control input level (5~24V) (3) Speed Regulation: analog 0~5V, 0~10V, 4~20mA can be set. |
External control signal output | (1) Start/Stop: Level Signal (following input voltage) (2) Forward/Reverse: Level Signal (following input voltage) (3) Speed Status: Analogue 0~5V |
Communication interface | RS485 communication interface, Modbus protocol is available |
Power supply | AC100～240V，50Hz/60Hz |
Power consumption | <40W |
Working environment | Temperature 0 ～ 40℃, relative humidity＜80% |
IP grade | IP31 |
Dimension（L×W×H） | 292X160X183mm |
Weight | 4.5 kg |

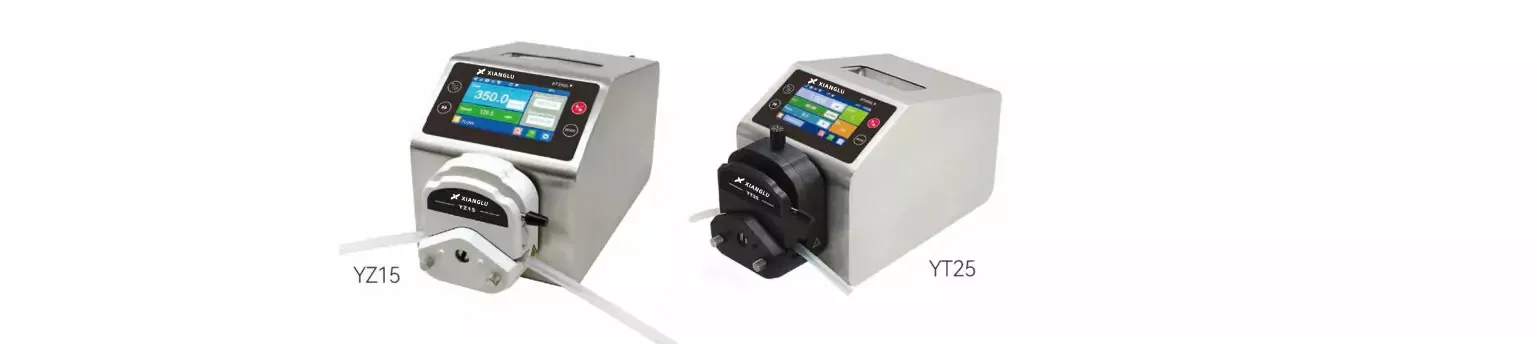

BT300L Suitable Pump Heads and Tubing, Flow Parameters
Drive type | Pump head | Ch | Tubing size (mm) | Flow rateper channel (mL/min) |
BT300L | YZ15 | 1,2 | 13#14#19#16#25#17#18# | 0.005～1495 |
YT25 | 1,2 | 114#116#15#24#35#36# | 0.024～1750 |
Above flow parameters are obtained by using silicone tube to transfer pure water under normal temperature and pressure, in actually it is effected by specific factors such as pressure, medium, etc. Above for reference only.

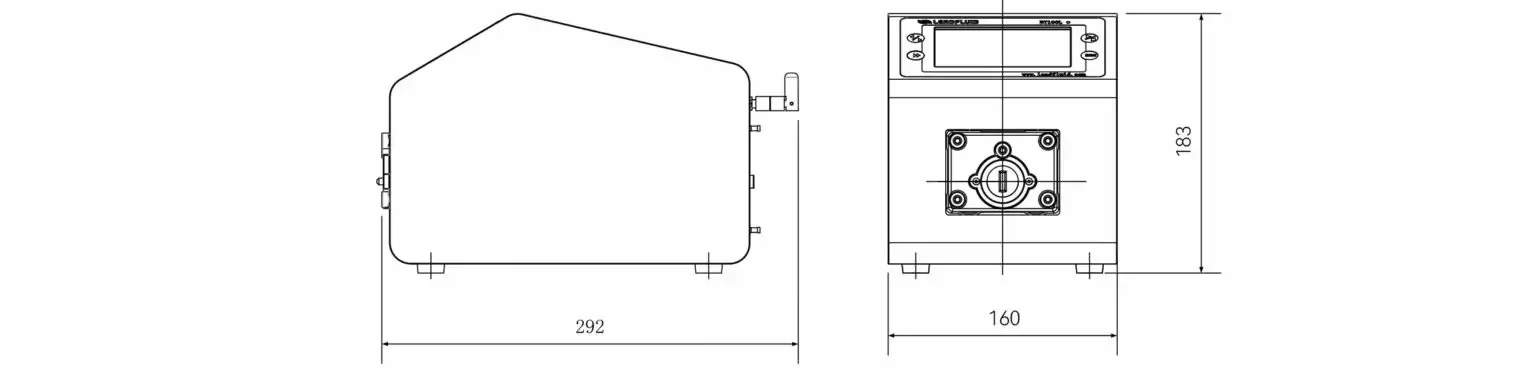

Dimension（mm）
Dimension（mm）
Company Profile
Zhengzhou Xianglu Machinery Co.,Ltd.(XIANGLU) is a high -tech enterprise integrating R&D, production, sales, import andexport, and is a leading laboratory equipment soluion provider in China. After 15 years of hard work,it has achieved sustained and steadydevelopment, and its products are exported to Europe, America, Southeast Asia, the Middle East, South Afica, etc. 150 countries. We focusing on laboratory research, life science, biomedical engineering and other fields,our company has passedlS09001 qualitymanagement system certification. EU CE.SGS. TUV,CNAS and other certifications. XIANGLU can provide OEM and ODM service, we areworking hard to establish a global regional service agency to provide better services and products for global customers.
OUR OFFICE

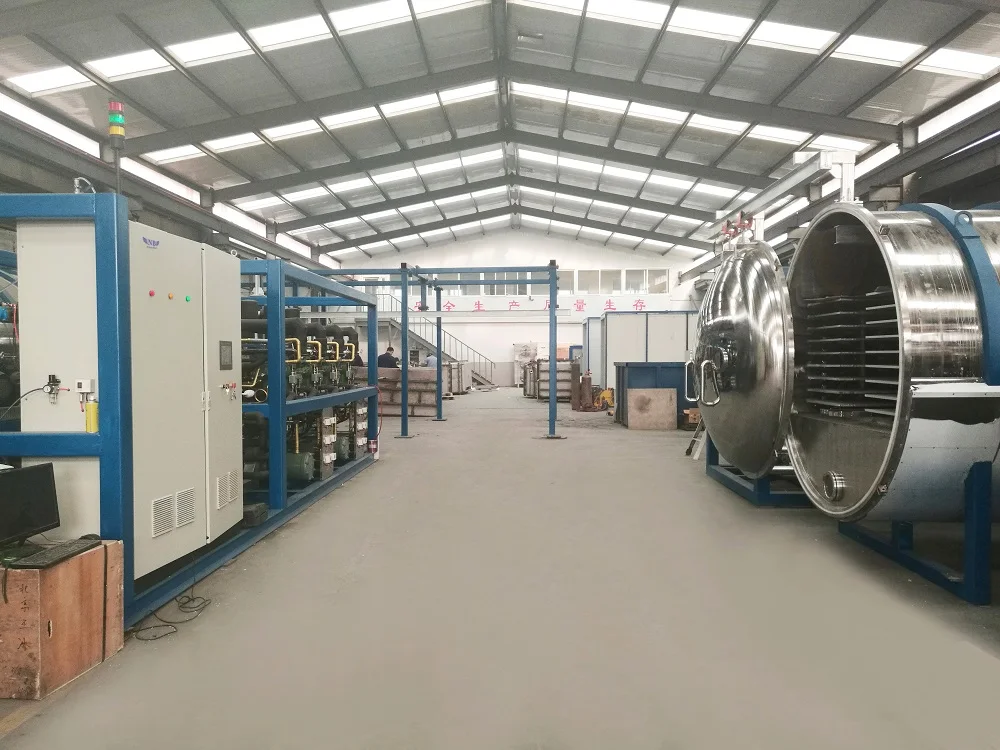

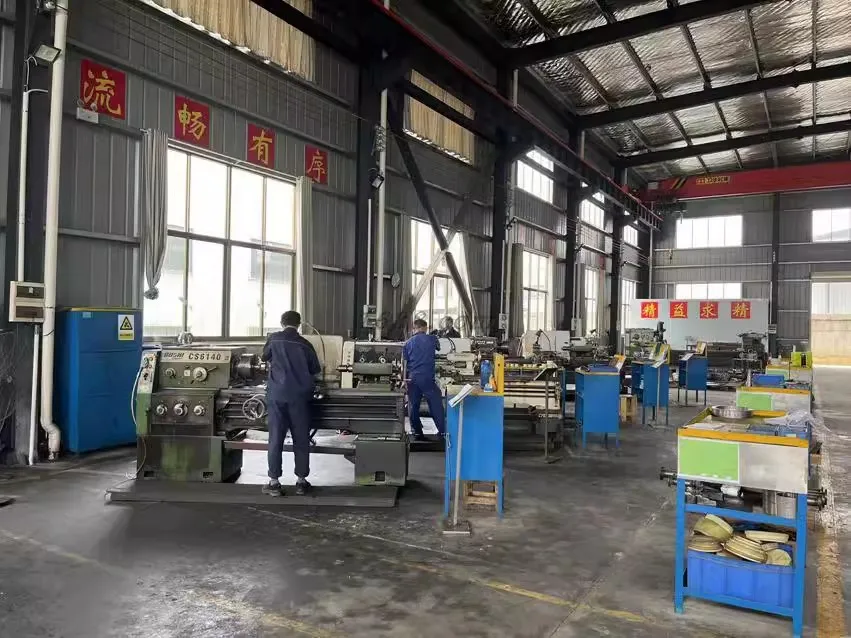

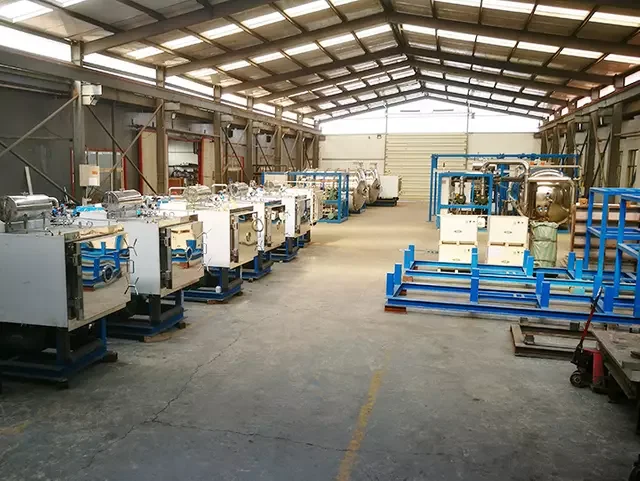

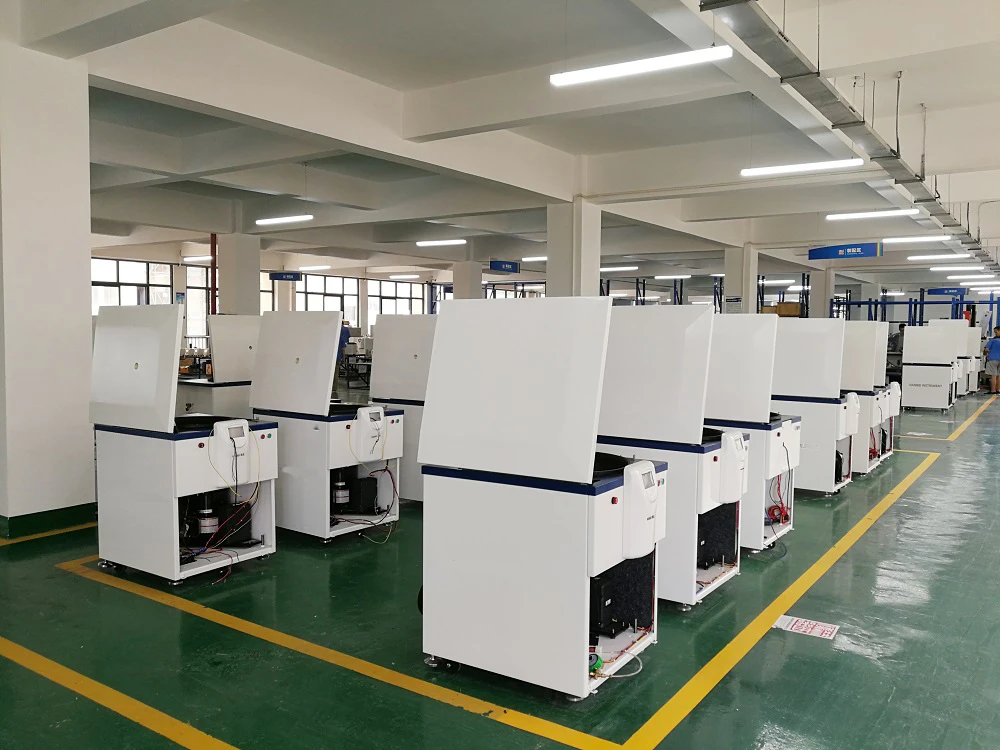

OUR FACTORY

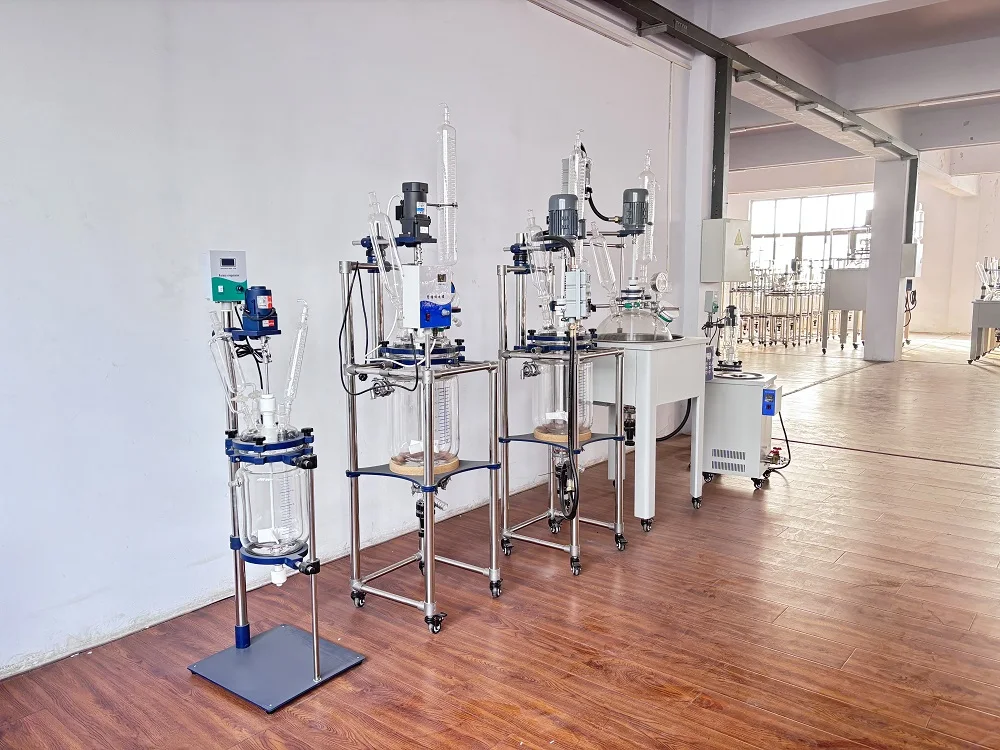

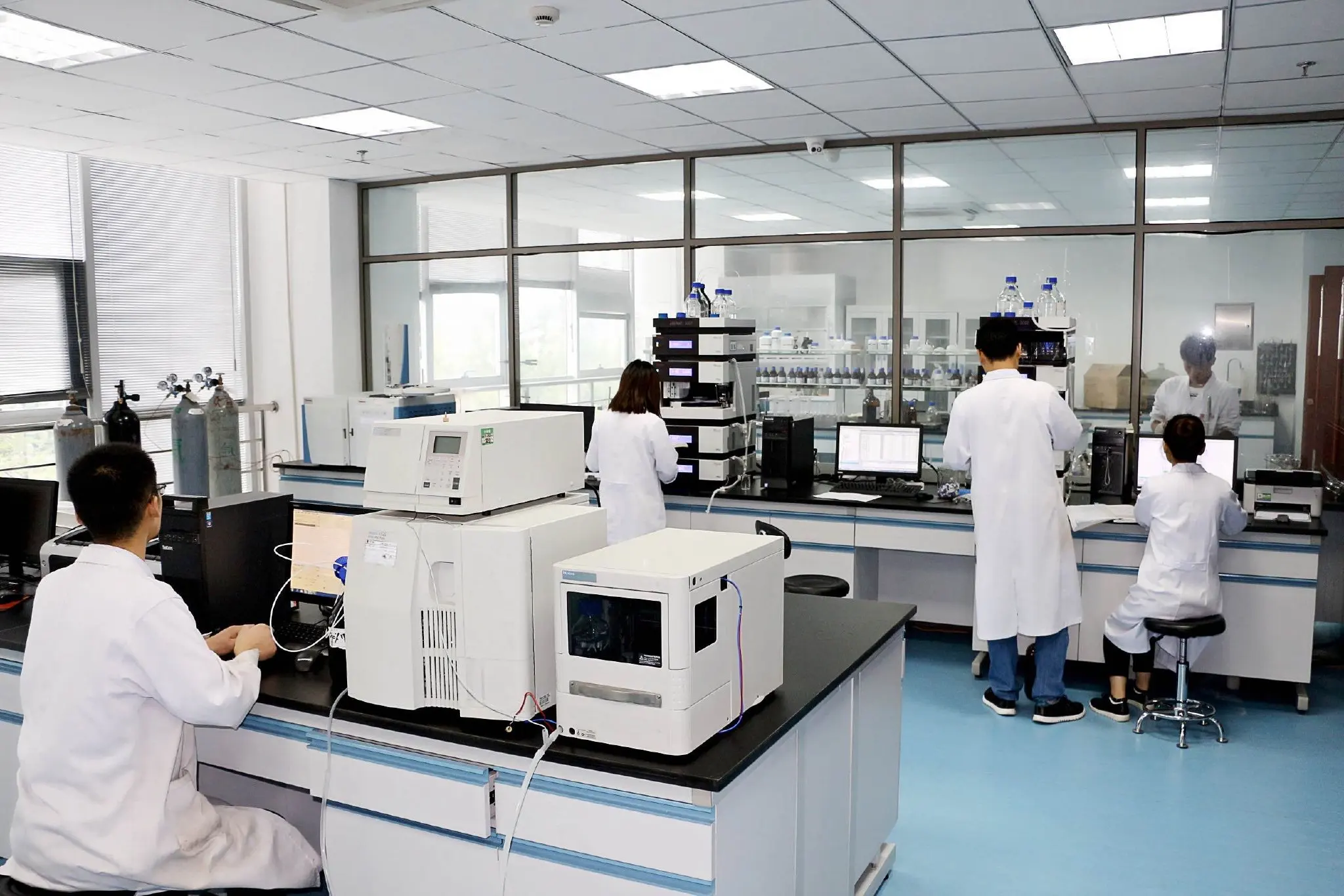

SAMPLE ROOM
OUR CUSTOMER
EXHIBITION

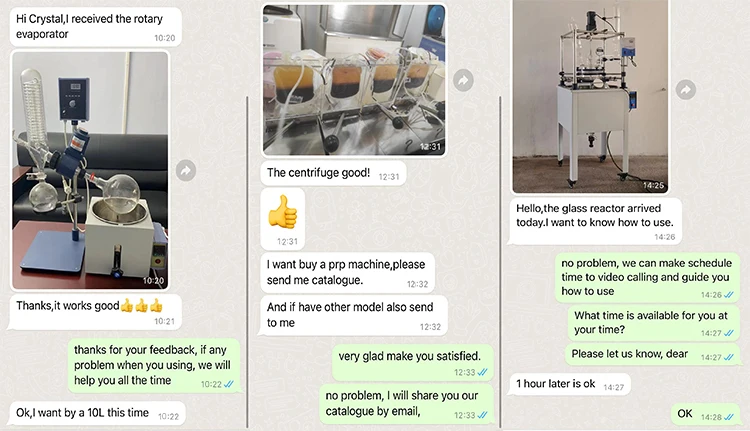

Customer Feedback
Packing & Delivery
FAQ
Q1: Why Choose XIANGLU ?
(1).Professional manufacturer with more than 13 years experience
(2).Exported to more than 97% Countries
(3).Turnkey Solution is no problem
Q2:OEM,ODM acceptable or not?
Absolutely Yes
Q3:What's kind of Payment terms for customer choosing?
T/T ,Western Union, Money Gram , Credit Card, Paypal , L/C ...
Q4:Can you visit your factory online?
Absolutely no problem
Q5:Can online video inspection before shipment?
Absolutely no problem
Q6: what's the MOQ ? Sample order is OK?
MOQ:1 set, sample order is no problem
Q7:What's kind of shipment for customer choosing?
Usually ship by sea, by air, by international express .
We can also provide reasonable solutions according to your transportation requirements
Q8:How to ensure product quality and after-sales service?
We have CE, ISO quality certificate, and SGS authentication.
After-sale service:
1.Warranty : 1 year
2.We supply free part for quality problem in warranty
3.Long life technical support and service
(1).Professional manufacturer with more than 13 years experience
(2).Exported to more than 97% Countries
(3).Turnkey Solution is no problem
Q2:OEM,ODM acceptable or not?
Absolutely Yes
Q3:What's kind of Payment terms for customer choosing?
T/T ,Western Union, Money Gram , Credit Card, Paypal , L/C ...
Q4:Can you visit your factory online?
Absolutely no problem
Q5:Can online video inspection before shipment?
Absolutely no problem
Q6: what's the MOQ ? Sample order is OK?
MOQ:1 set, sample order is no problem
Q7:What's kind of shipment for customer choosing?
Usually ship by sea, by air, by international express .
We can also provide reasonable solutions according to your transportation requirements
Q8:How to ensure product quality and after-sales service?
We have CE, ISO quality certificate, and SGS authentication.
After-sale service:
1.Warranty : 1 year
2.We supply free part for quality problem in warranty
3.Long life technical support and service
