Biobase China Microtome BK 2178 Pathology equipment manufacturer Manual Rotary Microtome for sale
- Category: >>>
- Supplier: Biobase Medstar Co. Ltd.
Share on (1601116966708):
Product Overview
Description
Product Description

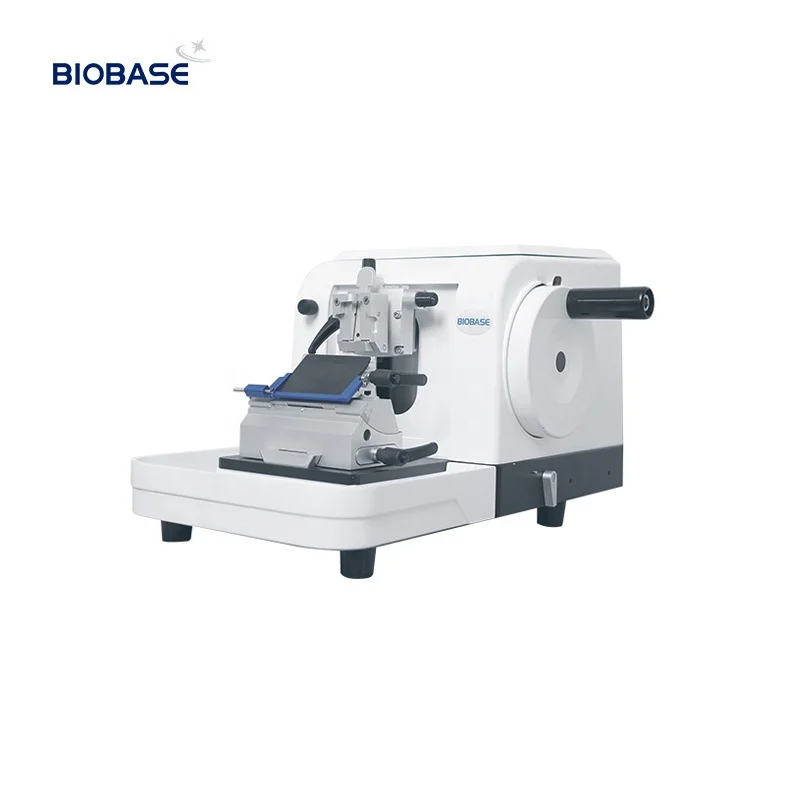

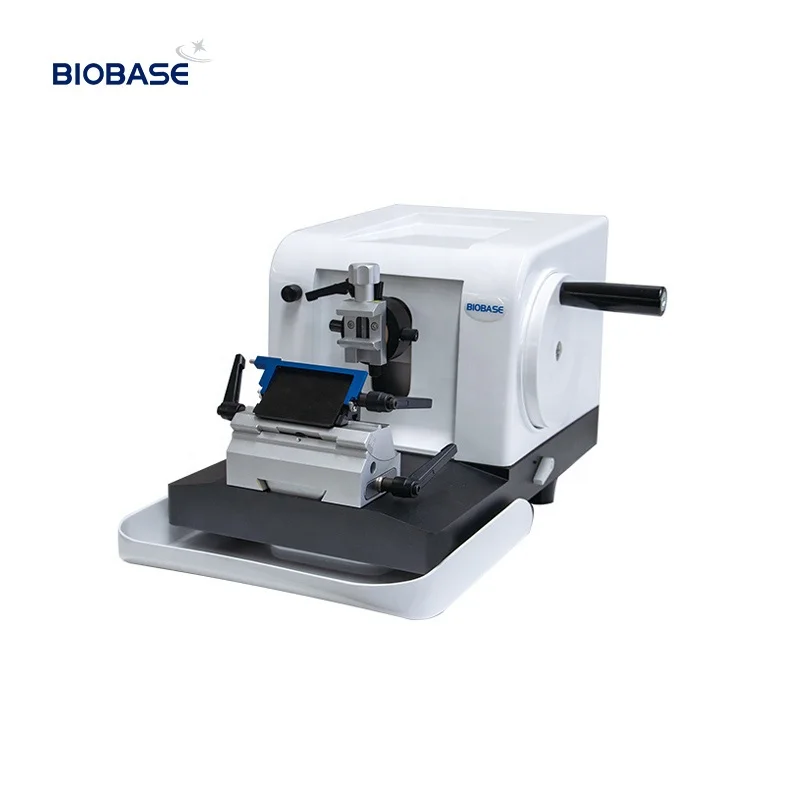

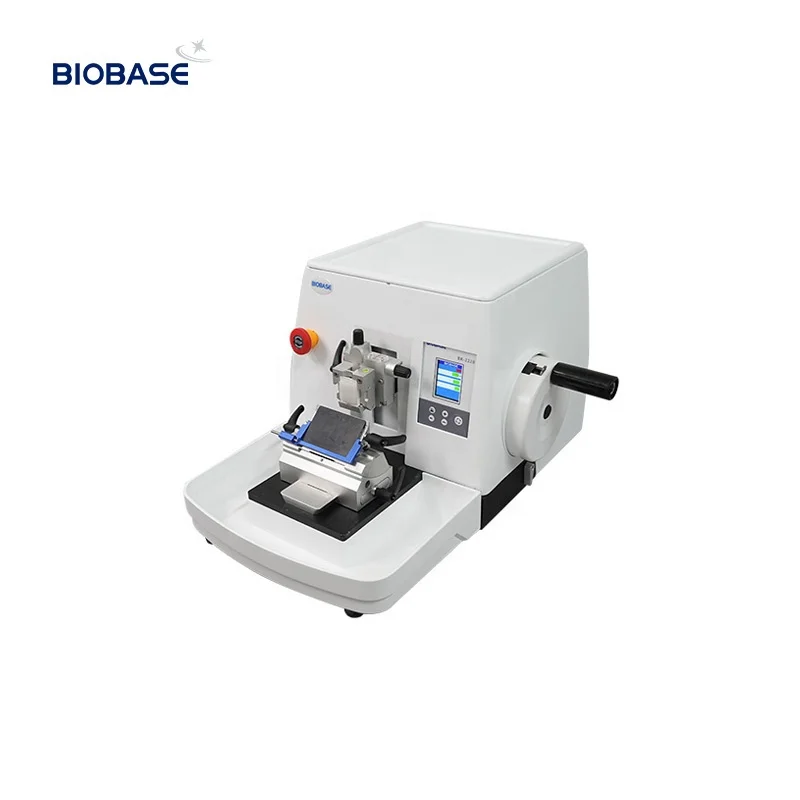

BIOBASE Manual Rotary Microtome
Features
Introduction：
* These rotary microtomes equipped with imported roller guide rails and high-precision roller screws. This is an ideal device for
use in histology due to its ergonomic design, compact structure, high precision, and stable and reliable performance.
Features:
* Large-volume removable waste tray on the top of housing, convenient to use.
* Imported cross-roller guide rails andhigh-precision screw motion mechanism.
* Advanced high-precision micro-drive feed system enables stable and high-precision sectioning.
* Small coarse-advance hand-wheel is close to the operator, in accordance with an ergonomic design.
* The precise positioning system is not only easy to use, but also provides accurate X- and Y- axis adjustment.
* Hand-wheel balance is precisely adjusted and locked at any position, ensuring safetyand convenience of sectioning.
* Fast switching between paraffin block clamp and cassette clamp; Paraffin Block Clamp is for Standard Configuration, cassette clam is optional.
* Blade holder can be laterally movedwithout direct contact,enabling use of the entire length of the blade. (three different segments).
* Cassette clamp can be locked at any position along each of the three axes,enabling easy adjustment of the specimen sectioning angle.
* The red bar on the blade holder covers the whole length of blade to protect the user and enables easy changing of the blade.
* These rotary microtomes equipped with imported roller guide rails and high-precision roller screws. This is an ideal device for
use in histology due to its ergonomic design, compact structure, high precision, and stable and reliable performance.
Features:
* Large-volume removable waste tray on the top of housing, convenient to use.
* Imported cross-roller guide rails andhigh-precision screw motion mechanism.
* Advanced high-precision micro-drive feed system enables stable and high-precision sectioning.
* Small coarse-advance hand-wheel is close to the operator, in accordance with an ergonomic design.
* The precise positioning system is not only easy to use, but also provides accurate X- and Y- axis adjustment.
* Hand-wheel balance is precisely adjusted and locked at any position, ensuring safetyand convenience of sectioning.
* Fast switching between paraffin block clamp and cassette clamp; Paraffin Block Clamp is for Standard Configuration, cassette clam is optional.
* Blade holder can be laterally movedwithout direct contact,enabling use of the entire length of the blade. (three different segments).
* Cassette clamp can be locked at any position along each of the three axes,enabling easy adjustment of the specimen sectioning angle.
* The red bar on the blade holder covers the whole length of blade to protect the user and enables easy changing of the blade.
Product Paramenters
Model | BK-2178 |
Sectioning Thickness Range | 0～60μm |
Trimming Thickness Range | 0～60μm |
Mini. Sectioning Thickness | 0.5μm |
Precision | ±5% |
Max Specimen Size | 50×70(mm) |
Specimen Stroke | Horizontal: 28mm, vertical: 52mm |
Tool Holder Stroke | The maximum movement of the tool holder base is 60mm, and the maximum left and right movement of the tool holder is 23mm. |
Sample Adjustment Direction | Horizontal 8° Vertical 8° Rotation 360° |
External Size(L*W*H) | 537x465x306(mm) |
Net Weight | 29kg |
Packing Size(L*W*H) | 597*523*355mm |
Gross Weight | 39kg |
