Tobee Effluent Handling
$12,600

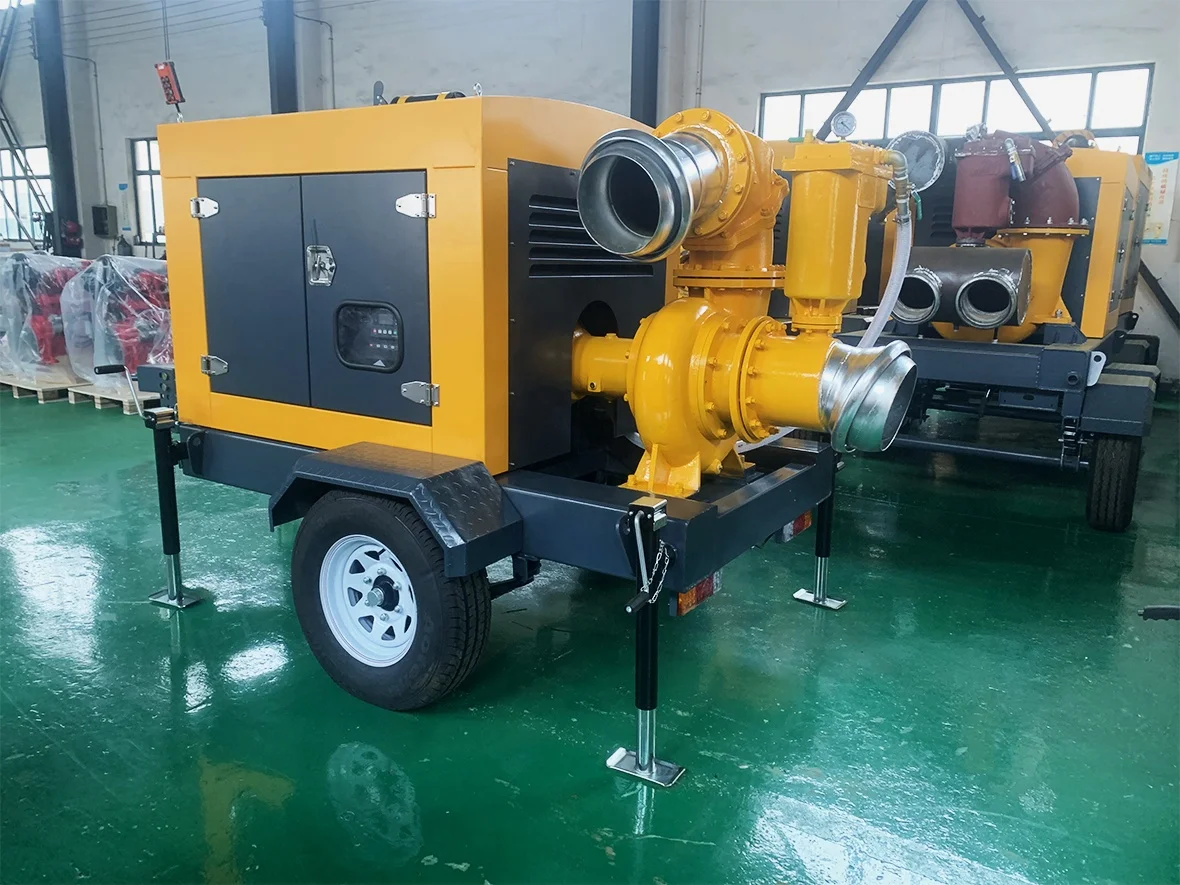

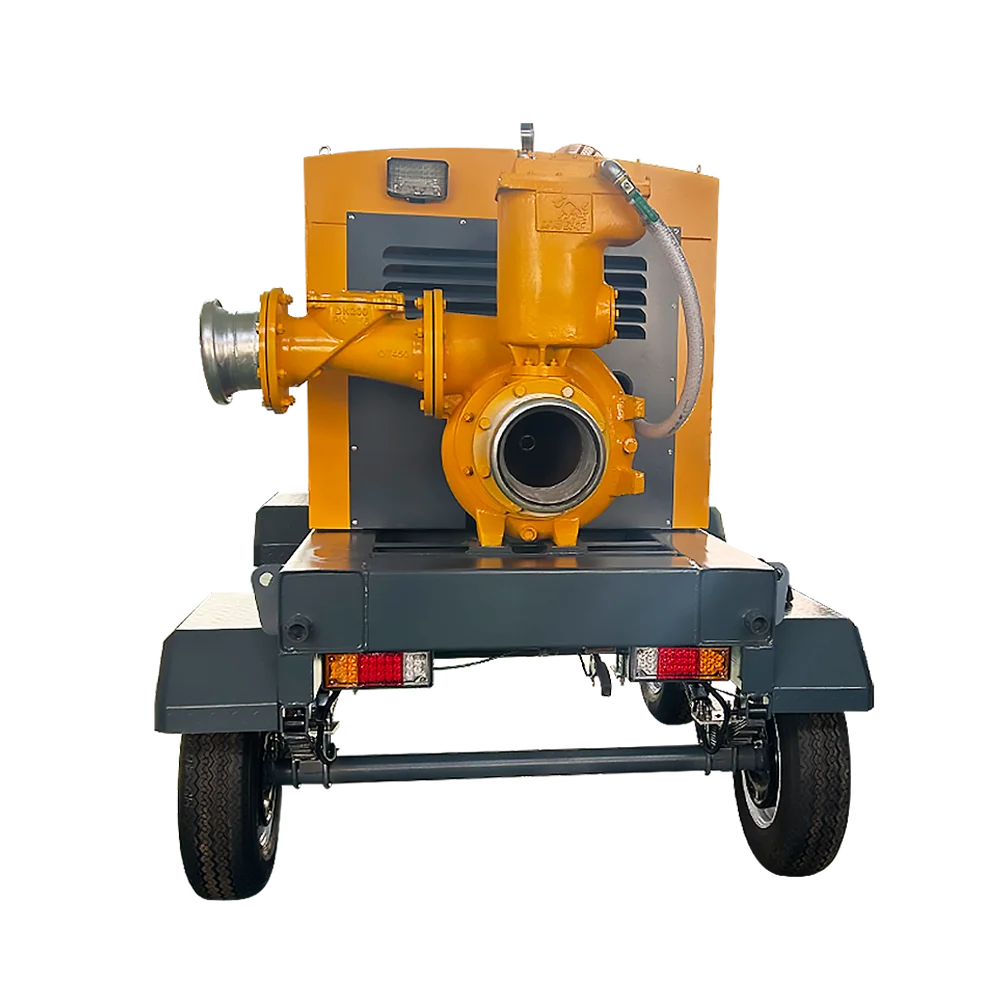

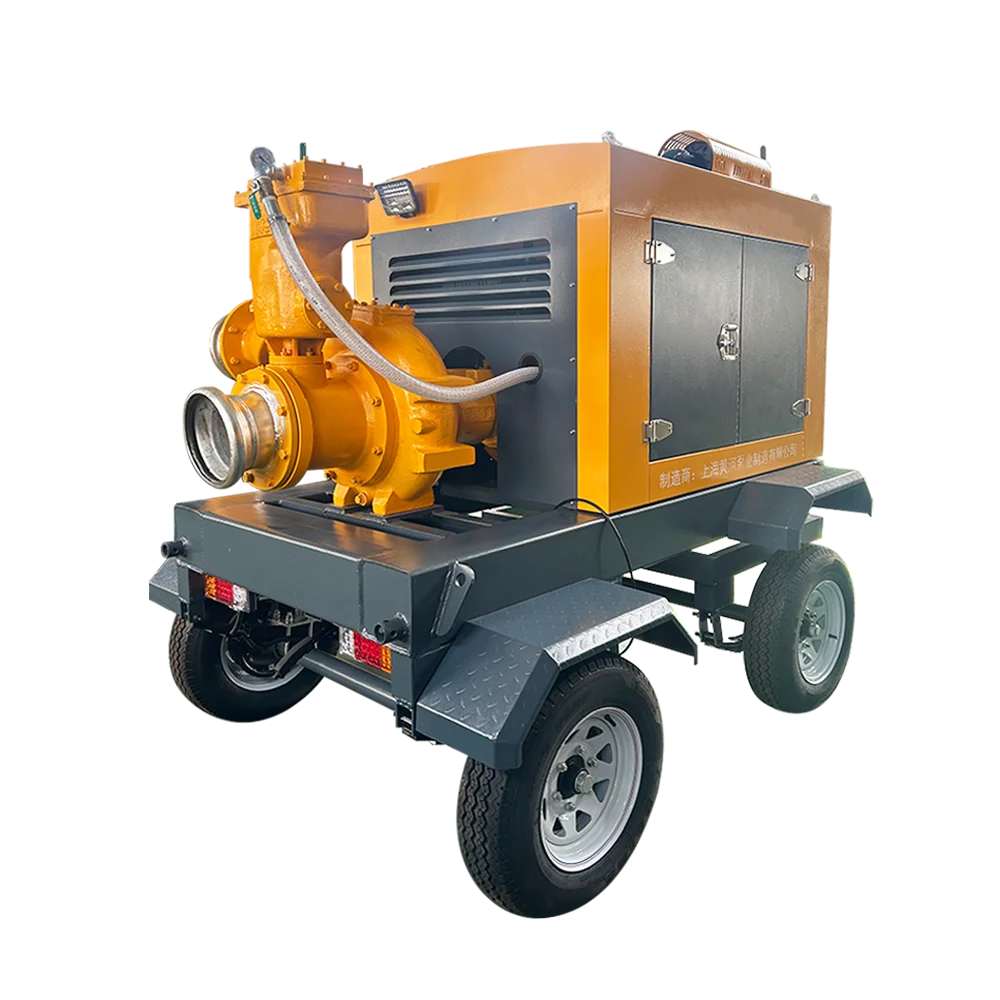

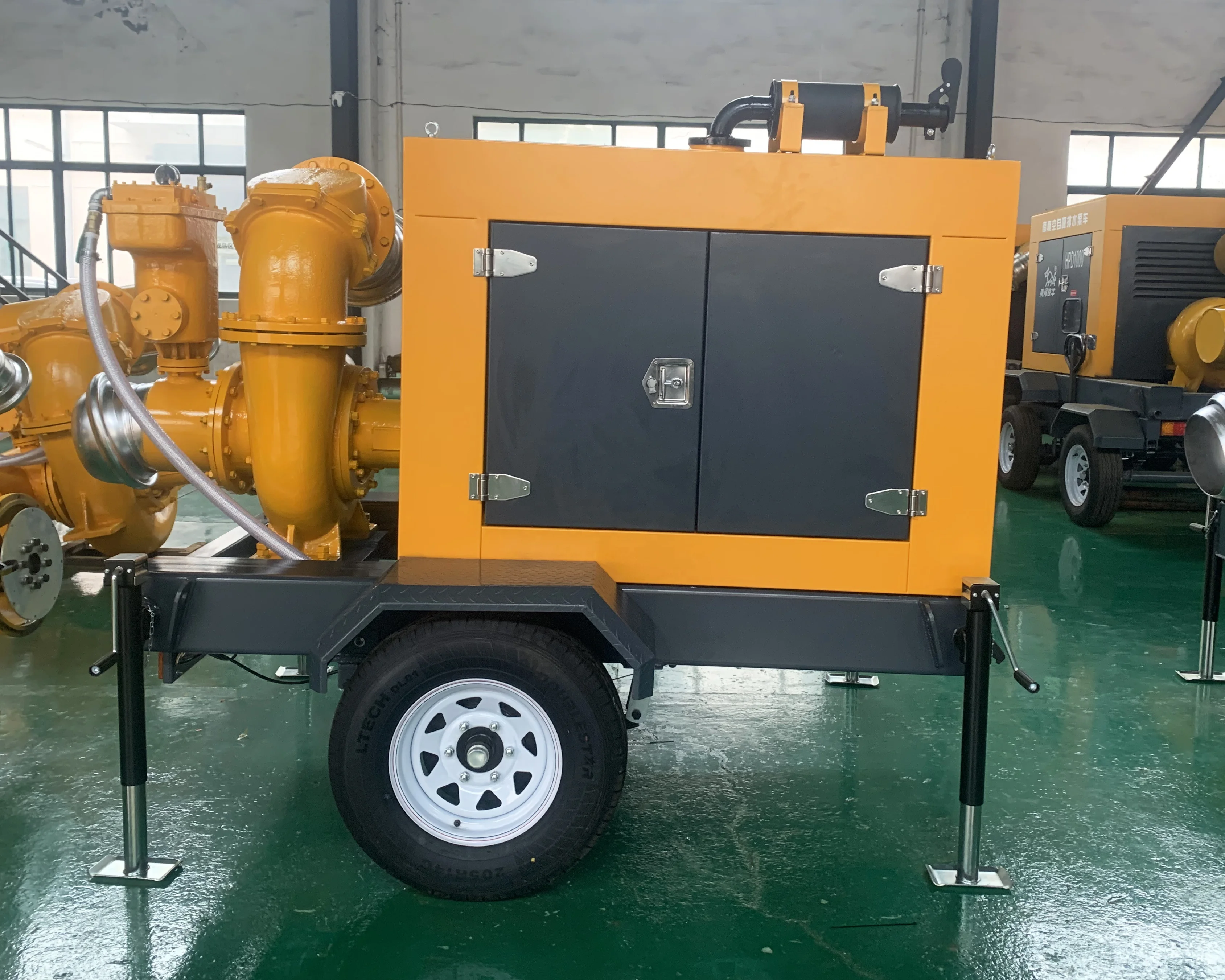

Custom high vacuum mobile self priming flood control pump with stainless steel impeller
- Category: >>>
- Supplier: Shanghai Huanghe Pump Manufacture Co. Ltd.Shanghai Ltd.
Share on (1601117229542):
Product Overview
Description
Certifications
Product description
M10 series high vacuum diesel engine self suction pump

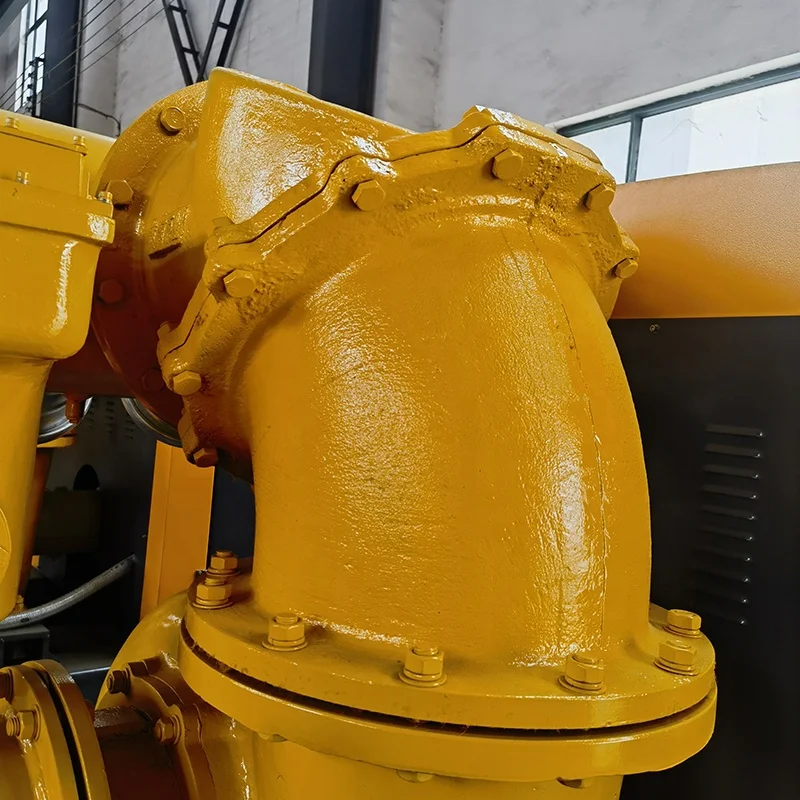

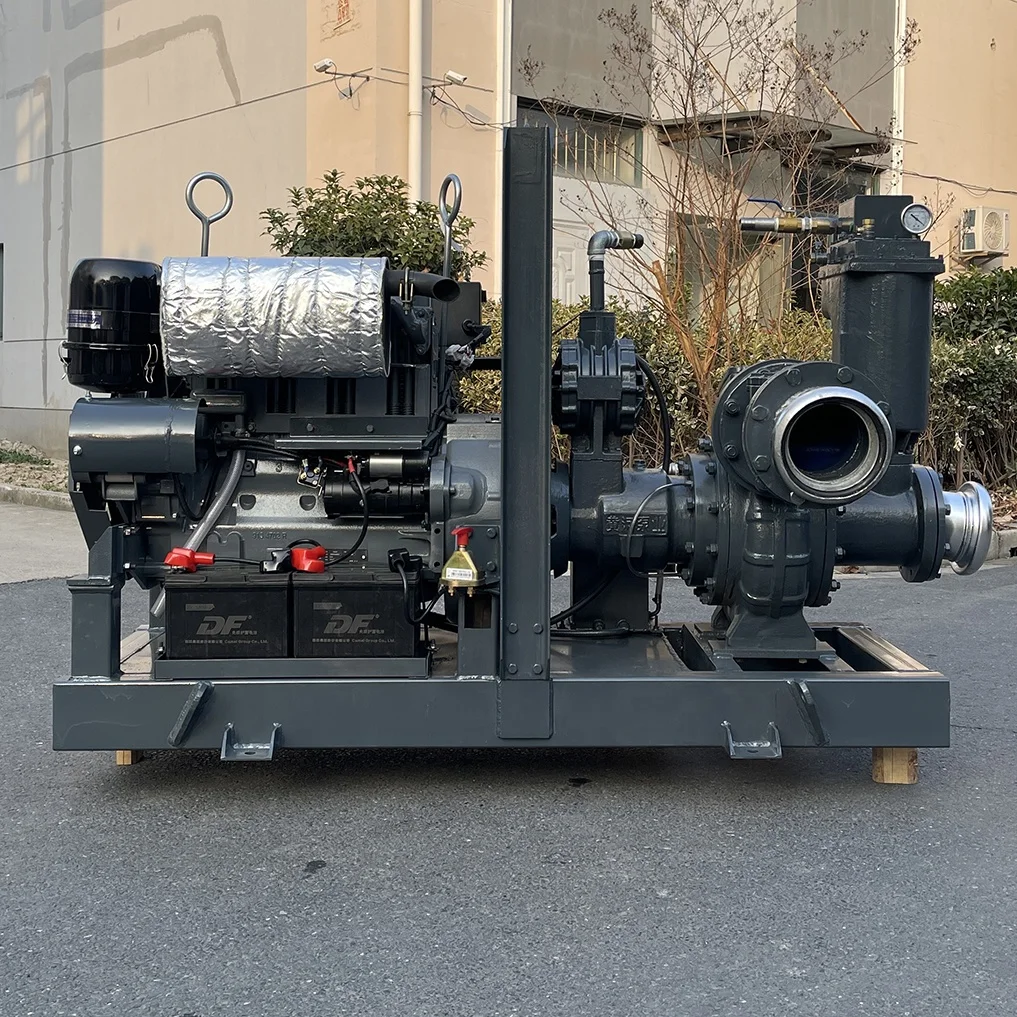

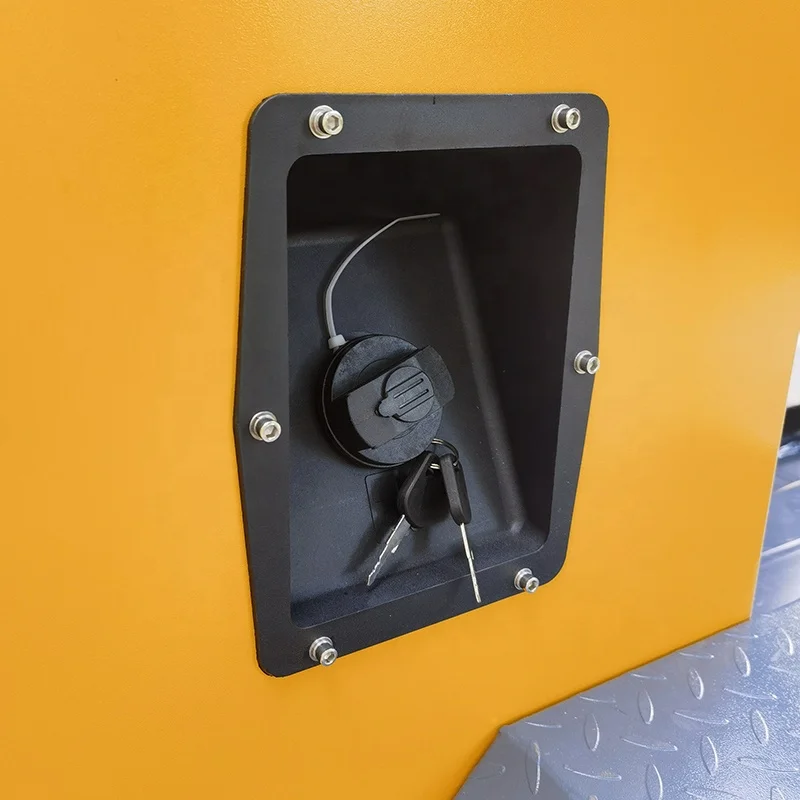

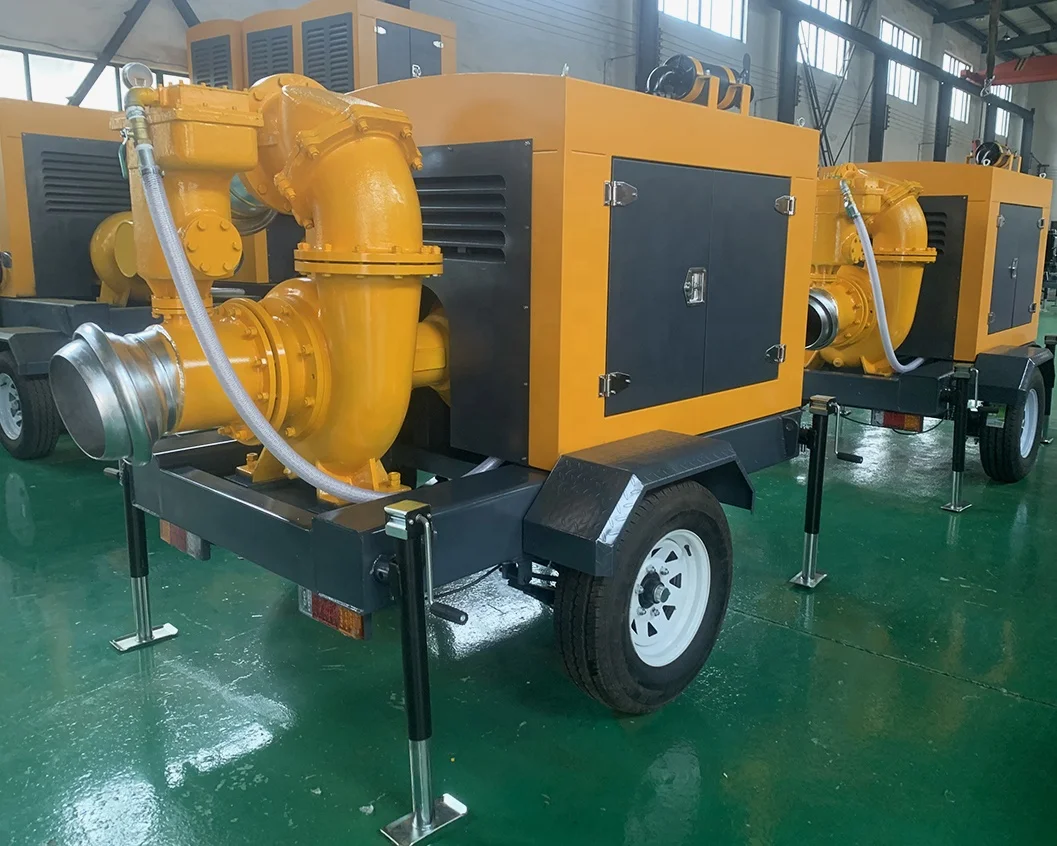

Product photos
Notes on secure transactions
Notes on secure transactions
1. You can send us an email or message(whatsApp/ wechat) to confirm the ordering details
2. Our minimum order quantity is one set
3.The delivery time is usually 10-15 working days after confirming payment
4.The product warranty period is 2 years (Usually, due to poor manufacturing, the company will replace and repair the product and parts for users free of charge. Product damage caused by human factors is not covered by the warranty)
2. Our minimum order quantity is one set
3.The delivery time is usually 10-15 working days after confirming payment
4.The product warranty period is 2 years (Usually, due to poor manufacturing, the company will replace and repair the product and parts for users free of charge. Product damage caused by human factors is not covered by the warranty)

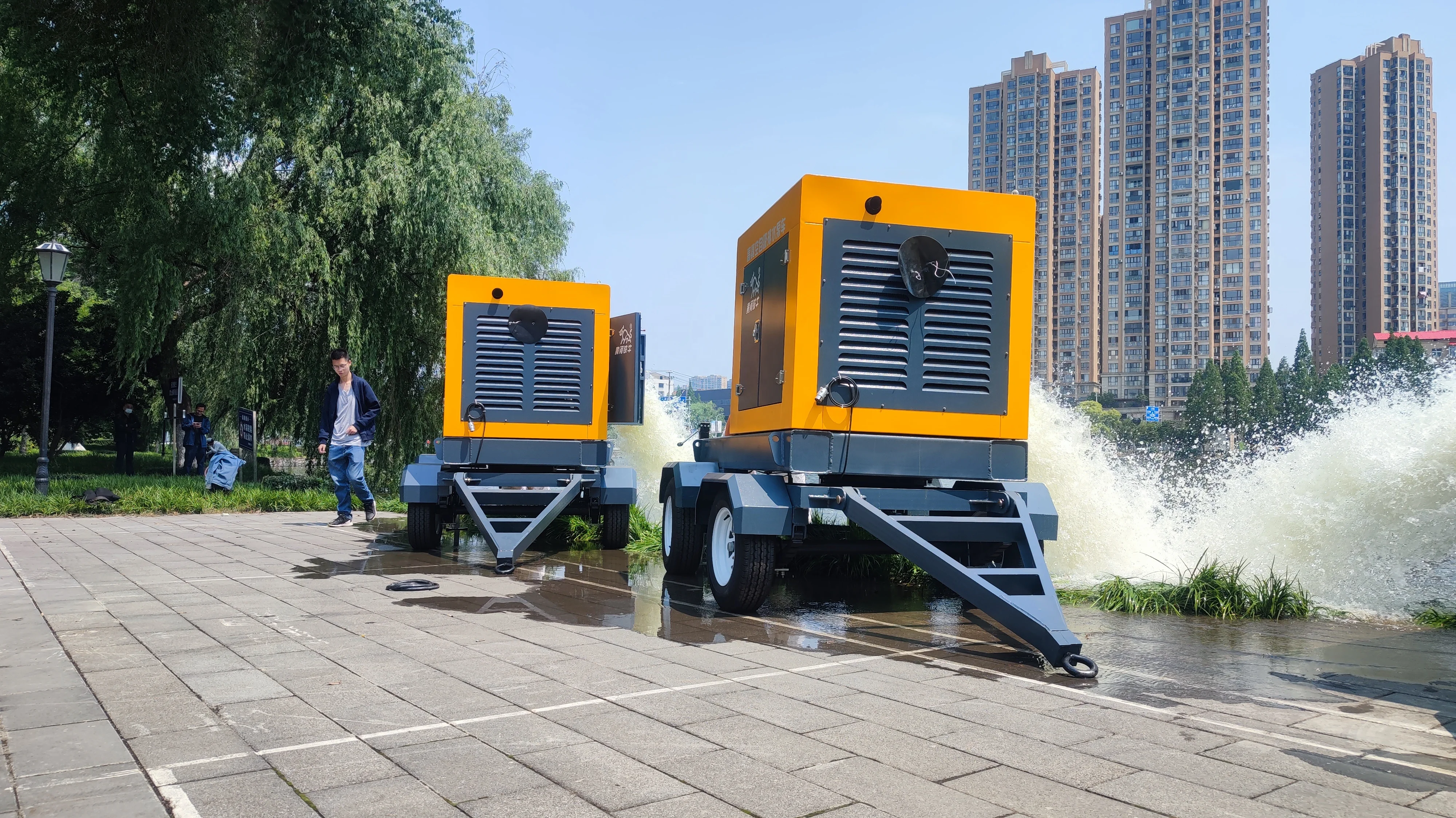

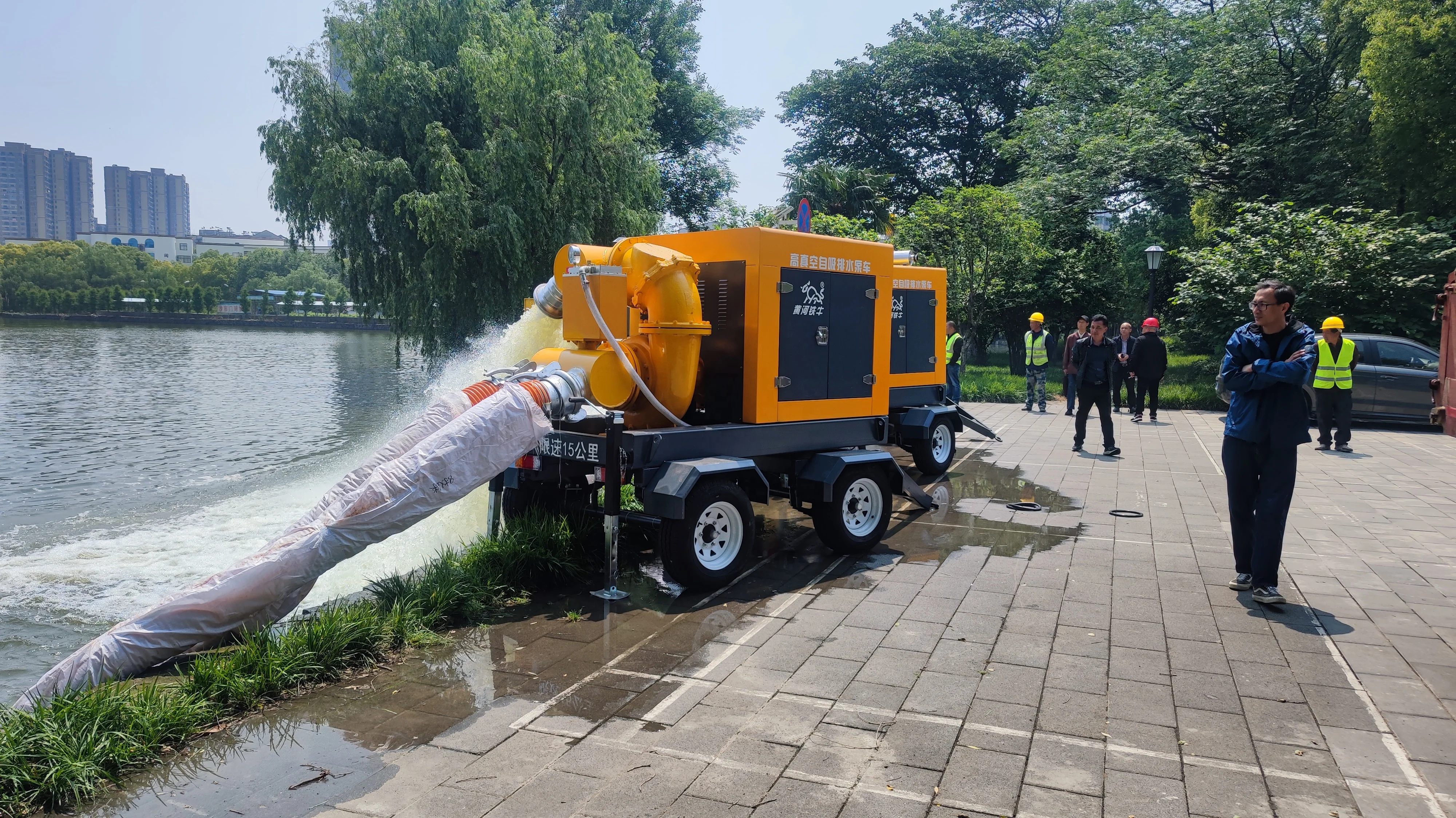

On site homework photos
Product specifications
Model | Flow （m³/h) | Lift (m) | Suction height (m) | Speed (RPM) | Power (kw) |
M10-20 | 600 | 20 | 8.5 | 1450 | 45 |
M10-17 | 500 | 17 | 8.5 | 1450 | 37 |
M10-32 | 600 | 32 | 8.5 | 1450 | 75 |
M10-28 | 500 | 28 | 8.5 | 1450 | 55 |
M10-24 | 450 | 24 | 8.5 | 1450 | 45 |
M10-50 | 600 | 50 | 8.5 | 1450 | 110 |
M10-44 | 500 | 44 | 8.5 | 1450 | 90 |
M10-38 | 460 | 38 | 8.5 | 1450 | 75 |
M10-31 | 429 | 31 | 8.5 | 1450 | 55 |
M10-80 | 600 | 80 | 8.5 | 1450 | 185 |
M10-70 | 510 | 70 | 8.5 | 1450 | 160 |
M10-60 | 470 | 60 | 8.5 | 1450 | 132 |
M10-50 | 430 | 50 | 8.5 | 1450 | 110 |
Similar products
Our company
Product video
Exhibition photos
Operation guide
Method of application
1. connect suction pipe
2. connect hose
3. open the power switch to connect battery power
4. press start button(the green button on controller panel)
5. waiting and the machine will work automatically
2. connect hose
3. open the power switch to connect battery power
4. press start button(the green button on controller panel)
5. waiting and the machine will work automatically
Points for attention
1. the sealing O-ring should be smeared by butter before used, or it will be broken soon
2. make sure every joint is sealed well before start the engine
3. make sure the fuel, oil and coolant is enough in the engine
4. check if the power circuit is connected well
2. make sure every joint is sealed well before start the engine
3. make sure the fuel, oil and coolant is enough in the engine
4. check if the power circuit is connected well
