JC WY16A3 excircle surface roller burnishing tool for torque converter processing

Introduction

The roller burnishing tool can utilize the plastic deformation of the metal at normal temperature to smooth the micro roughness of the workpiece surface so as to change the surface structure, mechanical characteristics, shape and size. No matter what metal processing tool, leaving marks fine uneven on the surface of parts will appear, the phenomenon of peak valley goes ups and downs. The Roller burnishing tool is a mechanical, non cutting, plastic processing method that uses mechanical extrusion to obtain a smooth, mirror like surface of a metal.

It is a kind of pressure finishing, to use the old plastic of metal at room temperature, put some pressure on the surface of the workpiece by the burnishing tool, so that the workpiece surface of metal plastic flow, fill in the original residual indentation trough, and reach the surface roughness value reduction. Due to the burnish surface of metal plastic deformation, so that the surface microstructure of cold hardening and grain refinement, forming a dense fibrous, and the formation of residual stress, hardness and strength increase, thereby improving the wear resistance of the workpiece surface. Corrosion resistance and compatibility. Rolling is a non cutting plastic processing method, so this method can achieve simultaneous finishing and strengthening two purposes, grinding and turning can not be achieved.

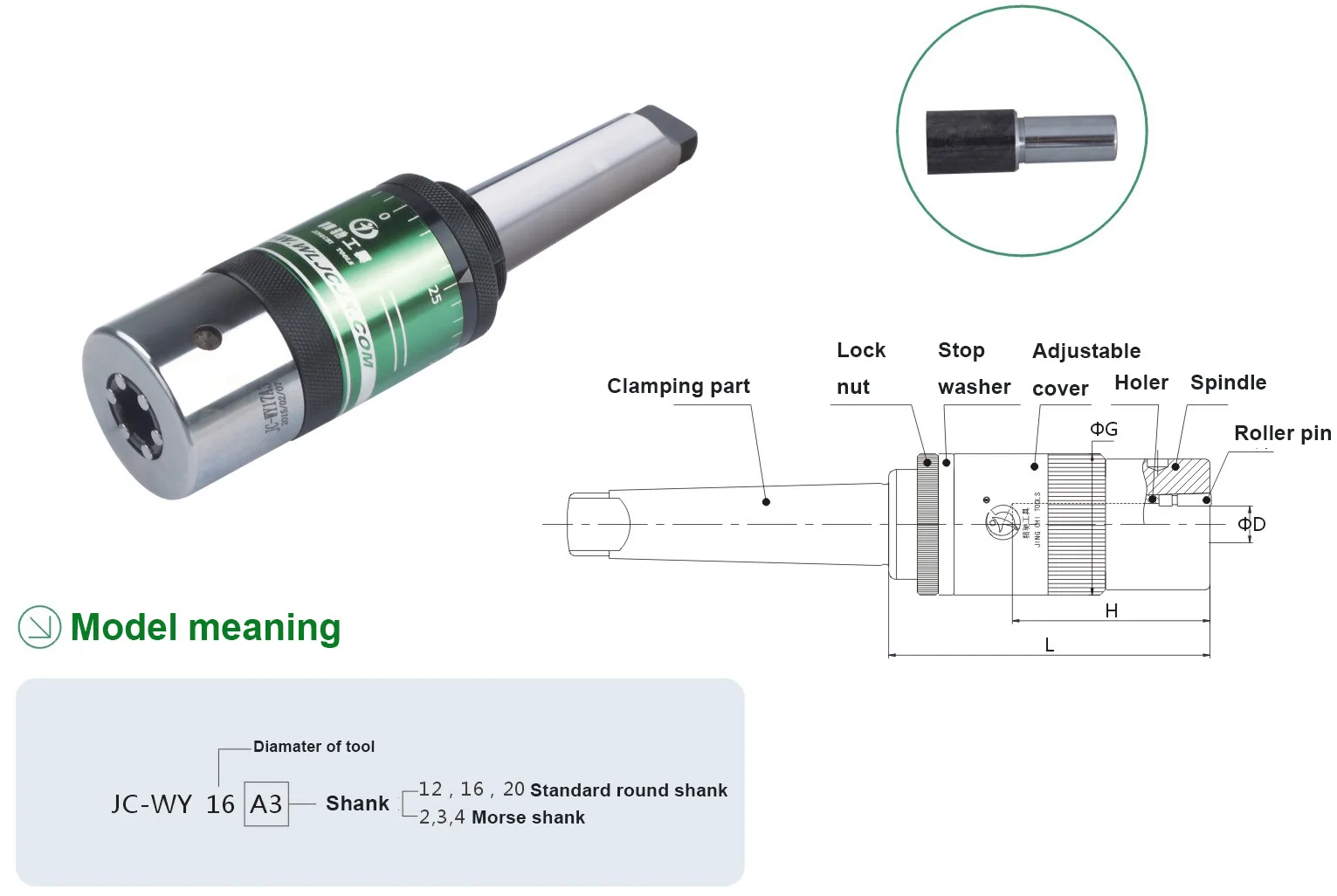

JC-WY EXCIRCLE ROLLER BURNISHING TOOL

Application cases: Motor guide,torque converter,cylinder connect rod,main axis

Product data

Excircle roller burnishing tool is suitable for general shaft head machining, but also can be changed to unlimited shaft machining.

Mainly used for Φ 11 mm - 100 mm cylindrical shaft processing, specific can customize according to the customer.

TaiZhou KeChi machinery Co.,Ltd is a company specialising in the production of mirror roller burnishing tools, rotary broach tools, knurling tools, combined skive-burnishing tool, diamond burnishing tool.And setting research and development production,sales in one integrated manufacturers.The company has its own R & D  team and after-sales service team,.It focus on the mirror roller burnishing, rotary broach, knurling and other technical areas. During the past ten years, it has provided perfect solutions for thousands of customers in auto parts, aerospace, hydraulic, military, cylinder, ship, construction machinery, medical, agricultural machinery, air conditioning,motor and so on.
