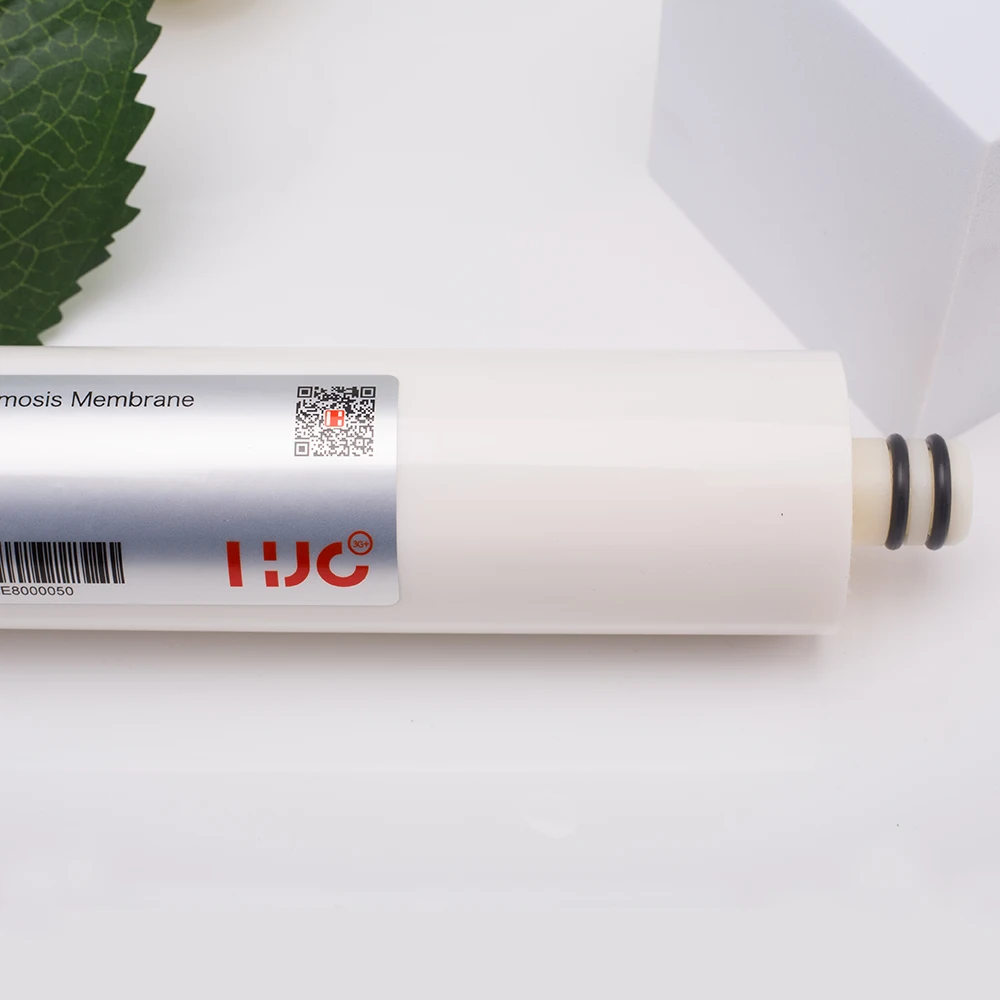

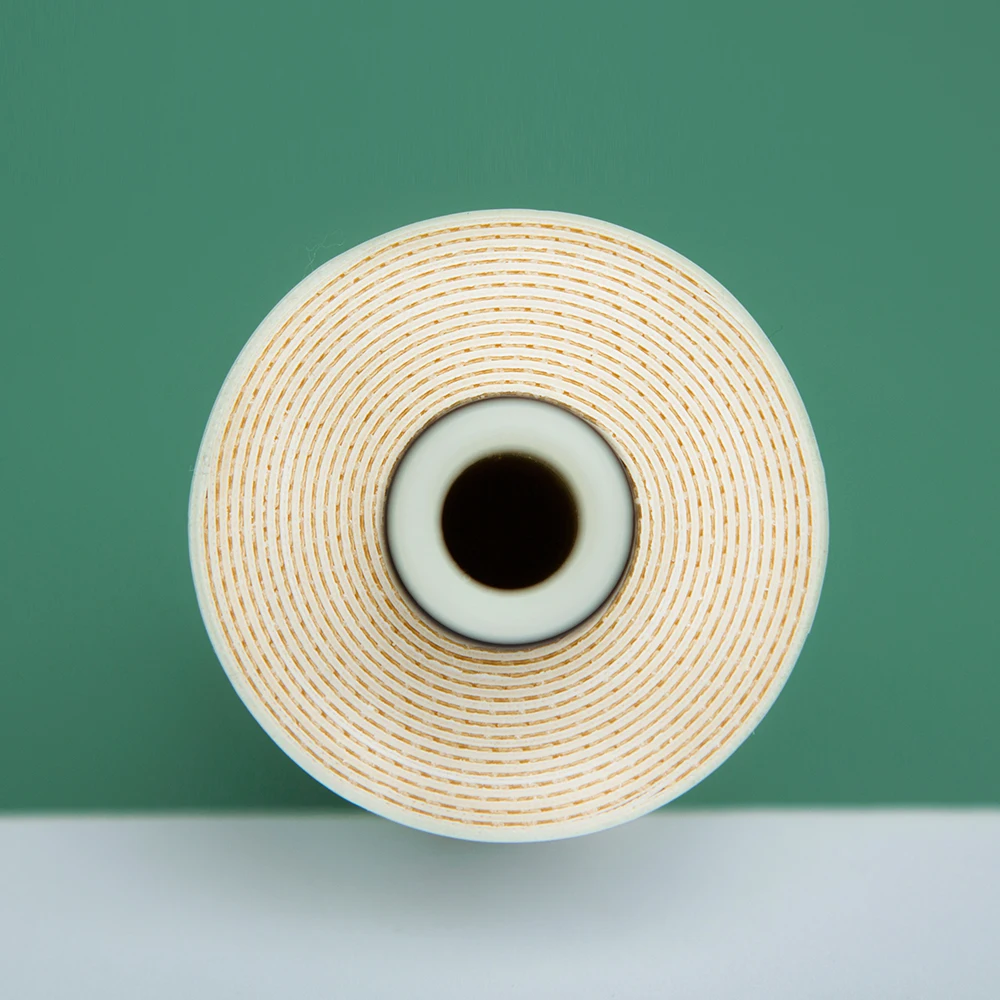

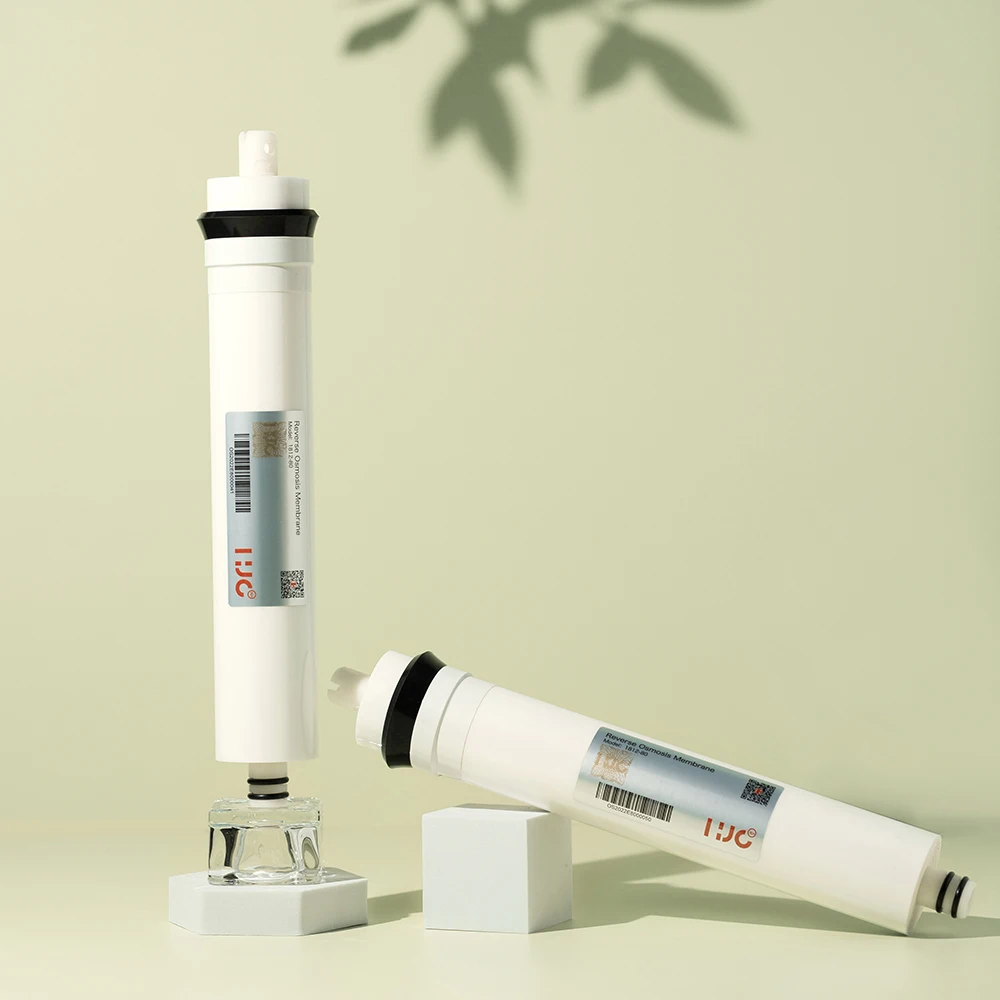

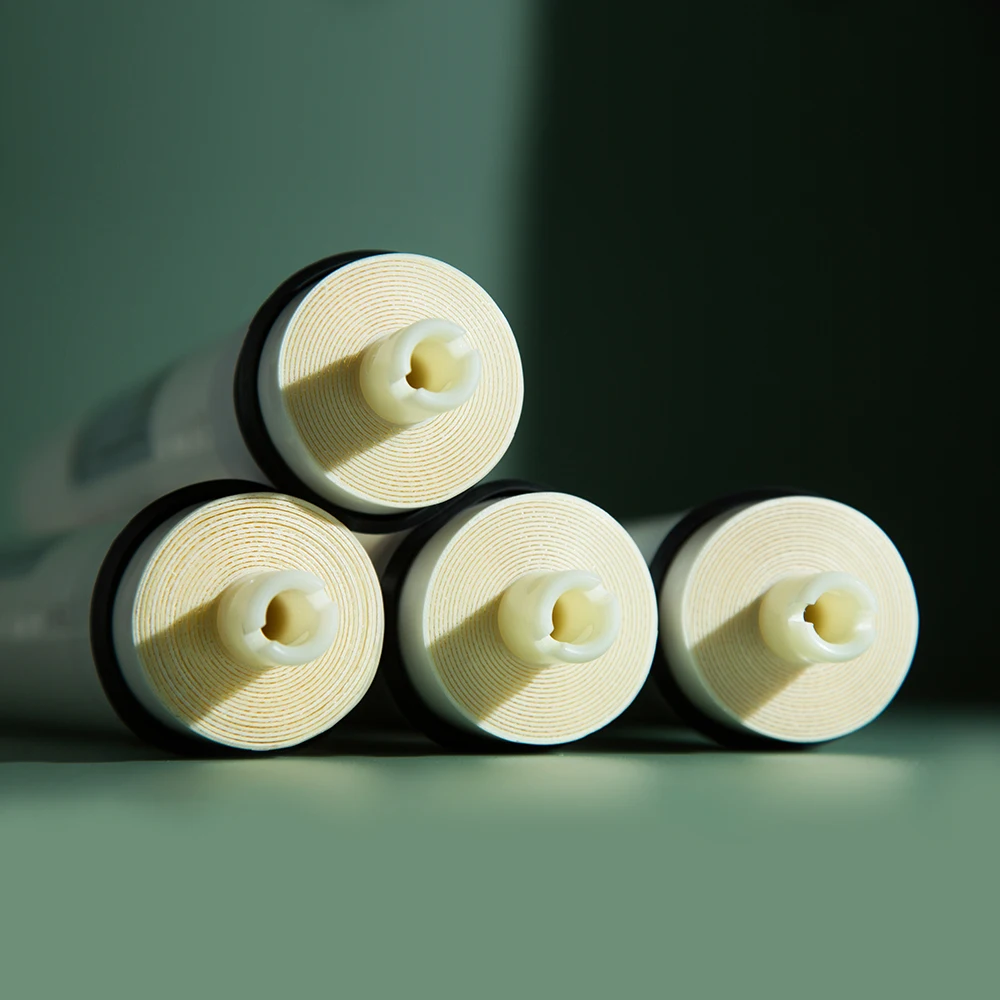

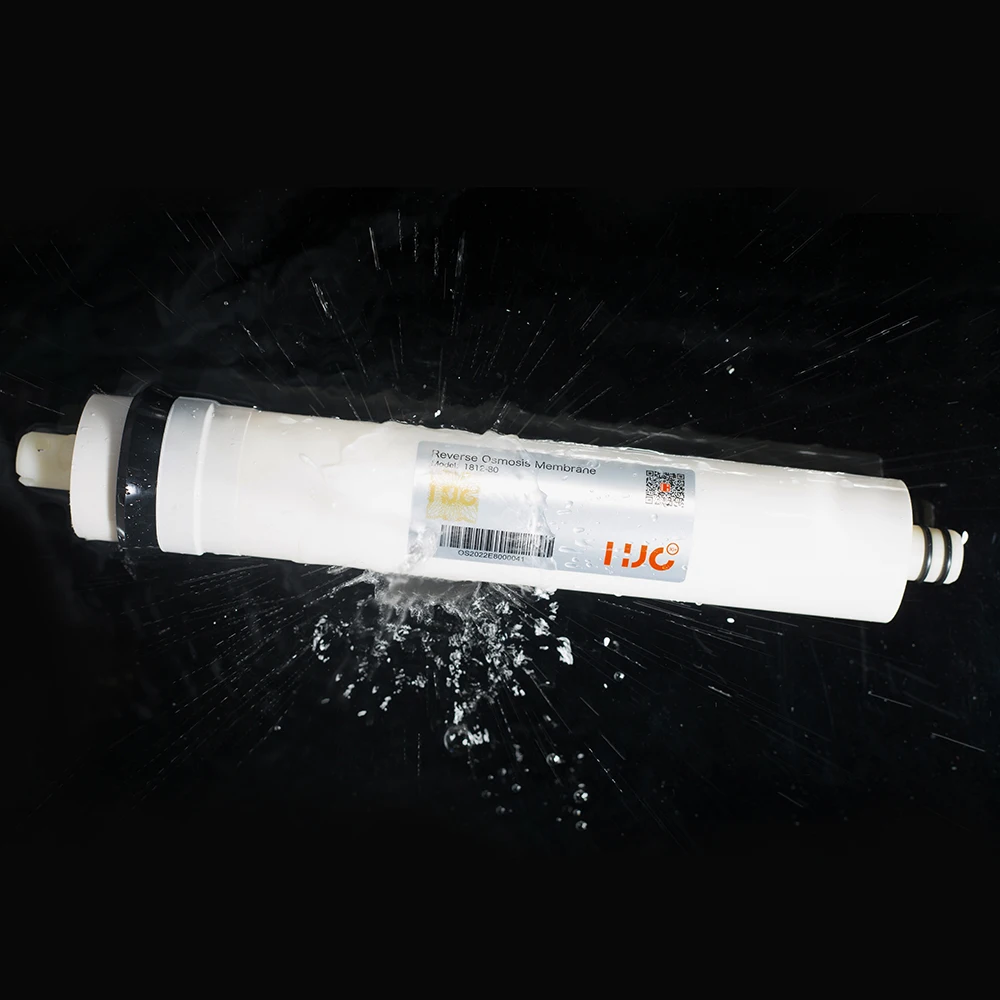

RO Membrane 80G Reverse Osmosis Membrane Fabric Membrane
- Category: >>>
- Supplier: Hjc International Company Limited
Share on (1601117698288):
Product Overview
Description
Specifications
Model | Salt Rejection (%) | Flow Rate (GPD) | Size (inch) | RO Sheet Area(m²) |
1812-50 | 98 | 50 | 1.8*12 | 0.33 |
1812-80 | 98 | 80 | 1.8*12 | 0.75 |
1812-80(quick fitting) | 98 | 80 | 1.8*12 | 0.75 |
2012-100 | 98 | 100 | 2.0*12 | 0.84 |
2012-150 | 98 | 150 | 2.0*12 | 1.20 |
2012-200 | 97 | 200 | 2.0*12 | 1.35 |
3012-300 | 98 | 300 | 3.0*12 | 3.34 |
3013-400 | 98 | 400 | 3.0*13 | 3.72 |
3013-600 | 97 | 600 | 3.0*13 | 1.95 |
Operating Limited
The stated performance if initial (data taken after 30 minutes of operation), based on the following conditions:
Membrane Type | Poly-amide thin-film composite |
Maximum Operating Temperature | 113°F(45°C) |
Maximum Operating Pressure | 300 psi |
Maximum Feed Water TDS | 6000 ppm |
PH Range | 2-10 |
Maximum Feed SDI | 5 |
Free Chlorine Tolerance | ＜0.1ppm |
Test Conditions
NaCl Solution | 200mg/L |
Applied Pressure | 60 psi (0.41 MPa) |
Operating Temperature | 77°F (25°C) |
Permeate Recovery | 15% |
PH Range | 7.5 |

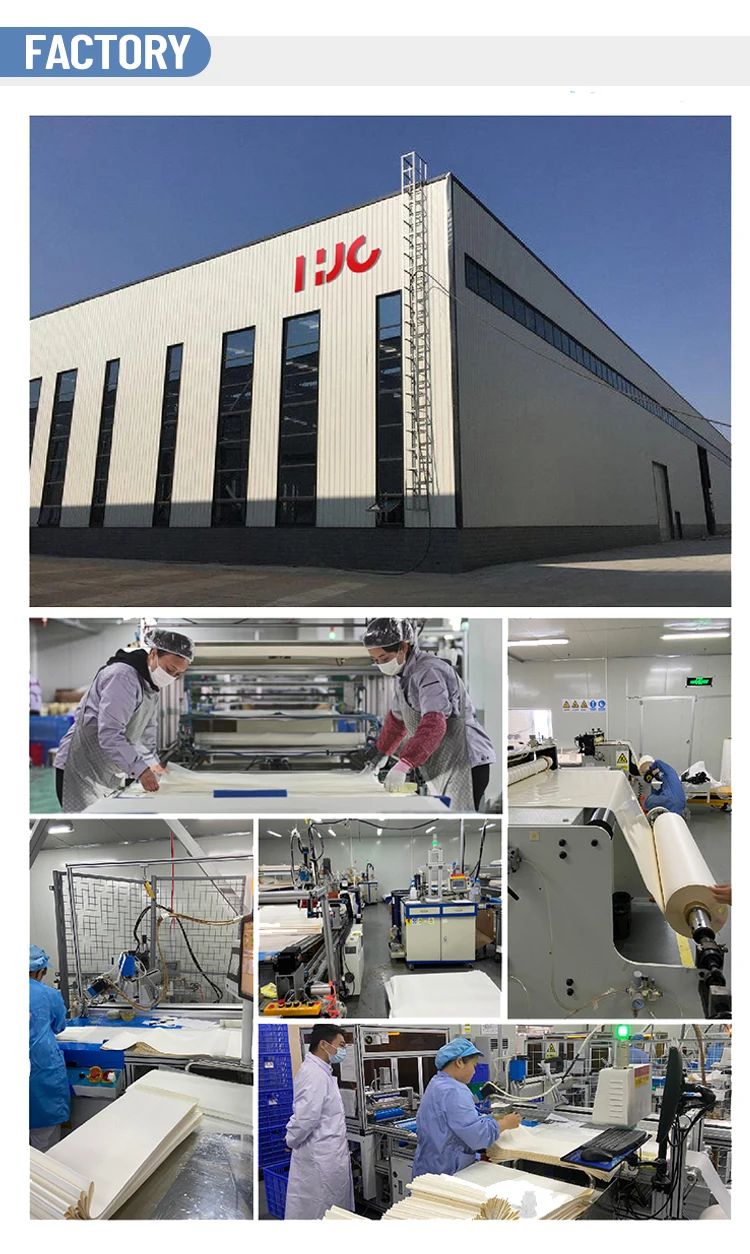

Factory Ex/Co
Product packaging

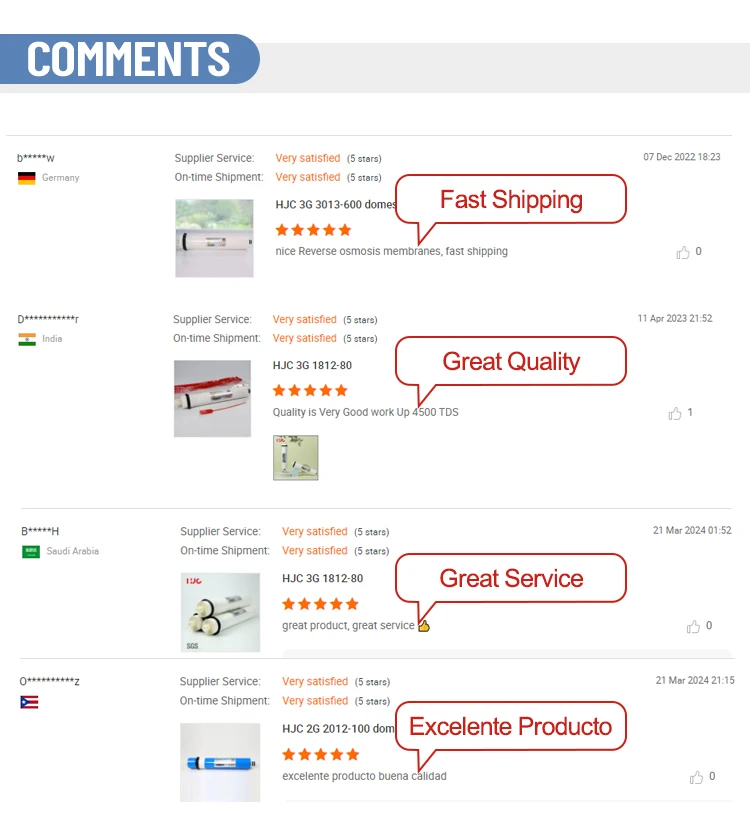

Comments
Certifications

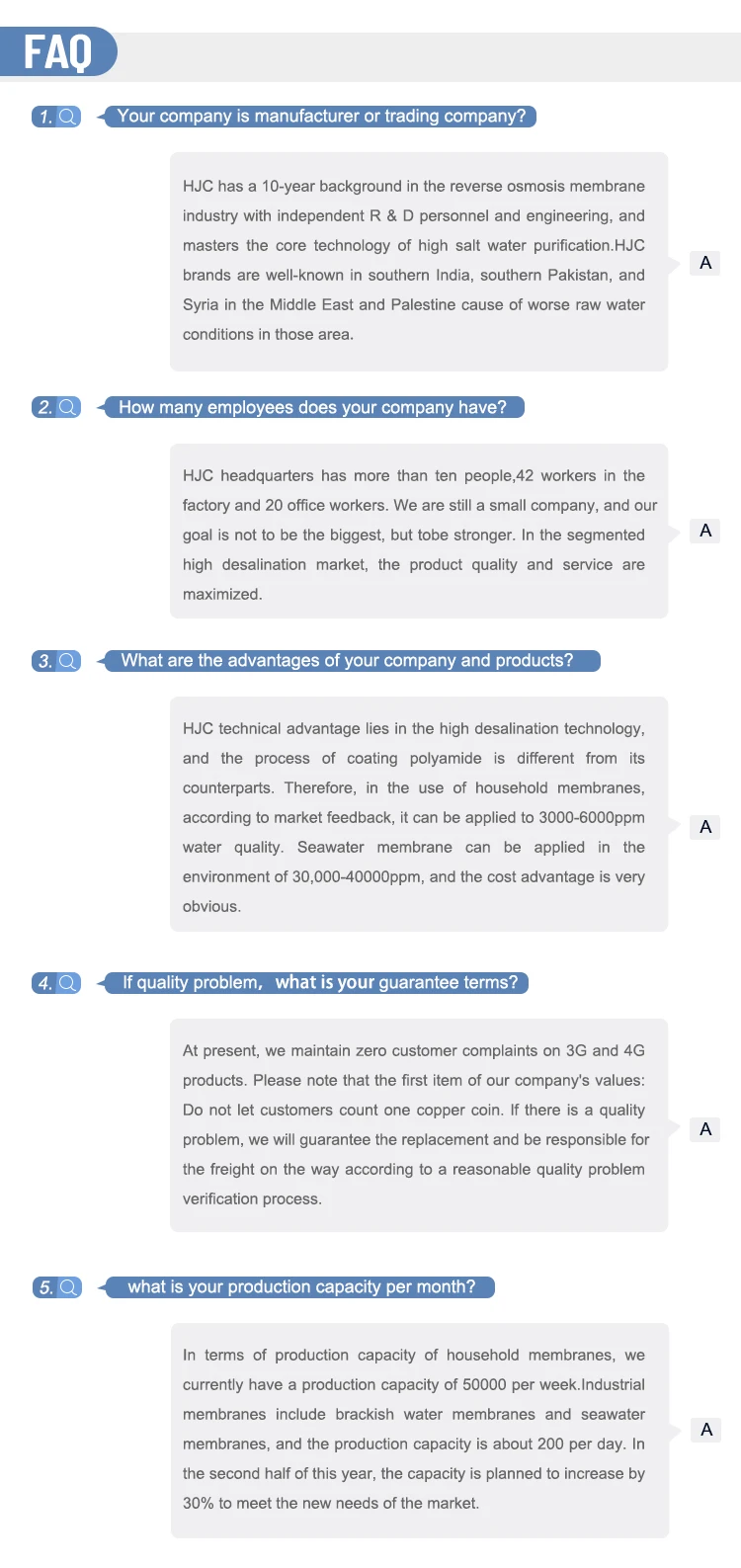

FAQ
