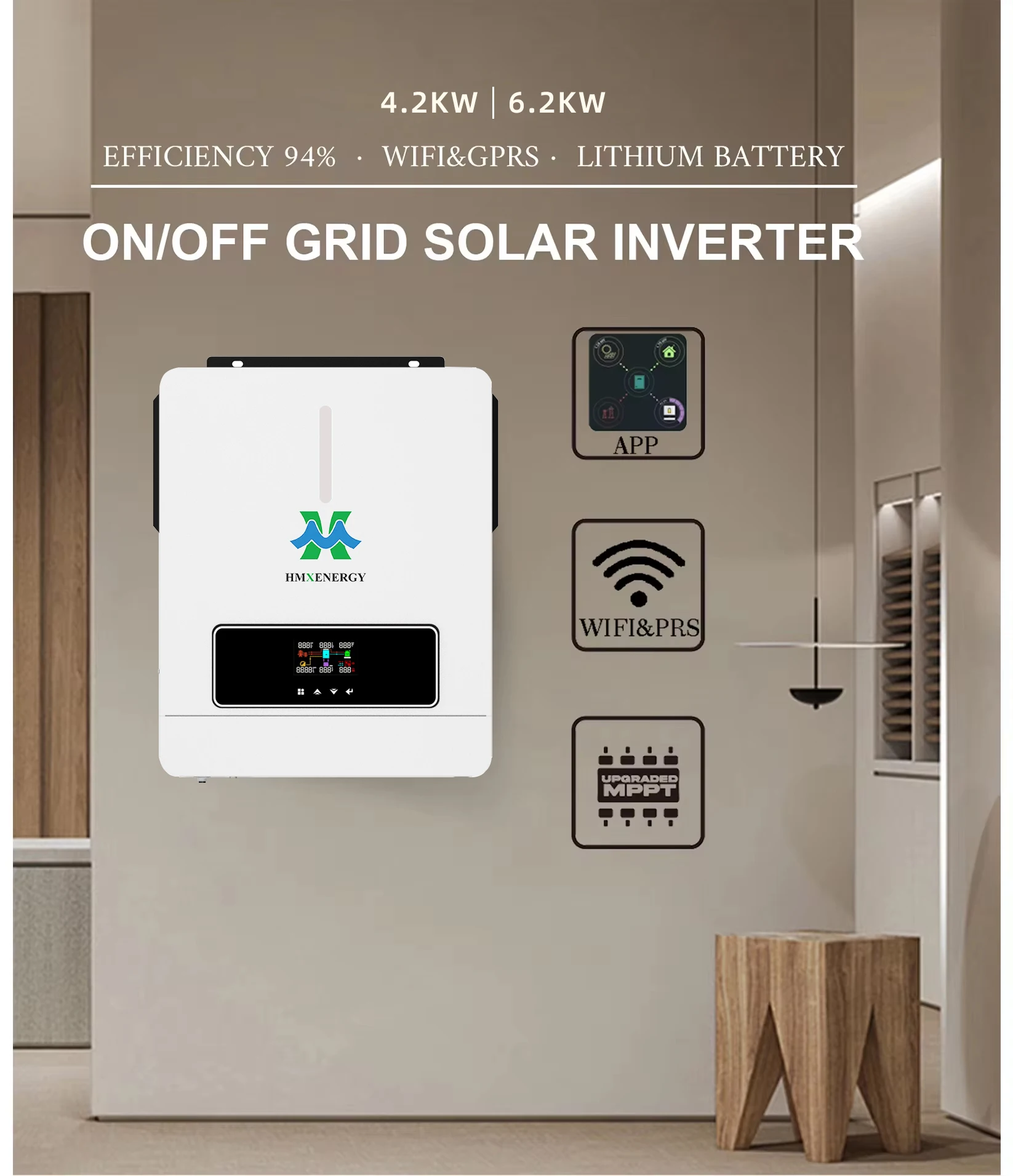

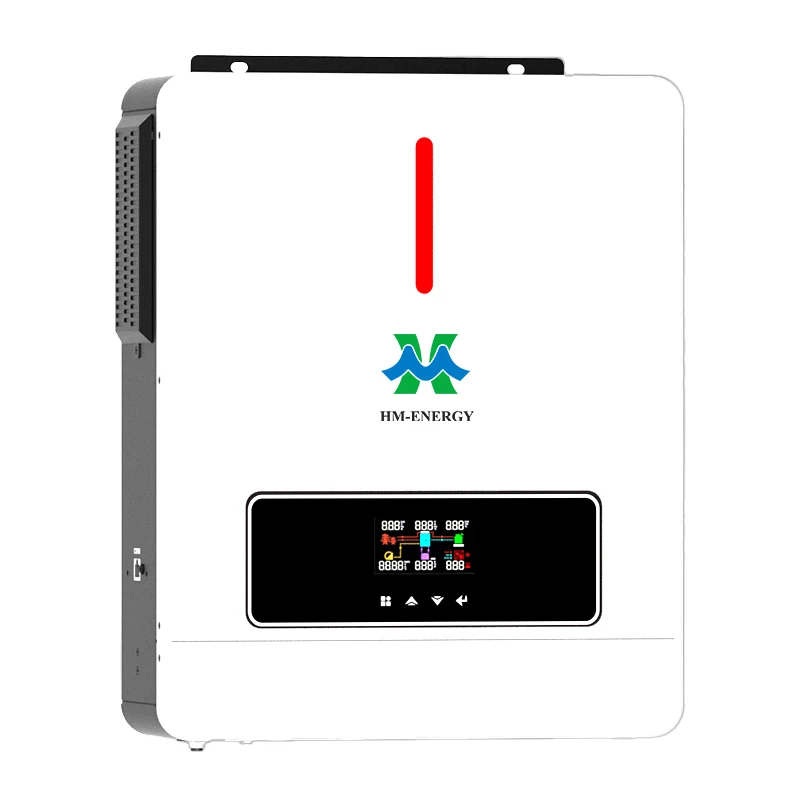

Off Grid 24V 48V Solar Inverter 3.6KW 4.2KW 5KW 6KW Hybrid Inverter Pure Sine Wave Solar Inverters with MPPT
- Category: >>>
- Supplier: Shenzhen Huiming New Energy Co. Ltd.
Share on (1601117707657):
Product Overview
Description
Specification
Model | 4200-24V | 6200-48V | ||
RATED POWER | 4200W | 6200W | ||
AC Inpiut | ||||
Voltage | 220/230/240VAC | |||
Selectable Voltage Range | 170~280VAC (For Personal Computers) | |||
90~280VAC(For Home Appliances) | ||||
Frequency Range | 50Hz/60Hz(Auto sensing) | |||
AC Voltage Regulation | 230VAC±5% | |||
Surge Power | 8400W | 10000W | ||
Efficiency(Peak)PV to INV | 98% | |||
Efficiency (Peak)Battery to INV | 97% | |||
Transfer Time | 10ms(For Personal Computers);20ms(For Home Appliances) | |||
BATTERY & AC CHARGER | ||||
Battery Voltage | 24VDC | 48VDC | ||
Floating Charge Voltge | 13.5VDC | 27VDC | ||
Overcharge Protection | 16VDC | 33VDC | ||
Maximum AC Charge Current | 120A | |||
SOLAR CHARGER | ||||
Maximun PV Array Power | 6200W | 6500W | ||
MPPT Range@Operating Voltage | 60~450VDC | |||
Maximun PV Array Open Circuit Voltage | 450VDC | |||
Maximun Charging Current | 100A | |||
PHYSICAL | ||||
Dimension,D*W*H(mm) | 420*350*110 mm | |||
Cartoon Dimension, D*W*H(mm) | 500*415*180 mm | |||
Net Weight (kgs) | 8 | 9 | ||
Gross Weight(kgs) | 9 | 10 | ||

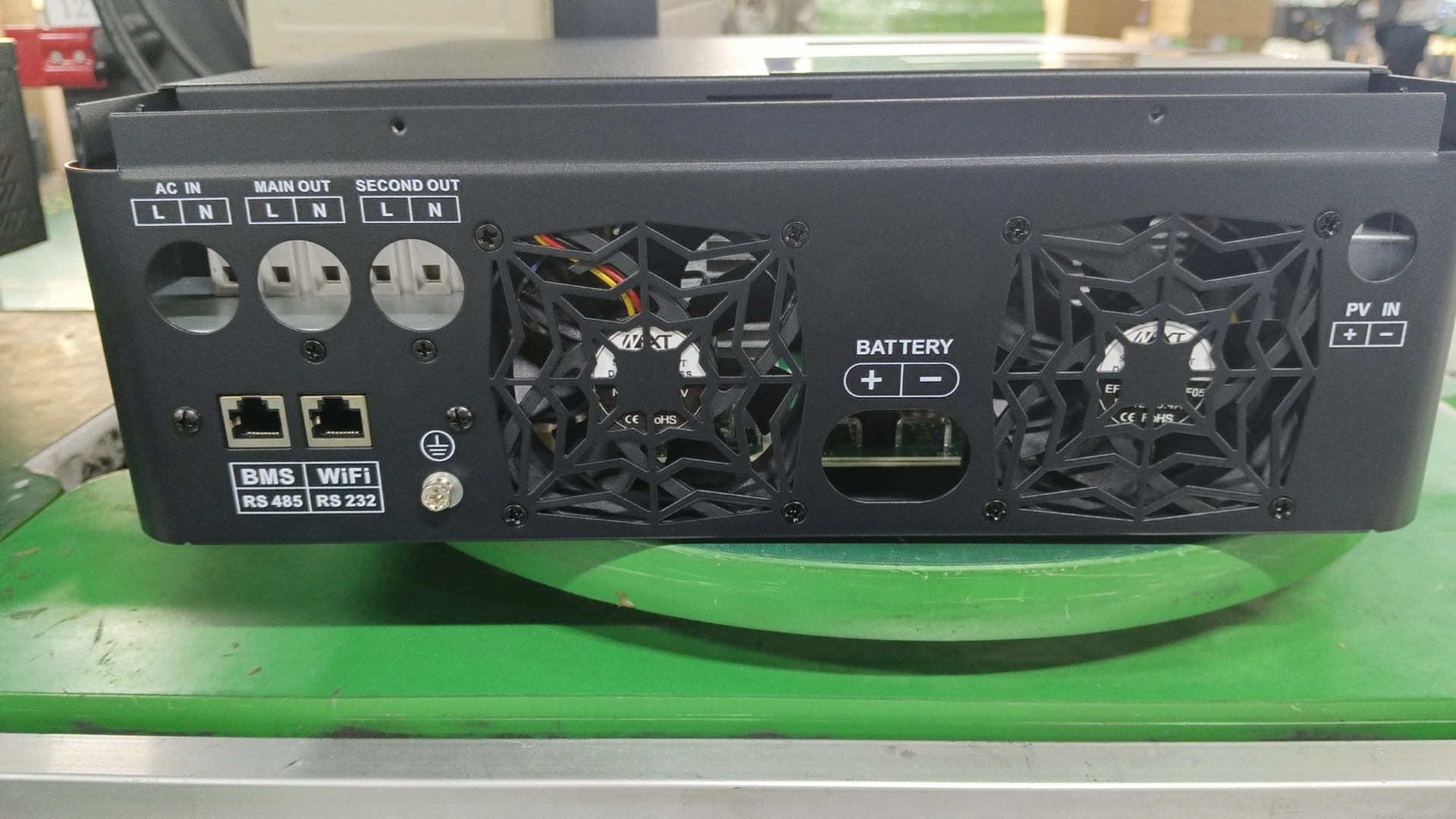

Communication interface | RS232/RS485/GPRS/WIFI | |||
OPERATING ENVIRONMENT | ||||
Humidity | 5% to 95% Relative Humidity ( Non~condensing) | |||
Operating Temperature | -10~50℃ | |||
Products Description
When selecting proper PV modules, please be sure to consider below parameters.
1. Open circuit Voltage (Voc) of PV modules not exceeds max. PV array open circuit voltage of inverter.
2. Open circuit Voltage (Voc) of PV modules should be higher than min. battery voltage
Certifications
FAQ and Precautions
Q:Are you factory?

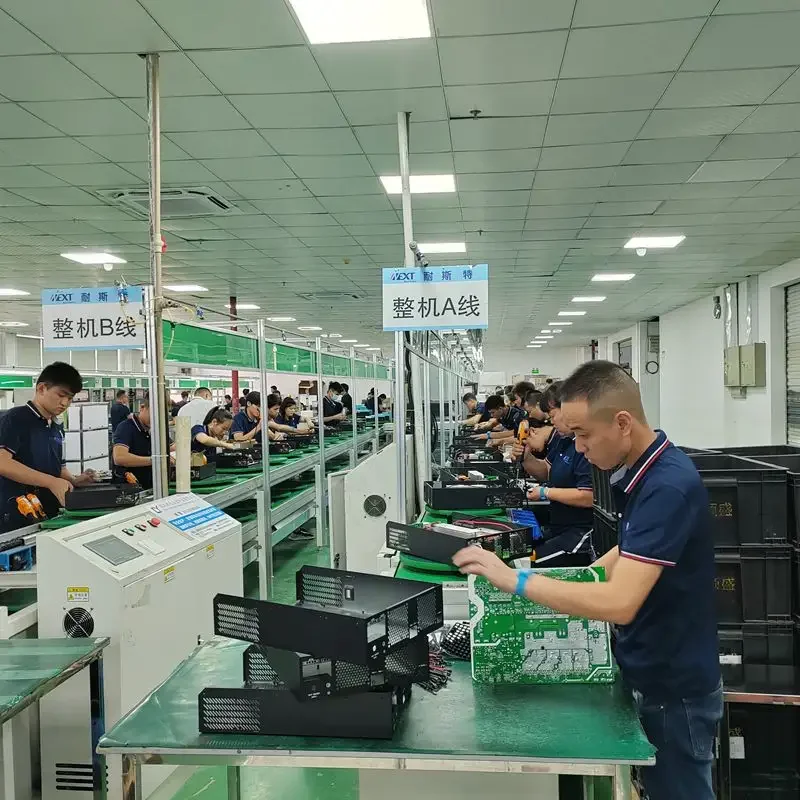

A: Yes, our factory and sales department are located in Shenzhen and we would be pleased to welcome you in our factory at any time when you are in Shenzhen
Q:What is the warranty for this inverter?
A: All products are at least 1 year warranty.
Q: What is the shipping way?
A: DHL, UPS, TNT, EMS and FedEx. Ship by sea.
Q:What is the payment method?
A:We normally require T/T advance payment 30% deposit and 70% before shipping.
Q:Can we design packaging?
A:Yes. We can do customer's own packing.
Q:Can we customize product?
A:Yes. OEM&ODM.
A: Yes, our factory and sales department are located in Shenzhen and we would be pleased to welcome you in our factory at any time when you are in Shenzhen
Q:What is the warranty for this inverter?
A: All products are at least 1 year warranty.
Q: What is the shipping way?
A: DHL, UPS, TNT, EMS and FedEx. Ship by sea.
Q:What is the payment method?
A:We normally require T/T advance payment 30% deposit and 70% before shipping.
Q:Can we design packaging?
A:Yes. We can do customer's own packing.
Q:Can we customize product?
A:Yes. OEM&ODM.
