skid steer loader with hydraulic breaker attachments hammers 53mm 68mm for skid steer
- Category: >>>
- Supplier: Yantai Jiwei Construction Machinery Equipment Co. LTD
Share on (1601117968985):
Product Overview
Description
Product Description

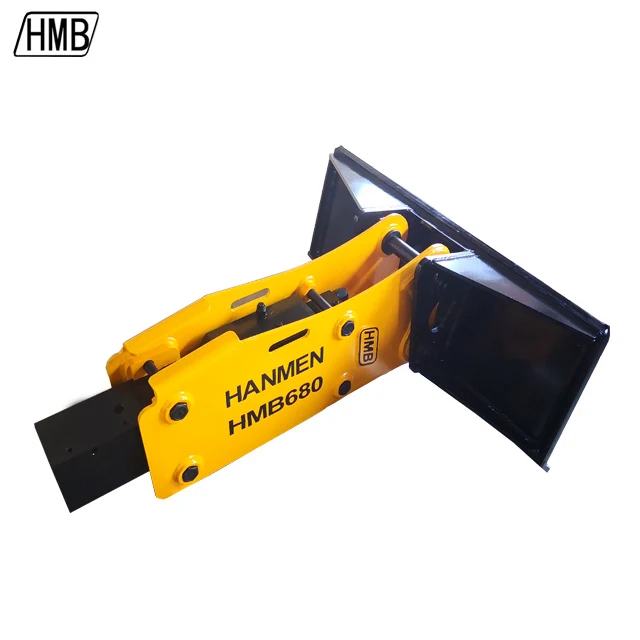

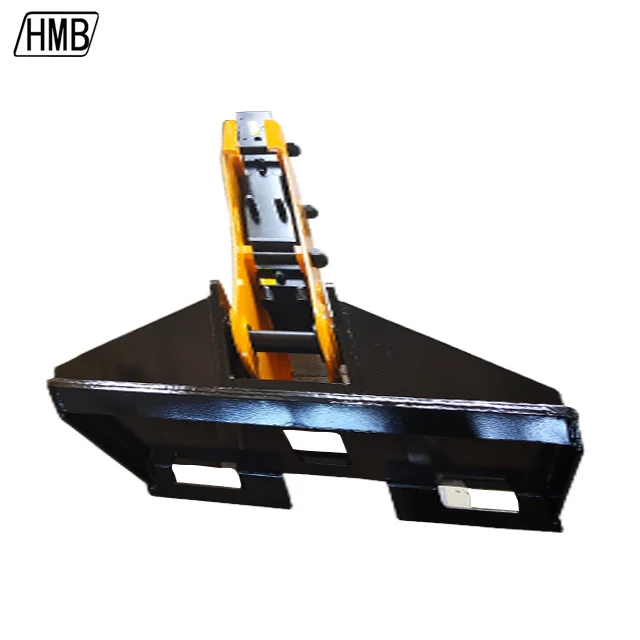

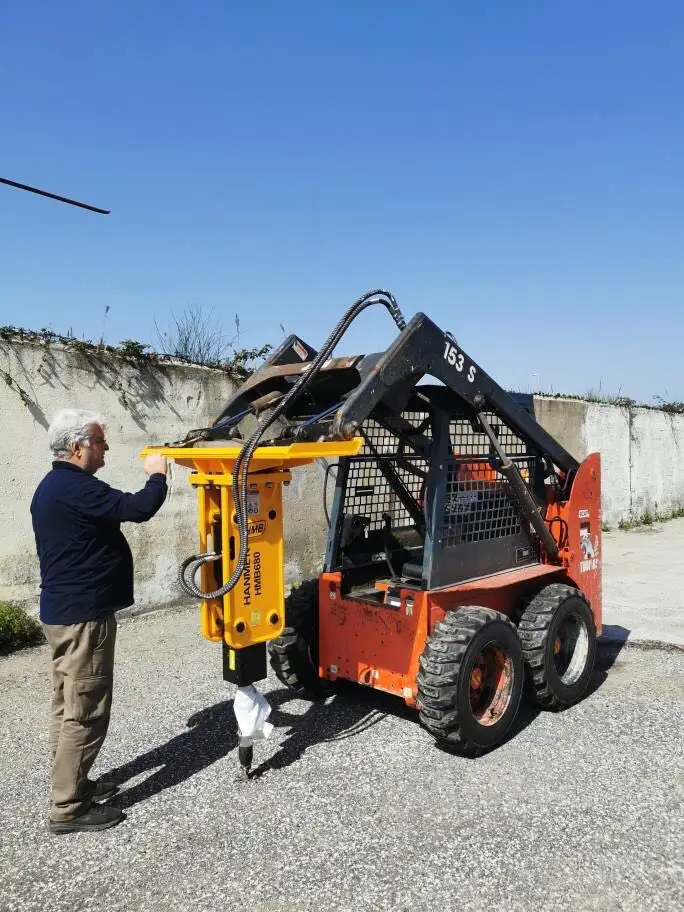

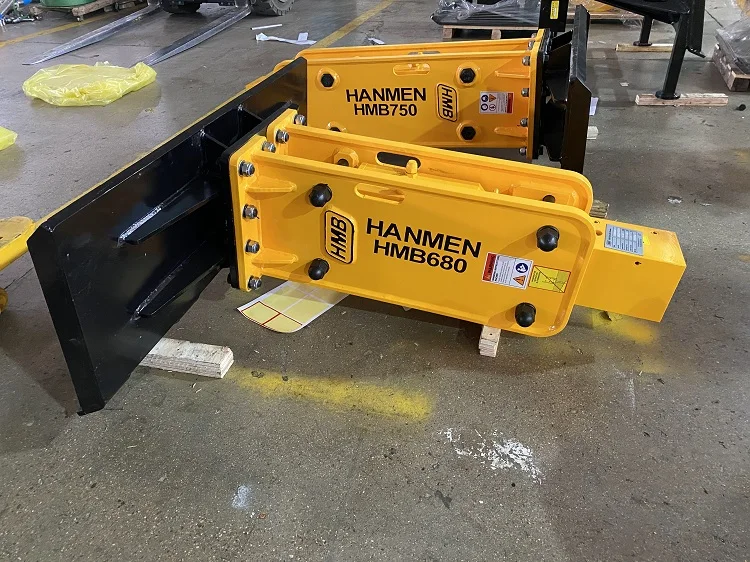

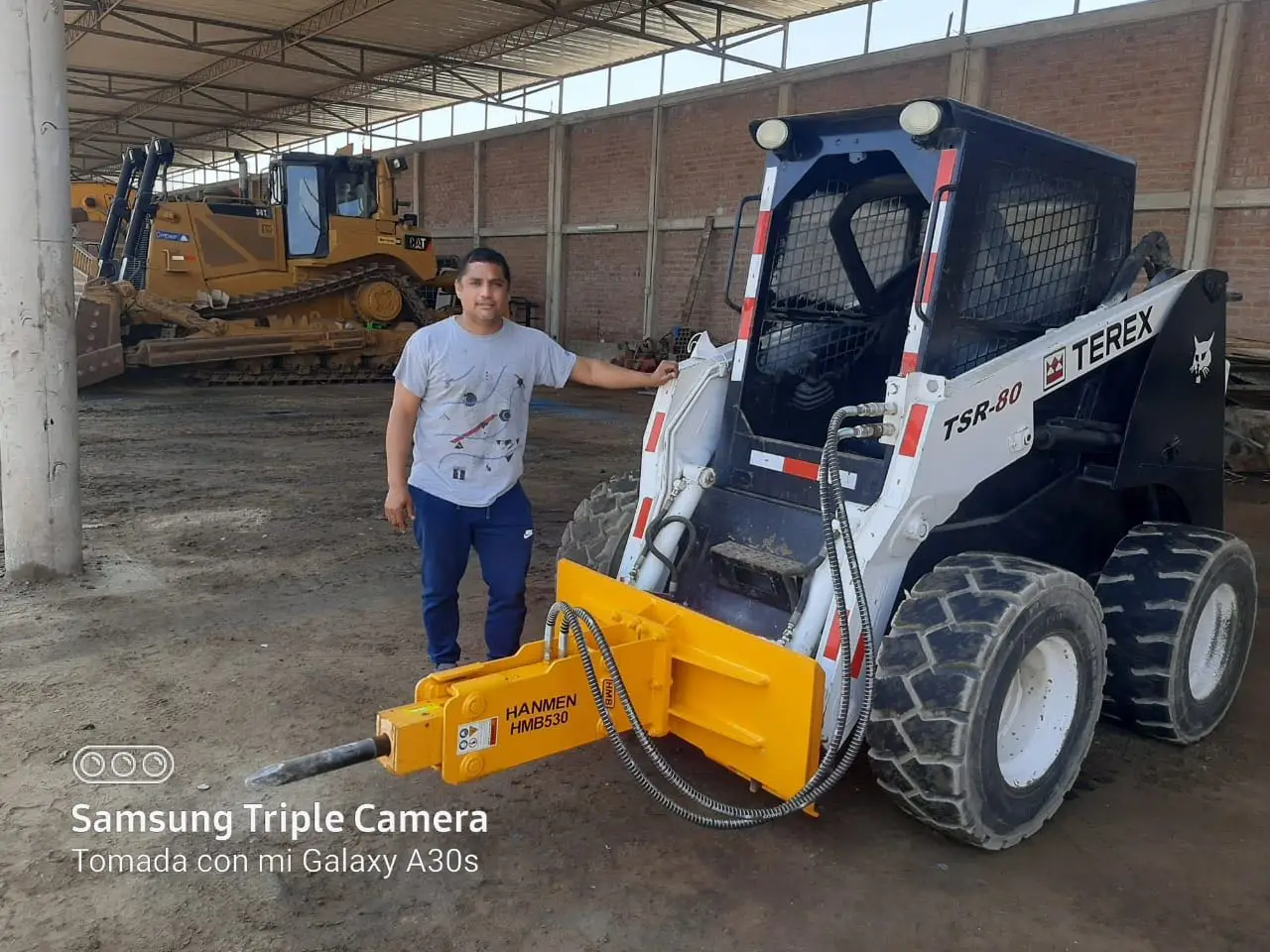

skid steer loader Hydraulic Breaker Install On Skid Steer Loader
* longer warranty period
* Main parts are imported
* The cylinder material is in very good quality
* long maintenance period, it can work at least 800 hours before maintenance.
* The service life for wearing parts is extended by 500-1000 hours compared with similar products
* Main parts are imported
* The cylinder material is in very good quality
* long maintenance period, it can work at least 800 hours before maintenance.
* The service life for wearing parts is extended by 500-1000 hours compared with similar products
How to choose the most suitable hydraulic hammer ?
HYDRAULIC BREAKER SPECIFICATIONS | ||||||||||||||||
HMB Model | Operating Weight (kg) | Required Oil Flow (L/Min) | Working Pressure (Bar) | Impact Rate (Bpm) | Chisel Diameter (mm) | Hose Diameter (inch) | Carrier weight (ton) | Valve Ass'y Position (/) | ||||||||

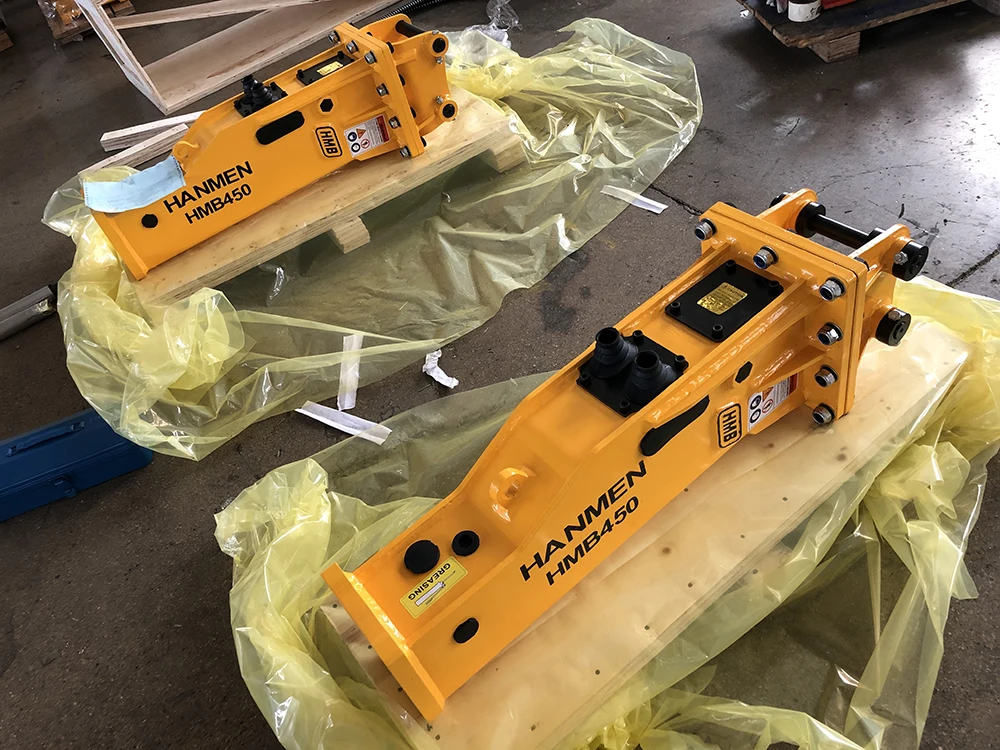

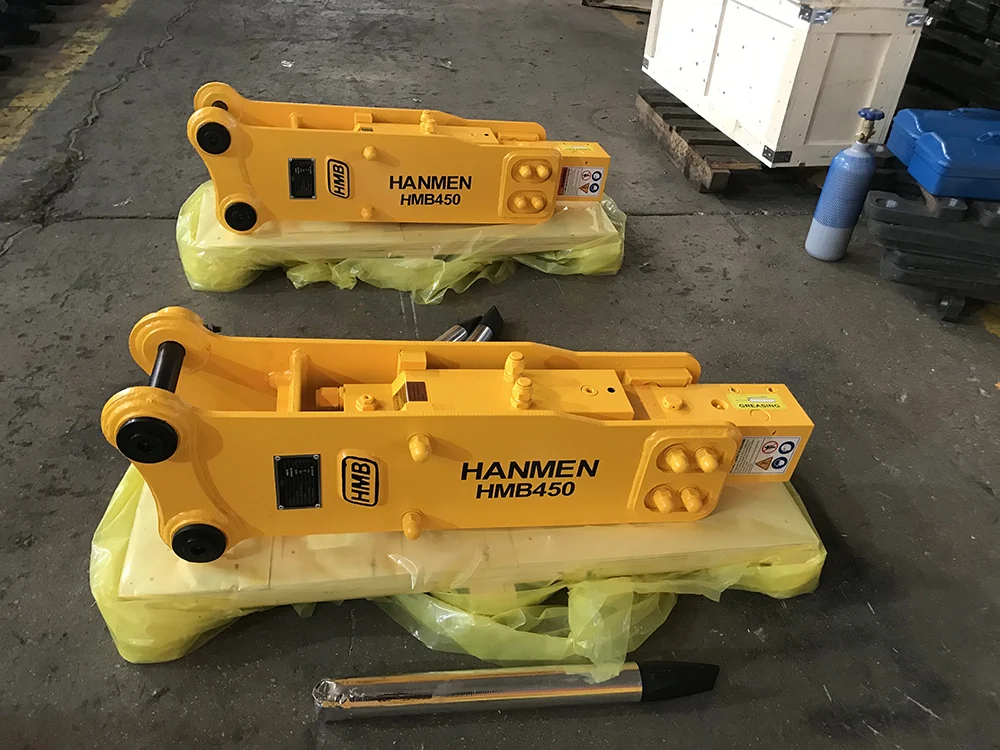

HMB450 | 150 | 20-40 | 90-120 | 700-1200 | 45 | 1/2 | 1.2-3 | Internal | ||||||||

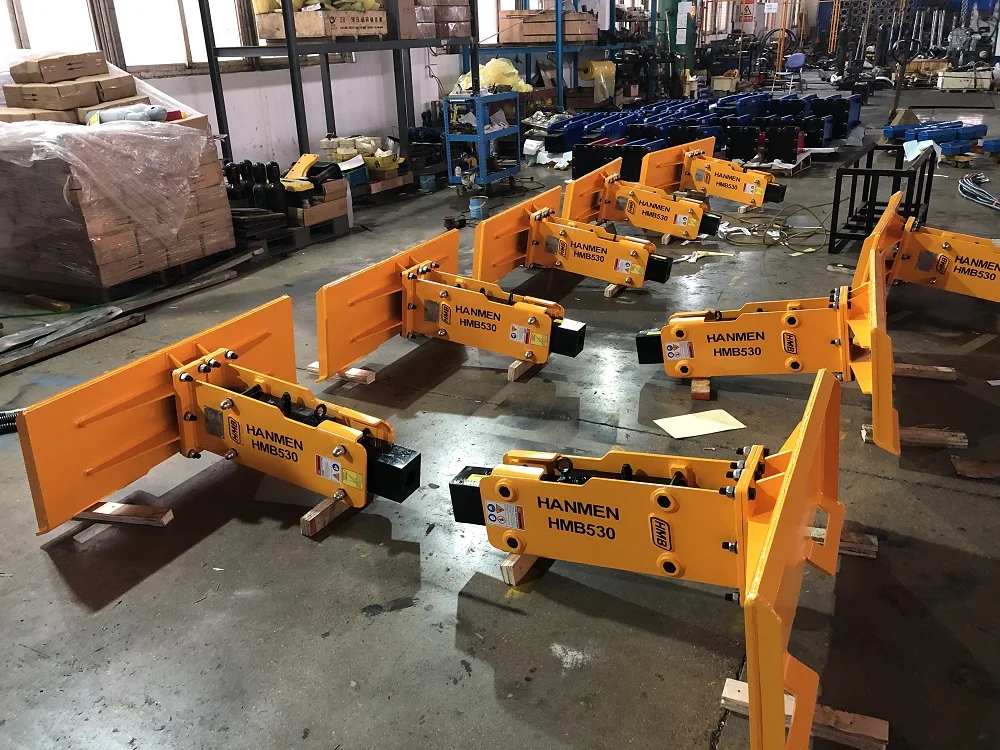

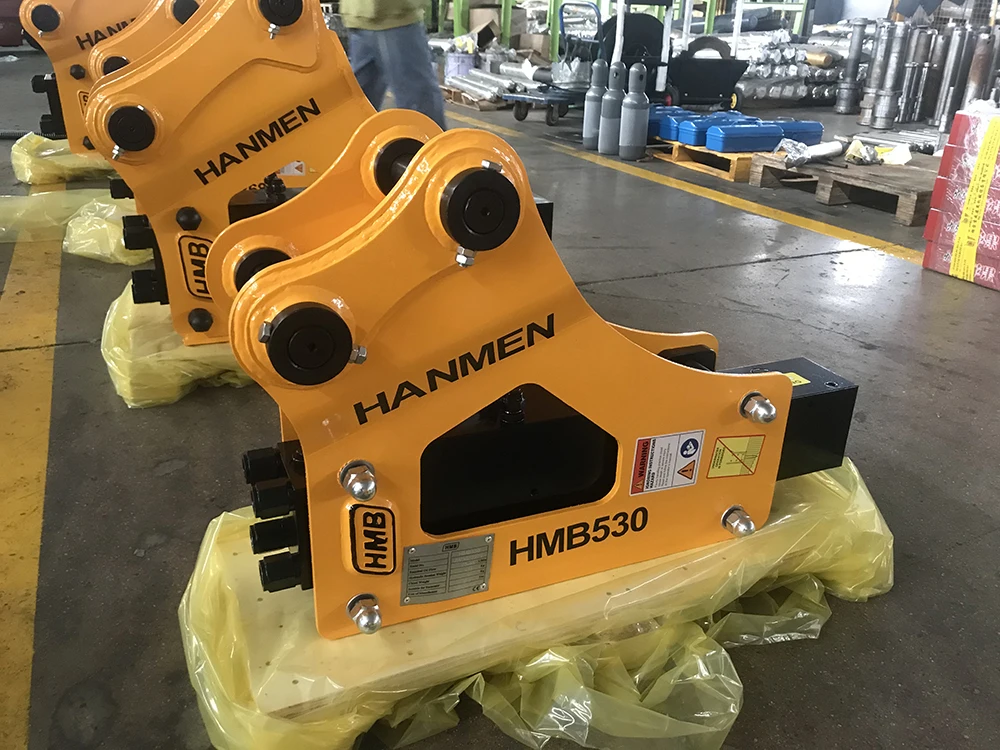

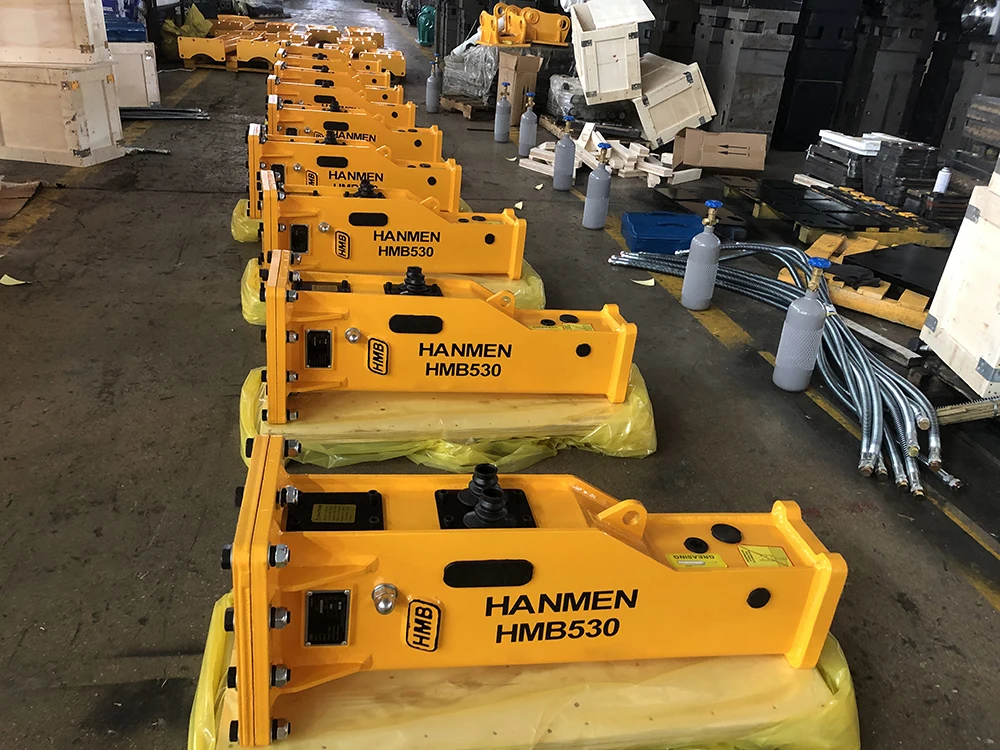

HMB530 | 190 | 25-45 | 90-120 | 500-1100 | 53 | 1/2 | 2.5-3 | Internal | ||||||||

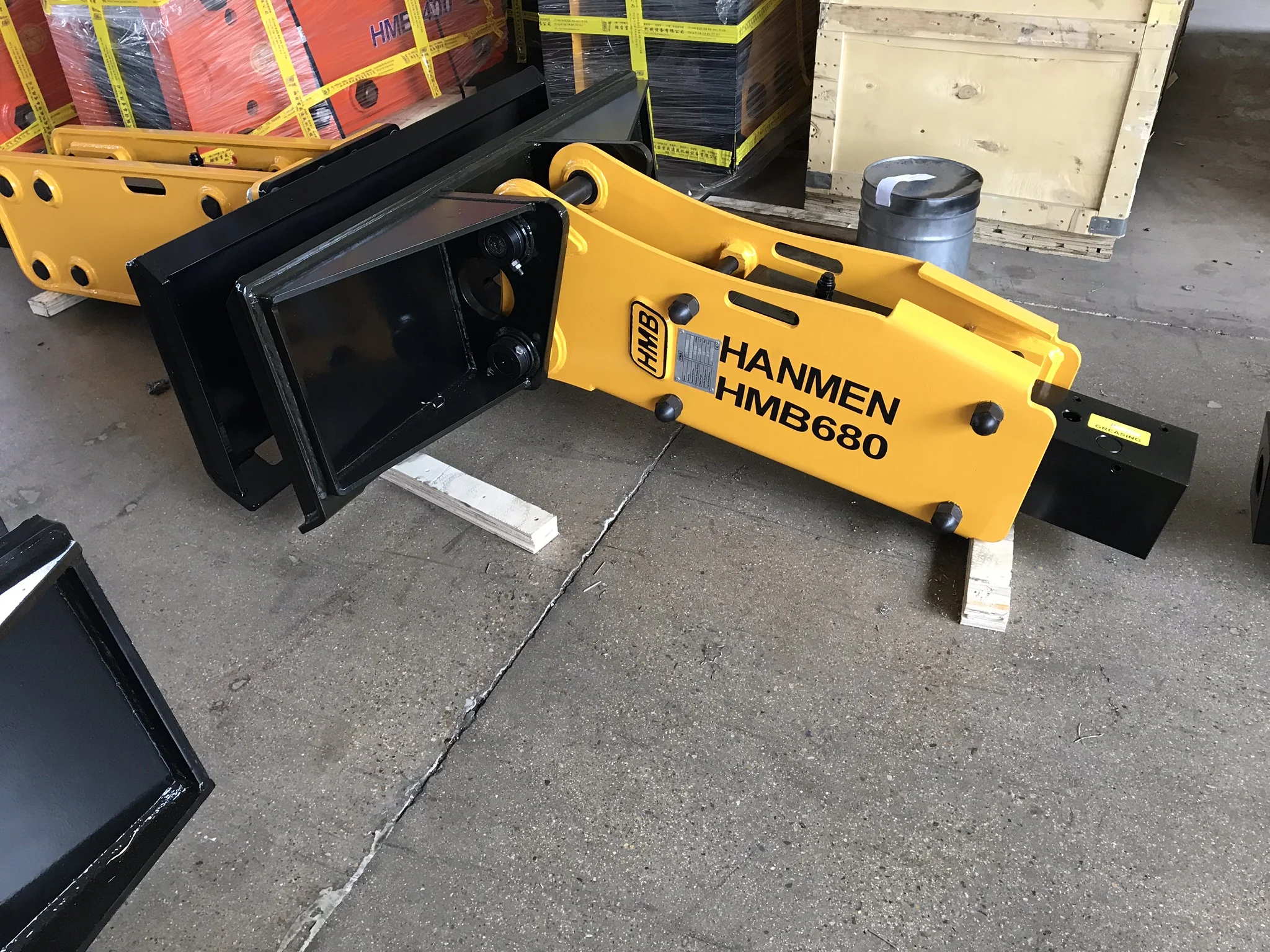

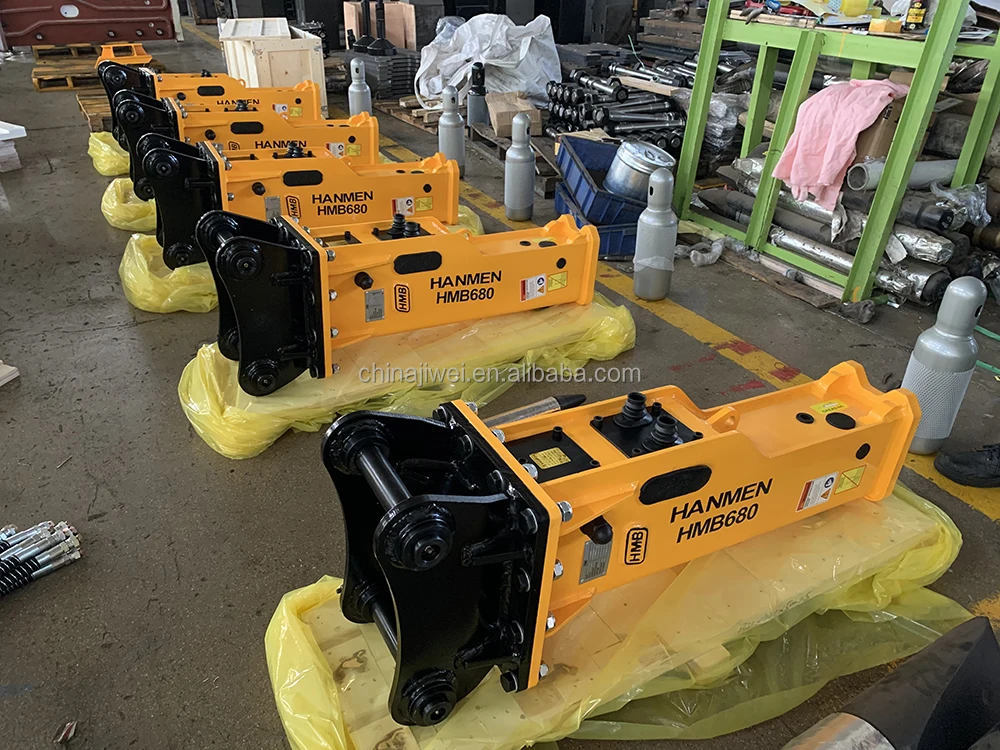

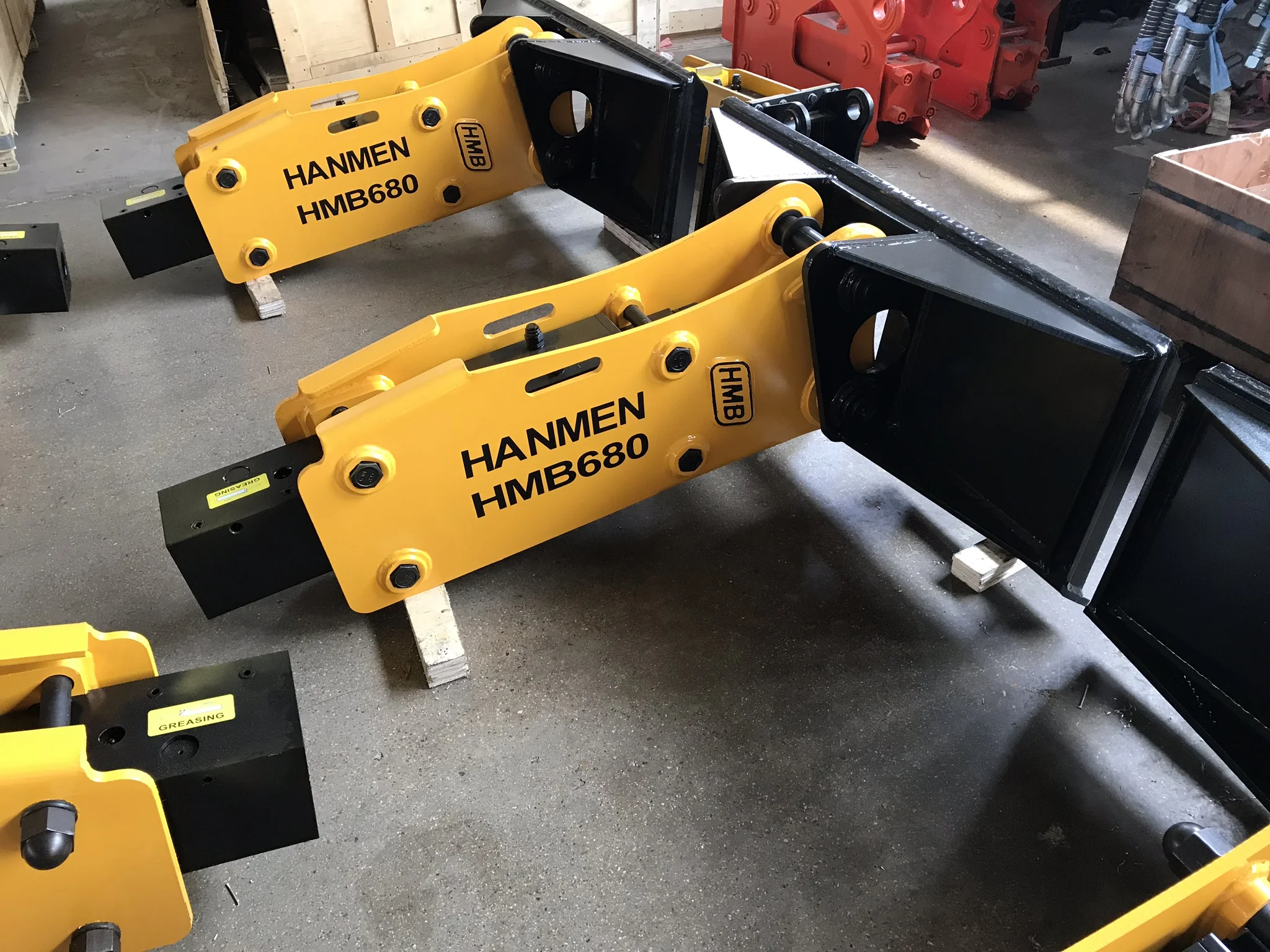

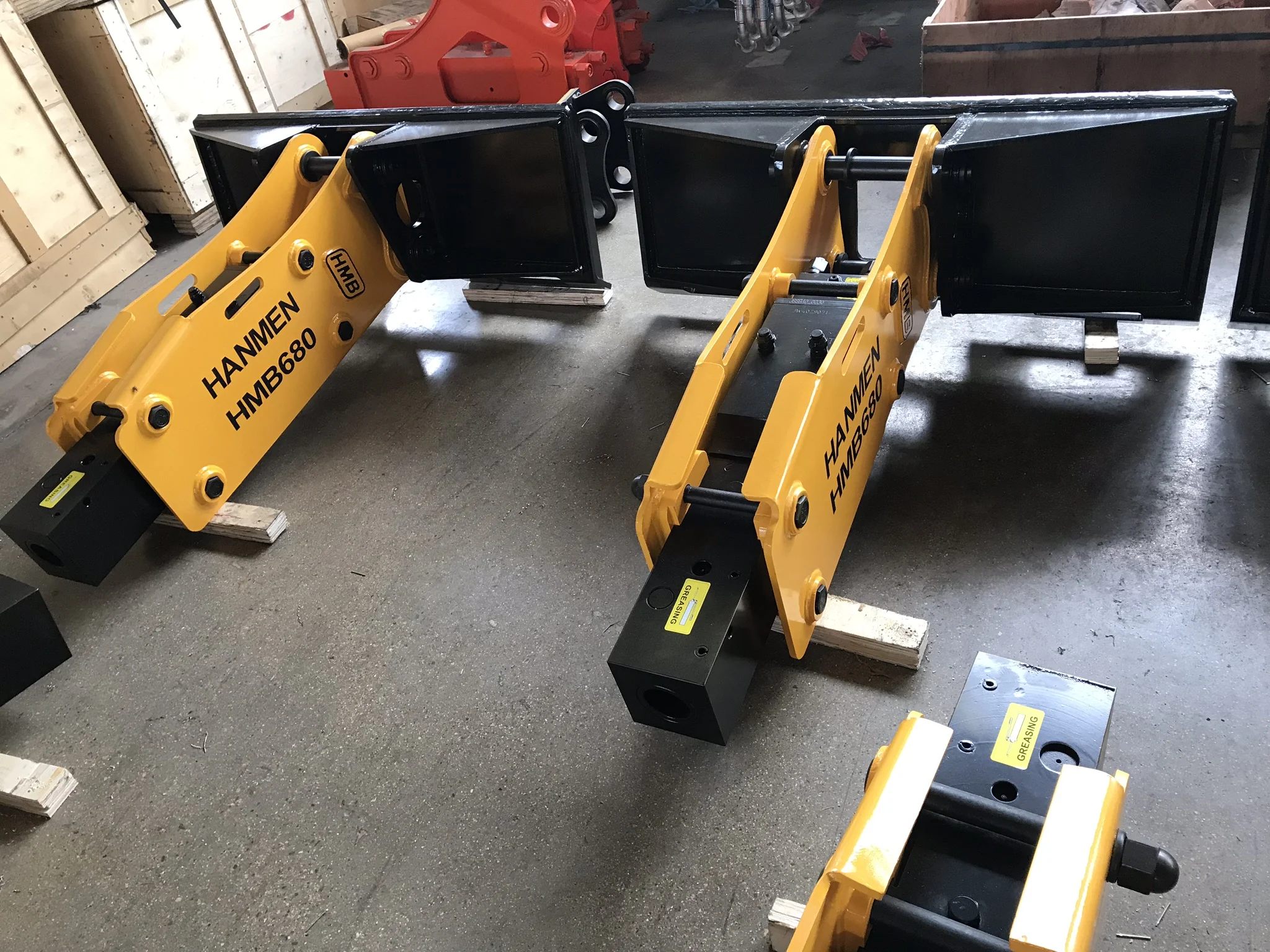

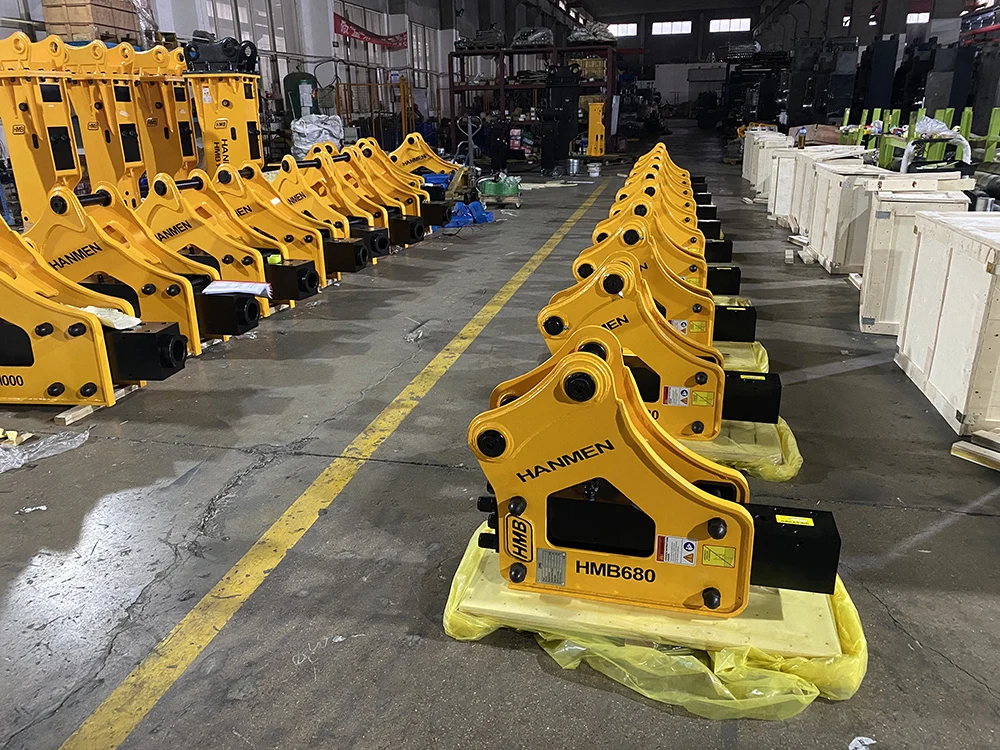

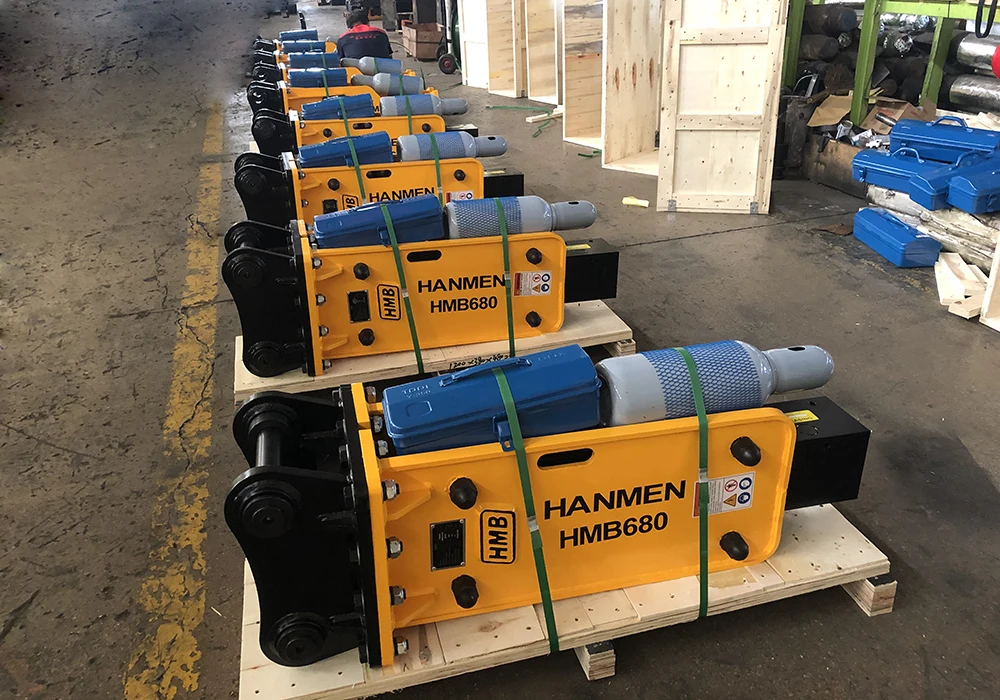

HMB680 | 340 | 36-60 | 110-140 | 500-900 | 68 | 1/2 | 3-7 | Internal | ||||||||

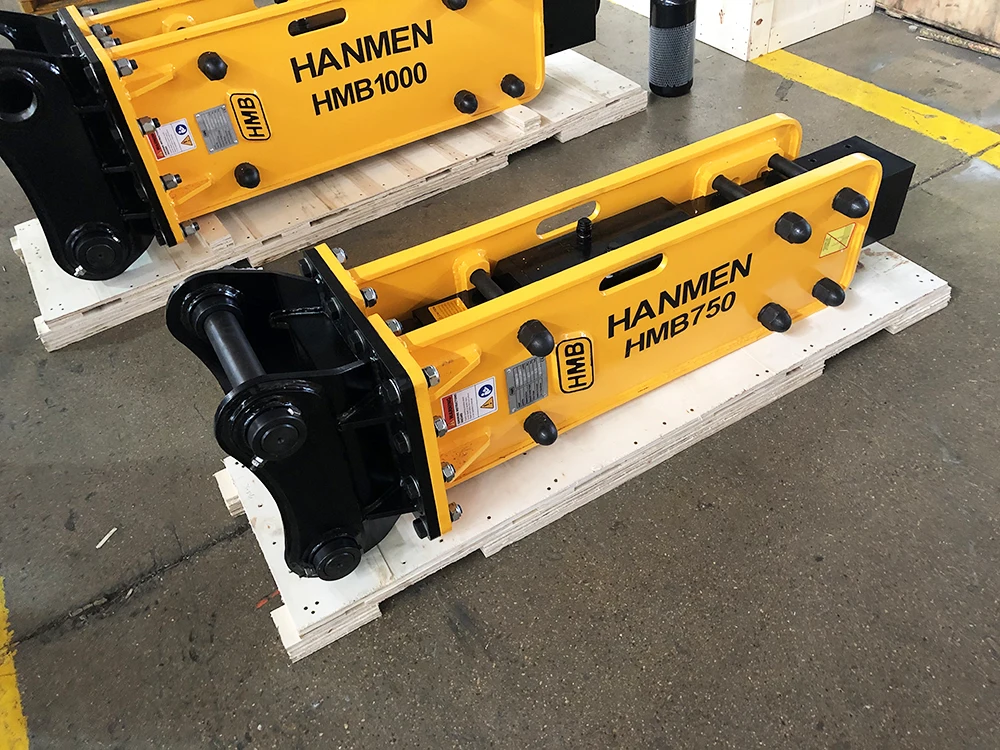

HMB750 | 480 | 50-90 | 120-170 | 400-800 | 75 | 1/2 | 6-9 | Internal | ||||||||
HMB850 | 580 | 45-85 | 127-147 | 400-800 | 75 | 3/4 | 7-14 | Internal | ||||||||
HMB1000 | 950 | 80-120 | 150-170 | 400-650 | 100 | 3/4 | 10-15 | Internal | ||||||||
HMB1350 | 1650 | 130-170 | 160-185 | 400-650 | 135 | 1 | 18-25 | Internal | ||||||||

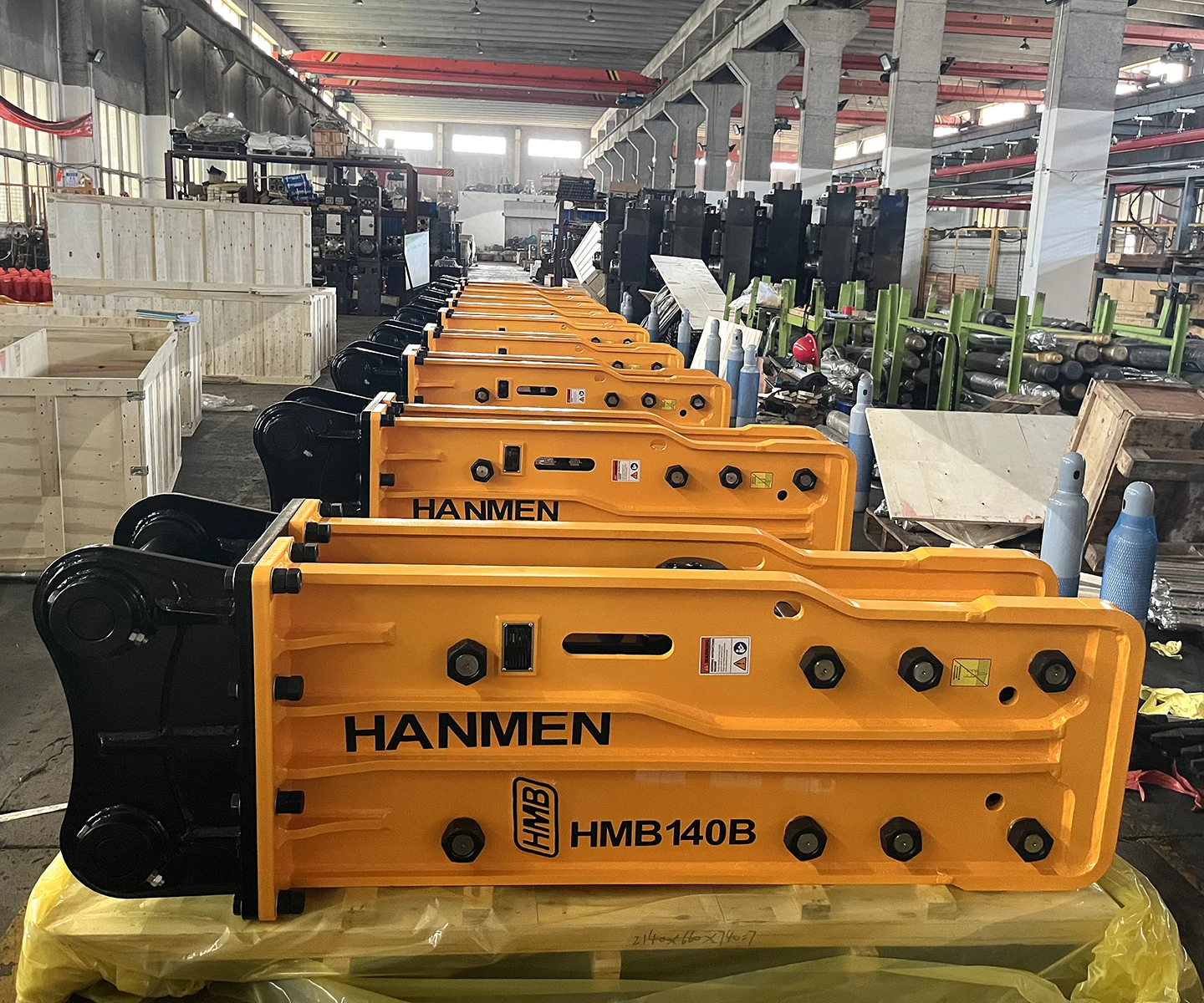

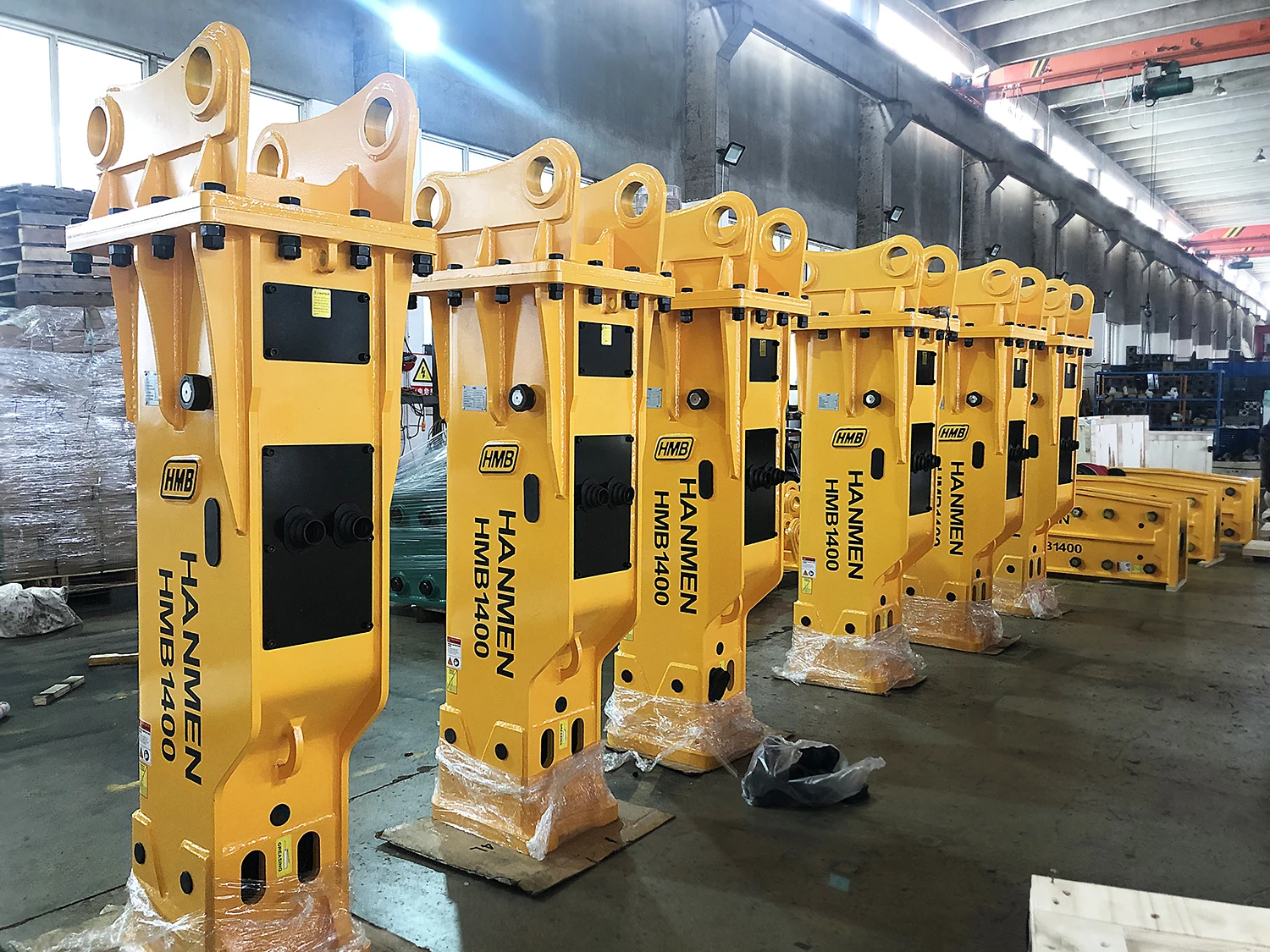

HMB1400 | 2000 | 150-190 | 165-195 | 400-800 | 140 | 1 | 20-30 | Internal | ||||||||

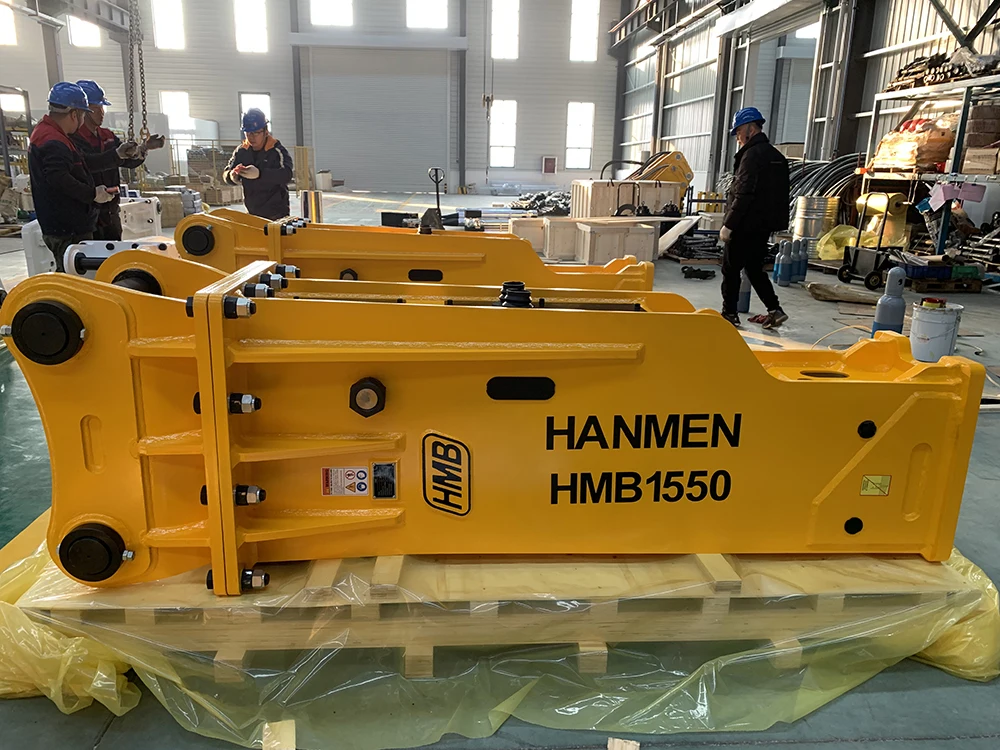

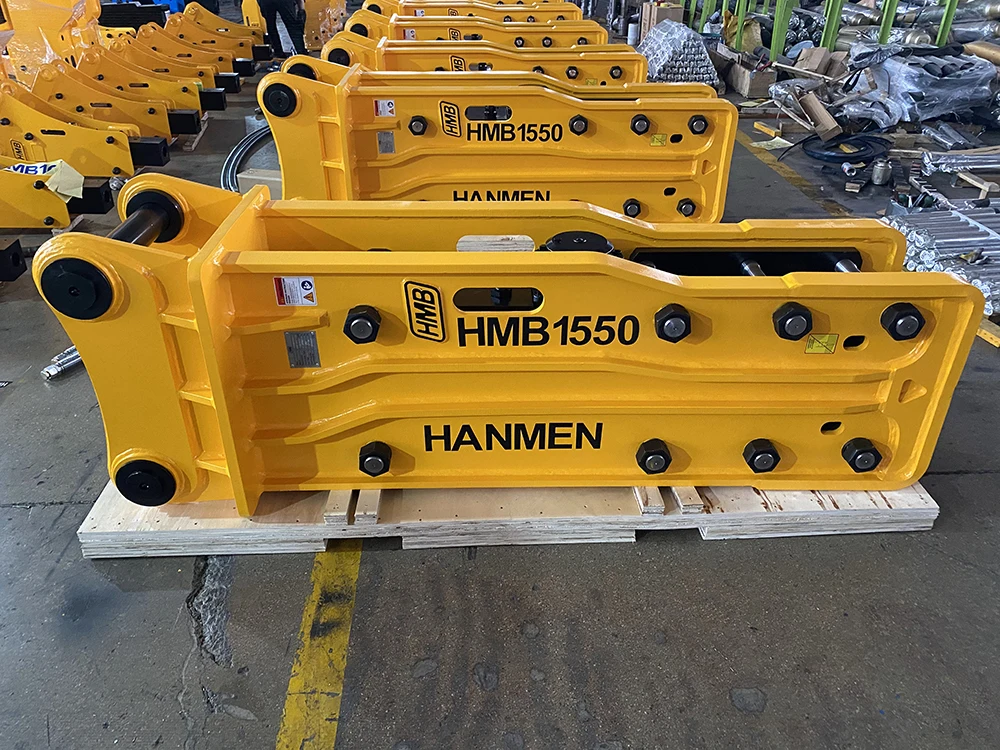

HMB1550 | 2900 | 150-230 | 170-200 | 400-800 | 155 | 1 | 27-36 | Internal | ||||||||
HMB1650 | 3250 | 200-260 | 180-200 | 250-400 | 165 | 5/4 | 30-45 | Internal | ||||||||
HMB1750 | 4150 | 210-280 | 180-200 | 250-350 | 175 | 5/4 | 40-50 | Internal | ||||||||
HMB1800 | 4200 | 280-350 | 190-210 | 230-320 | 180 | 5/4 | 45-55 | Internal | ||||||||
HMB1900 | 4230 | 280-350 | 190-210 | 230-320 | 190 | 5/4 | 50-60 | Internal | ||||||||
Main Features:
1. Cylinder&valves: prevents wear with precision finishing treatment.
2. Piston: improved running properties; manufactured with high-quality nickel&vanadium alloy steel.
3. Chisel: exceptinal performance and reliability; manufacutred with high-quality alloy steel.
4. Accummulator: reduces irregular pulse pressure on hydraulic circuit; improved striking power with supply of accumulated gas pressure.
5. Oil seal: increase hydraulic circuit design at the sied of under pressure, reduce the pressure of oil seal, improve service
life.
1. Cylinder&valves: prevents wear with precision finishing treatment.
2. Piston: improved running properties; manufactured with high-quality nickel&vanadium alloy steel.
3. Chisel: exceptinal performance and reliability; manufacutred with high-quality alloy steel.
4. Accummulator: reduces irregular pulse pressure on hydraulic circuit; improved striking power with supply of accumulated gas pressure.
5. Oil seal: increase hydraulic circuit design at the sied of under pressure, reduce the pressure of oil seal, improve service
life.
Cylinder Forged
Cylinder: 20CrMo, Forged;
Front & Back head: 20CrMo, Forged;
Hardness: HRC 59-62;
Hardness: HRC 59-62;
Heat Treatment
All raw material need heat treament, higher hardness, less broken
Forged Bushes
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
Piston Heat Treatment
SB10-SB50, 40CrNiMoA
SB60-SB121, GCr15
SB131, SB151, 30G,40G, 616V
Polishing
Polishing tolerance: 0.015mm;
Grinding Machine: Import from Korea, and Japan, CNC type
Worker experience: 10years.
Seal kit
Nok brand or Parker brand
The seal kit in hammer is the same tiwh the seal kit in tool box.
Machining
35 uints , CNC machining center Imported from Korea and Japan.
Inspection.
All Inspection equipments imported from Japan.
Team
Happ work, with woderful team work.
* Wear resistant steel shell
* Appreance can be customized
* Logo can be customized
* Simple operation and easy maintenance
* Advanced Korean technology
* More powerful stroke and reliable
* Appreance can be customized
* Logo can be customized
* Simple operation and easy maintenance
* Advanced Korean technology
* More powerful stroke and reliable
Product Application
Company Introduction
Located in Yantai, Shandong province, established in 2009, Yantai Jiwei Construction Machinery Equipment Co.,Ltd registered HMB Brand in 2011. We started to develop oversea market in 2013.With 12 years experience, specialized in manufacturing Hydraulic Breakers, Quick Couplers, Excavator Palte Compactors, Earth Augers and Spare Parts. Our own brand "HMB" hydraulic breakers have full series and are compatible to all brands' excavators.
Why Choose HMB
Exhibition Show
Packing&Shipping
Plastic cloth, Tensile membranes, Packing tape, Steel Belt and Wooden box contribute a wonderful packing procedure. With Plastic and tensile membranes, can prevent breaker rusting when sailing on the sea for long time. Packing tape , steel belt and outside wooden box can protect breakers free from collision.
FQA
Q: Are you a manufacturer?
A: Yes,our factory was established in 2010.
Q: Are you sure your product will fit my excavator?
A: Our equipments are suitable for most excavators. Show us your excavator model, we'll confirm the solution.
Q: How about your products warranty?
A: 12 months warranty for hydraulic breaker, beyond the warranty period.
Q: Can you produce according to customers' design?
A: Sure, OEM/ODM service available. We are professional manufacturer in Yantai.
Q: What's the MOQ and payment terms?
A: MOQ is 1set. Payment via T/T,L/C, Western Union accepted, other terms can be negotiated.
Q: How about delivery time?
A: 5-25 work days after the payment.
Q: How about the package?
A: Our equipments wrapped by stretch film, packed by pallet or polywood case; or as requested.
Q: Which country have you exported?
A: Saudi Arabia, America, Thailand, Cyprus, India, Canada, Australia, Peru, Egypt, Brazil, Mexico, South Africa, etc.
A: Yes,our factory was established in 2010.
Q: Are you sure your product will fit my excavator?
A: Our equipments are suitable for most excavators. Show us your excavator model, we'll confirm the solution.
Q: How about your products warranty?
A: 12 months warranty for hydraulic breaker, beyond the warranty period.
Q: Can you produce according to customers' design?
A: Sure, OEM/ODM service available. We are professional manufacturer in Yantai.
Q: What's the MOQ and payment terms?
A: MOQ is 1set. Payment via T/T,L/C, Western Union accepted, other terms can be negotiated.
Q: How about delivery time?
A: 5-25 work days after the payment.
Q: How about the package?
A: Our equipments wrapped by stretch film, packed by pallet or polywood case; or as requested.
Q: Which country have you exported?
A: Saudi Arabia, America, Thailand, Cyprus, India, Canada, Australia, Peru, Egypt, Brazil, Mexico, South Africa, etc.
