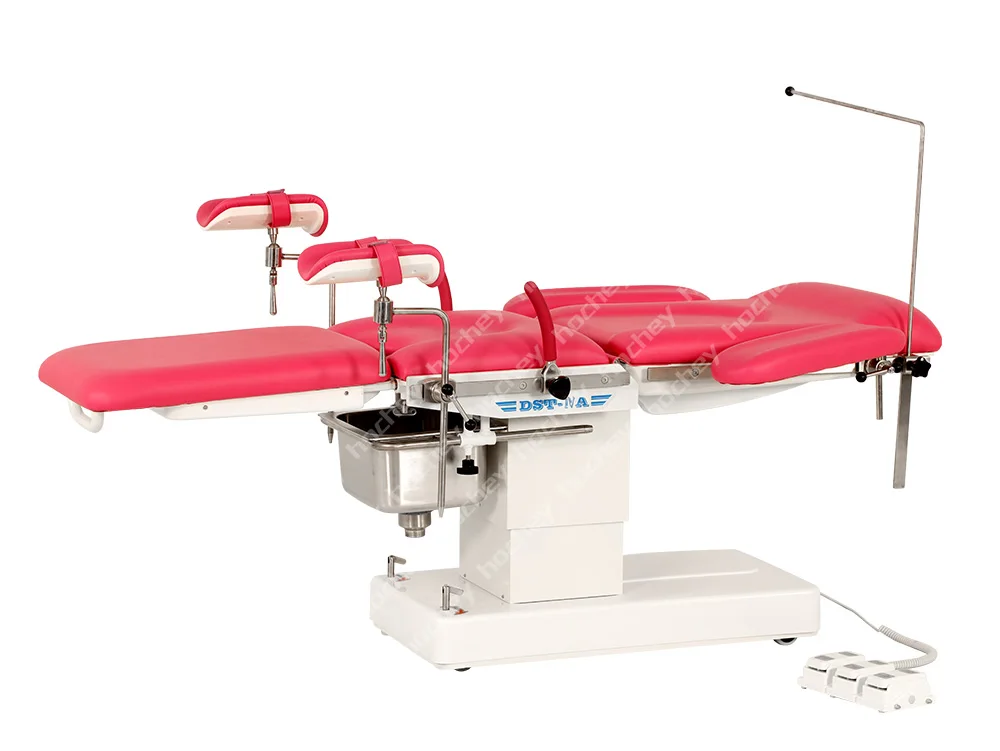

Hochey Medical Multifunction Gynecological Chair Exam Bed Delivery Operating Table Electric Obstetric Bed For Hospital

Share on (1601118114763):


Price:$800.00 - $1,500.00

Quantity:


Product Overview

Description



Specification


Length
1810±20mm
Width of table surface
600±20mm
Max Height
(840±20)mm
Reversed Trendelenburg
20°±5°(Electric)

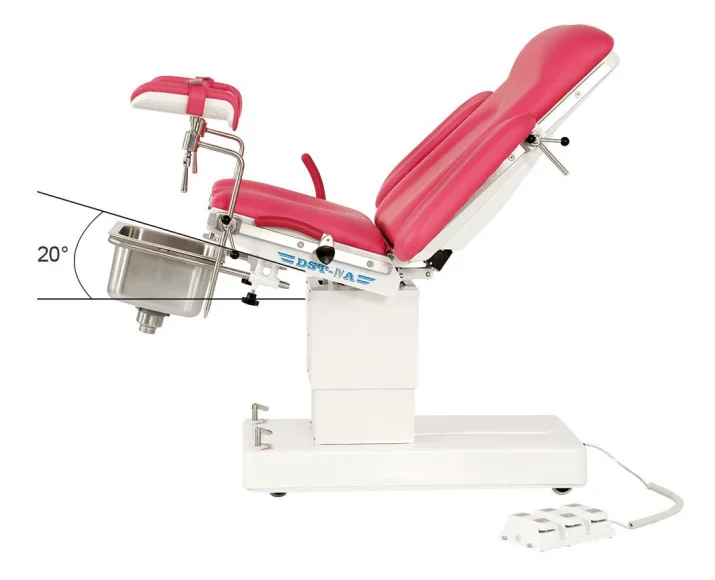

Trendelenburg
20°±2°(Electric)
Back section up&down
75°±2°(Electric)
 up&down lifting range
250±20mm(Electric)
auxiliary board
90°(level moving)
Supply
AC220±10%,50HZ


Introduction

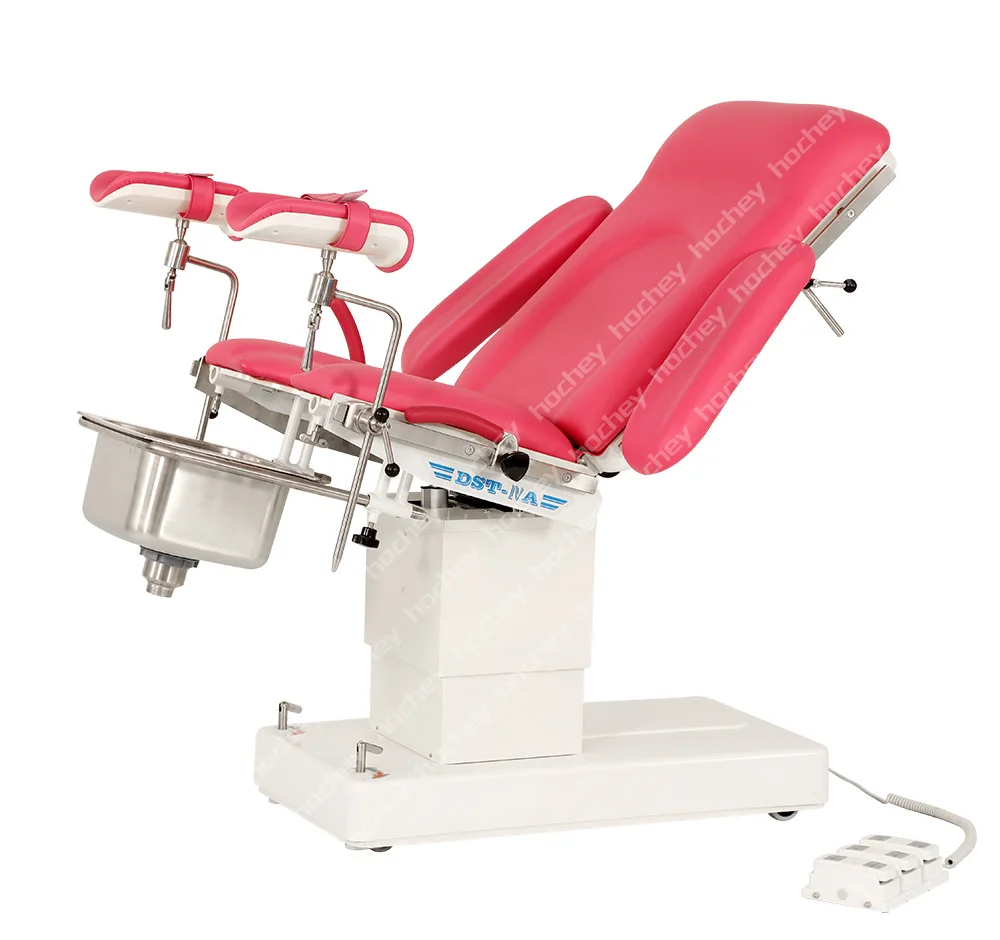

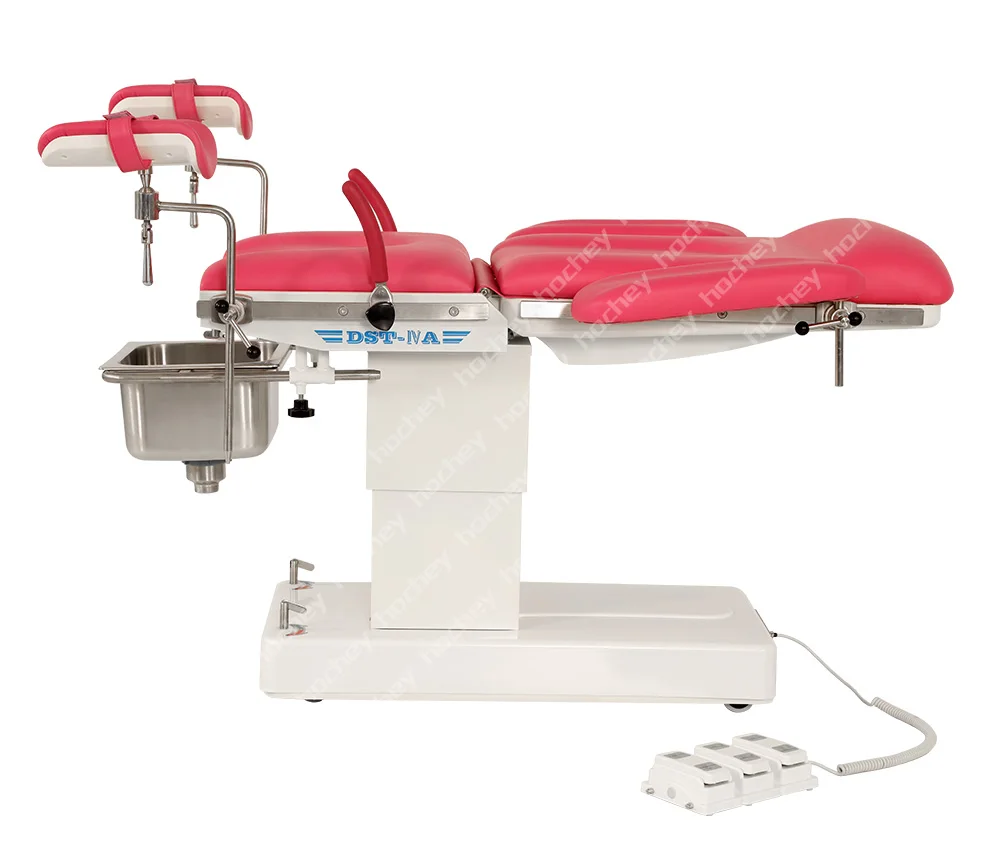

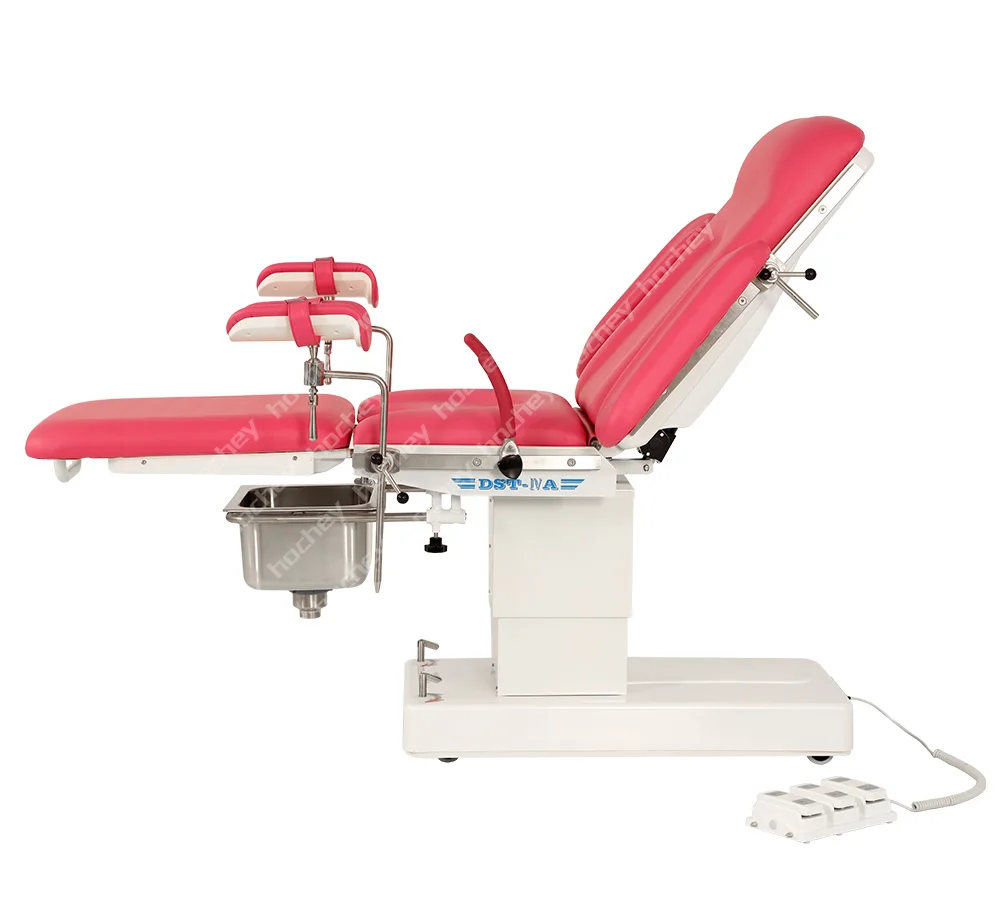

The DST-VA electric multifunctional obstetrics and gynecology operating table is made by our company based on the needs of different markets, absorbing advanced Japanese clinical technology, using ergonomic principles and designing curves. It has various auxiliary functions of obstetrics and gynecology equipment for obstetrics delivery, gynecological surgery, diagnosis and examination, and emergency caesarean section. It is also specially equipped with a unique kick-type leg rest. t suitable for parturient delivery and implementation of obstetrics and gynecology operations, and can also be used for general surgical support such as chest, abdomen, perineum, and urinary surgery.

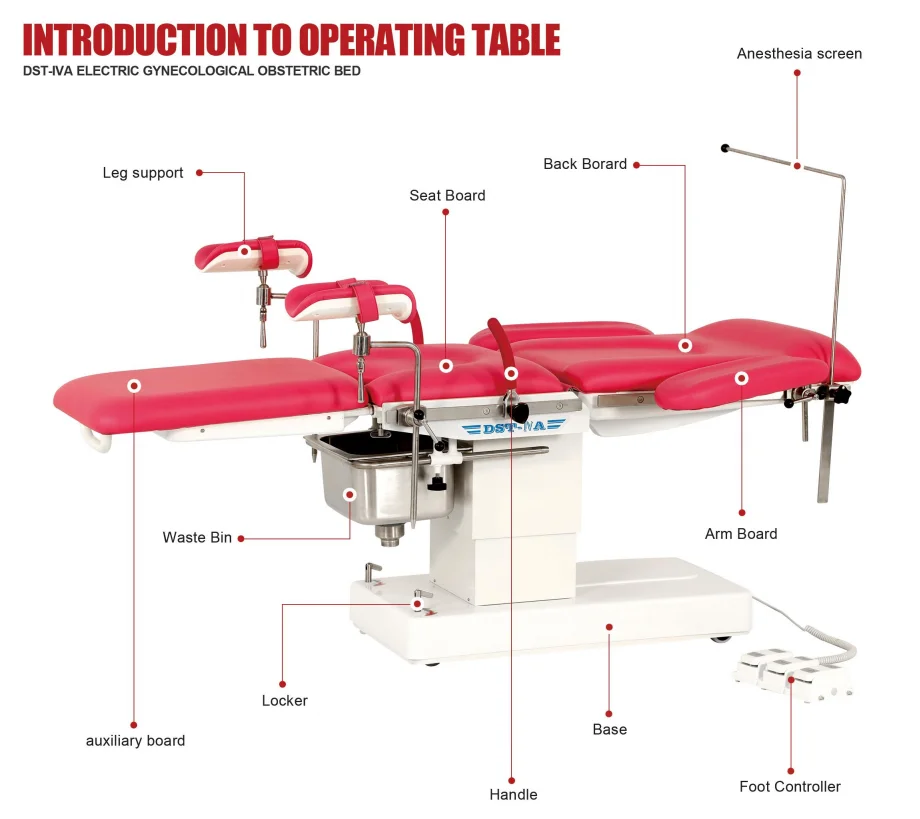

Product details

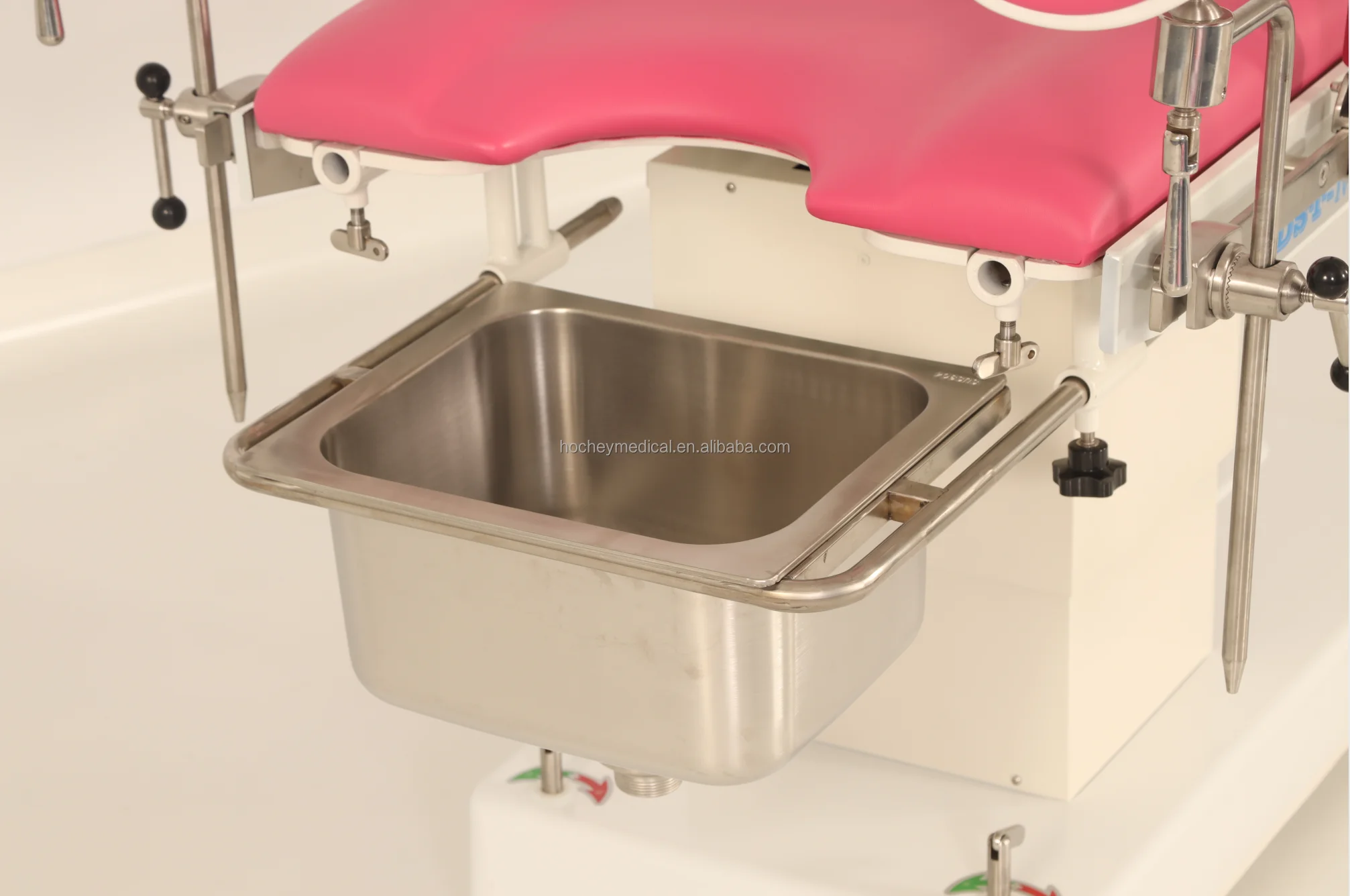

Dirty Basin

There is filth basin under the seat, it is easy to adjust the position of lying-in women and help delivery process by combining use of the leg holder, assistant table and foldable footrest.

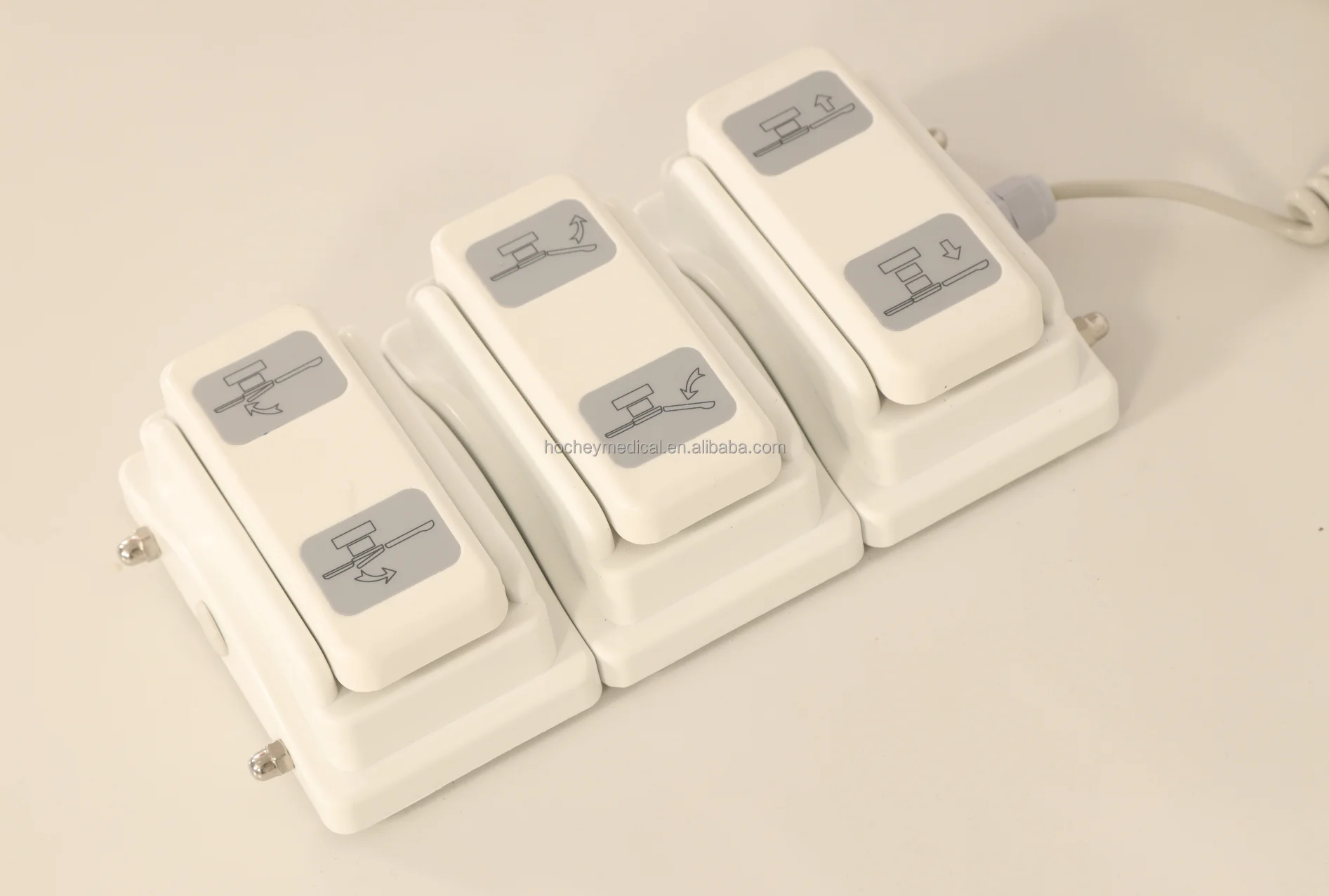

Foot Controller

When the operating table is required to move up and down, the seat plate is folded, and the back plate is folded up and down,just lightly press the corresponding buttons of the controller shown in Figure 2 to make the operating table automatically realize the required actions.

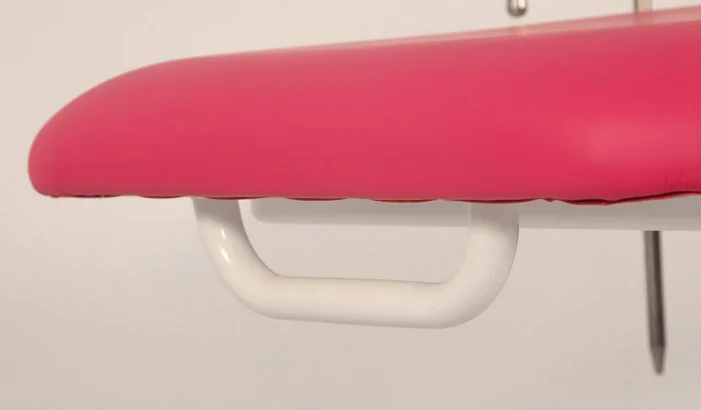

Handle

Located under the auxiliary board, it is convenient for the user to operate the auxiliary board.

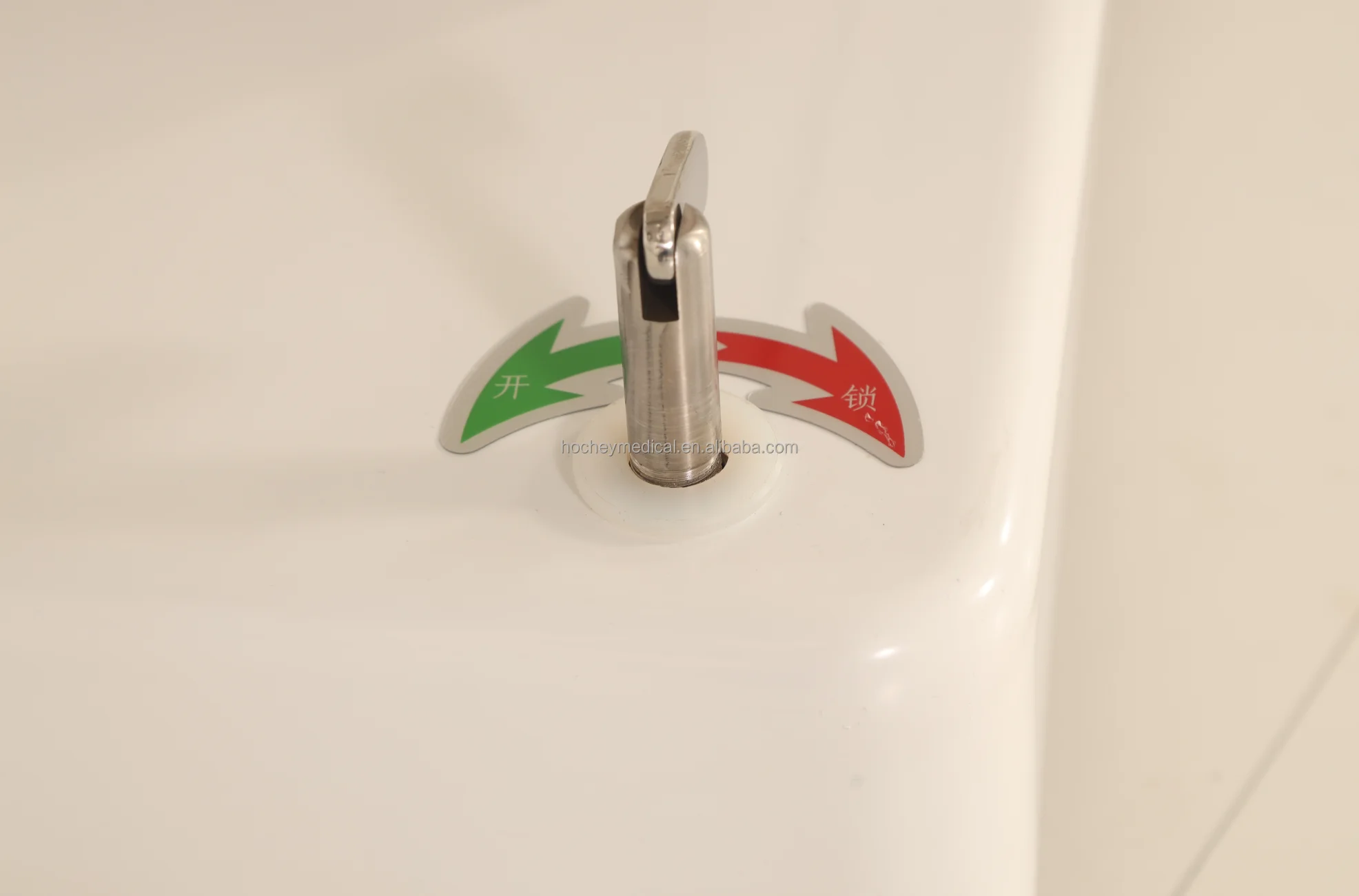

Lock Bolt Brake

Rotate and loosen the locking bolt in the green direction according to the arrow prompt, and the operating table can move,after the operating table is moved and reset, the fastening bolt must be tightened in the direction of the red arrow to prevent the operating table from shifting during use.

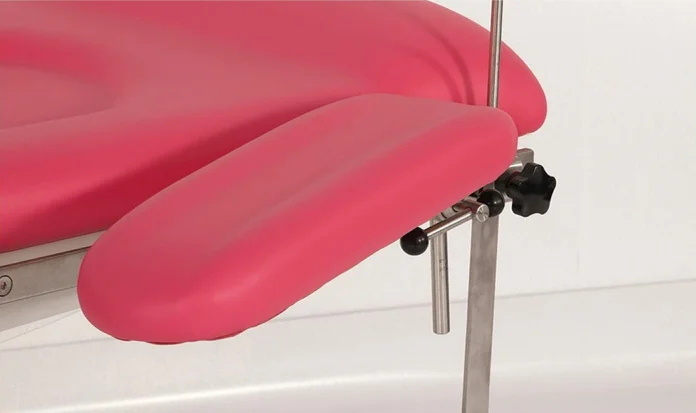

Movable Arm Board

Can be adjusted according to the actual needs.

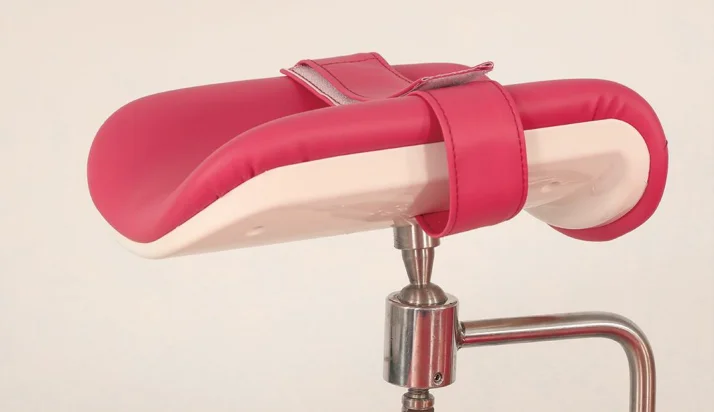

Leg Support

Accessories for Gynecology Surgery which needs lithotomy position, contoured, padded and lengthened for comfortable leg support. Mounted on a joint adaptor for positioning flexibility.

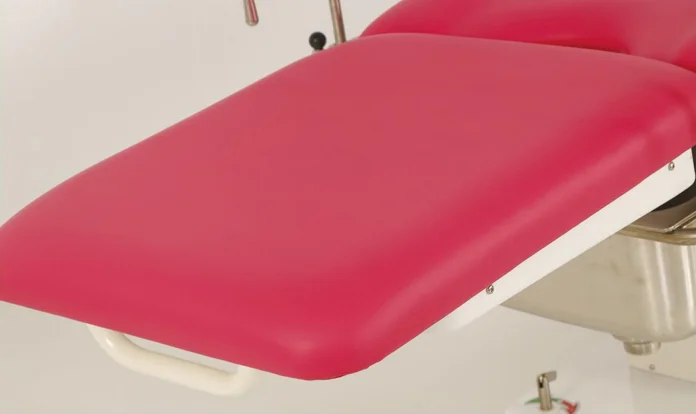

Auxiliary Board

The auxiliary table is plug-in type, when not in use, loosen the bottom locking bolt and pull out the auxiliary table.




Lockers

The auxiliary table is plug-in type, when not in use, loosen the bottom locking bolt and pull out the auxiliary table.


Advantages


Table Lowest Height: 620MM
Table Highest Height:890MM


Back Section Down:5°
Back Section Up:75°



Seat Section Up:25°
