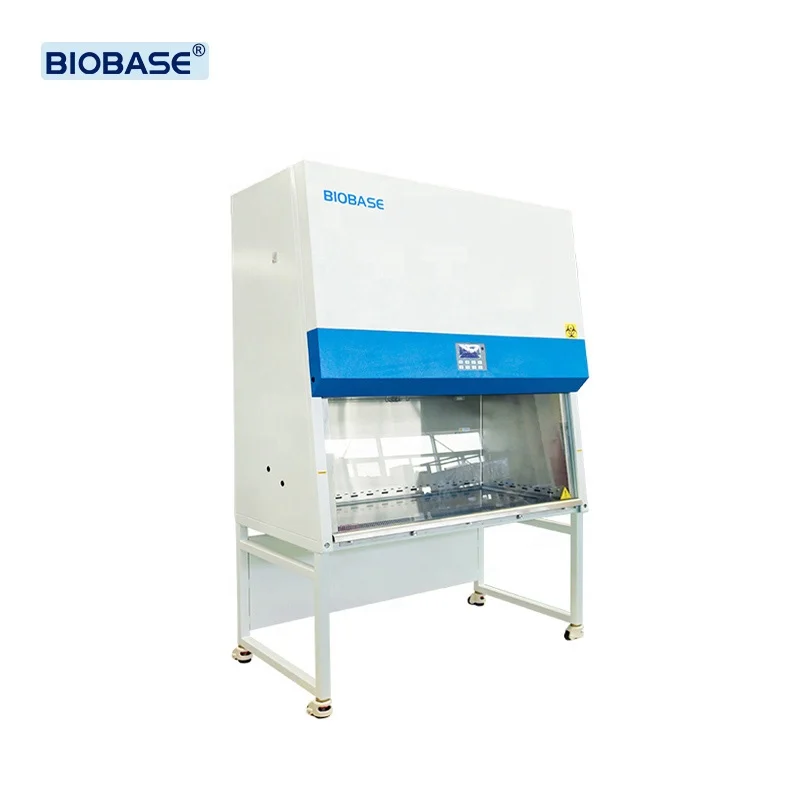

BIOBASE Laboratory Air Protection HEPA Filter Safety Cabinet NSF Certified Class II A2 Biosafety Cabinet BSC 4FA2 GL
- Category: >>>
- Supplier: Biobase Meihua Trading Co. Ltd.Biobase Ltd.
Share on (1601118146730):
Product Overview
Description
One stop Laboratory and Medical Equipment!
Welcome to Inquiry!
Welcome to Inquiry!
Product Description

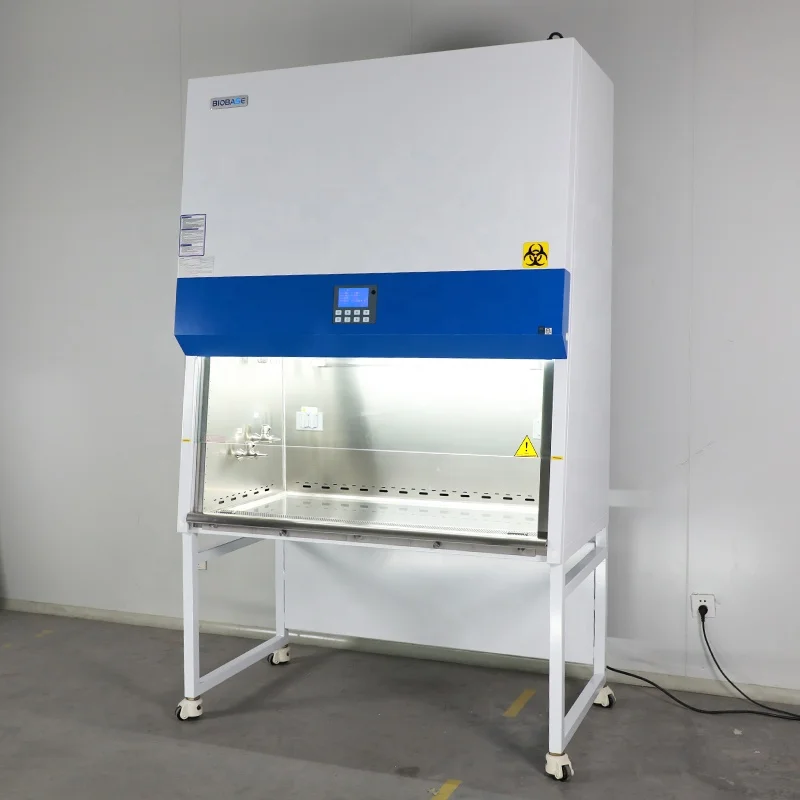

Biological Safety Cabinet BSC-4FB2-GL
Features:
1. Motorized front window.

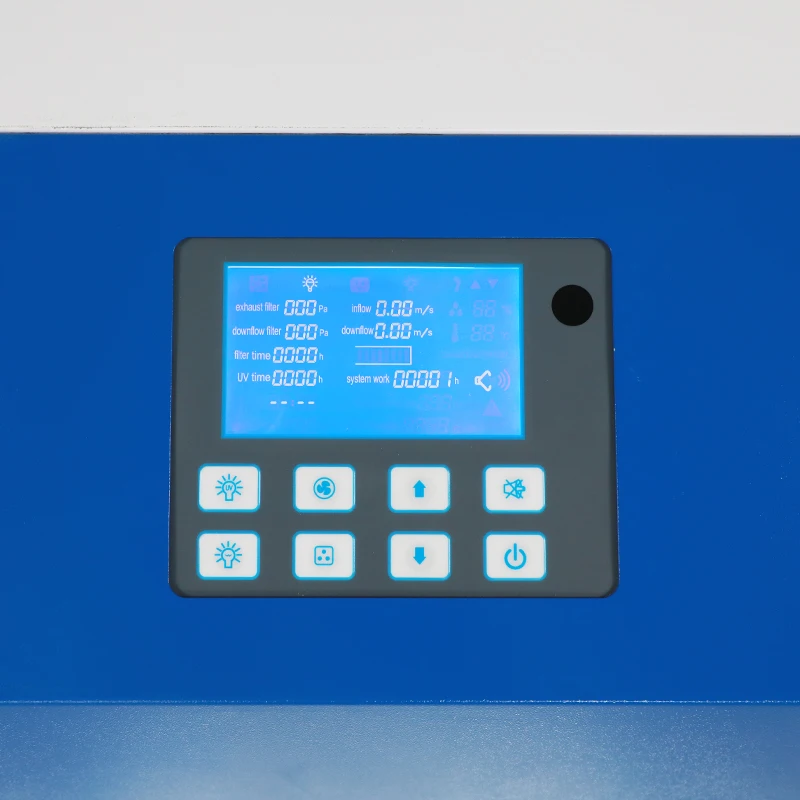

2. Large LCD display, all information displayed.
3. Automatic air speed adjustable with filter block.
4. With memory function in case of power-failure.
5. Side & back wall is made of single piece stainless steel.
6. Interlock function: UV lamp and front window; UV lamp and blower, fluorescent lamp; Blower and front window.
7. Front 10° slanted to offer operator comfort while working for long time, reduce glare and maximize reach into the work area.
1. Motorized front window.
2. Large LCD display, all information displayed.
3. Automatic air speed adjustable with filter block.
4. With memory function in case of power-failure.
5. Side & back wall is made of single piece stainless steel.
6. Interlock function: UV lamp and front window; UV lamp and blower, fluorescent lamp; Blower and front window.
7. Front 10° slanted to offer operator comfort while working for long time, reduce glare and maximize reach into the work area.
Product Specifications
Model | BSC-4FA2-GL(4') | BSC-6FA2-GL(6') | BSC-4FA2-NA(4') | BSC-6FA2-NA(6') | |||||
External Size(W*D*H) | 1383*775*2295mm | 1873*775*2295mm | 1383*775*2295mm | 1873*775*2295mm | |||||
Internal Size(W*D*H) | 1210*600*660mm | 1700*600*660mm | 1210*600*660mm | 1700*600*660mm | |||||
Work Surface Height | 750mm | ||||||||
Max Opening | 550mm (22’’) | ||||||||
Tested Opening | Safety height 254mm (10’’) | ||||||||
Airflow Volume | Inflow | 587m3/h(346cfm) | 824m3/h(485cfm) | 587m3/h(346cfm) | 824m3/h(485cfm) | ||||
Down flow | 60%:863m3/h(508cfm) | 60%:1212m3/h(713cfm) | 60%:863m3/h(508cfm) | 60%:1212m3/h(713cfm) | |||||
Exhaust | 40%:587m3/h(346cfm) | 40%:824m3/h(485cfm) | 40%:587m3/h(346cfm) | 40%:824m3/h(485cfm) | |||||
Front Window | Motorized. Two-layer laminated toughened glass ≥5mm. Anti UV | ||||||||
HEPA Filter | Two, 99.999% efficiency at 0.3um, filter life indicator | ||||||||
Filter Guard Type | Aluminum alloy frame | ||||||||
Noise | ≤61 dB/≤58 dB | ||||||||
Illumination | ≥1000Lux | ||||||||
Display | LCD Display | ||||||||

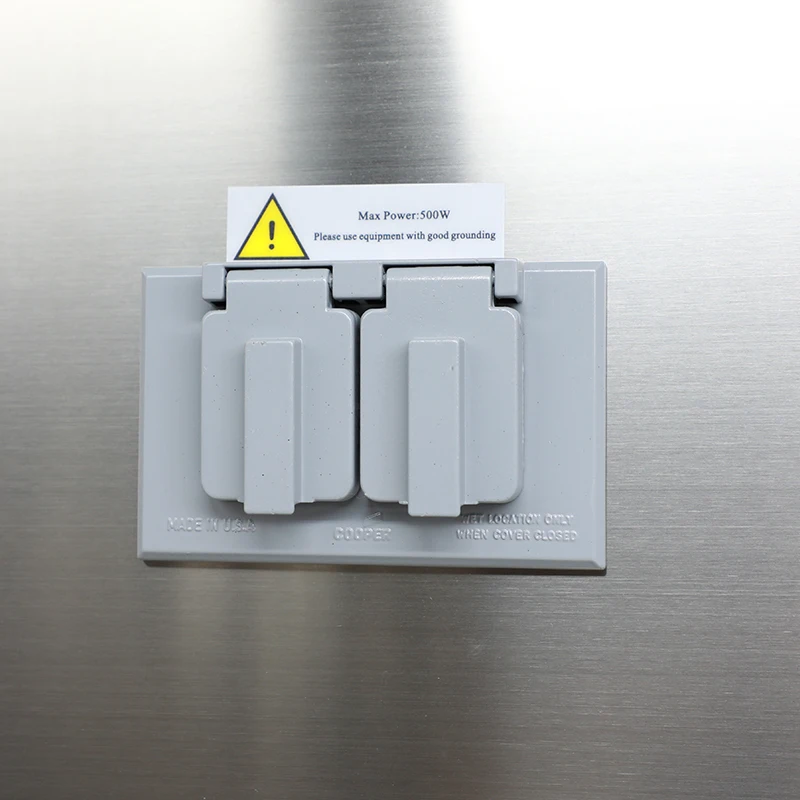

Waterproof Socket | 2, Total consumption:≤500W | ||||||||

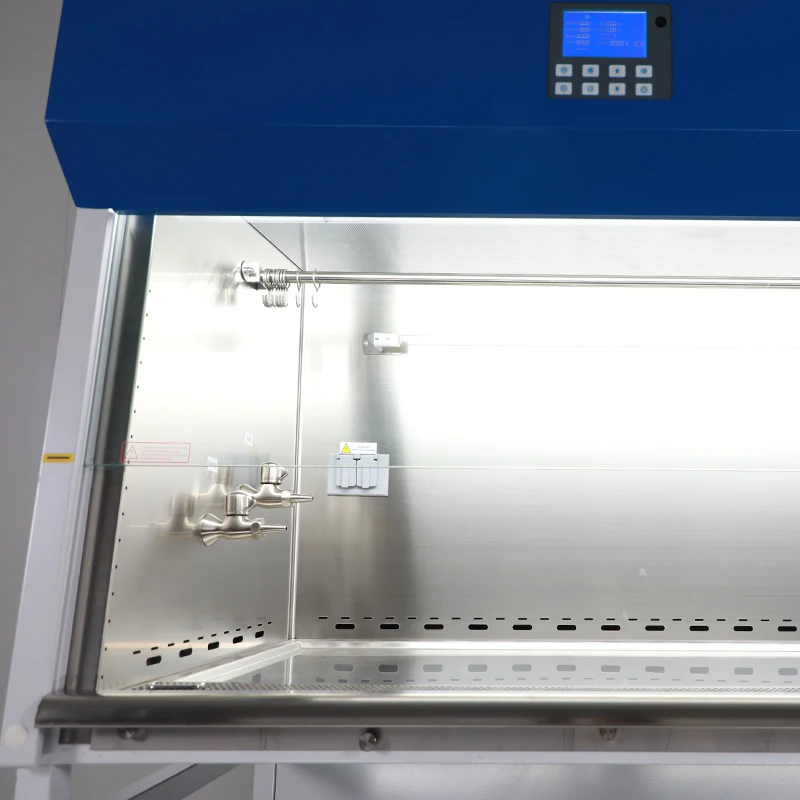

Tap | Water tap*1, Gas tap *1 | ||||||||
Ground Resistance | ≤ 0.10Ω | ||||||||
Power Supply | AC220V±10%, 50/60Hz; 110V±10%, 60Hz, Full load Amps: 9A, BTU/Hr: 1689 | ||||||||
Consumption | 400W | 500W | 400W | 500W | |||||
Alarm | Abnormal airflow velocity; Filter replacement; Front window at unsafe height. | ||||||||
DC Motor | One ECM motor, 110V& 220V acceptable, Speed adjustable, high efficiency and low power consumption | ||||||||
Material | Working area: 304stainless steel/ Frame and Decorative Plate: cold-rolled steel with anti-bacteria power coating | ||||||||

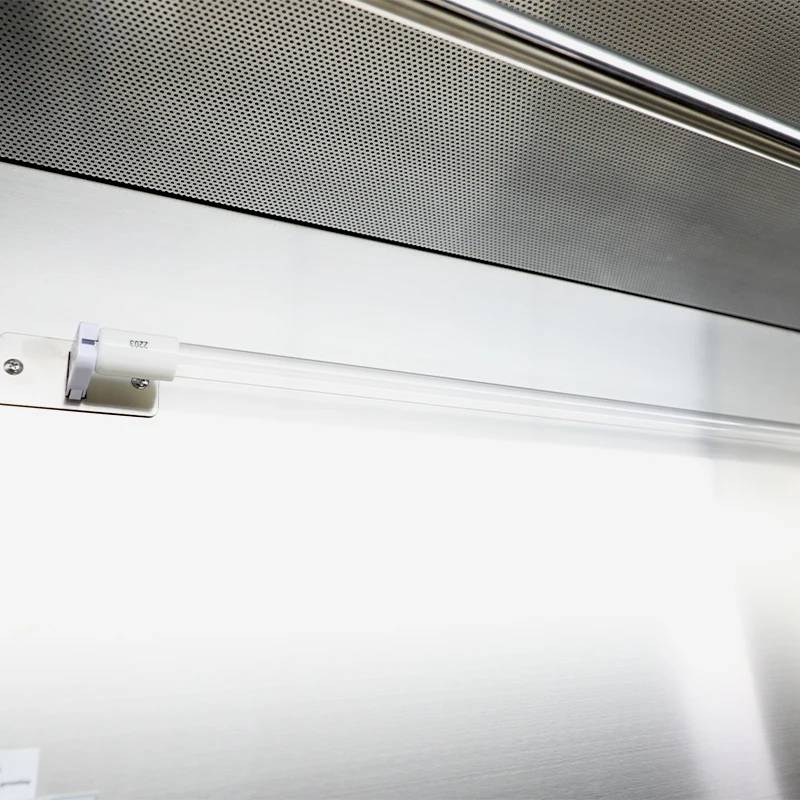

UV Lamp | 30W | 40W | 30W | 40W | |||||
Germicidal UV lamp, Emission of 253.7 nanometers for most efficient decontamination | |||||||||
Illuminating Lamp | 18W*2 | 22W*2 | 18W*2 | 22W*2 | |||||
LED lamp | |||||||||

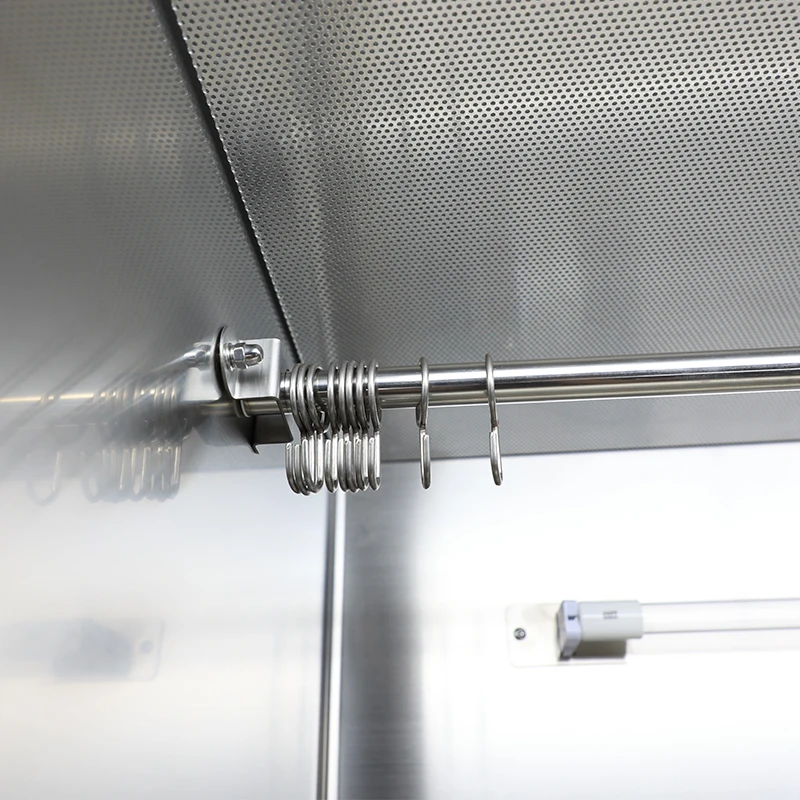

Standard Accessory | Illuminating lamp, UV lamp *2, Base stand, SS water & gas taps, Drain valve, Waterproof sockets, Stainless Steel I.V. Bar with 10 hooks | ||||||||
Optional Accessory | Armrest, Airflow tester, Formalin fumigation sterilizer,Infrared sterilizer, Electric height adjustable base stand, Remote control | ||||||||
Package Size (W*D*H) | 1540*1080*1900mm | 2020*1080*1900mm | 1540*1080*1900mm | 2020*1080*1900mm | |||||
Gross Weight | 340kg | 370kg | 340kg | 370kg | |||||
