Product Overview
Description
Product Description

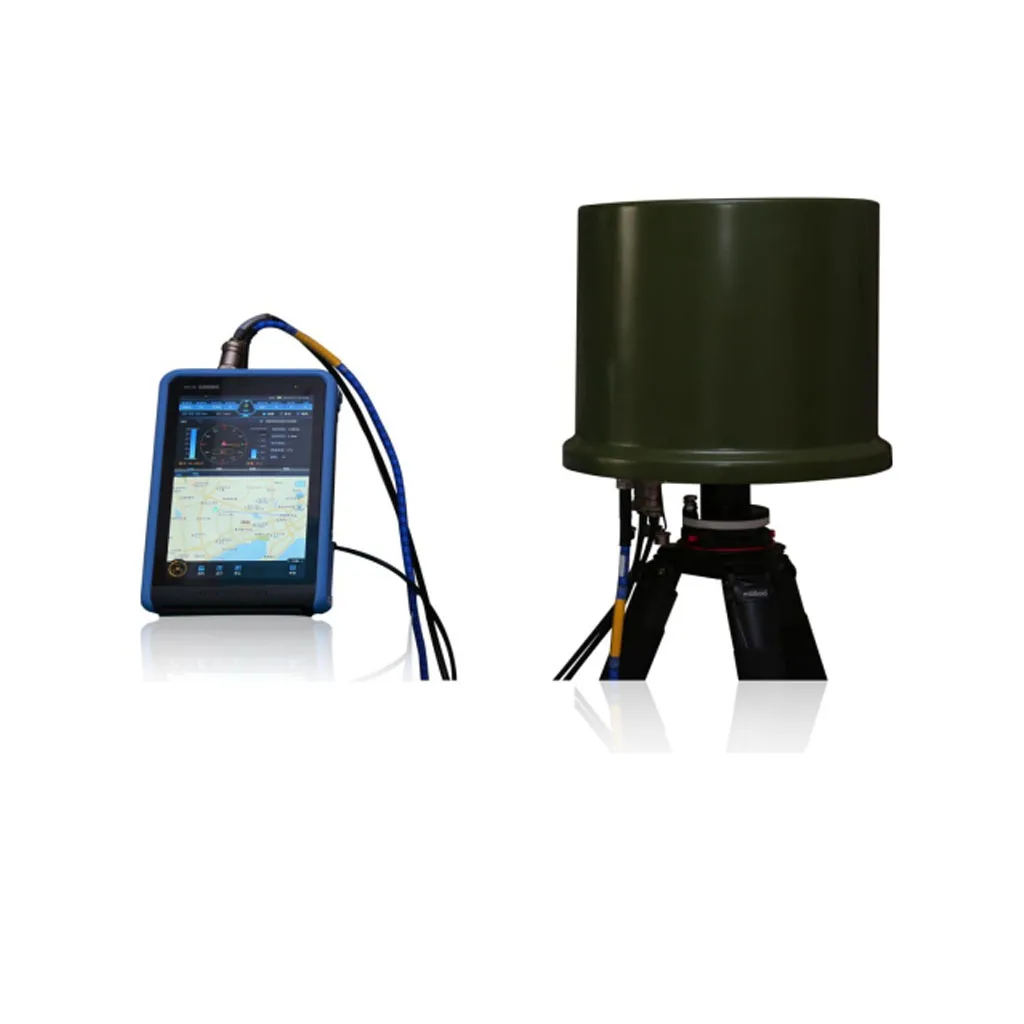

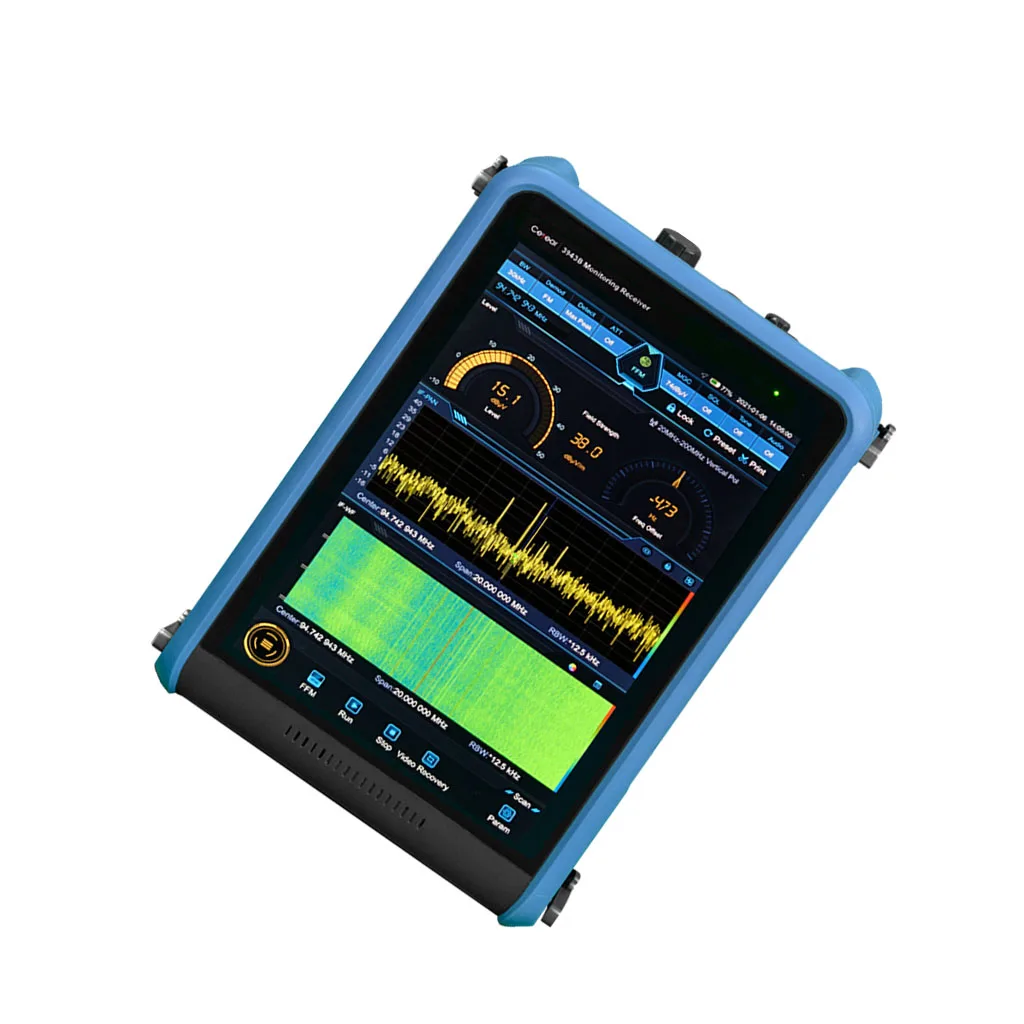

3943B-S monitoring receiver

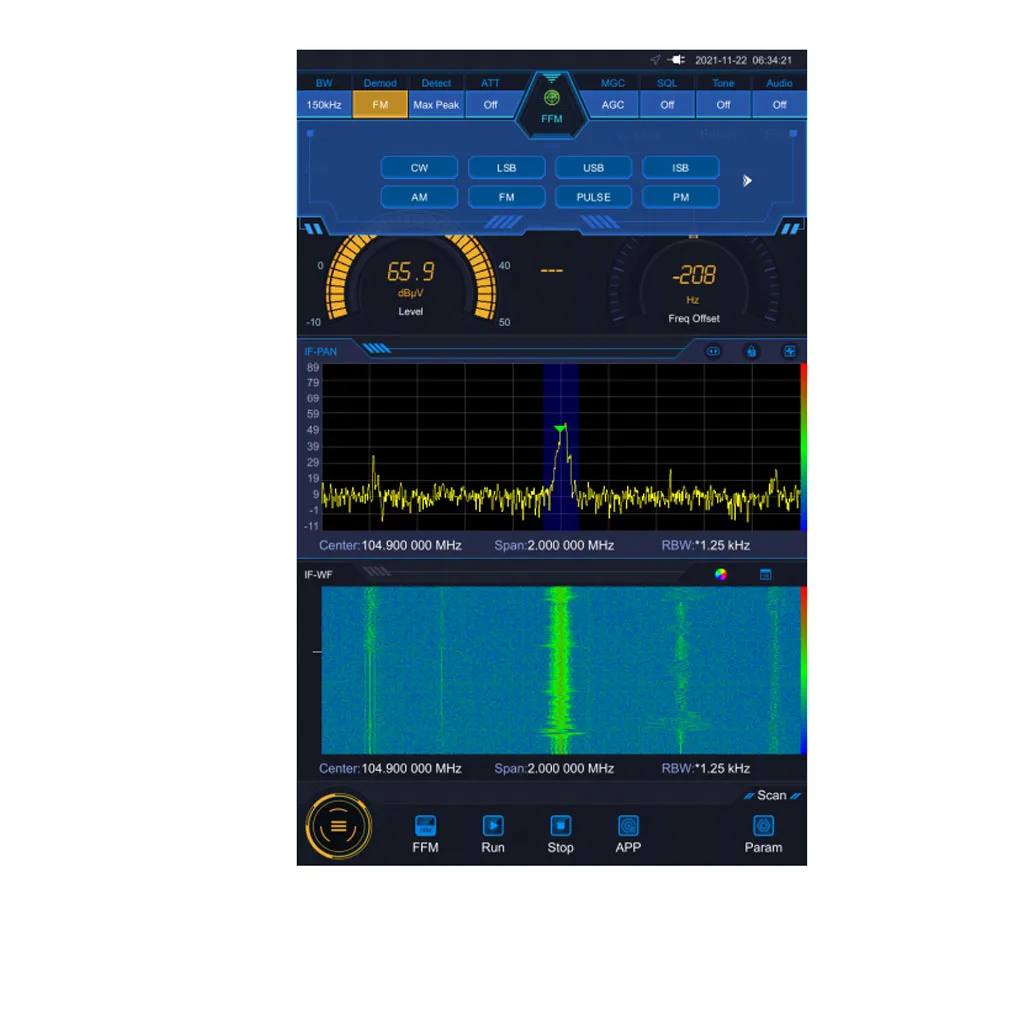

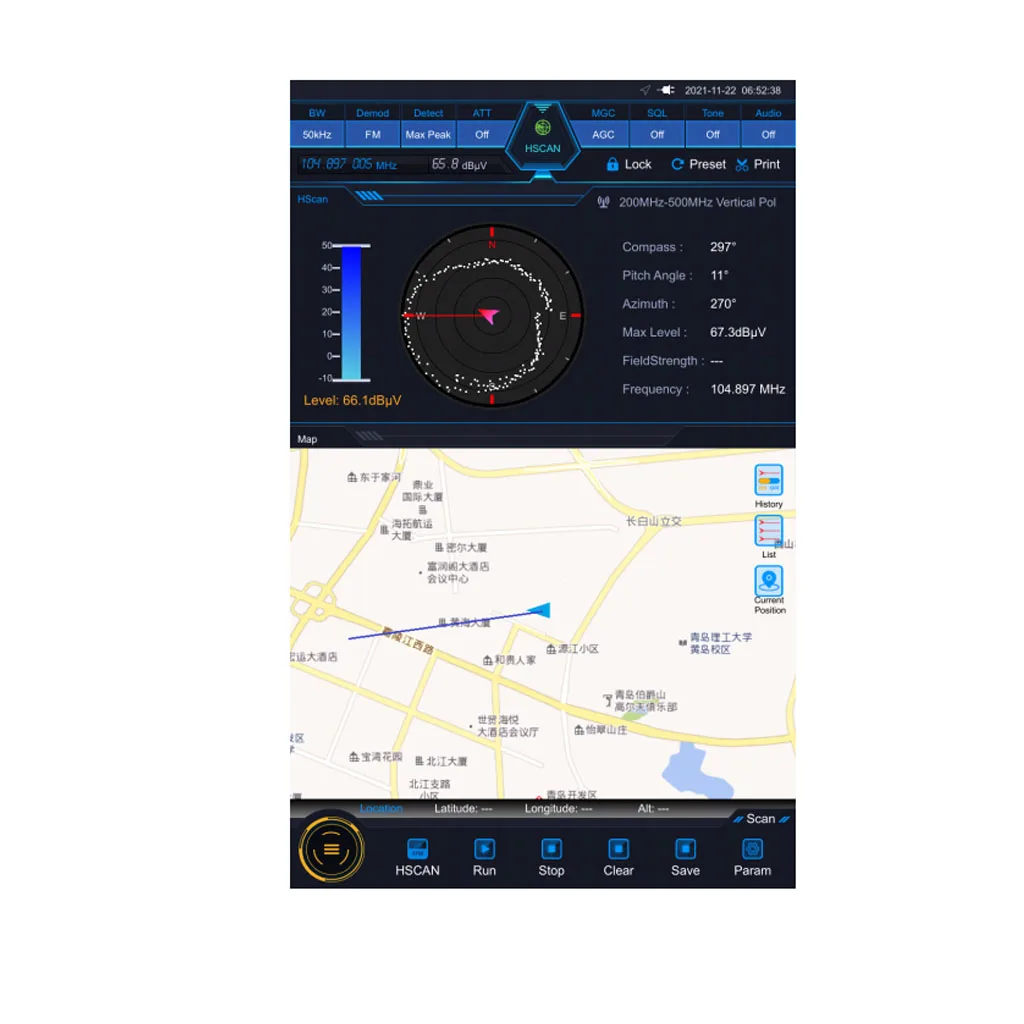

The external dimensions of the handheld monitoring receiver are 182.5mm x 289mm x 69mm, with a total weight of less than 3.5kg. It operates with a battery for 3-4 hours and is integrated with a 10.1-inch TFT touch screen. It has multiple functions such as radio signal search, interception, measurement, analysis, demodulation, direction finding, positioning, etc. It can be used to perform tasks such as radio spectrum monitoring in accordance with ITU standards, radio service coverage testing, and rapid detection and positioning of illegal transmission/interference sources. The human-computer interaction adopts gesture operation, and users can easily complete parameter settings, spectrum trajectory movement, zooming in and out, and other operations by clicking, sliding, and zooming in and out. Economical prices can also bring excellent performance, providing users with more choices.
Specification
Frequency，9kHz～8GHz | Local oscillator re radiation ＜ -89dBm | Battery powered and power adapter powered Power adapter input nominal value: AC 100-240V, 50-60Hz |
Weight <3.5kg | Panoramic scanning rate ＞ 2GHz/s | Input connector N-type (negative), impedance 50 Ω |
Amplitude accuracy Better than ± 1.5dB (+15 ℃ to+35 ℃) Better than ± 3dB (0 ℃~+50 ℃) | Overall dimensions wide × high × Depth=(289 ± 1.2) mm × (182.5 ± 1.2) mm × (69 ± 0.8) mm (excluding strap | Rated value refers to the expected performance, or describes the product performance that is useful in the product but not included in the product warranty scope. |
model | 3943B-S |
Series | 3943 series |
name | Monitoring Receiver |
manufactor | ceyear |
