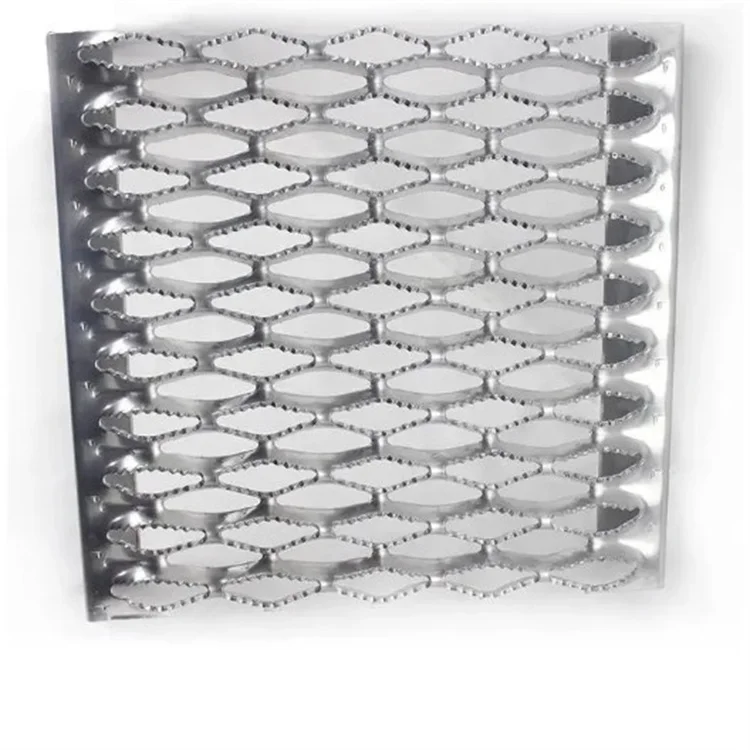

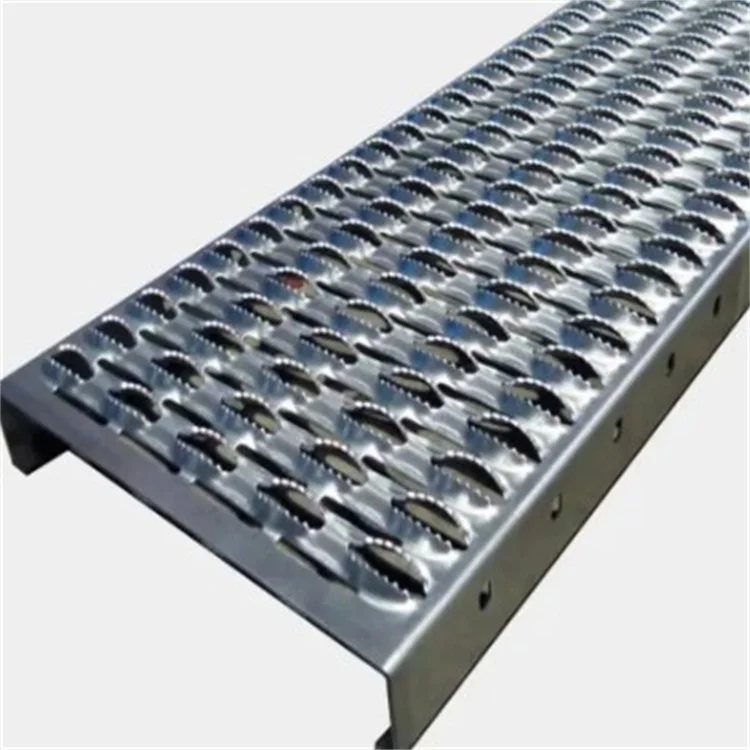

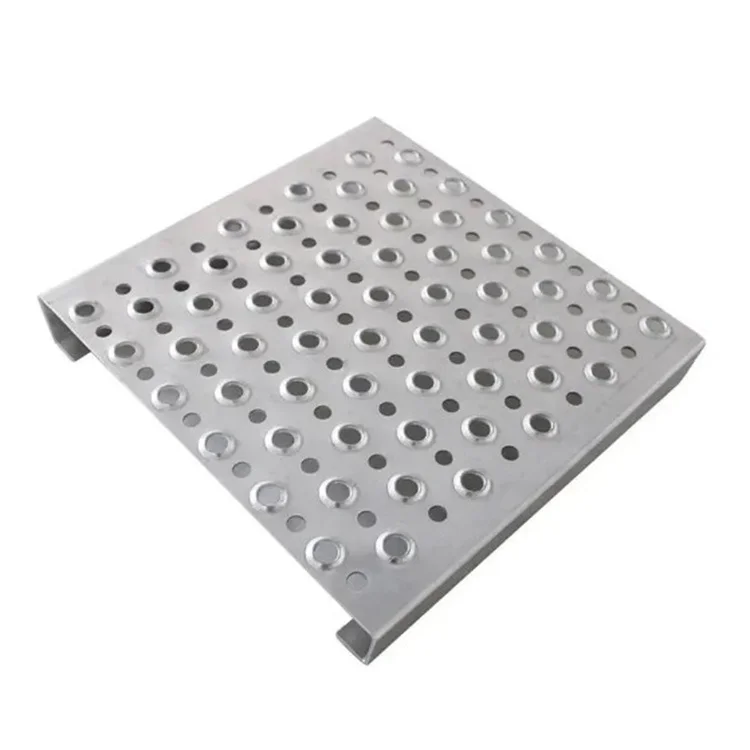

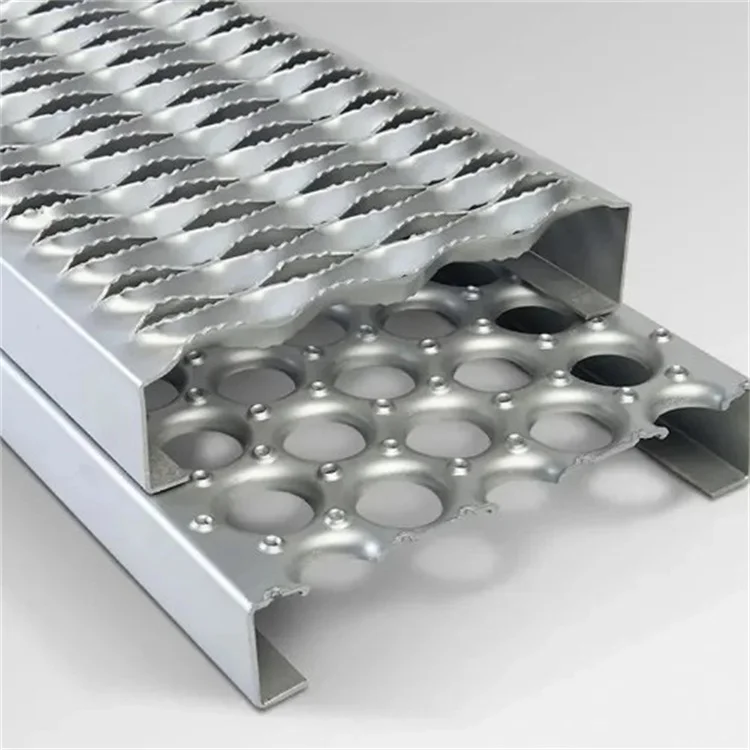

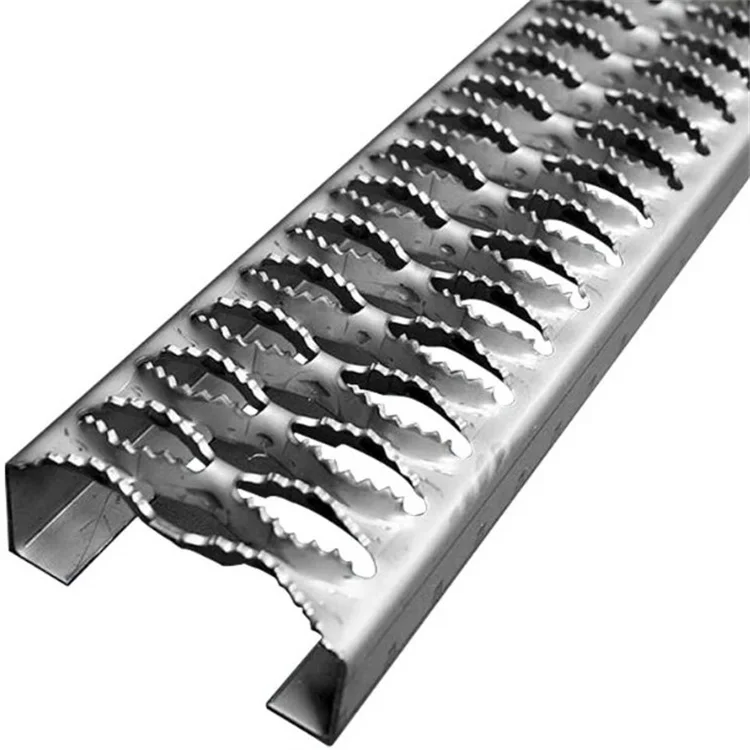

Outdoor steel metal stairs anti slip perforated sheet aluminum strut grip safety grating
- Category: >>>
- Supplier: Anping Shengwei Animal Hair Products Co. Ltd.
Share on (1601118317607):
Product Overview
Description

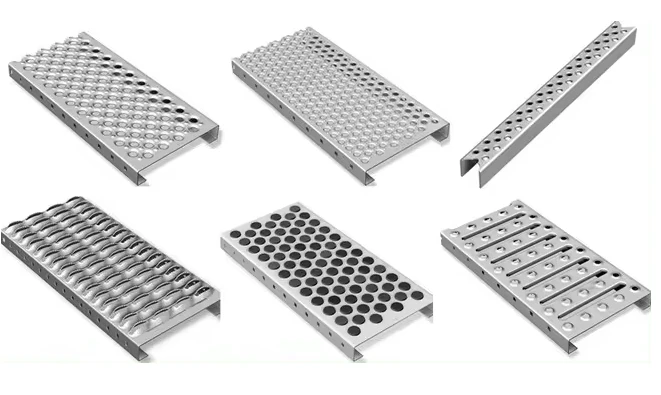

Grip Strut grating

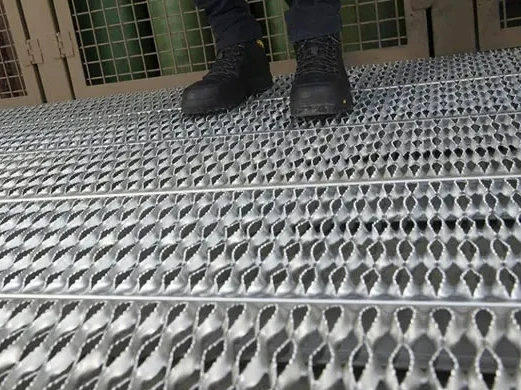

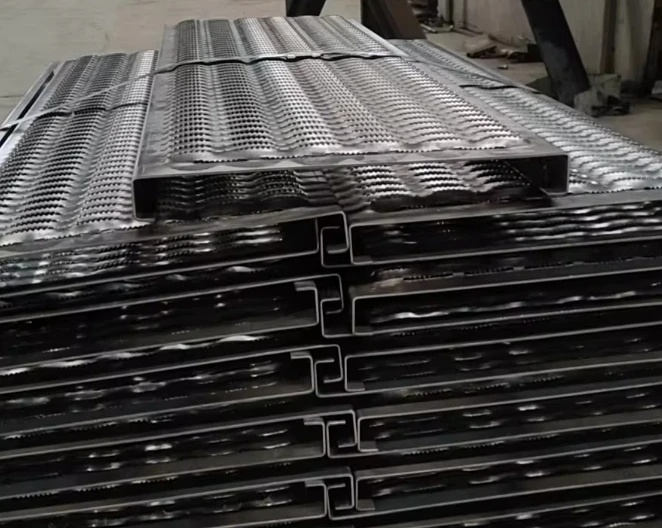

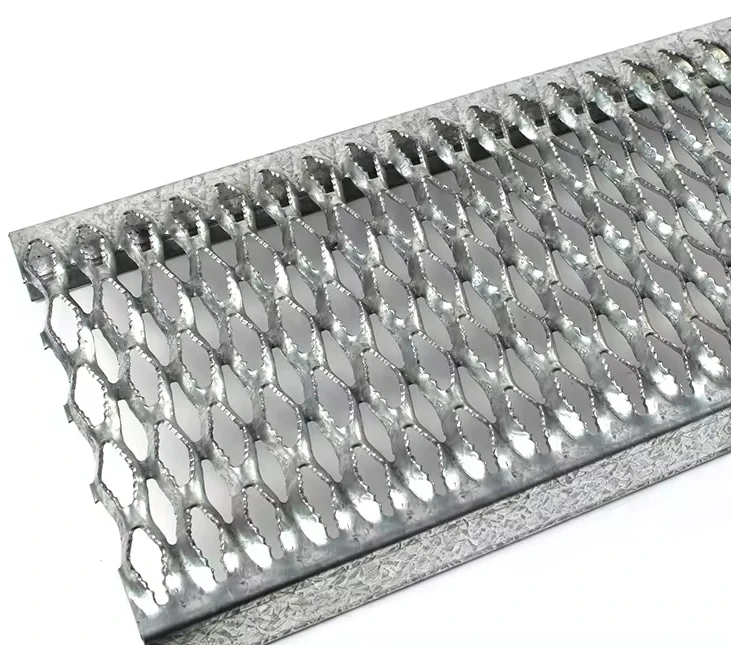

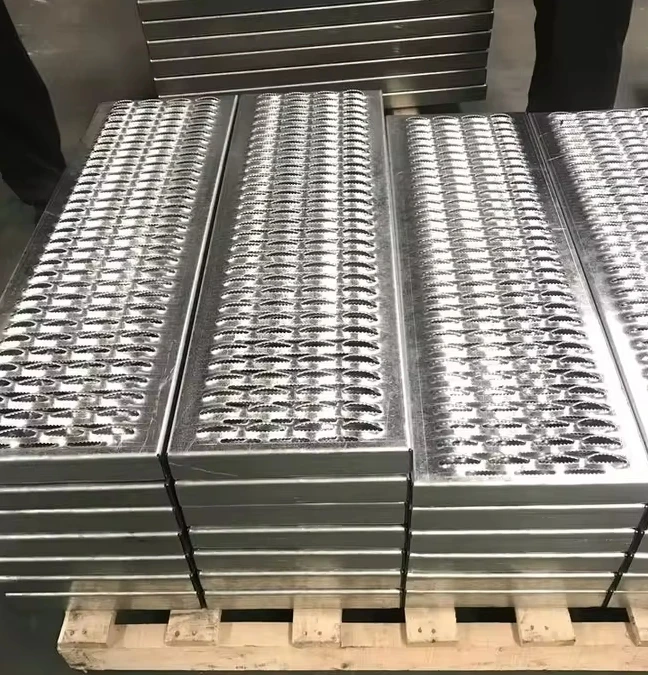

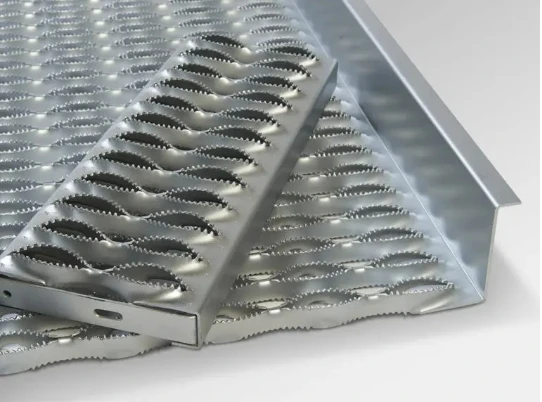

Grip Strut grating are one-piece modules manufactured with integral side toe boards projecting above the walking surface of the flooring. Ideal for elevated applications such as suspended walkways or conveyor catwalks, these channels provide safe, economical, slip resistant options for long span walkways. Continuous spans can be accommodated by welding adjacent planks or specifying splice plates as illustrated below.
Anti-skid Plate
As the skid board has good slip resistance and aesthetics, so in industrial plants, production plants, transport facilities have a wide range of uses for public places in the aisle, workshop, venue. Reduce the inconvenience caused by slippery road, protect personnel personal safety, to facilitate construction. In a special environment to play an effective protection.
Characteristics:
-easy installation
-anodizing attractive appearance
-load bearing big superior abrasion resistances
item | value |
Warranty | 5 years |
After-sale Service | Online technical support, Onsite Training, Free spare parts, Return and Replacement |
Alloy Or Not | Is Alloy |
Secondary Or Not | Non-secondary |
Project Solution Capability | graphic design, total solution for projects, Cross Categories Consolidation |
Application | Exterior,Interior |
Design Style | Modern |
Place of Origin | China |
Hebei | |
Product name | Safety Grating |
Material | Aluminum,Iron,Stainless Steel |
Hole pattern | grip strut,traction tread,etc |
Application | Decoration,antiskid |
Shape | H-shaped,protuberance |
Widths and Depths：

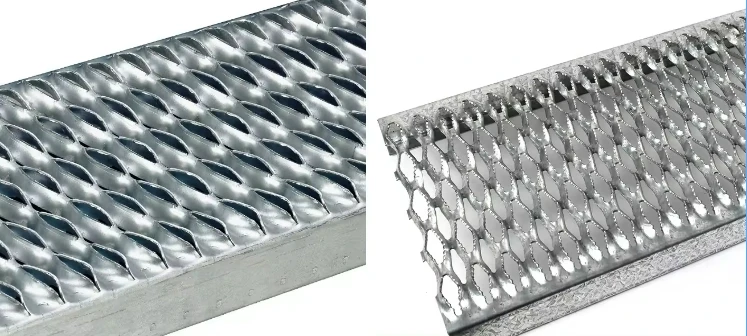

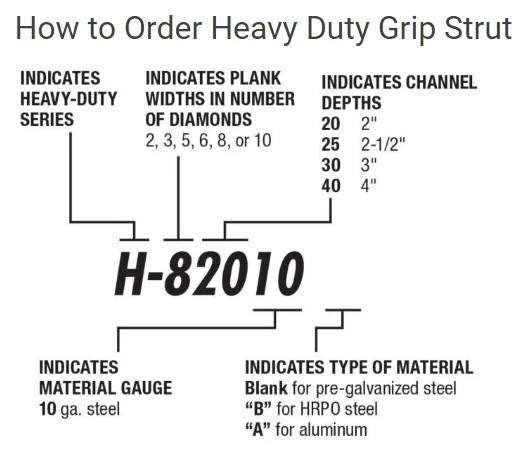

Heavy Duty Grip Strut planks are available in a range of widths and depths for demanding applications and loads. Stock lengths of 10’ and 12’ are readily available with custom lengths available on special order.
* 2 Diamond (9-1/4” wide)
* 3 Diamond (13-3/4” wide)
* 5 Diamond (23-1/4” wide)
* 6 Diamond (27-3/4” wide)
* 8 Diamond (36” wide)
Channel depths offered are 2”, 2-1/2”, 3” and 4”.
Heavy Duty Grip Strut planks are available in the following materials:
* 10 gauge ASTM A924-G90 pre-galvanized steel
* 10 gauge ASTM A1011 HRPO steel
* 10 gauge ASTM A924-G90 pre-galvanized steel
* 10 gauge ASTM A1011 HRPO steel

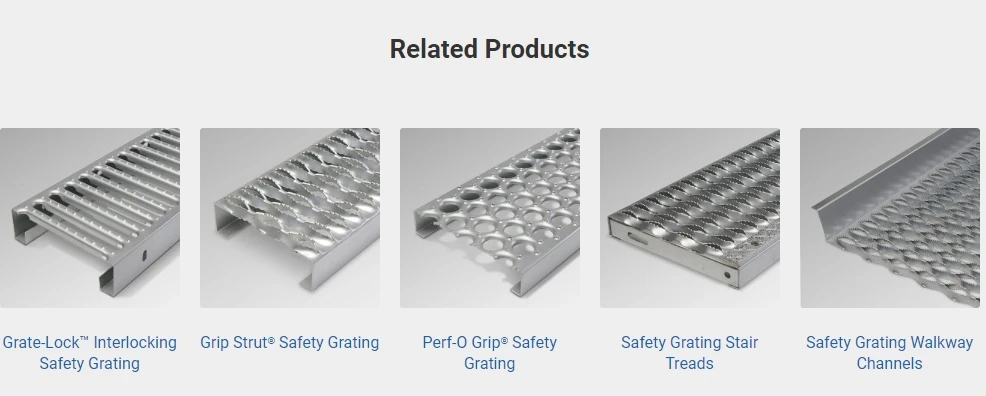

Additional Heavy Duty Grip Strut Products
In addition to plank grating, Heavy Duty Grip Strut is also available in OSHA compliant walkway channels and stair treads. Please
see related products below for further details.
see related products below for further details.

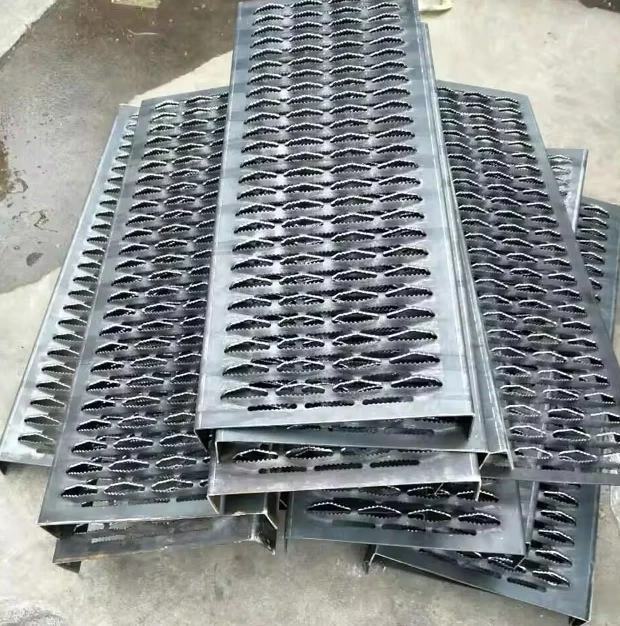

Materials of grip strut plank grating, stairs trends grating
1. Pre-Galvanized Steel (ASTM A-924-G90): 12 Gauge or 14 Gauge.
2. Hot Rolled Steel: 12 Gauge or 14 Gauge.
3. Aluminum Alloy 5052H32: 0.080" Thick or .100" Thick .
4. Stainless Steel Type 304 or Type 316: 16 Gauge.
1. Pre-Galvanized Steel (ASTM A-924-G90): 12 Gauge or 14 Gauge.
2. Hot Rolled Steel: 12 Gauge or 14 Gauge.
3. Aluminum Alloy 5052H32: 0.080" Thick or .100" Thick .
4. Stainless Steel Type 304 or Type 316: 16 Gauge.
Custom Design:
* All grip safety gratings are also available as flat blanks without folded edges.
* In that case, the maximum embossed field width must not be greater than 750 mm for diamond forms.
* For manufacturing reasons, these flat cuts have a slightly curved finish.
* Gratings with other dimensions (H/W/L) than those mentioned above can also be produced.
* Gratings with perforated edges or surfaces on one or both front surfaces are also available.
* We can also be supplied with ø 5-mm drain holes.
* Please contact us for further technical questions.
* All grip safety gratings are also available as flat blanks without folded edges.
* In that case, the maximum embossed field width must not be greater than 750 mm for diamond forms.
* For manufacturing reasons, these flat cuts have a slightly curved finish.
* Gratings with other dimensions (H/W/L) than those mentioned above can also be produced.
* Gratings with perforated edges or surfaces on one or both front surfaces are also available.
* We can also be supplied with ø 5-mm drain holes.
* Please contact us for further technical questions.
