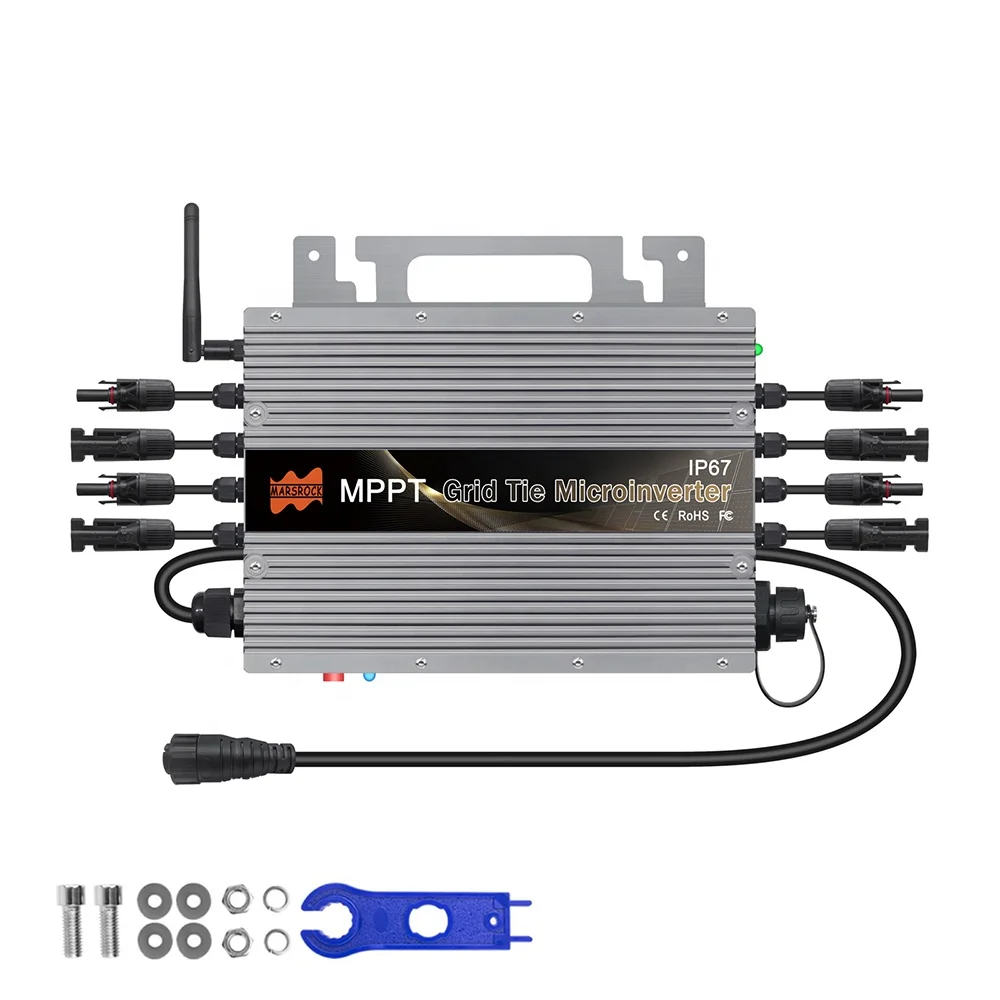

  • Mars rock IP67 1400W MPPT Automatic Identification Micro On inverter converter QR solar inverter
Mars rock IP67 1400W MPPT Automatic Identification Micro On inverter converter QR solar inverter
Mars rock IP67 1400W MPPT Automatic Identification Micro On inverter converter QR solar inverter
Mars rock IP67 1400W MPPT Automatic Identification Micro On inverter converter QR solar inverter
Mars rock IP67 1400W MPPT Automatic Identification Micro On inverter converter QR solar inverter
Mars rock IP67 1400W MPPT Automatic Identification Micro On inverter converter QR solar inverter
Mars rock IP67 1400W MPPT Automatic Identification Micro On inverter converter QR solar inverter
Mars rock IP67 1400W MPPT Automatic Identification Micro On inverter converter QR solar inverter

Mars rock IP67 1400W MPPT Automatic Identification Micro On inverter converter QR solar inverter

Share on (1601118329940):


Price:$159.71 - $172.49

Quantity:


Product Overview

Description



Product Description

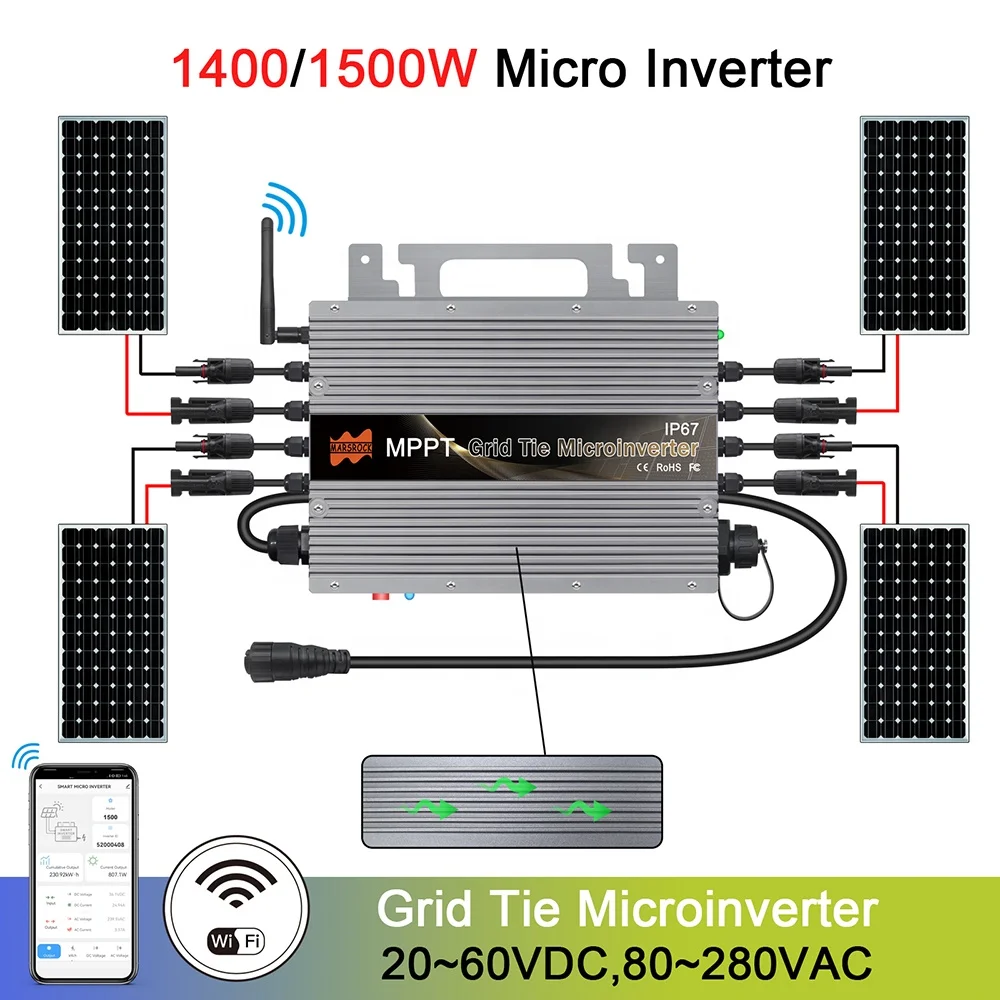

Single unit connects up to two PV modules:
1.Maximum 1400W AC output power
2.Single-phase output

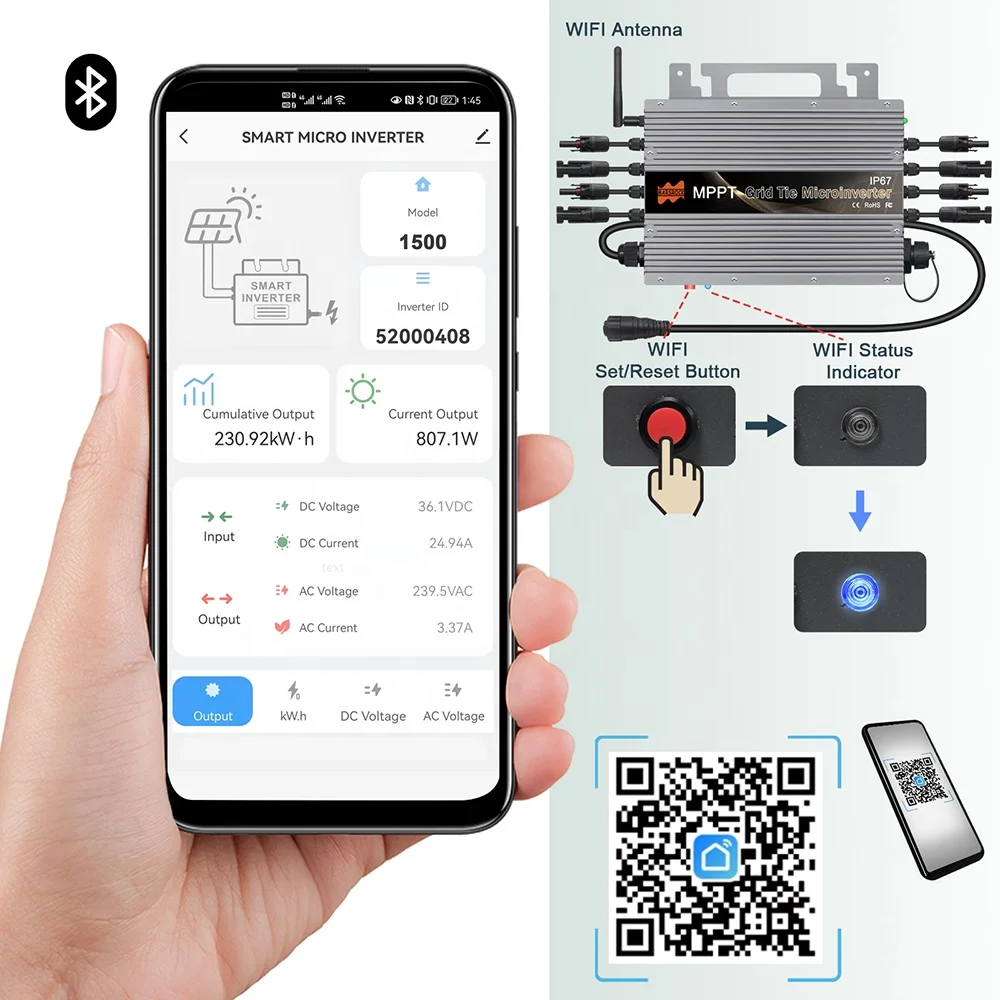

3.2.4G wireless communication and monitoring
4.Up to 6 units (230V) per branch
5.Input (DC, PV) voltage range: 60V
6.Integrated AC cable, Ready-To-Use
7.Low cost, Easy installation




Specification


Model
1400W
1500W
1600W
Input Data
Recommended Input Power(STC)
210~350W(4 PCS)
210~375W(4 PCS)
210~400W(4 PCS)
Max Input Voltage
60V DC
MPPT Voltage
25~55V DC
Operating Voltage
20~60V DC
Max Input Current
4*13A
Output Data
Max Output
1400W
1400W
1500W
1500W
1600W
1600W
Rated voltage
@127V
@230V
@127V
@230V
@127V
@230V
AC workable scope
80~160V
184~265V
80~160V
184~265V
80~160V
184~265V
Rated output current
11A
6A
11.8A
6.52A
12.6A
6.95A
Max units per branch
3PCS
6PCS
3PCS
6PCS
3PCS
6PCS
Rrequency
Auto switch 50/60Hz(45%55/55~65Hz)
Output Efficiency
Static MPPT
0.999
Power factor
>99%
Max output
0.95
CEC Weighted
@127V:92.5%
Self consumption
50mW
THD
<5%
Exterior
Ambient temperature
- 40℃ to +65℃
Dimensions（W×H×D）
250X220X45mm
Weight
3.0 KGS
AC Cable withstand max current
40A

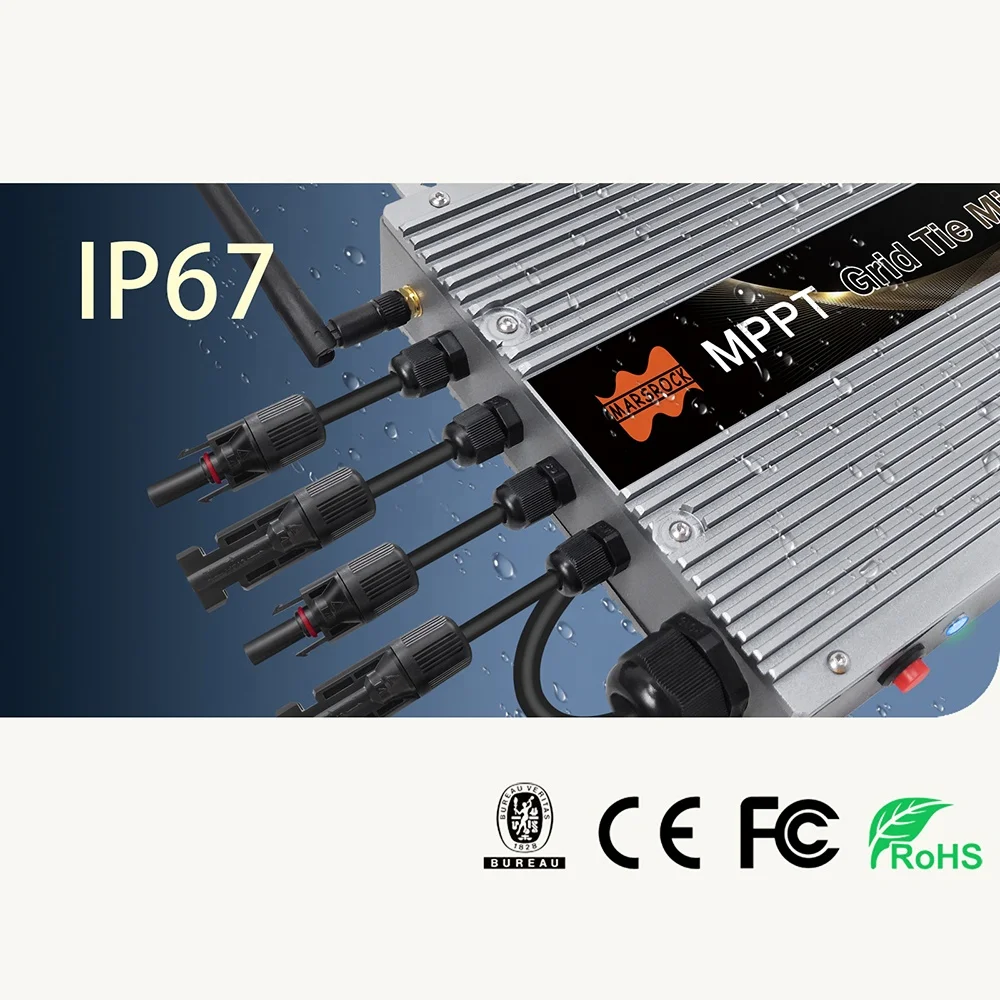

Waterproof Rating
IP67
Cooling
Natural cooling
Feature
Compatibility
Compatible with 60~72 cell PV modules
Isolation
High frequency transformer isolation
Power transmission

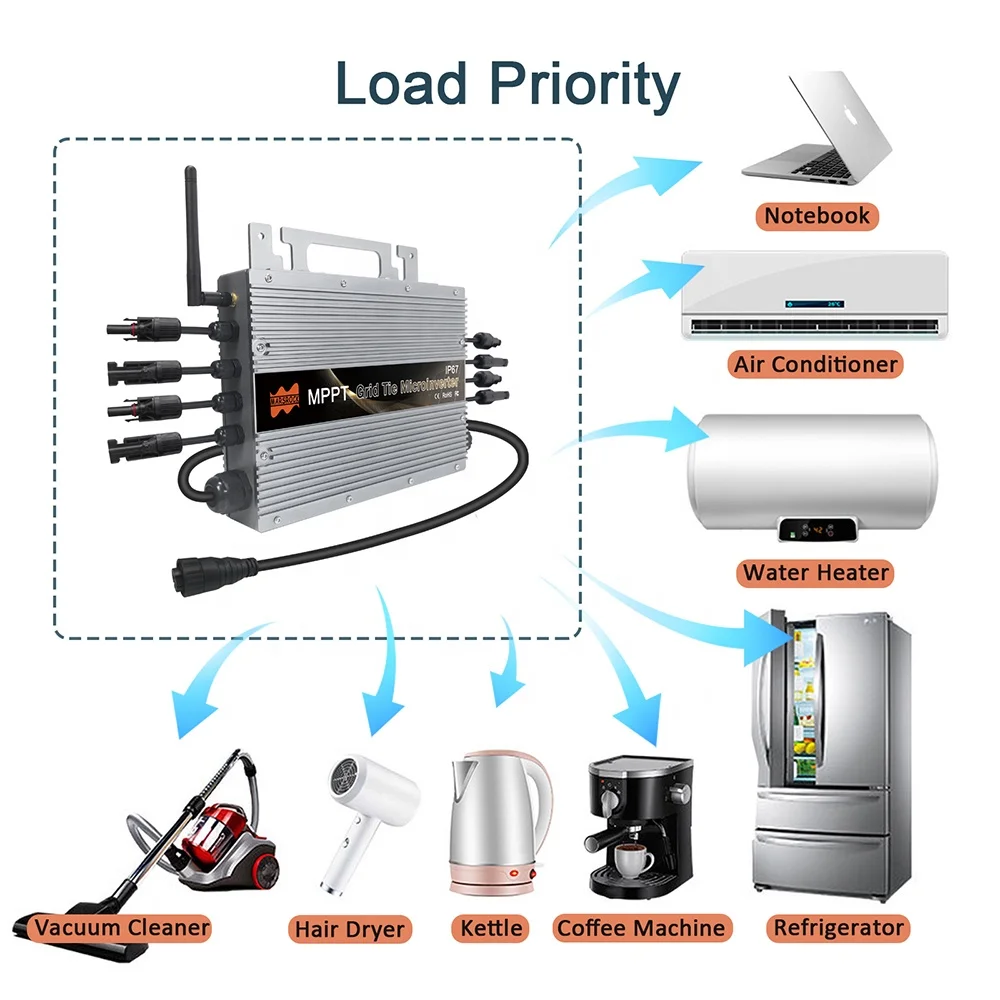

Reverse transfer, load priority
Protection
Islanding,Over-temperature,Over / low AC & AC voltage
Communication
2.4G wireless(Inverter to DataBox)


Packing & Delivery


Packaging Details:\tStrong cardboard boxes with enough foam
Delivery Detail:\tSamples can be delivered out within 15 days after payment


Company Profile

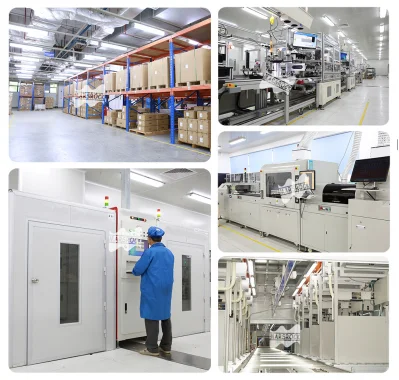

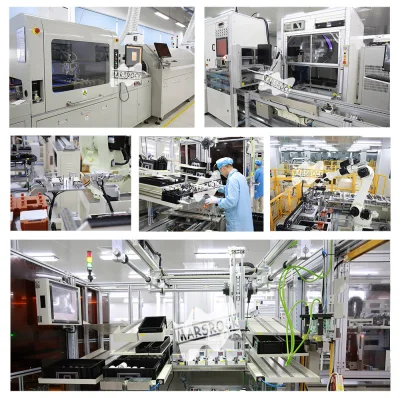

Mars Rock is located in Xiamen city of China. We achieved 1S0900t2008 quality management system certification, and our solar products have passed CE, FCC, RoHS, and National Inspection certifications and also have several national patents. Our main products are as below: Solar inverters, Lithium lifePO4 batteries all-in-one solar storage systems, and solar panels and has established Africa overseas warehouses to directly supply solar energy storage home systems, and provides local installation and after-sales services. Produce annually + 6,000,000 units UPS, inverters, EV charger & ESS. The largest scale ODM in industry.With 5,000 staffs , production floor 180,000m2 in China, 12,000m2, in Vietnam , 23,000m2. Total 350 engineers. 10 R&D departments, 12 R&D managers that every management team member has 20+ years experience industry.


FAQ


1. who are we?
We are based in Fujian, China, start from 2006,sell to South America(20.00%),Eastern Europe(20.00%),Western Europe(10.00%),Africa(10.00%),Mid East(10.00%),North America(10.00%),Oceania(5.00%),Eastern Asia(5.00%),Southeast Asia(5.00%),Northern Europe(3.00%),Central America(1.00%),South Asia(0.50%),Southern Europe(0.50%). There are total about 301-500 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Solar Cell,Solar Panel,Inverter,wind turbine,Battery

4. why should you buy from us not from other suppliers?
XIAMEN MARS ROCK SCIENCE TECHNOLOGY CO., LTD specializes in the development, production, marketing, construction and after-service of the photovoltaic solar product. Now as one of the most professional solar products manufacturer.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
