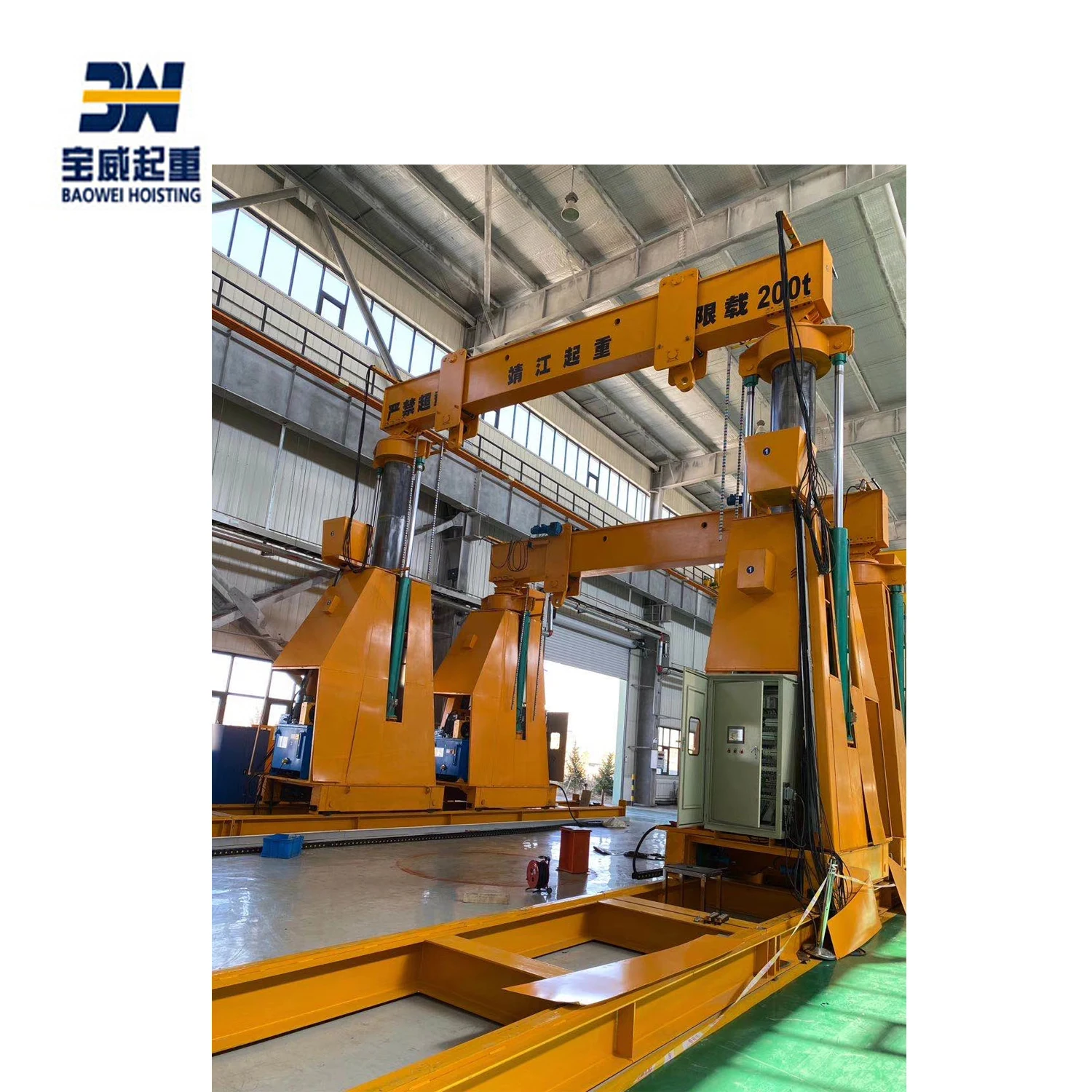

400ton New Hydraulic Gantry Crane System with 4 Jacks for Tunnel Structure Lifting Max Lifting Height 20m
- Category: >>>
- Supplier: Jiangsu Power Hositing Machinery Co. Ltd.
Share on (1601118355697):
Product Overview
Description
Product Overviews
WHY CHOOSE TELESCOPIC HYDRAULIC GANTRIES?
Precision Lift and Position of Heavy Loads
• The Ultimate in Safety
and Control
Highest Quality
• BW adheres to the highest quality standards and maintains rigid QA manufacturing processes
• Gantries test to 125% of maximum working load
Best Support
• Product training is available at our place or yours, to insure operators are fully trained prior to using the equipment
• All gantries comply to ASME B30.1 and other Safety Standards
• Advance technology and controls alert operator of unsafe conditions and stops gantry operations
• Product training is available at our place or yours, to insure operators are fully trained prior to using the equipment
• All gantries comply to ASME B30.1 and other Safety Standards
• Advance technology and controls alert operator of unsafe conditions and stops gantry operations
Hydraulic GantriesHydraulic Gantries are a safe, efficient way to lift and position heavy loads in applications where traditional cranes will not fit and permanent overhead structures are not an option.
Hydraulic Gantries are placed on skid tracks to provide a means for moving and placing heavy loads, many times with only one pick.
Hydraulic Gantry Systems
• Super Lift with best-in-class control and comparable capacity utilizing telescopic cylinders offered in 2 or 3 stages.
• Super Boom Lift with capacities up to 1,200 tons and 3-stage lifting capability through the boom structure .
• All gantries are delivered with specific properties and control systems to ensure optimum stability and safety.
• Super Boom Lift with capacities up to 1,200 tons and 3-stage lifting capability through the boom structure .
• All gantries are delivered with specific properties and control systems to ensure optimum stability and safety.
Standard Features
• Self-contained hydraulics
• Wireless Intellilift controls
• Synchronous lifting and lowereing
• Self-propelled wheels or tank rollers with synchronized travel.
| Header Beam | Skid Track |
Sold in pairs and includes lifting points and fork pockets for easy positioning on gantry towers. Available in 26.24 ft., 32.80 ft. and 39.36 ft. lengths. Custom lengths available on request. | Skid tracks used for leveling and load distribution. Available in two standard lengths, 10 feet and 20 feet and reduce ground bearing pressure. |
| Side Shift(Lifting Anchors) | What can we do for you? |
Electric propulsion controlled by standard gantry controls. Each set consists of 4 units. (Designed to transfer the load to the top of the header beam. Can accommodate a 250 ton shackle or attach directly to the lifted load.) | 1. Methods for moving and placing heavy objects up to 1200 tons are provided. 2. Providing the perfect lifting solution for operations in confined areas, holding an advantage against a crane of similar capacity due to their compactness and operational costs. |
Model Sheet
Model sheet
Retracted Height (M) | 1st Stage Capacity (Tons) | 1st Stage Height (M) | 2nd Stage Capacity (Tons) | 2nd Stage Height (M) |
| 3.023 | 136 | 7.315 | - | - |
| 3.454 | 200 | 8.382 | - | - |
| 3.023 | 226 | 7.214 | 145 | 9.144 |
| 3.023 | 318 | 6.833 | 218 | 8.534 |
| 3.505 | 318 | 8.103 | 109 | 10.211 |
| 3.556 | 400 | 8.382 | - | - |
| 4.267 | 454 | 10.363 | - | - |
| 3.556 | 500 | 7.849 | 331 | 9.754 |
| 4.267 | 500 | 9.754 | 331 | 12.192 |
| 3.454 | 635 | 7.442 | 426 | 9.144 |
| 4.217 | 635 | 9.652 | 426 | 12.040 |
| 3.455 | 817 | 7.061 | 600 | 8.534 |
| 4.268 | 817 | 9.448 | 600 | 11.734 |
| 4.42 | 1180 | 7.06 | 790 | 9.448 |
Note: Lift capacities are maximum and assume four lift housings equally loaded. The weight of lift beams and rigging must be deducted in arriving at live load capacity. Lift Heisht Measurements assume fully extended power manual stage. | ||||
Customer List
FAQ
1. What certificates can your factory provide?
We have CE and ISO certificates. If you need special certificates such as special CO(certificate of origin), please let me know in advance. We need to verify the manufacturing cost of the certificates.
2. What kind of documents will be delivered together with the crane?
In general,there will be instruction manual,product certificate,technical specifications table,factory inspection report,and crane general drawing,etc.
3. How to ensure that the purchased crane can reach my factory safely and put into production smoothly?
1) The most important thing for a company's long-term development is its reputation. Our factory has a history of 30 years, which is enough to witness our excellent reputation;
2) We have perfect production process control system, storage system, packaging system, QC system and pre shipment inspection system;
3) After the crane arrive at the site, we will send an engineer to guide the installation. After the installation, we will train the operators until they can operate the crane normally;
