Product Overview
Description
Products Description
The Bypass Precision Fertilizer Applicator (FISMART-AM) was developed by FISMART-AM to satisfy field growers
Intelligent irrigation equipment, used to control the field planting of large areas, large flow of irrigation system, for field crops Achieve precise fertilization. The fertilizer applicator adopts the working method of bypass spiral pipe mixed liquid, mother liquor and irrigation water Mix more evenly. Dual-channel EC and PH detection, EC and PH values are adjustable, and detection errors occur Alarm the alarm. The core accessories of the fertilizer applicator are mostly imported products, and they are also more flexible in the control mode of solenoid valves.
It can be connected to a wireless solenoid valve, which solves the complex problem of Daejeon wiring. It can also be connected to soil moisture sensors and The weather station realizes the intelligent control of the irrigation system.
Intelligent irrigation equipment, used to control the field planting of large areas, large flow of irrigation system, for field crops Achieve precise fertilization. The fertilizer applicator adopts the working method of bypass spiral pipe mixed liquid, mother liquor and irrigation water Mix more evenly. Dual-channel EC and PH detection, EC and PH values are adjustable, and detection errors occur Alarm the alarm. The core accessories of the fertilizer applicator are mostly imported products, and they are also more flexible in the control mode of solenoid valves.
It can be connected to a wireless solenoid valve, which solves the complex problem of Daejeon wiring. It can also be connected to soil moisture sensors and The weather station realizes the intelligent control of the irrigation system.
Speculations
Bypass type fertilizer spreader-AM | ||
Model | Bypass | |

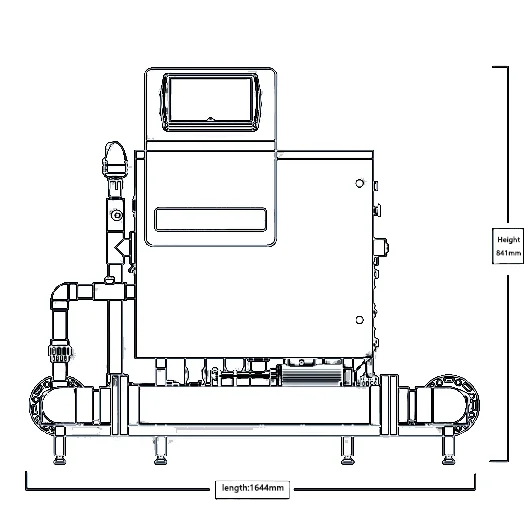

size | L1644*W841*H1445mm | |
Rate | 2.2KW | |
Power Supply | 380V,50HZ | |
Import and export | DN100（flange）DN150(flange) | |
Frame | 304 Stainless steel | |
EC/PH Sensor | Standard dual channel EC / PH | |

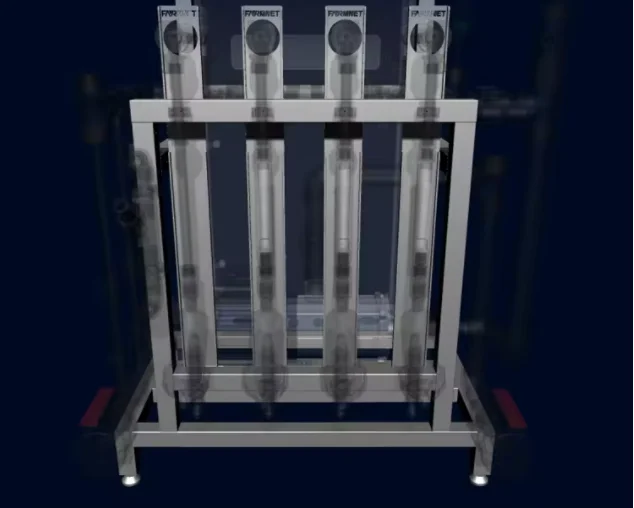

Fertilizer channel | 5 channels,5 fertilizer absorption channels, 4 fertilizers and one acid | |
Pipe | Sanli Chemical UPVC | |
Fertilizer injection capacity | 600 / h / Channel,1000 / h / Channel | |
Pipeline pressure | <6.0bar | |

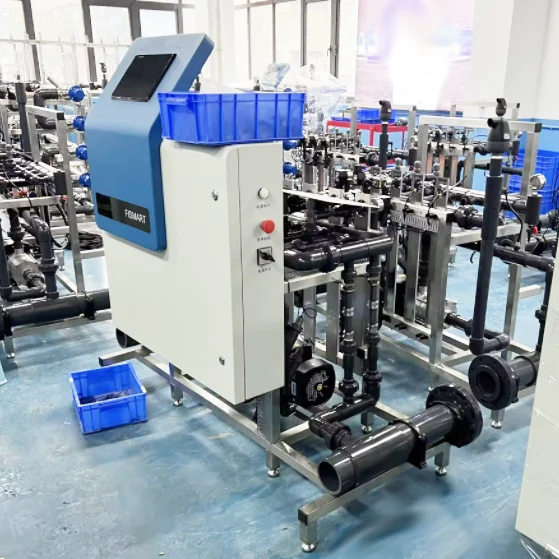

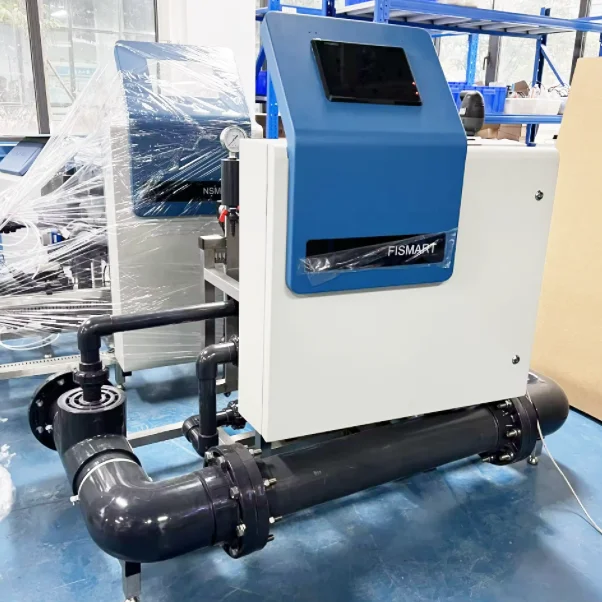

Product Show
FISMART-A
FISMART-AM
FISMART-B
FISMART-C
FISMART-D
Beautiful and exquisite industrial design Redefine fertilization machine
Based on the double consideration of beauty and durability Integrated injection molding Overturn your traditional understanding of
fertilization machine.
fertilization machine.

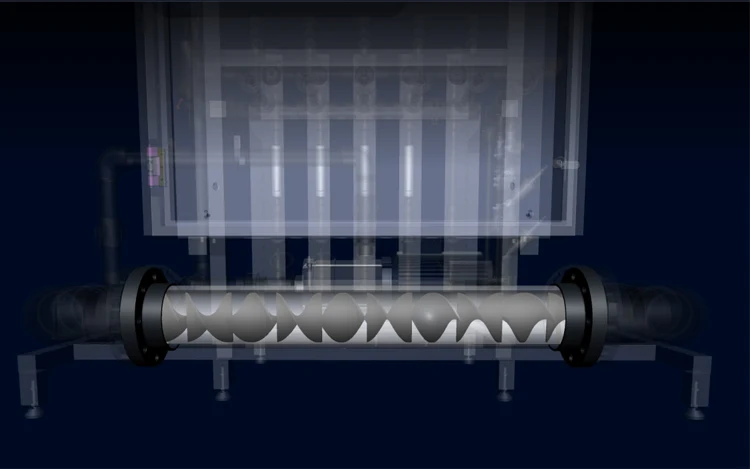

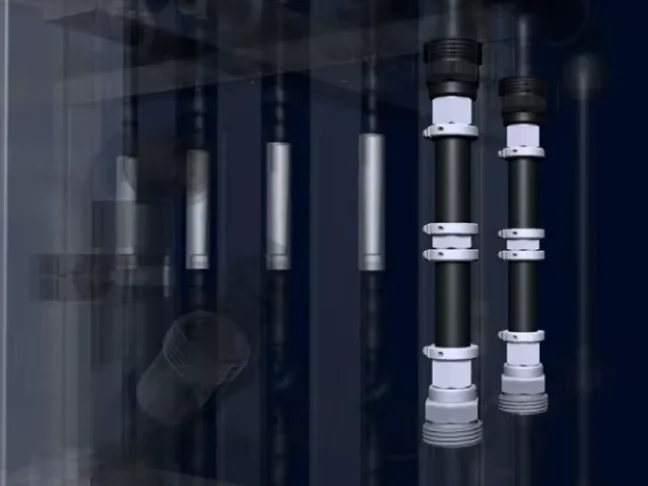

Static Spiral Mixer for Pharmaceutical Grade Unifor-mity
FISMART-AM breaks the tradition and installs the traditional bypass mixed fertilizer pipe directly on the fertilizer applicator, and adopts a specially designed static spiral liquid mixing pipe to easily achieve the uniformity of fertilizer and water at the pharmaceutical level and fully guarantee the consistency of crop growth.
Stainless steel frame carefully polished
FISMART-AM racks are solid and rock solid. Robot precision welding, 304 stainless steel, stable and durable, acid and corrosion resistant, not afraid of harsh external challenges
Precise measurement, safe and reliable
Equipped with a new generation of FARMNET self-developed tubular EC sensor, the tubular structure is adopted to extend the measurement distance, bid farewell to traditional single-point measurement, and make EC data more accurate and reason-able. The dual EC and PH sensor design can effectively ensure the stable progress of fertilizer compounding. If the error exceeds the allowable range, the machine will stop immediately to ensure crop safety

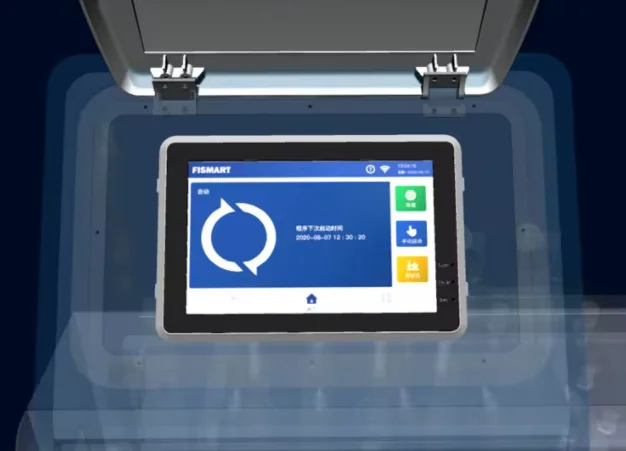

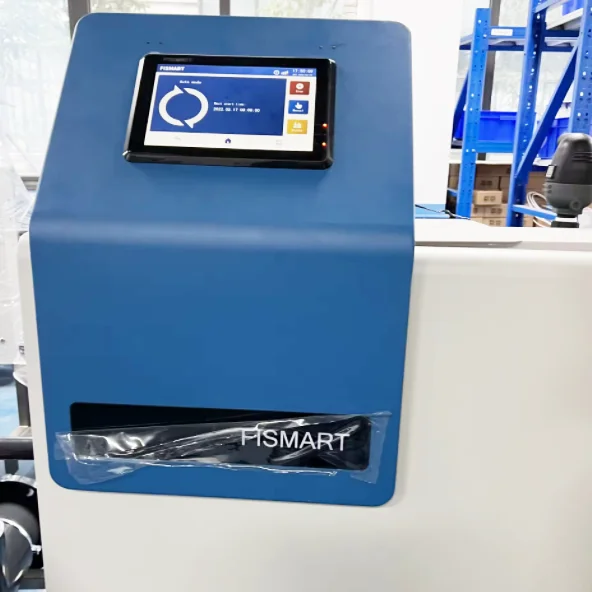

Large touch terminal for smoother operation
Equipped with FARMNET self-developed 10-inch capacitive touch screen, the operation is smoother and the function is more powerful.
Equipped with LINUX operating system, supports full Chinese And English input, not only as a man-machine interface, but also as a gateway. Provide 4G / network port / WIFI and other networking methods to solve the problem of agricultural field network
Equipped with LINUX operating system, supports full Chinese And English input, not only as a man-machine interface, but also as a gateway. Provide 4G / network port / WIFI and other networking methods to solve the problem of agricultural field network
