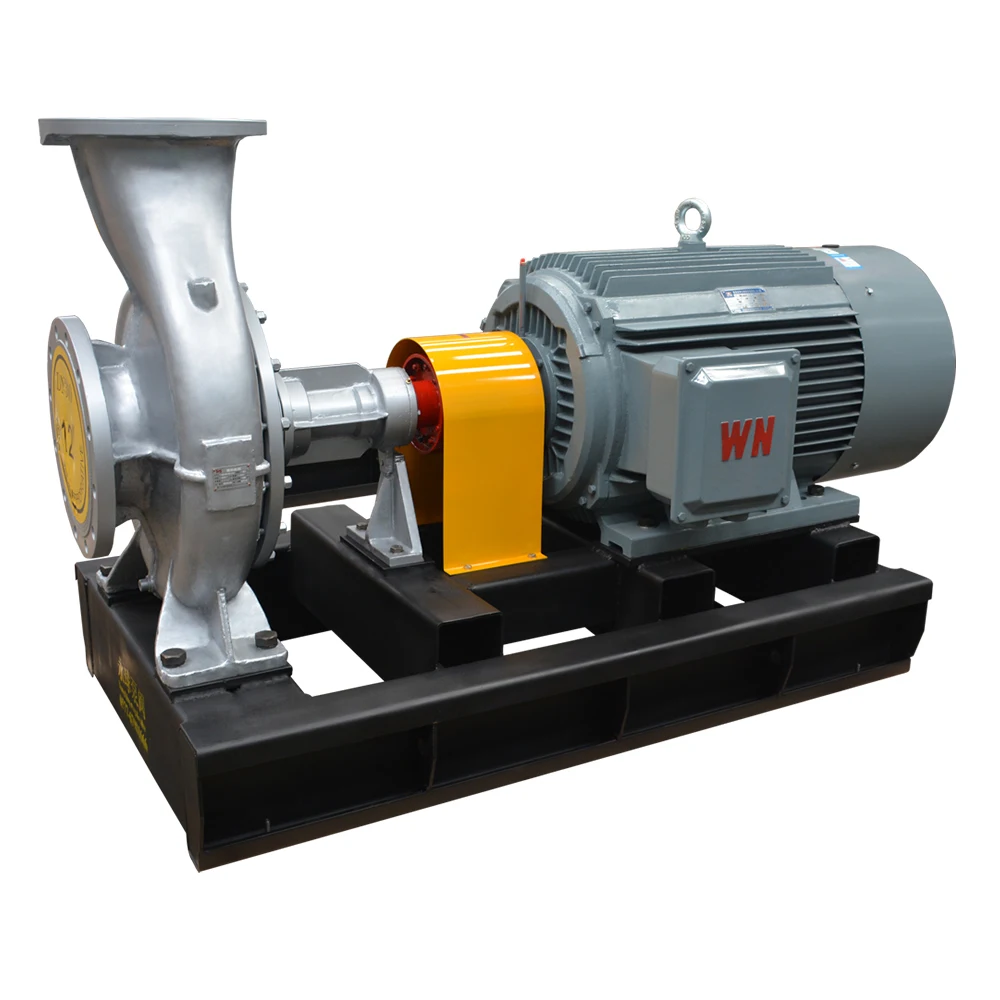

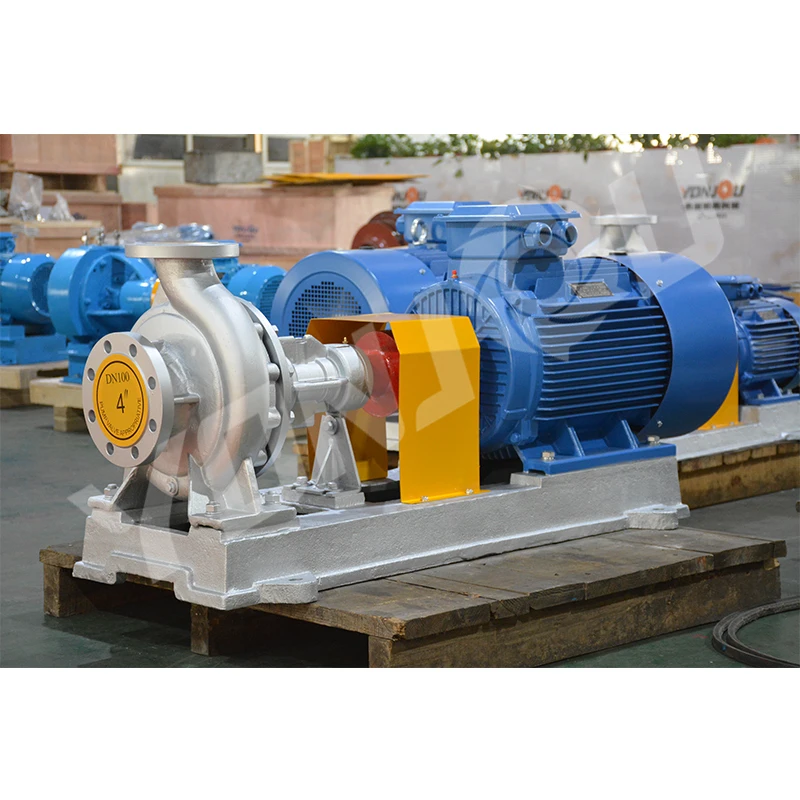

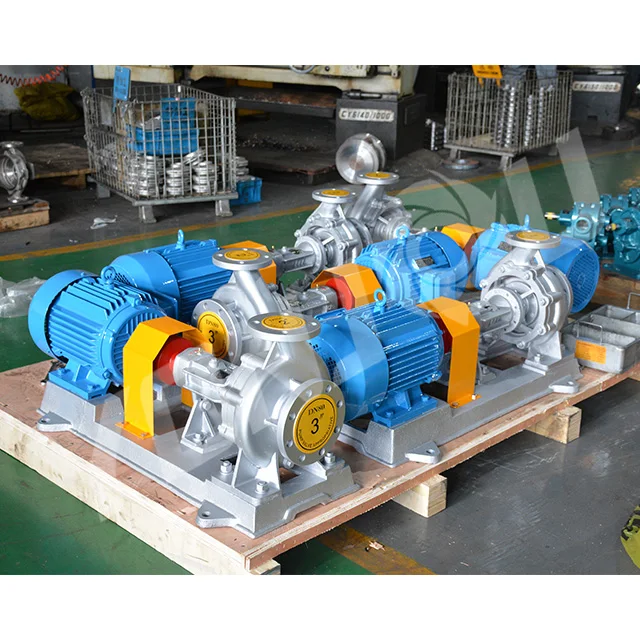

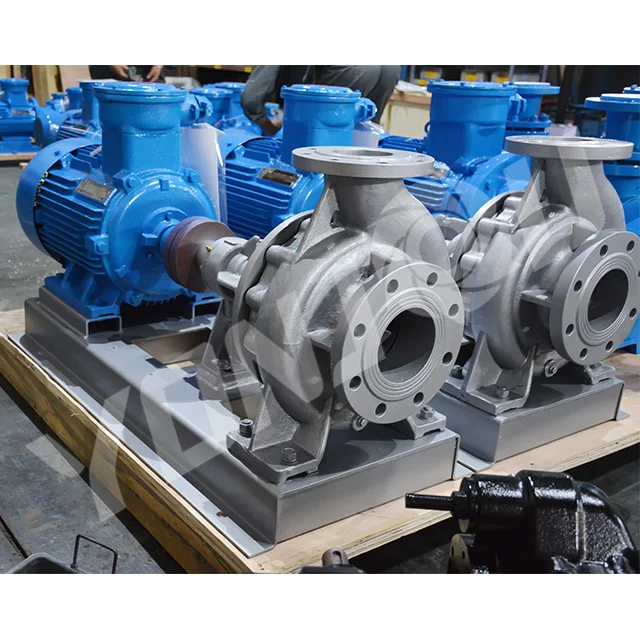

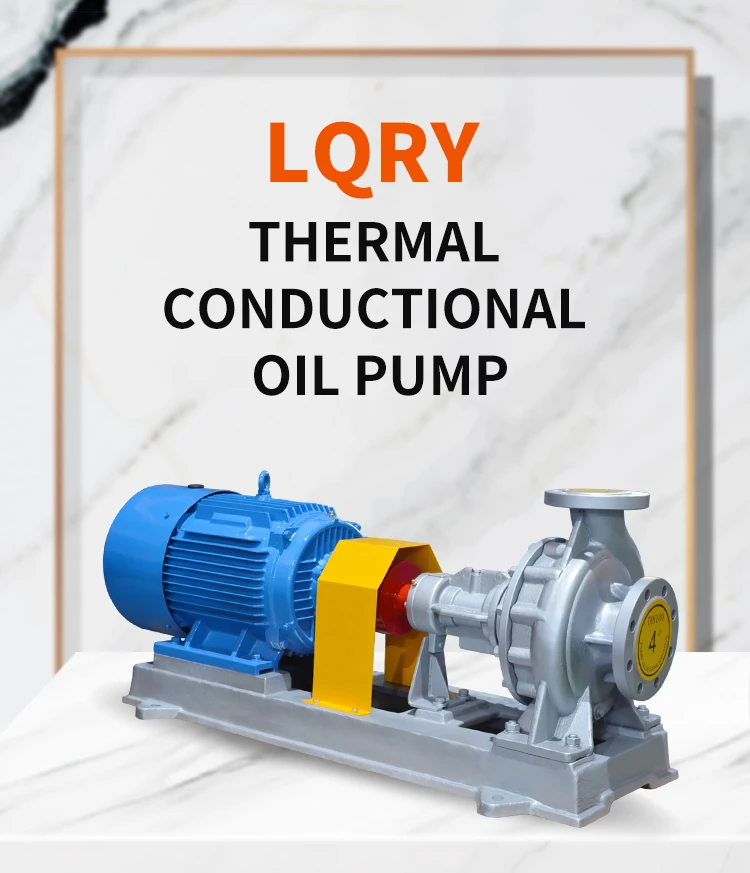

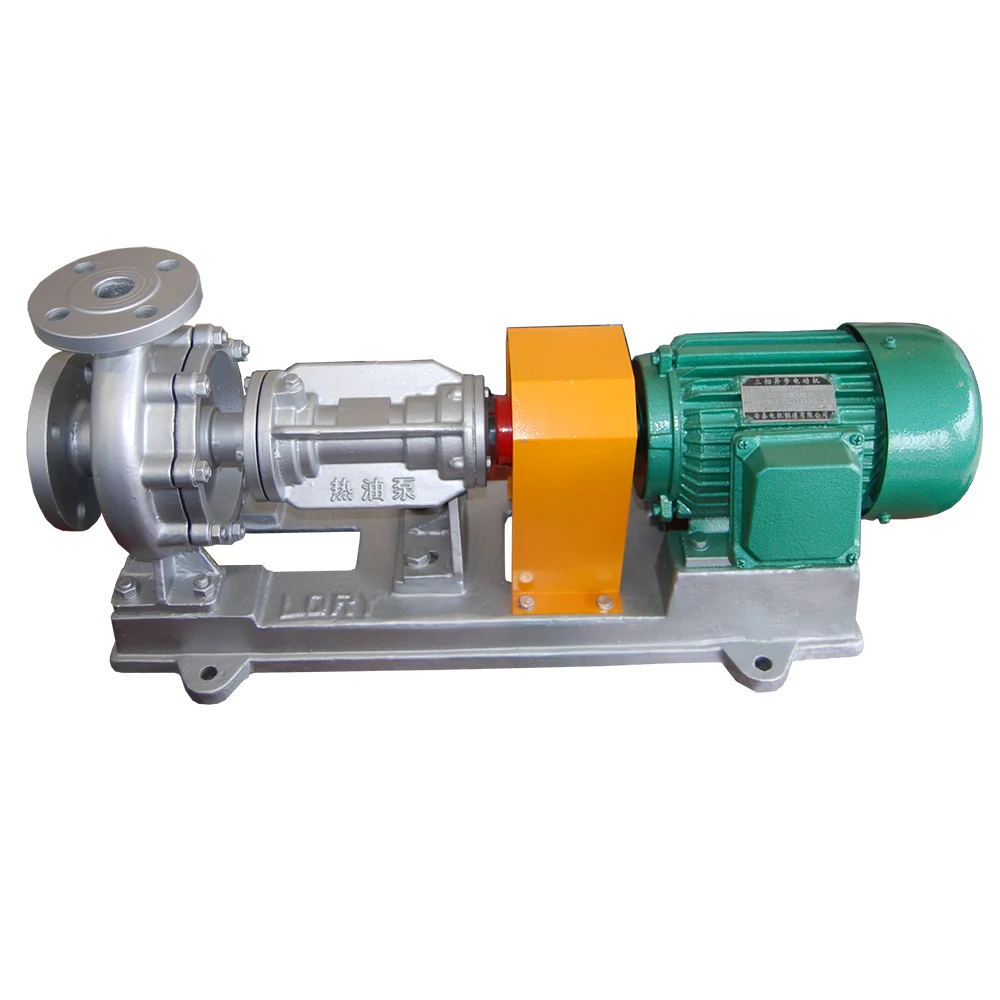

RY high temperature hot oil circulation oil heat lift pump

Product Overview

Description



1.Non-water-cooled Hot Oil Pump - Buy Hot Oil Pump,Oil Transfer Pump,Hot Oil Circulation Pump Product on Alibaba.com  is suitable for heat-conduction oil, or other hot oils with temperature ≤370°C

2.It has a reasonable structure, advanced technology, high efficiency, long-term stable operation without leakage in the hot state. Used to transport not containing solid particles of corrosion high temperature liquid with system of directly wind cooling.

3.It's widely used in petroleum oil, chemical industry, rubber, leather, food industry, grease, boilers, construction, road maintenance, pharmaceutical, plastics, rubber, synthetic fiber textile, printing and dyeing and other industrial fields.
Contact us to get the price of hot oil pump.

Working Principle:	Centrifugal
Main applications:	Hot oil, thermal oil, high temperature oil, etc
Driver:	Electric motor, diesel motor.
Power Specs:	220/380/400/415V 3phase;50hz/60hz
Max.permissible fluid temperature:	370°C (698°F)
Type of connection:	Flange
Installation position:	Horizontal
Casing parts material:	Cast steel
Shaft seal type:	Shaft seal ring, Mechanical seal, Carbon seal
Free passage:	1mm
Maximum viscosity:	5X104C.S.T
Maximum drive rating:	132KW (180HP)
Maximum caliber:	150mm (6inch)
Maximum discharge-side pressure:	0.85Mpa (8.5bar)
Maximum head:	85m (278.8ft)
Flow rate range:	4.5-400m³/h(19.8-1760US.GPM)

Model	Capacity (m3/h)	Head (m)	Speed (r/min)	Shaft Power  (kw)	Motor Power (kw)
26-20-100	4.5	15	2825	0.45	0.75
50-32-150	8	22	2900	1	1.5
50-32-160	10	25	2900	1.5	2.2
65-40-160	12.5	25	2900	2.5	3
50-50-170	12.5	32	2900	3.2	4
65-50-180	32	32	2900	4.5	5.5
65-50-170	40	25	2900	4.5	5.5
80-50-180	40	40	2900	6.7	7.5
80-50-170	60	20	2900	6.7	7.5
100-65-190	60	38	2930	9.2	11
100-65-200	80	40	2930	12.5	15
100-65-220	58	50	2930	12.5	15
100-65-230	100	55	2940	19.5	22
125-100-190	155	30	2940	20	22
100-65-240	100	70	2950	25.5	30
100-65-257	100	80	2950	32.5	37
125-100-220	160	45	2950	25.5	37
125-80-250	160	60	2970	35.5	45
125-100-257	200	60	2970	42.8	55
125-100-260	260	70	2970	64.3	75

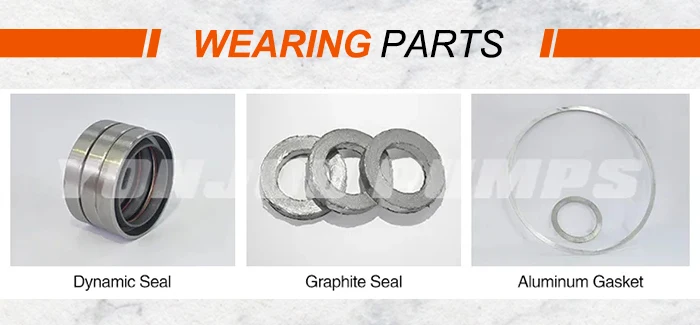

1.Using the combination in the form of the packing seal and the mechanical seal, packing with high temperature resistant filler material, has a good thermal adaptability.

2.The mechanical seal: a high mechanical strength, good abrasion carbide material, guarantee the sealing performance under high temperature conditions.

3.Polytetrafluoroethylene (PTFE) do lip seal, the sealing performance leap than the rubber sealing reliability increased by 25 times, highly corrosion-resistant.
