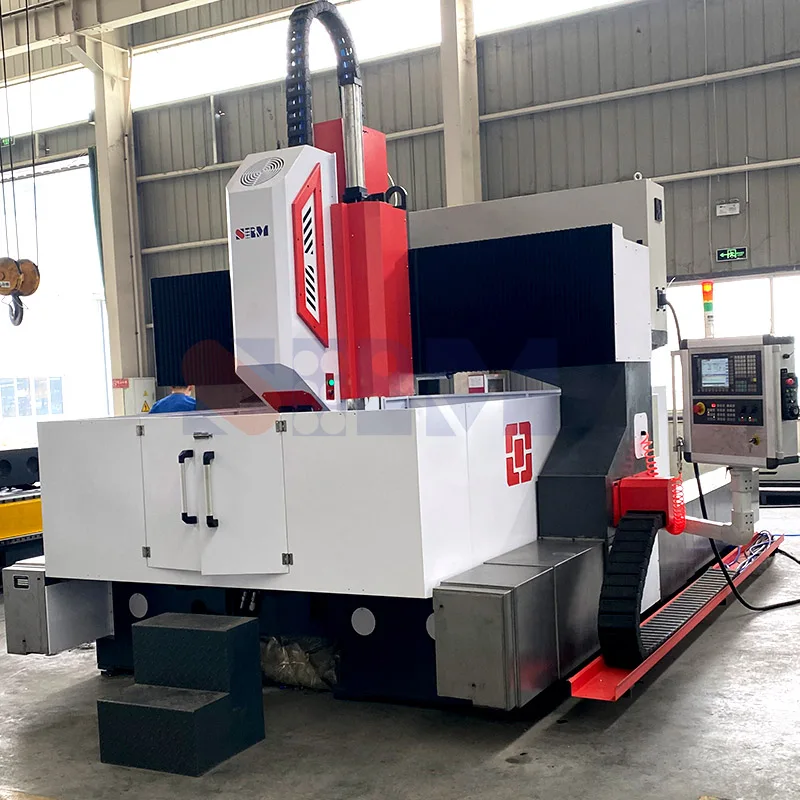

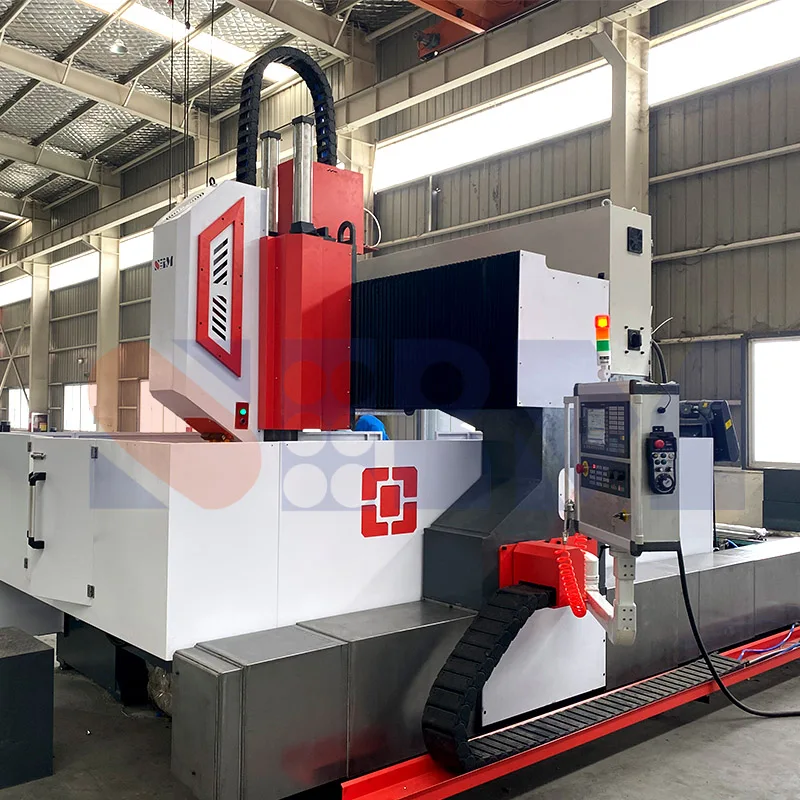

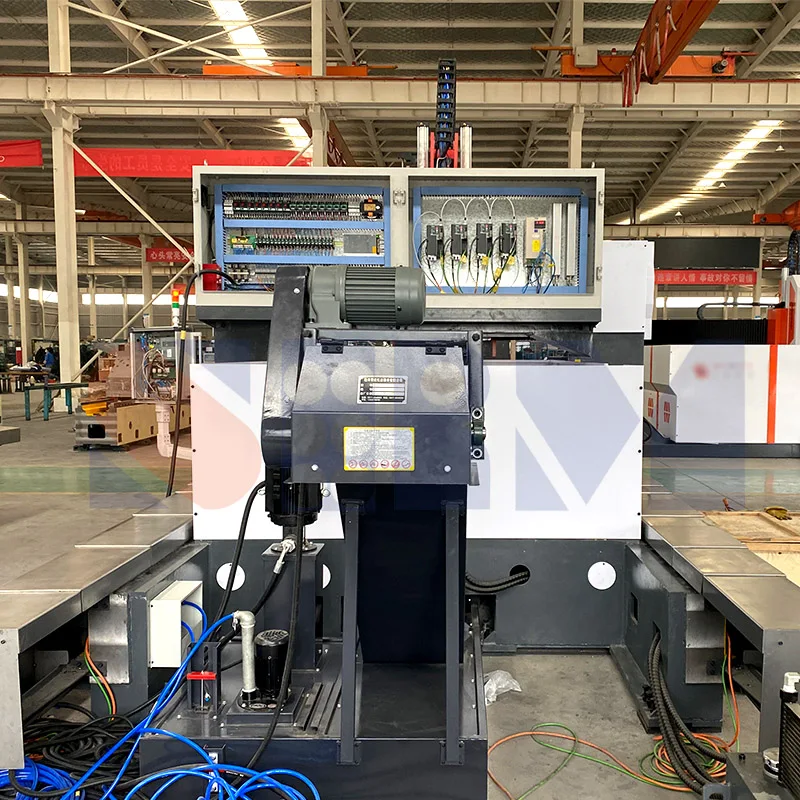

Raintech Gantry Movable Automatic CNC Steel Plate Drilling Machine With Cooling Liquid Recycling.
- Category: >>>
- Supplier: SHANDONG RAINTECH SANS TECHNOLOGY CO. LTD
Share on (1601118690318):
Product Overview
Description
Product Description

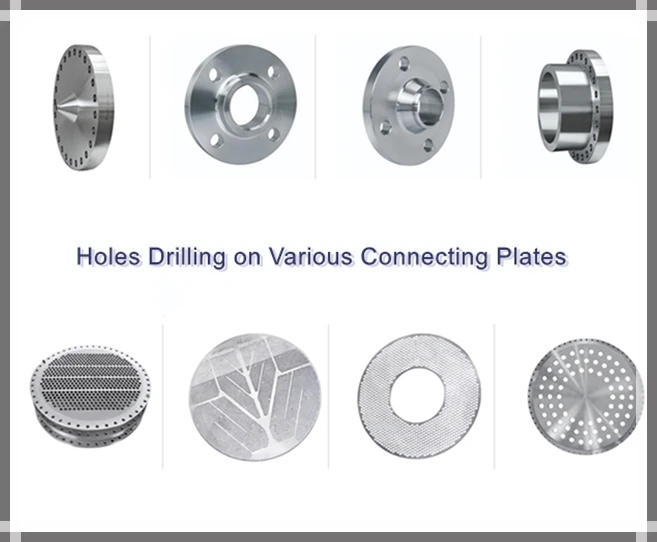

PD series drilling machine mainly used for the drilling and milling process of the plates which used in construction, bridge, steel tower, steel structure industries, and also can be used for the tube plates, baffle plates, and round flange in connection boards and base plates of steel structure,tower,bridge and other
industries
SPECIFICATIONS
Model | PHD2016 | ||
Max. Work piece Size | L×W(mm) | 2000X1600 | |
Max. Thickness of work piece（mm） | 100 | ||
Work Table | T Shape Groove Width（mm） | 28 | |
Vertical Sliding type drilling head | Quantity | 1 | |
Main Spindle | Morse Taper of Main Spindle | Morse #4 | |
Maximum Drilling Diameter（mm） | Φ50 | ||
Rotating Speed（r/min） | 30～2400 | ||
Motor Power（kW） | 12 | ||
Distance between main spindle bottom face and working table （mm） | 200～700 | ||
Gantry （X axis）move | Max.stroke（mm） | 2000 | |
X axis move speed（m/min） | 0～8 | ||
X axis servo motor power（kW） | 2setsx2kw | ||
Drilling head move （Y axis） | Max. stroke（mm） | 2000 | |
Y axis move speed（m/min） | 0～8 | ||
Y axis servo motor power(kW) | 3 | ||
Vertical slide ram move（Z axis） | Max. Stroke(mm) | 500 | |
Z axis servo motor power(kW) | 3 | ||
Positioning precision | X、Y axis (mm) | ≤0.08 | |
Repeat Positioning precision | X、Y(mm) | ≤0.04 | |
Hydraulic System | Hydraulic pump pressure (MPa) /flow(L/min) | 6/25 | |
Hydraulic Pump Power(kW) | 2.2 | ||
Scrap cleaner & Cooling | Scrap Clean type | Chain Type | |
Scrap clean Speed(m/min) | 1 | ||
Scrap Clean Motor Power (kW) | 0.75 | ||
Overall Size | L×W×H(mm) | 5575X3460X3310 | |
Net Weight（T） | Approx .25 | ||
various model can be choosen, like PHD1616,PHD2012, PHD3016, PHD4016, and also can do customization from 1-10m based on customer's requirements

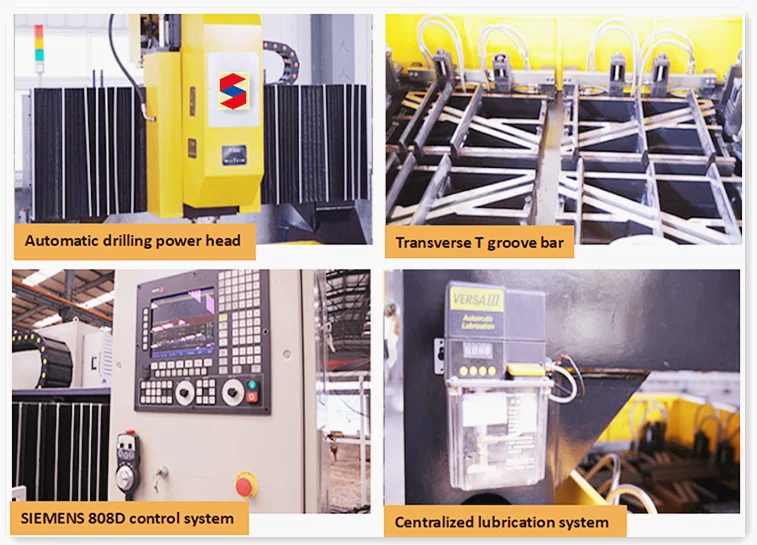

Detailed Images

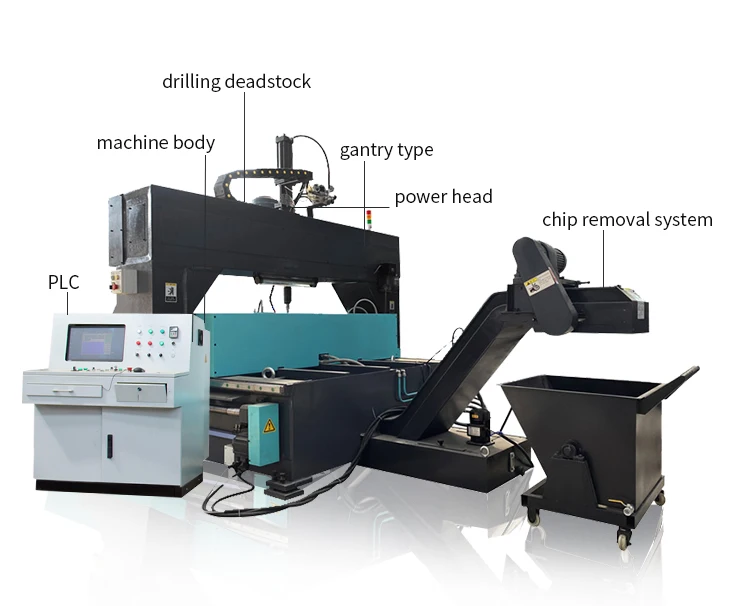

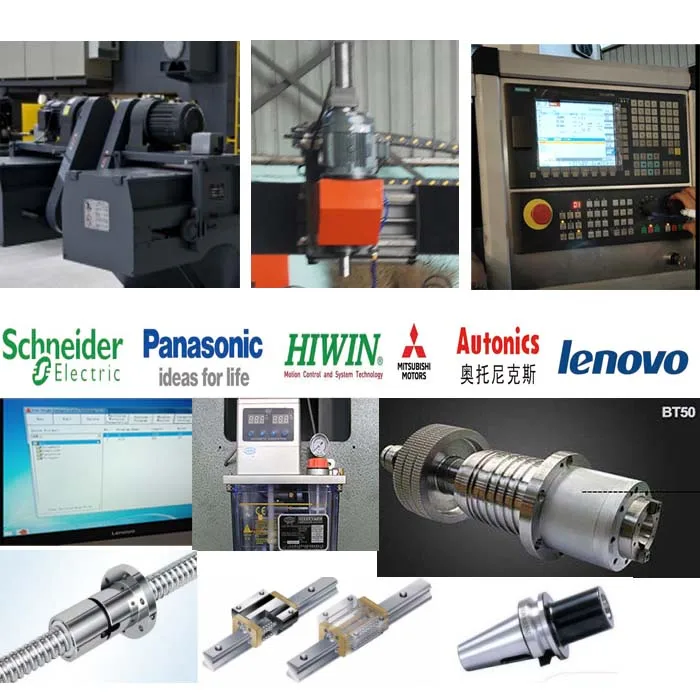

Feature

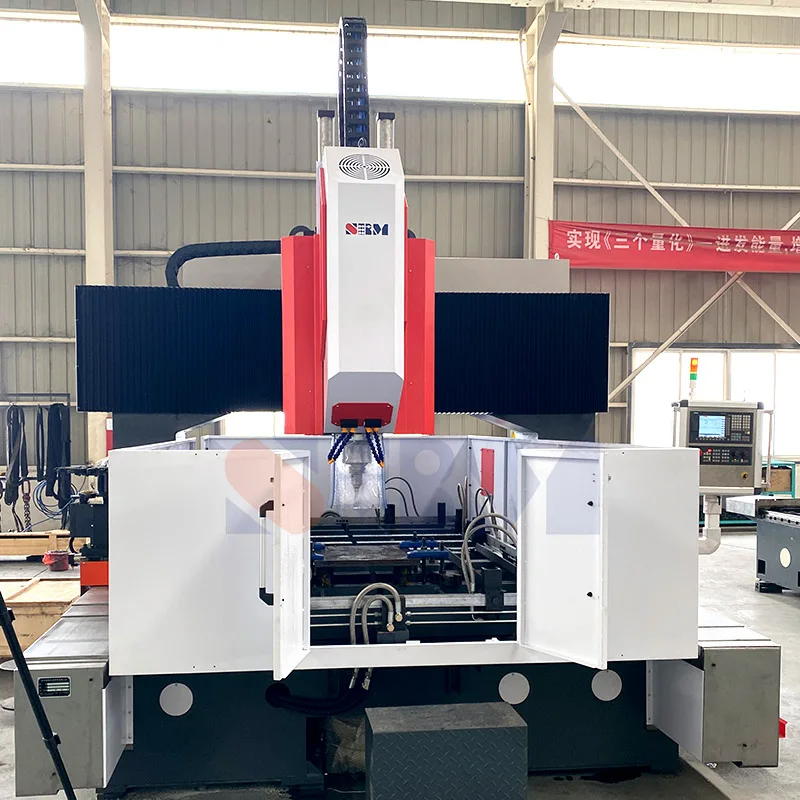

1. CNC slider and drilling unit head, can control depth of holes, with function of drilling blind hole, reaming, chamfer angle.
2. Four processing position, 12 rapid hydraulic clamps, capable of clamping four sets of work pieces, and downloading work pieces when drilling simultaneously.

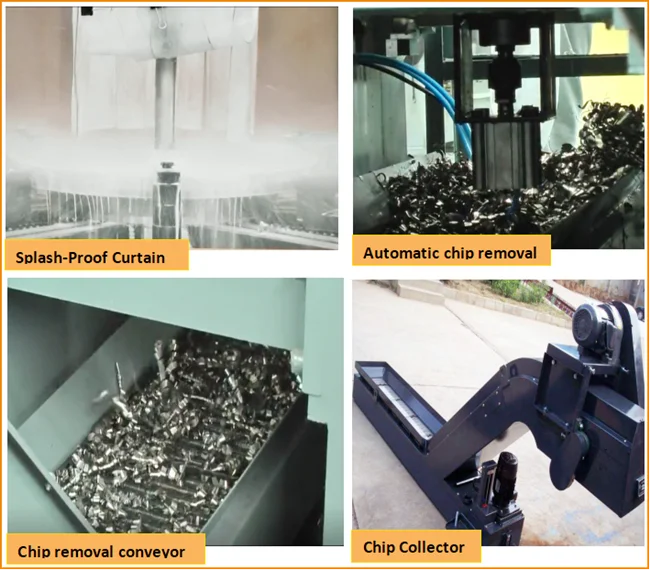

3. Automatic chip removal, coolant circulation cooling.
4. Optimized integration design for complete machine, no foundation requirements.
2. Four processing position, 12 rapid hydraulic clamps, capable of clamping four sets of work pieces, and downloading work pieces when drilling simultaneously.
3. Automatic chip removal, coolant circulation cooling.
4. Optimized integration design for complete machine, no foundation requirements.
Packing&Shipping
Company Introduction

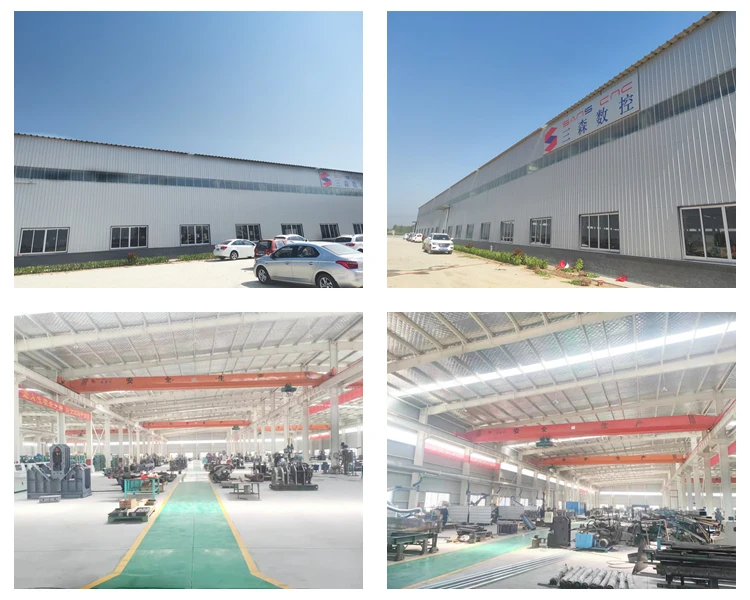

Shandong Raintech SANS Technology Co., Ltd is a professional manufacture for CNC machines used widely in steel structure and steel tower, transmission and distribution, steel coils processing, cold roll forming field, which located in Jinan, China.
