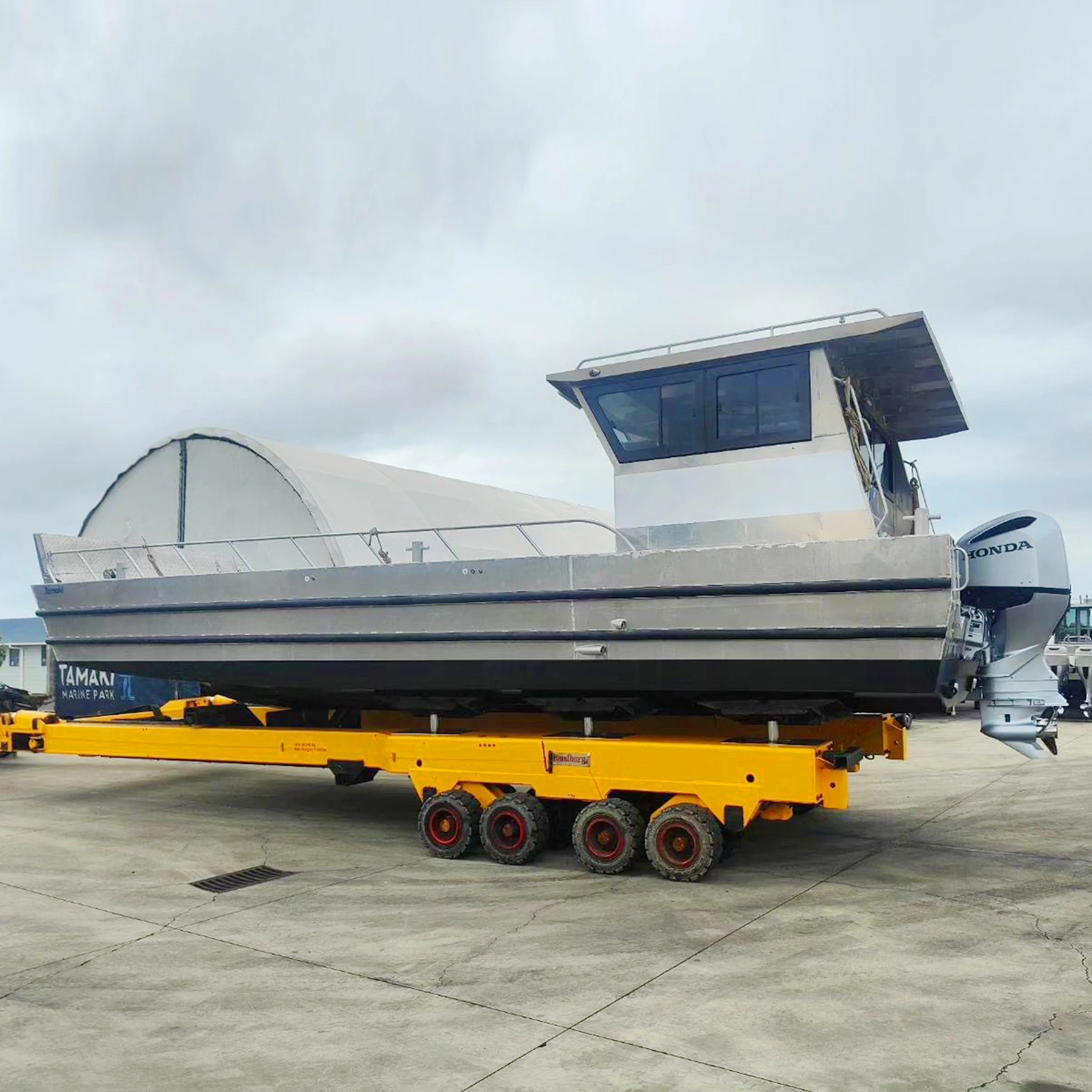

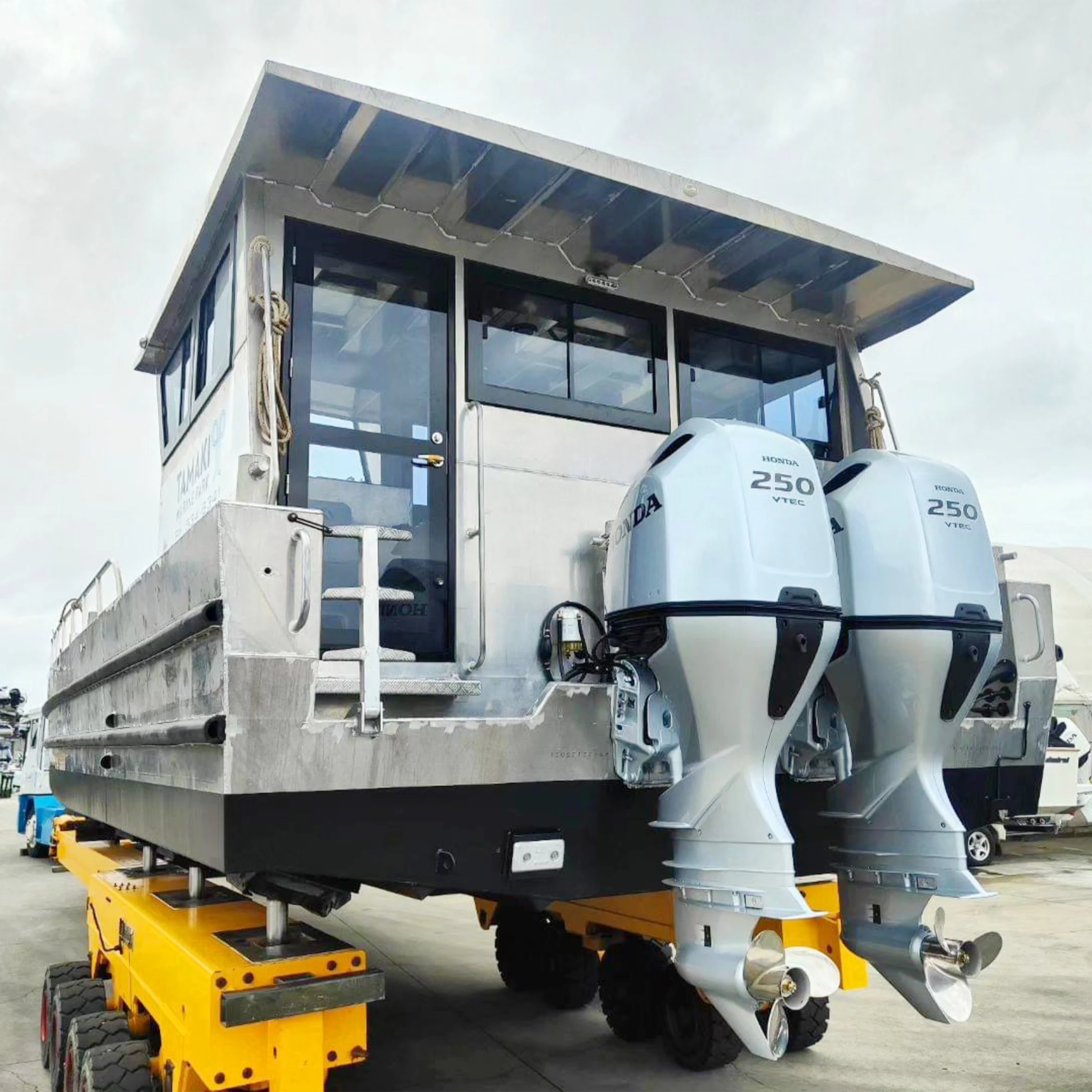

11m open sea barge aluminium work cargo boat landing craft for sale
- Category: >>>
- Supplier: Shandong Taixin Ship Manufacture Co. Ltd.
Share on (1601118901609):
Product Overview
Description
Product Description
Length | 11m/36ft |
Beam | 4m |
Loading capacity | 7-8 tons |
Engine | outboard engine |
Warranty | 3 years |
MEASUREMENTS | 11m | |||||
36ft | ||||||
Beam(m) | 4 | Bottom Sides(mm) | 6 | |||
Depth(m) | 1.49 | Top Sides(mm) | 5 | |||
Loading capacity | 7-8 tons | Transom(mm) | 6 | |||
Standard Accessories | ||||||
Fuel Tank Gauge | √ | Hand Rail | √ | |||
Fuel Tank Cleaning Opening | √ | Bollard | √ | |||
Outboard Protection Rails | √ | Hinge | √ | |||
Storage Gasket Cover | √ | Control Panel | √ | |||
Fuel Tank | 400L | Hardtop | √ | |||
Deck Self Drain Holes | √ | Fuel Hose | √ | |||
Exhaust Vent Hose | √ | Control Panel | √ | |||
Acrylic Windscreen | √ | Zinc | √ | |||
Bottom | Flat bottom | Safety Door Hinge | √ | |||
Options | ||||||
Hydraulic Steering | Painting | |||||
Water-tight repairing door(4) | Pump of Washing Deck | |||||
Length | 7.89m | 9m | 10m | 11m |
Beam | 2.55m | 3m | 3m | 4m |
Draft | 0.35m | 0.35m | 0.4m | 0.35m |
Recommended HP | 175 | 200 | 250 | 300 |
Manufacturing Technology
1.All of our fishing & working boat are made of Marine-grade aluminum 5083-h116 with China Ship Classification society ( CCS )
2.Welding Specification :
1) TIG and MIG are to be adopted for this ship .
2) The ultrasonic inspection to be carried out for the cross joint of seam and other important place .
3) From 5083-H116 material to welding wires to welding use gas & experienced qualified welders .
4) The bottom is double bottom system and constructed on the longitudinal system of framing .
5) Solid floors will be provided at every frame station , the side transverse frames will be fitted at a space of 500mm ."
1) TIG and MIG are to be adopted for this ship .
2) The ultrasonic inspection to be carried out for the cross joint of seam and other important place .
3) From 5083-H116 material to welding wires to welding use gas & experienced qualified welders .
4) The bottom is double bottom system and constructed on the longitudinal system of framing .
5) Solid floors will be provided at every frame station , the side transverse frames will be fitted at a space of 500mm ."
3.The Core Features Of Our safe Design
1) The Whole hull structure Manual bilge pump system
2) The underfloor fuel tank with cutoff valves and fuel inspection hose with heavy duty fuel hoses .
3) Balance testing , Flotation and deck water-Tight and flotation testing make sure 100% safe "
2) The underfloor fuel tank with cutoff valves and fuel inspection hose with heavy duty fuel hoses .
3) Balance testing , Flotation and deck water-Tight and flotation testing make sure 100% safe "

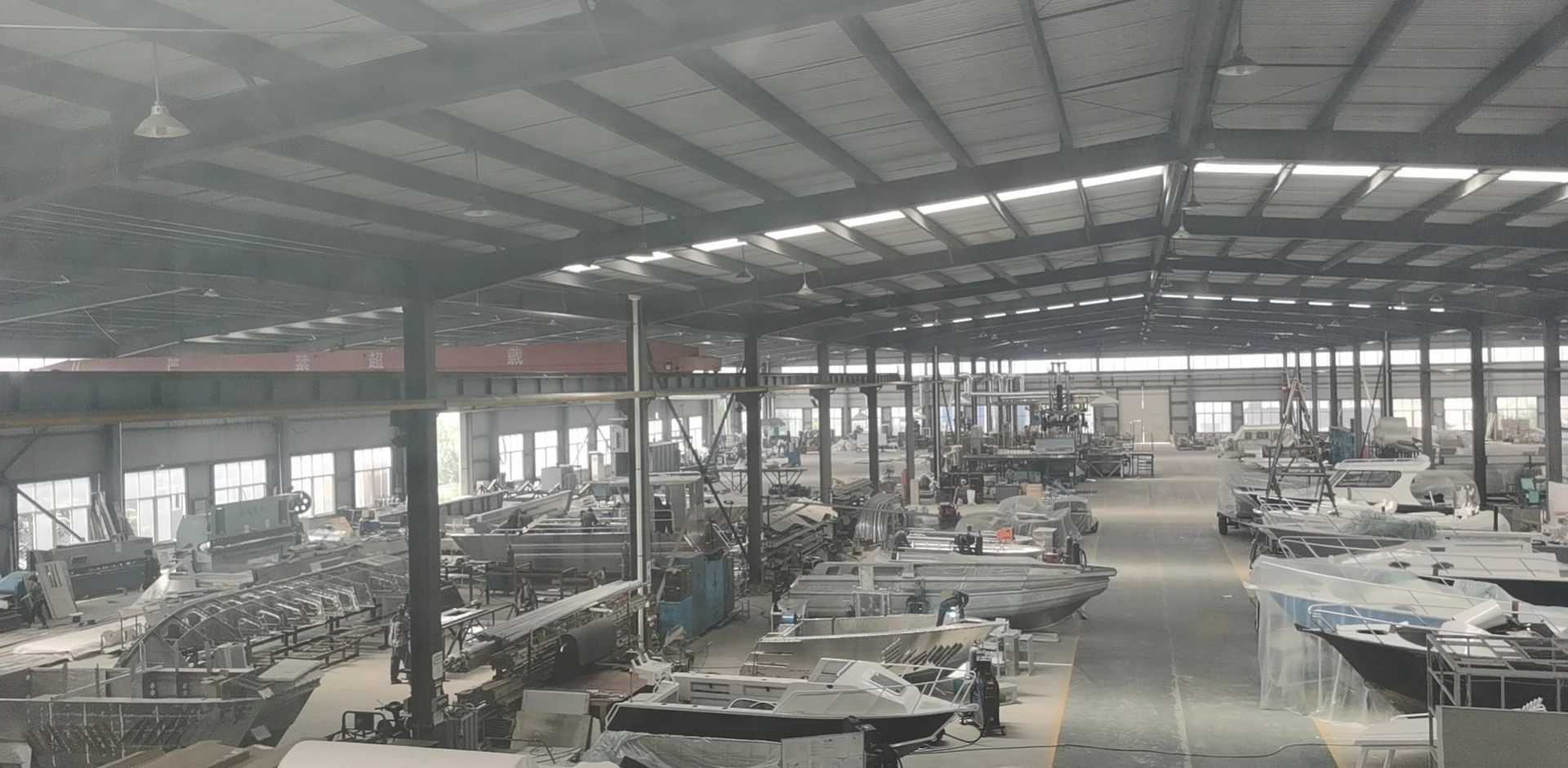

Factory Information
Taixin Ship is a very professional boat manufacturer with advcanced technology and rich experience.Our products including fishing boat,landing craft,patrol boat,diving boat,passenger boat,rescue boat,fire fighting boating and so on.It is not about lucky in sailing but we believe that the performance when it matters.
