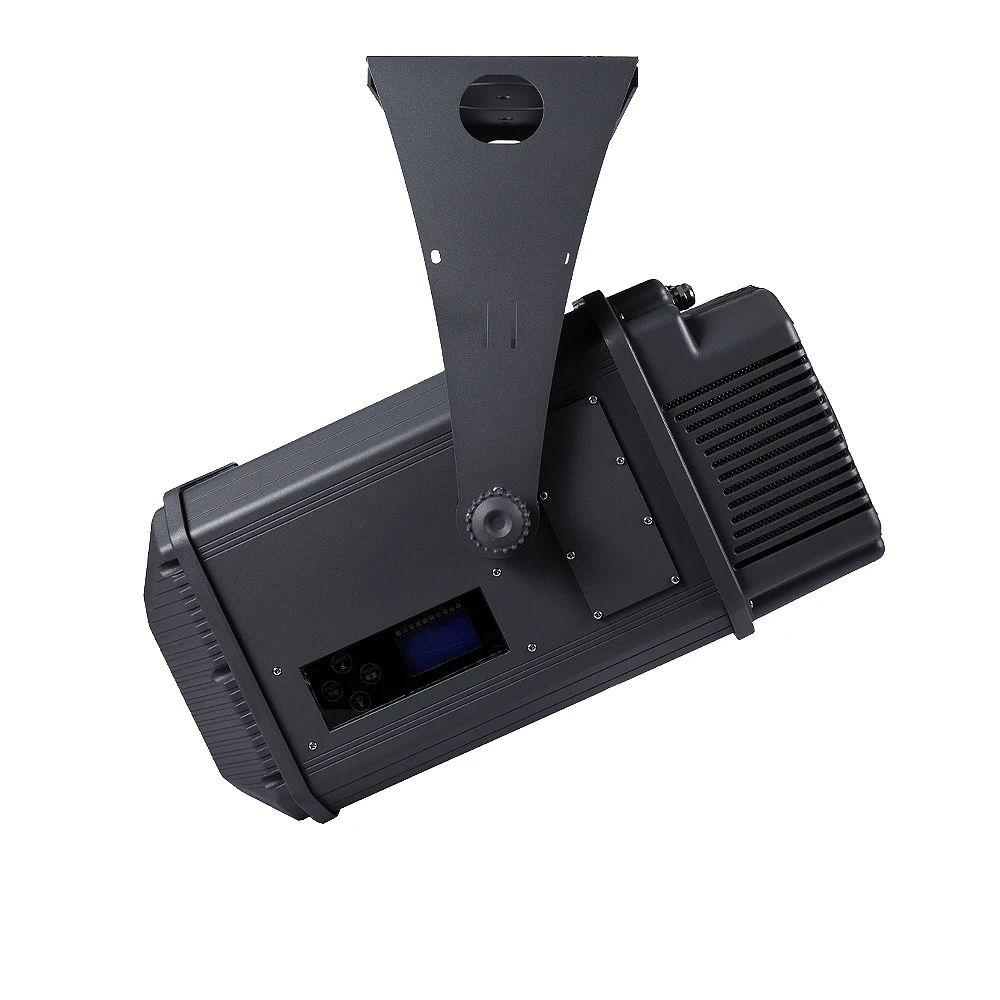

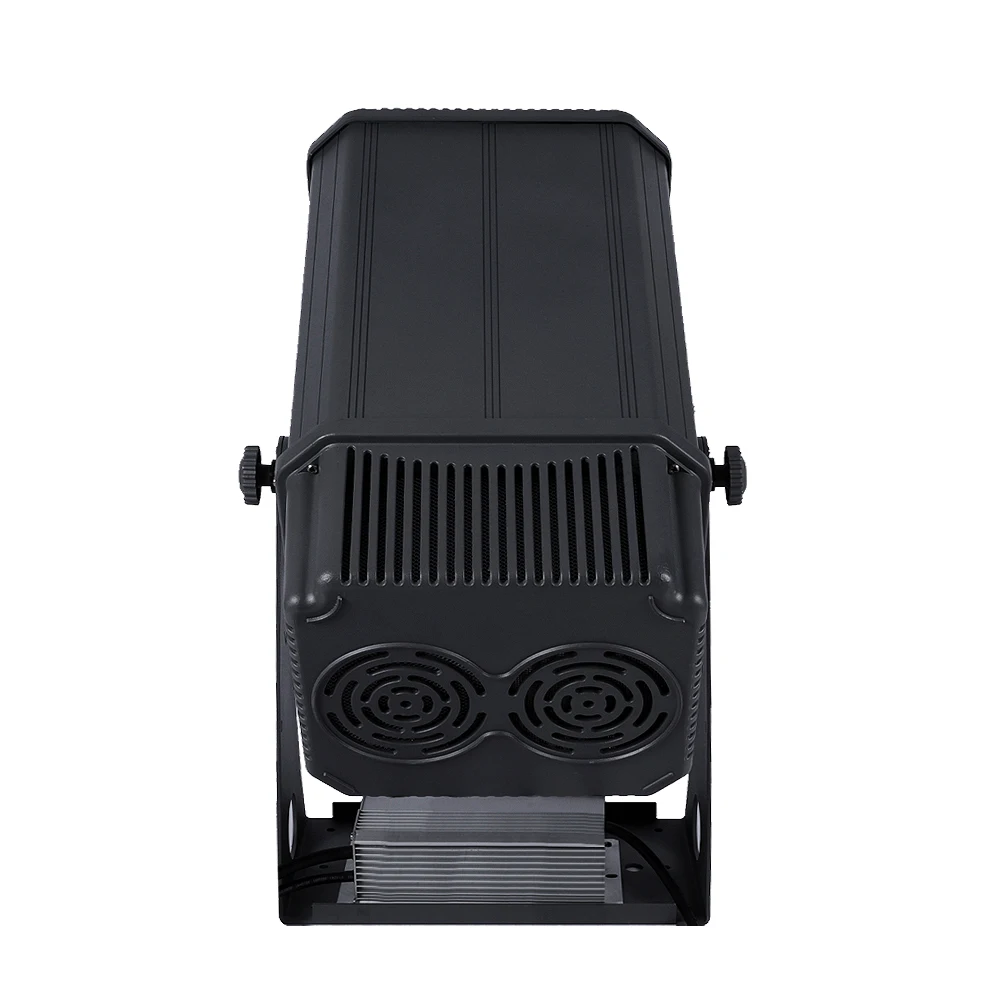

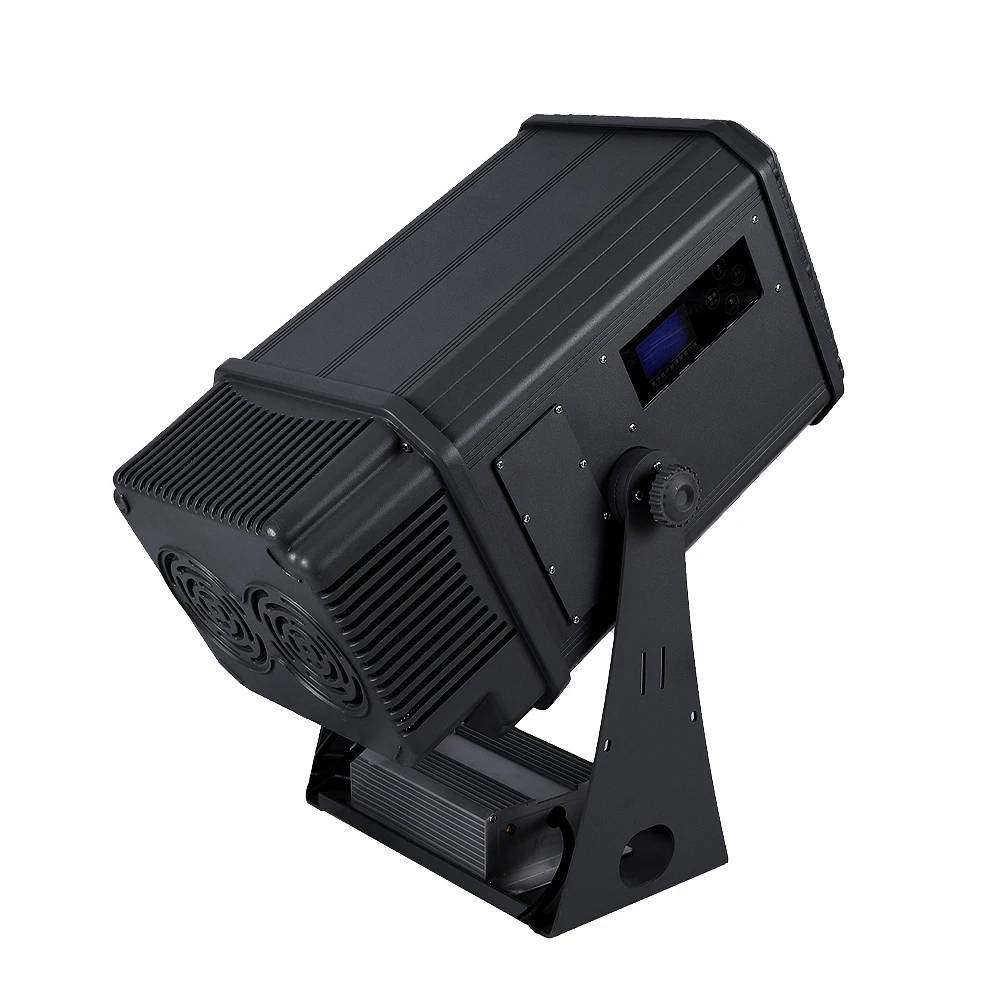

Customized traffic warning stop slow down sign zoom led gobo projector
- Category: >>>
- Supplier: zhengzhou ledy optical electrical technology co. ltd.zhengzhou ltd.
Share on (1601118914310):
Product Overview
Description
200W*300W*400W*600W*800W*
1-8 Imsges
Features
1. IP65, Aluminum alloy shell2. Full colors HD projection
3. High Brightness 12000Lm~22000Lm
4. Touch Screen Control
5. Multi Effects: Images, water wave
6. High power with double cooling system
7. Rotary/Static, in Turns, Automatic
Parameters | ||||||
Power | 200W*300W | 300W*350W*400W*500W | 600W*700W | |||
Design light source lifespan (h) | 30000h | |||||
Light source | LED Osram | 15000-18000LM | 21000-22000LM | |||
Luminous flux | 12000-15000LM | |||||
Input voltage (V) | 110V-240V AC, 50/60Hz | |||||
power factor η | 0.85 | |||||
Driver output voltage (V) | 24-36V | |||||
Driver output current (mA) | 10000±5% | |||||
Patterns | 1-8 images can be independently rotated or switched between playback rotation+dynamic water texture effect+prism effect, dynamic water texture+7 image rotation effects (optional) | |||||
Color temperature (K) | 8500—9500K | |||||
Color rendering index Ra | ≥75 | |||||
Focusing beam angle (°) | 10°-56°(zoom) | |||||
IP protection level | IP65High strength engineering flame-retardant plastic chassis | |||||
protective measures | Program with built-in overcurrent, overvoltage, and overheating protection functions | |||||
Display | LCD display in both Chinese and English, reversible display | |||||
Main appearance material | Die cast aluminum+extruded aluminum profiles+tempered glass+gray black iron oxide (optional) | |||||
Projection distance | Best 20-50 meters, all black recommended maximum projection distance within 70 meters, adjustable distance clarity and line patterns. | |||||
Functional performance | Linear electronic zoom (spot size variation, 0-100% linear dimming, corrected position 0-25 ZH/S per second, synchronous pulse flicker, random pulse flicker, etc.), etc | |||||
control model | Working mode: self-propelled, voice controlled, master-slave mode, DMX512 compatible with RDM, DMX512 channel: 16/20 channel mode; The image size can be adjusted and rotated 360 ° to correct the pattern direction. The dimming can be fully bright or monochrome can remain bright. DMX512 signal input, color control, and automatic operation functions. | |||||
Cooling system | Using 65 * 25 * 6MM copper plate+air-cooled 12025+local integrated heat dissipation method, the chip temperature is always maintained below 65 degrees Celsius. | |||||
Storage working environment temperature (℃) | -30 °C~60 °C | |||||
Installation method of lighting fixtures | Screw fixation, inverted hook | |||||
Product weight (kg) | 19kg | |||||
Our Service | ||
1. Reply your inquiry in 24 working hours. | 5. Familiar with OEM & ODM service. | |
2. Over 10 years manufacturer experience. | 6. LVD, EMC, ROHS, REACH certified. | |
3. Factory competitive price with high quality. | 7. Not only a supplier, but also a partner. | |
4. Professional R&D team and sales team. | 8. Fast production, fast delivery. | |
FAQ
Q1. Can I have a sample order for led gobo projector?
A: Yes, we welcome sample order to test and check quality.
Q2. What about the lead time?
A: 3 working days for sample. 1-2 weeks for bulk order generally.
Q3. MOQ for led gobo projector order?
A: 1pc.
Q4. How do you ship the goods and how long does it take to arrive?
A: Usually by express, like DHL, UPS, FedEx, EMS or TNT; By air and sea are also available. Express takes 3-7 days to arrive.
Q5. How to proceed an order for led light?
A: Firstly, let us know your requirements or application.
Secondly, we send you the offer.
Thirdly, customer confirms the order and make payment.
Fourthly, we arrange the production and shipment.
Q6. Is it OK to print my logo on led light product?
A: Yes, it’s available.
A: Yes, we welcome sample order to test and check quality.
Q2. What about the lead time?
A: 3 working days for sample. 1-2 weeks for bulk order generally.
Q3. MOQ for led gobo projector order?
A: 1pc.
Q4. How do you ship the goods and how long does it take to arrive?
A: Usually by express, like DHL, UPS, FedEx, EMS or TNT; By air and sea are also available. Express takes 3-7 days to arrive.
Q5. How to proceed an order for led light?
A: Firstly, let us know your requirements or application.
Secondly, we send you the offer.
Thirdly, customer confirms the order and make payment.
Fourthly, we arrange the production and shipment.
Q6. Is it OK to print my logo on led light product?
A: Yes, it’s available.
