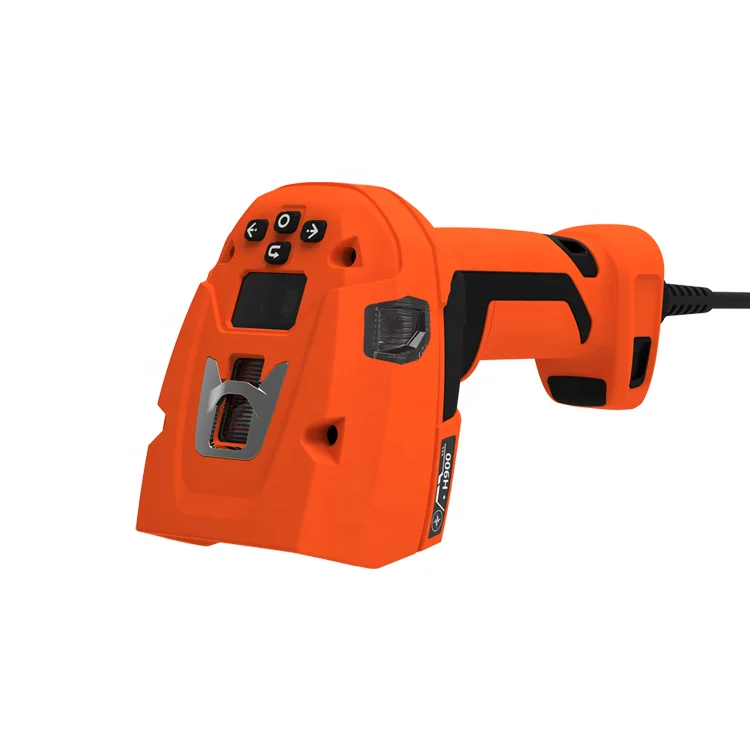

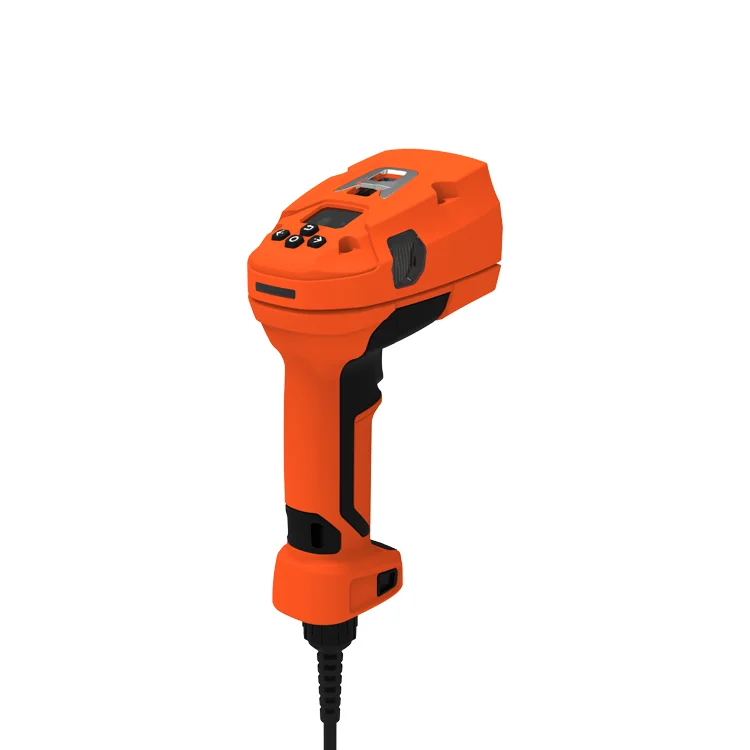

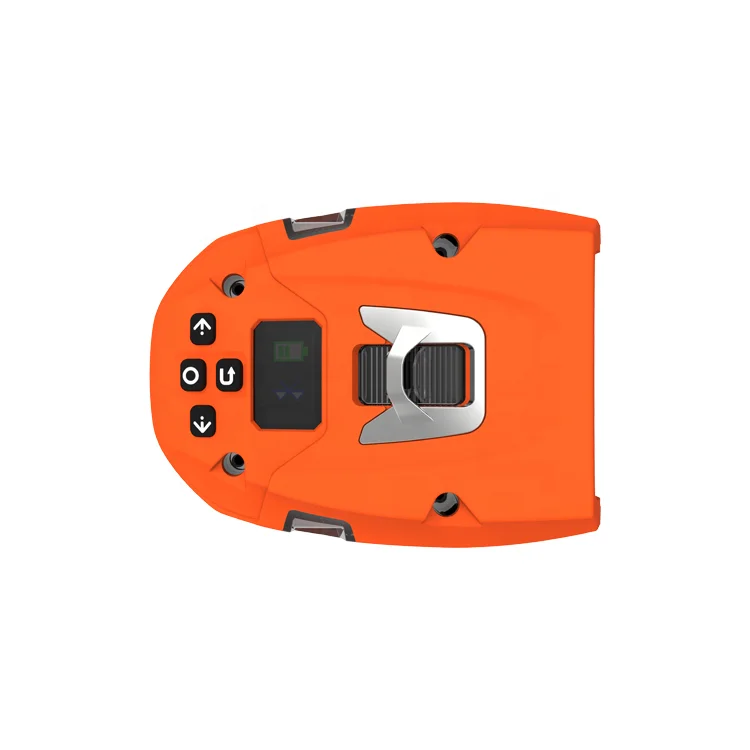

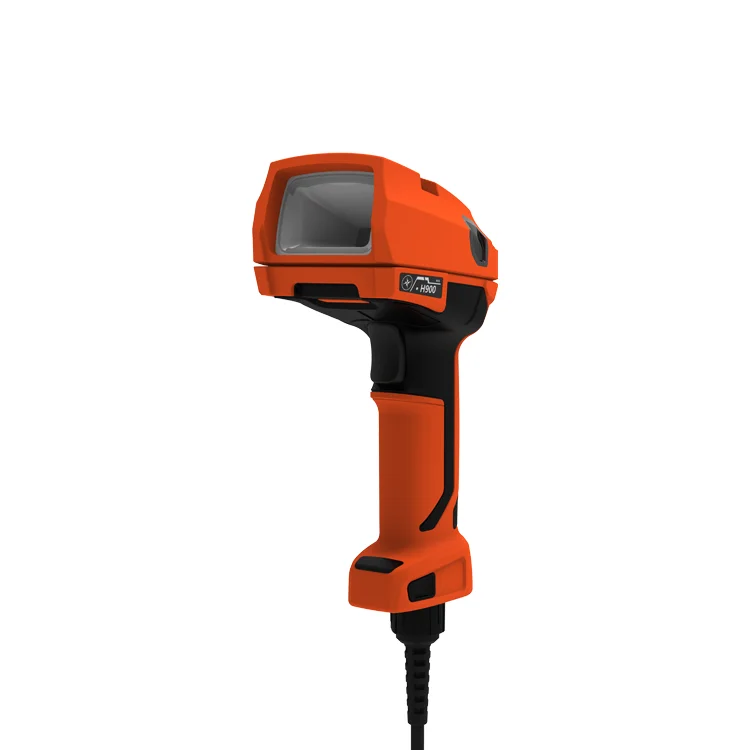

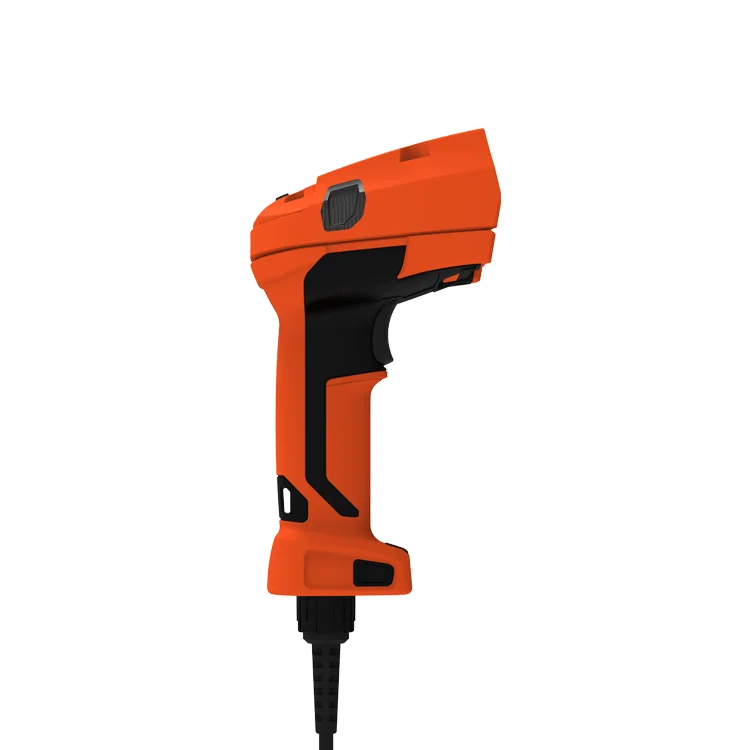

LICOERD H920 Wired DPM Barcode Scanner IP67 Handheld Industrial Barcode Handheld scanner gun that can be connected to plc
- Category: >>>
- Supplier: Guangzhou Link Iot Technology Co. Ltd.
Share on (1601119049205):
Product Overview
Description
Specification
Model | H920-S | H920-E | H920-U | ||
Read code system | 2D：Datamatrix（ECC200）、QR Code 1D：Code39、Code93、Code128、EAN13、EAN8、UPC-E、Iterleaved 2 of 5 | ||||
Minimum resolution | 1D：0.043mm(1.7mil) 2D：0.043mm(1.7mil) | ||||
Barcode Level Verification | ISO/IEC15415、ISO/IEC TR 29158(AIM DPM-1-2006) | ||||
Image Sensor | 1280*800 Pixel Global Shutter CMOS | ||||
Read depth of field | Module Size 0.25mm(9.8mil)：0-110mm Module Size 0.50mm(19.7mil)：0-260mm | ||||
Maximum acquisition frame rate | 120FPS | ||||
Lighting system | White LED Uniform Light | ||||
Camera lens | Fixed focal length | ||||
Display | 0.96 inch OLED display | ||||
Sound and light feedback | LED+buzzer+vibration | ||||
Sight | LED single point coaxial aiming wavelength 550nm | ||||
Communication Interface | Serial Port | Ethernet@10/100Mbps | USB2.0 | ||
Communication protocol | RS232 | TCP Client、TCP Server、FTP、 Ethernet/IP、Profinet IO | USB-COM、USB-HID | ||
Power supply | 24VDC±10% | POE | USB 5V 1A/24VDC±10% | ||
Power consumption | TBD | ||||
Operating temperature | 0 to 40℃ | ||||
Storage temperature | -20 to 70℃ | ||||
Working storage humidity | <95% non-condensing | ||||
Degree of protection | IP67 | ||||
Shell material | PC+TPU | ||||
Packing & Delivery
In order to ensure that the goods can be safely transported to the destination, the scanning gun and the base are separately assembled to avoid unnecessary collisions.
Company Profile
FAQ
1.How do I know I can read the barcode I want to read?
You can send us the barcode picture, we will conduct a simulation test, and then send the video to you.
2.What about MOQ?
Samples are acceptable.
3.What warranty and after-sale service do you offer?
1 year warranty,we provide after-sales technical services, one-to-one technical personnel docking product problems.
4.Can you make OEM or ODM for products?
Yes,we support OEM and ODM service,we have a team of product architects and logo designers,support customized product logo, appearance, function.
5.What about delivery time?
Samples will be sent out within 3-5 days, depending on the order quantity.
