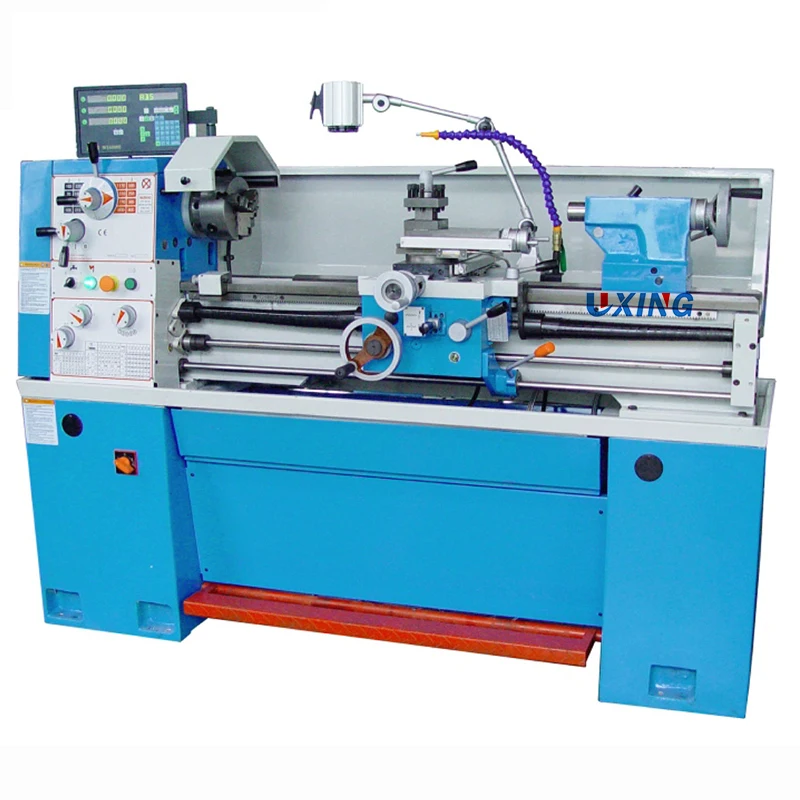

CQ6236F Small bench manual lathe machine torno for metal
- Category: >>>
- Supplier: Zaozhuang Luxing Machine Tool Co. Ltd.
Share on (1601119348679):
Product Overview
Description
CQ6236F Small bench manual lathe machine torno for metal
Features:
1.The bed ways are grinded and hardened.
2.Extremely low noise level.
3.High-precision bearings and grinded gears in headstock.
4. Φ51mm big spindle bore as optional
3.High-precision bearings and grinded gears in headstock.
4. Φ51mm big spindle bore as optional
The main specifications:
MODEL | CQ6236F |
Max. swing over bed | Φ356mm |
Max. swing over cross | Φ220mm |
Max. swing in gap | Φ506mm |
Distance between centers | 1000mm |
Width of bed | 206mm |
Spindle | |
Spindle speed range | 16 steps 45-1800rpm |
Spindle bore | Φ38mm (Φ51mm as optional) |
Spindle nose | D1-4 |
Taper of spindle bore | MT5 |
Thread cutting | |
Threads metric pitches | 0.4-7mm / 42kinds (Metric lathe) OR 0.45-7.5mm / 22kinds (Inch lathe) |
Threads imperial pitches | 4-56TPI / 28kinds (Metric lathe) OR 4-112TPI /40kinds (Inch lathe) |
Range of feeds | |
Compound rest travel | 90mm |
Cross slide travel | 150mm |
Longitudinal feeds | 0.043-0.653mm/rev / 42kinds (Metric lathe) OR 0.0012-0.0294inch/rev / 40kinds (Inch lathe) |
Tailstock Sleeve | |
External diameter | Φ45mm |
Max. travel | 100mm |
Taper of bore | MT3 |
Motor | |
Spindle motor power | 1.5/2.4KW 3PH |
Coolant pump power | 40W |
Others | |
Tool section | 16*16mm |
Packing dimension | 1935*750*1500mm |
77Net/Gross weight | 100/800kg |
Optional accessories:
Live center;
Taper attachment;
USA type Quick change tool post;
Italy type Quick change tool post;
2 axis Digital readout(DRO);
3 axis Digital readout(DRO);
Chuck guard;
Tool post guard;
Screw guard;
Taper attachment;
USA type Quick change tool post;
Italy type Quick change tool post;
2 axis Digital readout(DRO);
3 axis Digital readout(DRO);
Chuck guard;
Tool post guard;
Screw guard;

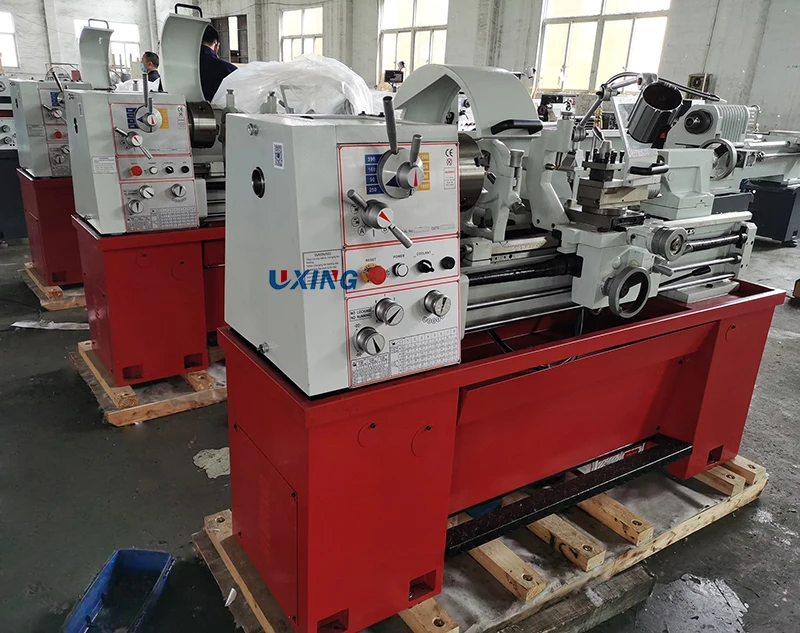

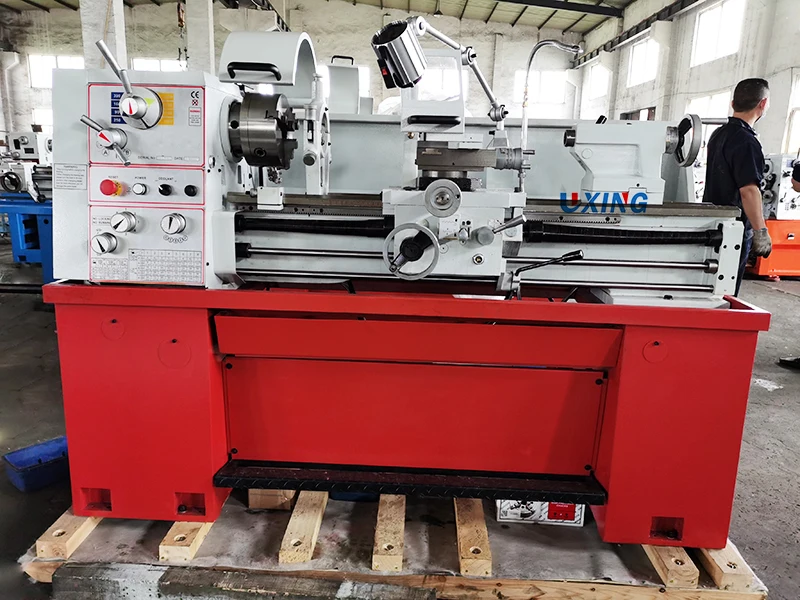

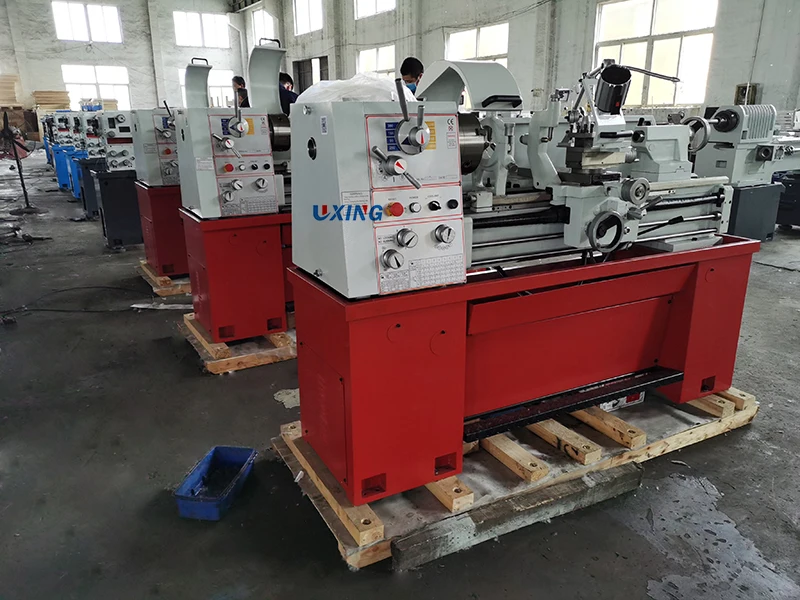

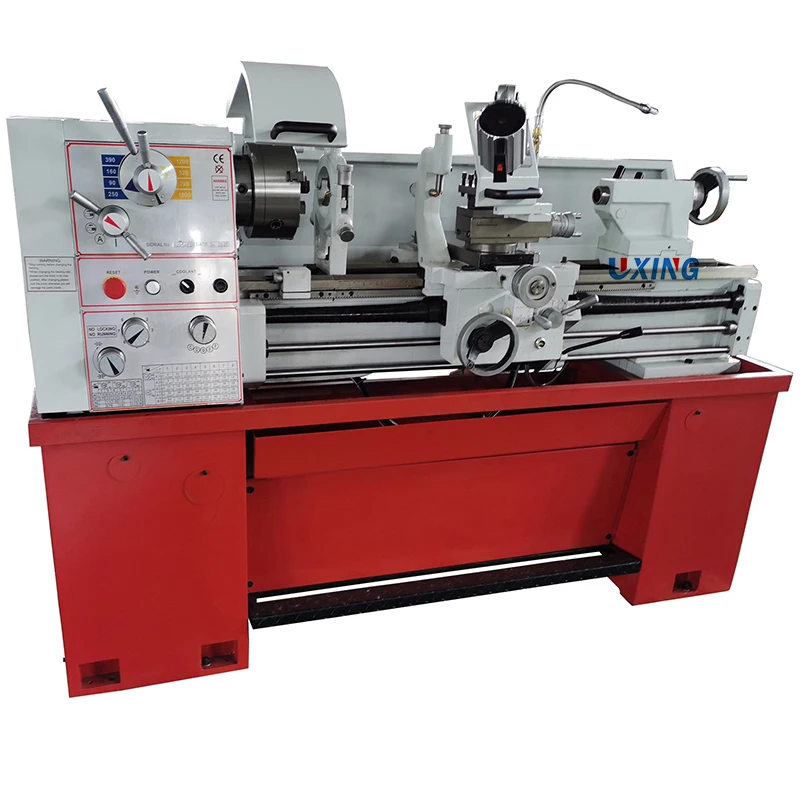

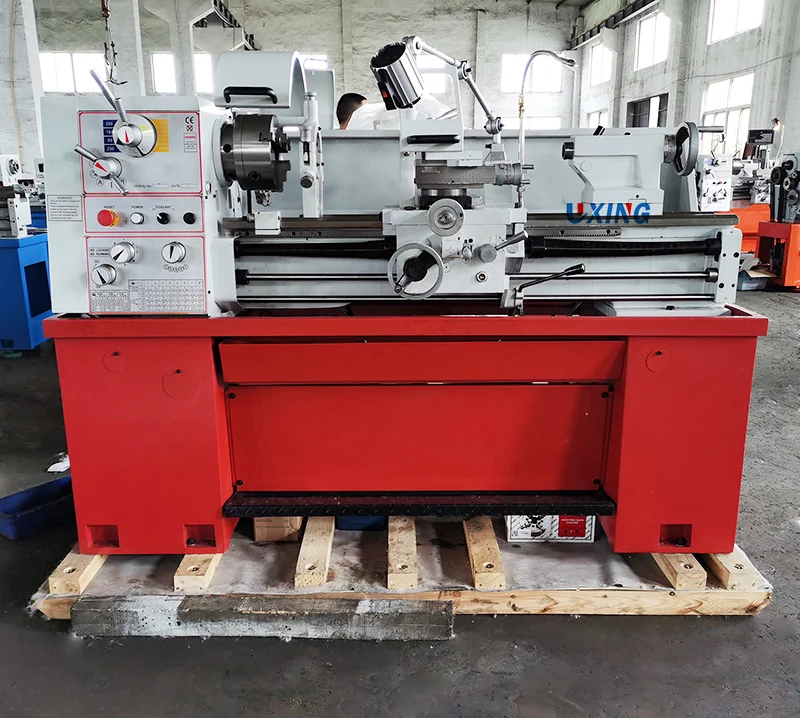

Details:
Related products:
FAQ:
1:How can I choose the most suitable machines?
A: Please tell me your specifications (or send your workpiece drawing to us) ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Band Saw Machine ,Shaper machine and so on .
3: How long is the delivery time?
For standard machines,it would be around 30 days;For non-standard machines and customized machine according to client’s specifications requirements,it wouble be a little longer.
4.Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277599 China.
You are warmly welcomed to visit us.
5. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
6: What's the Payment Terms?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
7: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
A: Please tell me your specifications (or send your workpiece drawing to us) ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Band Saw Machine ,Shaper machine and so on .
3: How long is the delivery time?
For standard machines,it would be around 30 days;For non-standard machines and customized machine according to client’s specifications requirements,it wouble be a little longer.
4.Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277599 China.
You are warmly welcomed to visit us.
5. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
6: What's the Payment Terms?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
7: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
