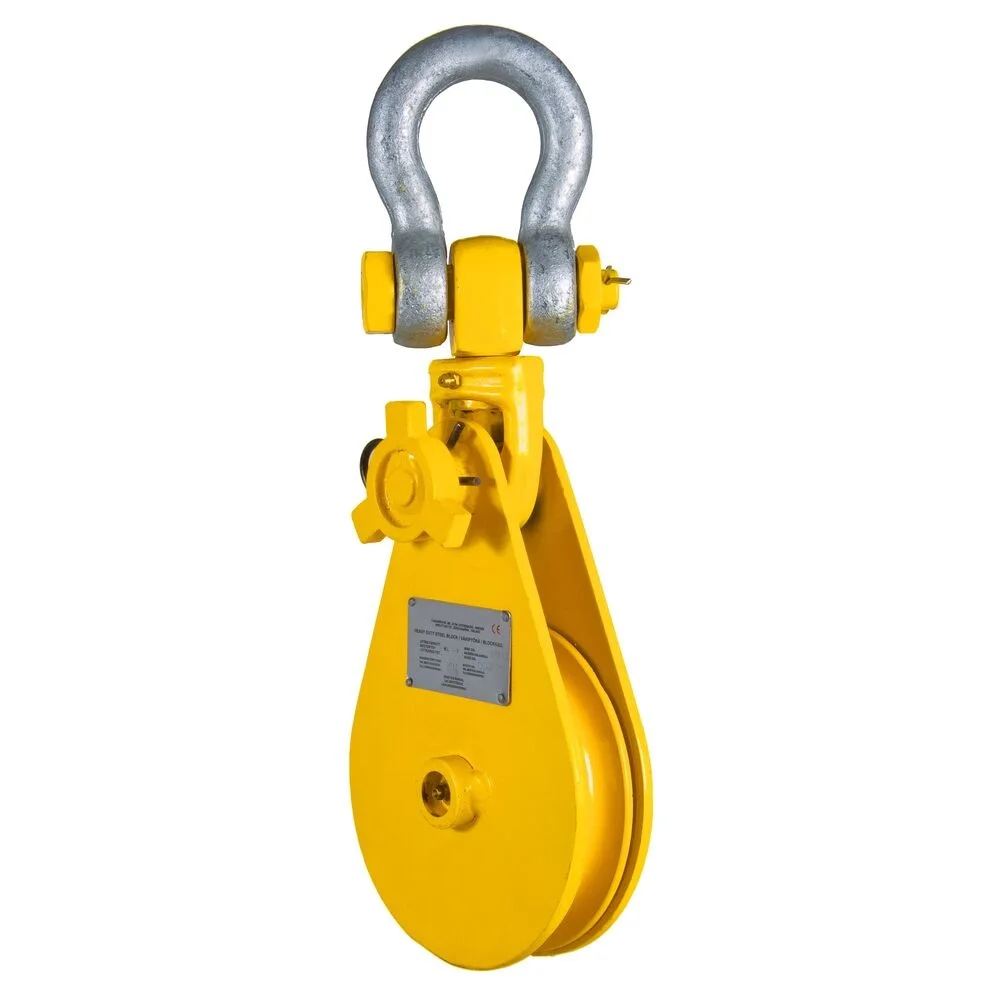

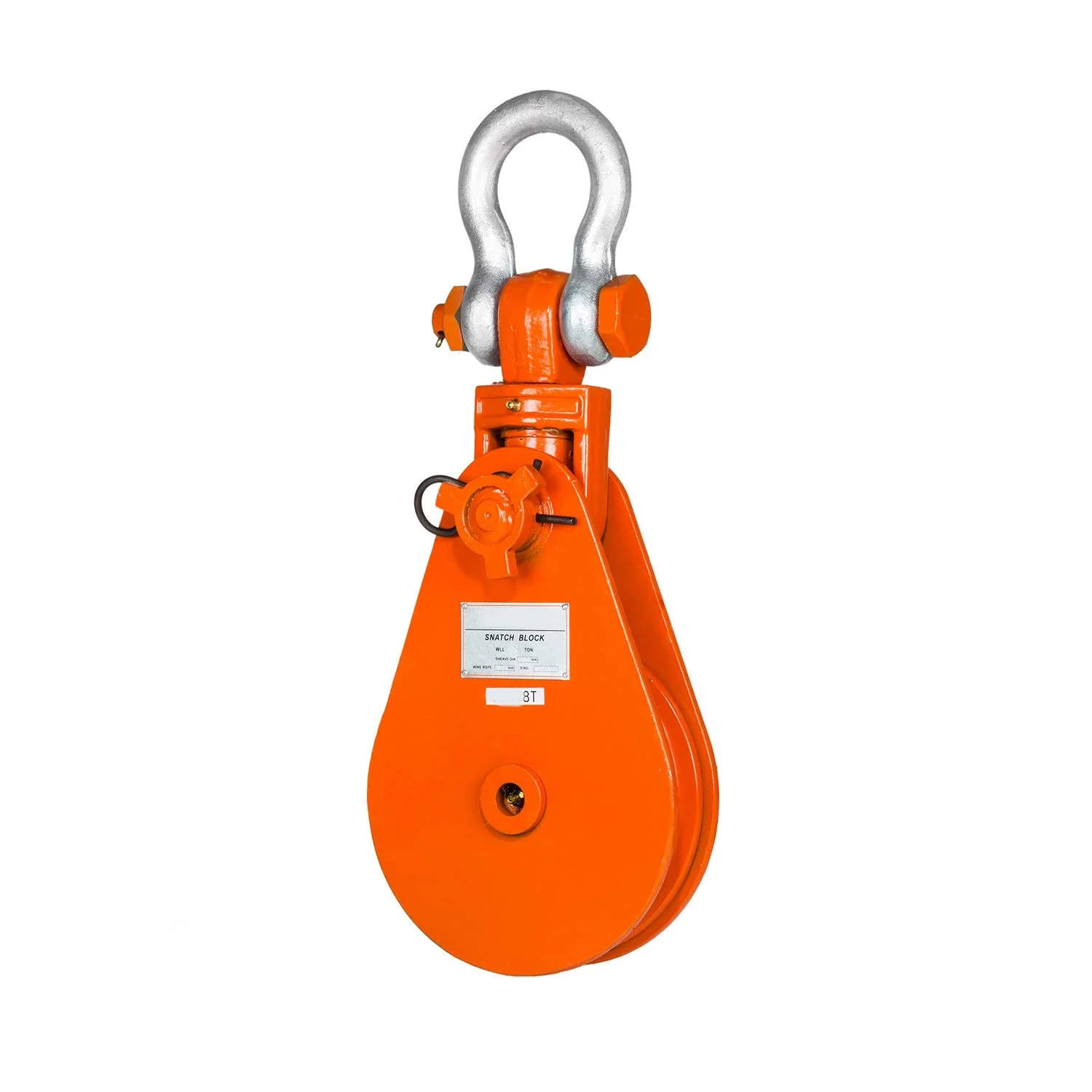

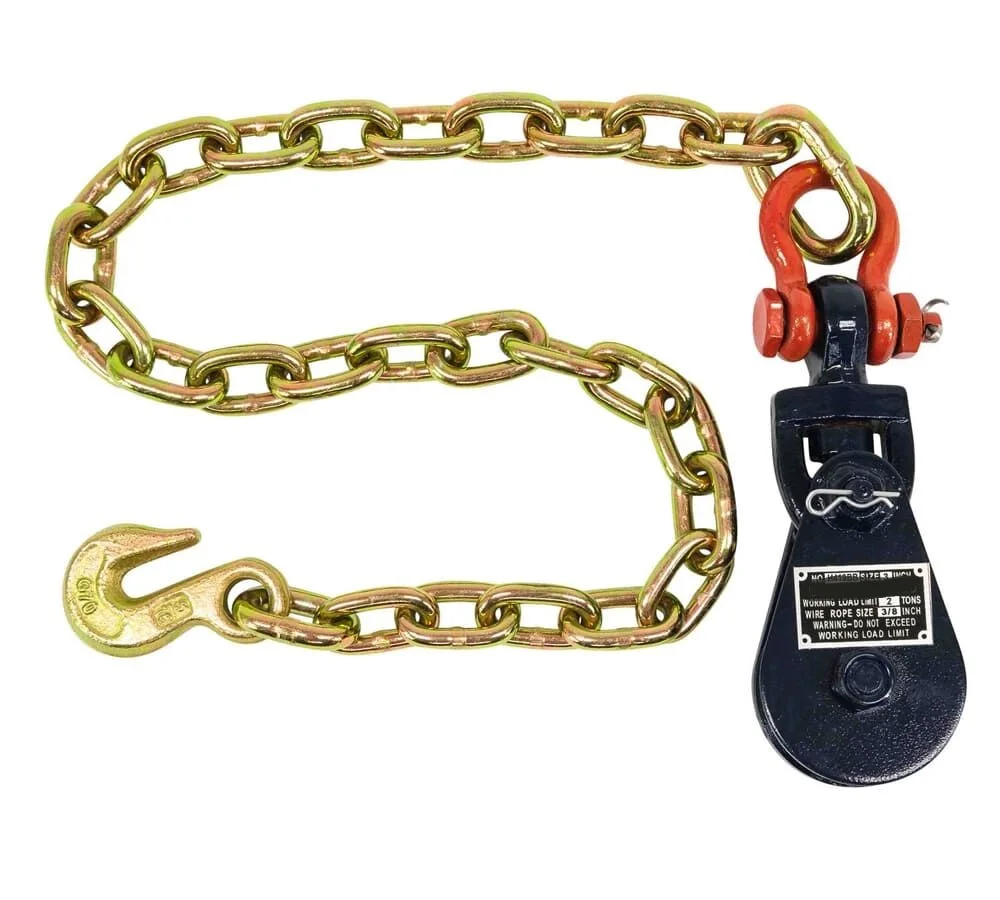

Heavy Duty Shackle and Hook Type Snatch Block Single Sheave for Construction 1 Year Warranty
- Category: >>>
- Supplier: Hangzhou Zhezhong Chain Co. Ltd.
Share on (1601119655652):
Product Overview
Description
Product Description
Snatch block or pulley is used to change the direction of the pull to a different angle relative to a fixed point, also can be used to create more complex pulley structures and gain mechanical advantage.
It is easy to use and possible to unscrew or remove one side, slip in the winch cable or rope and then re protect the same side to prevent the cable from leaving the groove..
It is easy to use and possible to unscrew or remove one side, slip in the winch cable or rope and then re protect the same side to prevent the cable from leaving the groove..

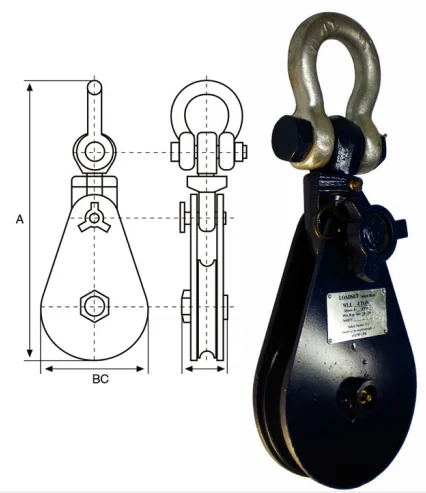

WLL/TON | SHEAVE DIAMETER/MM | WIRE ROPE DIAMETER/MM | A/MM | B/MM | C/MM |
2 | 75 | 8-10 | 290 | 83 | 75 |
4 | 150 | 10-13 | 415 | 160 | 75 |
8 | 200 | 16-18 | 530 | 210 | 95 |
10 | 250 | 18-20 | 680 | 260 | 115 |
12 | 250 | 20-22 | 680 | 260 | 115 |
15 | 300 | 24-26 | 890 | 310 | 135 |
22 | 355 | 26-32 | 960 | 365 | 140 |
30 | 500 | 32-38 | 1230 | 520 | 155 |
50 | 600 | 46-50 | 1585 | 630 | 210 |
85 | 760 | 56-64 | 1910 | 800 | 288 |
Detailed Images

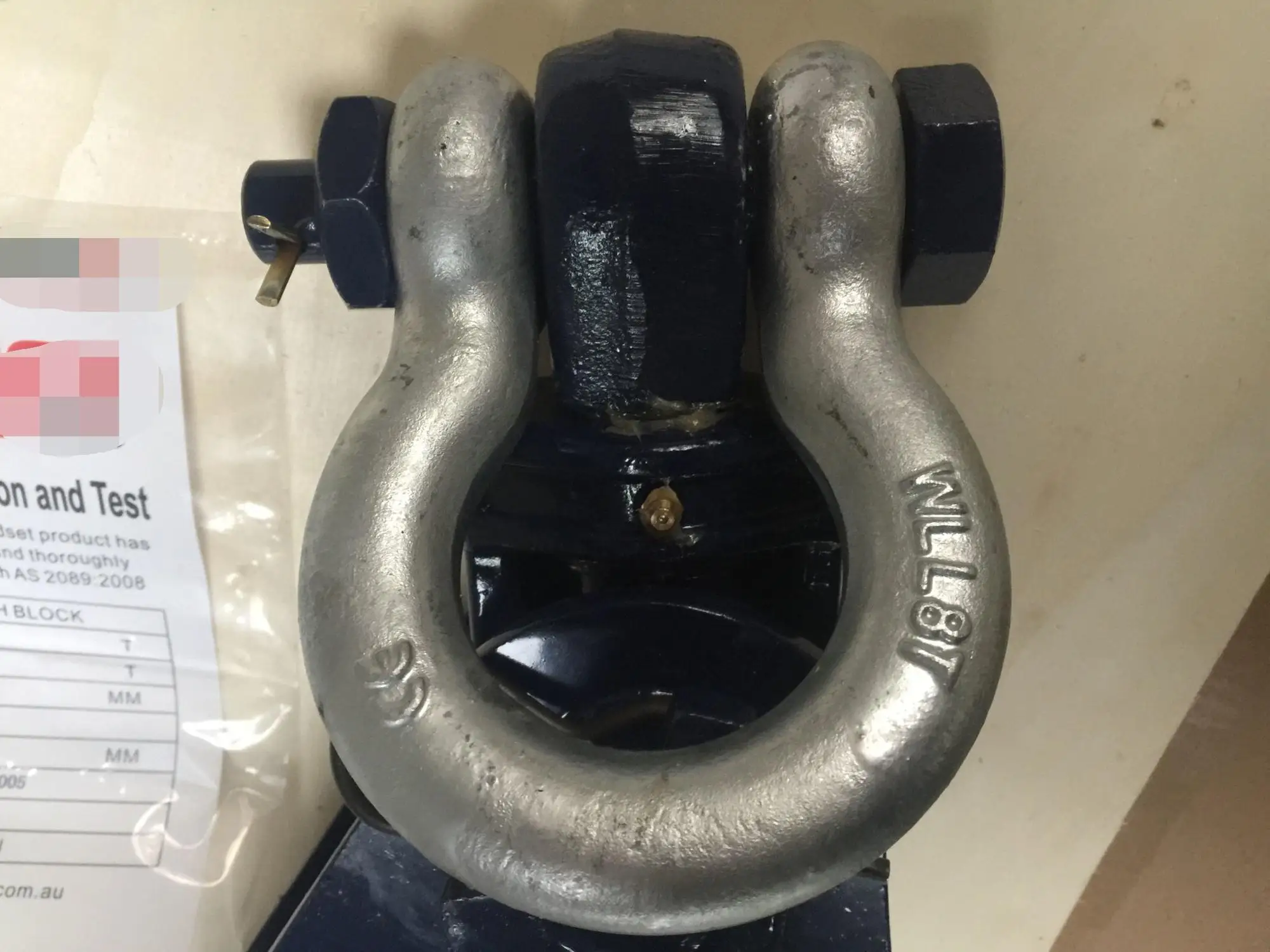

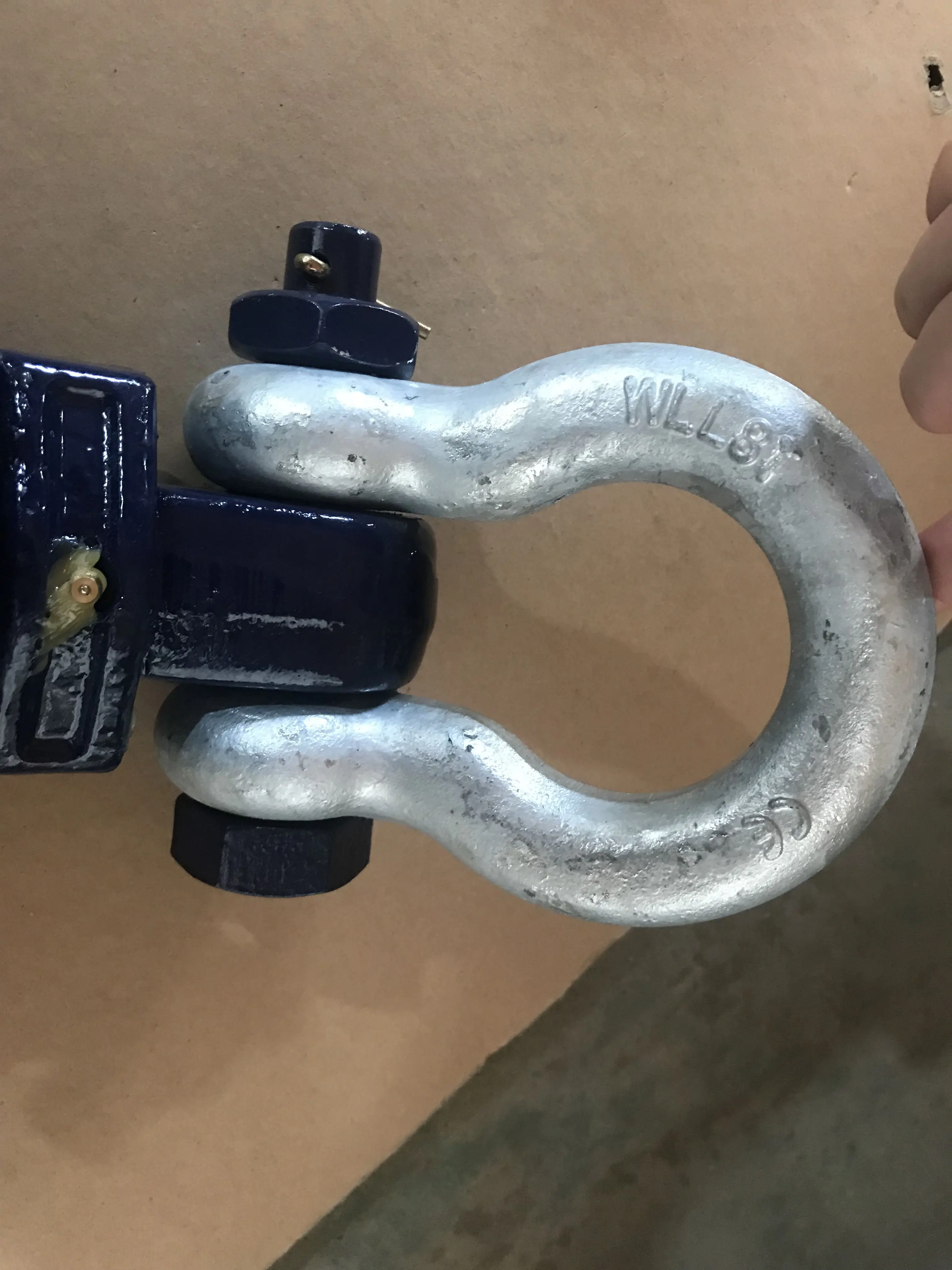

SWIVEL HEAD SHACKLE
CUSTOMIZED LOGO TAG

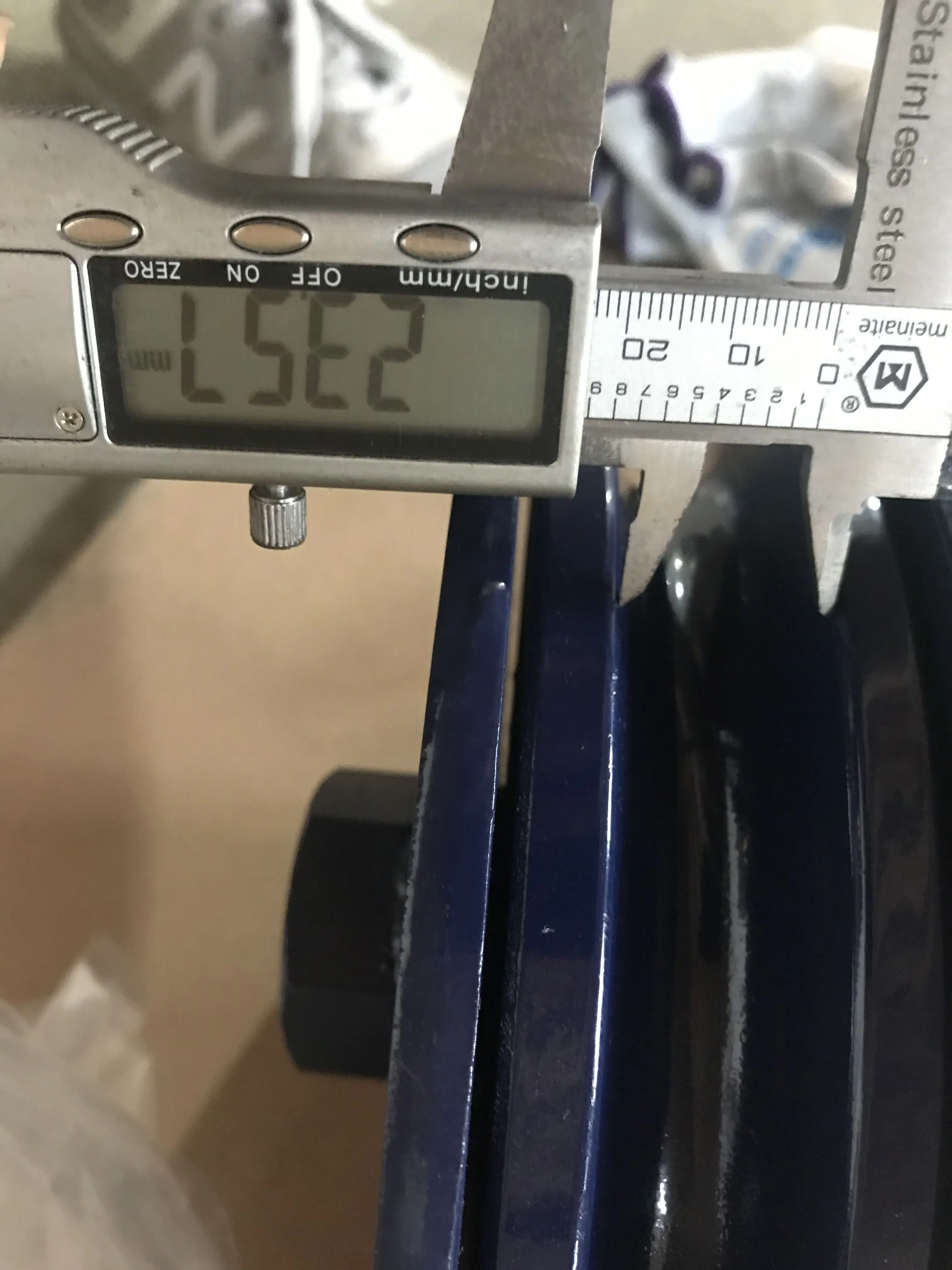

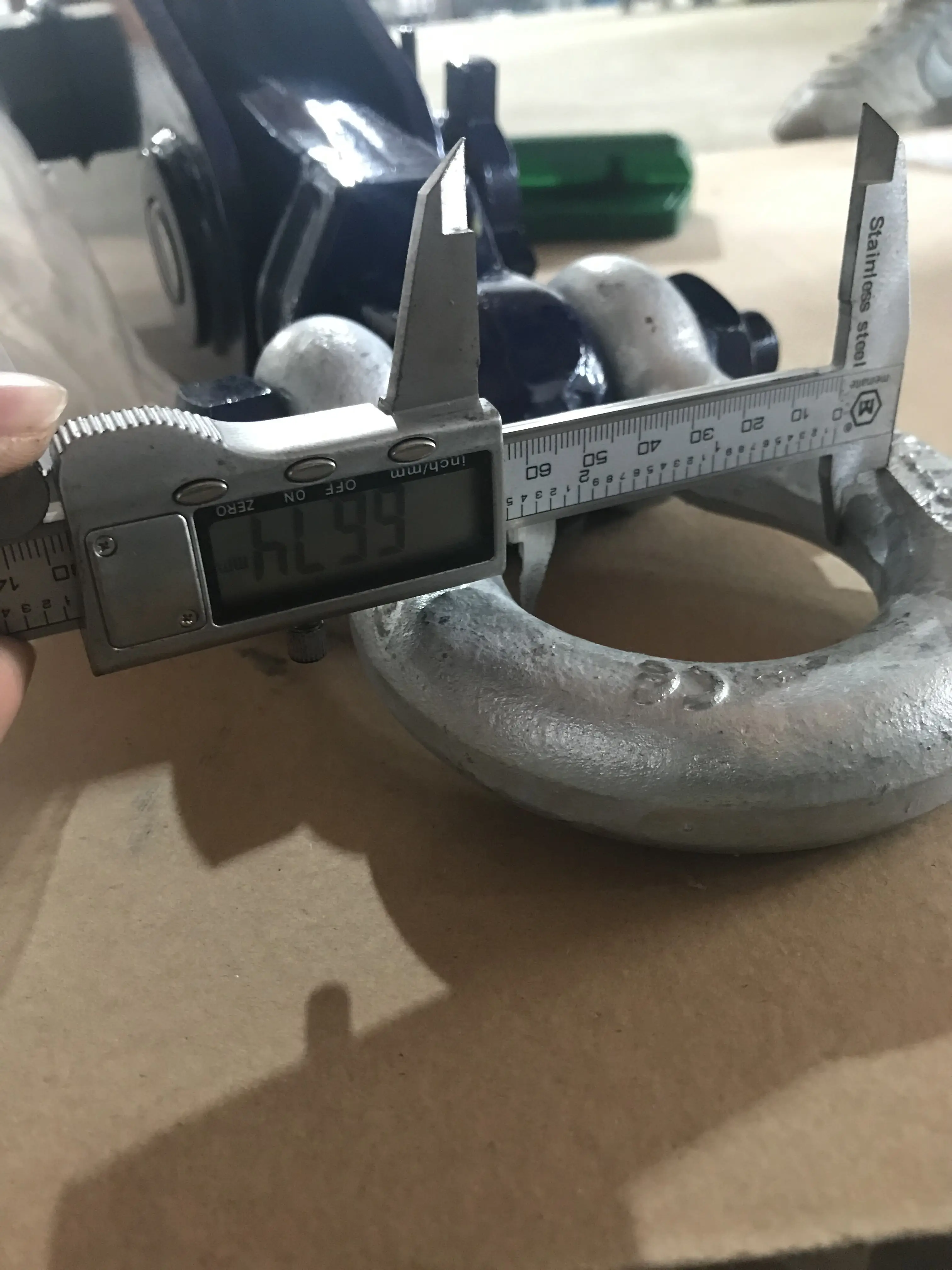

STRICT QUALITY CONTROL BEFORE DELIVERY

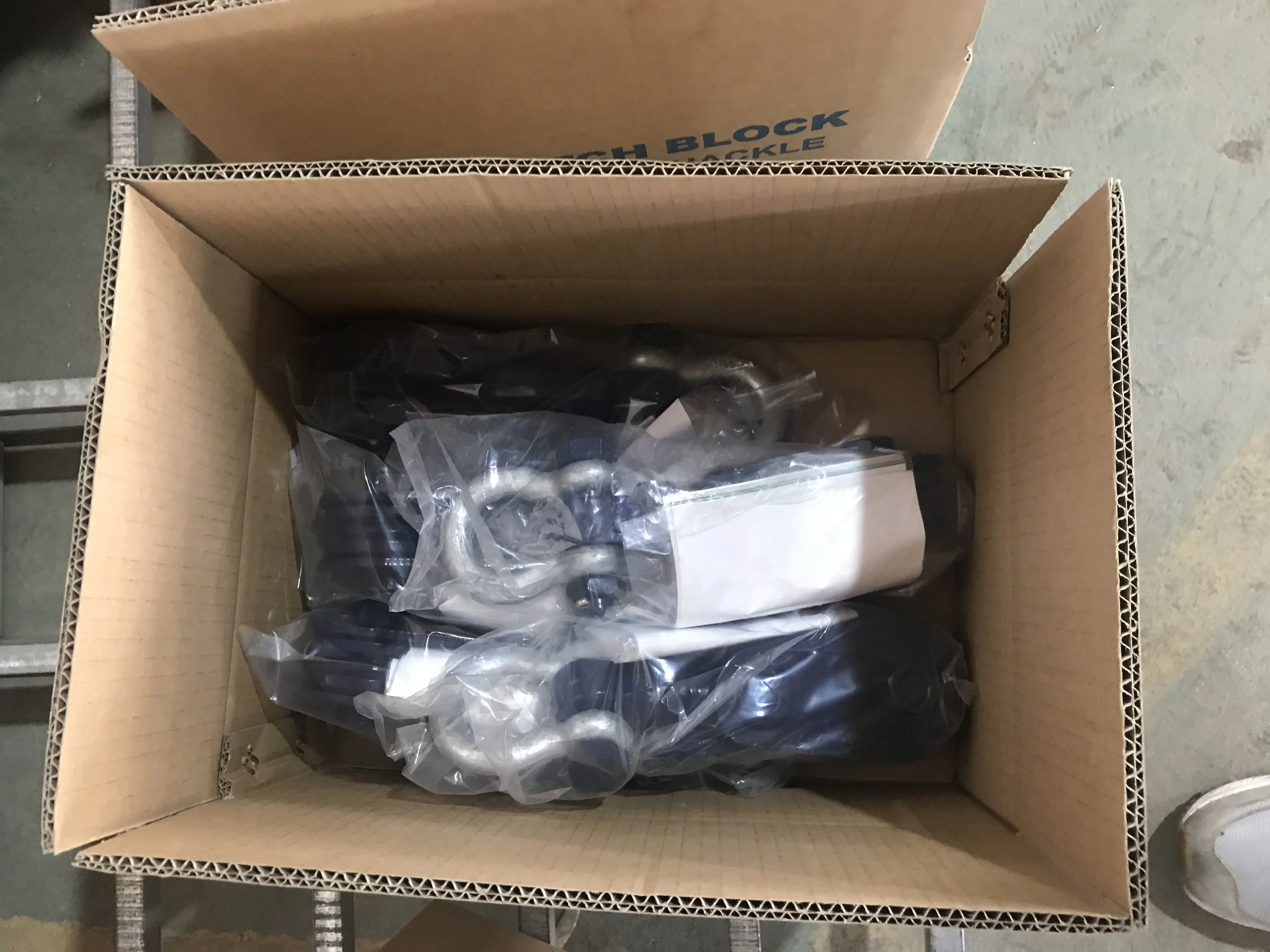

Packing&Shipping
Generally packed with plastic bags and in carton
Related Products
Company Introduction
About Us
Z2LIFTING is a group of Hangzhou Zhezhong Chain Co. and Ruby Imp 7 Exp Co. We located in Hangzhou City of China. Our Business focuses on the manufacturing & supplying the high quality of lifting, rigging, material handing & marine equipments. To ensure safety and meet customers' satisfaction, Z2LIFTING always pay great attention to inspection and delivery. Our aim is not only to be a trader in lifting area, but effort to help our customer grow and build safety and long-term business in their markets.
Hangzhou Zhezhong Chain Co.,Ltd (Z2 CHAIN) established in Hangzhou City of China in 2006. We focuses on manufacturing G80 and higher level welded lifting chain. Our main products are G80 and 100 lifting chain based on EN818-2 standard and load chain.We have the most advanced automatic machines industry, and senior engineering group that all had decades of years experience. Based on the good machines, skilled engineers, strict quality control systems and excellent management group, Z2 CHAIN is producing and had already supplied quantity of high quality chains.
Z2LIFTING is a group of Hangzhou Zhezhong Chain Co. and Ruby Imp 7 Exp Co. We located in Hangzhou City of China. Our Business focuses on the manufacturing & supplying the high quality of lifting, rigging, material handing & marine equipments. To ensure safety and meet customers' satisfaction, Z2LIFTING always pay great attention to inspection and delivery. Our aim is not only to be a trader in lifting area, but effort to help our customer grow and build safety and long-term business in their markets.
Our Services & Strength
· Z2Lifting has a professional quality inspection group and a set of quality control system. We can also provide quality test certificates to customers.
· Z2Lifting has a firm certificate. It's certificated by GB/T 19001-2016/ iSO 9001:2015
Sample Room
Exhibition
CHINA HOMELIFE POLAND
(2015)
NATIONAL HARDWARE SHOW
(2018)
NATIONAL HARDWARE SHOW (2024)
FAQ
Q: How long is your delivery time?
A: Generally it is 30-45 days.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight. But the freight cost can be reduced in later orders.
Q: What is your terms of payment ?
A: We prefer T/T in advance, balance before shipment. Or L/C.
Q: What is your general international express?
A: We usually cooperate with FedEx, DHL, UPS, EMS express.
If you have another question, pls feel free to contact us as below:
