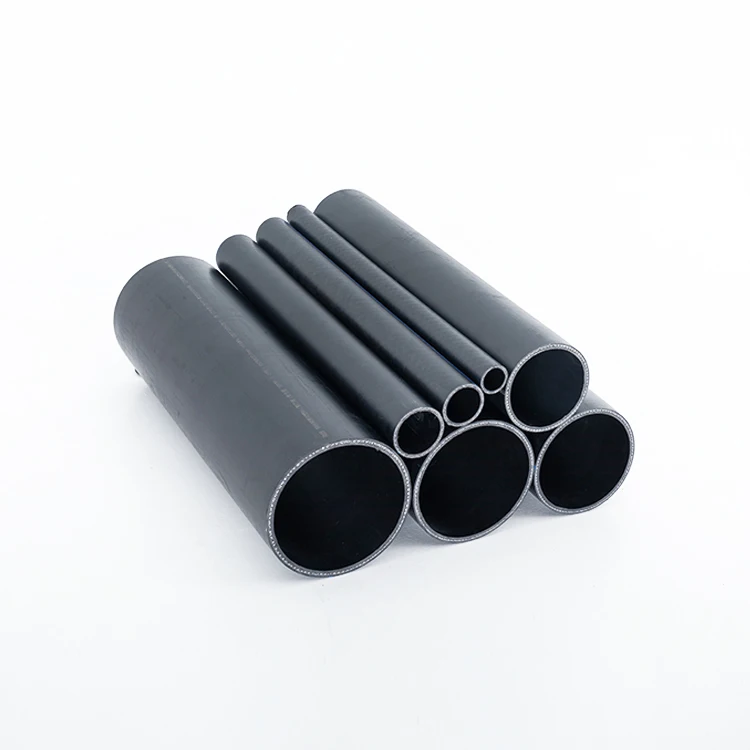

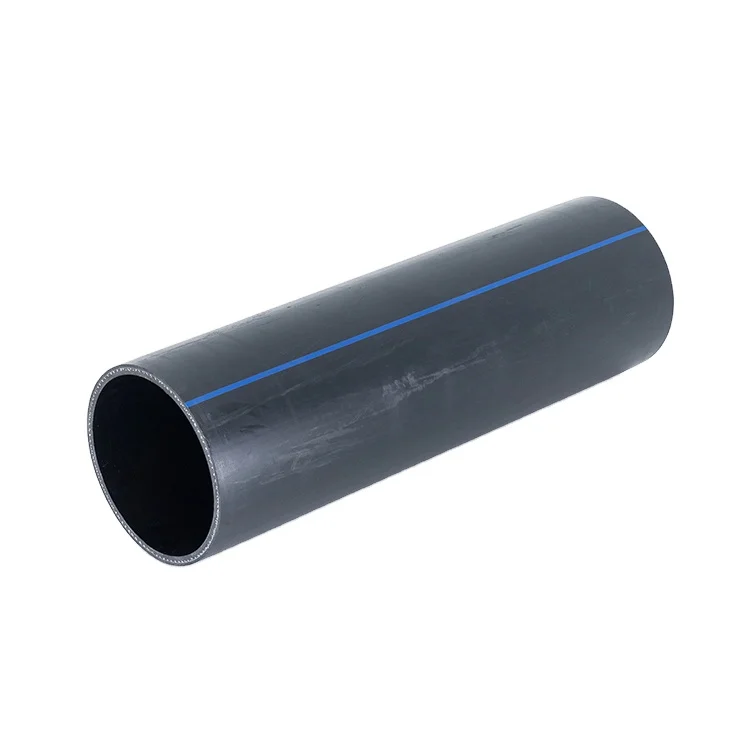

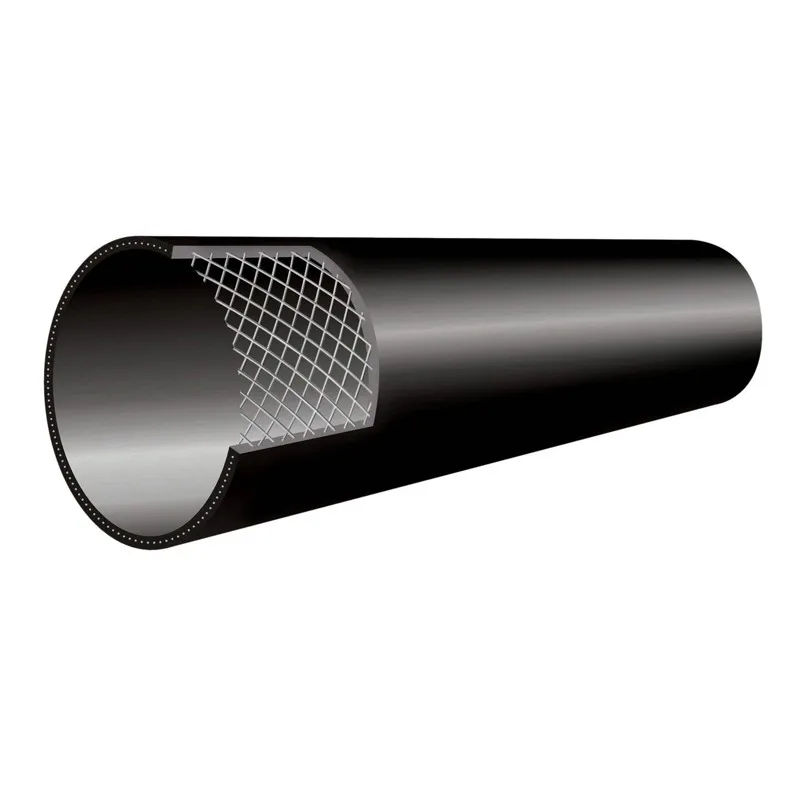

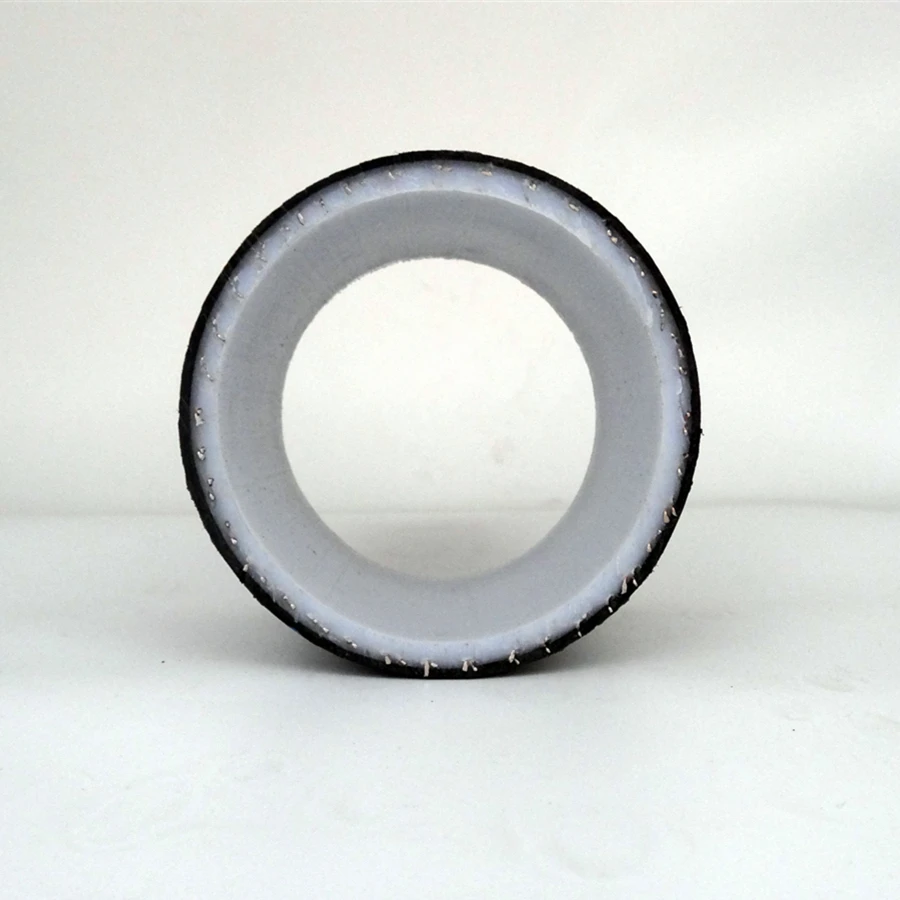

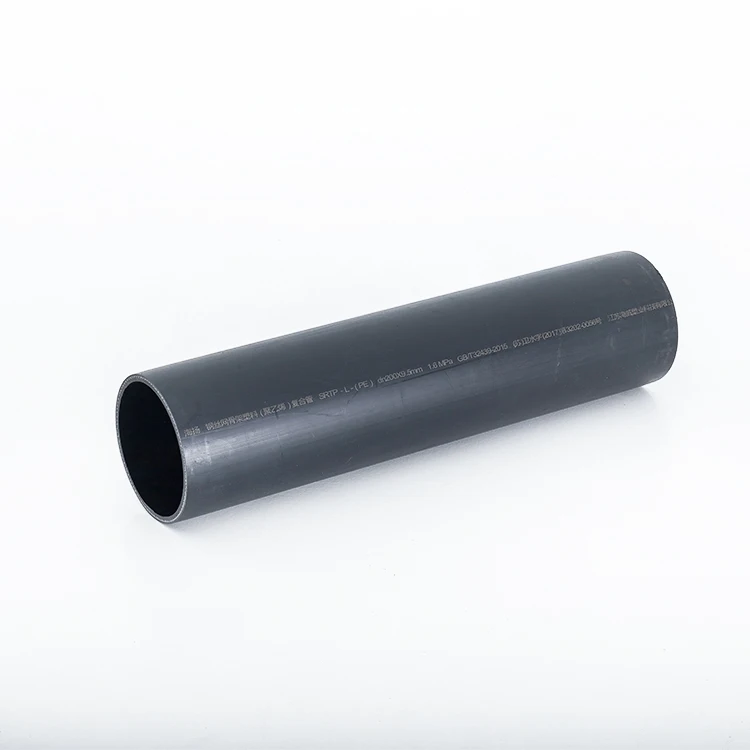

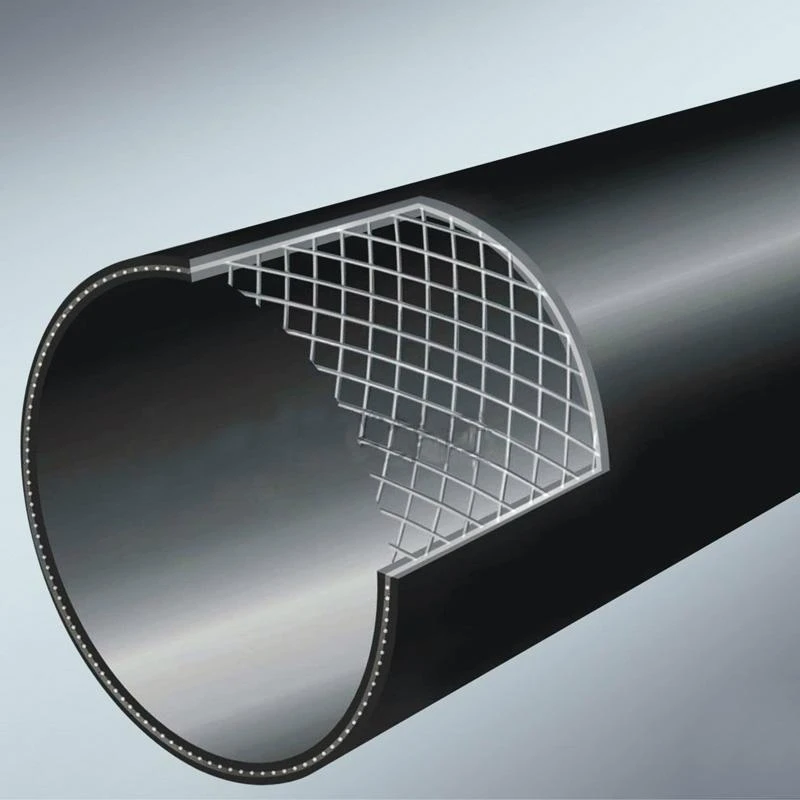

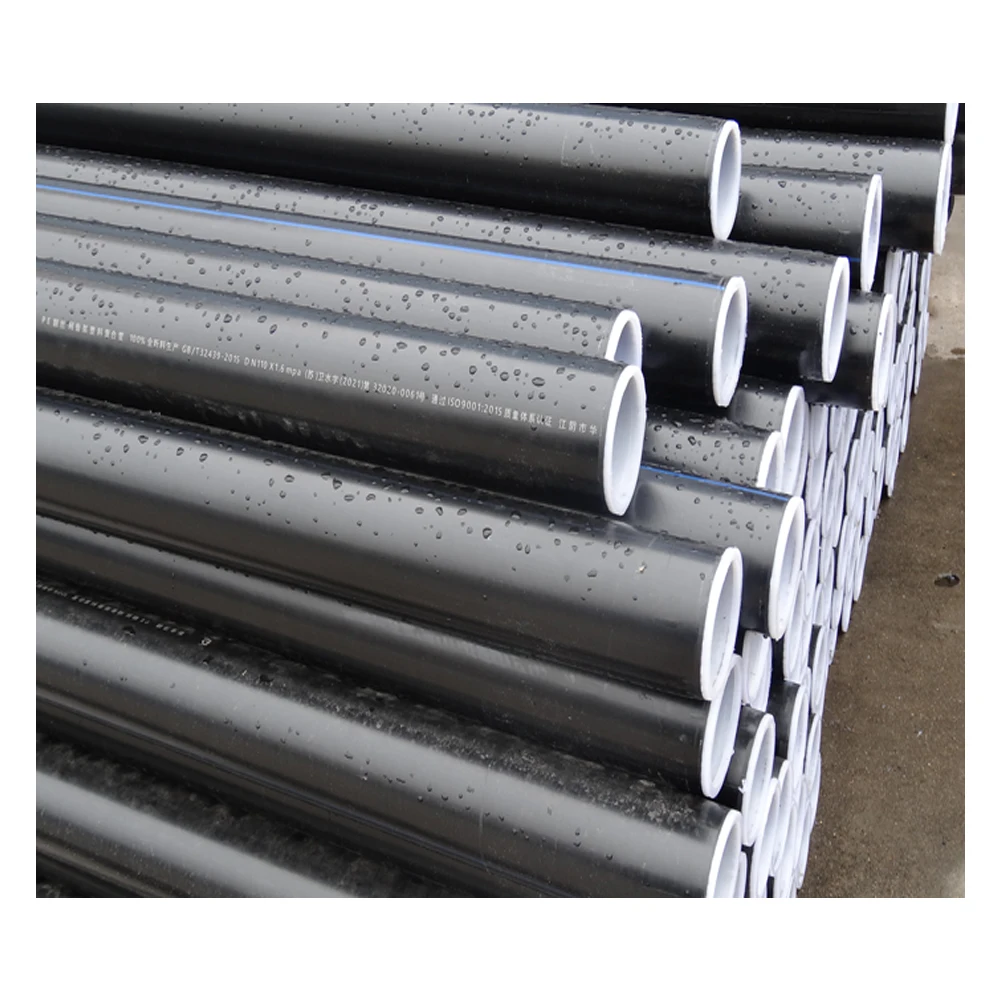

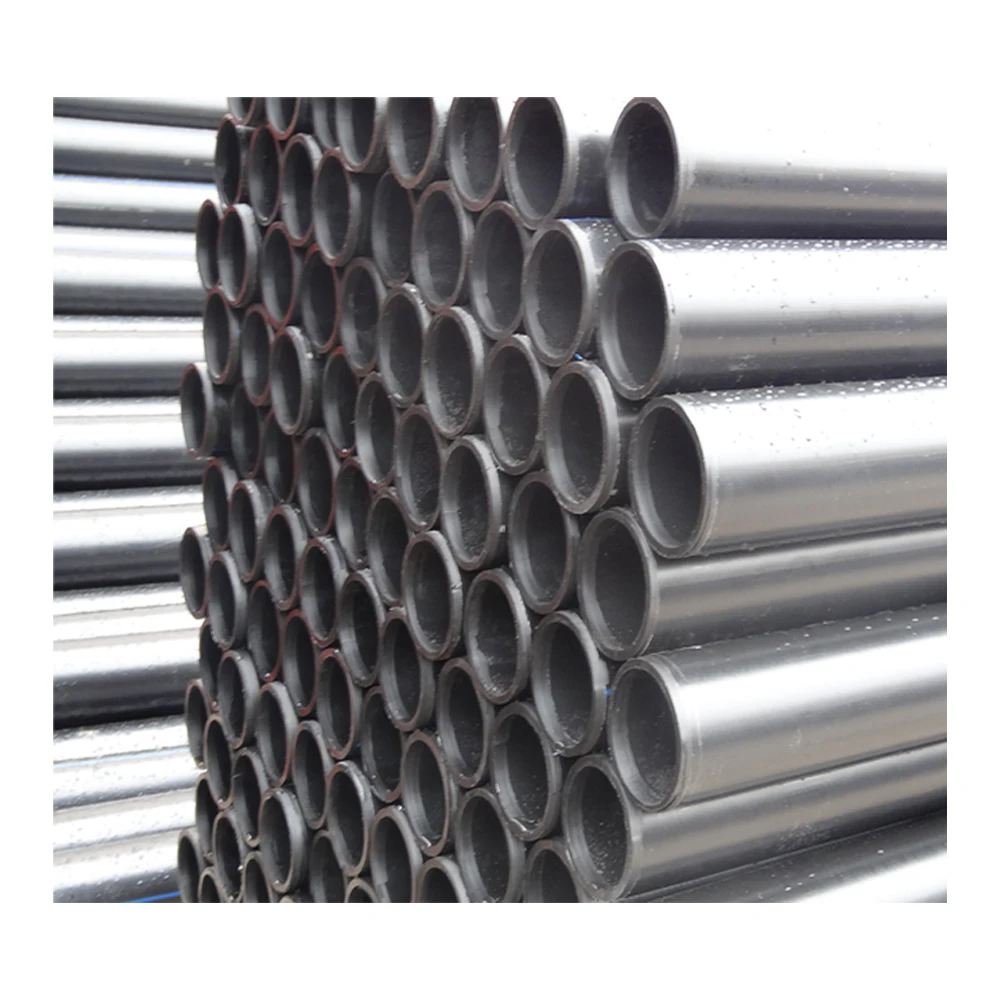

high density polyethylene steel mesh skeleton plastic reinforced composite poly pipe for mining
- Category: >>>
- Supplier: Jiangyin Huada Polyester Plastic Co. Ltd.
Share on (1601119705696):
Product Overview
Description
Standard:CJ/T189;GB/T 32439
Diameter(mm) | Wall thickness(mm) | ||||||||||
0.8Mpa | 1.0Mpa | 1.6Mpa | 2.0Mpa | 2.5Mpa | 3.5Mpa | ||||||
50 | — | 4.5 | 5.0 | 5.5 | 6.0 | 6.5 | |||||
63 | — | 4.5 | 5.5 | 6.0 | 6.5 | 7.0 | |||||
75 | — | 5.0 | 6.0 | 6.5 | 7.0 | 7.5 | |||||
90 | — | 5.5 | 6.5 | 7.0 | 7.5 | 8.0 | |||||
110 | — | 6.0 | 7.0 | 7.5 | 8.0 | 8.5 | |||||
125 | — | 6.0 | 7.5 | 8.0 | 8.5 | 9.5 | |||||
140 | — | 6.0 | 8.0 | 8.5 | 9.5 | 10.5 | |||||
160 | — | 6.5 | 9.0 | 9.5 | 10.5 | 11.5 | |||||
200 | — | 7.0 | 9.5 | 10.5 | 12.5 | 13.0 | |||||
225 | — | 8.0 | 10.0 | 10.5 | 12.5 | 13.0 | |||||
250 | 8.0 | 10.5 | 12.0 | 12.0 | 13.0 | 14.0 | |||||
315 | 9.5 | 12.0 | 13.0 | 13.0 | 14.5 | 18.0 | |||||
355 | 10.0 | 12.5 | 14.0 | 14.0 | 17.0 | 19.0 | |||||
400 | 10.5 | 13.0 | 15.0 | 16.0 | 17.0 | — | |||||
450 | 11.5 | 14.0 | 16.0 | 18.0 | 18.0 | — | |||||
500 | 12.5 | 16.0 | 18.0 | 19.0 | 22.0 | — | |||||
560 | 17.0 | 20.0 | 21.0 | 22.0 | — | — | |||||
630 | 20.0 | 22.0 | 24.0 | 26.0 | — | — | |||||
710 | 23.0 | 26.0 | 30.0 | — | — | — | |||||
800 | 27.0 | 30.0 | 34.0 | — | — | — | |||||
900 | 29.0 | 33.5 | 38.0 | — | — | — | |||||
1000 | 34.0 | 37.0 | — | — | — | — | |||||
Jiangyin Huada was founded in 2003, with a branch company, Gold Yang Plastics Business, established in 2011.We are a leading manufacturer of color masterbatch, HDPE pipe and pipe fittings in China. At present, the enterprise has two large production bases,20+ production lines, and 100+ professional skilled workers.
Jiangyin Huada is committed to providing customers with the one-stop purchasing experience, including custom design, production,procurement, installation, after-sales maintenance, etc. Its management system and main products are recognized by ISO, CE, SGS certificate, with each specification of HDPE pipe and pipe fittings has an independent third-party test report.
Jiangyin Huada's mission is to provide customers with high-standard products and services. We try our best to apply high quality color masterbatch to all plastic industries; to pass on customers' expectations and requirements throughout the whole value chain;to provide high-quality pre-sale, in-sale and after-sale services; to let every customer, every family and every project can enjoy a healthy and environmentally friendly drinking water system or irrigation system.
Jiangyin Huada is committed to providing customers with the one-stop purchasing experience, including custom design, production,procurement, installation, after-sales maintenance, etc. Its management system and main products are recognized by ISO, CE, SGS certificate, with each specification of HDPE pipe and pipe fittings has an independent third-party test report.
Jiangyin Huada's mission is to provide customers with high-standard products and services. We try our best to apply high quality color masterbatch to all plastic industries; to pass on customers' expectations and requirements throughout the whole value chain;to provide high-quality pre-sale, in-sale and after-sale services; to let every customer, every family and every project can enjoy a healthy and environmentally friendly drinking water system or irrigation system.
1. How is your price?
A: Although we have brand-name products, our prices are very favorable and competitive.Because of our best price, customers from all over the world come to purchase our products.
2. How long is your warranty?
A: Our Warranty is 12 month.
3. Can I get free samples?
A: Although we have brand-name products, our prices are very favorable and competitive.Because of our best price, customers from all over the world come to purchase our products.
2. How long is your warranty?
A: Our Warranty is 12 month.
3. Can I get free samples?
A: Yes, we can provide you the free samples, but you need to bear their own delivery costs.
4. Can I request to change the form of packaging and transportation?
A: Yes, We can change the form of the packaging and transportation according to your request, but you have to bear their own costs incurred during this period and the spreads.
5. Can I request to advance the shipment?
A: It should be depends on whether there is sufficient inventory in our warehouse.
6. Could you specially design and produce for clients?
A: Sure, we have all kinds of professional engineers.We can design and produce special products according to customers' request.Such as: special size, special control, OEM, etc.
7. What’s the MIDAS main market?
A: Our main market is African, Middle East Countries, South American, Asian.
8. What’s your payment?
1) 100% T/T
2) 30% in advance, others before shipment.
3) L/C
4. Can I request to change the form of packaging and transportation?
A: Yes, We can change the form of the packaging and transportation according to your request, but you have to bear their own costs incurred during this period and the spreads.
5. Can I request to advance the shipment?
A: It should be depends on whether there is sufficient inventory in our warehouse.
6. Could you specially design and produce for clients?
A: Sure, we have all kinds of professional engineers.We can design and produce special products according to customers' request.Such as: special size, special control, OEM, etc.
7. What’s the MIDAS main market?
A: Our main market is African, Middle East Countries, South American, Asian.
8. What’s your payment?
1) 100% T/T
2) 30% in advance, others before shipment.
3) L/C
