X6 series 150W 700ma 1050ma 3 in 1 dimming isolated constant current adjustable led driver led power supply
- Category: >>>
- Supplier: Shenzhen Chengxinyuan Technology Co. Ltd.
Share on (1601119876671):
Product Overview
Description

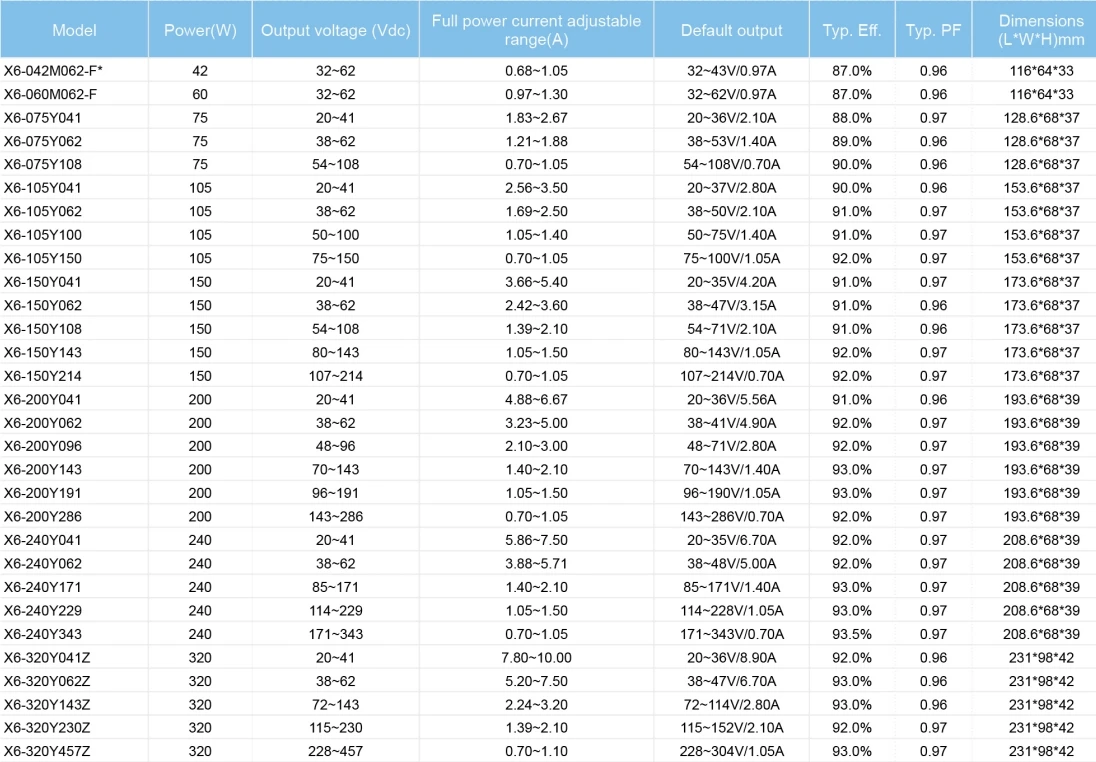

Specification
Model | X6-150Y214 |
Power(W) | 150 |
Output voltage(Vdc) | 107-214 |
Full power current adjustable range (A) | 0.70-1.05 |
Default output current (A) | 107-214V/0.70A |
Typ.Eff. | 92% |
Typ.PF | 0.97 |
Dimensions (L*W*H)mm | 173.6*68*37 |
Product Description

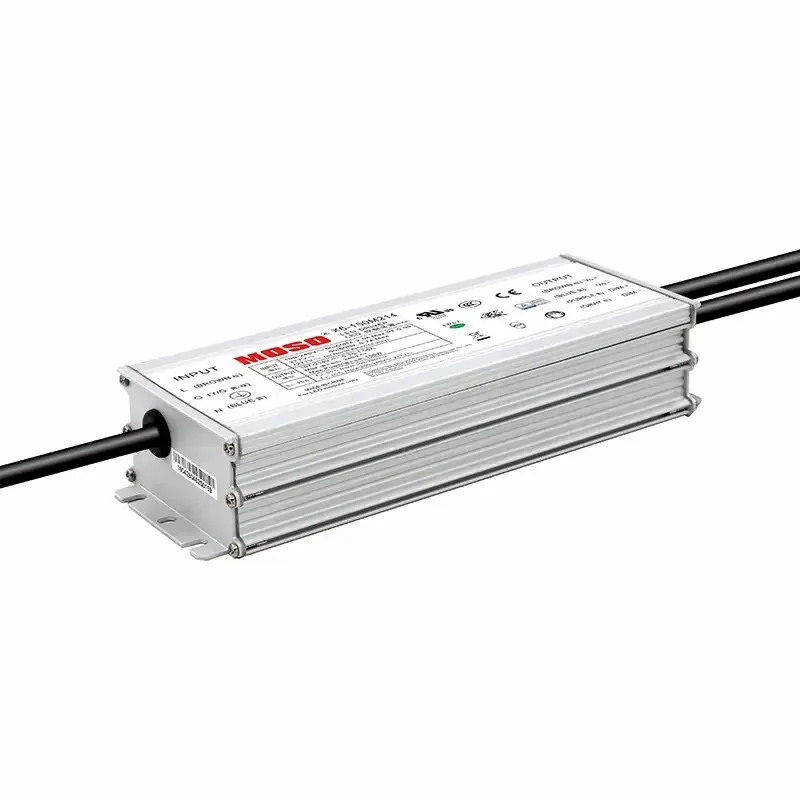

X6 Series offline Programmable Intelligent LED Driver
The X6-150W series is a 150W outdoor off-line programmable LED driver that operates in constant current with high PF value and universal input voltage range of 90~305Vac. Monitored off-line by dimming cable connected with an USB kit programming device, the fully programmed drivers offer all dimming, dim-to-off, constant lumen output options and a wide range of output current in a single driver, providing maximum flexibility with customized operating settings and intelligent control options for lighting manufacturers, as one driver can be programmed for many different luminaire designs. X6 provides built-in timer dimming schedules that further increase the energy savings and CO2 reductions achieved with LED lighting. It also helps customers to improve logistics and inventory management. The compact metal case and high efficiency enables the driver to operate with high reliability and extend product life. Overall protection is provided against lightening surge, output over voltage, short circuit, and over temperature, to ensure low failure rate.
Features
Input voltage: 0 ~ 305Vac Isolated constant power design;
3-in-1 dimmable:0-10V/1-10V/PWM. Timers dimming; Reverse dimming optional;
3 Timers dimming: Timing; Virtual Midnight; Self-Adaptive; output and Dimming Signal isolating+ External NTC supported (Optional);+ Off. line programmable; output current adjustable by programmer,
output current adjustable by build-in potentiometer,
Surge protection DM & KV, CM 1OKW; DM 4KV, CM 6KV Y42N-5ONV; Protections: output SCP / OVP / OTP.
IP67 waterproof lifetime: 50,000h 100,000 hours optional; 5 years warranty.
Company Profile

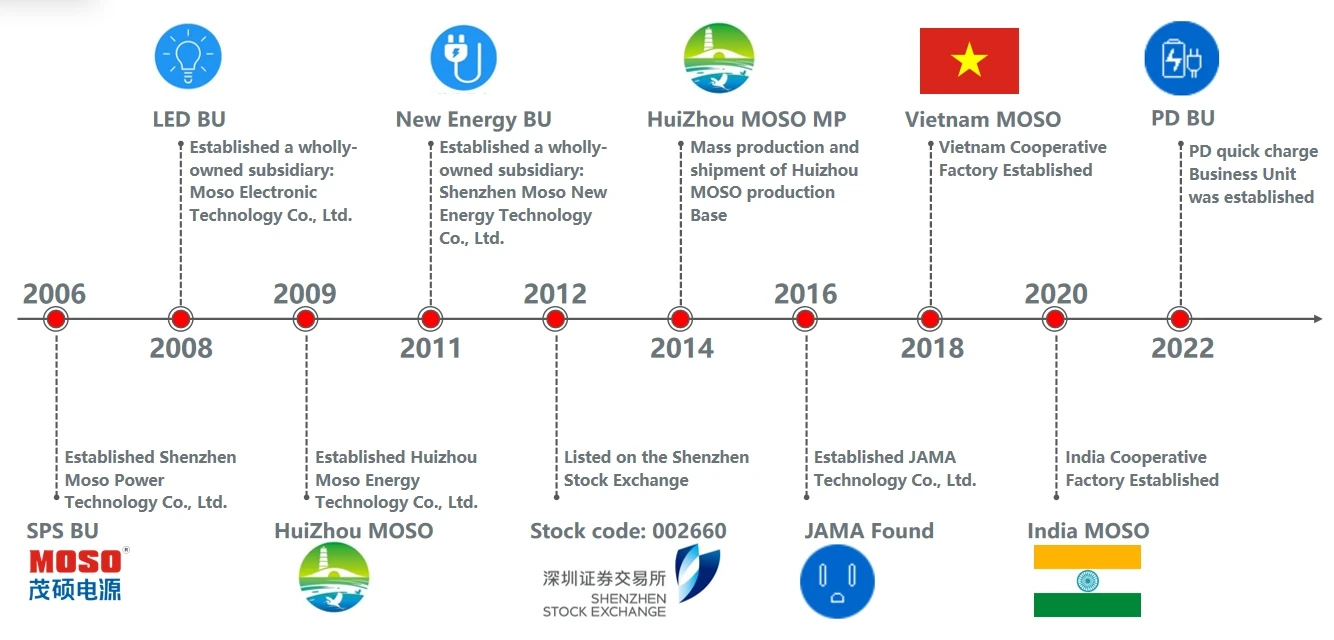

The Milestone of MOSO Power Supply

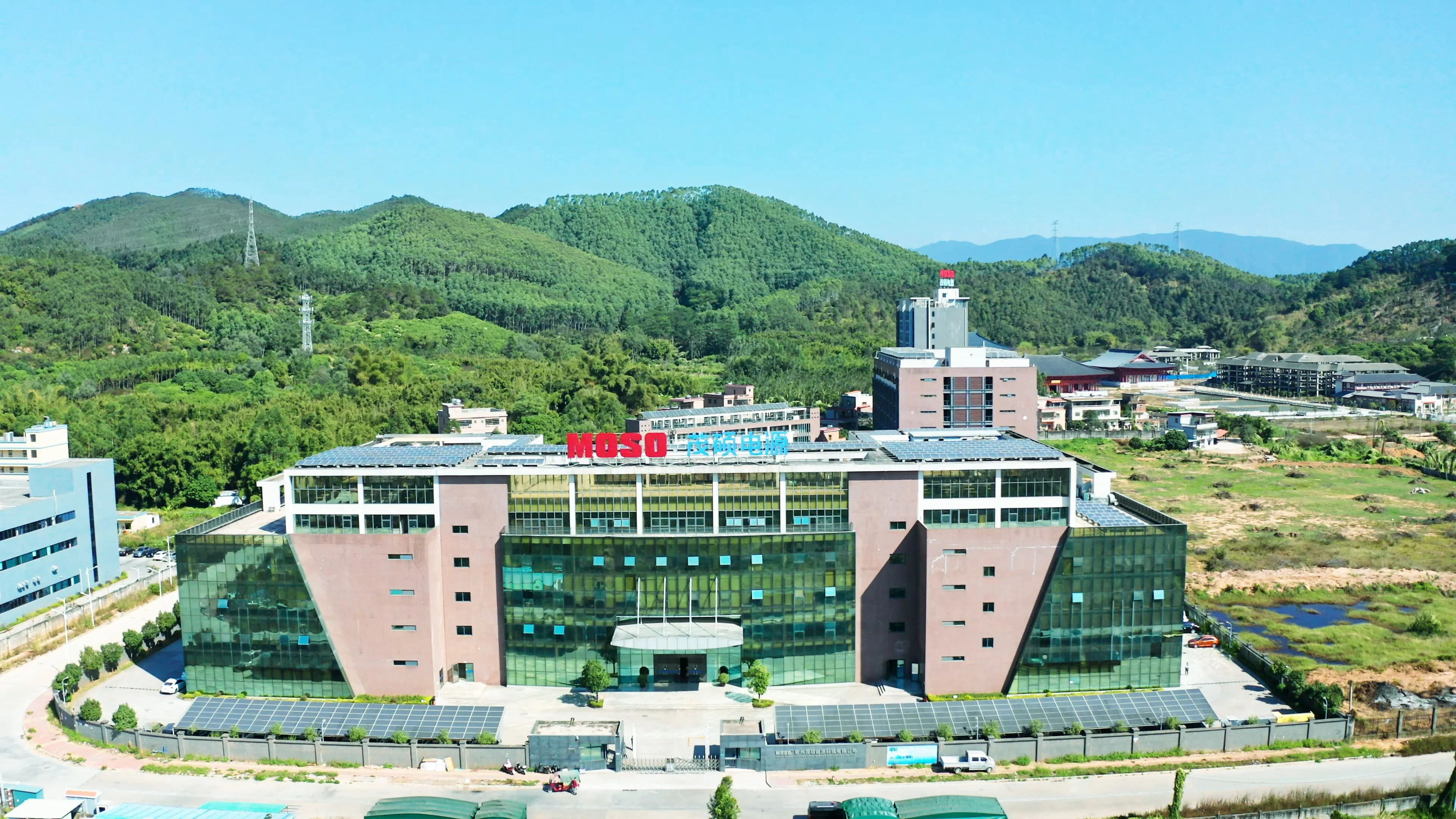

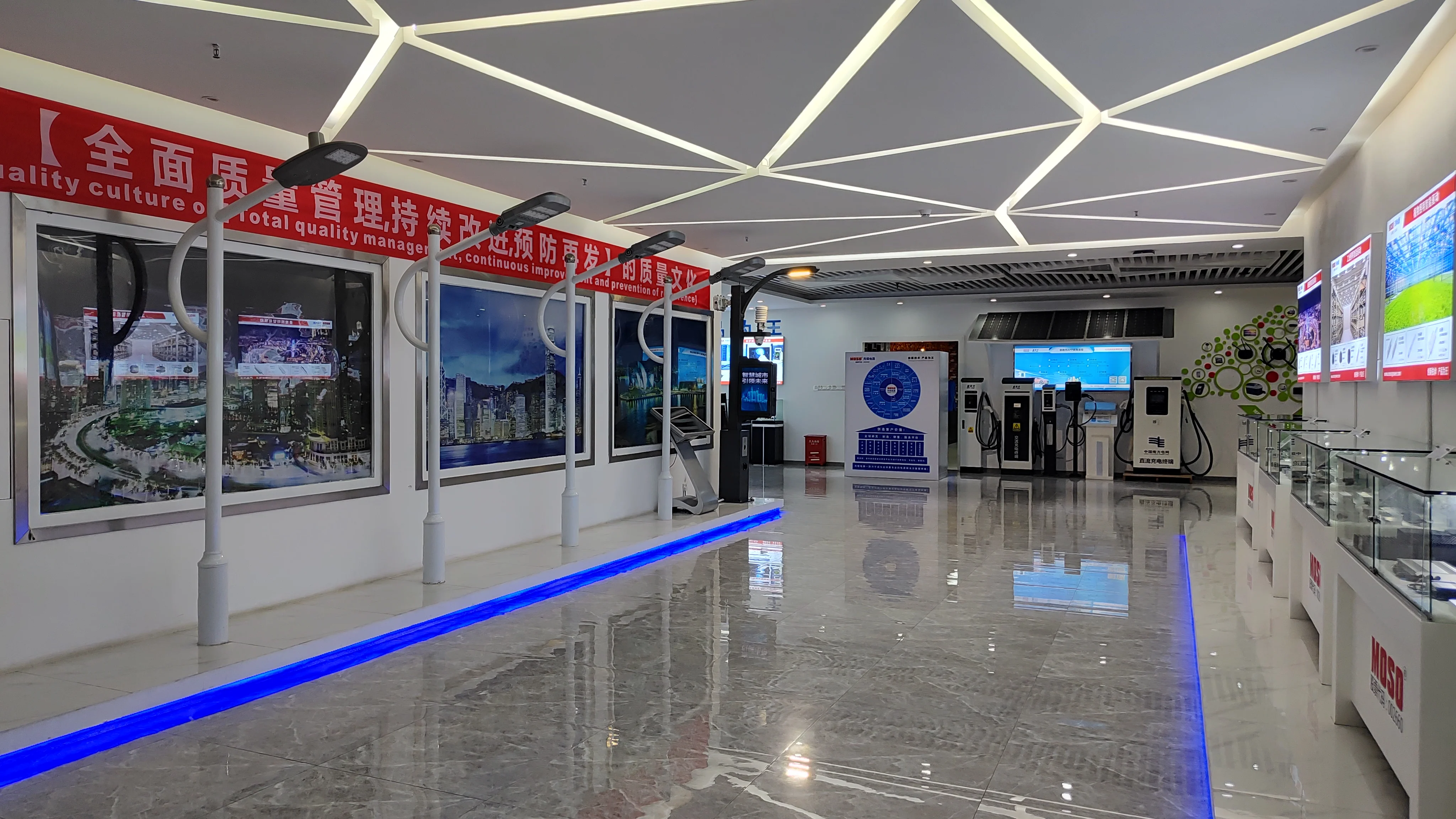

The headquarters of MOSO Power Supply
Global Operation Site

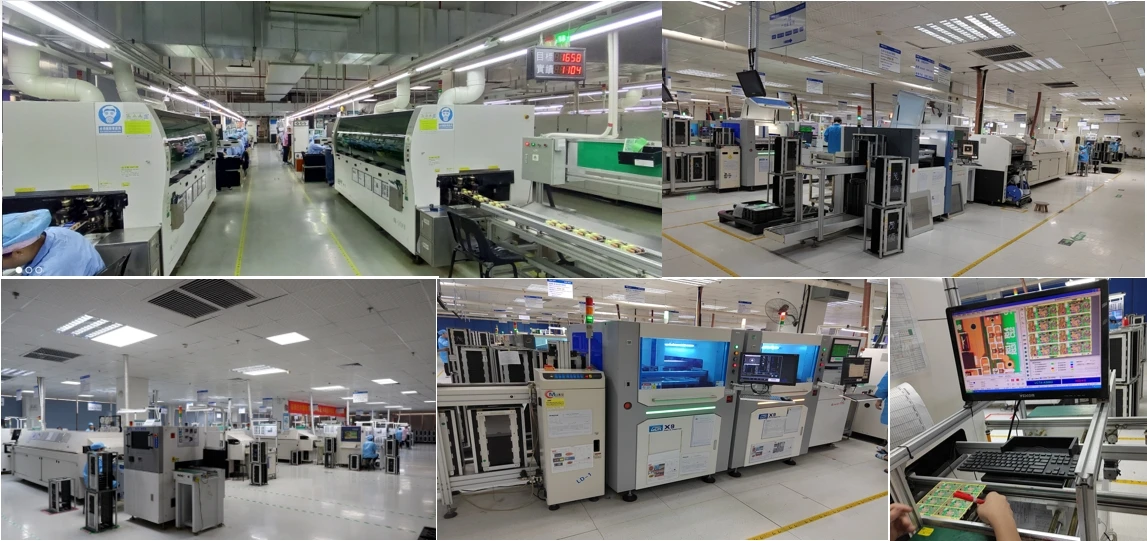

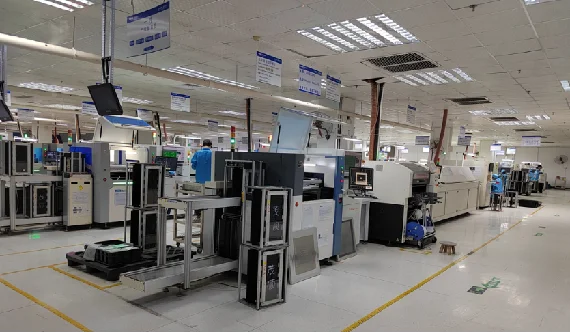

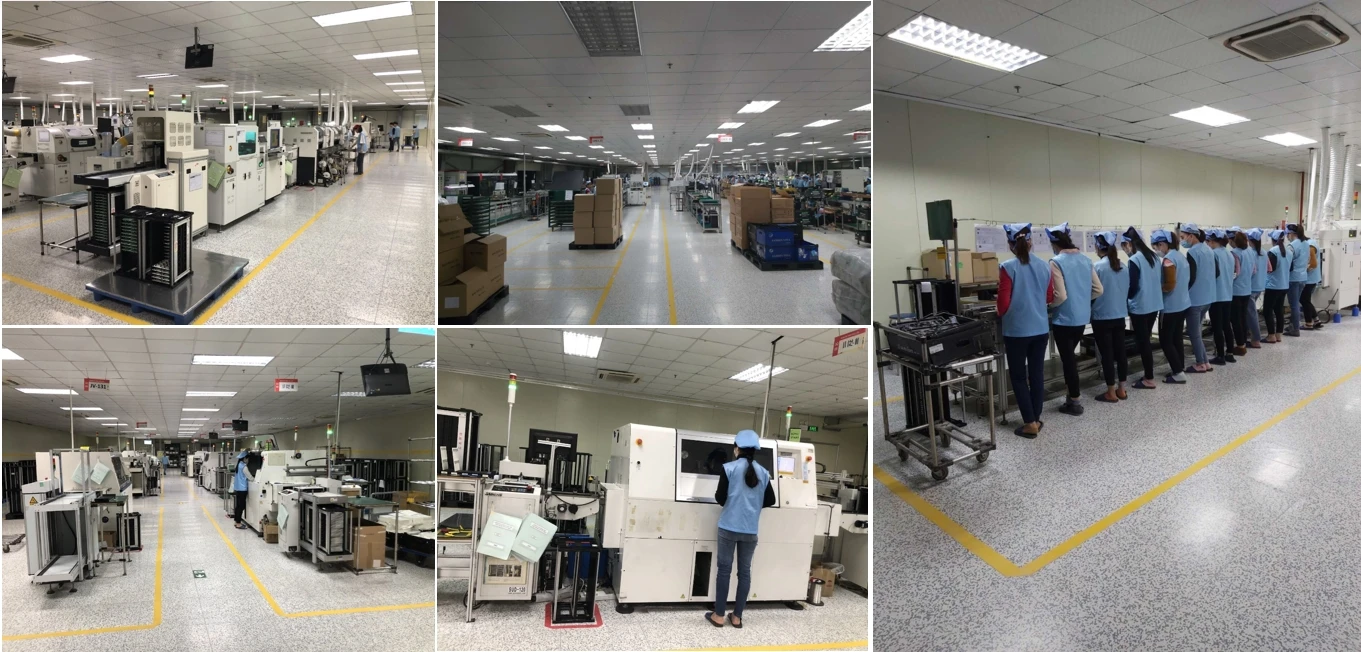

Factory Capability

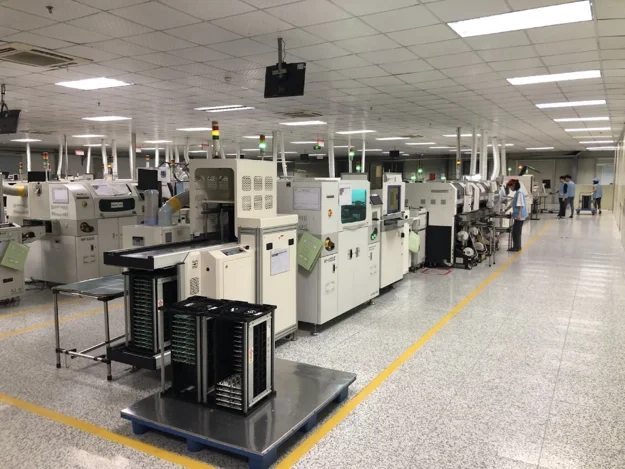

Huizhou Production Base
Address : Hongda (International) Industrial Manufacturing City, Luoyang Town, Boluo County, Huizhou, China (516100)
Floorage: 65,000 ㎡
Staff: 1,500
Capacity: 8Mpcs/Month
Staff: 1,500
Capacity: 8Mpcs/Month
Vietnam Production Base
Address: MOSO Vietnam Electronics Company Limited, Plot D4, Chau Son Industrial Zone, Chau Son Ward, Phu Ly City, Ha Nam Province, Vietnam(18115)
Chau Son, Ha Nam, Vietnam
Floorage: 10,903㎡
Size: 23,540 ㎡
Capacity: 2Mpcs/Month
Chau Son, Ha Nam, Vietnam
Floorage: 10,903㎡
Size: 23,540 ㎡
Capacity: 2Mpcs/Month

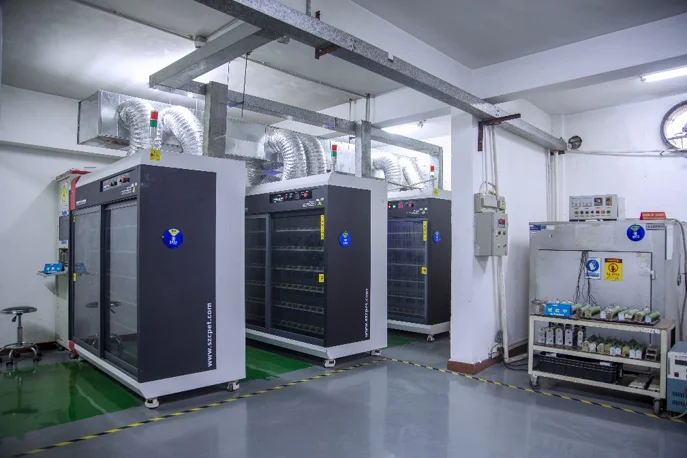

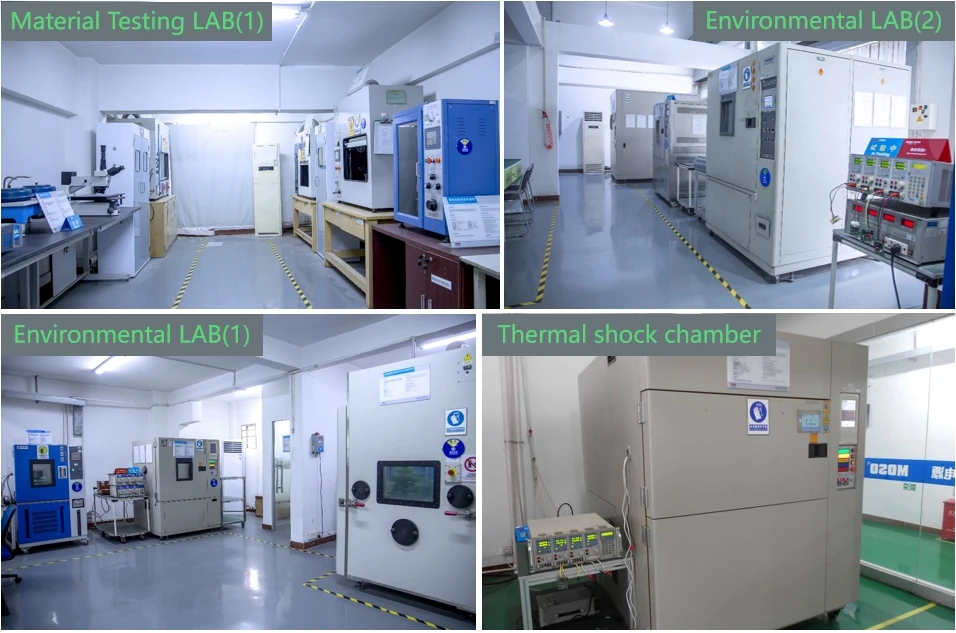

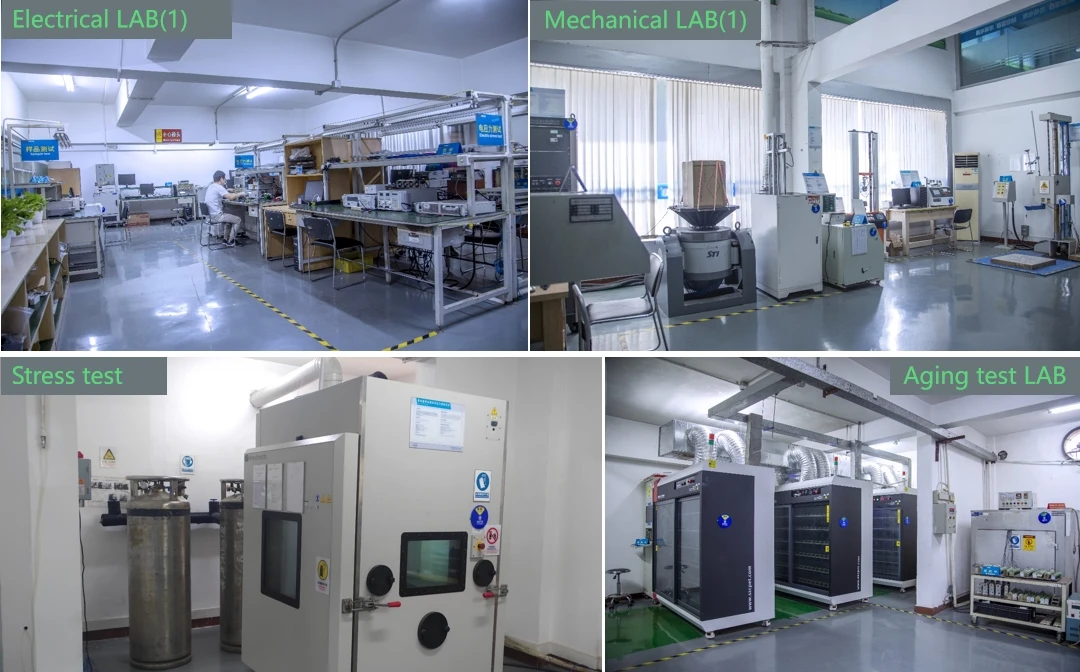

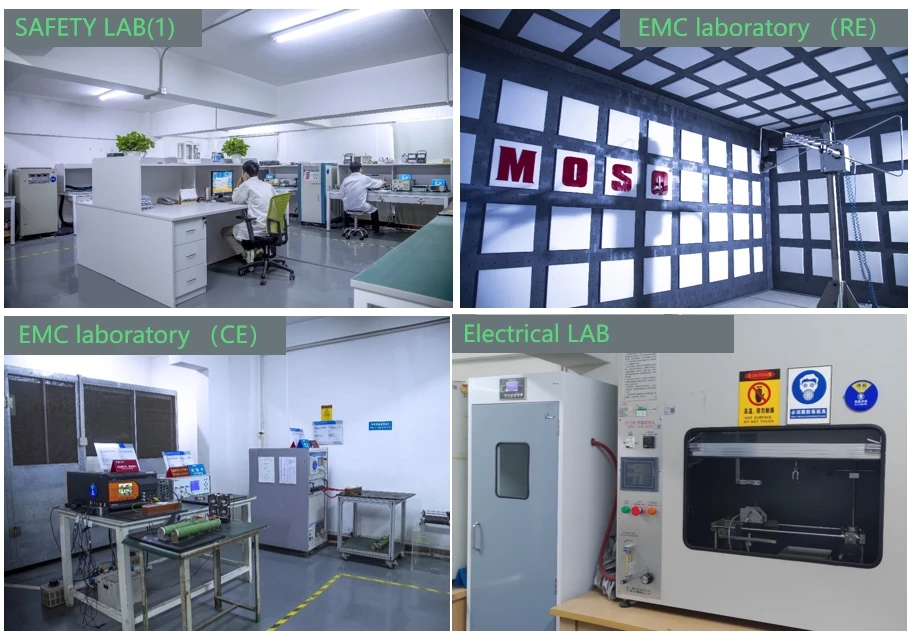

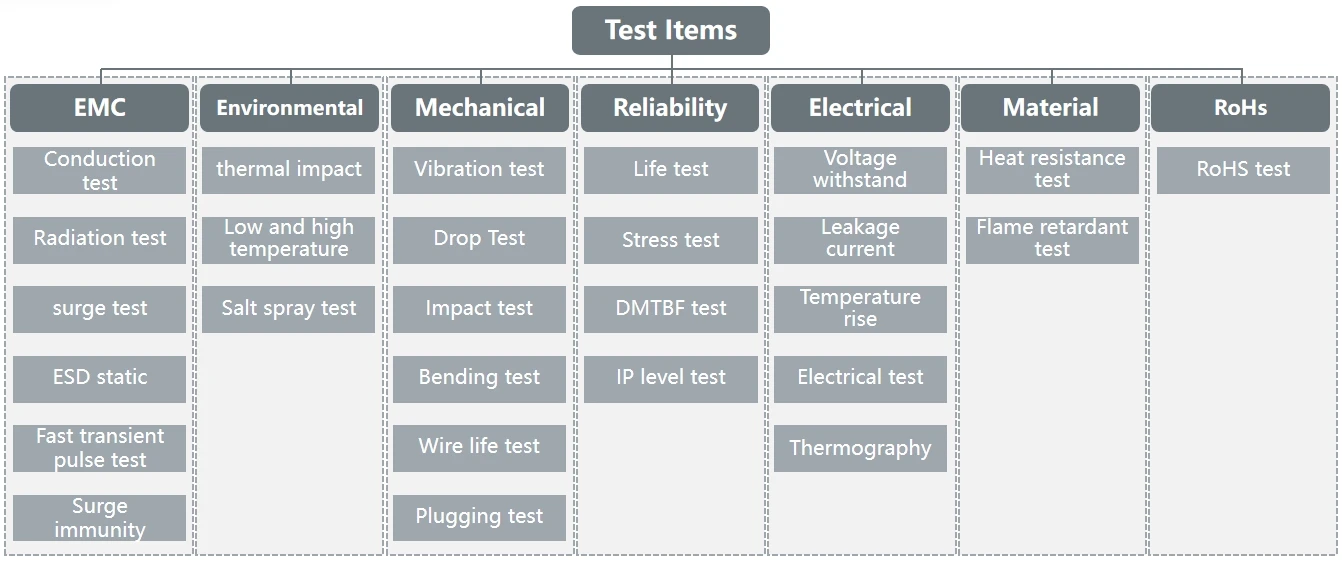

Quality Capability
Packing & Delivery
FAQ
1. How about your goods’ quality?
100% burn-in tests, full-round tests.
All products approved by CE RoHS, some products have got TUV GS CB ETL certificates.
All products approved by CE RoHS, some products have got TUV GS CB ETL certificates.
2. What is your minimum order quantity?
The MOQ is 1pcs.
3. How about your delivery time?
3-7 working days according the order. If you have customized requirements, the specific delivery time can be communicated.
4. Can you make OEM?
Of course, OEM ODM provided.
