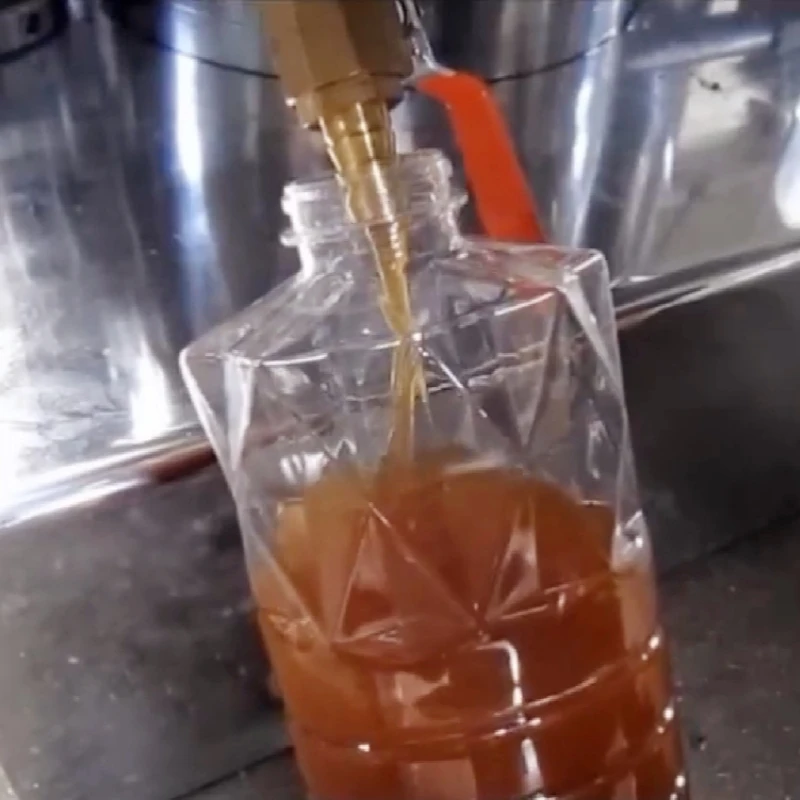

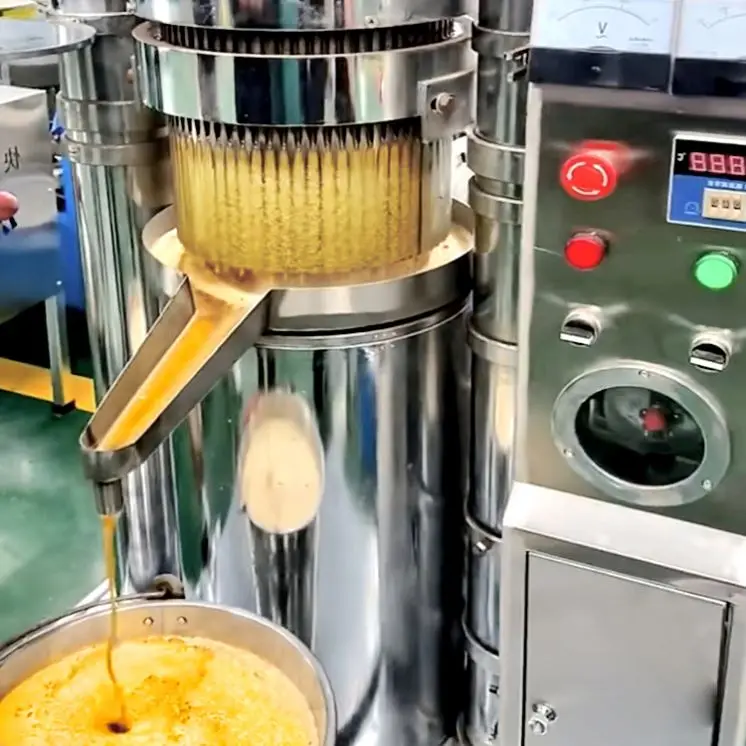

Just 0.36mm, filtering residues, the finally oil can reach to the cooking grade directly,
the oil is clear and edible. High quality steel and special heating treatment make it stronger enough and safety.

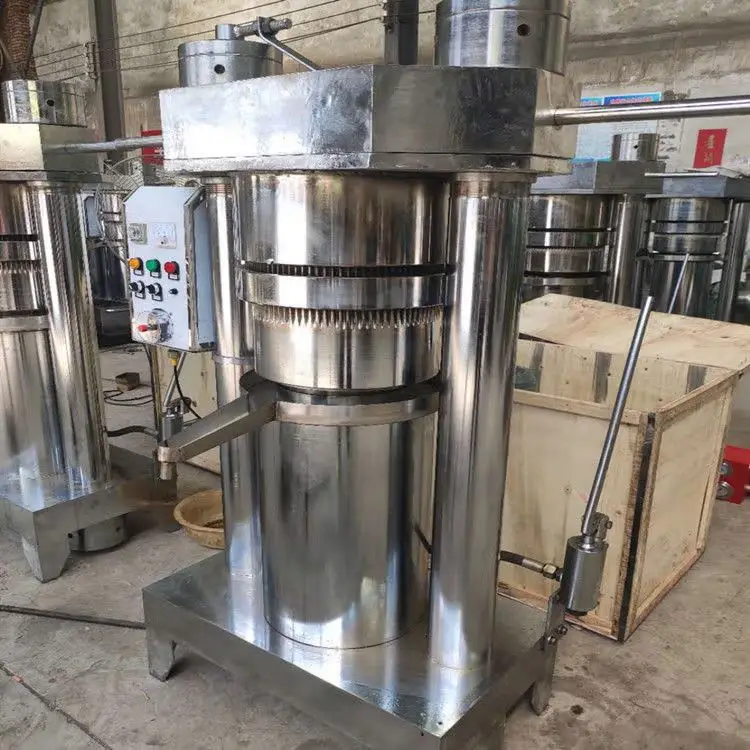

High Quality Industrial Palm Fruit Oil Press machine Automatic Groundnut Combined Sesame Hydraulic Cold Press Oil Extractor Ma
- Category: >>>
- Supplier: Shenzhen City Strong Machinery Co. Ltd.
Share on (1601121552229):
Product Overview
Description
Product Parameter
Product Parameter

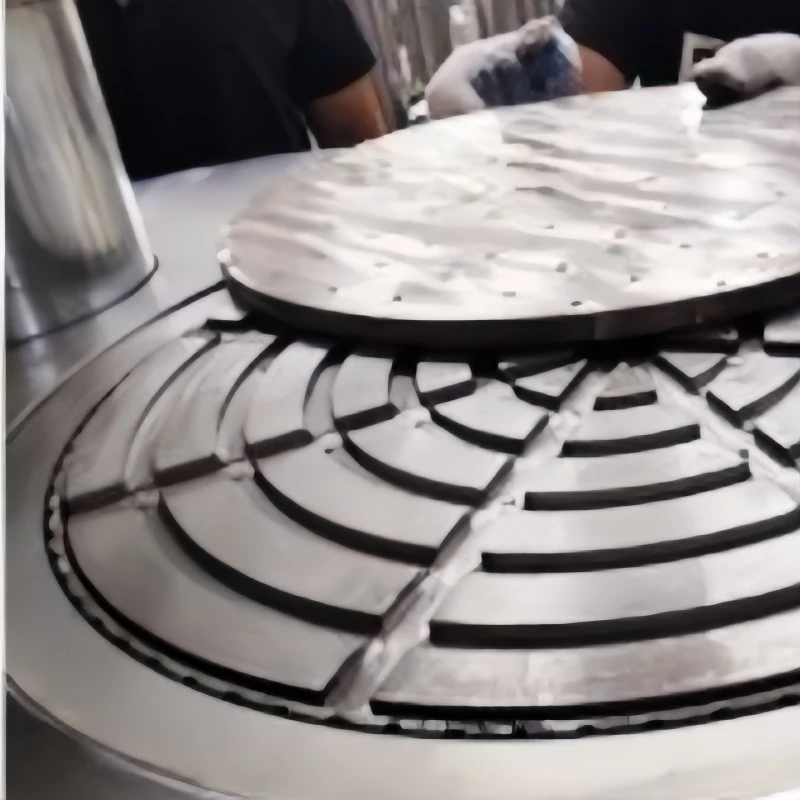

Regarding the barrel loading steps:
As shown in the picture:
put in the grate board, sticky pad, oil, sticky pad, and top plate in order.
Model | Weight(Kg) | Motor Power | Dimensions | Force at 60Mpa(t) | Barrel capacity(Kg) |
OT-150 | 250 | 0.75KW | 700*800*780mm | 47 | 2 |
OT-180 | 570 | 1.5KW | 800*900*1050mm | 106 | 4 |
OT-230 | 970 | 1.5KW | 900*1000*1400mm | 188 | 8 |
OT-260 | 1250 | 1.5KW | 1050*1100*1550mm | 250 | 12 |
OT-320 | 1750 | 2.2KW | 1120*1200*1650mm | 318 | 17.5 |
OT-360 | 2050 | 2.2KW | 1200*1200*1680mm | 369 | 22.5 |
OT-415 | 2250 | 2.2KW | 1250*1250*1700mm | 424 | 30 |
OT-460 | 3050 | 3.0KW | 1500*1500*2150mm | 482 | 45 |

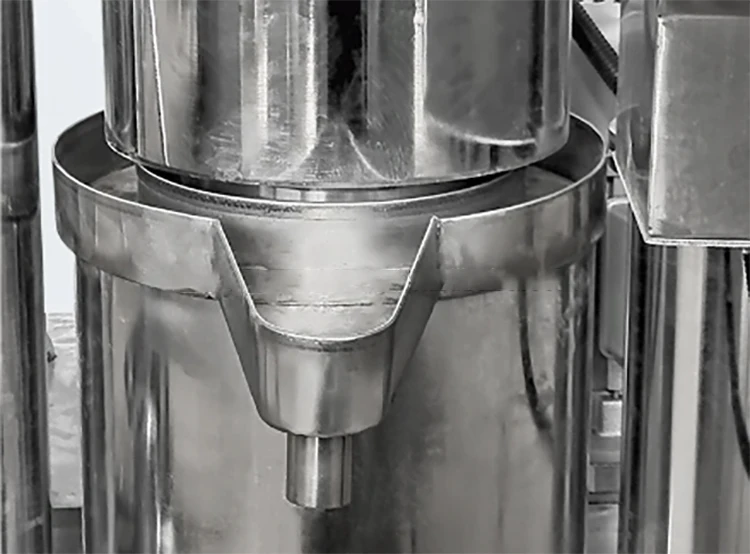

1. Pressing Kettle Precision oil line

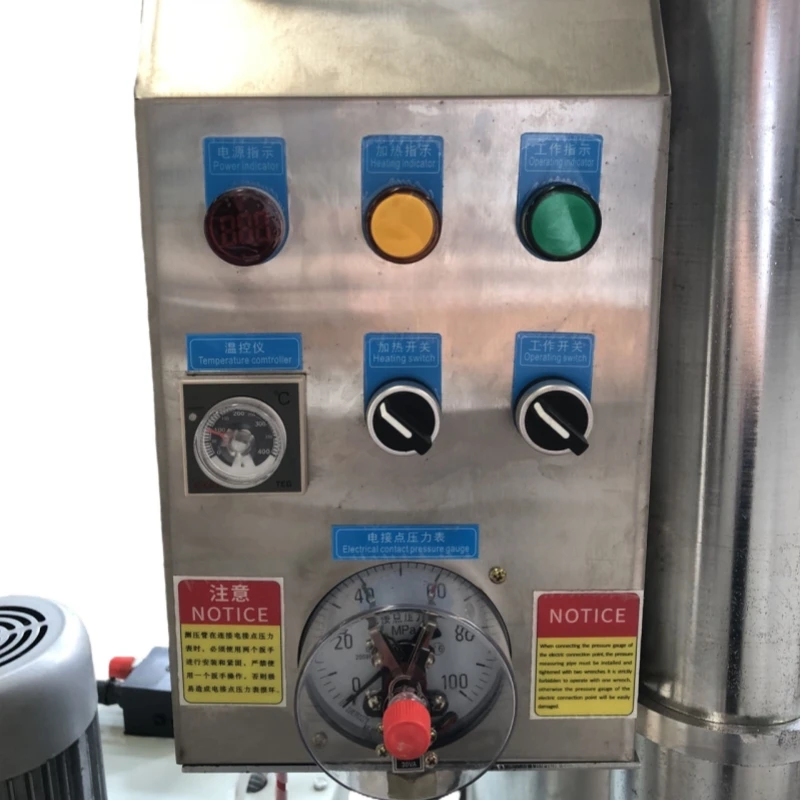

2. Electric control panel
Internal temperature control parts to solve the problem of low oil yield in winter (the normal of machine's oil yield will be lower in winter). Only two buttons control the whole working pressure and temperature, very simple to operate. The buttons was test very strictly before shipping, make sure it safety and Long service life.

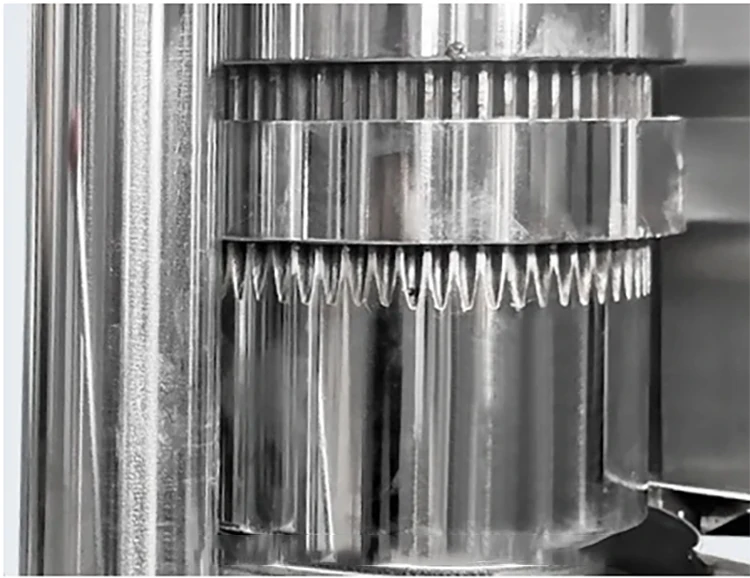

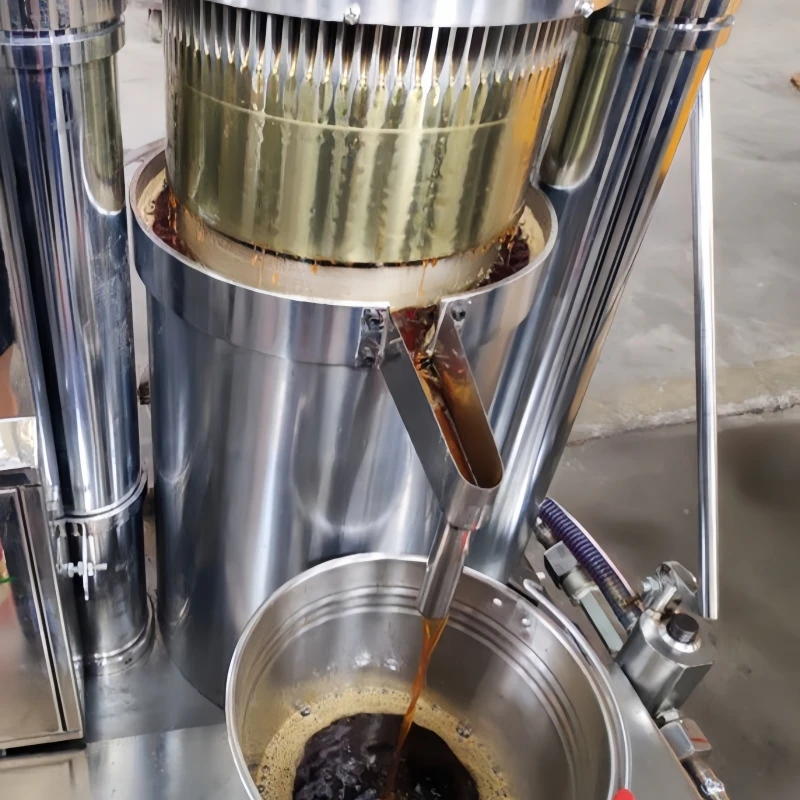

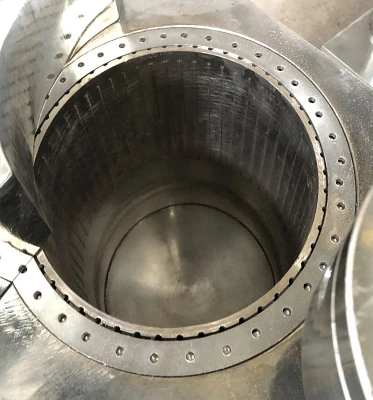

3. Pressure Kettle
Carbon steel material The total multiplying high pressure of the oil cylinder is pushed upward, and the oil flows out from the oil
slit of the frying chamber.
slit of the frying chamber.

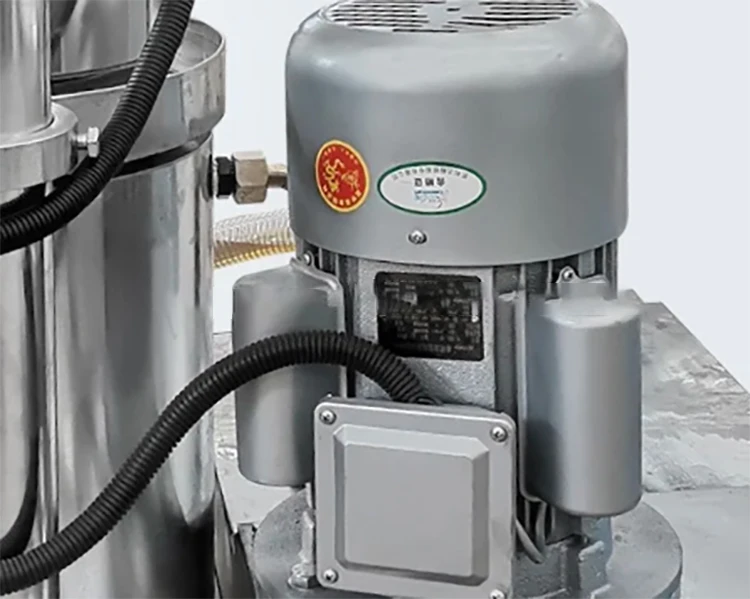

4. Hydraulic Pump
The core part of the machine which offers the main power for the machine. We use the double hydraulic pump system to improve the
working efficiency. Real max working pressure can be reached 60 MPa. This machine adopts advanced hydraulic pump station, low speed, high oil pressure and high tempera-ture
working efficiency. Real max working pressure can be reached 60 MPa. This machine adopts advanced hydraulic pump station, low speed, high oil pressure and high tempera-ture
resistance. stable performance
5. Solid piston
Using high quality steel, pressing more thorough and cleaner. Repeatedly squeeze the material to increase oil yield.

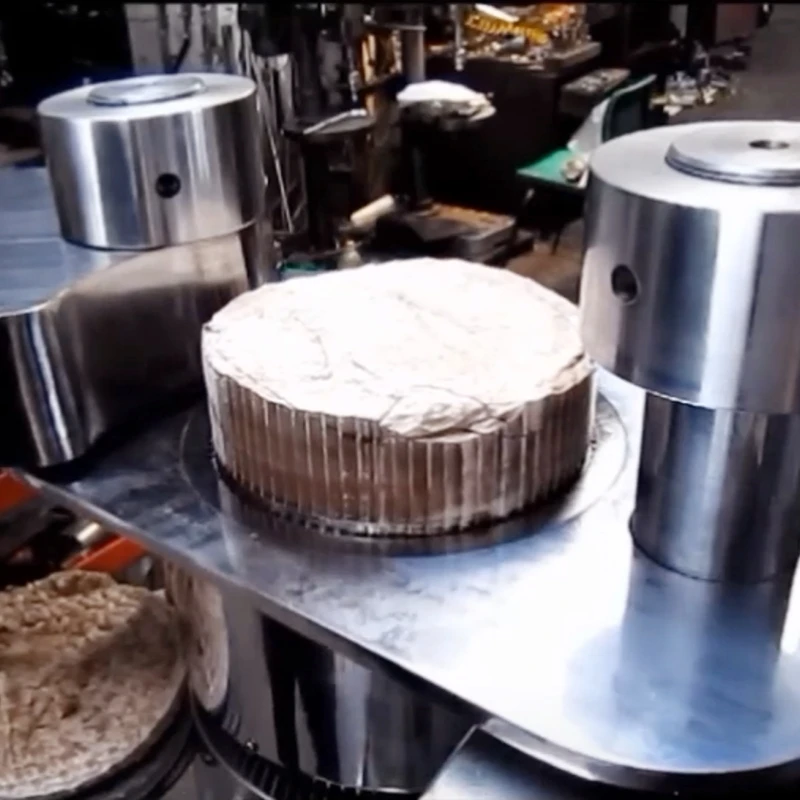

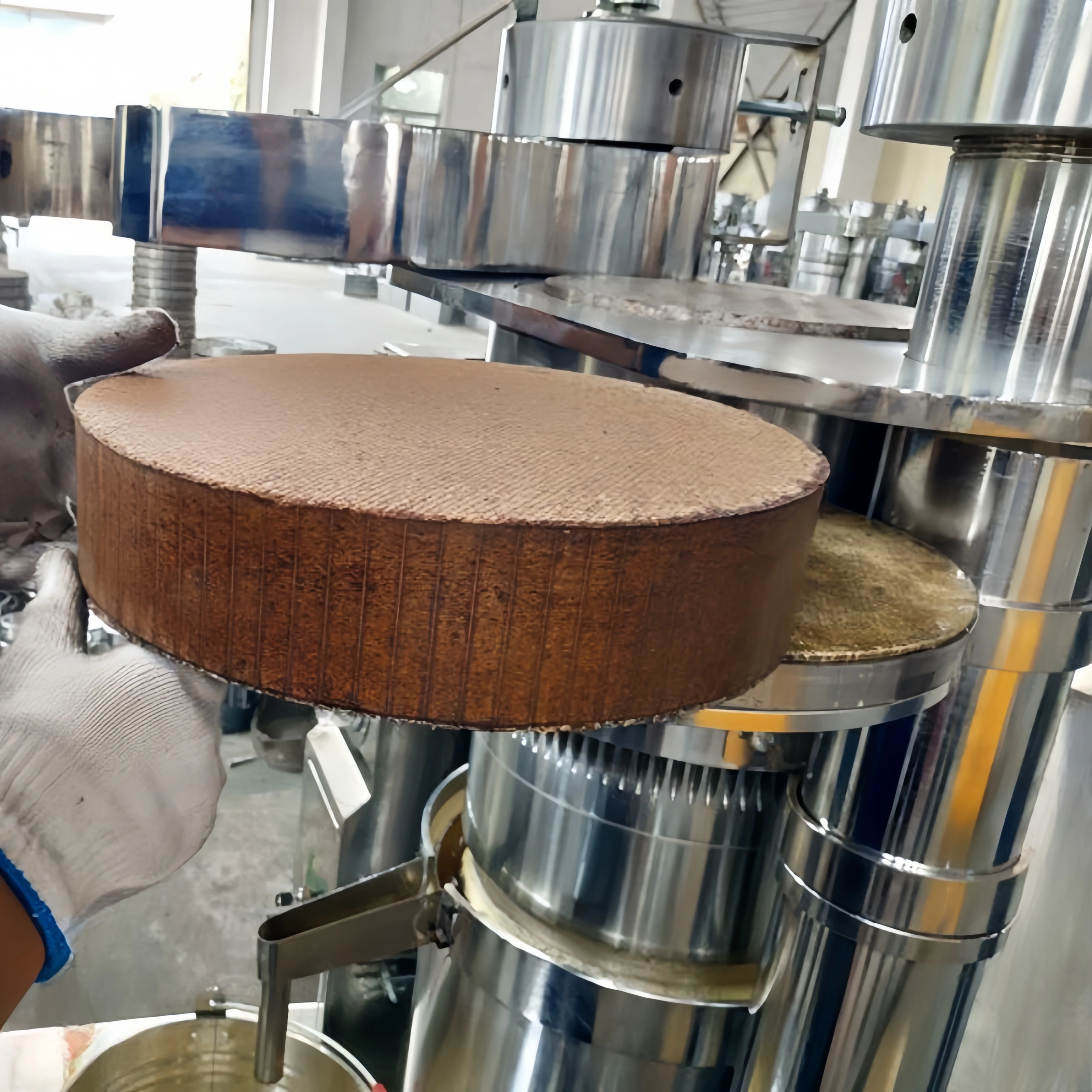

The Uses and Benefits of Hydraulic Oil Press Cake
A press cake or oil cake which as a by-product produced by our hydraulic oil press machine can be mainly used as feed or ingredients. You can resuse the oil cake in many ways, like making pancakes, as animal feed for cattle, sheep, poultry, fish and shrimp, etc, using as fertilizer of flowers, selling to feed mill and farms which can bring you extra profits.
