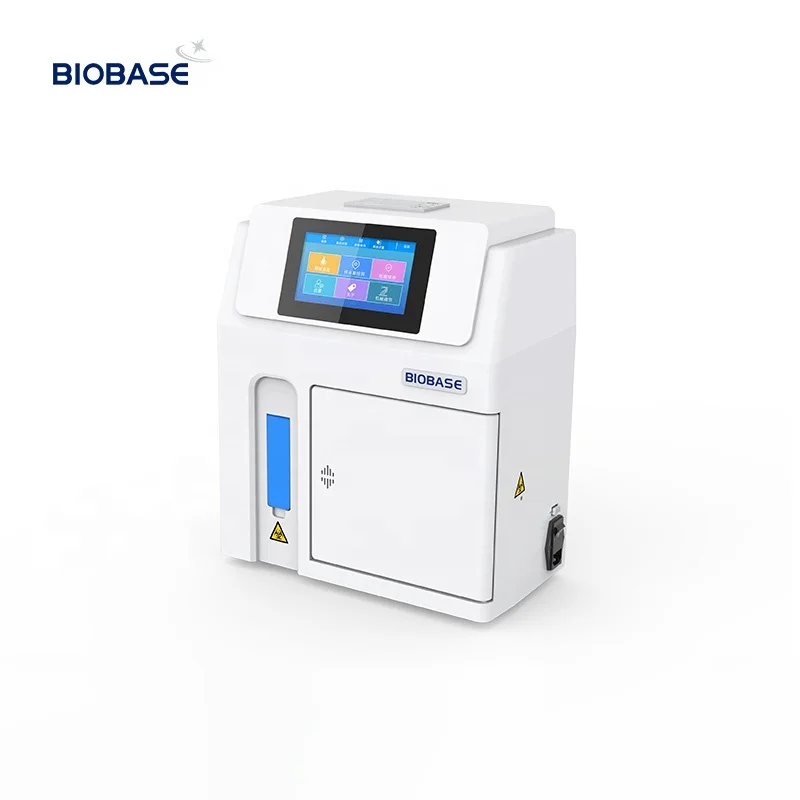

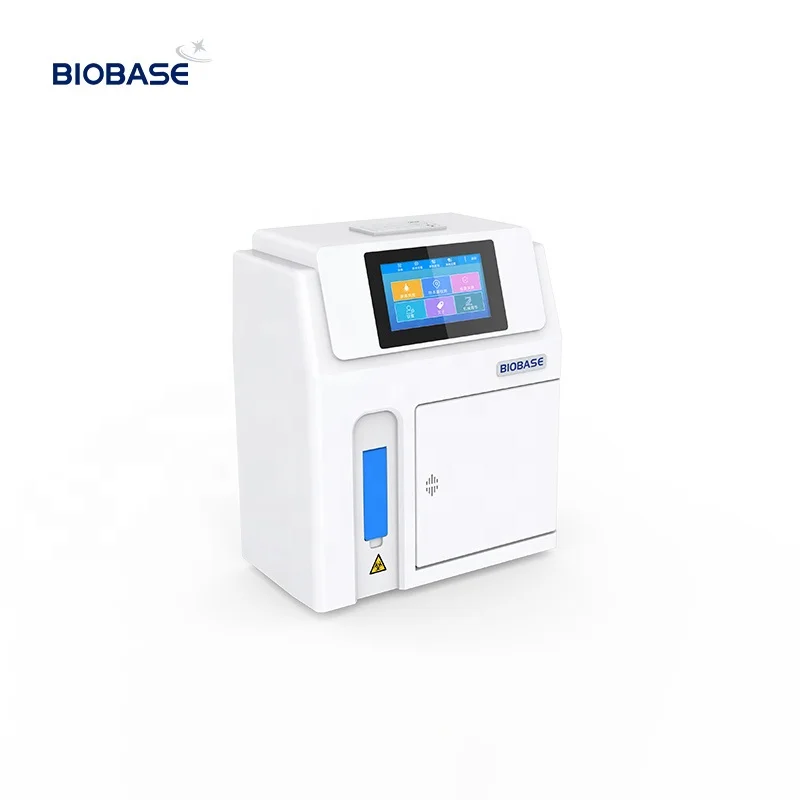

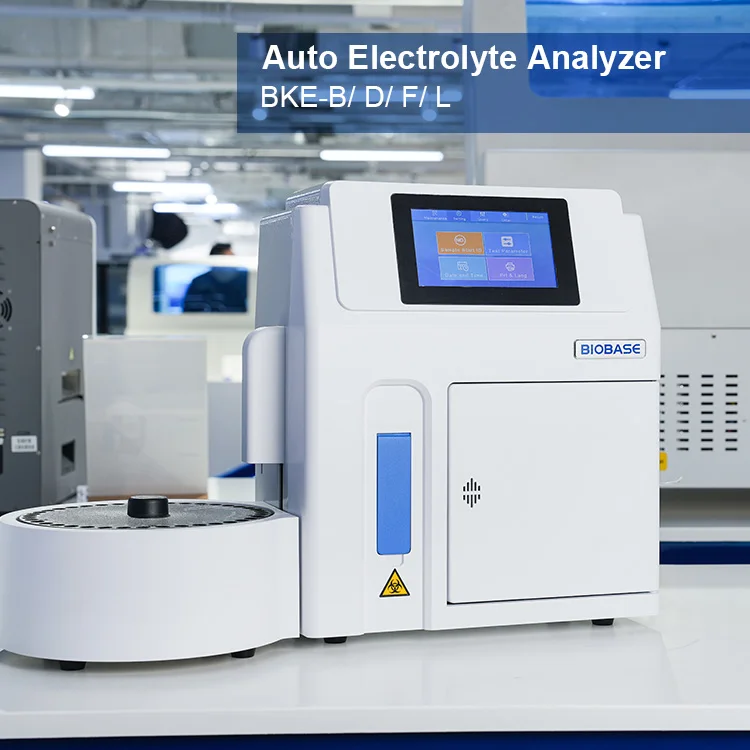

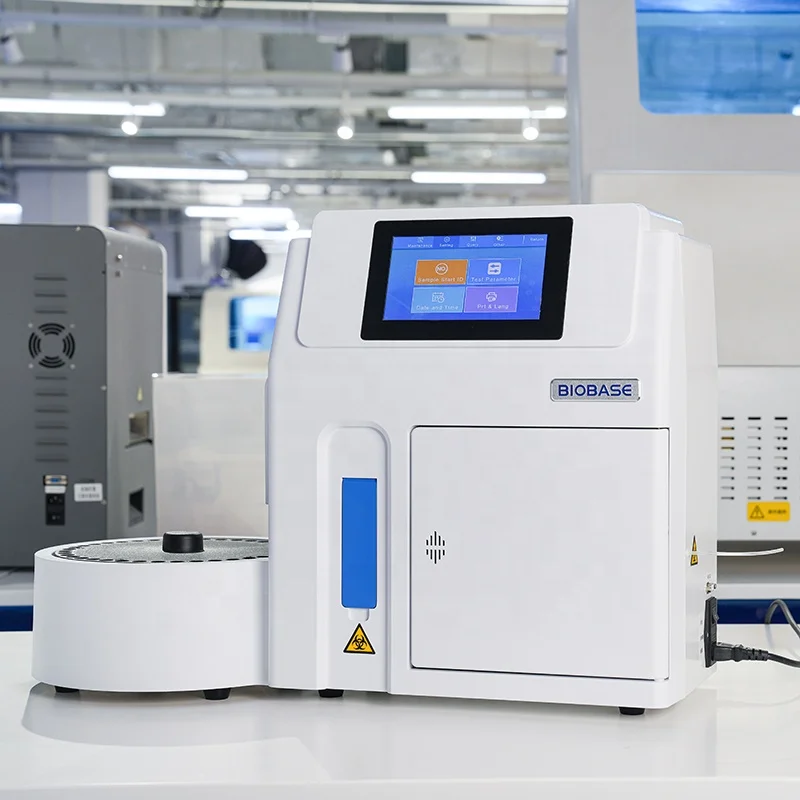

BIOBASE China Discount Hospital Test Machine Laboratory Automatic Blood Gas Electrolyte Analyzer Sample Tray with K+, Na+, Cl-
Product Description
Introduction:
BKE series electrolyte analyzer adopts advanced ion selective electrode measurement technology, which can directly measure the concentration of K+, Na+, Cl-, Ca2+ and pH in serum, plasma, whole blood, cerebrospinal fluid and diluted urine. It is a fast, accurate, convenient and practical clinical testing instrument.
BKE series electrolyte analyzer adopts advanced ion selective electrode measurement technology, which can directly measure the concentration of K+, Na+, Cl-, Ca2+ and pH in serum, plasma, whole blood, cerebrospinal fluid and diluted urine. It is a fast, accurate, convenient and practical clinical testing instrument.
Features:
●The software supports automatic potential tracking correction to ensure stable performance
●Automatic monitoring and filtering of tiny air bubbles to ensure measurement accuracy
●Wave flushing and pipeline flushing can avoid blockage and cross-contamination
●Power-off protection, can protect data storage, the result can be stored up to 50,000
●Low consumption, effectively reducing the cost of consumables
●7-inch high-definition touch screen, comprehensive content display
●With the function of automatic fault alarm and elimination, improve work efficiency
●The software supports automatic potential tracking correction to ensure stable performance
●Automatic monitoring and filtering of tiny air bubbles to ensure measurement accuracy
●Wave flushing and pipeline flushing can avoid blockage and cross-contamination
●Power-off protection, can protect data storage, the result can be stored up to 50,000
●Low consumption, effectively reducing the cost of consumables
●7-inch high-definition touch screen, comprehensive content display
●With the function of automatic fault alarm and elimination, improve work efficiency
Specification
Model | BKE Series |
Sample | Serum, plasma, whole blood, cerebrospinal fluid and dilute urine |
Measuring Speed | ≤25s |
Analysis Method | Ion selective electrode (ISE) |
Sample Volume | 60~150μl |

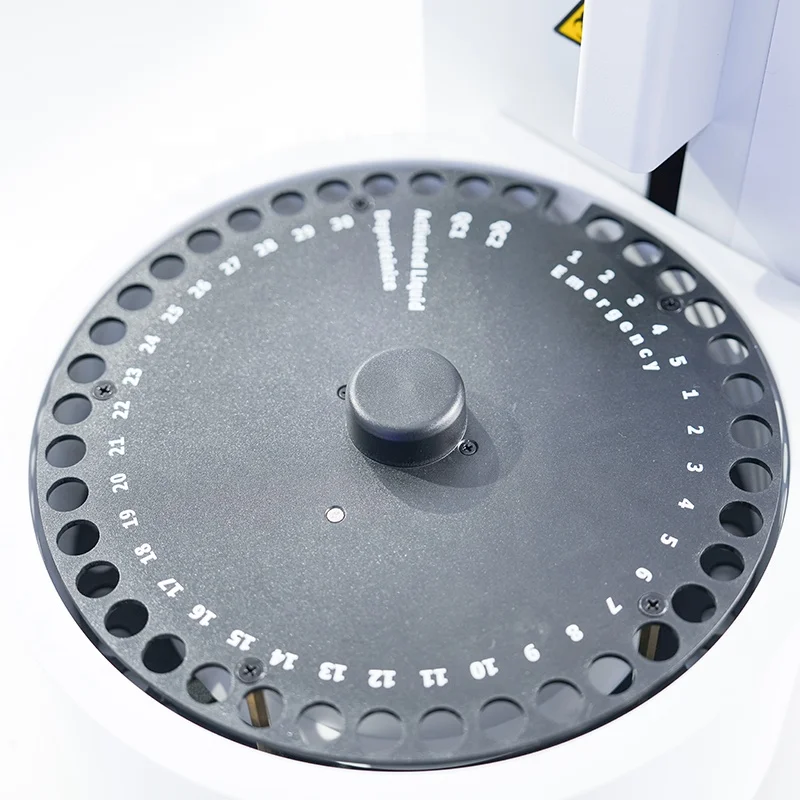

Sample Position | 30 sample positions, 5 emergency positions, 2 QC positions |
Injection mode | Manual or automatic injection can be selected |
Storage | Up to 50,000 test results |

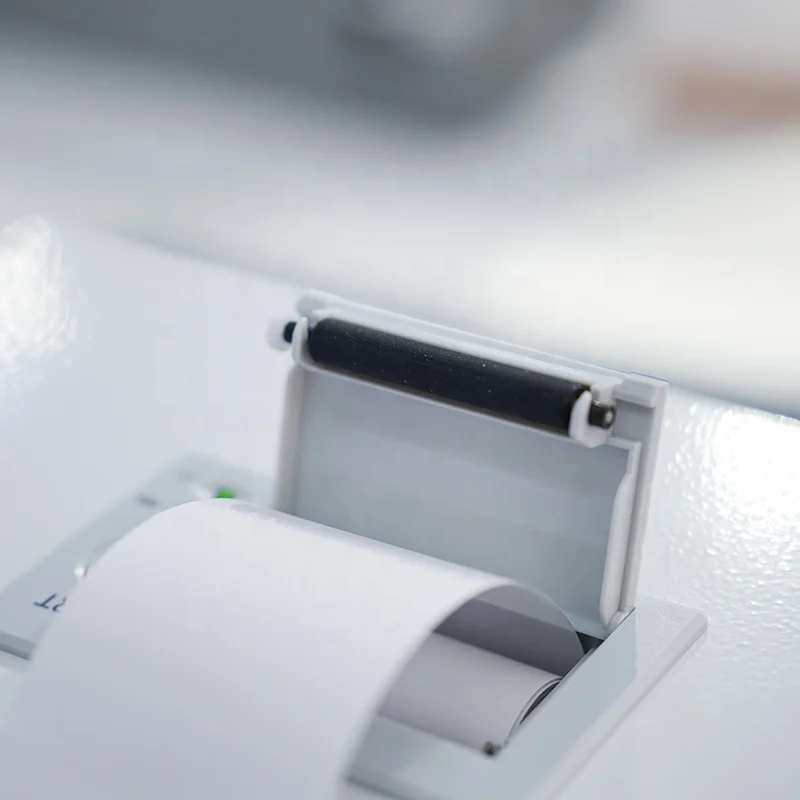

Printer | Build-in thermal printer |
Interface | RS232 portfor LIS |

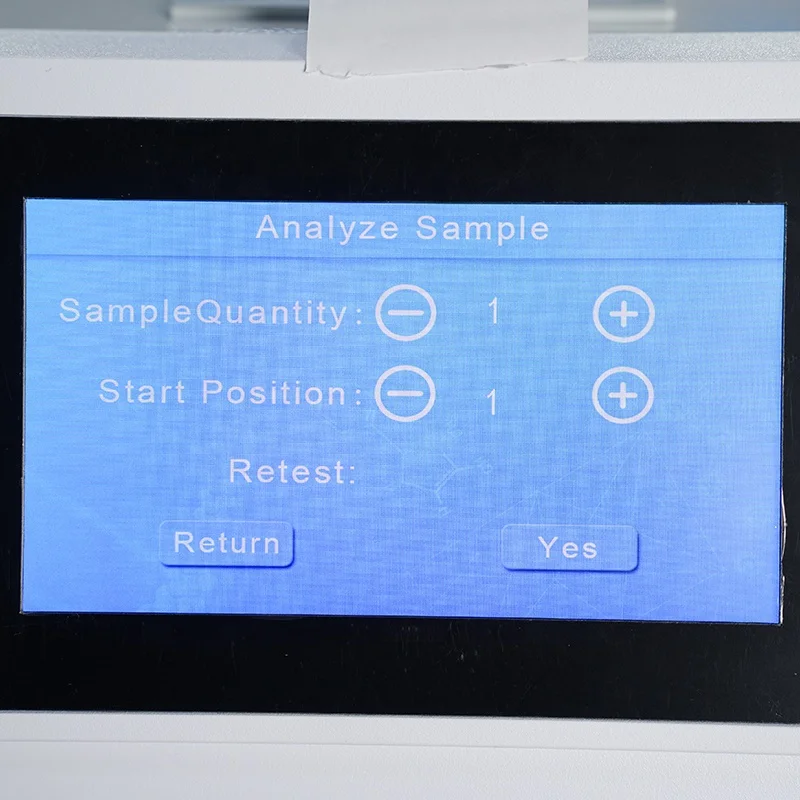

Display | 7-inch high-definition touch screen |
Language | Chinese and English, other languages can be customized |
Calibration | Automatic and Manual calibration |
Other Function | Sample volume detection |
Power Supply | AC110~240V,50/60Hz, 100W |
Temperature | 10~30℃ |
Relative Humidity | ≤ 80 % |
Atmospheric Pressure | 86~106 kPa |
Model | BKE-A | BKE-B | BKE-C | BKE-D |
Test Items | K+, Na+, Cl- | K+, Na+, Cl- | K+, Na+, Cl-, iCa2+, nCa2+, TCa2+, pH | K+, Na+, Cl-, iCa2+, nCa2+, TCa2+, pH |

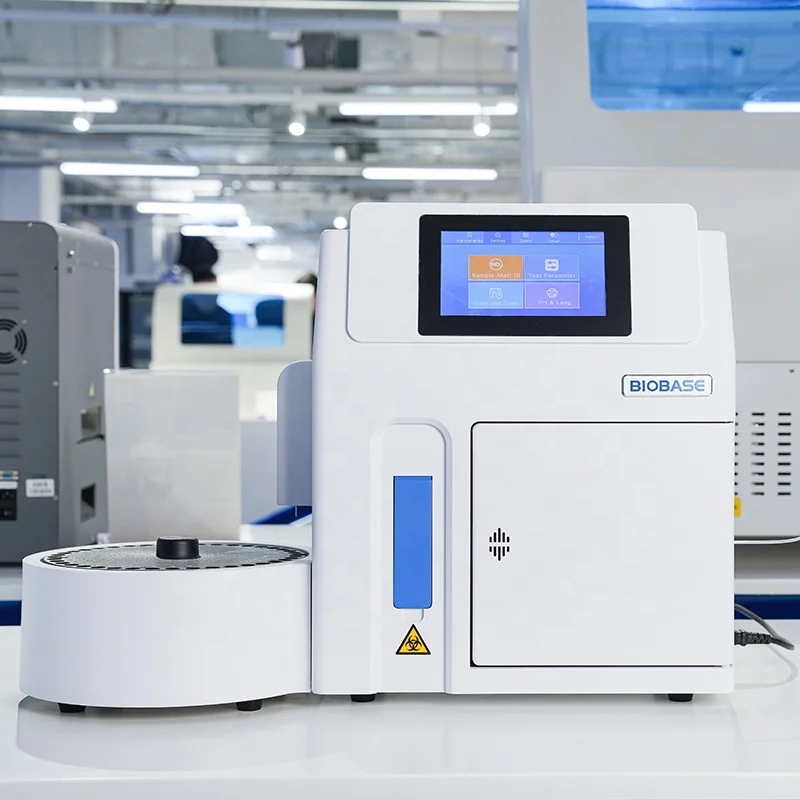

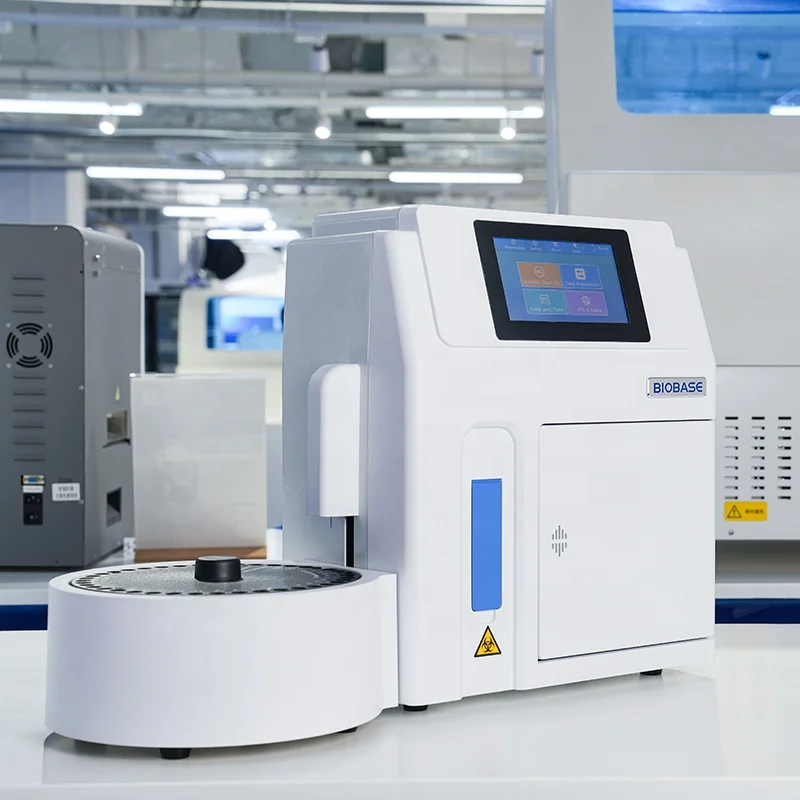

Sample Tray | No | Yes | No | Yes |
External Size(W*D*H) | 390*200*434mm | 660*276*434mm | 390*200*434mm | 660*276*434mm |
Net Weight | 6.85kg | 10.3kg | 6.85kg | 10.3kg |
Package Size(W*D*H) | 540*420*520 mm | 540*420*705 mm | 540*420*520 mm | 540*420*705mm |
Gross Weight | 7.5kg | 10.95kg | 7.5kg | 10.95kg |
Mode | BKE-D | BKE-E | BKE-F | BKE-L |
Test Items | K*,Na*,Cl,iCa²*,nCa²* TCa²*,pH | K*,Na*,Cl,iCa²*,nCa²* TCa²*,pH,TCO2,AG | K*,Na*,Cl,iCa²*,nCa²*,TCa²*,pH,TCO2,AG | K,Na*,Cl,iCa²*,nCa²*,TCa²*,pH, TCO₂ ,AG,Li+,Mg² |
Sample Tray | Yes | No | Yes | Yes |
External Size(W*D*H)mm | 682*287*47 · | 405*214*471 | 682*287*471 | 682*287*471 |
Net Weight (kg) | 15.11 | 13.13 | 15.76 | 15.76 |
Package Size(W*D*H)mm | Instrument:500*390*720 Reagent:220*160*120,220*160*120 | Instrument:500*390*530 Reagent:280*135*210,220*160*120 | Instrument:500*390*720 Reagent:280*135*210,220*160*120 | Instrument:500*390*720 Reagent:280*135*210,220*160*120 |
Gross Weight (kg | Instrument:19.31 Reagent:1.7,0.9 | Instrument:16.73 Reagent:2.2,1.2 | Instrument:19.96 Reagent:2.2,1.2 | Instrument:19.96 Reagent:2.2,1.2 |
Items | Measuring Range | Resolution |
K+ | 0.5-20.0mmol/L | 0.01 mmol/L |
Na+ | 15-200mmol/L | 0.1 mmol/L |
Cl- | 15-200mmol/L | 0.1 mmol/L |
Ca2+ | 0.1-6.0mmol/L | 0.01 mmol/L |
pH | 4-9pH | 0.01 pH |
Why Choose Us

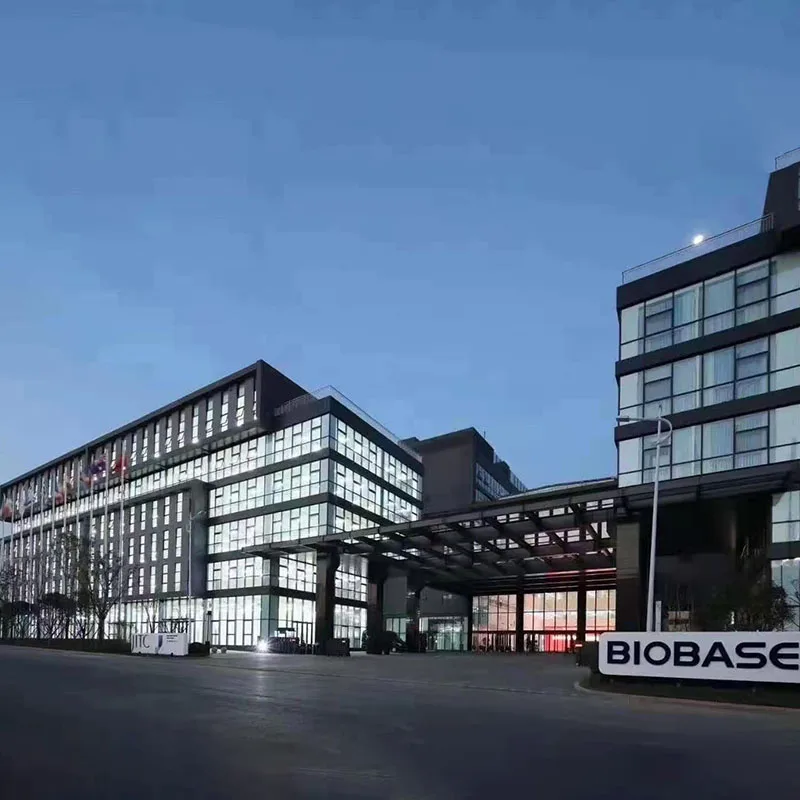

BIOBASE Group have completed the construction of BIOBASE first industrial park in Zhangqiu, covering an area of 80,000 square meters, second industrial park in Tangye new district, covering an area of 160,000 square meters, and USA incubator in Silicon valley, covering an area of 2000 square meters.
