New Intelligent Control Double Stainless Steel air Shower Room
$1,650.00-1,800.00
YANING GMP Standard Electronic Air Clean Equipment Customized Modular Clean Room Air Shower
- Category: >>>
- Supplier: Dongguan Yaning Purification Equipment Co. Ltd.Dongguan Ltd.
Share on (1601122107136):
Product Overview
Description

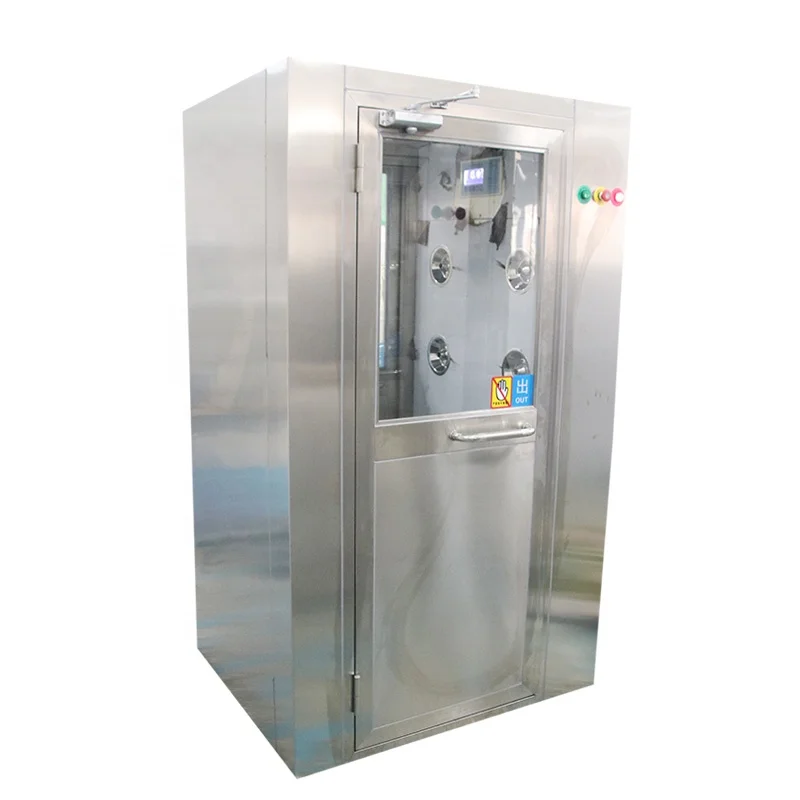

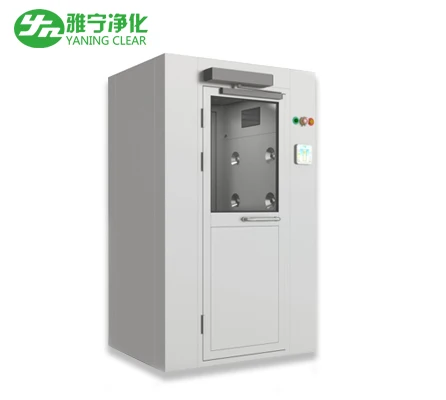

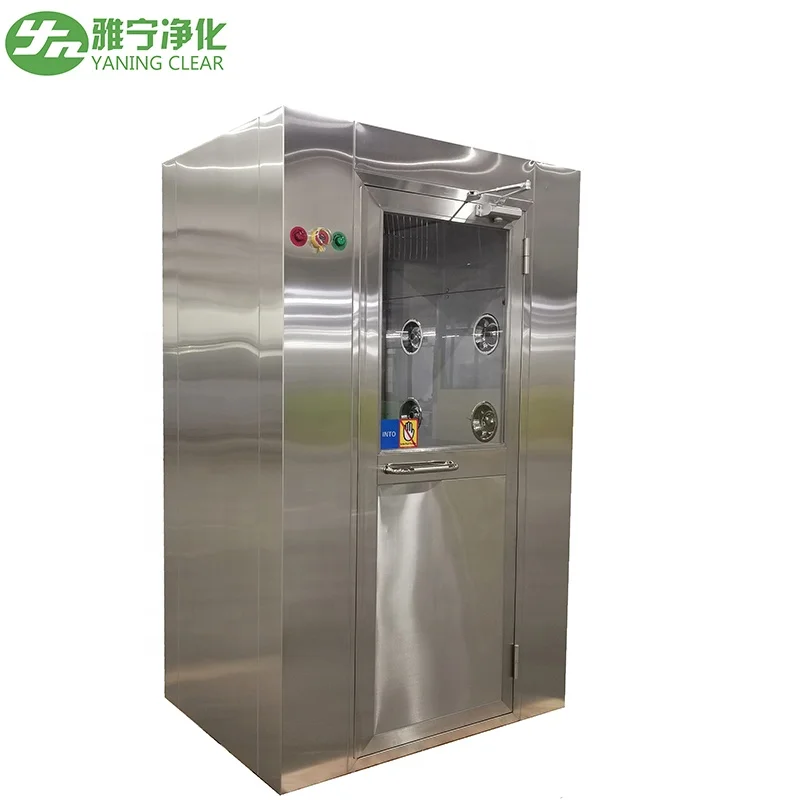

Air Shower

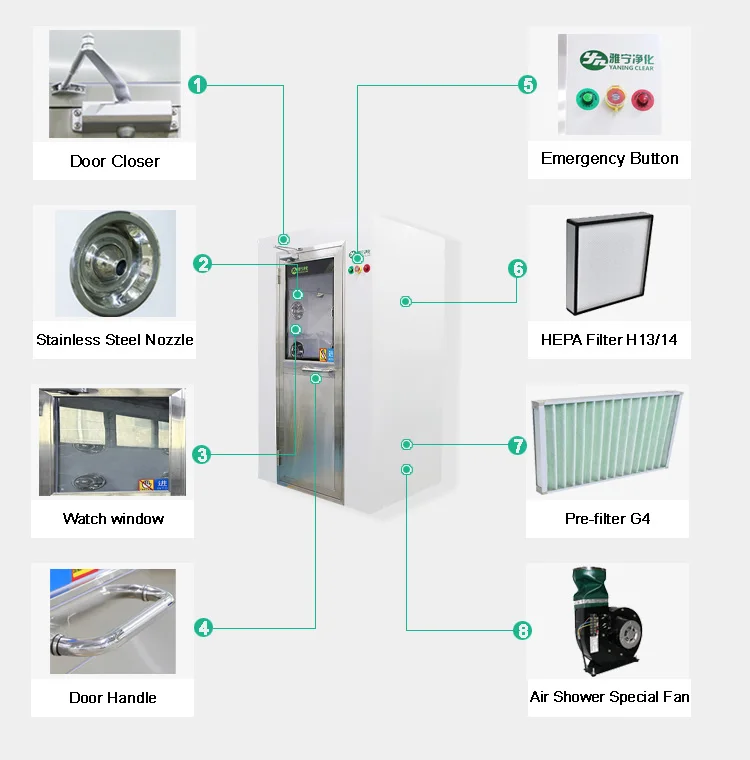

①G4 pre filter and H13 HEPA filter, 2-stage
filtration. Ensure purification level.
filtration. Ensure purification level.
②Fully automatic infrared induction blowing.
③Equipped with 360-degree adjustable stainless .steel nozzle.Left and right sides blowing shower,large air volume and low noise centrifugal fan.The air velocity of the nozzle can reach 22-27m/s.
④Adopt LCD time display, air shower time is
adjustable from 0-99S, show the completion
time of air shower, with humanized voice prompts.
adjustable from 0-99S, show the completion
time of air shower, with humanized voice prompts.

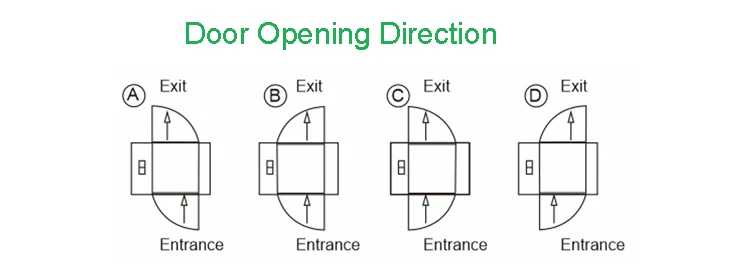

⑤According to the needs of the site, customize the door direction.
Product Description
The air shower is a necessary passage for people to enter the clean room,which can reduce the pollution caused by people entering and leaving the clean room. It is a kind of local purification equipment with strong versatility, which is installed between the clean room and the non-clean room. When personnel want to enter the clean area, they need to be showered through the air shower. The clean air blown out can remove the dust carried by the personnel, and can effectively block and reduce the dust source from entering the clean area. At the same time, the front and rear doors are electronically interlocked, which can also act as an airlock to control the outside polluted air entering the clean area. This equipment is widely used in biological laboratories, pharmaceutical factories, hospitals, food processing, electronics factories, painting and other air purification places.
Our company produces a fully automatic high-tech intelligent air shower room with a voice prompt system. When people enter the air shower, the automatic voice system prompts people to complete the entire process of blowing, showering and dust removal in an orderly manner. Humanized voice prompts give people a kind of cordial feeling, and achieve an effective purification effect.
Our company produces a fully automatic high-tech intelligent air shower room with a voice prompt system. When people enter the air shower, the automatic voice system prompts people to complete the entire process of blowing, showering and dust removal in an orderly manner. Humanized voice prompts give people a kind of cordial feeling, and achieve an effective purification effect.
Configuration Options

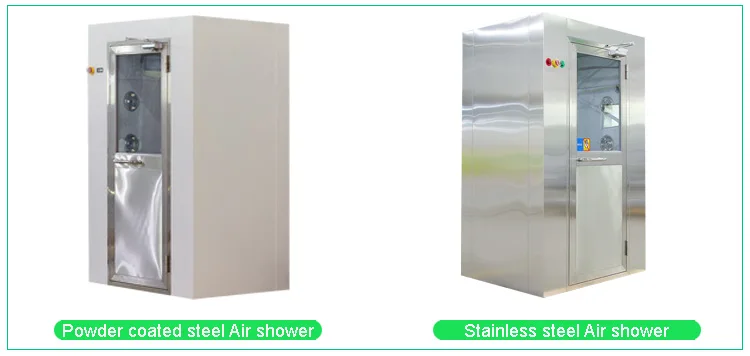

1.According to the material requirements: Powder coated steel, Polish SUS 201/304/316; Mirror SUS 201/304/316
2.According to powersupply requirements: voltage 220V/380V, frequency 50Hz/60Hz. Number of phases: single-phase / three-phase; 3.According to therequirements of blowing: single blow, top blow, double blow, three blow; 4.According to the number of people:
single person,double person,multiple people. 5.According to the door requirements: manual doors,automatic 90 degree doors, sliding doors, fastrolling shutter doors. curtain doors, no doors, etc.
6.According to the requirements of use: manual door, automatic door, S type,L type,three-doors air shower, bufferroom, etc.
Product Parameters | ||||||||
Product Name | Single Person Double Blow | Two Person Double Blow | Three Person Double Blow | Air shower Tunnel | ||||
Product Model | YN-FLS-01 | YN-FLS-02 | YN-FLS-03 | YN-FLS-04 | ||||
Outside DimensionsW×D×H(mm) | 1290×1000×2130 | 1290×1500×2130 | 1290×2000×2130 | 1290×3000×2130 | ||||
Internal Size W×D×H(mm) | 790×880×1925 | 790×1380×1925 | 790×1880×1925 | 790×2880×1925 | ||||
Suitable Person | 1-2 Person | 2-3 Person | 3-4 Person | 4-5 Person | ||||
Nozzle | 12 Pcs | 18 Pcs | 24 Pcs | 36 Pcs | ||||
Air Velocity | 22-27m/s | 22-27m/s | 22-27m/s | 22-27m/s | ||||
Noise | ＜65 dB (A) | ＜65 dB (A) | ＜65 dB (A) | ＜65 dB (A) | ||||
G4 Pre filter size(mm) | 745×375×21×2 Pcs | 900×375×21×2 Pcs | 745×375×21×2 Pcs | 745×375×21×3 Pcs | ||||
H13 Hepa filter size(mm) | 610×610×69×1 Pcs | 610×610×69×2 Pcs | 610×610×69×2 Pcs | 610×610×69×3 Pcs | ||||
Filter Efficiency | 99.95%@0.3μm | 99.95%@0.3μm | 99.95%@0.3μm | 99.95%@0.3μm | ||||
Fan Power(W) | 1100W×1 Pcs | 750W×2 Pcs | 1100W×2 Pcs | 1100W×3 Pcs | ||||
LED Lamp Power(W) | 15W×1 Pcs | 15W×1 Pcs | 15W×2 Pcs | 15W×3 Pcs | ||||
Power Supply | Three-phase，380V/50Hz | |||||||
Products Description

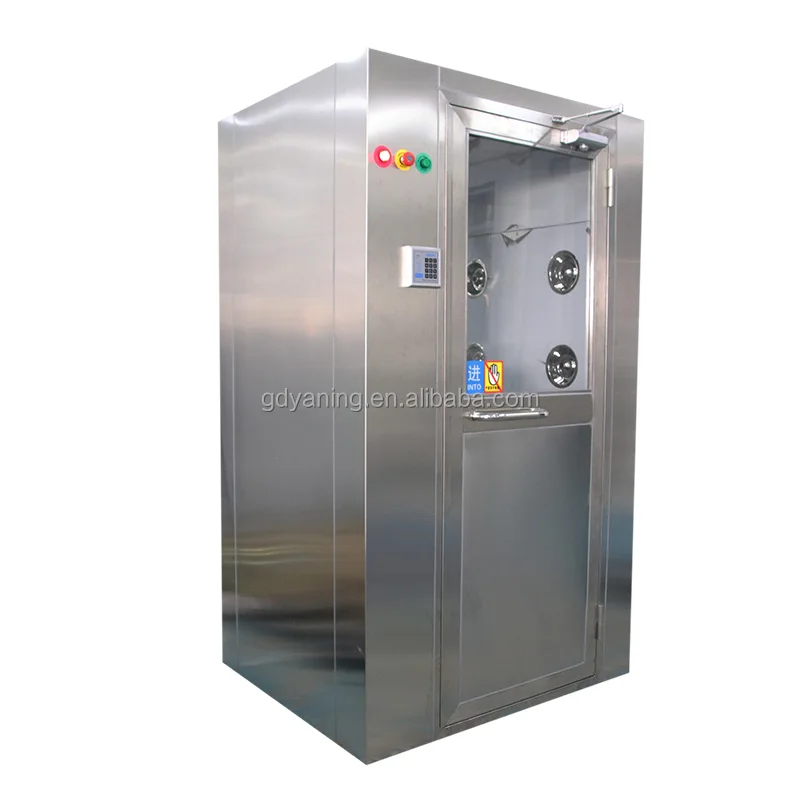

Single Person Double Blow | ||
Outside Dimensions W×D×H(mm) | 1290×1000×2130 | |
Internal Size W×D×H(mm) | 790×880×1925 | |
Nozzle | 12 Pcs | |
Fan Power(W) | 1100W×1 Pcs | |
Two Person Double Blow | ||
Outside Dimensions W×D×H(mm) | 790×880×1925 | |
Internal Size W×D×H(mm) | 790×1380×1925 | |
Nozzle | 18 Pcs | |
Fan Power(W) | 750W×2 Pcs | |
Three Person Double Blow | ||
Outside Dimensions W×D×H(mm) | 1290×2000×2130 | |
Internal Size W×D×H(mm) | 790×1880×1925 | |
Nozzle | 24 Pcs | |
Fan Power(W) | 1100W×2 Pcs | |
Air shower Tunnel | ||
Outside Dimensions W×D×H(mm) | 1290×3000×2130 | |
Internal Size W×D×H(mm) | 790×2880×1925 | |
Nozzle | 36 Pcs | |
Fan Power(W) | 1100W×3 Pcs | |

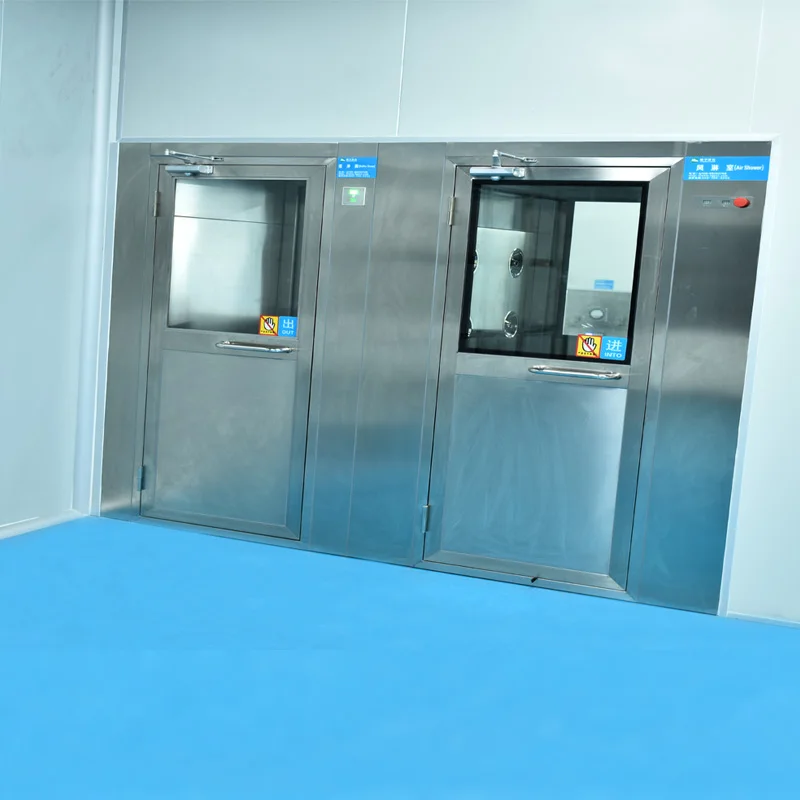

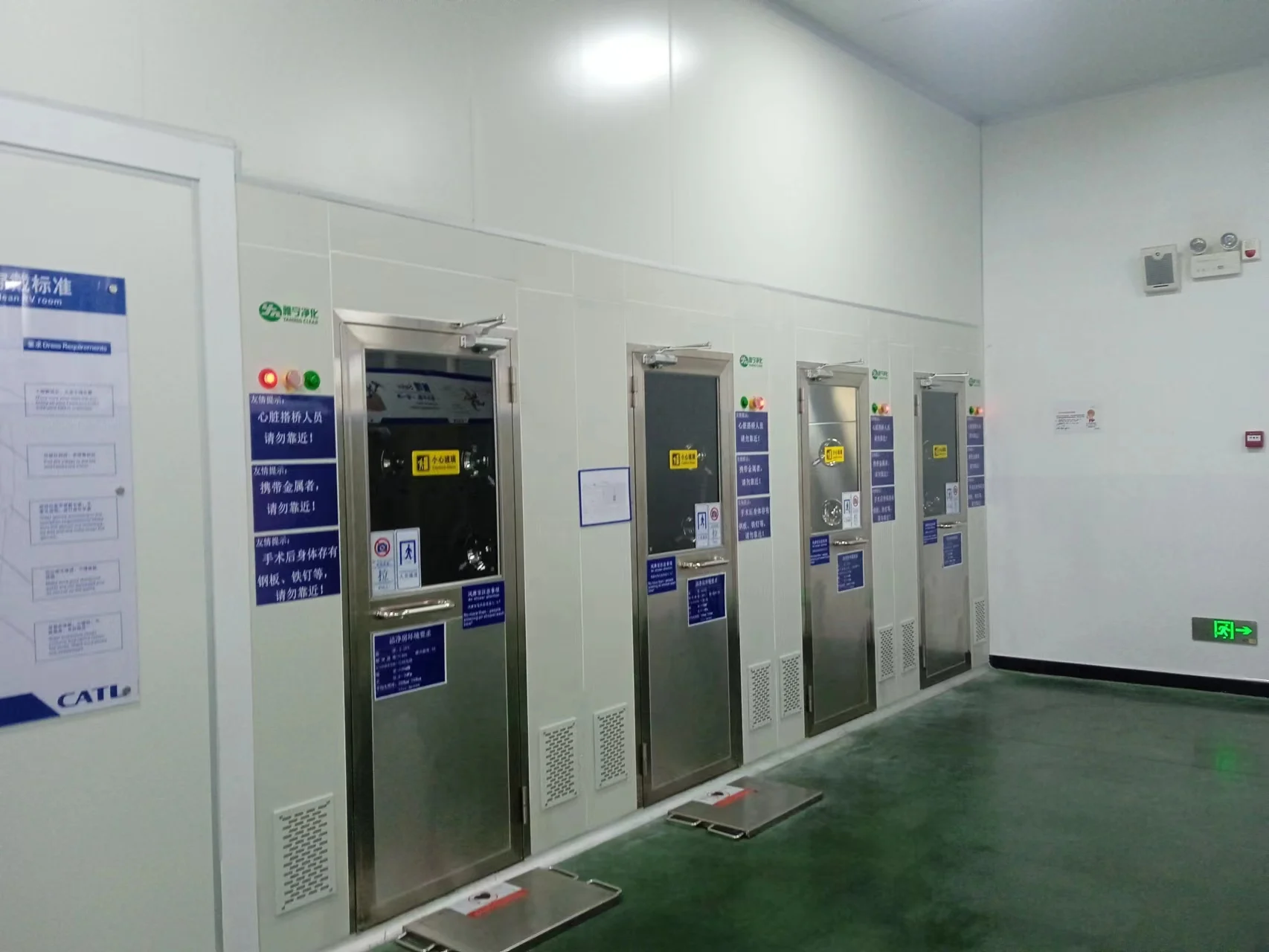

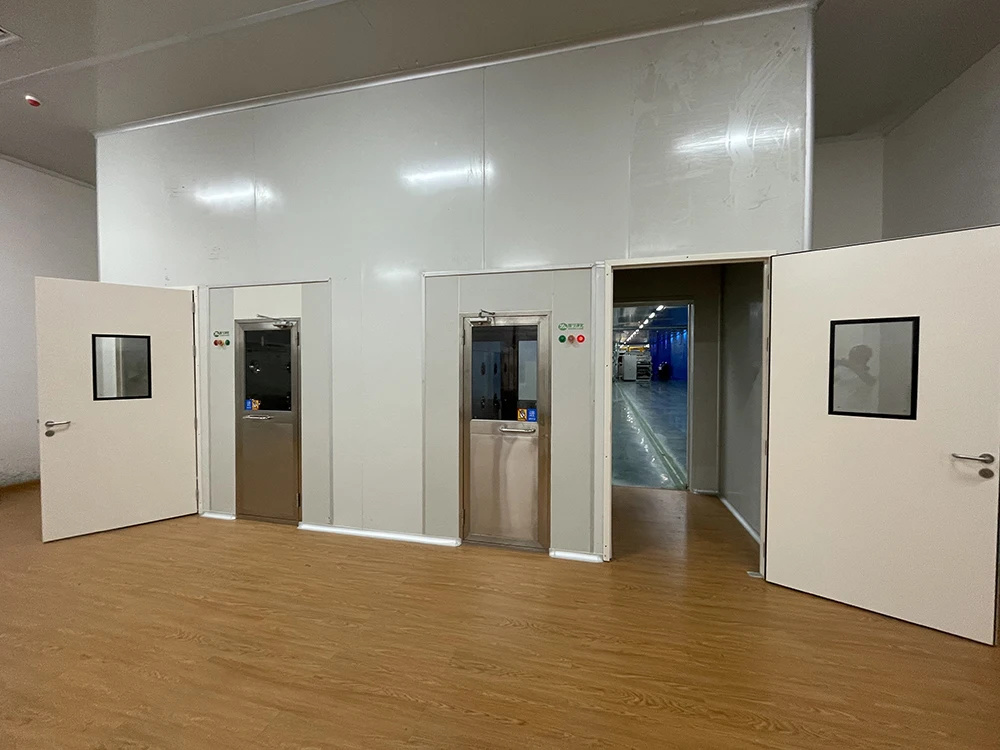

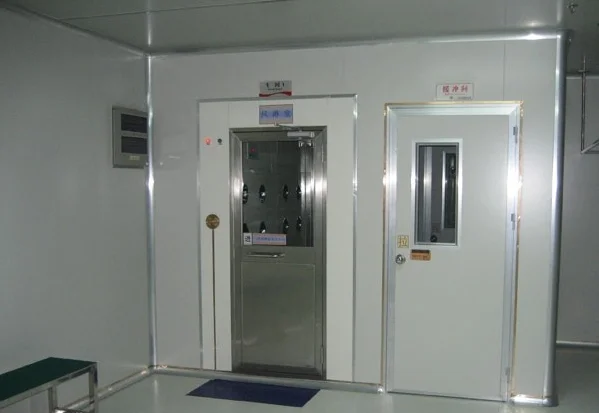

Success case show
