Product Overview
Description
Products Description
SHANDONG MUHE

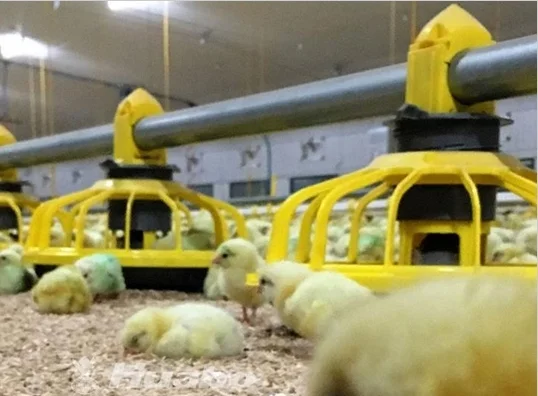

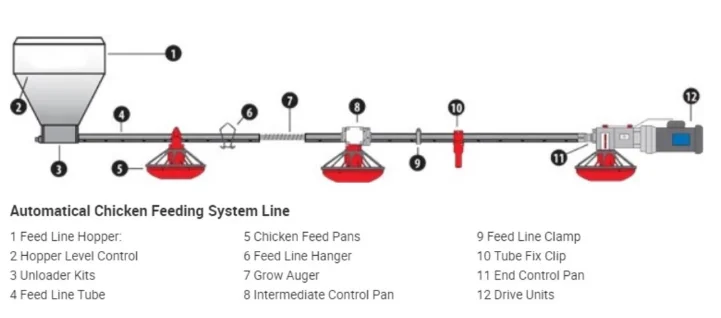

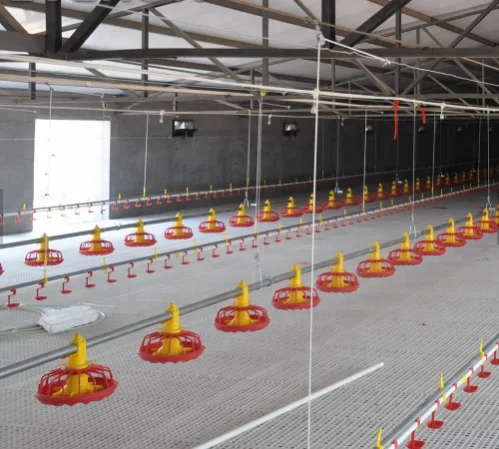

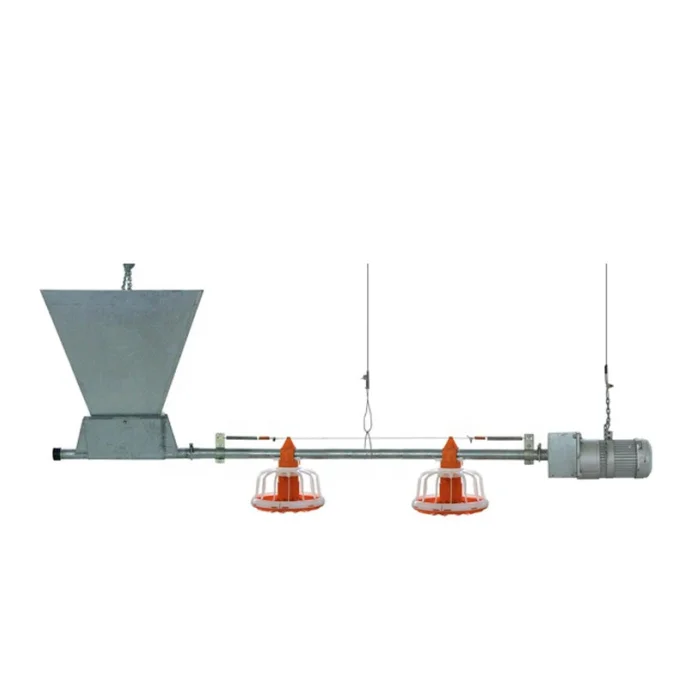

Automatic Pan Feeding Line System
For Chicken Farm
Introduce

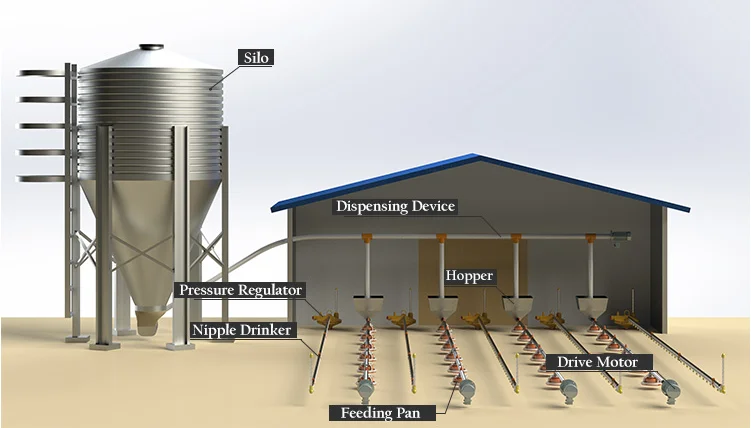

Automatic pan feeding system including a driving device, a hopper, a conveying pipe, an auger, trays, suspension lifting device,an anti-perching device and a feed sensor. The main function of the system is to tans port the feed from the hopper into each feeding pan to ensure the eating of the broiler and automatically controlled by the level sensor's direction which give the order to motor to make it working or stop.
Main Feature
1, Rills feed pan with special designed, can save feed;
2, No need to open the pan. Feed downfalls to the side of the shallow plate to make sure that even the birds stand outside
3, Colorful, so that birds can easily see the feed pan and eat the feed;
4, PP(Polypropylene) material, firm and durable, corrosion resistance, long time use;
5, Convenient to dismantle and easy to clean;
2, No need to open the pan. Feed downfalls to the side of the shallow plate to make sure that even the birds stand outside
of the pans, they can also east feed conveniently;
3, Colorful, so that birds can easily see the feed pan and eat the feed;
4, PP(Polypropylene) material, firm and durable, corrosion resistance, long time use;
5, Convenient to dismantle and easy to clean;
Product Paramenters
1, Silo type and ground hopper type;
2, Galvanized steel or fiberglass silo;
3, The conveying system is running smoothly. It can be quickly delivered to each feed trays and ensure adequate feed;
4, Silos volume can be specifically designed based on the number of chickens ( feed weight 0.65 T/CBM) ;
5, Automatic control box is equipped with imported material level sensor, greatly improving the conveying accuracy;
6, The height of trays could be adjusted according to chicken age, easy to remove and clean.
2, Galvanized steel or fiberglass silo;
3, The conveying system is running smoothly. It can be quickly delivered to each feed trays and ensure adequate feed;
4, Silos volume can be specifically designed based on the number of chickens ( feed weight 0.65 T/CBM) ;
5, Automatic control box is equipped with imported material level sensor, greatly improving the conveying accuracy;
6, The height of trays could be adjusted according to chicken age, easy to remove and clean.
Details Images

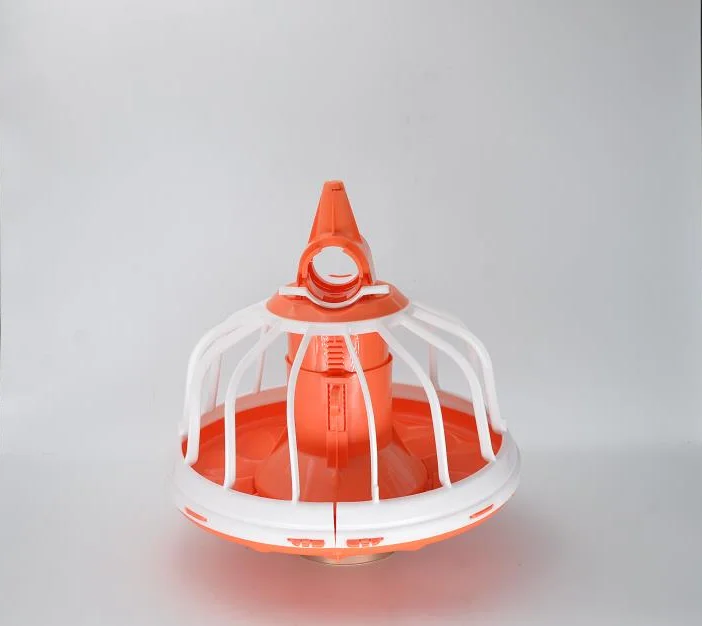

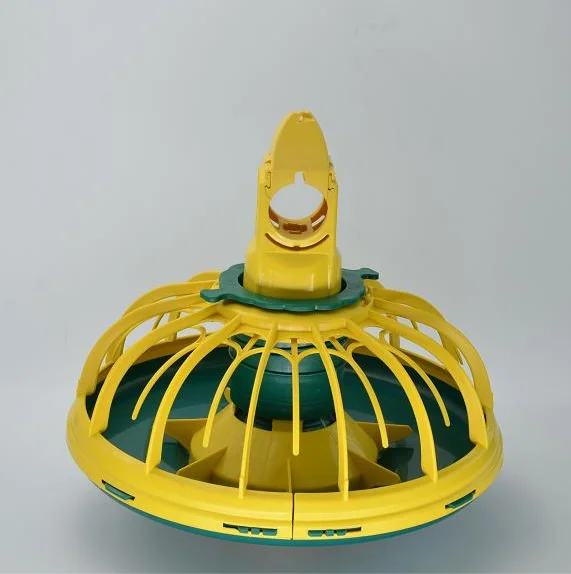

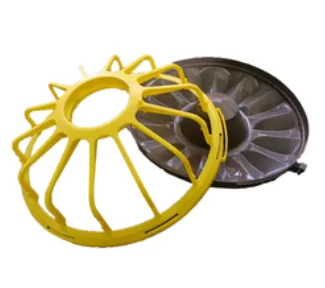

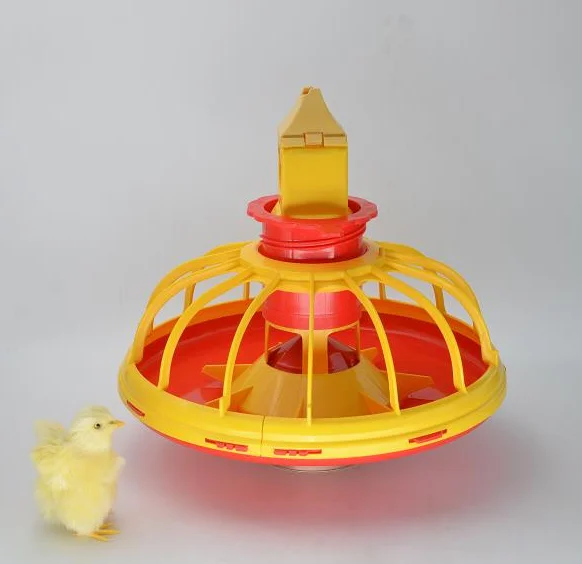

Feed Pan
Feed Pan can rotate in horizontal 360 degree. Easy and convenient feed level adjustment;

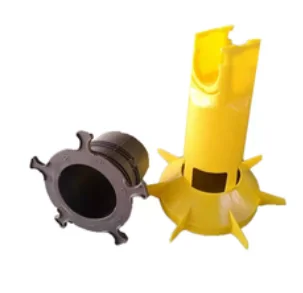

Top support has the shut off slid which can meet the customer's brooding and group expansion requirement in diff areas.
Pan Bottom and Grill are locked together by the hinge, special designed feed cone flange can avoid the feed waste.
Pan Bottom and Grill are locked together by the hinge, special designed feed cone flange can avoid the feed waste.

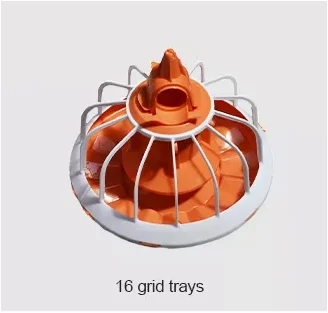

14 Grid & 16 Grid Can be Choose.
Grill No. | Feed Birds No./Pan | Grill Distance | Bird Density | Max feed for one bird/Day/Pan | Dimention |
14 | 40-45 | 70mm | 10-12/m 2 | 180g/bird | 330-330mm |
16 | 45-50 | 70mm | 10-12/m 2 | 180g/bird | 360-360mm |

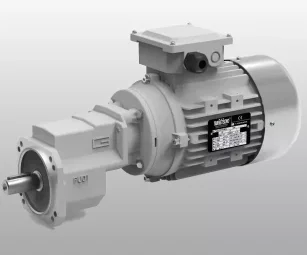

MOTOR
1. High quality special driving reduction Motor.
750/1100/1500 W; 220 V/380 V; 1/3 phase;
2. Transmission Speed 450 kg/h;
3. Italian Transtecno or Chinese Wanxin gear
motor can be choose;

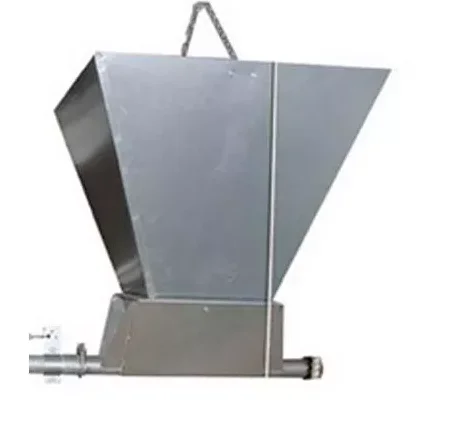

1.Bin Volume: 70/90/120 KG;
2. Material: Hot-dip Galvanized Sheet;
3. Thickness: 1/1.5 MM
1. IFM from Germany, time delay range 0 to 2
Hours.
2. Feed Sensor can be installed into the feed
pan. Normally it placed in the fourth or fifth
pan of the breeding district to realize
sectional birds breeding.
3. High Sensitivity, accurately sensing the
feeding situation.

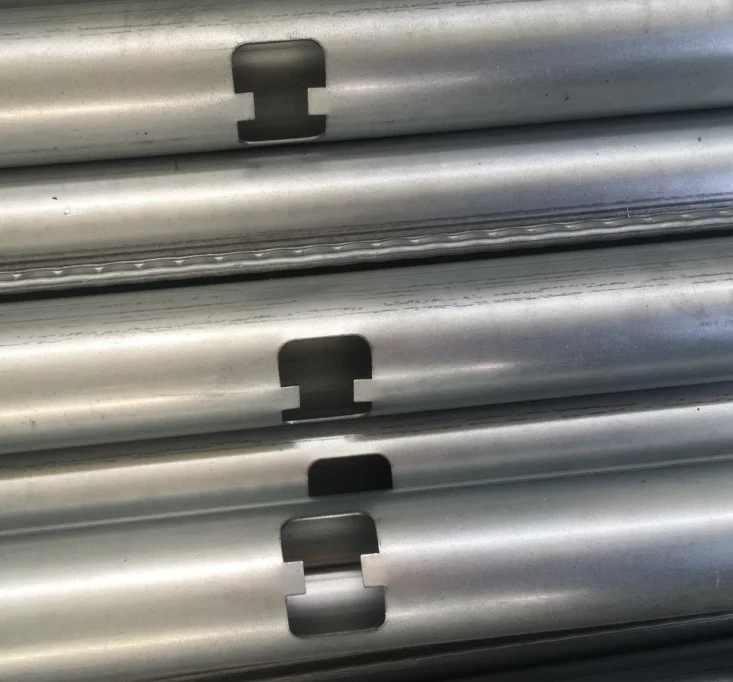

1. 3 M 4 holes Feeding Pipe;
2. Hot galvanized steel with the Zinc thickness
of 275 g/m2.
3. Diameter of conveying pipe: φ45 mm
Auger
1. Imported from South Africa.
2. High quality, durable use.
3. Feeding ability: 450 kg/h;
4.Maximum conveying length: 140m

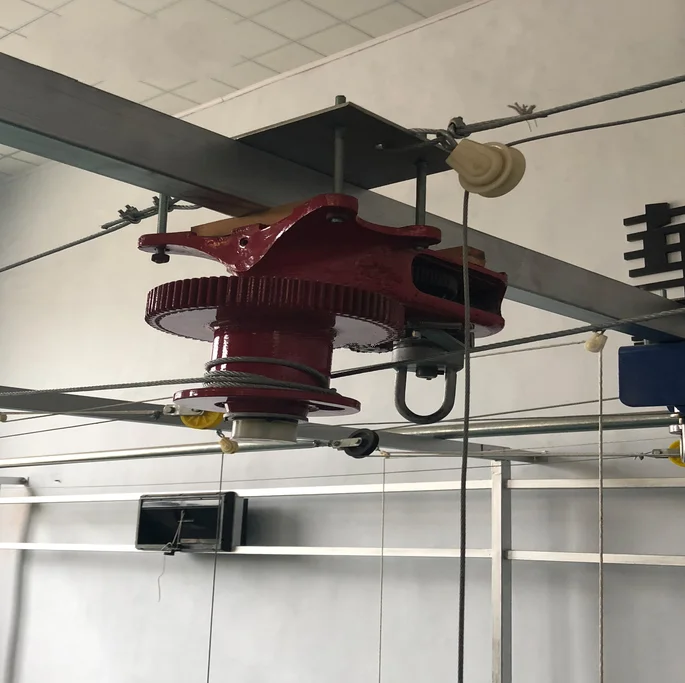

1. Hanging System mainly include of winch,
pulley, fixed parts, steel wire and wire rope
clamps etc.
2. Located in the middle of house, hanging
point 3 m, all steel wire.
3. Very convenient to adjust feeding line
height by winch.

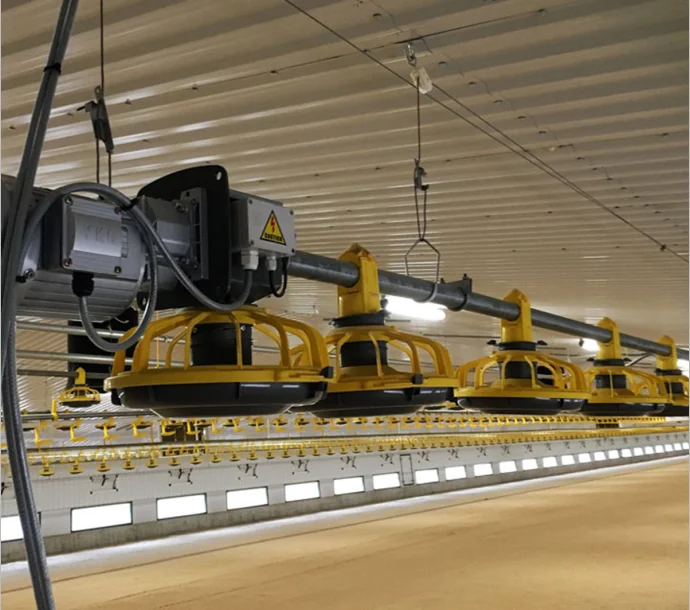

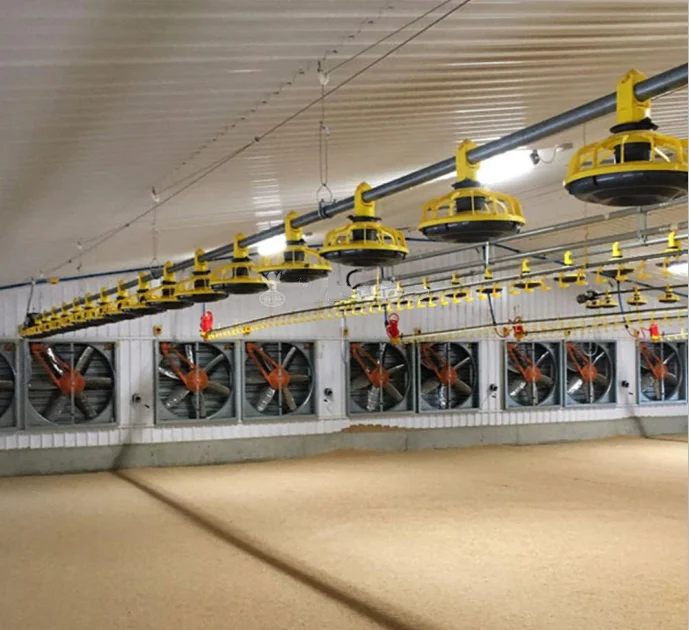

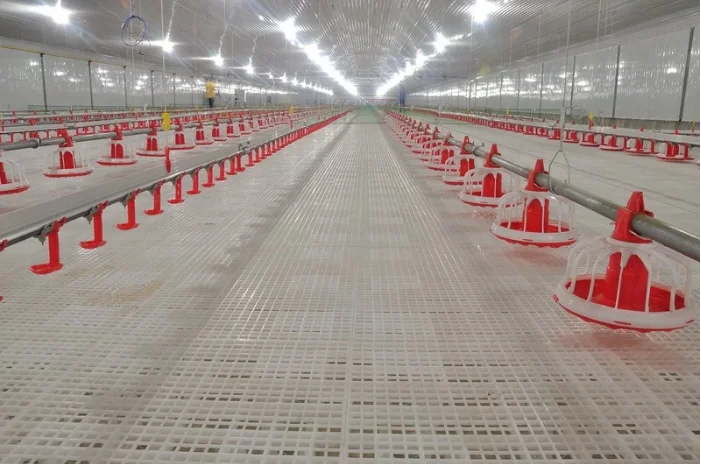

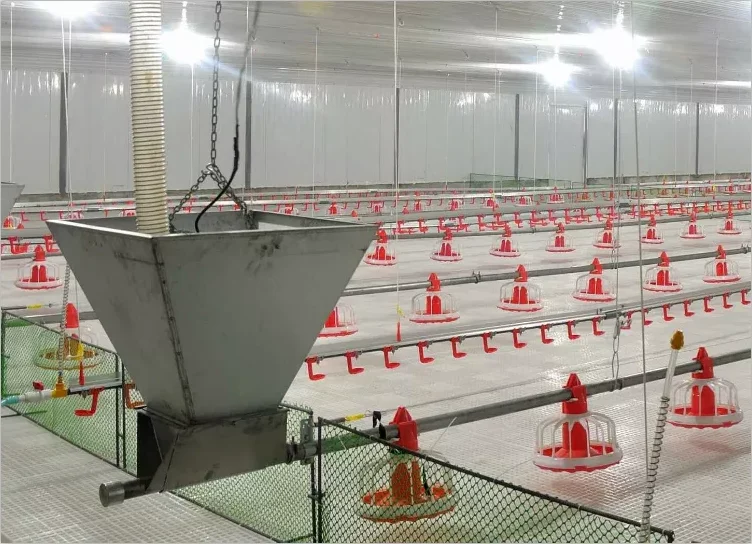

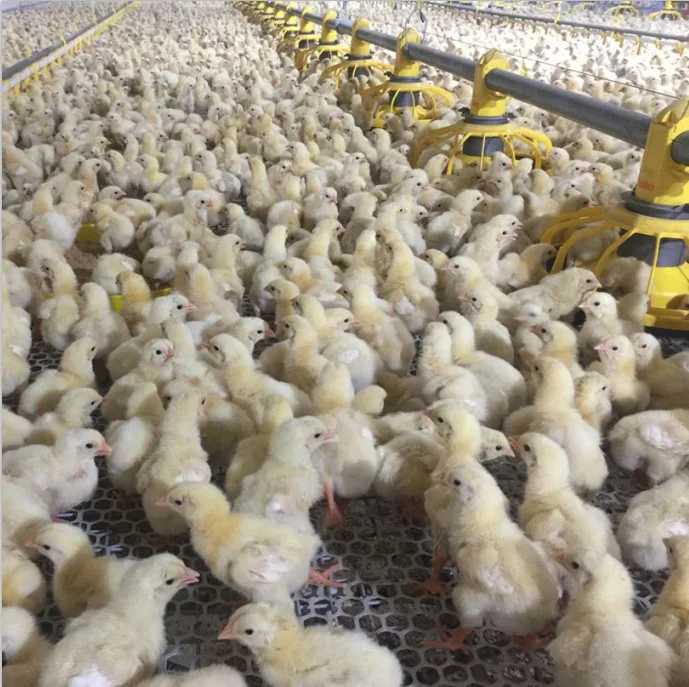

PROJECT SHOWS

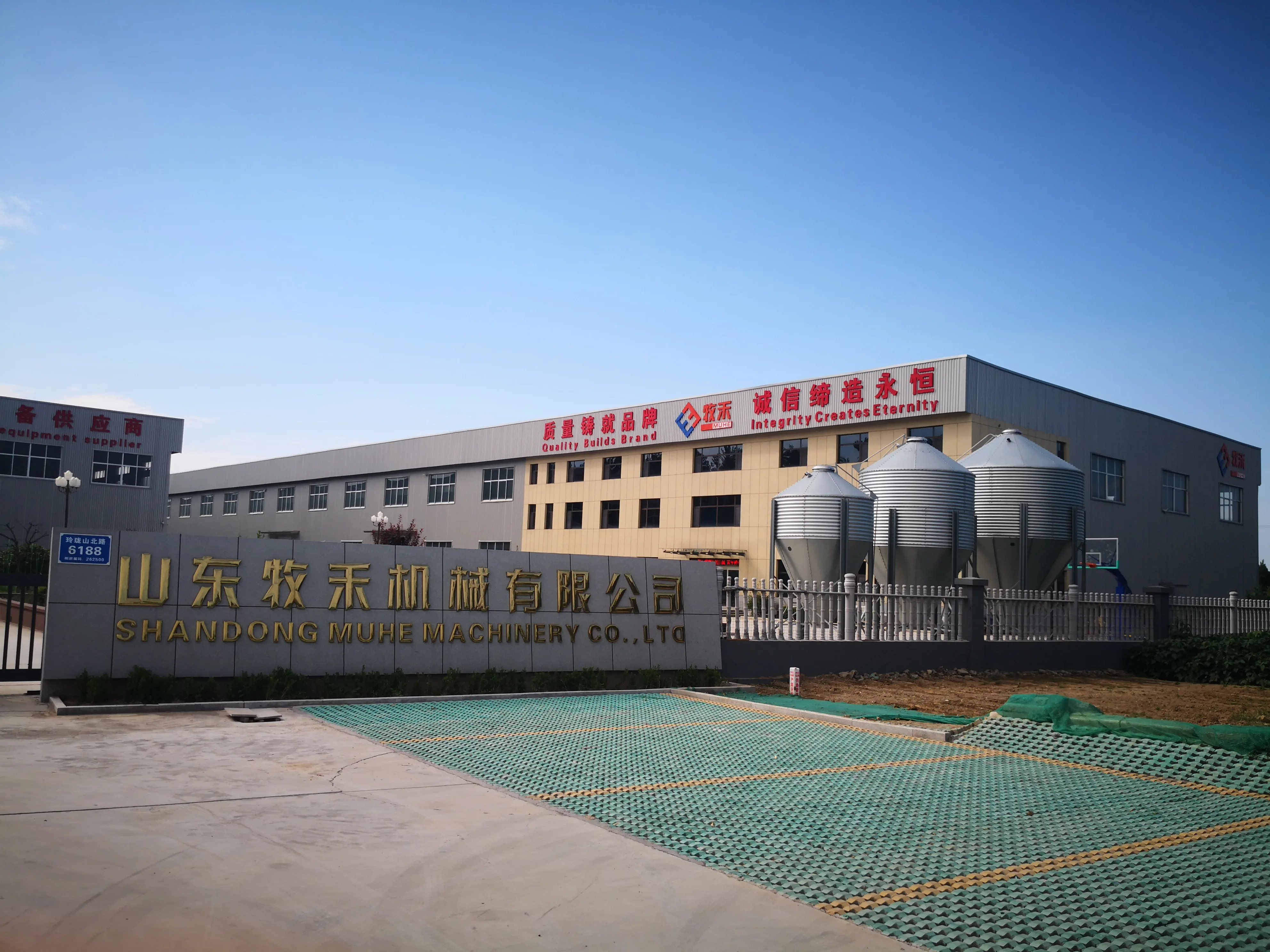

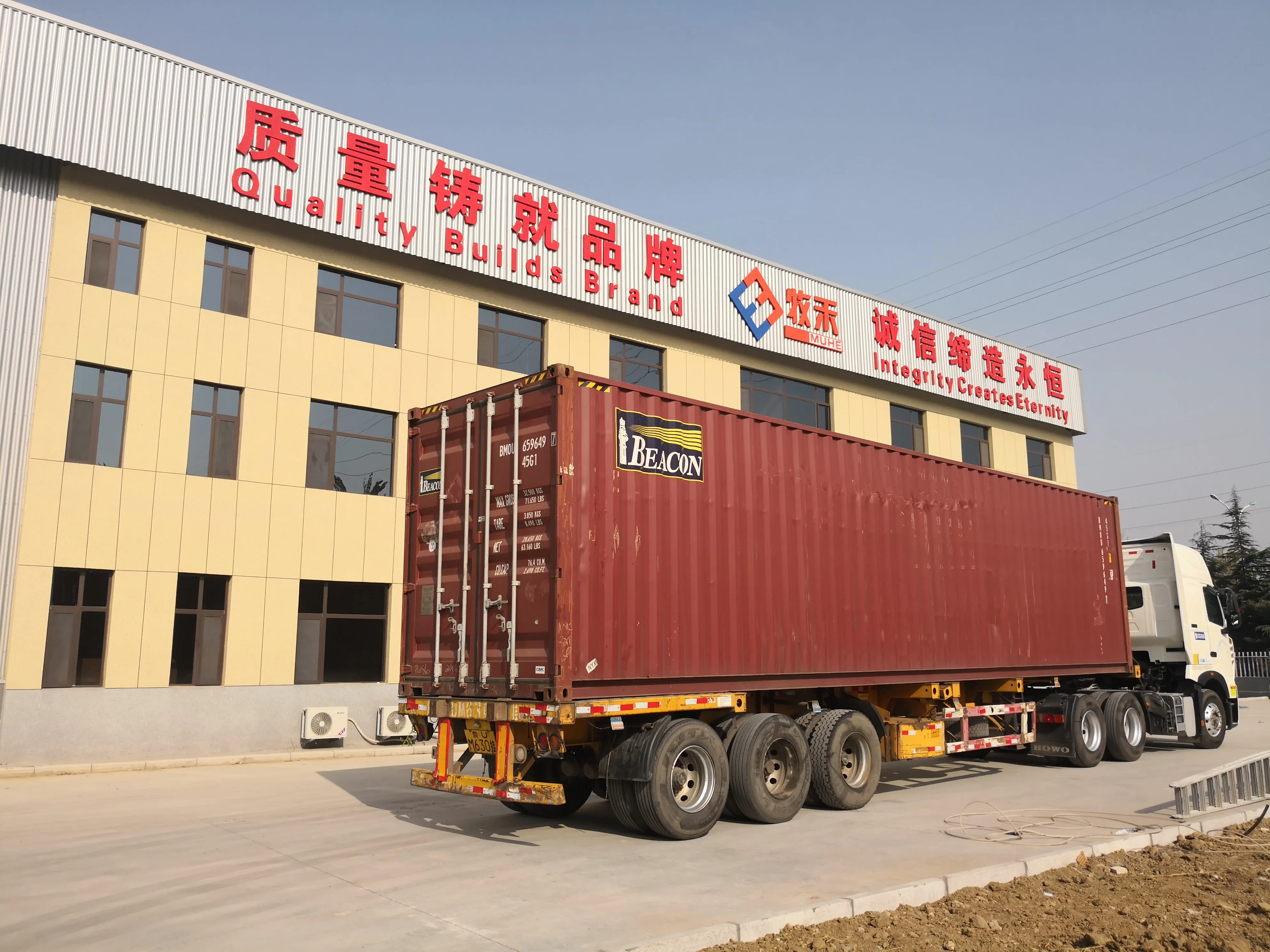

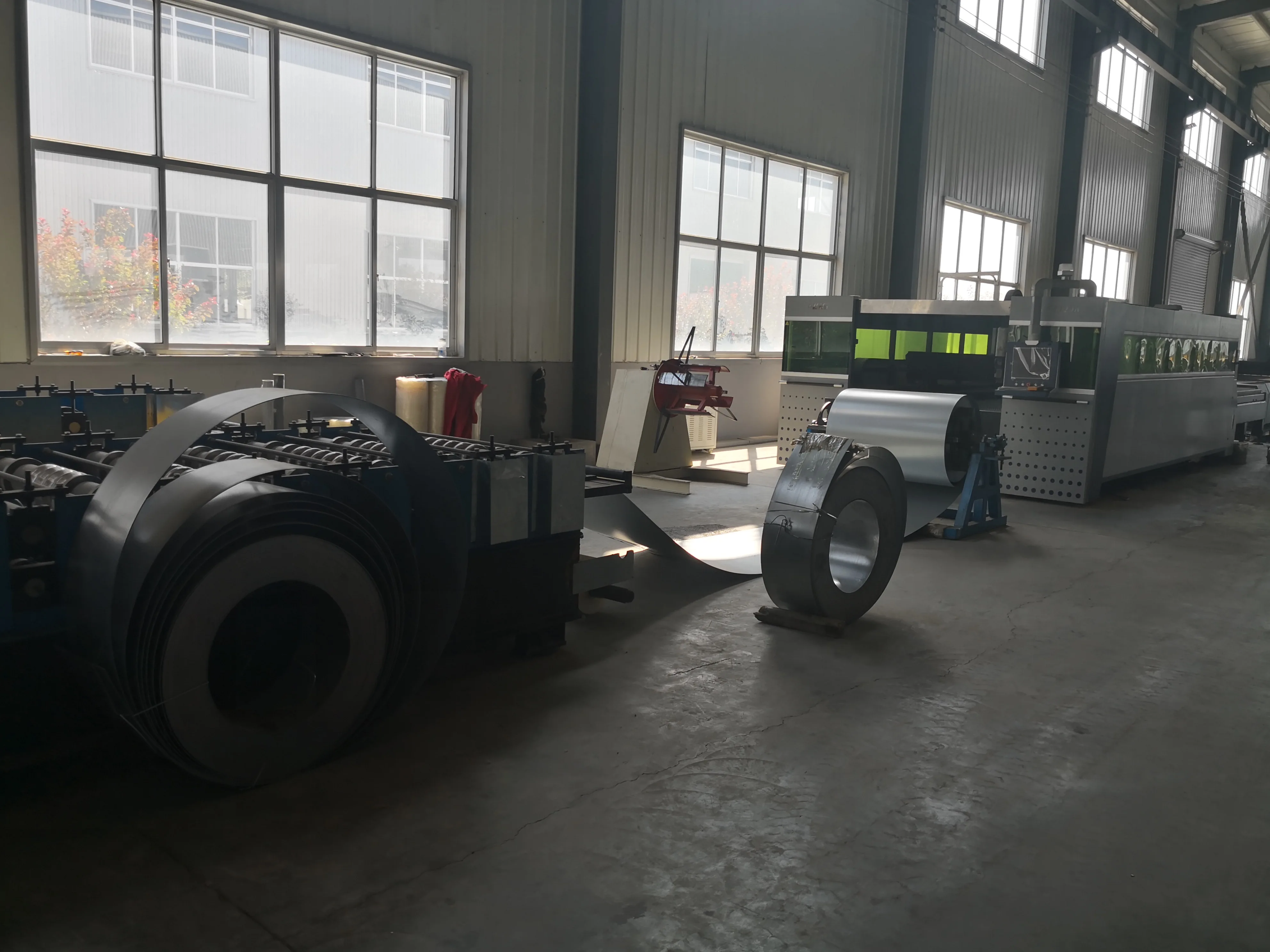

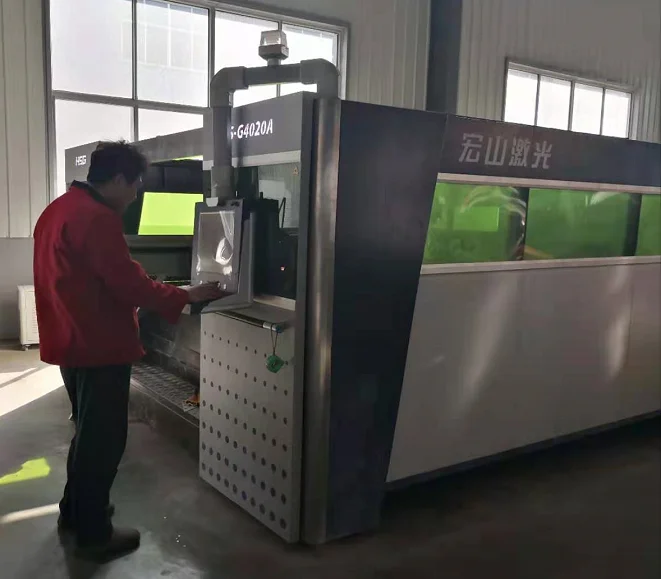

Company Profile
