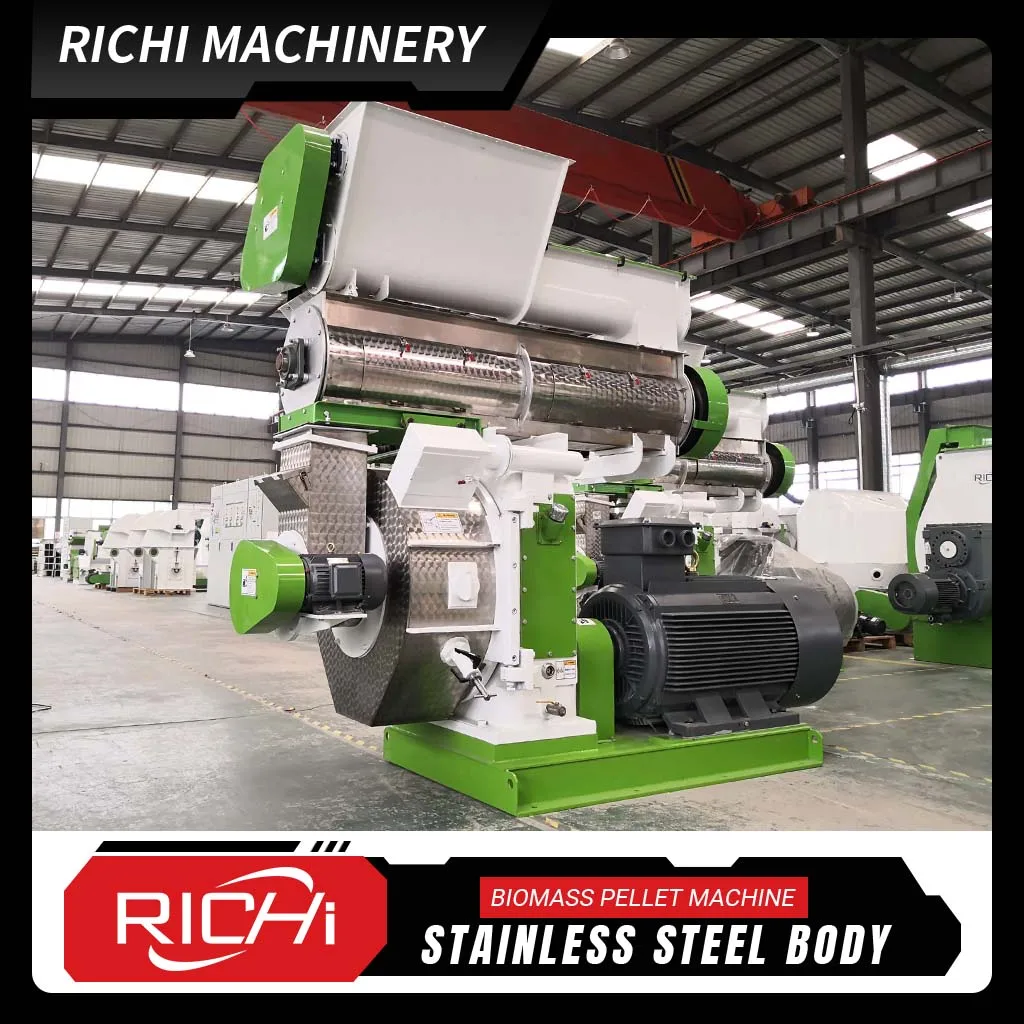

RICHI Industrial grade 4 30 T/H Alfalfa Hay Pellets Hay Feed Maker
- Category: >>>
- Supplier: Kaifeng Richi Machinery Co. Ltd.
Share on (1601122262913):
Product Overview
Description
Machine Overviews

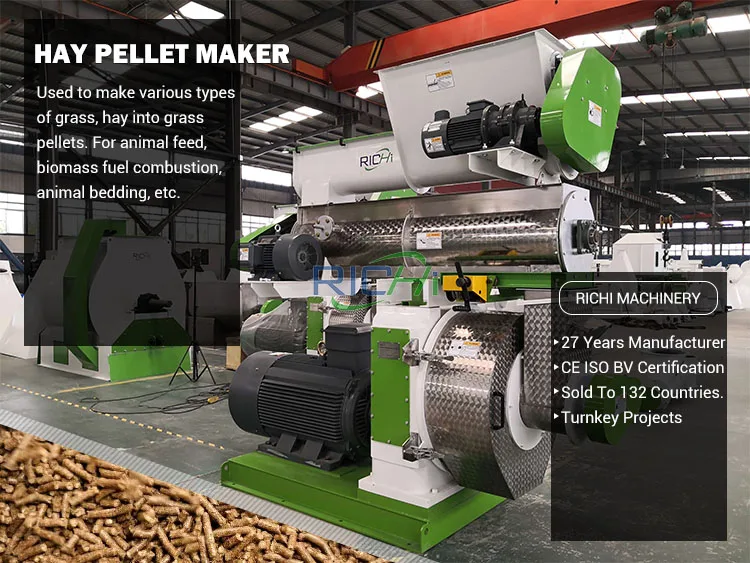

Overview Of RICHI-Series Hay Feed Maker:

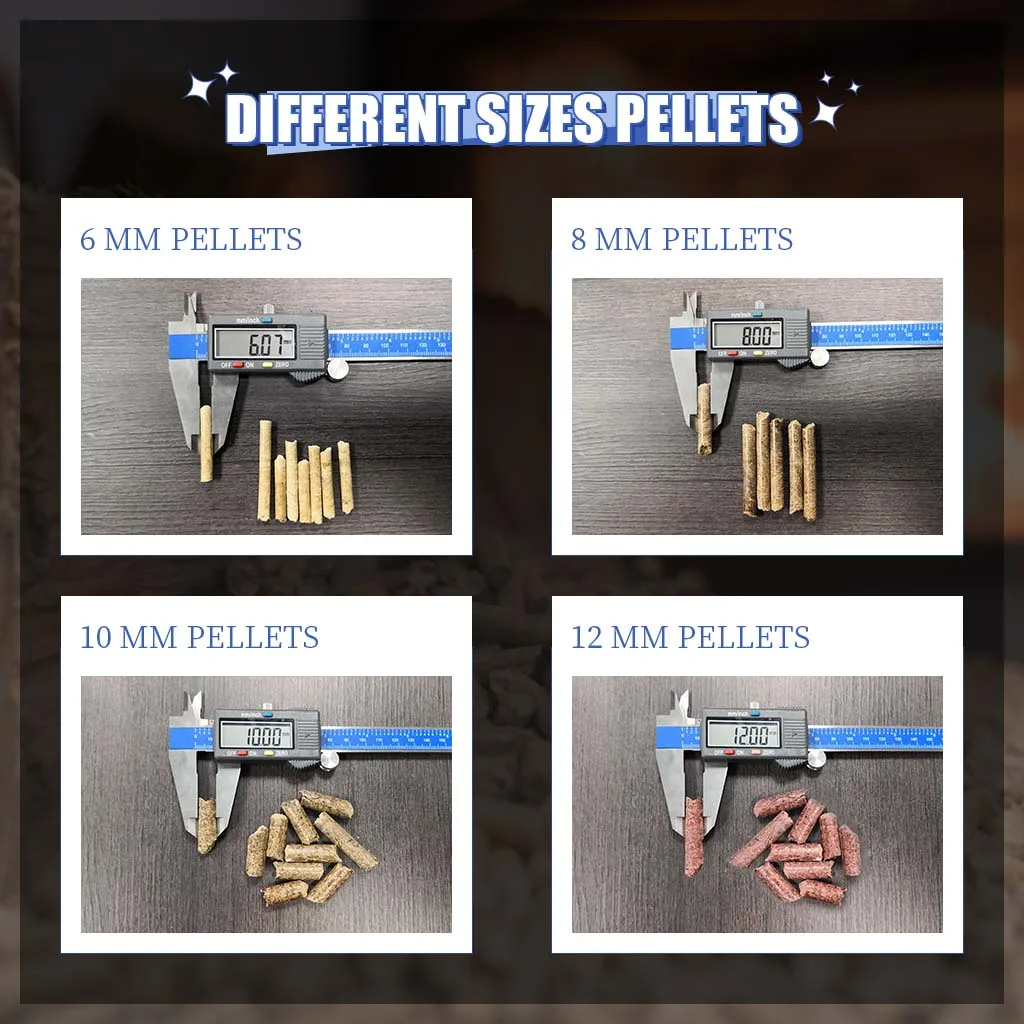

RICHI MLZH-Series Hay Feed Maker can make grass, straw, pasture, alfalfa, etc into 6~12mm or other size grass pellets. Grass pellets have a variety of uses such as: as animal feed, as biofuel pellet etc.
The working principle is: the raw material is pressed by the ring die and the pressing roller, and is compressed into grass pellets in the pressing hole on the ring die.
Why Choose RICHI Hay Feed Maker:
1. Multifunctional: The raw material can be agricultural waste such as grass, straw, alfalfa grass, elephant grass, switchgrass, etc. Forestry waste such as sawdust, etc.
2. High Capacity: RICHI has different models of Hay Feed Maker. The maximum capacity of a single machine can reach 40 T/H.
3. Customization: The RICHI Hay Feed Maker can be customized according to your needs to produce pellets of different sizes.
4. Reliable service: RICHI provides one-stop service, providing turnkey projects.
Raw Materials To Pellets
What Are The Main Uses Of Grass Pellets Made By RICHI Hay Feed Maker?
As Ruminant Feed:
By making grass into pellets, it can be used as the daily feed for herbivorous animals such as horses, cattle, sheep, and rabbits. Granulated grass feed is easier to store and transport, suitable for family farms, large-scale farms, especially in seasons when fresh grass is not available.
By making grass into pellets, it can be used as the daily feed for herbivorous animals such as horses, cattle, sheep, and rabbits. Granulated grass feed is easier to store and transport, suitable for family farms, large-scale farms, especially in seasons when fresh grass is not available.
As Biomass Fuel Pellets:
As a kind of agricultural waste, grass can made into pellets by RICHI Hay Feed Maker for biomass fuel. Compared to unprocessed fuels such as wood and straw, it has a high calorific value, burns with less smoke, and burns with less ash.
As Organic Fertilizer Granules:
Grass pellets can be used for gardening, it will be a slow release natural organic fertilizer. It will provide plants with an excellent source of nitrogen, trace minerals and alcohols. Grass and animal manure can also be composted and fermented together, and then made into organic fertilizer granules through the RICHI organic fertilizer granulator.
Other:
Grass pellets can also be used as horse bedding material. It will absorb water to keep the stables dry, which can then be collected along with horse manure as organic fertilizer. Because of its natural aroma and water absorption, some people also use grass pellet as one of the components of cat litter.
As a kind of agricultural waste, grass can made into pellets by RICHI Hay Feed Maker for biomass fuel. Compared to unprocessed fuels such as wood and straw, it has a high calorific value, burns with less smoke, and burns with less ash.
As Organic Fertilizer Granules:
Grass pellets can be used for gardening, it will be a slow release natural organic fertilizer. It will provide plants with an excellent source of nitrogen, trace minerals and alcohols. Grass and animal manure can also be composted and fermented together, and then made into organic fertilizer granules through the RICHI organic fertilizer granulator.
Other:
Grass pellets can also be used as horse bedding material. It will absorb water to keep the stables dry, which can then be collected along with horse manure as organic fertilizer. Because of its natural aroma and water absorption, some people also use grass pellet as one of the components of cat litter.

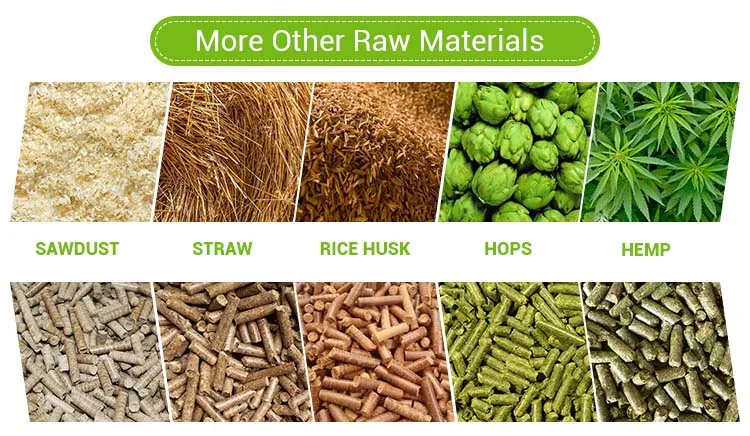

What Other Raw Materials Can The RICHI Hay Feed Maker Process?
As a multifunctional pellet machine, RICHI Hay Feed Maker can also make forestry wastes such as wood logs, branches, etc. into wood pellets, agricultural wastes such as straw, hay, rice husks, grass, hemp, etc. into pellets, the cow dung, chicken dung, sheep dung and other animal manures into organic fertilizer pellets.
Technical Parameters
Technical Parameters Of RICHI Hay Feed Maker: | ||||||||||||
Model | Power (kW) | Capacity (T/H) | ||||||||||
Main Motor | Anti-caking Feeder | Forced Feeder | Wood Sawdust | Hay, Straw, Grass etc | Organic Fertilizer | |||||||
MZLH-320 | 22 | 1.5 | 0.55 | 0.3-0.4 | 1-4 | 1-2 | ||||||
MZLH-350 | 37 | 1.5 | 0.55 | 0.5-0.7 | 1-6 | 3-4 | ||||||
MZLH-420 | 90 | 1.5 | 0.55 | 1-1.2 | 2-10 | 5-6 | ||||||
MZLH-520 | 132 | 2.2 | 0.75 | 2-2.5 | 3-15 | 7-8 | ||||||
MZLH-768 | 250 | 3 | 1 | 2.5-4 | 4-30 | 9-10 | ||||||
MZLH-858 | 280 | 3 | 1 | 3-4.5 | 5-40 | 10-12 | ||||||
Notes:
1. RICHI will customize the machine for you according to the type, state, and final pellet requirements of your raw materials.
2. By customizing the ring-molded hole diameter, the diameter of the final grass pellets can be customized according to your needs.
3. RICHI can provide 1 T/H ~ 100 T/H customized turnkey grass pellet production line engineering.
4. If you want to get more detailed parameters, please contact RICHI for catalogue.

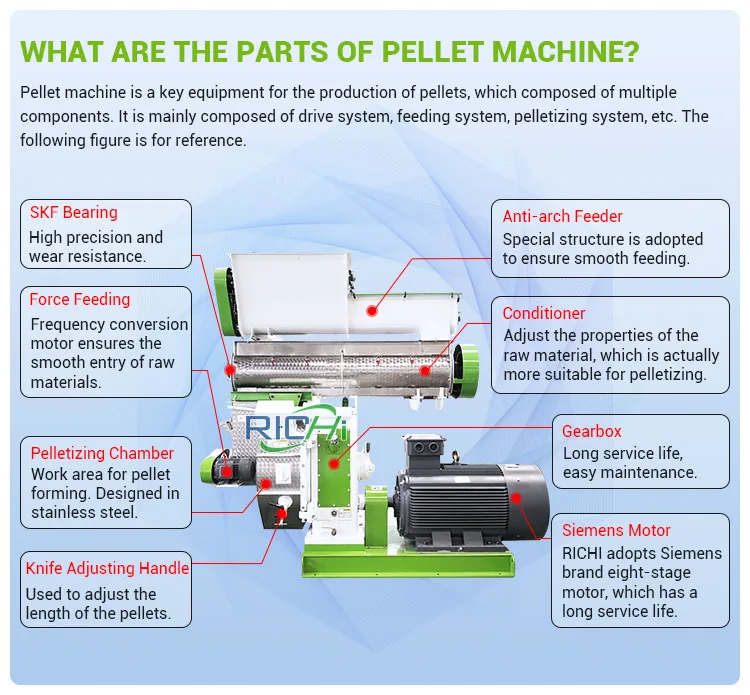

Structural Features
RICHI always takes product quality as the first priority. Reasonable and mature design of horizontal ring die type pellet making machine ensures the effectiveness and stability of the pelletizing process.
Below are some special designs and features of the RICHI Hay Feed Maker to make the production of grass pellets more convenient.

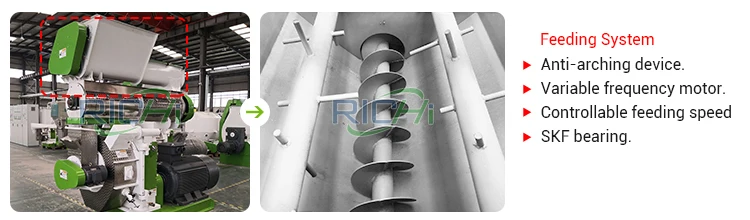

Adjustable Speed Anti-Arching Feeder :
The feeder is the first part where the raw material comes into contact with the pellet machine. The feeder of the RICHI Hay Feed Maker is equipped with a variable frequency motor, which allows the feeding speed to be controlled and prevents material jams.
In addition, there is an anti-arching device specially designed for dry grass powder inside the feeder, which can prevent lighter raw materials such as grass powder from accumulating in the feeding port. Make the feeding smoother.
In addition, there is an anti-arching device specially designed for dry grass powder inside the feeder, which can prevent lighter raw materials such as grass powder from accumulating in the feeding port. Make the feeding smoother.

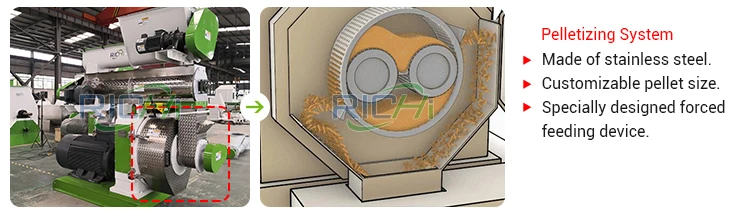

RICHI Hay Feed Maker's Pelletizing System:
· Stainless Steel:

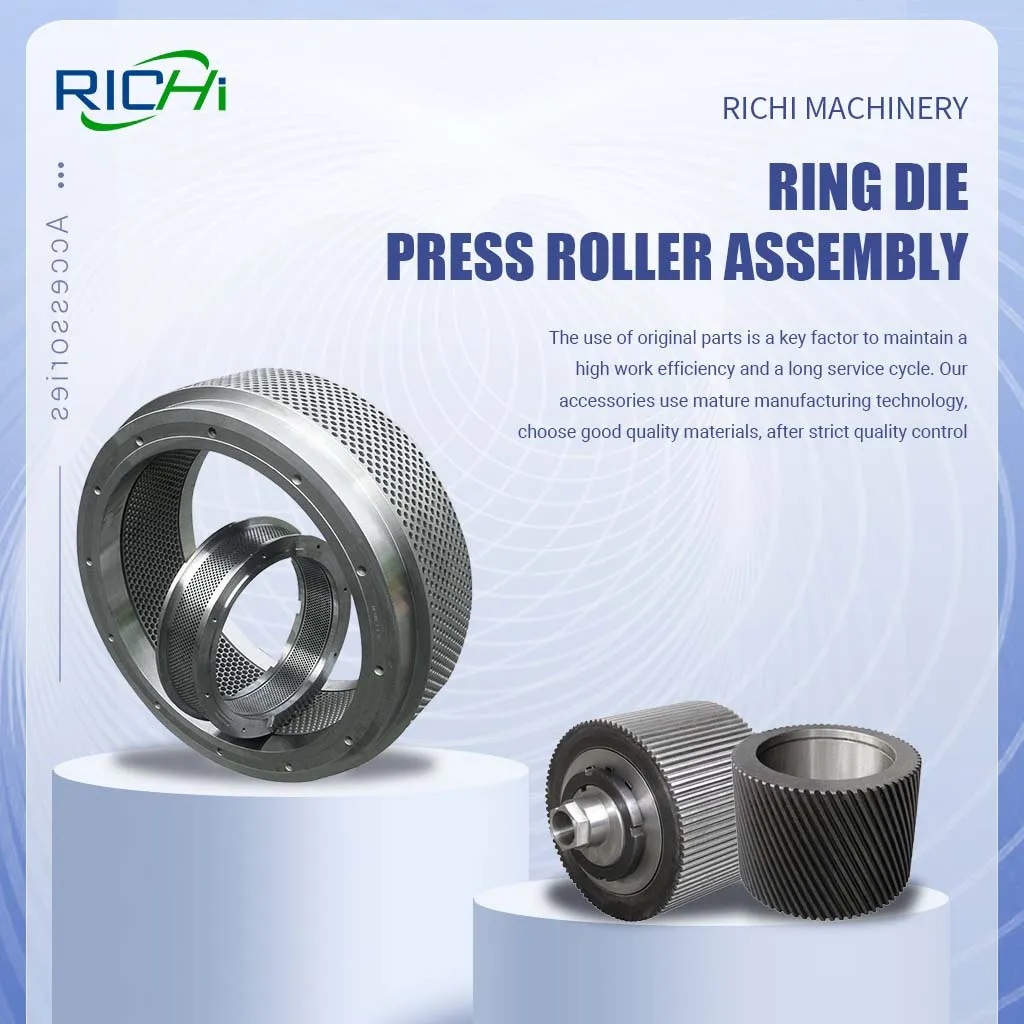

The pelletizing chamber, ring die, and pressure roller made of stainless steel and alloy steel ensure that it can work stably for a long time in the humid environment during the grass pelletizing process.· Customizable and Adjustable:
By changing the ring die with different hole diameters, pellets of different diameters can be produced. By adjusting the cutter adjustment handle, the length of the pellets can be controlled. Thus, you can get the diameter and length of the pellets you want.
· Efficient：
Equipped with a forced feeder designed for lighter raw materials such as grass, it is located in front of the pelletizing chamber. In this way, the grass powder can enter the granulation chamber more smoothly.
Equipped with a ring die lifter, it is more convenient to quickly replace the ring die, which will play a great role in the need to produce pellets of different diameters.

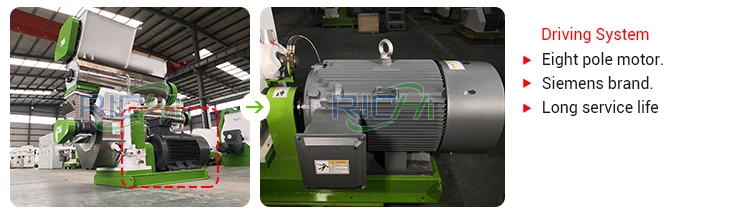

Using Siemens Motor as The Main Motor:
The combination of Siemens motor and gear reducer ensures long-term effective and stable operation of the RICHI Hay Feed Maker. The gearbox does not require maintenance, only the mechanical oil needs to be changed regularly.

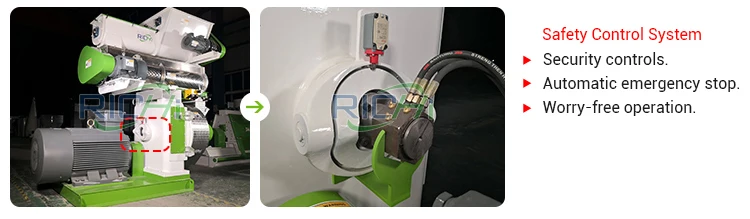

Automatic Emergency Stop Safety System:
The RICHI Hay Feed Maker is equipped with a unique automatic safety control system. Once there are relatively hard impurities such as small iron blocks and small stones entering the pelletizing chamber with the raw materials, the machine will automatically stop in an emergency to protect the pressing roller and ring die.

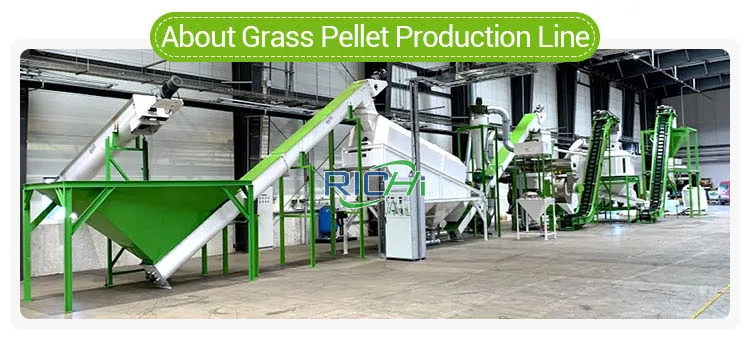

About Grass Pellet Line
Why Do We Need a Complete Grass Pellet Production Line?
If your raw material is a round or square grass bale with very high moisture content, we need to break it open and crush it first, then dry it to the right moisture before pelletizing. If you want to put grass pellets on the market, you also need a fully automatic weighing and packing system to improve work efficiency.
Here are some simple introductions of the main machines in grass pellet line:

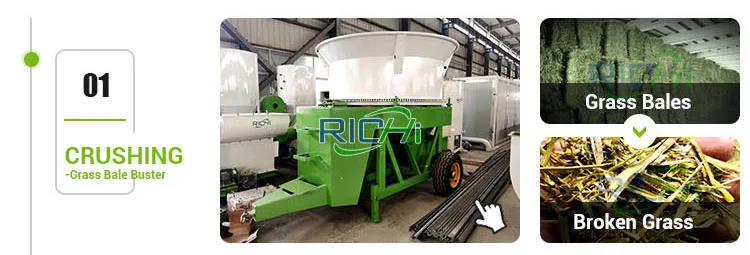

Grass Bale Buster:
Grass Bale Buster is used to break the grass bale. It doesn't matter if it's round or square. It all works fine. It can also handle straw bales, alfalfa bales, etc.

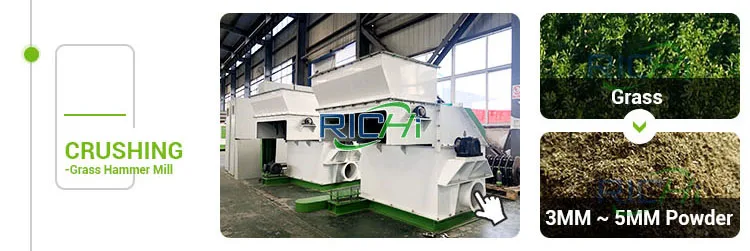

Grass Hammer Mill:
Grass Hammer Mill is used to crush grass into grass powder/meal of 3~5mm, this size will be beneficial to be made into pellets by RICHI Hay Feed Maker.
Equipped with a rotating feeding grapple device, to ensure that the grass can enter the crushing chamber smoothly.

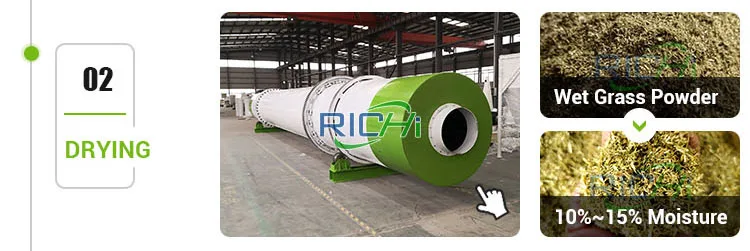

Grass Dryer :
The crushed grass powder will still have a higher moisture content. Through a Rotary Drum Type Dryer, the grass powder can be efficiently and quickly dried to the appropriate moisture, about 10%~15%.

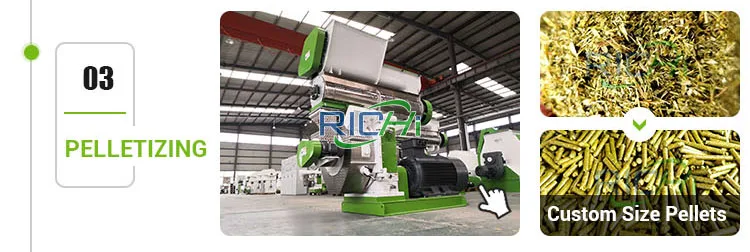

RICHI Hay Feed Maker:
As the core machine in the grass pellet production line. The quality of the Hay Feed Maker will directly affect the quality of the pellets. RICHI will test and adjust each machine before it leaves our factory to ensure that each machine is as perfect as possible when it is delivered to the customer.

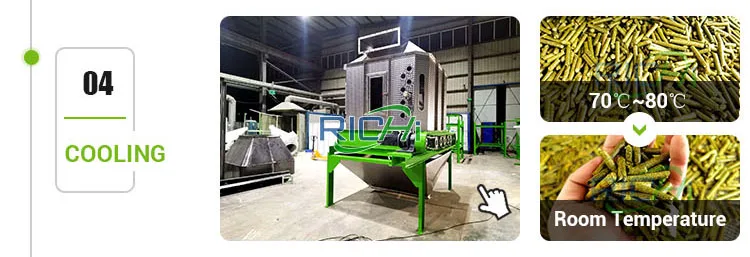

Grass Pellet Cooler:
To cooling the pellets to room temperature. The hardness of the pellets will become stronger. So as to obtain better hardness and strength. It can also improve transportation capacity and storage capacity. All stainless steel coolers are available.

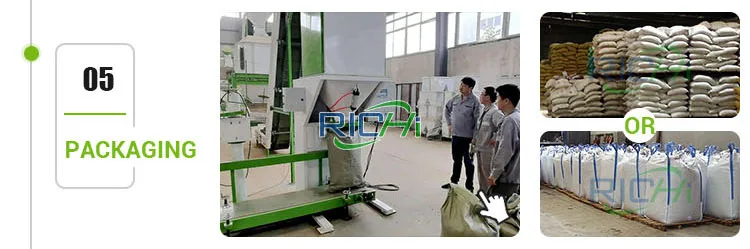

Automatic Pellet Packaging Machine:
The pellets are packed into bag from 10 kg to 100 kg or 1 ton .Then use thermoplastic sealing machine to sew, these can make the pellets dry and water-proof . To extend the pellets storage time. The whole process can be done automatically, saving manpower.
Project Cases

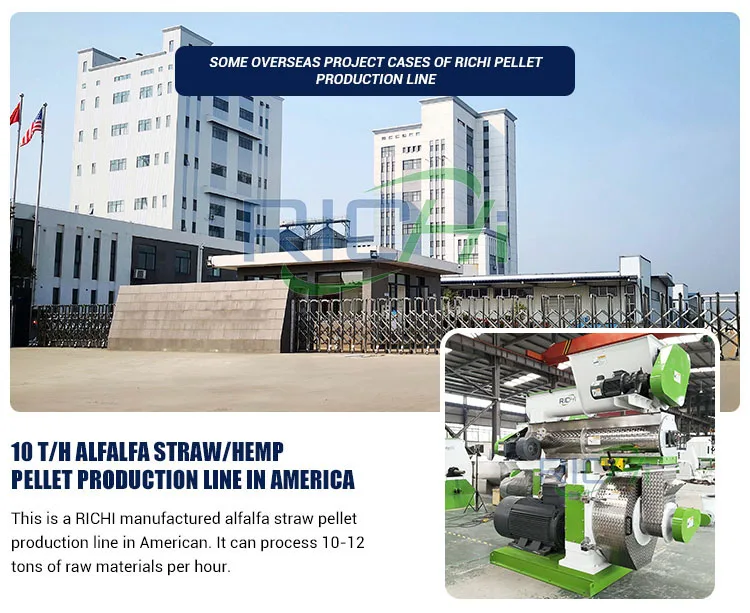

10 T/H Alfalfa Straw Hemp Pellet Production Line In America:
This is an agricultural waste pellet production line produced by RICHI, and its raw materials are alfalfa grass, straw and hemp waste. Mainly used as cattle feed pellets. Customers sell most of the pellets in the market, and a small portion is used to feed dairy and beef cattle on their own farms.

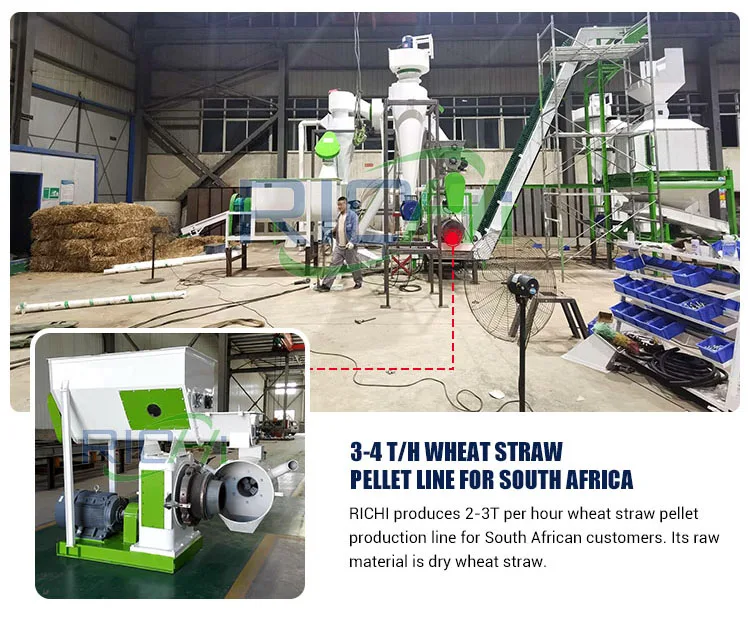

3-4 T/H Alfalfa And Wheat Straw Pellet Production Line For South Africa:
This line was designed and manufactured for South African customers. Mainly used to make wheat straw pellets and alfalfa grass pellets for animal feed. At the same time, the pellets will be exported to Europe for biomass fuel.
About RICHI
More About RICHI:
1. Headquartered in Zhengzhou of central China's Henan Province, RICHI Machinery is an industrial group mainly specialized in feed pellet machinery, and also covers some other strategic businesses such as biomass pellet machinery, organic fertilizer pellet machinery, parts and components, and so on.
2. RICHI owns a sound sales system and complete sales service network, and its products are sold all over the country and overseas in more than 132 countries and regions. At present, the international strategy is implemented stably, Richi has 21 overseas agents, as well as 1 overseas subsidiary in Uzbekistan.
3. In the future, RICHI will always strive to enhance its core technology and international competitiveness to become a sustainable machinery manufacturer.
2. RICHI owns a sound sales system and complete sales service network, and its products are sold all over the country and overseas in more than 132 countries and regions. At present, the international strategy is implemented stably, Richi has 21 overseas agents, as well as 1 overseas subsidiary in Uzbekistan.
3. In the future, RICHI will always strive to enhance its core technology and international competitiveness to become a sustainable machinery manufacturer.
Quality certifications:
With the deep commitment towards quality, we bring forth products having impeccable standards. We perform production process with superior quality material and electrically advanced components. Tested on several parameters, our product-range ensures longer service life and eficient performance. Company has passed the ISO2008 quality management system certification, CE certicication etc.
Which Countries Are RICHI's Machines Exported To?
RICHI's products has exported to more than 132 countries such as America, Canada, Mexico, England, Russia, Uzbekistan, South Africa, Kenya, Tanznia, Algeria, Morocco, Sudan, Saudi Arabia, Australia, Malaysia, Indonesia, Philippines etc.
FAQ
Here are some frequently asked questions that you might be interested in:
We are a manufacturer, which has more than 27 years of experience in this industry.
Q: Where is your factory? Can I visit it?

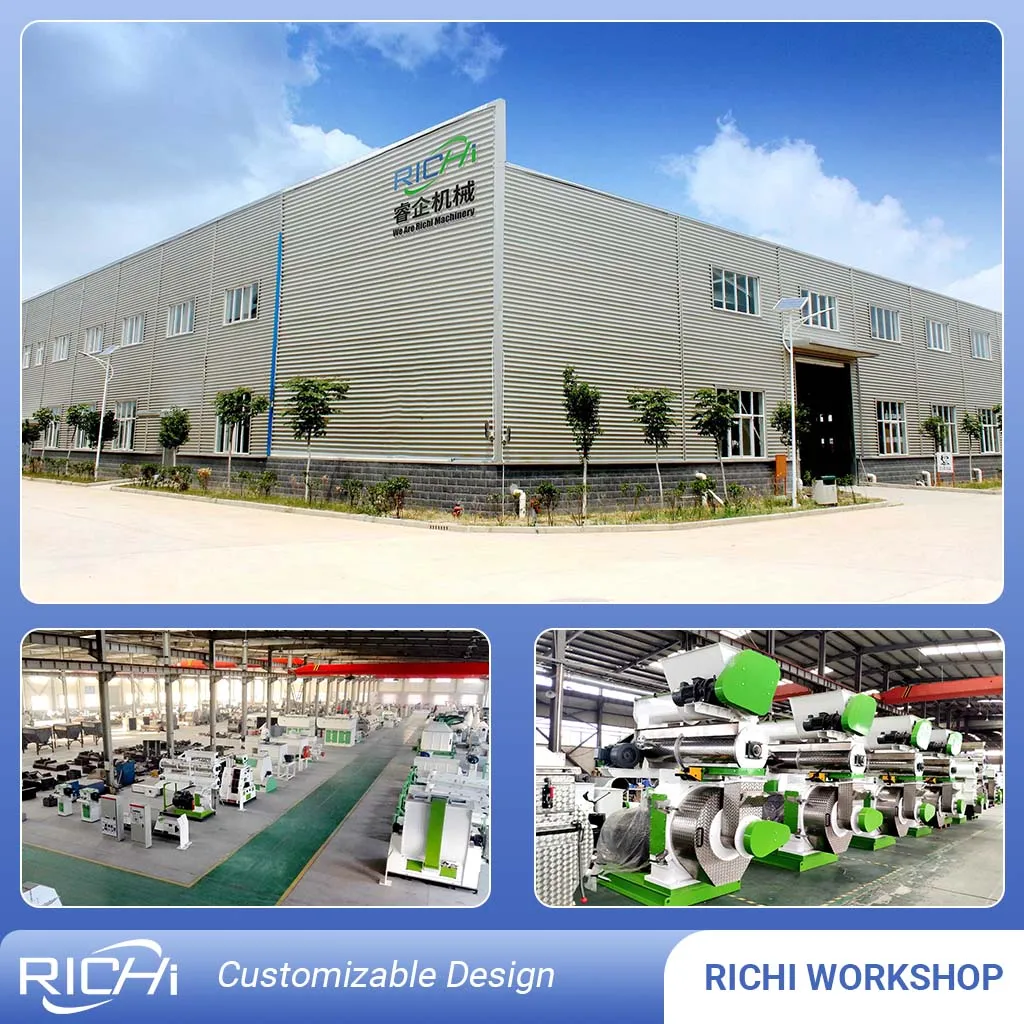

Of course, we welcome customers to visit our factory. RICHI's Factory located in Kaifeng City, Henan Province, China. RICHI's Technology Research and Development Center in Zhengzhou City, Henan Province, China.
Q: I know little about the pellet machines and pellet production line, how can I choose the most suitable machine?
Just tell us your raw materials, your capacity (t/h), and the size of the final pellet product, and we will select the machine for you according to your specific situation.
Q: What brand is your motor and bearing?
We use German Siemens motors and SKF brand bearings.
Q: Can I use this machine to produce multiple-size pellets?
Yes, RICHI can customize the pellet size for you.
Q: Our worker can not know how to operate the pellet machine, what should I do?
Our engineers will guide workers on-site on how to install machines and build workshops. Then our engineers will test run the production line on-site and train your workers on how to operate it.
Q: Do you provide after-sales service?
Yes, we provide a two-year warranty and after-sales service, including technical support, equipment maintenance, and spare parts services etc.
Q: How do I get more details, catalogs and quotations about your machine?
Just please leave your message in the text box below, and send an inquiry to RICHI.
Or click the "Contact Supplier" or "Chat Now" button to contact us online.
