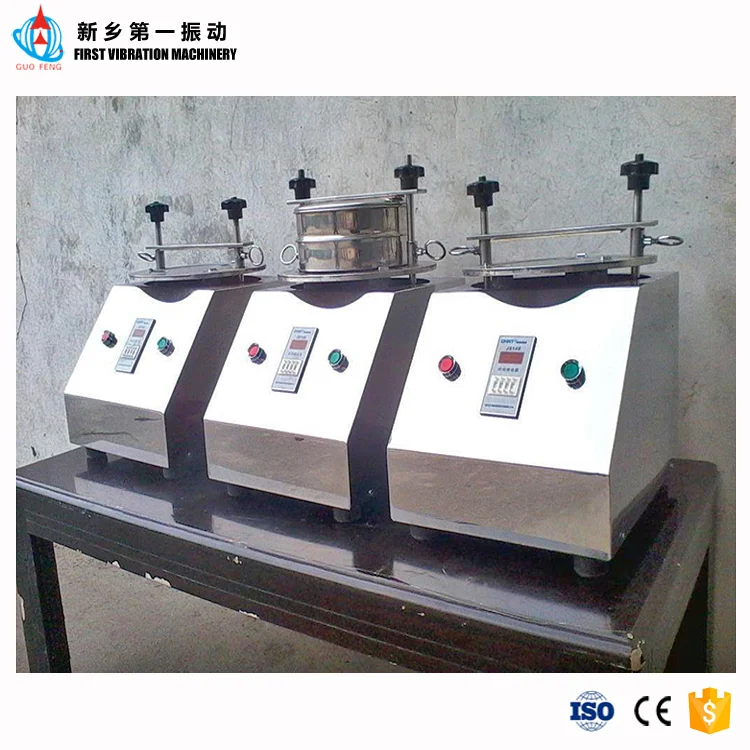

Molybdenum Powder Melon Seeds Vibrating Screen Circular Industrial Flour Sifter Test sieves shaker machine
- Category: >>>
- Supplier: Xinxiang First Vibration Machinery Factory Co. Ltd.
Share on (1601122374975):
Product Overview
Description
Product Description

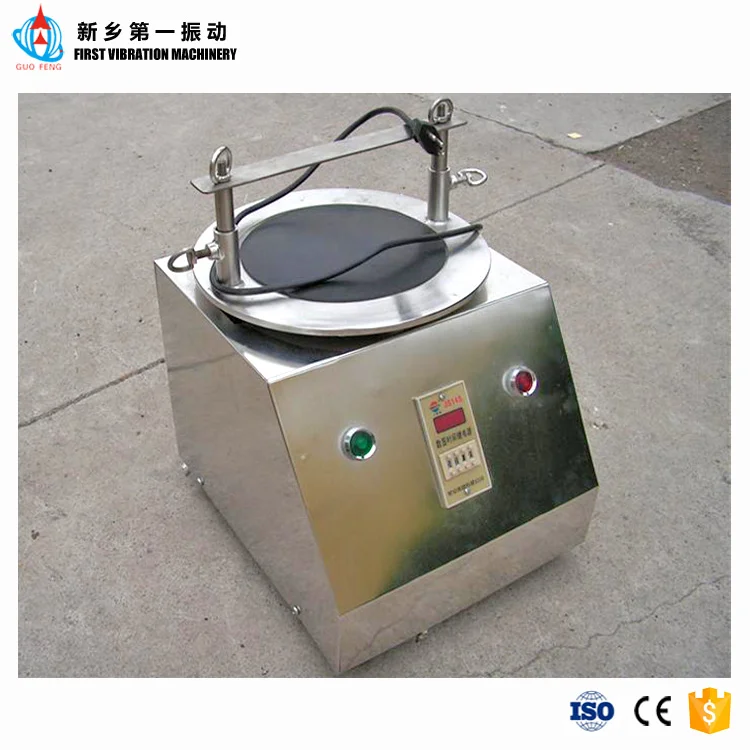

Lab test sieve is a high-tech fine powder grading equipment suitable for use in the laboratory.
It can be installed with 1 to 8 layers of sieve, and can decompose multiple samples for testing materials. With integrated circuit control, the amplitude, frequency and mode shape can be adjusted.
It can be installed with 1 to 8 layers of sieve, and can decompose multiple samples for testing materials. With integrated circuit control, the amplitude, frequency and mode shape can be adjusted.
Working Principles
ZS Lab Sieve adopts new type power generator that generates multivariate high-frequency vibration to sieve and filter samples efficiently.Meanwhile ,its standard screen makes sure sample analysis of high precision .At the same time,it uses upright motor as the source of vibration, The vertical motor, which is installed with eccentric hammers on the top and bottom, is regarded as vibratory source. The eccentric hammers change the track of rotation into horizontal, vertical and inclined movement, and then pass the movement to the sieving surface. Adjusting the phase angle between the top and bottom eccentric weight can change trajectories of the materials on the sieve.
Technical Parameter
Name | Unit | Date | ||
Layers | layer | 5 | 5 | |
Diameter | mm | 200 | 300 | |
Granularity | mm | 0.025-3 | 0.025-3 | |
Noise | dB | ≤50 | ≤50 | |
Input quantity (once) | g | ≤200 | ≤350 | |
Amplitude | mm | ≤5 | ≤5 | |
Motor Voltage | V | 220 | 220 | |
Motor Rotation speed | r/min | 1440 | 1400 | |
Motor Power | kw | 0.12 | 0.12 | |
Shape dimension | mm | 360*300*470 | 410*380*650 | |
Weight | kg | 42 | 45 | |

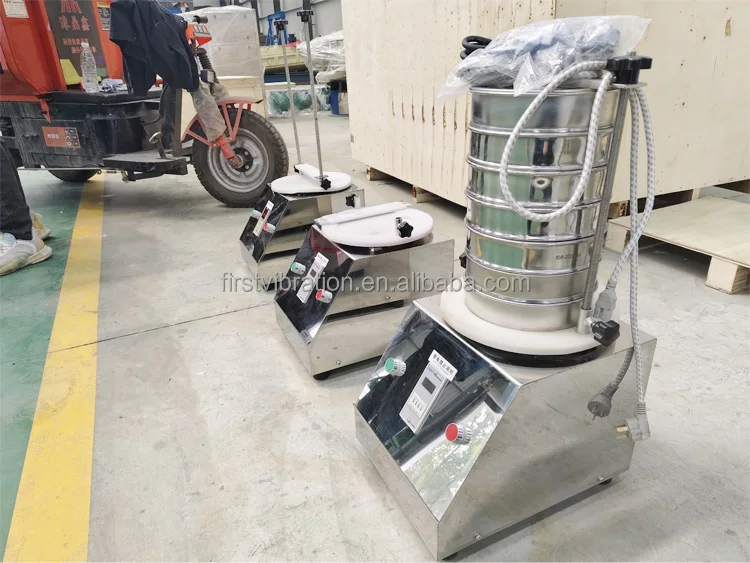

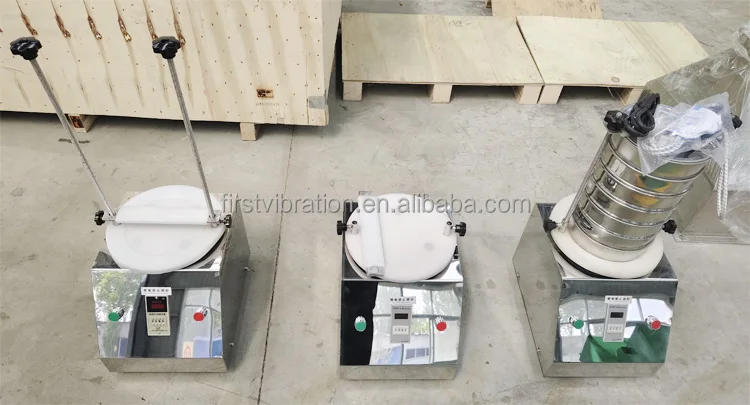

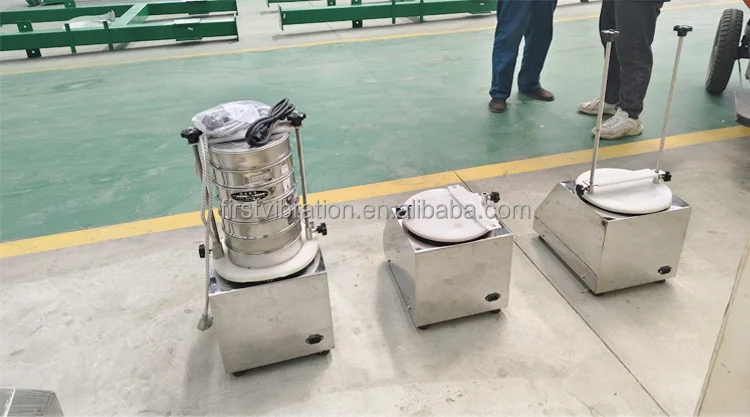

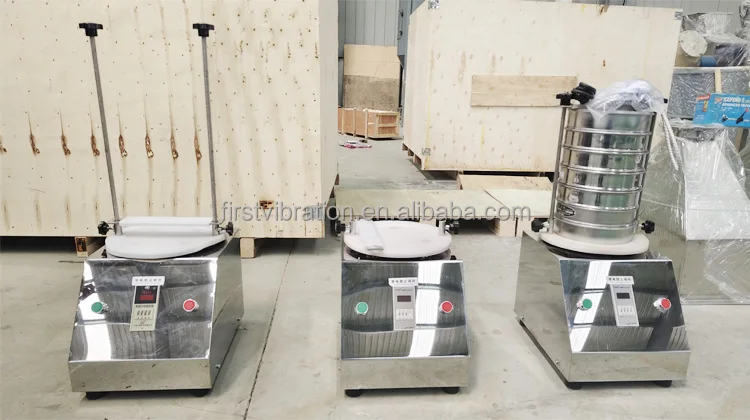

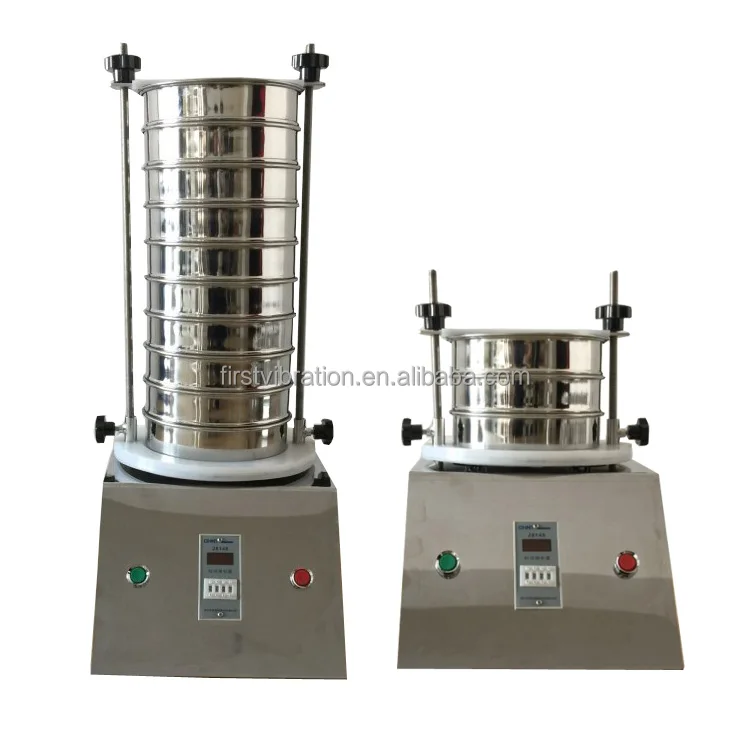

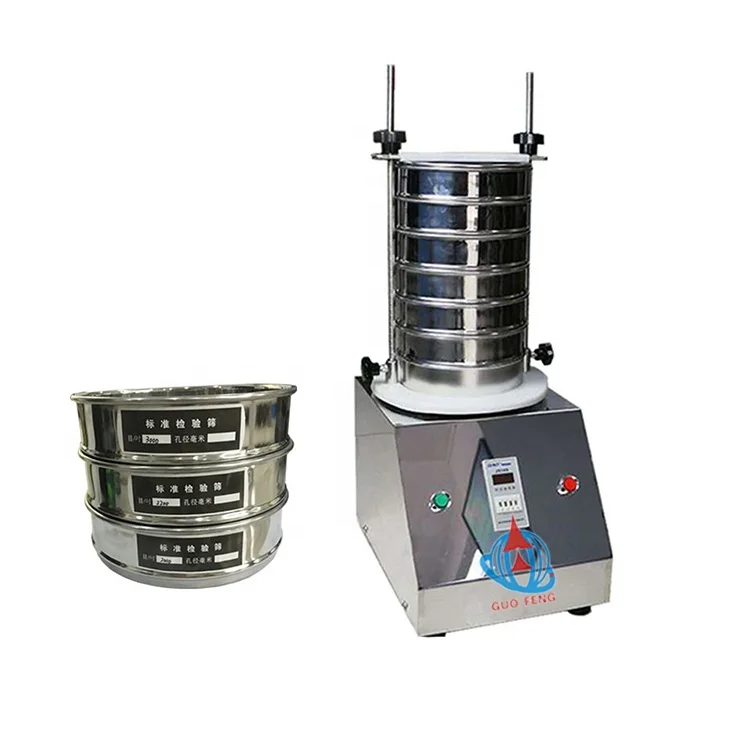

Product Show
Packing & Delivery
Company Profile
Xinxiang First Vibration Machinery Factory Co., Ltd is founded in Xinxiang city, Henan province in 1999, covering an area of 26000m2 including 12600m2 production workshop, 68 sets of processing equipment, 110 staffs that 42 senior engineers and professional technical staffs in vibrating machine industry. We are a professional manufacture engaged in research,customer,production and sales services with the registered capital 9.6 million Yuan. We are committed in solving all kinds of sieving and conveying problems of various materials and design a complete set of production line. We are always insisting strict quality control and customer service.
Our company has developed and produced more than 100 kinds of products, providing customers with a full rage of materials handlingsolutions. Now our main products include vibrating screen, crusher, milling equipment,feeding machine, conveyor and elevator andmixing equipment, packing machines and dust collector, etc. We supply a lot of equipment to customers all over the world in metallurgy, chemical, mining, plastic, pharmacy, food, building materials and other industries.Our products has been exported to Britain, the USA, France, Spain, Bulgaria, Canada, Russia, Chile, Peru, Philippines, Australia,Vietnam, India, Kazakhstan, South Africa and other 30 countries and regions.
Our company has developed and produced more than 100 kinds of products, providing customers with a full rage of materials handlingsolutions. Now our main products include vibrating screen, crusher, milling equipment,feeding machine, conveyor and elevator andmixing equipment, packing machines and dust collector, etc. We supply a lot of equipment to customers all over the world in metallurgy, chemical, mining, plastic, pharmacy, food, building materials and other industries.Our products has been exported to Britain, the USA, France, Spain, Bulgaria, Canada, Russia, Chile, Peru, Philippines, Australia,Vietnam, India, Kazakhstan, South Africa and other 30 countries and regions.
FAQ
1.In order to provide you with right quotation and proper size of vibrating screen machine ,please tell us following
information:
What's the raw material____ you want to sieve?
What's the raw material density and water content?
How many layers screen mesh do you need?And what's mesh size each layer___ ____ ___?
How many capacity per hour do you need?____(t/h)
What is your country voltage, frequency,phase?_____
Which product material do you prefer?SUS304,SUS316 or carbon steel?
Other special requirements____.
2.How long is your warranty of vibrating screen?
We provide 12 months warranty after-sale.(except wearing parts,according to sieve mesh,bounce balls and sealing strip.
3.What is the quality of your products?
Our products have best quality in the manufacture,we have professional produce technology,and hard-working sale&servise team.we will do strict quality detection before shipping products,to ensure every product has best working performance. And our products passed CE,ISO,CCC,SGS certifications,exported to lots of countries,such as Russia,England,Australia,Bulguira,South Korea,USA,Indonesia,India,Ireal,Brazil,etc.
information:
What's the raw material____ you want to sieve?
What's the raw material density and water content?
How many layers screen mesh do you need?And what's mesh size each layer___ ____ ___?
How many capacity per hour do you need?____(t/h)
What is your country voltage, frequency,phase?_____
Which product material do you prefer?SUS304,SUS316 or carbon steel?
Other special requirements____.
2.How long is your warranty of vibrating screen?
We provide 12 months warranty after-sale.(except wearing parts,according to sieve mesh,bounce balls and sealing strip.
3.What is the quality of your products?
Our products have best quality in the manufacture,we have professional produce technology,and hard-working sale&servise team.we will do strict quality detection before shipping products,to ensure every product has best working performance. And our products passed CE,ISO,CCC,SGS certifications,exported to lots of countries,such as Russia,England,Australia,Bulguira,South Korea,USA,Indonesia,India,Ireal,Brazil,etc.
