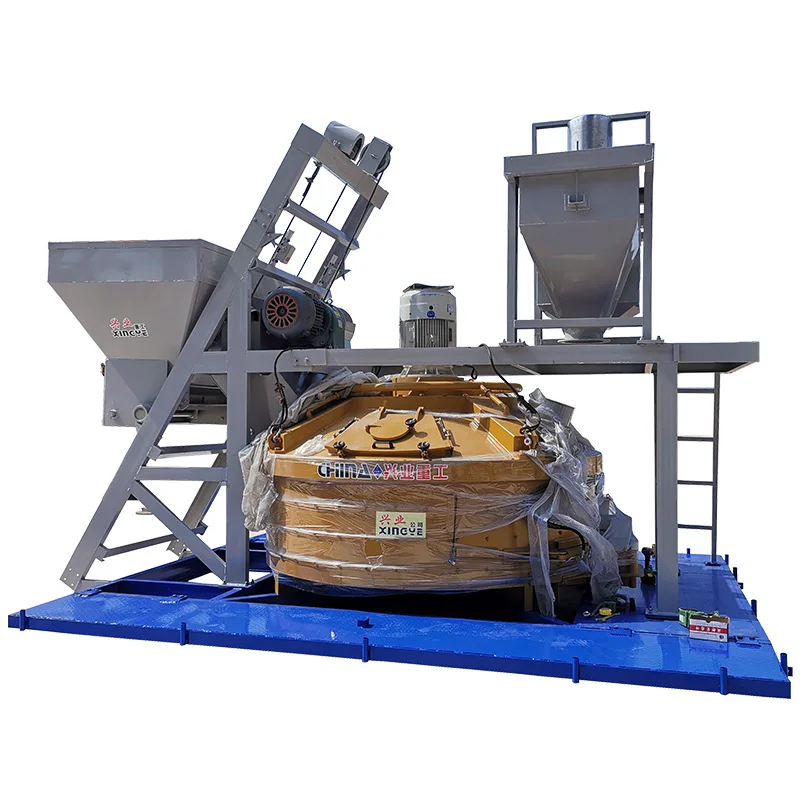

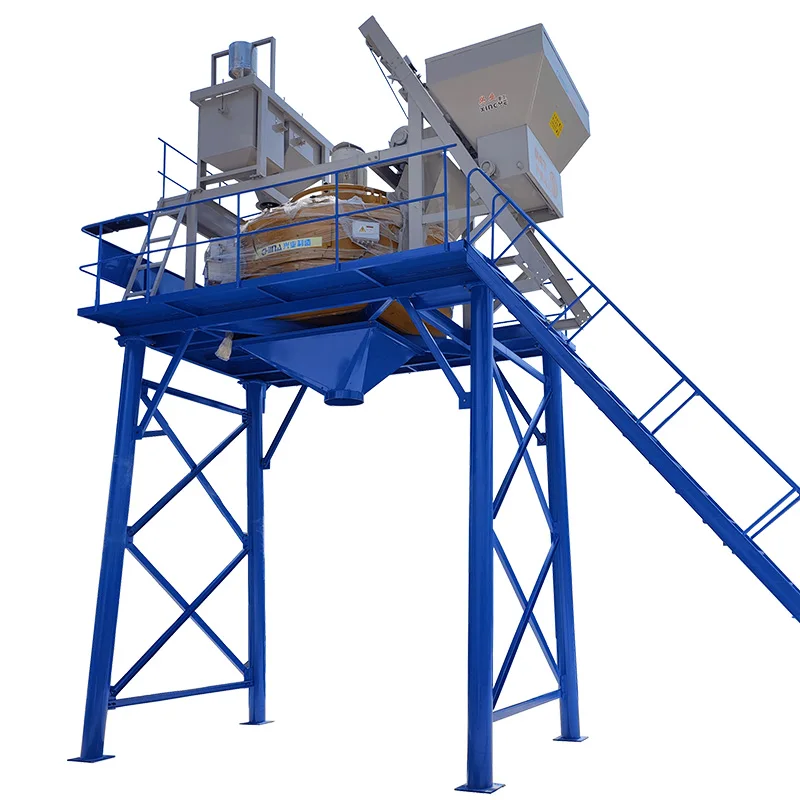

Vertical Shaft Concrete Mixer Machine 500 Liter Planetary Concrete Mixer Drum Cement Mixer
- Category: >>>
- Supplier: Ningdu Xingye Machinery Manufacturing Co. Ltd.
Share on (1601122485906):
Product Overview
Description
Product Description
Vertical Shaft Concrete Mixer Machine 500 Liter Planetary Concrete Mixer Drum Cement Mixer

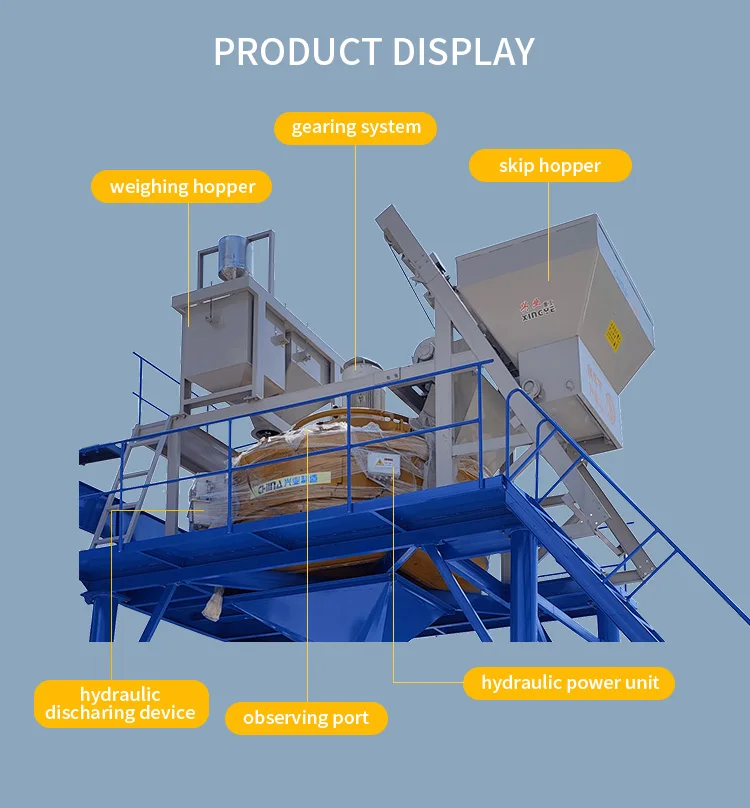

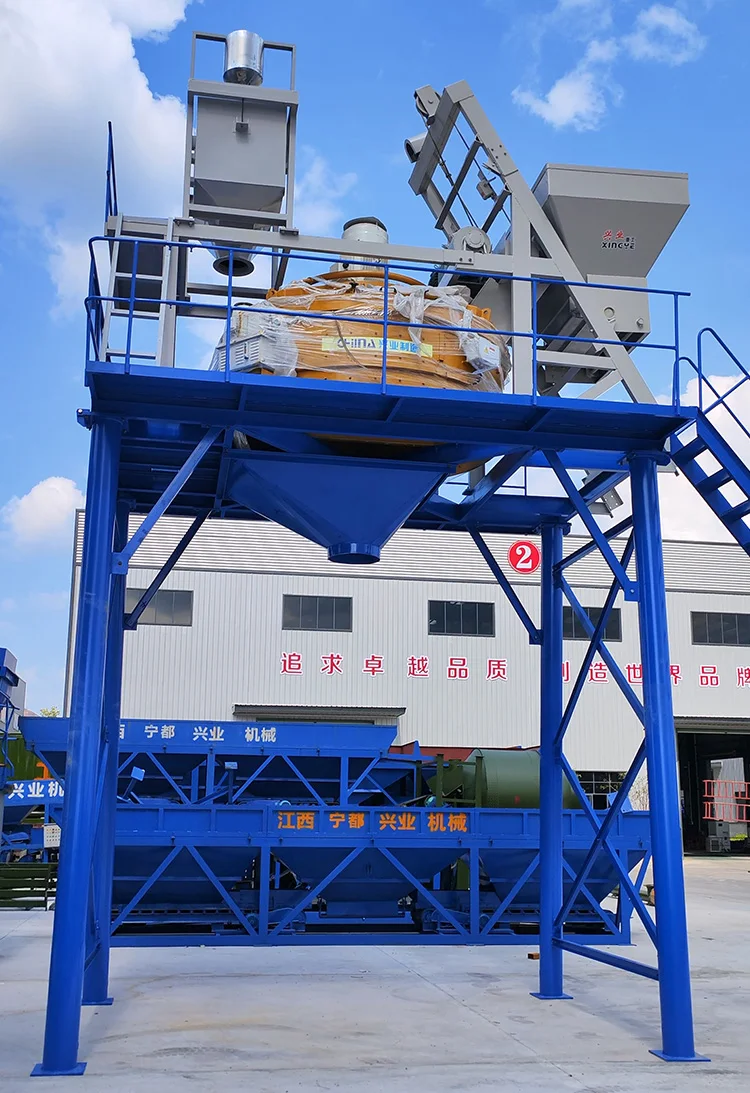

Planetary Concrete Mixer: weighing hopper, gearing system, skip hopper, hydraulic discharing device, observing port, hydraulic power unit.
Specification
Type | PMC500 | PMC750 | PMC1000 | PMC1250 | PMC1500 | PMC2000 | |
In capacity(L) | 750 | 1125 | 1500 | 1875 | 2250 | 3000 | |
Out capacity(L) | 500 | 750 | 1000 | 1250 | 1500 | 2000 | |
Out mass（kg） | 1800 | 2400 | 3000 | 3600 | 4800 | 6000 | |
Mixing power(kw) | 18.5 | 30 | 37 | 45 | 55 | 75 | |
Discharging power(kw) | Pneumatic discharge (optional hydraulic) | 3 | 3 | 3 | 4 | ||
Planet/main planet(nr) | 1/2 | 1/3 | 2/4 | 2/4 | 2/4 | 3/6 | |
Paddle | 1 | 1 | 1 | 1 | 1 | 1 | |
Discharging paddle | 1 | 1 | 1 | 1 | 2 | 2 | |
Weight(kg) | 2400 | 3900 | 6200 | 6700 | 7700 | 9500 | |
Lifting power(kw) | 4 | 7.5 | 11 | 15 | 15 | 22 | |
Dimension(mm) | 2230x2080x1880 | 2580x2340x2195 | 2890x2602x2220 | 3060x2760x2305 | 3230x2902x2470 | 3625x3230x2630 | |
Packing and Delivery
Company Profile
Ningdu Xingye Machinery Manufacturing Co., Ltd.
is a concrete batching plant manufacturer with 15 years of professional production experience.
We are the only and largest concrete mixing plant manufacturer in Jiangxi.
The company has developed rapidly in recent years, and the new plant will be completed and put into production in May 2023, with a total area of 20,000 square meters.
We have a professional design team that can design various concrete mixing equipment for different customers.
At the same time, we also have a strict quality inspection team.
Excellent after-sales installation team makes our products exported to all over the world.
FAQ
Question 1: Are you factory or a trading company?
Answer: We are a factory dedicated in concrete batching plant over 15 years, all the supporting equipment are available, including but not limited to batching machine, Stabilized soil batching plant, cement silo, concrete mixers, screw conveyor, etc.
Answer: We are a factory dedicated in concrete batching plant over 15 years, all the supporting equipment are available, including but not limited to batching machine, Stabilized soil batching plant, cement silo, concrete mixers, screw conveyor, etc.
Answer: Just tell us the capacity (m3/day)of concrete you want to produce concrete per day or per month.
Question 3: What's your advantage?
Answer: Rich production experience, Excellent design team, Strict quality audit department, Strong after-sales installation team
Answer: Rich production experience, Excellent design team, Strict quality audit department, Strong after-sales installation team
Question 4: Do you supply training and after-sale service?
Answer: Yes, we will supply installation and training on site and also we have a professional service team that can solve all the problems ASAP.
Answer: Yes, we will supply installation and training on site and also we have a professional service team that can solve all the problems ASAP.
Question 5: What about the payment terms and incoterms?
Answer: We can accept T/T and L/C, 30% deposit, 70% balance before shipment.
EXW, FOB, CIF, CFR these are the common incoterms we operating.
Question 6: What about the delivery time?
Answer: Normally, the stock items can be send out in 1~2 days after receive the payment.
For customized product, the production time need about 7~15 working days.
Question 7: What about the warranty?
Answer: All of our machines can provide 12-months warranty.
