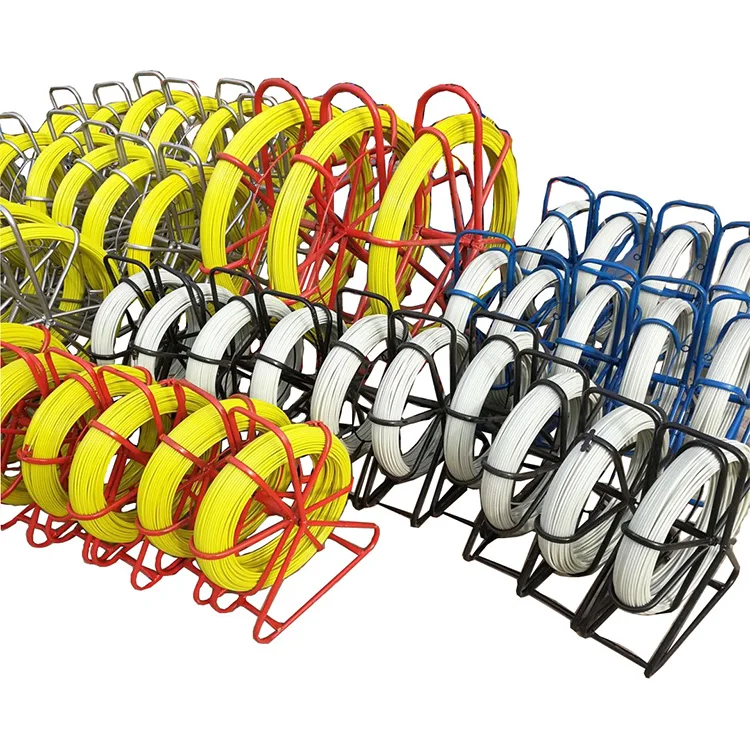

Factory price cable laying tools push pull rods conduit electric push rod fiberglass cables Duct Rodder
- Category: >>>
- Supplier: Hebei Hsiao Chau Trade Co. Ltd.
Share on (1601122520192):
Product Overview
Description
Factory price cable laying tools push pull rods conduit electric push rod fiberglass cables Duct Rodder

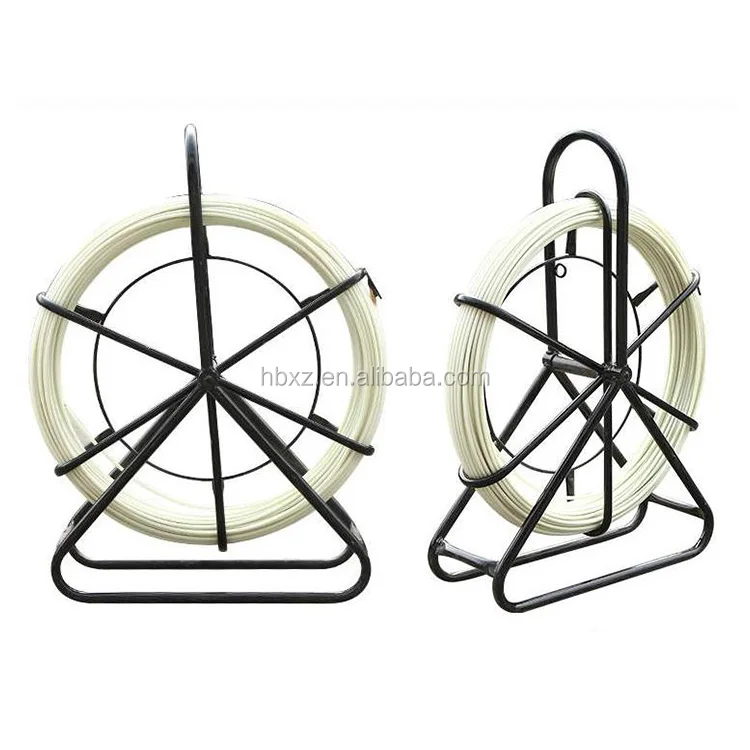

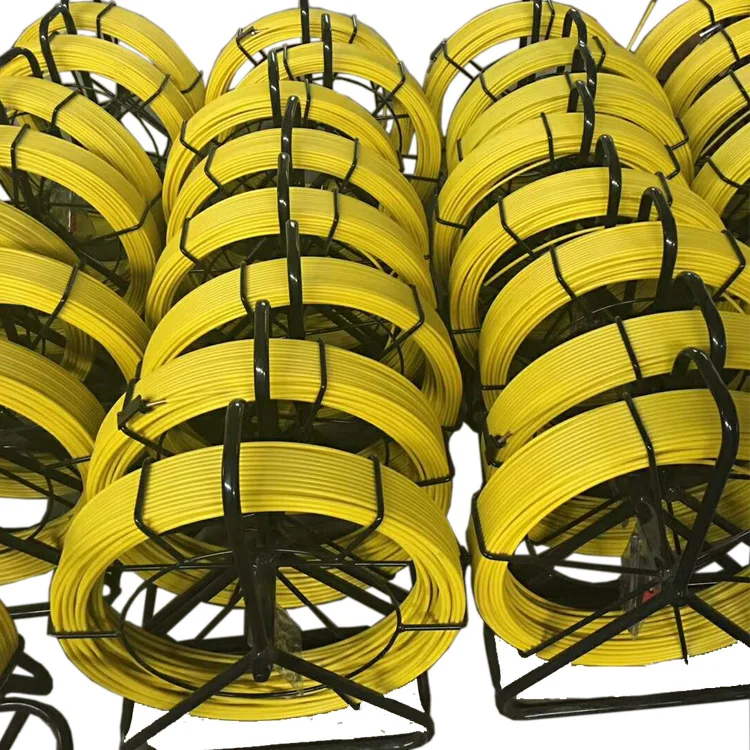

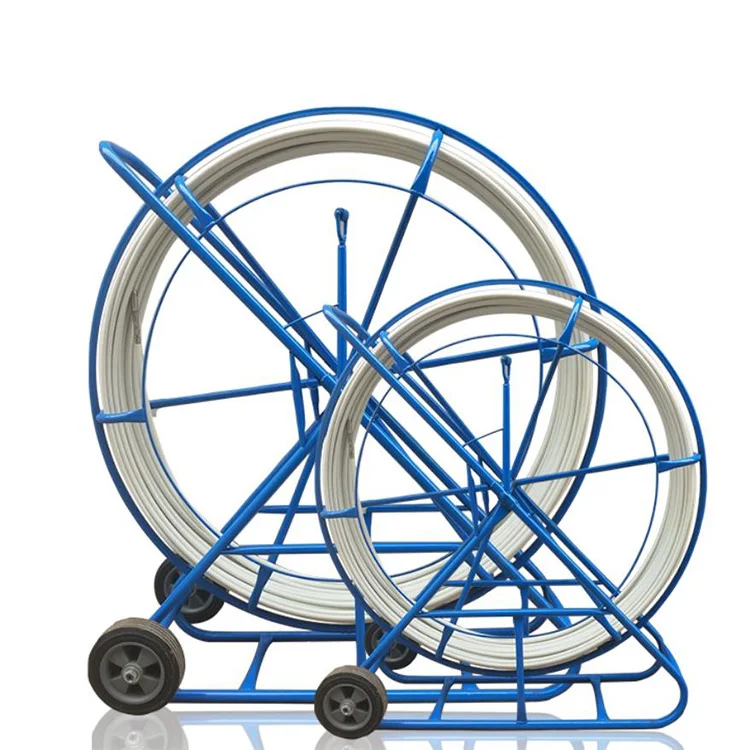

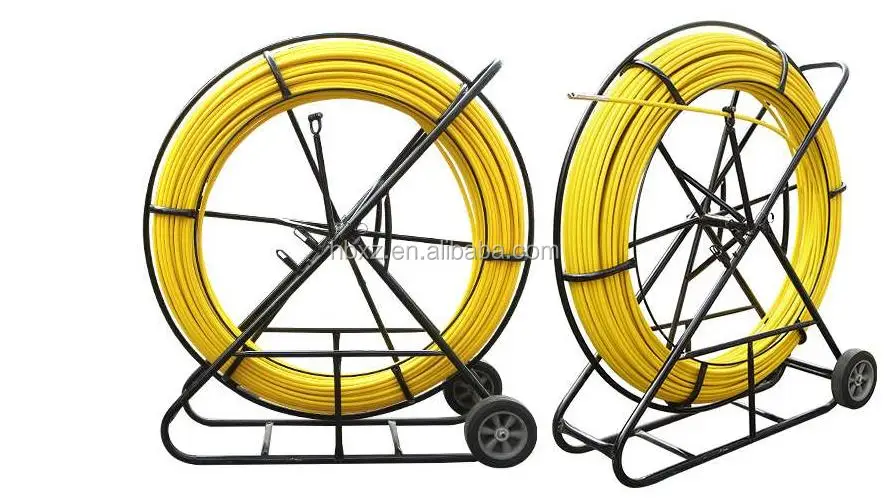

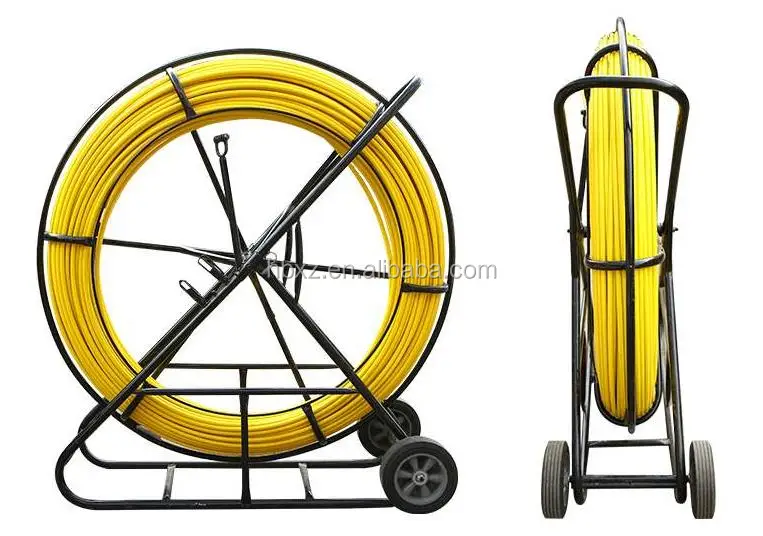

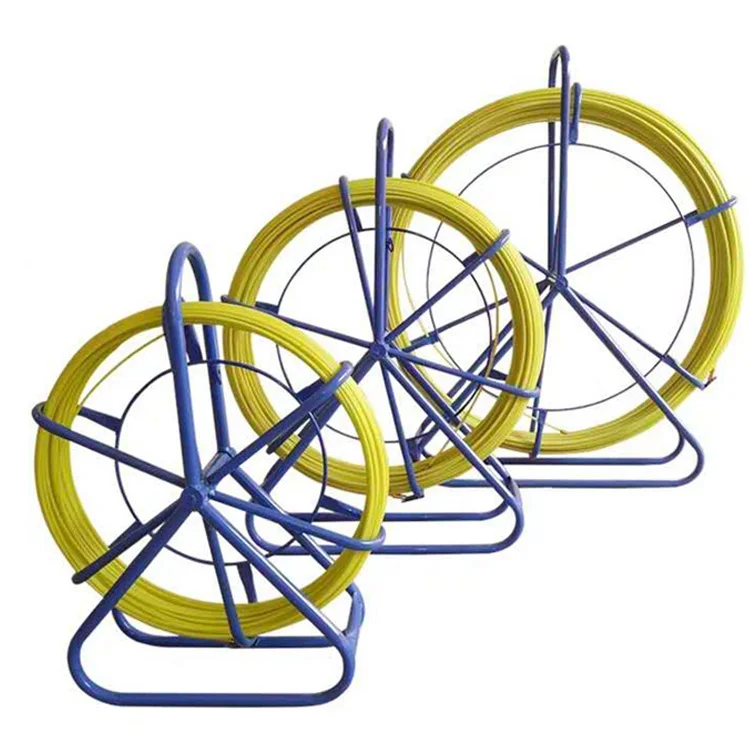

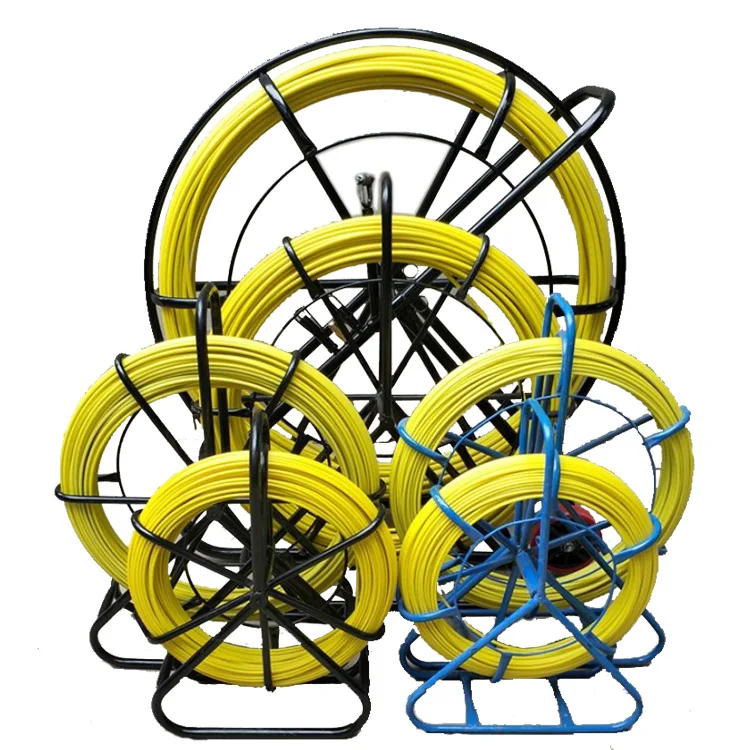

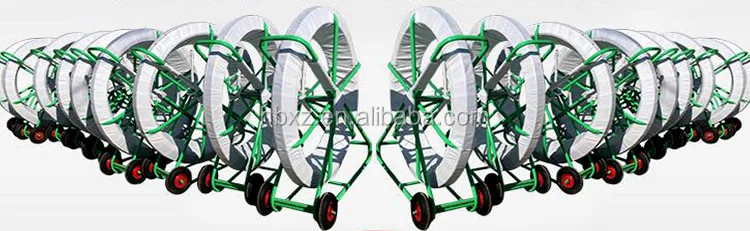

We specialized in an extensive range of fiberglass tools,contains 4.5mm/ 6mm portable tracing duct rodder,8mm/9mm/10mm/11mm/12mm/14mm/15mm/16mm/18mm wheeled traceable duct rodders.

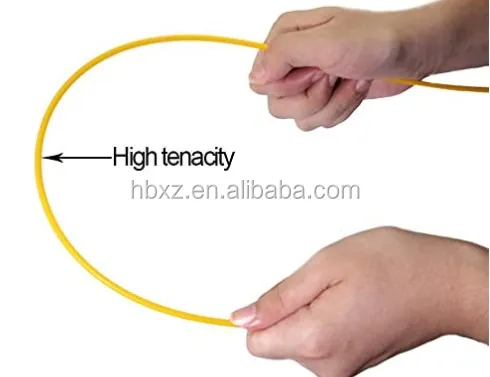

1.FRP duct rodder is commonly used for cable and wire laying in the conduit. With this excellent tool, you can easily thread the cable and wire through the conduit. It shows its strong high tensile strength and elasticity when doing the threading job.
2.Traceable Duct Rodder containing metal lines, can be used to detect equipment easily detect the direction of the pipeline, as well as the location of the Traceable Duct Rodder.
1.Description:Factory price cable laying tools push pull rods conduit electric push rod fiberglass cables Duct Rodder
2.Standard Lengths :100 meters,200 meters,300 meters,500 meter.customized.
3.Copper Trace: 0.6 mm copper trace wires
4.Features:Has copper trace for location/detection work.
5.Set Includes:Galvanized Frame,Guide Roller,Drawing head,Conduit rod grapple set.
3.Copper Trace: 0.6 mm copper trace wires
4.Features:Has copper trace for location/detection work.
5.Set Includes:Galvanized Frame,Guide Roller,Drawing head,Conduit rod grapple set.

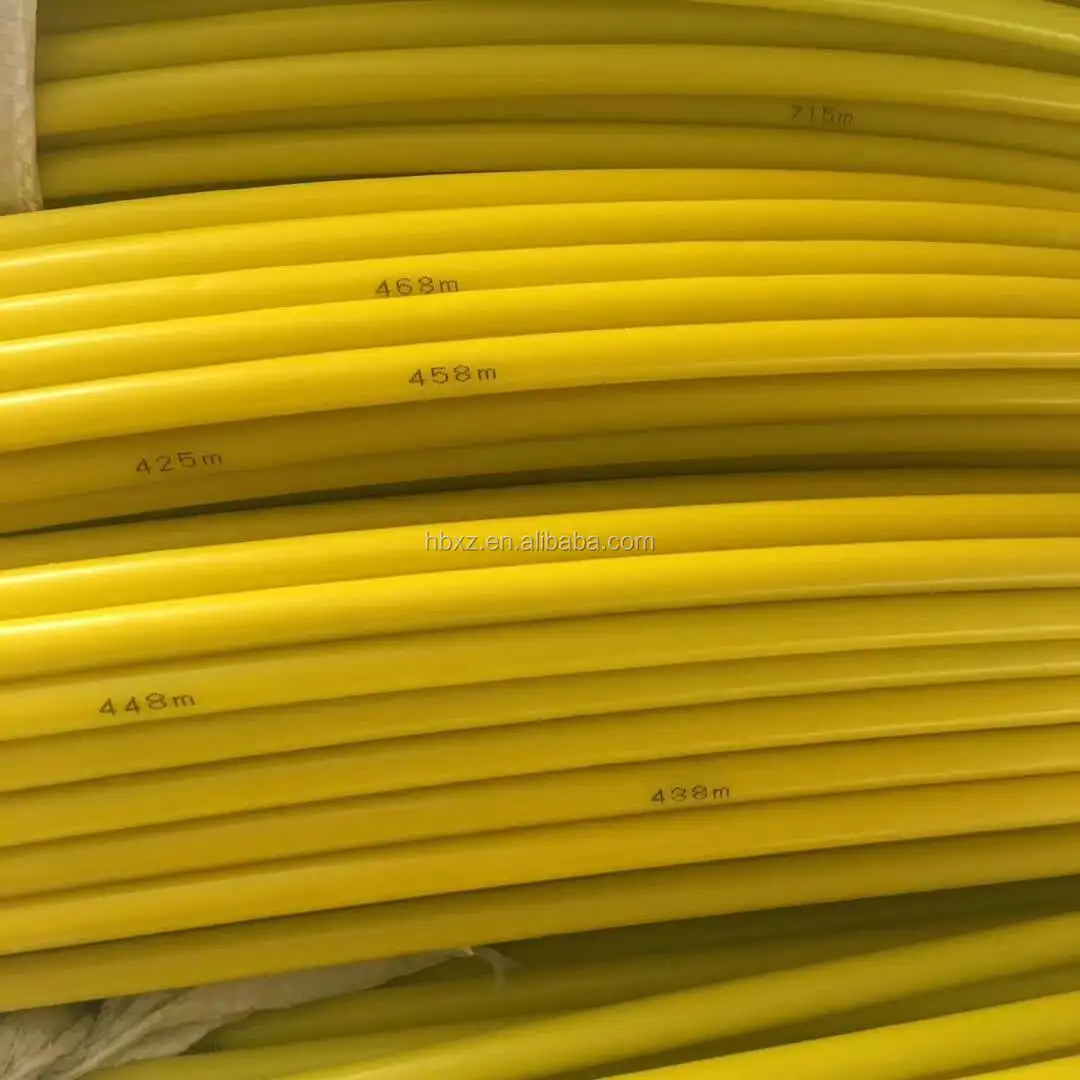

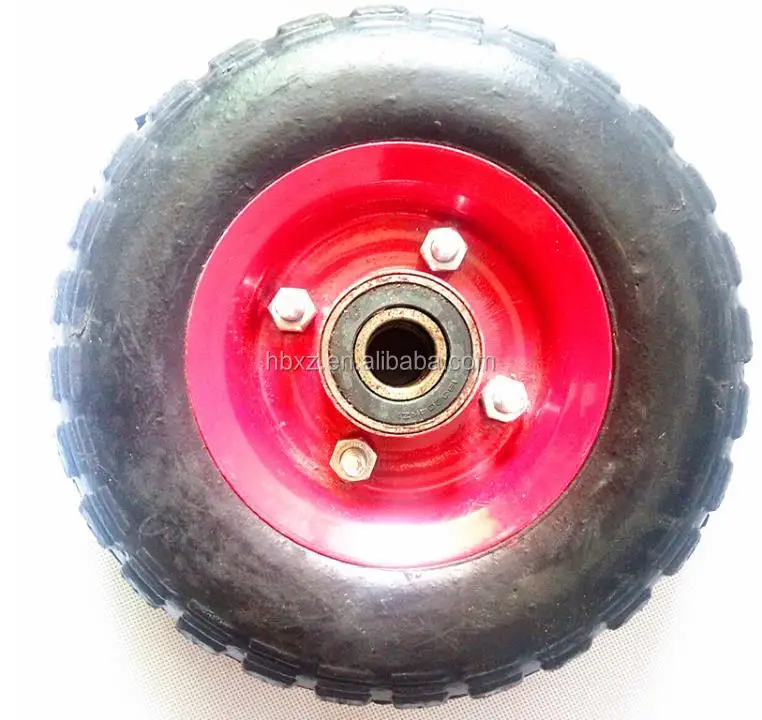

Our photographs are of the actual item for sale Everything included in the sale is photographed. High tension fiberglass rod. It comes loaded onto a reel,copper head,rubber wheels with high quality bearing, Great for home repair.
Specification | Rod Diameter (mm) | Φ4,Φ4.5,Φ5,Φ6,Φ8,Φ10,Φ11,Φ12,Φ13,Φ14,Φ15,Φ16,Φ18 | ||
Rod Length (m) | 30-500m | |||
Frame Spec.(mm) | 67cm*57cm*16cm,130cm*120cm*48cm | |||
Wheel Diameter(mm) | 300mm | |||
Wall thickness Metal Frame | 2.2mm | |||
Color | blue, yellow, red, white etc | |||
Material | Rod Inner | Extruded by fiber glass and high strength resin at high temperature | ||
Rod Outer | High Density ABS coating | |||
Iron Frame | Steel with high-temperature Spray coating or Galvanized | |||
Wheel | rubber | |||
Brake | Yes | |||
Drawing head | copper | |||
Physical Characters | Density | 55g/m | ||
Working temperature | -40°C to +80°C | |||
Breaking tension | 100kg | |||
Bending Radius | 295mm | |||
Technology | Pultrusion | |||
Packing | Inside | plastic woven strip wind around the frame | ||
Outside | Carton Wooden box | |||
Fibreglass cable rodder is ideal for all telecommunication and electrical cable laying applications.
Adjustable brake to control runout speed Using under square angel tube, please pay attention on the end of rod.Avoid to break the end of rod .
It has the advantages of time saving, labor saving, improved work efficiency, etc, and can be used for the cleaning and the optical cable, the cable and the plastic tube of the telecommunication pipeline.
Duct Rodders inner packed by plastic woven strip,outer can be packed by wooden box or carton.
Any questions, please contact us via trade message or email us.
We will reply your message within 24 hours.
We will always do our up most to exceed your expectations in customer service,communication and dispatching of your orders.
