Product Overview
Description

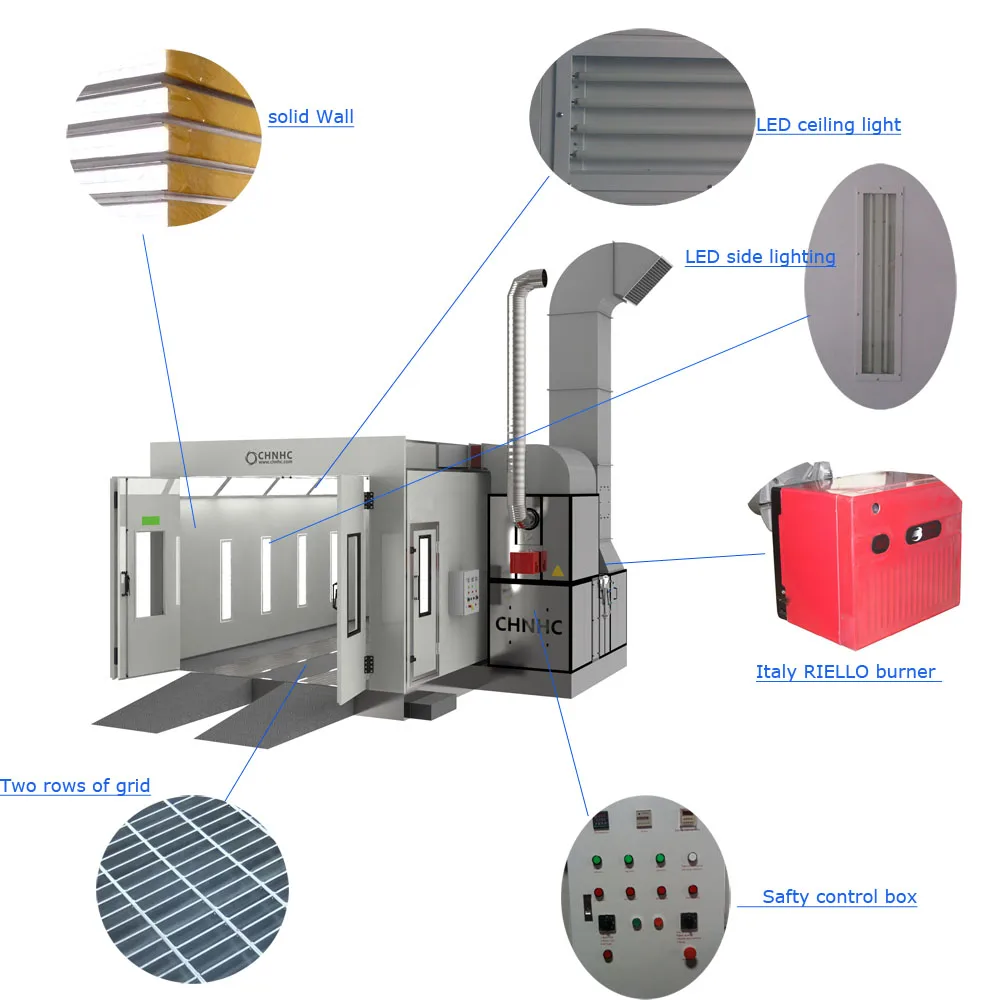

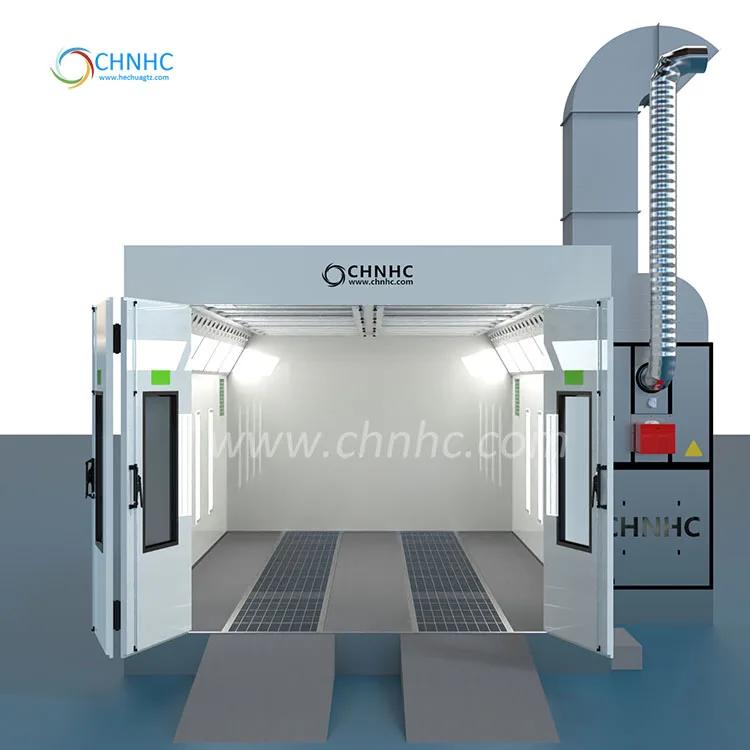

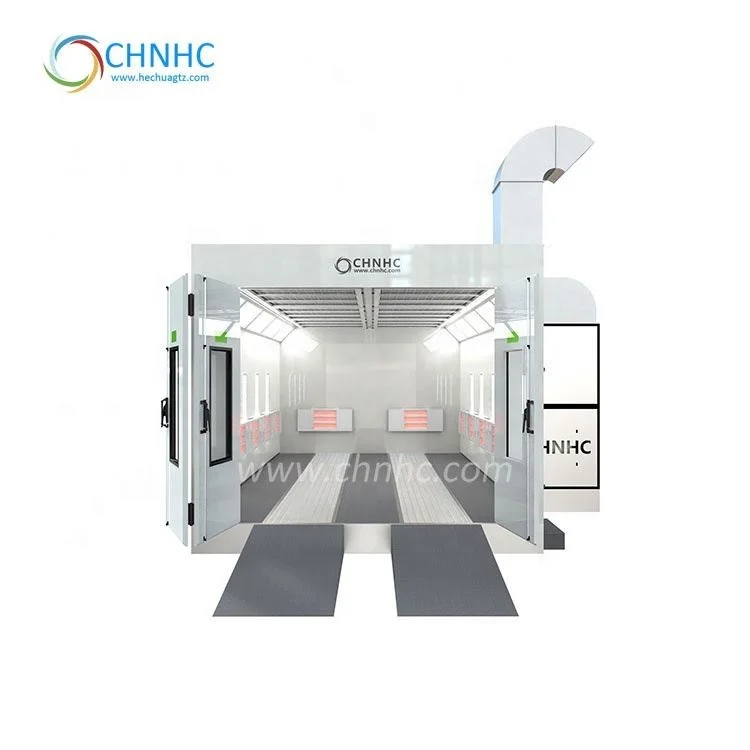

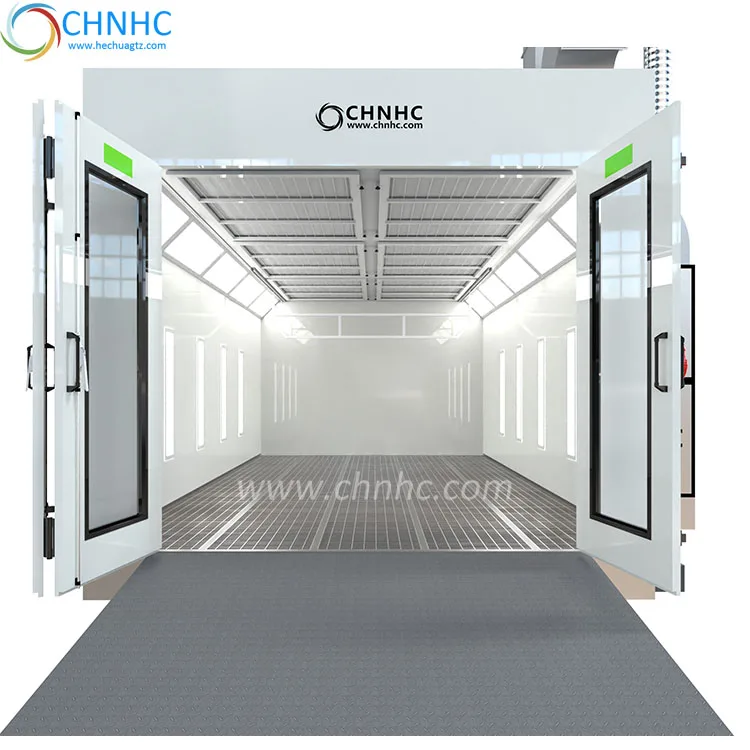

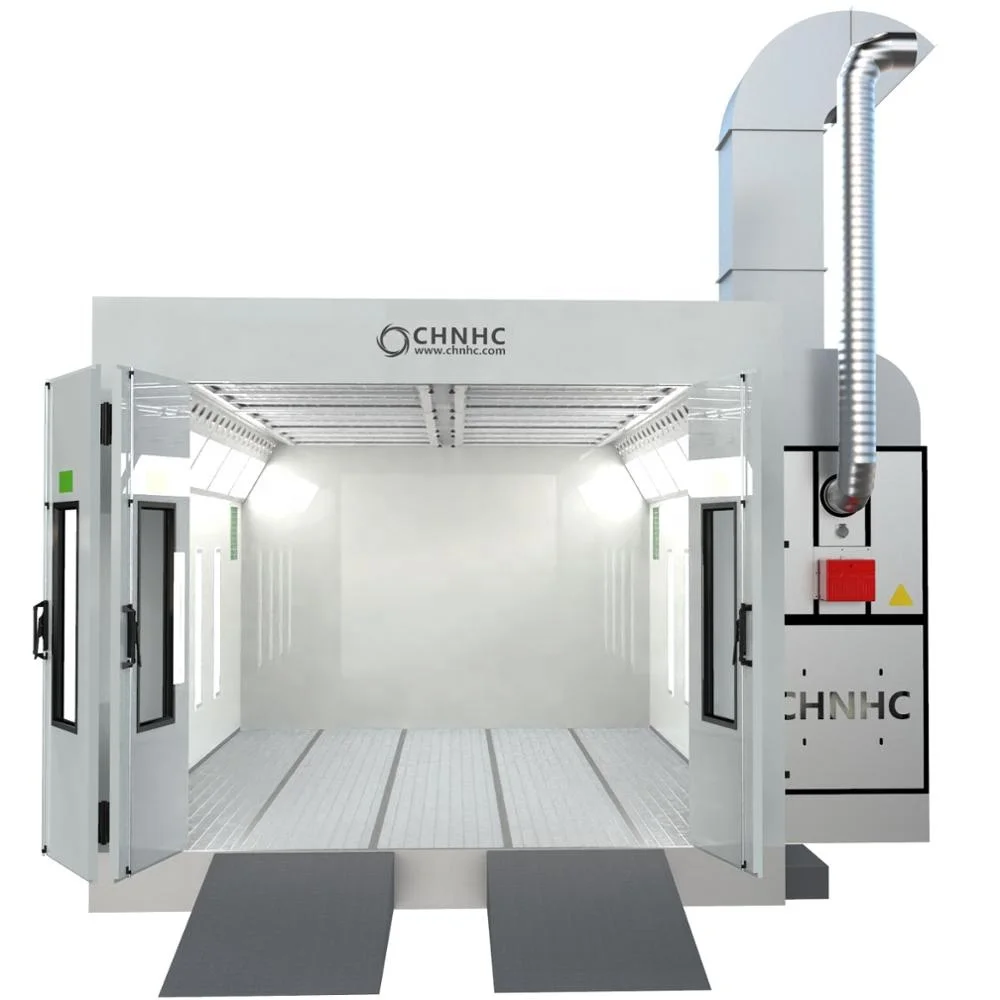

Full downdraught spray booth E603 (water based paint booth) | ||
Size (L x W x H) | Inside Size | 6900 x 4000 x 2800mm |
| Outside Size | 7010 x 6120 x 3610mm |
Foundation and Floor | Foundation | Full metal foundation, two rows flat steel grids and three rows metal non-slip diamond plates, grids’ capacity: 700KG/wheel (full grids as option) |
| Metal Basement | 350mm height, the ventilation effect is better than traditional spray booth |
| Drive-in Ramps | 2 units, each size: 2000x1000mm, diamond plate construction |
Wall and Door | Wallboard | Adopt high quality double construction fireproof insulation EPS panel, thickness: 50mm (rock wool panel as option) |
| Roof Panel | Adopt high quality double construction fireproof insulation EPS panel, thickness: 50mm (rock wool panel as option) |
| Entrance Door | Door with steel frame, 1 set, size: 3100 x 2700mm (W x H), tempering glass observation window |
| Personnel Door | 1 set, size: 800 x 2000mm (W x H),tempering glass observation window |

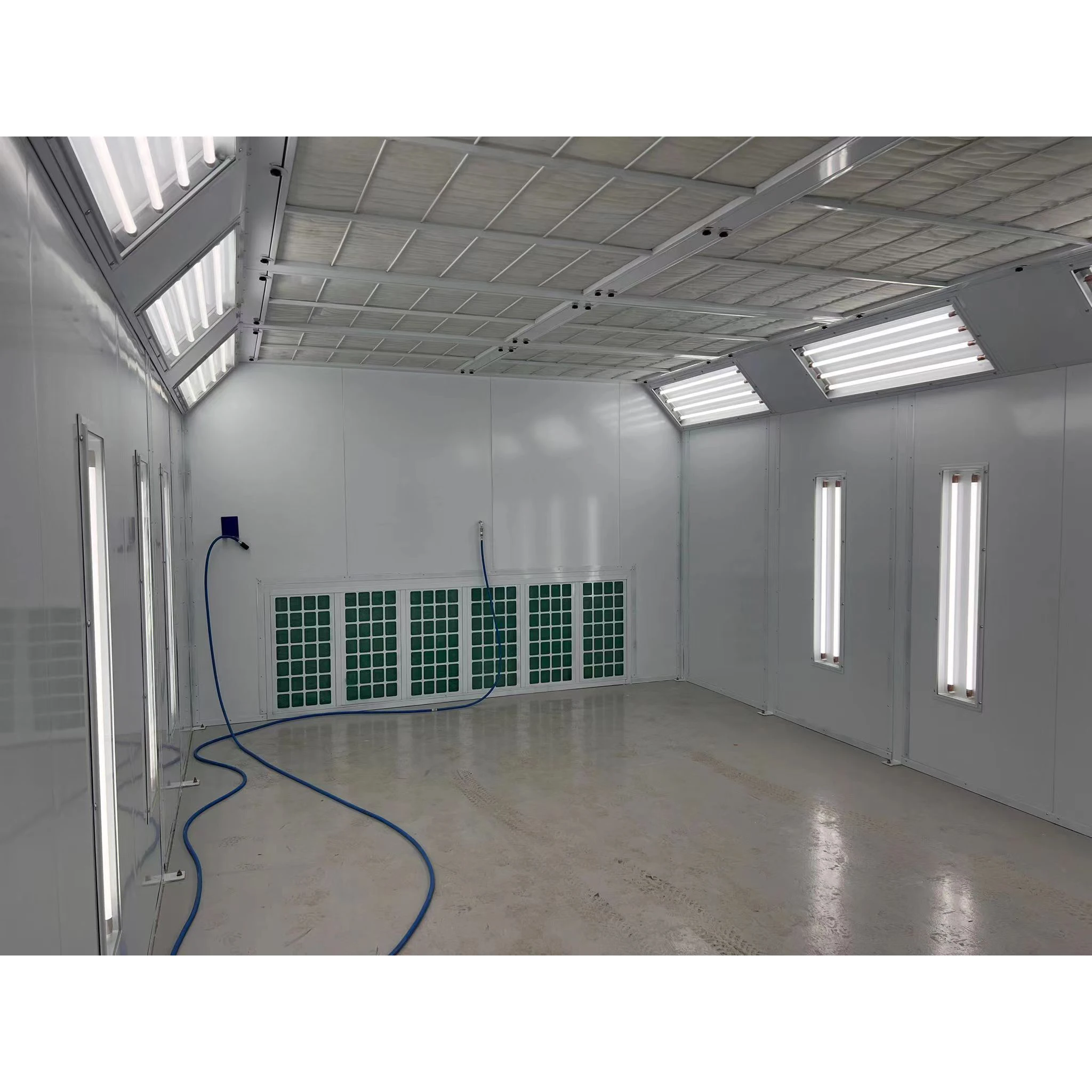

Light System | Ceiling Lighting | 8 units, each 4 x 16w, adopt LED energy saving light, tempering glass |
| Side Lighting | 8 units, each 2 x 16w, adopt LED energy saving light, tempering glass |
| Brightness | ≥1000 LUX |
Filtration System | Pre-filters | EU3 grade pocket filter, filter effect is much better |
| Ceiling Filters | Adopt high efficient adhesive filter, which can capture the dust who is more than 4μm, its filtering rate reaches 98% |
| Bottom filter | Fibreglass paint-stop filter |
| Exhaust Filters | Fibreglass paint-stop filter |
Ventilation System | Inlet Fan | Adopt big impeller turbo fan 1 x 7.5KW , Three-phase, 6 pole motor, 380V, 970RPM, 50HZ (SIEMENS motor as option) |
| Outlet Fan | Adopt big impeller turbo fan 1 x 7.5KW , Three-phase, 6 pole motor, 380V, 970RPM, 50HZ (SIEMENS motor as option) |
| Total Fan Capacity | 25,000m³/h |
Fan for Water-based Paints | On the rare of two sides wallboard install 2 sets of 1.5kw centrifugal fans, increase system air supply capacity to dry quicker (internal cycle) |
Painting Nozzles | Install two rows of nozzles on position of ceiling lighting box |
Air Flow Speed in Cabin | 0.25-0.6m/s in loaded booth |
Painting and Baking Exchange System | Solenoid valve+ pressure adjustment control cylinder driven damper exchange |
Air flow adjust | Manual air damper to adjust to pressure of booth |
Manometer | Yes, to indicate the pressure of booth |
Duct | Straight pipe: 3.7 meters, bending pipe: 3 units, reducing pipe: 2 units, soft connection: 1 unit, flange connection (air inlet pipe as option) |
Flue | Galvanized pipe: 4 meters, bending pipe: 2 units (stainless steel pipe as option) |
Heating Exchanger | Adopt high efficient heat-resistant (SUS304) stainless steel as cycling heat exchanger |
Burner Model | Adopt 1 set RIELLO diesel burner G20, each heating capacity 180.000kcal/h (gas burner or infrared light heater as option) |
Heating Time | 4-6 minutes (from 20 to 60º) under baking status, max baking temperature is 80° |
Control System | Standard control system |
More options | PLC control, touch screen control, inverter control |
Total Power | 23KW |
Option voltage | Three-phase 208/220/240/380/400/415/440/480V, 50/60Hz |
Company informattion:
HC Coating Equipment Manufacturing Co., Ltd. is an auto maintenance equipment company. Today it is a global player in the automotive aftermarket providing a full range of equipment
and service solutions for workshops. The core products in our company are spray painting and baking booth, portable spray booth, bus/truck spray paint booth, preparation station, mixing
room, brake lathe, car bench and lifts. All our products are shipped to Europe, East Europe, North & South America, Africa, Australia and Asia as well as different provinces in China.Our
company is accredited to the internationally recognized quality standards of CE, ISO9001:2008.
FAQ:
1.Are you a factory or a trading company?
we are a factory and all machines are produced at our own factory.
2.How long is the production?
Within 10 working days after receiving deposit.
3.What is the main product?
spray booth,,Auto body collision system, car repair machine, car lift and etc.
4. How can I pay it?
T/T, Western Union, Credit card and pay latter on alibaba.
5.What's the warranty time?
One years with good after-sale service.
