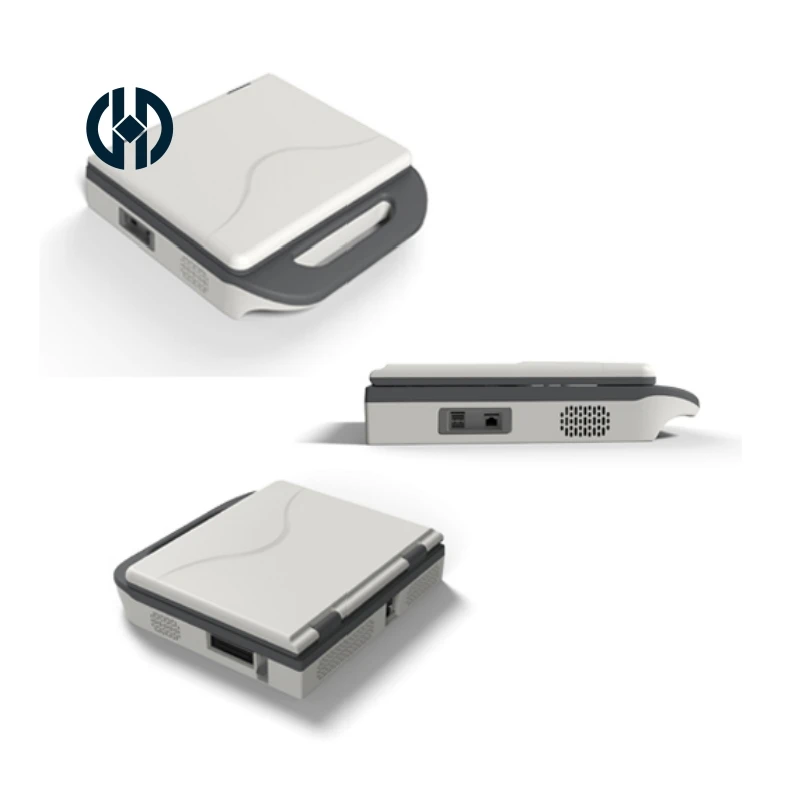

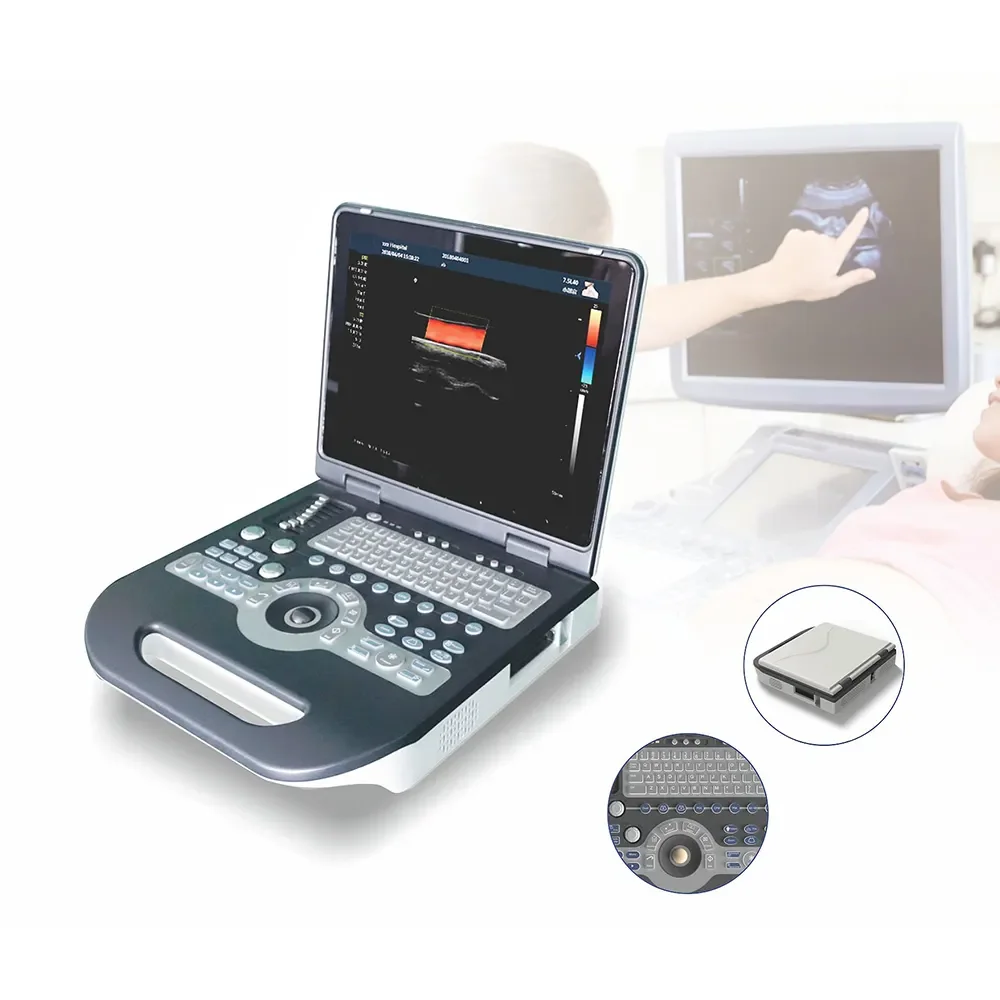

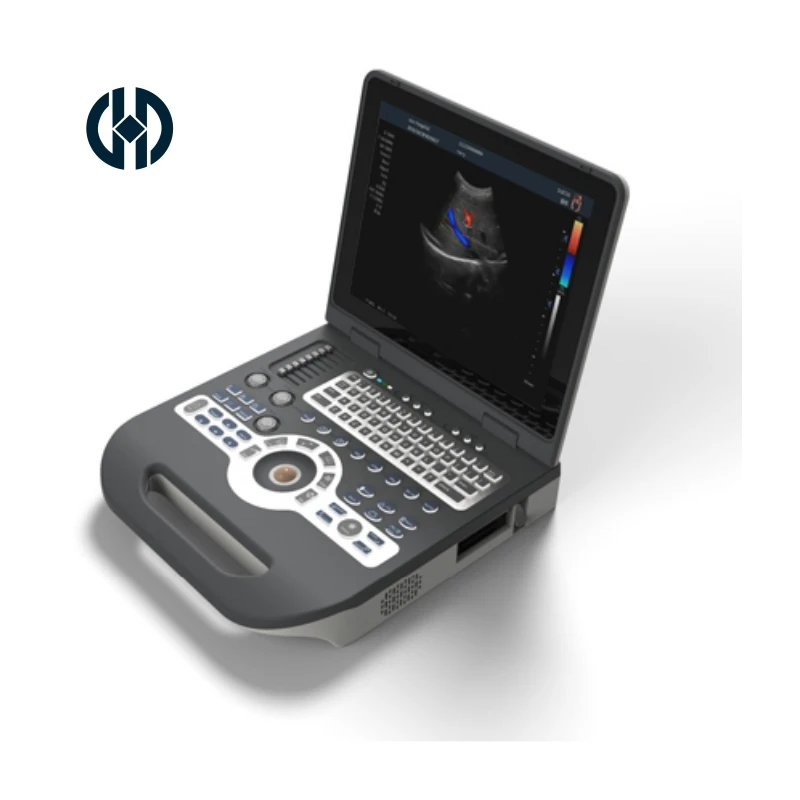

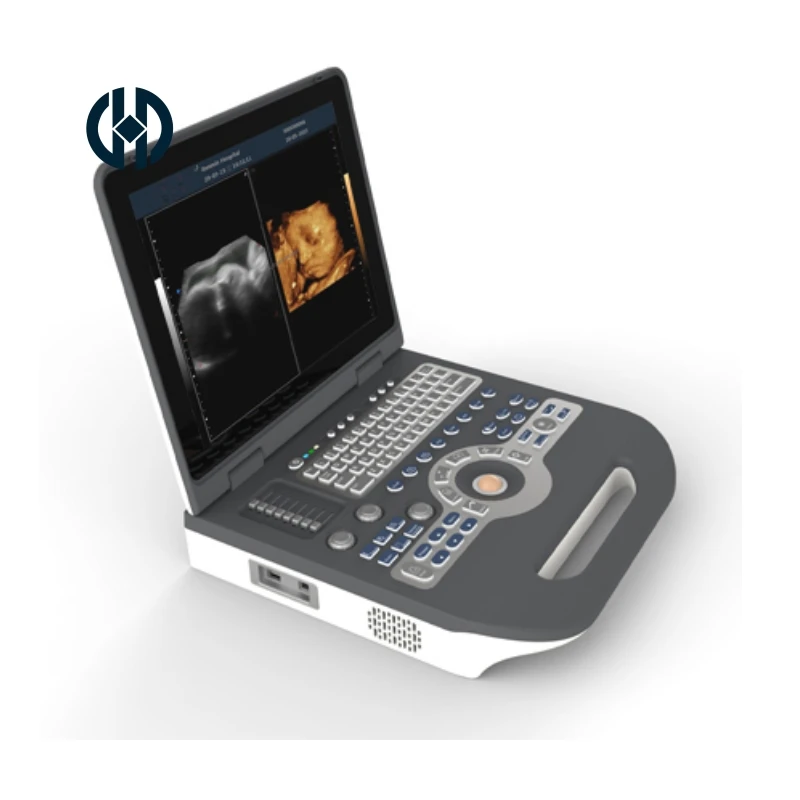

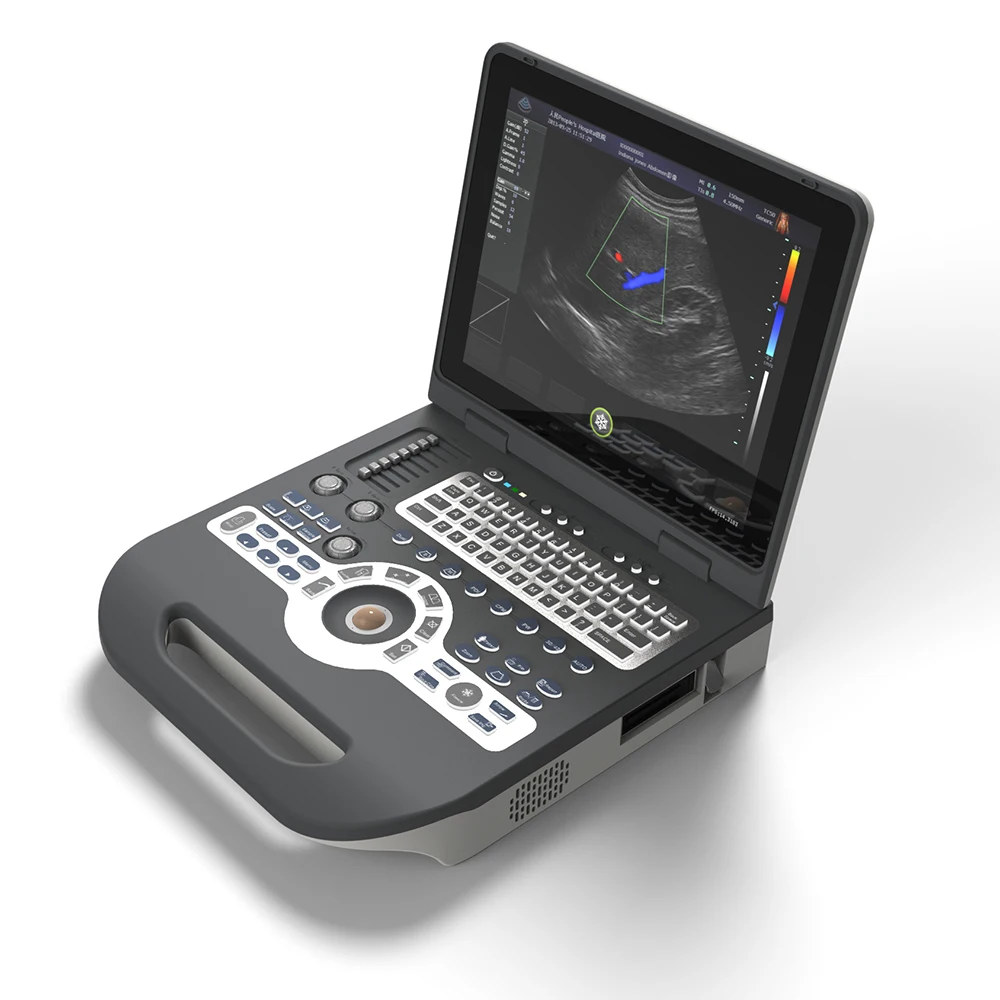

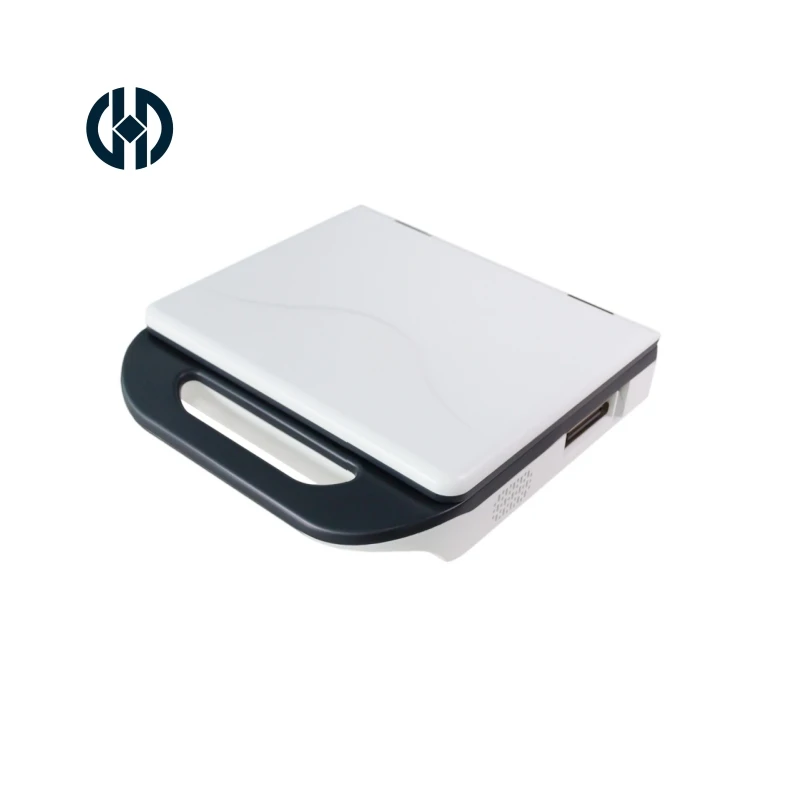

15 inch diagnostic ultrasound scanner ultrasound machine portable for ob echocardiogram musculoskeletal human medical
- Category: >>>
- Supplier: Shandong Manhua Medical Systems Co. Ltd.
Share on (1601122902963):
Product Overview
Description
Product Description
15 inch diagnostic ultrasound scanner ultrasound machine portable for ob echocardiogram musculoskeletal human medical
Basic Details
Screen Size: 15 inch
Dimension: 369mm(Length)x380mm(Width)x161mm(Height)
Display resolution:1024*768
Array element:80 element
Imagine Mode: B、B&M、2B、4B, THI, PW, PDI ,Color
Operating System:PC platform,Win XP operating system
Storage space:240G SSD
The probe interface:One probe socket
Language Support :Chinese,English,Russian,Spanish,Portuguese,French,German

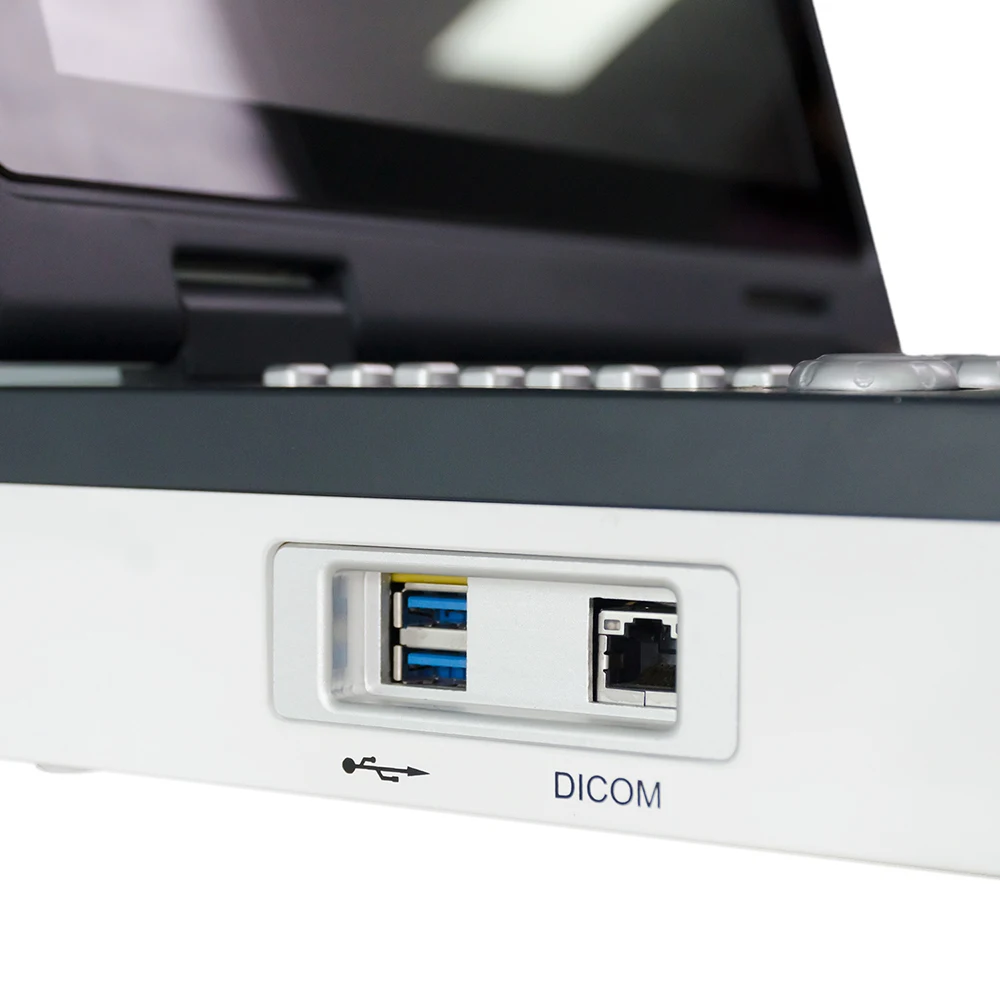

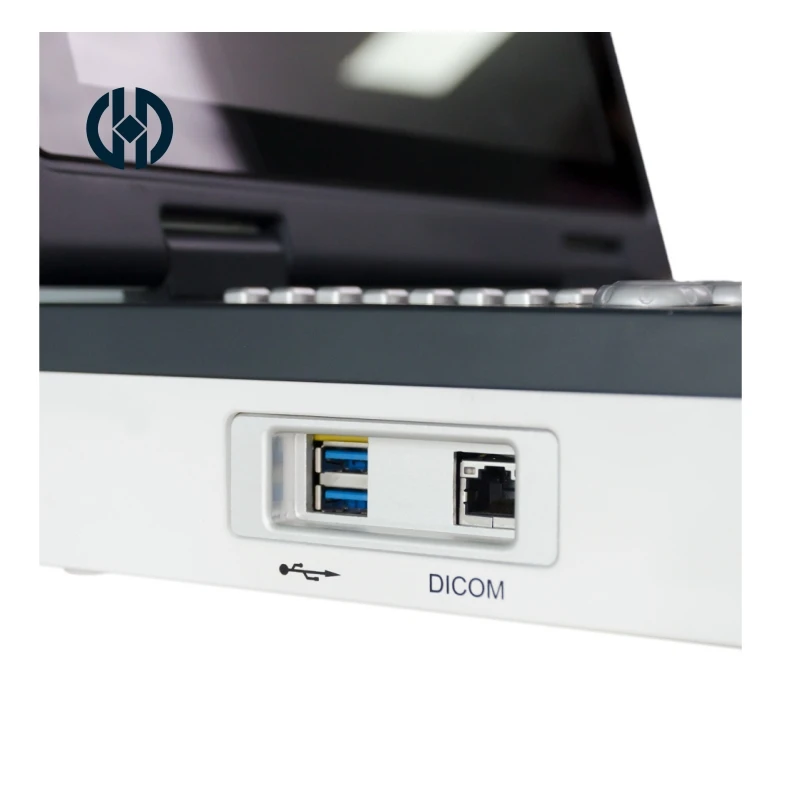

External interface:VGA,DICOM3.0,2 USB,PAL video

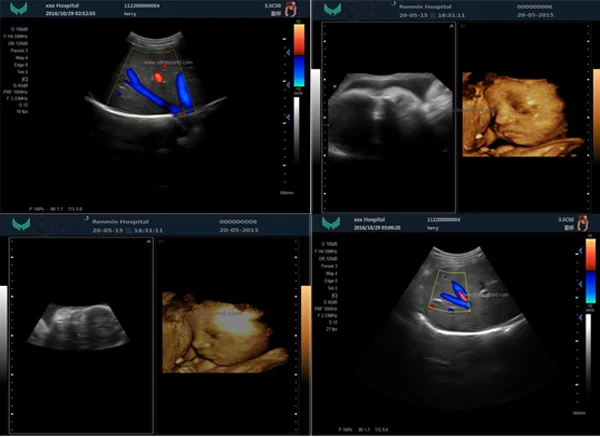

Ultrasonic mode:Support B、B/B、 4B、 B/M、PW、CFM 、 PDI、B+PDI、B+CFM display mode
Extended function:3D or 4D optional
Net weight: 6.5kg
Battery capacity :Built in lithium battery standby for 2 hours
Dimension: 369mm(Length)x380mm(Width)x161mm(Height)
Display resolution:1024*768
Array element:80 element
Imagine Mode: B、B&M、2B、4B, THI, PW, PDI ,Color
Operating System:PC platform,Win XP operating system
Storage space:240G SSD
The probe interface:One probe socket
Language Support :Chinese,English,Russian,Spanish,Portuguese,French,German
External interface:VGA,DICOM3.0,2 USB,PAL video
Ultrasonic mode:Support B、B/B、 4B、 B/M、PW、CFM 、 PDI、B+PDI、B+CFM display mode
Extended function:3D or 4D optional
Net weight: 6.5kg
Battery capacity :Built in lithium battery standby for 2 hours
Standard features
①Scanning mode: Convex array,Trans vagina, high-frequency linear array, Micro-convex;3 D software;4D array;
②Dynamic range: 0~120dB adjustable;
③Display mode: B、B/B、M、B/M、CFM、CFM/B、PDI、B/PW, total eight mode;
④Color mode: CFM Color doppler mode/CFM + B mode/PDI energy doppler mode/PDI + B
mode, PW pulse doppler double sync/three-sync display
⑤B/D dual-purpose:linear array: B/PWD; convex array: B/PWD;Pseudo color processing:16
kinds of pseudo color encoding can optional;
⑥Gain adjusts: 8 segments TGC, B/M/D/C is independently adjustable; TGC curve can sh
ow and hide automatically;
Supper Data Management System
①One key saving for cines and files improve the working performance
②Built-in workstation helps quickly searching patient data and reviewing cines
③The supported DICOM 3.0 can communicate with PACS system of the hospital seamlessly
①One key saving for cines and files improve the working performance
②Built-in workstation helps quickly searching patient data and reviewing cines
③The supported DICOM 3.0 can communicate with PACS system of the hospital seamlessly
Measurement

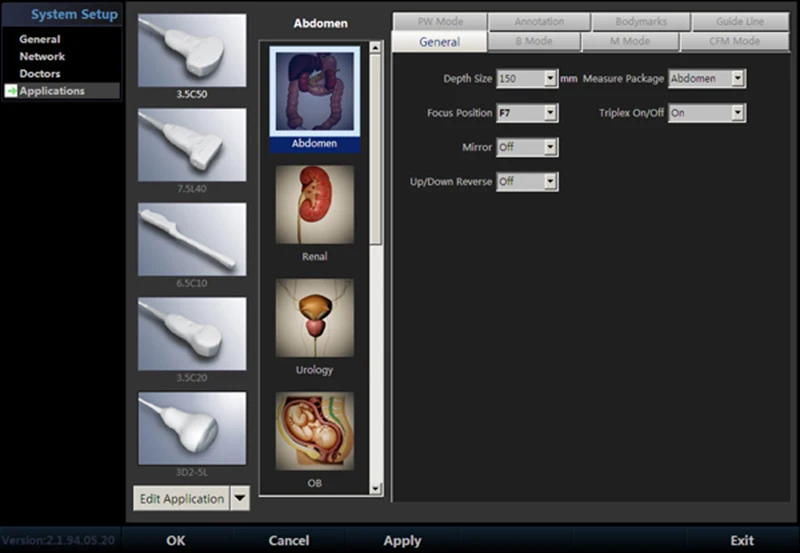

①Self-motion optimize function: Built-in multiple check type, according to different in spection organs, preset best image check
condition, reduce the adjusting operation keys;
②One-click optimization function: preset several parameters adjusting focus on a Key, a
key to realize image fast optimization;
③Measurement and calculation: B mode routine measurement:Distance, circumference,
area, volume, angle, ratio, and stenos rate.M mode routine measurement: Heart rate,
time, distance, speed, ratio, etc.
④Obstetrics measurement: EGA, ETD, fetal weight estimation, AFI index, OB report (including OB tables).
⑤Cardiology measurement: LV measurement.
⑥Urology measurement: Prostate volume, displacement volume, bladder capacity, and residual urine output.
⑦PW measurements: Time, speed, Heart Rate, RI, PI, etc.
⑧Other measurement: Slice volume measurement, hip joint angle measurement.
①Self-motion optimize function: Built-in multiple check type, according to different in spection organs, preset best image check
condition, reduce the adjusting operation keys;
②One-click optimization function: preset several parameters adjusting focus on a Key, a
key to realize image fast optimization;
③Measurement and calculation: B mode routine measurement:Distance, circumference,
area, volume, angle, ratio, and stenos rate.M mode routine measurement: Heart rate,
time, distance, speed, ratio, etc.
④Obstetrics measurement: EGA, ETD, fetal weight estimation, AFI index, OB report (including OB tables).
⑤Cardiology measurement: LV measurement.
⑥Urology measurement: Prostate volume, displacement volume, bladder capacity, and residual urine output.
⑦PW measurements: Time, speed, Heart Rate, RI, PI, etc.
⑧Other measurement: Slice volume measurement, hip joint angle measurement.

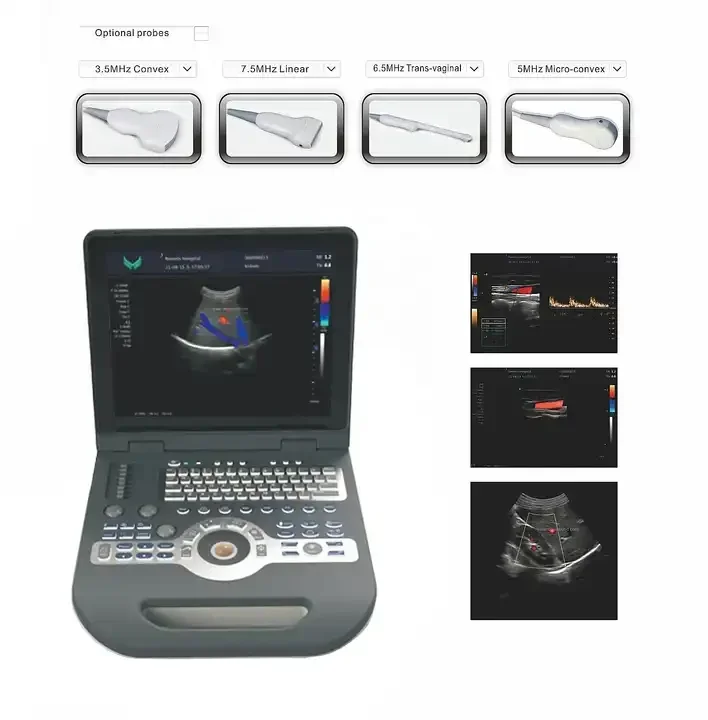

Optional probe:
3.5 MHz convex
6.5 MHz transvaginal
7.5MHz linear
3.5MHz micro convex
3.5MHz4Dvolumetric
3.5 MHz convex
6.5 MHz transvaginal
7.5MHz linear
3.5MHz micro convex
3.5MHz4Dvolumetric
Ultrasonic mode
Support B、B/B、 4B、 B/M、PW、CFM 、 PDI、B+PDI、B+CFM display mode
Support B、B/B、 4B、 B/M、PW、CFM 、 PDI、B+PDI、B+CFM display mode
Connectivity/Media/Peripherals
Transducer Ports:1
USB Ports:1
Hard Disc:120GB(SSD),120G/256GBSSD(Optional)
Foot switch:USB
External Display:VGA,HDMI
USB Printer
Digital Laser Printer
Digital B/W Thermal Printer
Transducer Ports:1
USB Ports:1
Hard Disc:120GB(SSD),120G/256GBSSD(Optional)
Foot switch:USB
External Display:VGA,HDMI
USB Printer
Digital Laser Printer
Digital B/W Thermal Printer
Specification
item | value |
Place of Origin | China |
Shandong | |
Brand Name | Manhua |
Model Number | MH10-P04 |
Power Source | Electric |
Warranty | 3 years |
After-sale Service | Online technical support |
Material | Plastic |
Shelf Life | 3 years |
Quality Certification | CE ISO |
Instrument classification | Class II |
Safety standard | None |
Monitor | 15inch LED Monitor |
Material | Plastic |

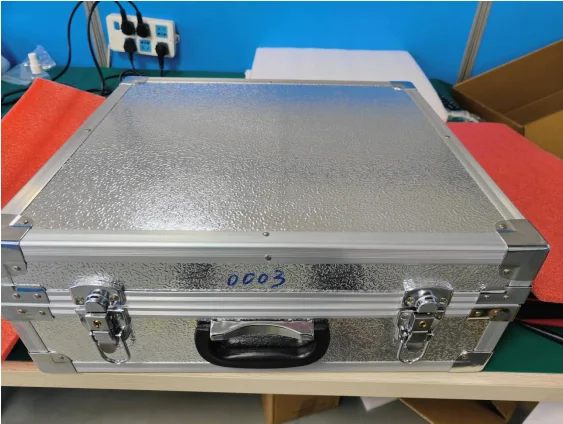

Packing & Delivery
Packing size: 54cm*30cm*56cm
Packed weight:15kg
Packed weight:15kg
