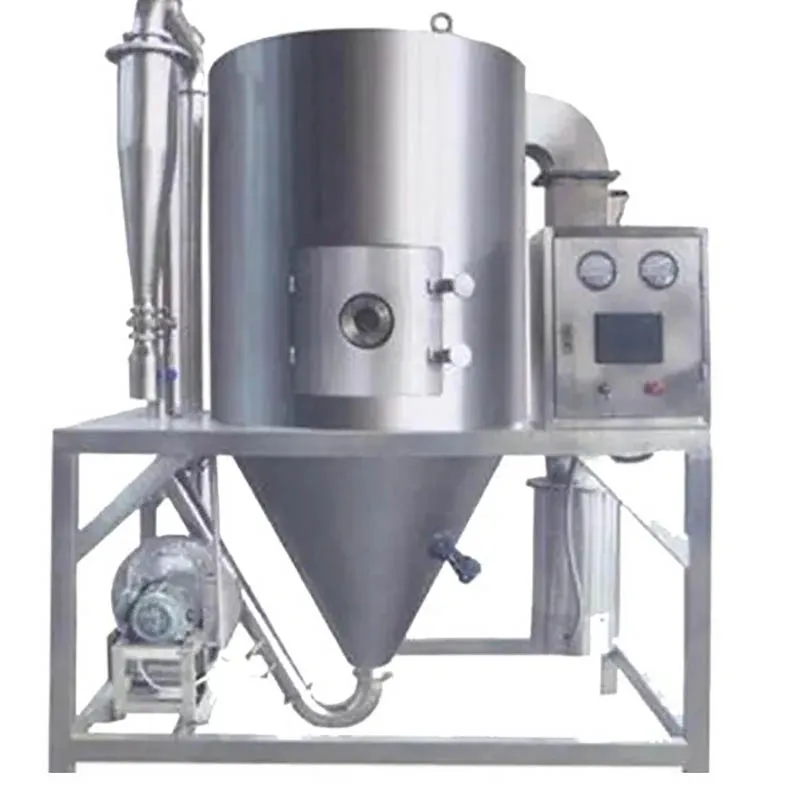

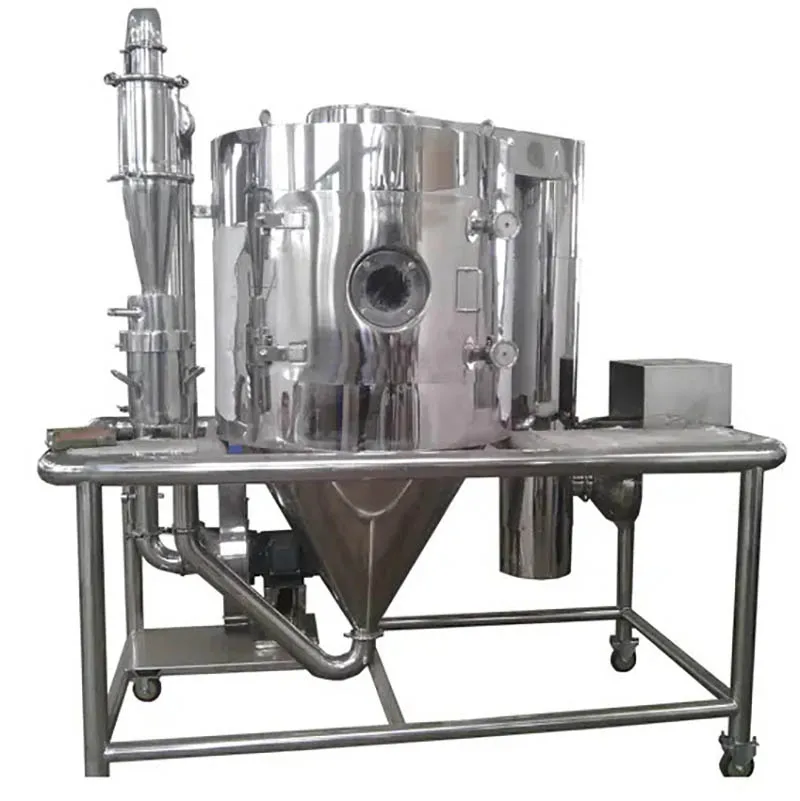

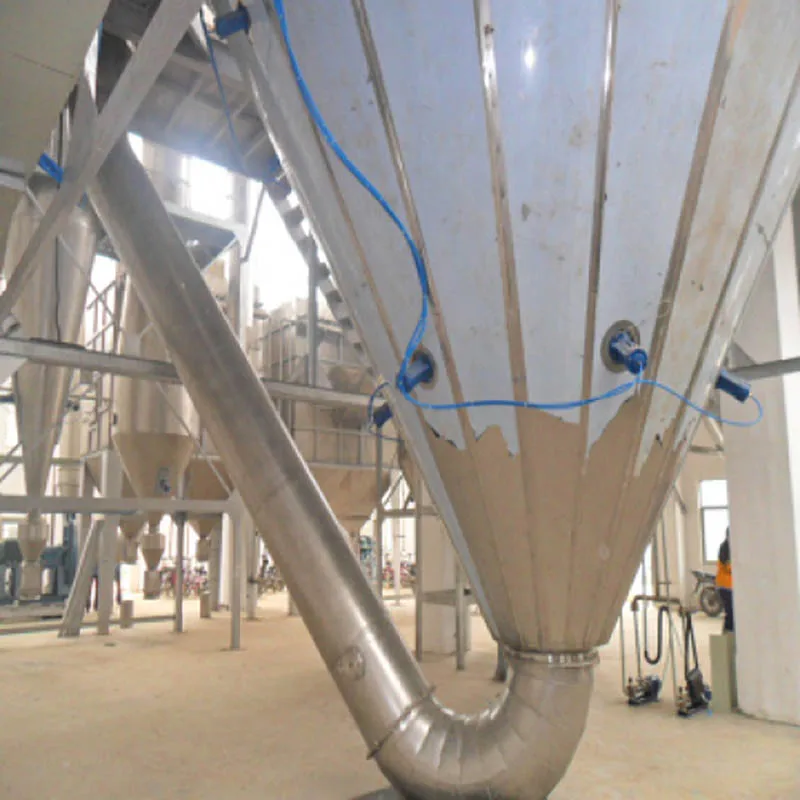

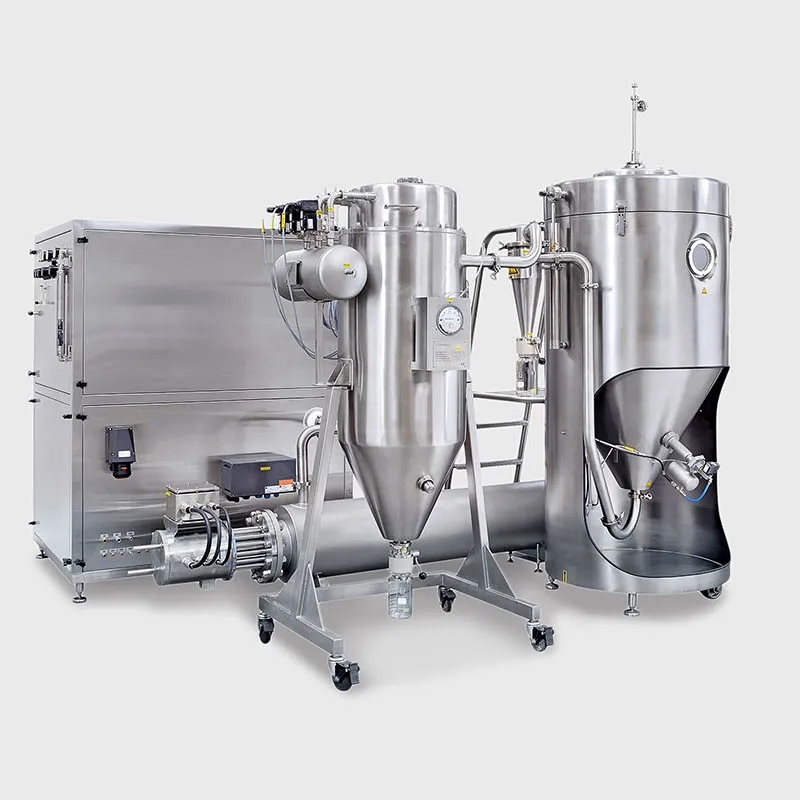

centrifugal Lab 5l atomization Spray Dryer Equipment for Milk/Egg powder/Detergent/Coffee Milk Powder Making Machine
- Category: >>>
- Supplier: Shanghai Genyond Technology Co. Ltd.
Share on (1601123023925):
Product Overview
Description
Finished Products
| 1 | 2 | 3 | 4 |
 |  |  |  |
| Ceramics Traditional through to high-tech • Proppants • Hydroxyapatite • Carbides • Catalysts • Ferrites • Titanates • Al2O3, SiO2, FexOy • Kaolin • Silicium oxide/nitride • Zinc oxide • Zirconium oxide/silicate | Hardmetals More than 130 installations • Tungsten carbides • Ready-to-press (RTP) powders | Lithium batteries From Cathode to Anode • Cathode material • Anode material • Ultra-fine powder | Agrochemicals The broadestrange of solutions
• Fungicides • Herbicides • Insecticides • Potash • Phosphate rock Monoammoniumphosphate • Diammonium phosphate • Calcium chloride • Ammonium nitrate • Ammonium sulphate • Urea |
ss
| 5 | 6 | 7 | 8 |
 |  |  |  |
| Tannins Preserve tannin activity • Synthetic tannins • Basic chromium salts • Natural extracts • Sulphonated phenol • Chrome tannin • Chestnut, mimosa extract • Myrobalan, quebracho extract • Wattle extract | Detergents For household and industrial applications • Dispersing agents • Emulsifying agents • Chelating agents • Enzymes • Optical brightener • Phosphates • Sulphonates • Silicates • Surface active ingredient | Dyestuff& pigments For a rainbow of colors
• Acid / azoicdyes • Basic dyes • Disperse dyes • Reactive dyes • Dyestuff intermediates • Related fillers • Barium sulphate • Cadmium carbonate / sulphide • Calcium carbonate • Ceramic colorants • Iron oxide (black,red, yellow) • Kaolin • Lithopone • Phthalocyanines • Titanium dioxide • Zinc chromates | Organic chemicals From fine crystals to coarse granulates • Organic acids • Plant materials • Microorganisms • Waste water drying • Amino and fatty acids • Benzoates • Butyrates • Chloramines • Gluconates • Hydrazines • Phthalates • Purified terephthalic acid • Salicylates • Salicylic acid • Sorbates • Stearates • Bio-based chemicals |
 |
| food products include milk powder, tea powder, cocoa powder, coffee powder, soybean flour, wheat flour, and chili powder |
Family Overview

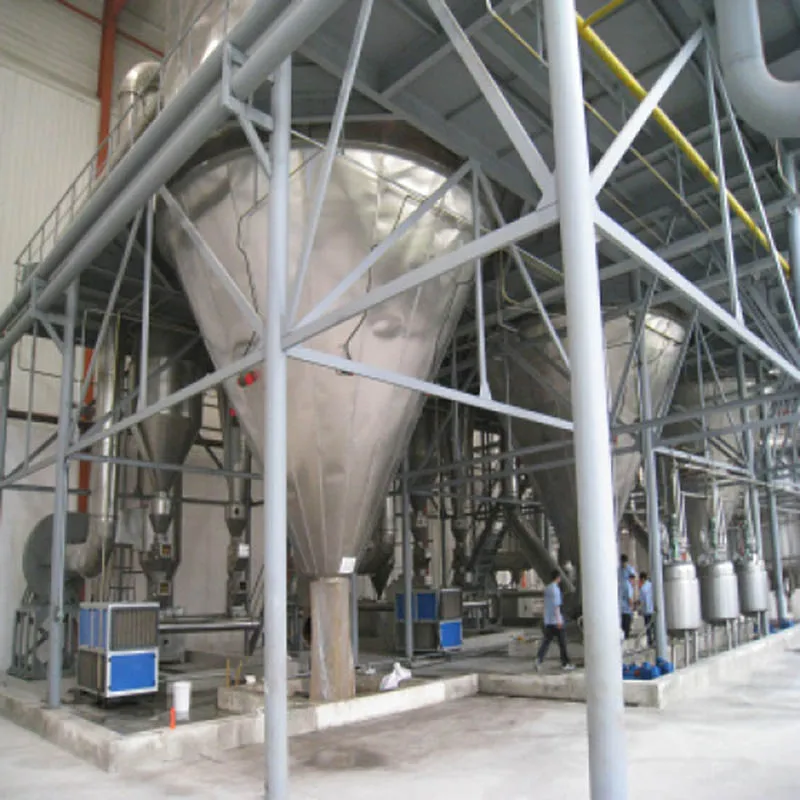

LPG High Speed Centrifugal Spray Dryer
| Specification | Air Inlet temperature | Air exhaust temperature | Nominal water evaporation capacity (Kg / h) | Heating method | Drying tower diameter (mm) | Overall Dimensions (m) | Product yield |
| LPG-5 | 140-550 ° C | 60-120 ° C | 5 | 1. High-pressure steam 2. steam + electricity 3.any kinds of fuel diesel, natural gas, liquefied petroleum gas or coal, etc 4. solid fuel any combustible material | 1100 | 2×1.4×2.2 | 95-99.9% depend on the properties of the product and configurations |
| LPG-25 | 25 | 1800 | 5×3×4 | ||||
| LPG-50 | 50 | 2150 | 6×4×5 | ||||
| LPG-100 | 100 | 2560 | 8×4×6 | ||||
| LPG-150 | 150 | 2860 | 8×5×7 | ||||
| LPG-200 | 200 | 3200 | 10×5×8 | ||||
| LPG-300 | 300 | 3600 | Design as per configuration of the plant and URS | ||||
| LPG-500 | 500 | 4300 | |||||
| LPG-600 | 600 | 4500 | |||||
| LPG-750 | 750 | 5000 | |||||
| LPG-1000 | 1000 | 6000 | |||||
| LPG-2000 | 2000 | 7600 | |||||
| LPG-3000 | 3000 | 8500 | |||||
| LPG-5000 | 5000 | 10000 | |||||
| LPG-8000 | 8000 | 13000 | |||||
| LPG-10000 | 10000 | 14500 | |||||
| LPG-12000 | 12000 | 16000 | |||||
| LPG-15000 | 15000 | 18000 |
YPG pressure spary dryer
| Specifications | Air Inlet temperature | Air exhaust temperature | Nominal water evaporation capacity (Kg / h) | Heating method | Drying tower diameter (mm) | Overall Dimensions (m) | Product yield |
| YPG-25 | 140-550 ° C (depend on the product to be dried, and URS) | 60-120 ° C (depend on the product to be dried, and URS) | 25 | High-pressure steam, or steam + electricity, or any kinds of fuel (diesel, natural gas, liquefied petroleum gas or coal, etc.), or solid fuel (any combustible material). Please specify. | 1200 | 5×4×12 | 95-99.9% depend on the properties of the product and configurations |
| YPG-25 | 50 | 1400 | 6×4×13 | ||||
| YPG-25 | 100 | 1600 | 6×4×15 | ||||
| YPG-25 | 150 | 2200 | 8×4.5×19 | ||||
| YPG-25 | 200 | 2600 | 10×5×20 | ||||
| YPG-25 | 300 | 3200 | 12×6×22 | ||||
| YPG-400 | 400 | 3500 | Design as per configuration of the plant and URS | ||||
| YPG-500 | 500 | 3800 | |||||
| YPG-600 | 600 | 4100 | |||||
| YPG-750 | 750 | 4500 | |||||
| YPG-1000 | 1000 | 5500 | |||||
| YPG-2000 | 2000 | 7300 | |||||
| YPG-3000 | 3000 | 8000 | |||||
| YPG-5000 | 5000 | 10000 | |||||
| YPG-8000 | 8000 | 13000 | |||||
| YPG-10000 | 10000 | 14500 | |||||
| YPG-12000 | 12000 | 15800 | |||||
| YPG-15000 | 15000 | 17500 | |||||
| YPG-18000 | 18000 | 19000 | |||||
| YPG-20000 | 20000 | 20300 | |||||
| YPG-23000 | 23000 | 21800 | |||||
| YPG-25000 | 25000 | 22800 | |||||
| YPG-28000 | 28000 | 24000 | |||||
| YPG-30000 | 30000 | 25000 |
