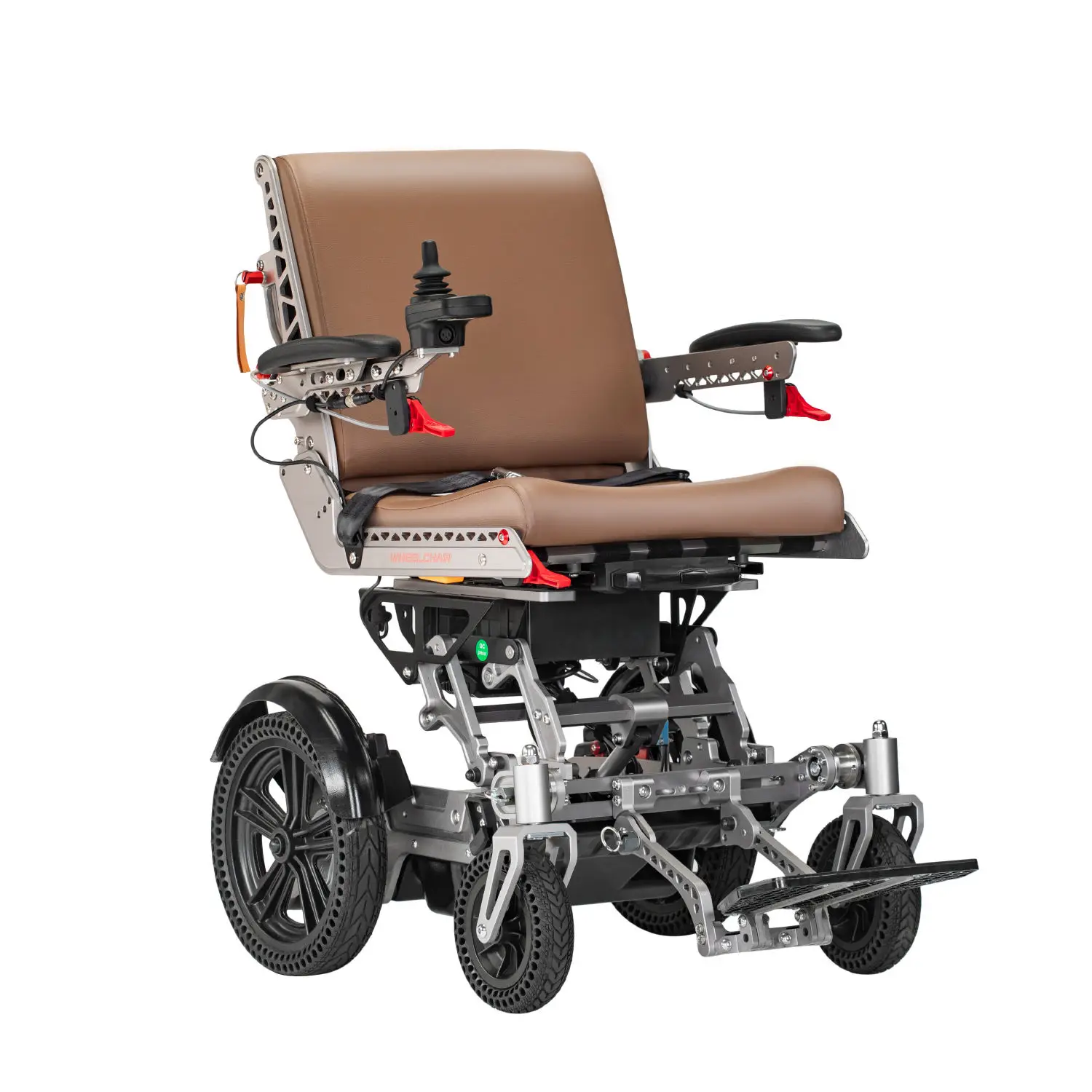

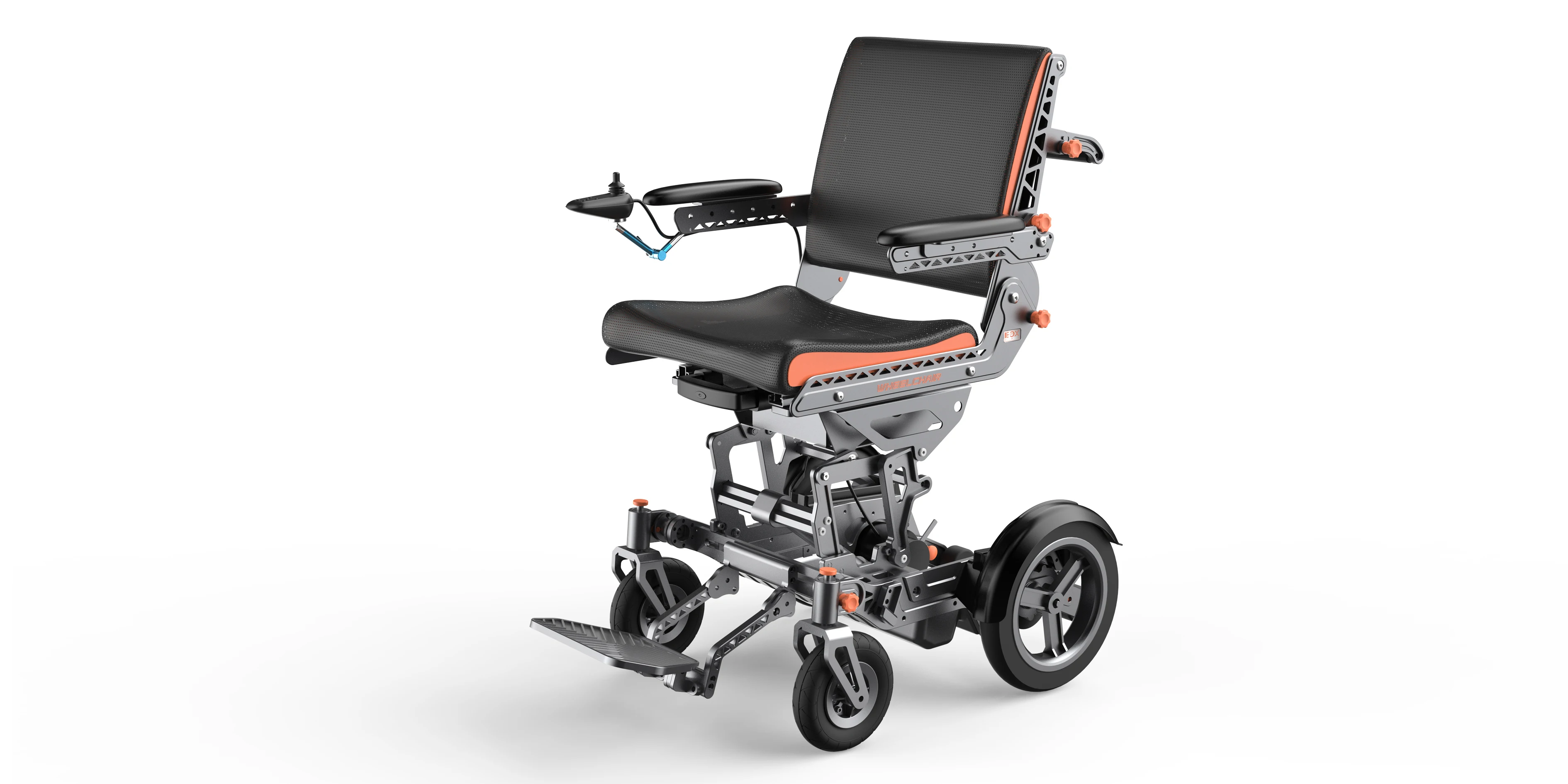

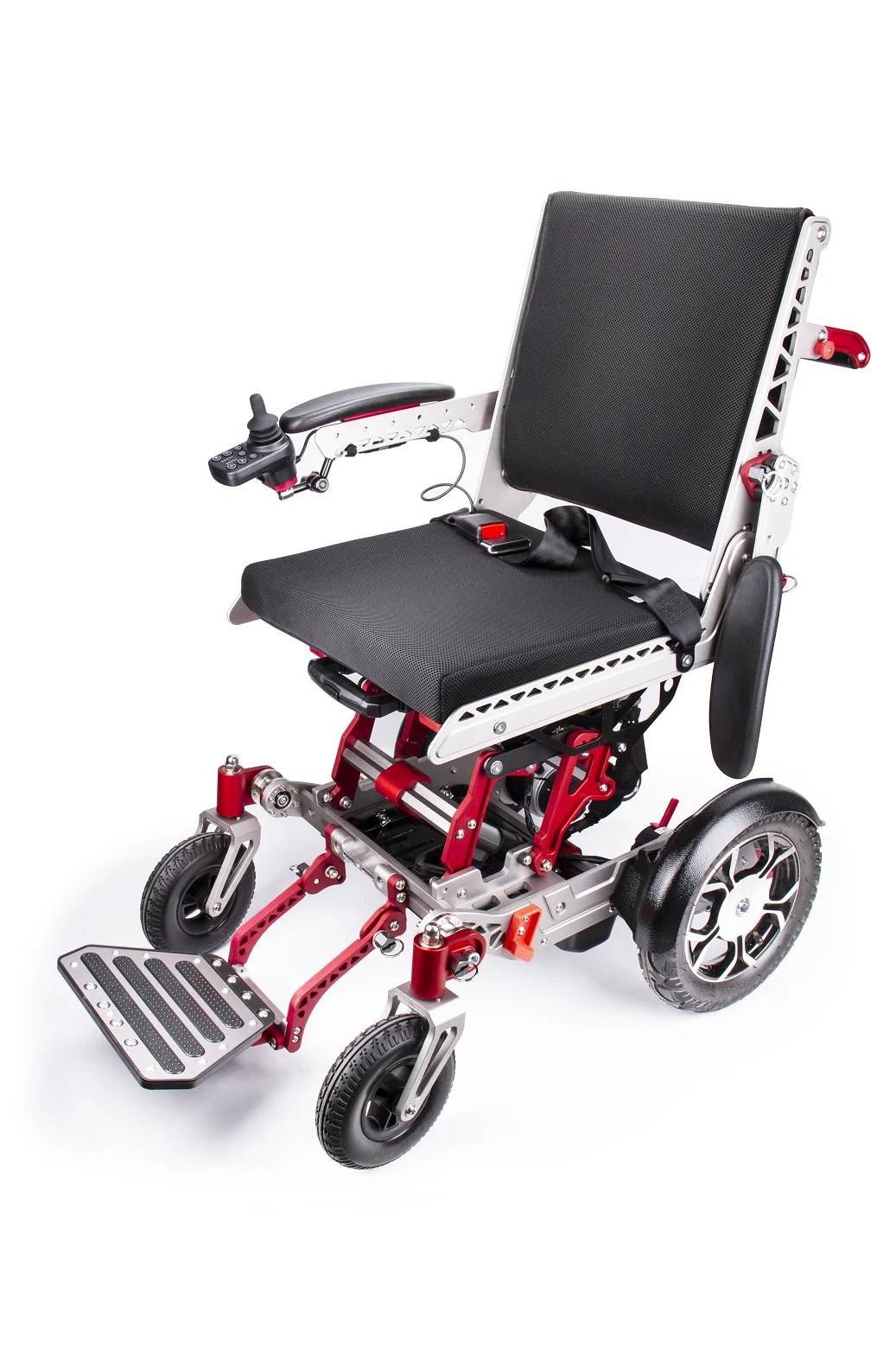

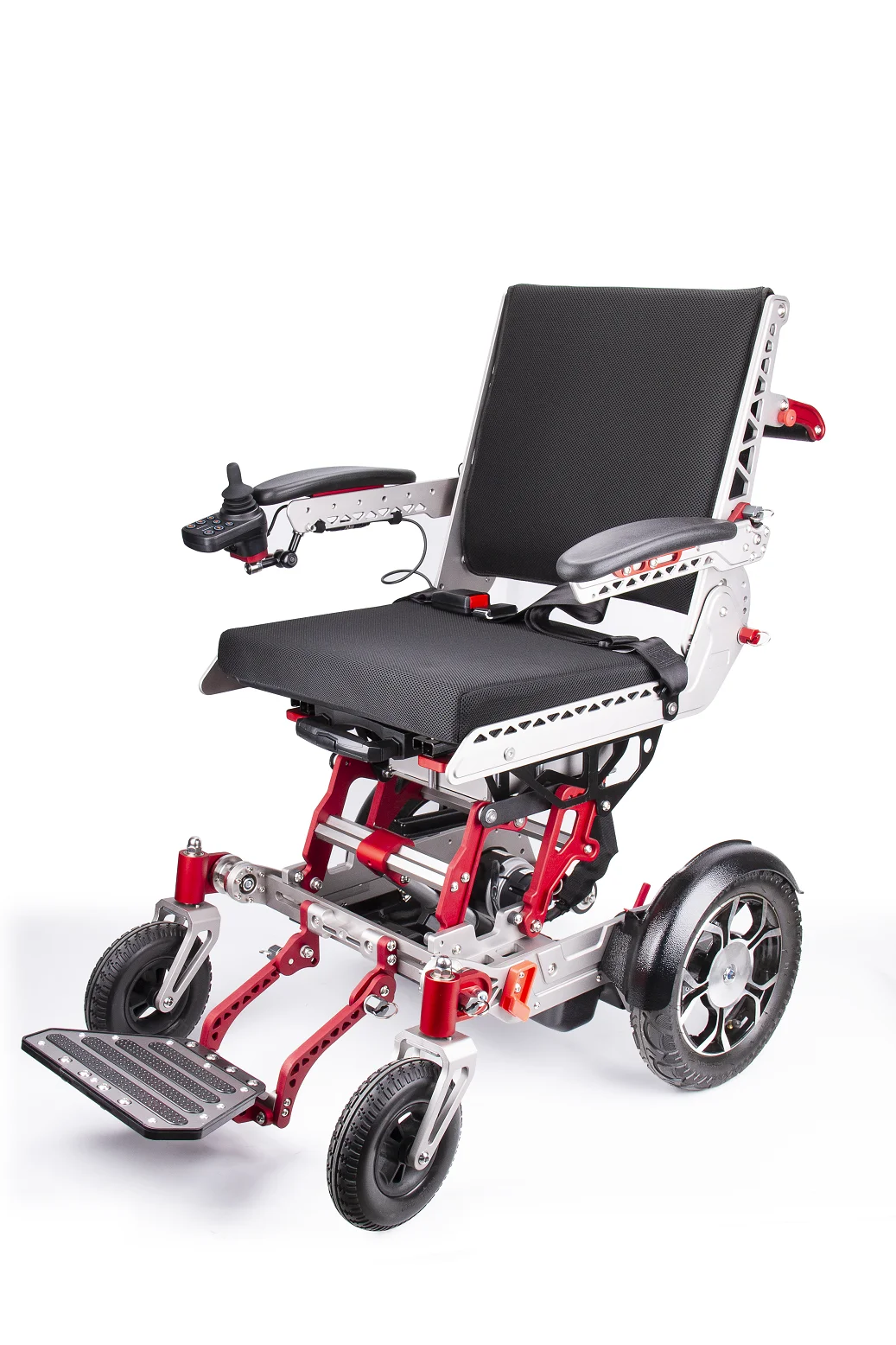

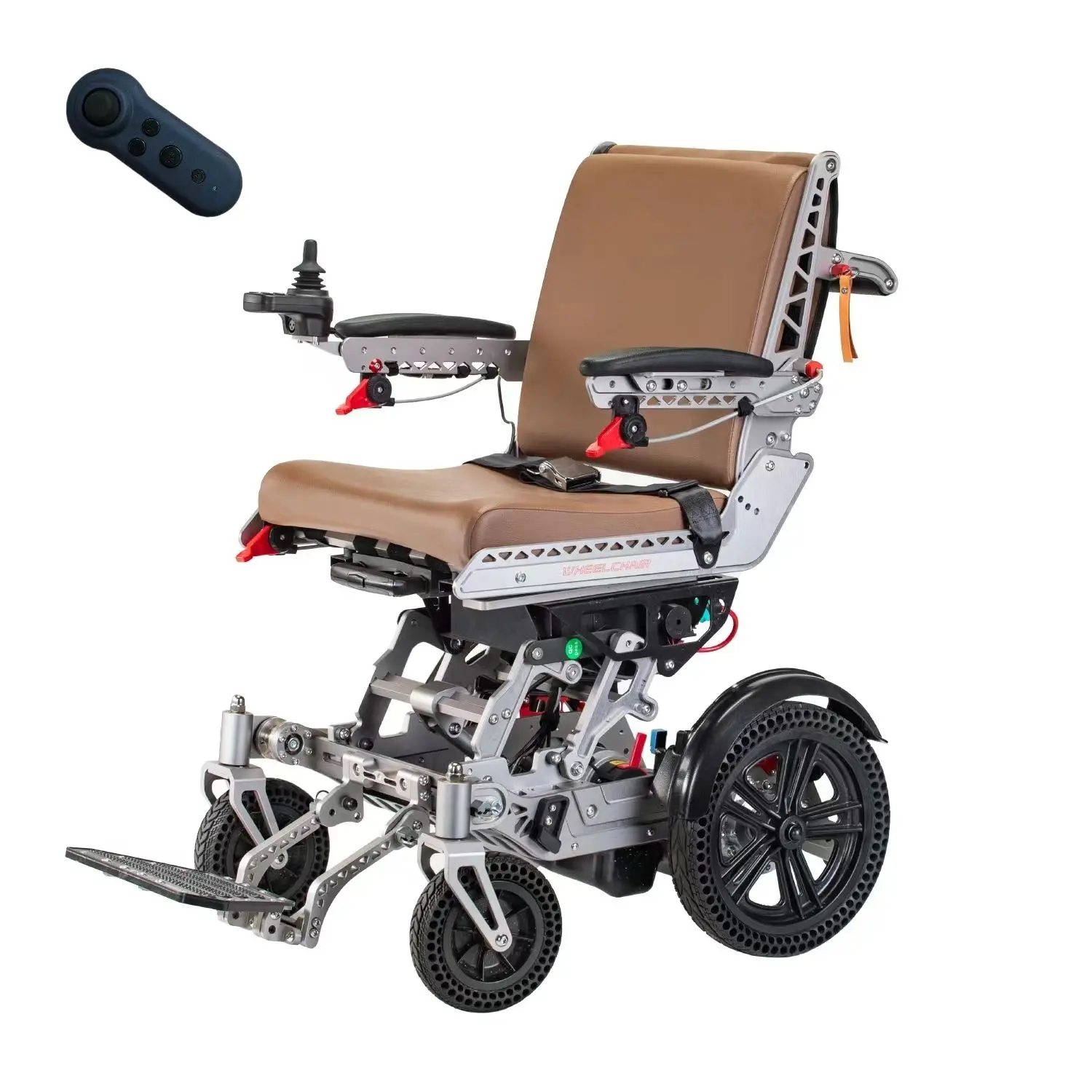

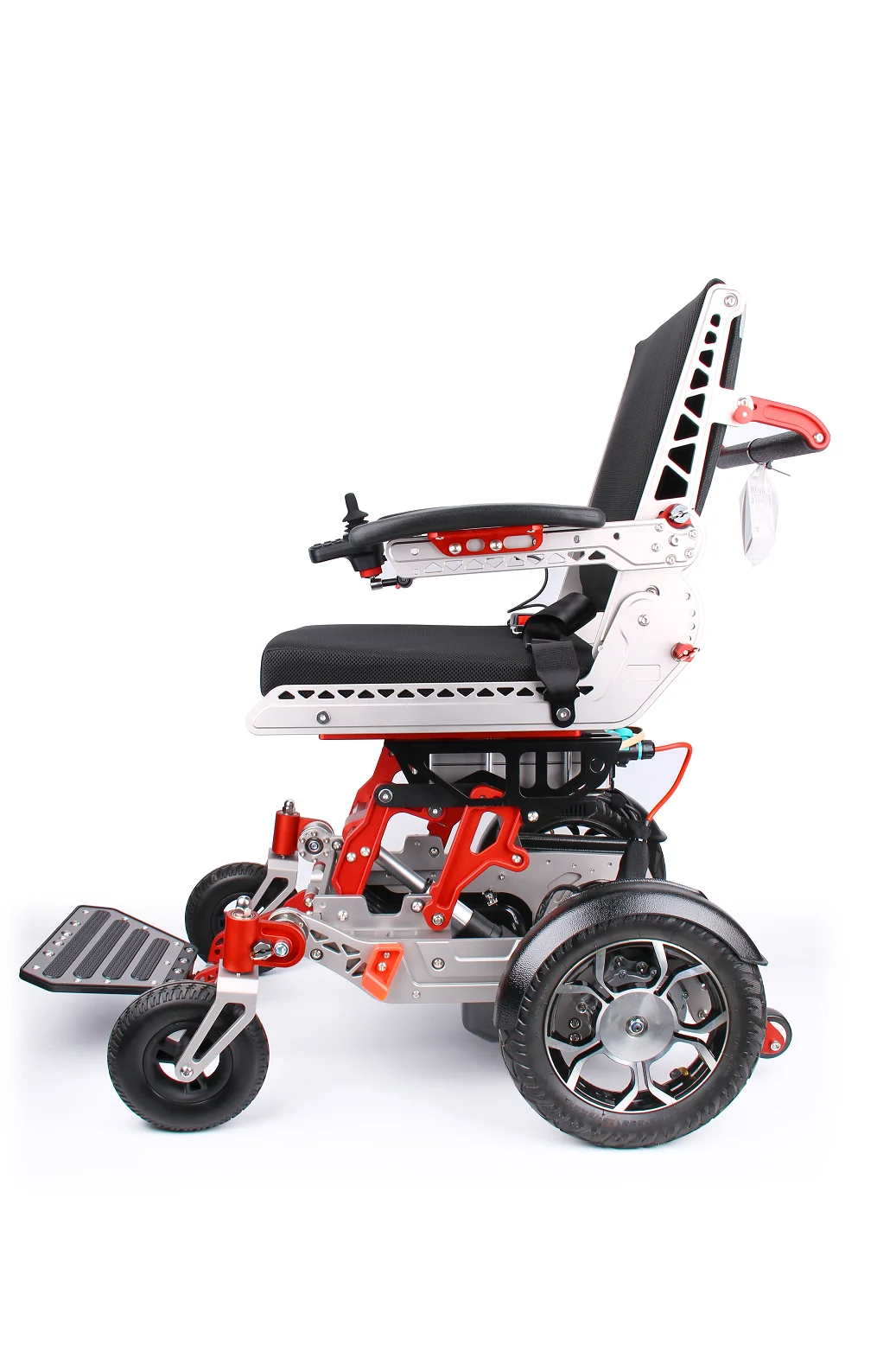

Automatic lift forward backward electric wheelchair electric up and down reclining power wheelchair Robot remote control BZ JR01
- Category: >>>
- Supplier: Xiangyang Bei Zhen Medical Equipment Co. Ltd.
Share on (1601123063602):
Product Overview
Description
Model | BZ-JR01 |
MAIN DIMENSIONS AND STRUCTURAL PARAMETERS | DIMENSIONS:MM TOTALLENGTH:1080 mm TOTALWIDTH:650 mm TOTAL HEIGHT:820-1050 mm FOLDINGWIDTH:650 mm SEATWIDTH:420 mm SEATDEPTH:400 mm SEAT HEIGHT(FRONTEND):420-650 mm ARMRESTHEIGHT:280 mm BACKRESTHEIGHT:430 mm TOTALWEIGHT:41 Kg MAXUSER MASS:120 kg |
FRONT AND REAR WHEELSPECIFICATIONS | FRONTWHEEL:200 mm BACKWHEEL:310 mm |
ELECTRIC PARAMETER | ELECTRIC MOTOR:brush motor/brushless motor NOMINALVOLTAGE：DC24V RATED POWER:250W/200W*2 BATTERY(GROUP) RATED CAPACITY:12/15/20Ah RATED VOLTAGE:DC24V NUMBER OFUNITS:1个 CHARGER POWER SUPPLY:AC 100~240V 50/60Hz MAX OUTPUTCURRENT:2A CONTROLLER MAXOUTPUTCURRENT:35A |
PERFORMANCEPARAMETER | MAXIMUM SPEED:s6(km/h) STATICSTABILITY:≥9(°) DYNAMICSTABILITY≥6(°) PERFORMANCE:≤1500(mm) MINIMUM TURNING RADIUS≤1200(mm) THEORETICAL DRIVING DISTANCE:10/20/30(km) |
Model:BZ-JR01

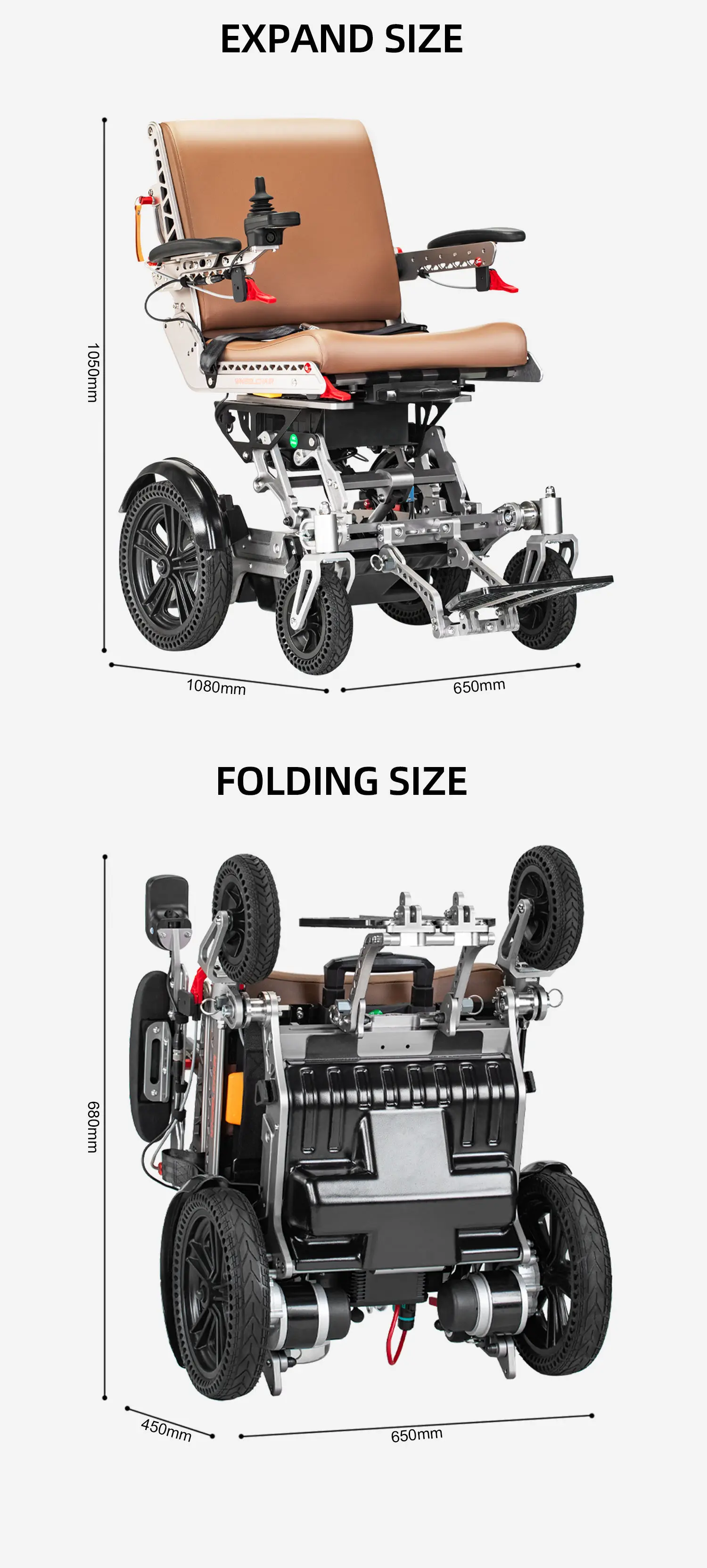

MAIN DIMENSIONS AND STRUCTURAL PARAMETERS
DIMENSIONS:MMTOTALLENGTH:1080 mm
TOTALWIDTH:650 mm
TOTAL HEIGHT:820-1050 mm

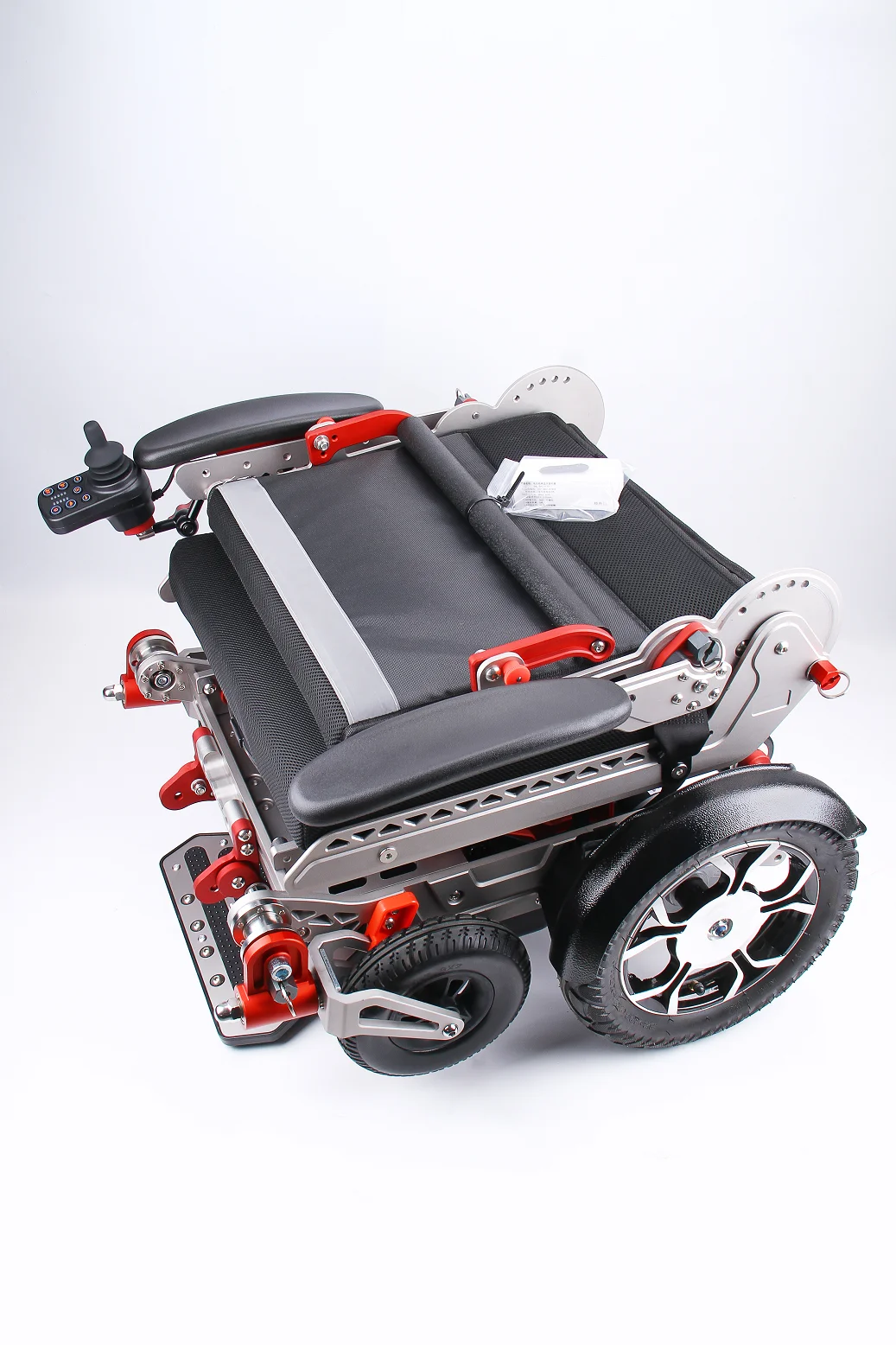

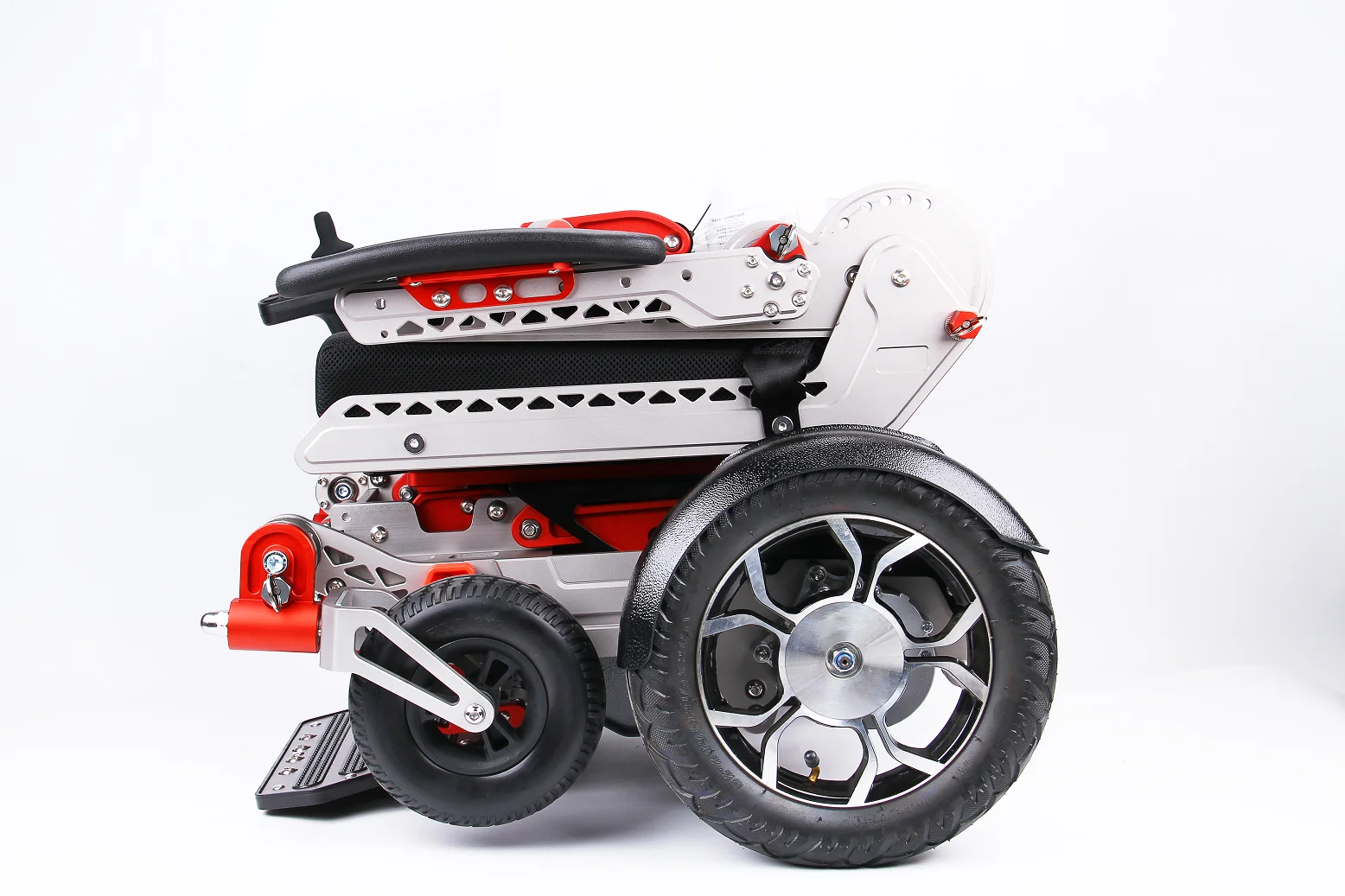

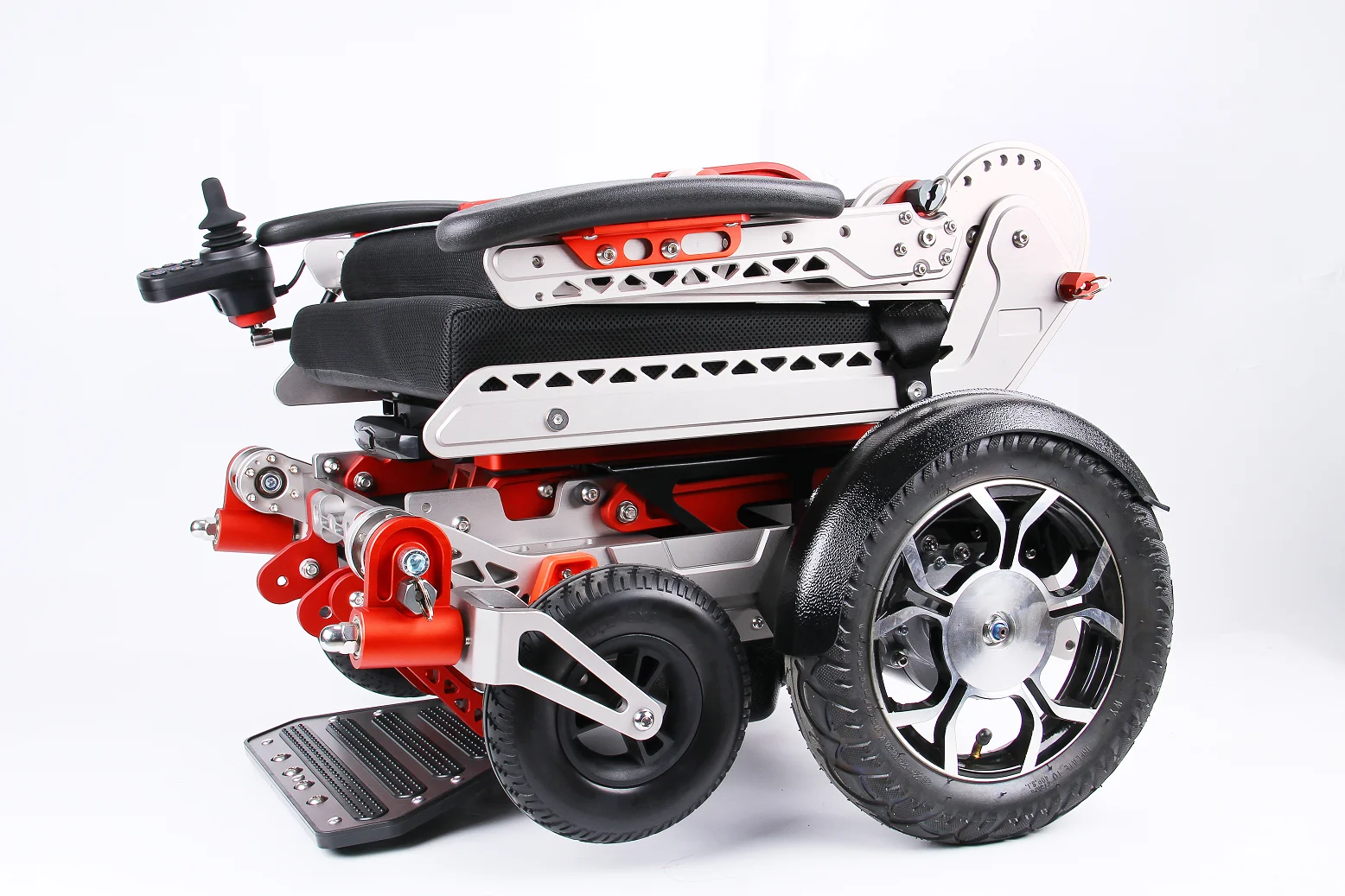

FOLDINGWIDTH:650 mm
SEATWIDTH:420 mm
SEATDEPTH:400 mm
SEAT HEIGHT(FRONTEND):420-650 mm
ARMRESTHEIGHT:280 mm
BACKRESTHEIGHT:430 mm
TOTALWEIGHT:41 Kg
MAXUSER MASS:120 kg
FRONT AND REAR WHEELSPECIFICATIONS
FRONTWHEEL:200 mm

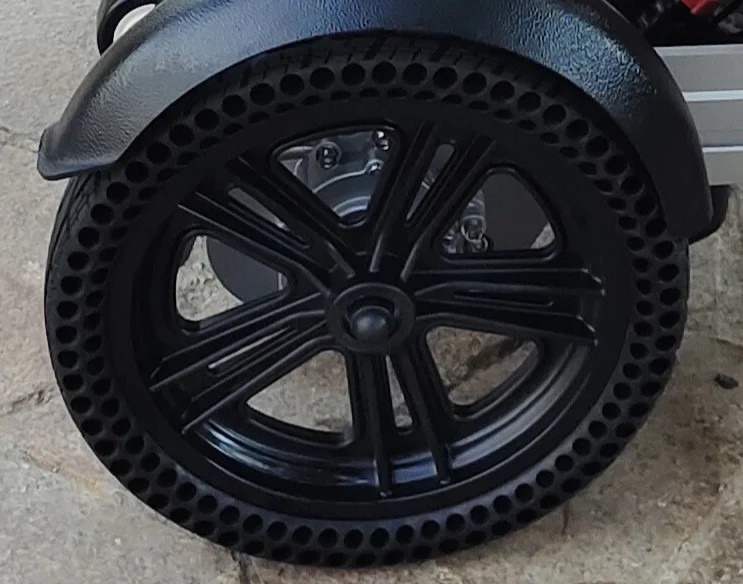

BACKWHEEL:310 mm
ELECTRIC PARAMETER
ELECTRIC MOTOR:brush motor/brushless motor
NOMINALVOLTAGE：DC24V
RATED POWER:250W/200W*2
BATTERY(GROUP)
RATED CAPACITY:12/15/20Ah
RATED VOLTAGE:DC24V
NUMBER OFUNITS:1个
CHARGER
POWER SUPPLY:AC 100~240V 50/60Hz
MAX OUTPUTCURRENT:2A
CONTROLLER
MAXOUTPUTCURRENT:35A
PERFORMANCEPARAMETER
MAXIMUM SPEED:s6(km/h)
STATICSTABILITY:≥9(°)
DYNAMICSTABILITY≥6(°)
PERFORMANCE:≤1500(mm)
MINIMUM TURNING RADIUS≤1200(mm)
THEORETICAL DRIVING DISTANCE:10/20/30(km)
Product feature
T6 aviation aluminum
Oxidation does not rust
Riveted nails are stainless steel
Modular
Seat width can be customized, armrest height can be customized
Press and hold to push the joystick to raise and lower
Seat color can be customized

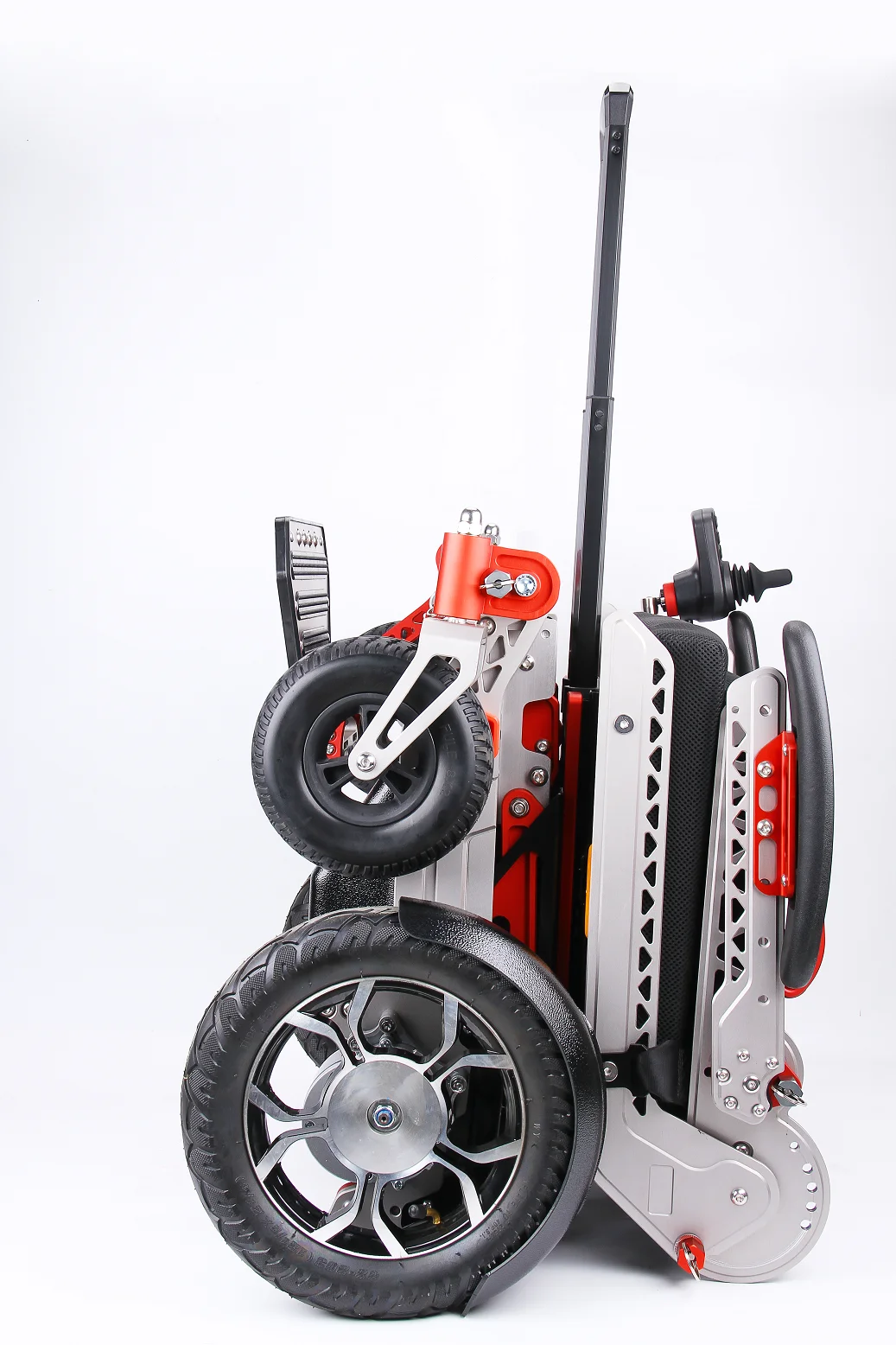

Folding handle for luggage
Oxidation does not rust
Riveted nails are stainless steel
Modular
Seat width can be customized, armrest height can be customized
Press and hold to push the joystick to raise and lower
Seat color can be customized
Folding handle for luggage

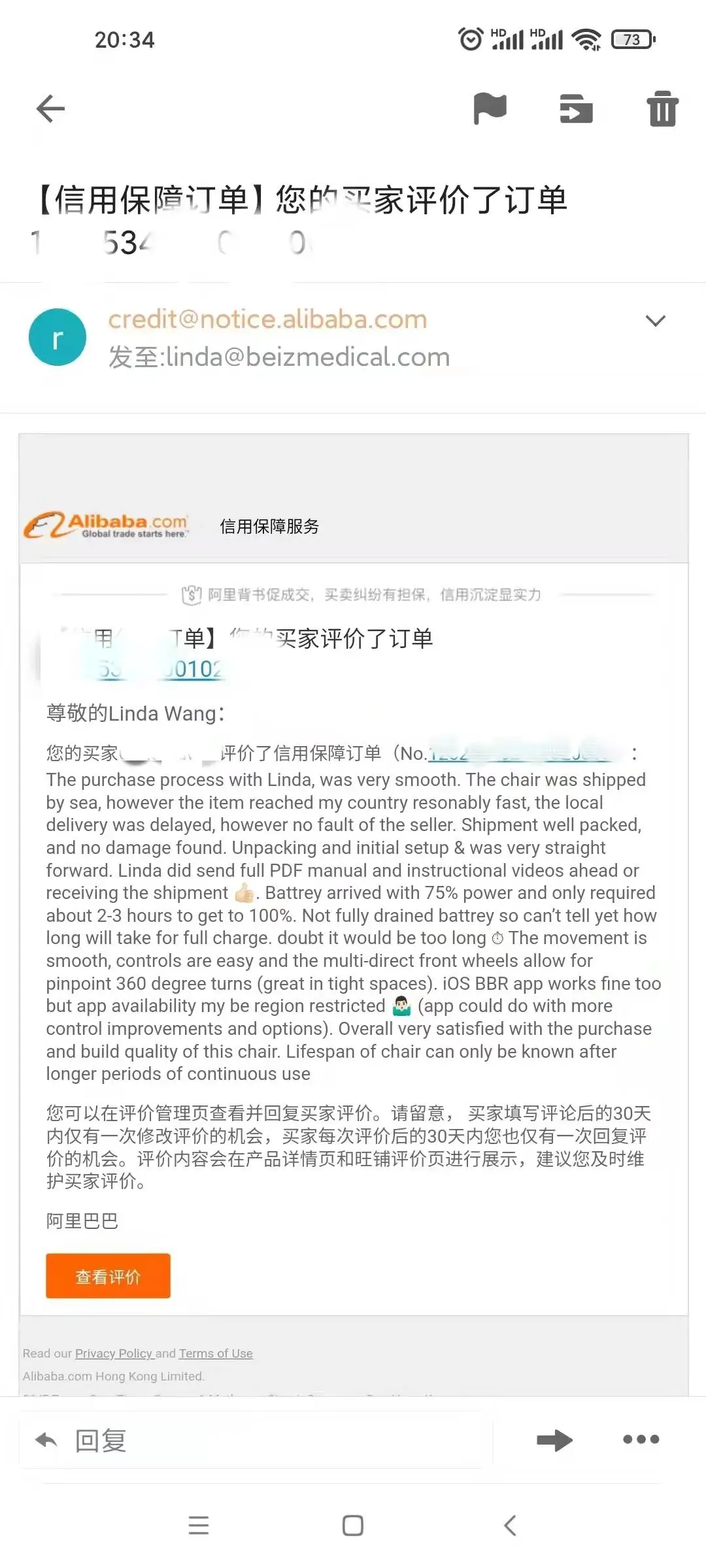

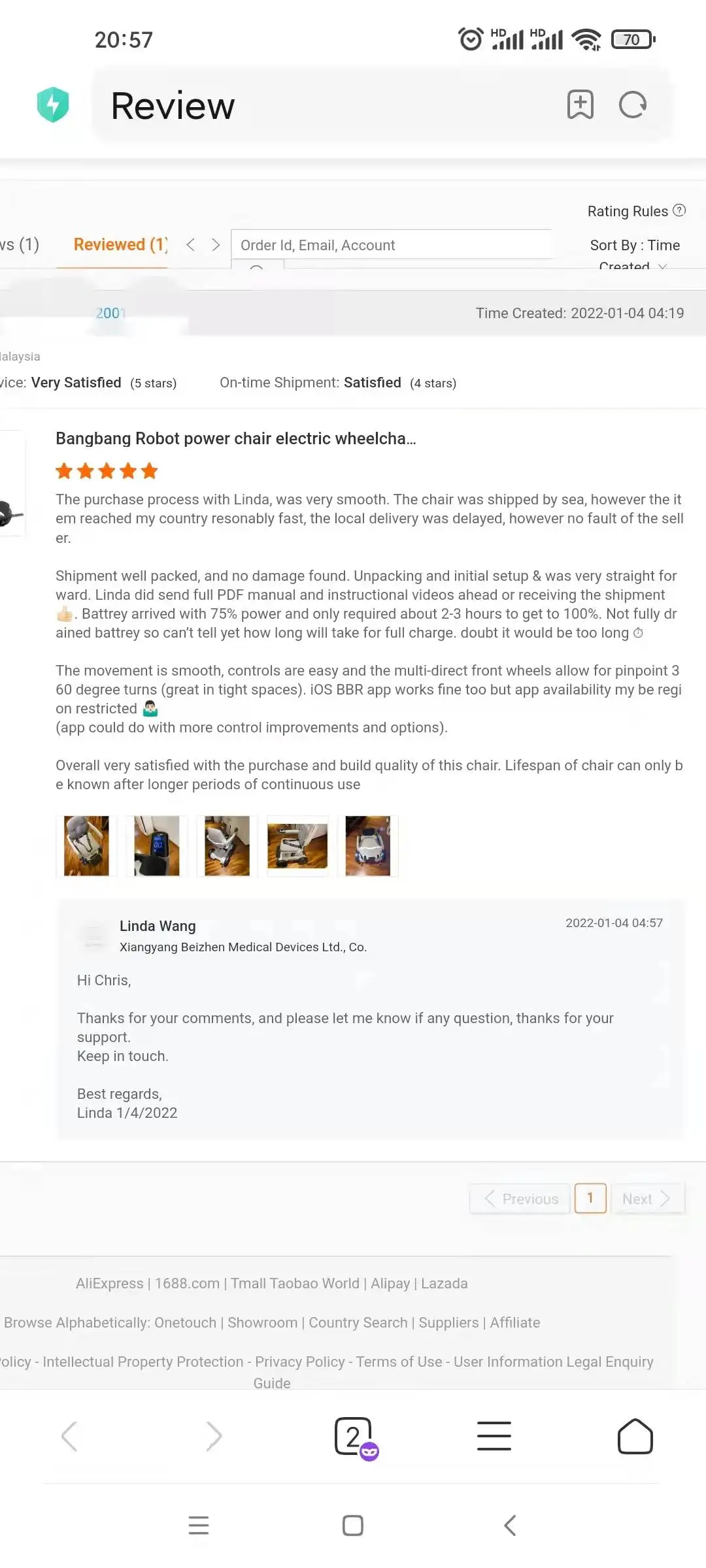

Comments from the customer
