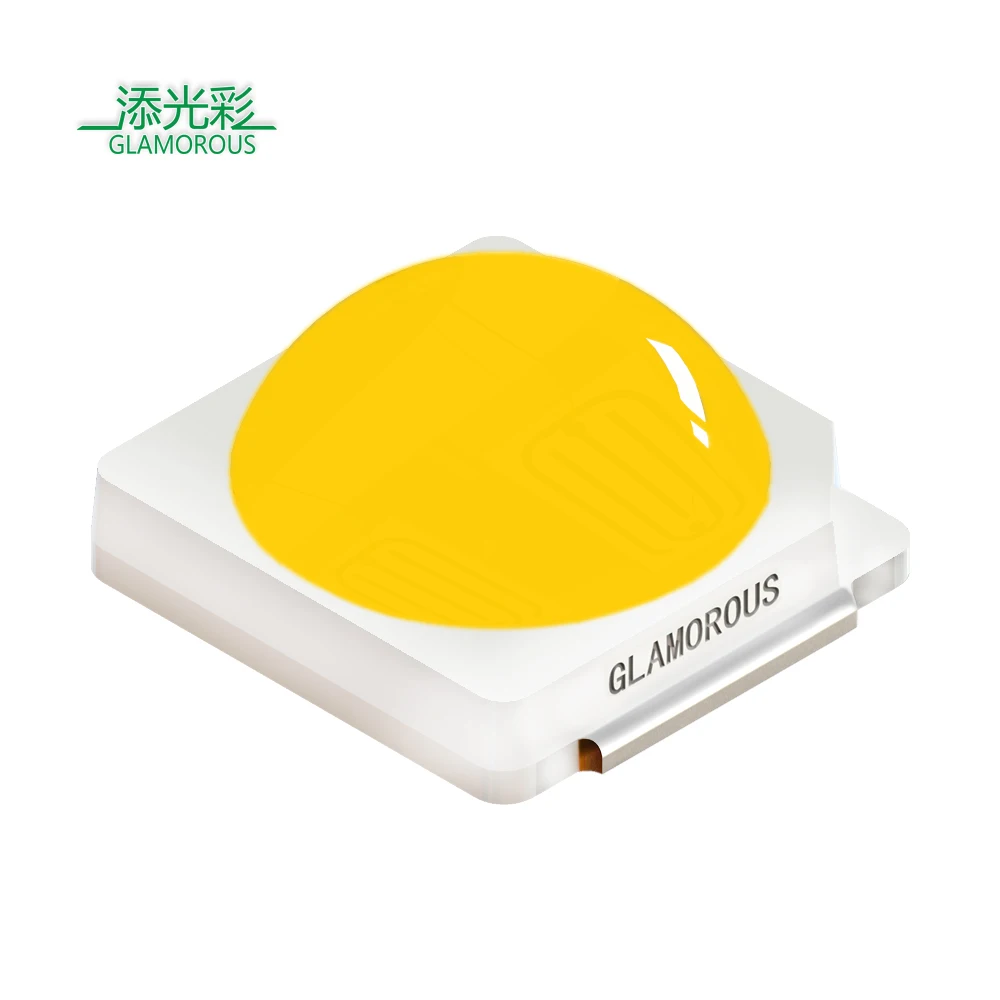

High quality Free Samples 3030 Lens LED Chip White Light Warm White 3500 6500K 1W 3030 SMD LED With Lens Chip Factory Shipment
- Category: >>>
- Supplier: Shenzhen Avatar Optoelectronic Technology Co. Ltd.Shenzhen Ltd.
Share on (1601123064976):
Product Overview
Description
Products Description

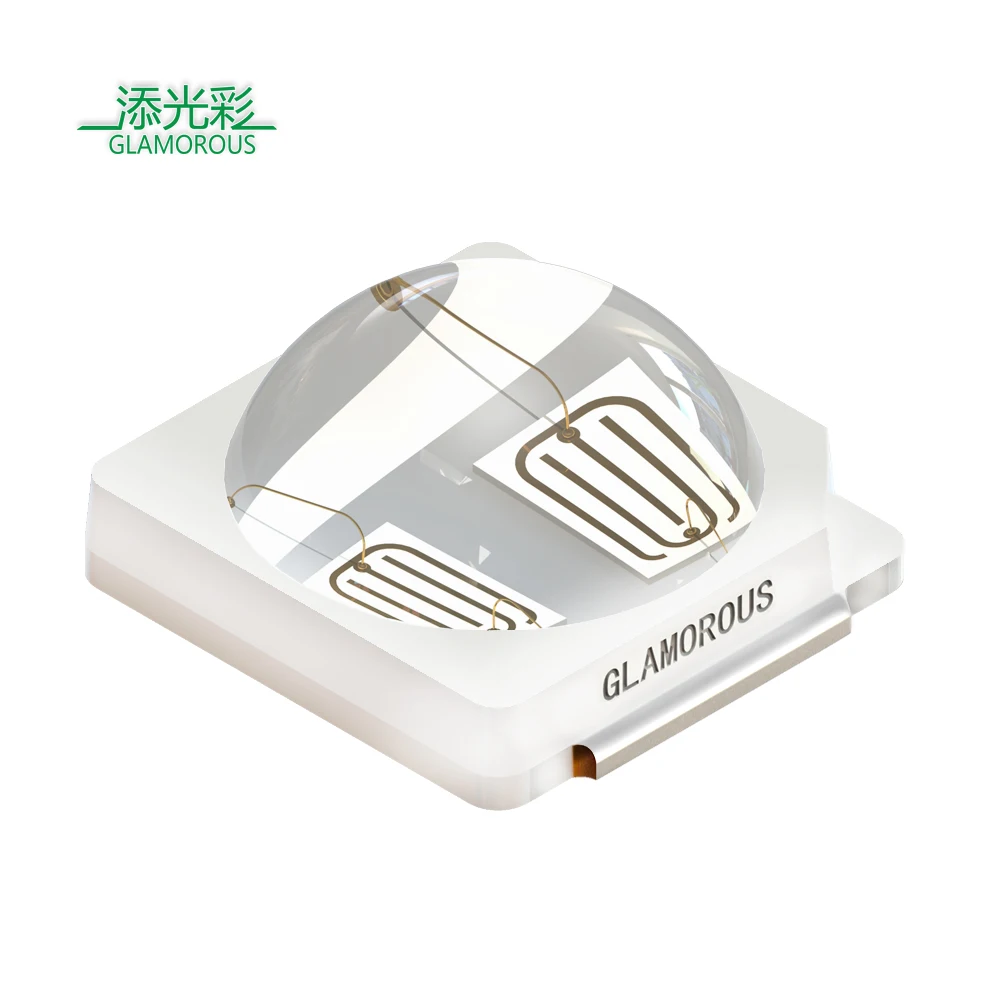

Product Name | LED SMD 3030W With Lens | Product Model | TGC-3030W | ||||||
Power | 1W | Color Rendering Index | 80 | ||||||
Forward Voltage | 2.8-3.4V | Viewing Angle | 90° | ||||||
Forward Current | 350MA | Operating Temperature | -40~+60 ℃ | ||||||
Luminous Flux | 120-140 | Storage Temperature | -40~+85 ℃ | ||||||
Color Temperature | 3500- 6500k | Soldering Temperature | 220-260℃ | ||||||
Features | Full Spectrum ，Warm white | Applications | Plant growth, Street lighting, Indoor lighting | ||||||
Specification

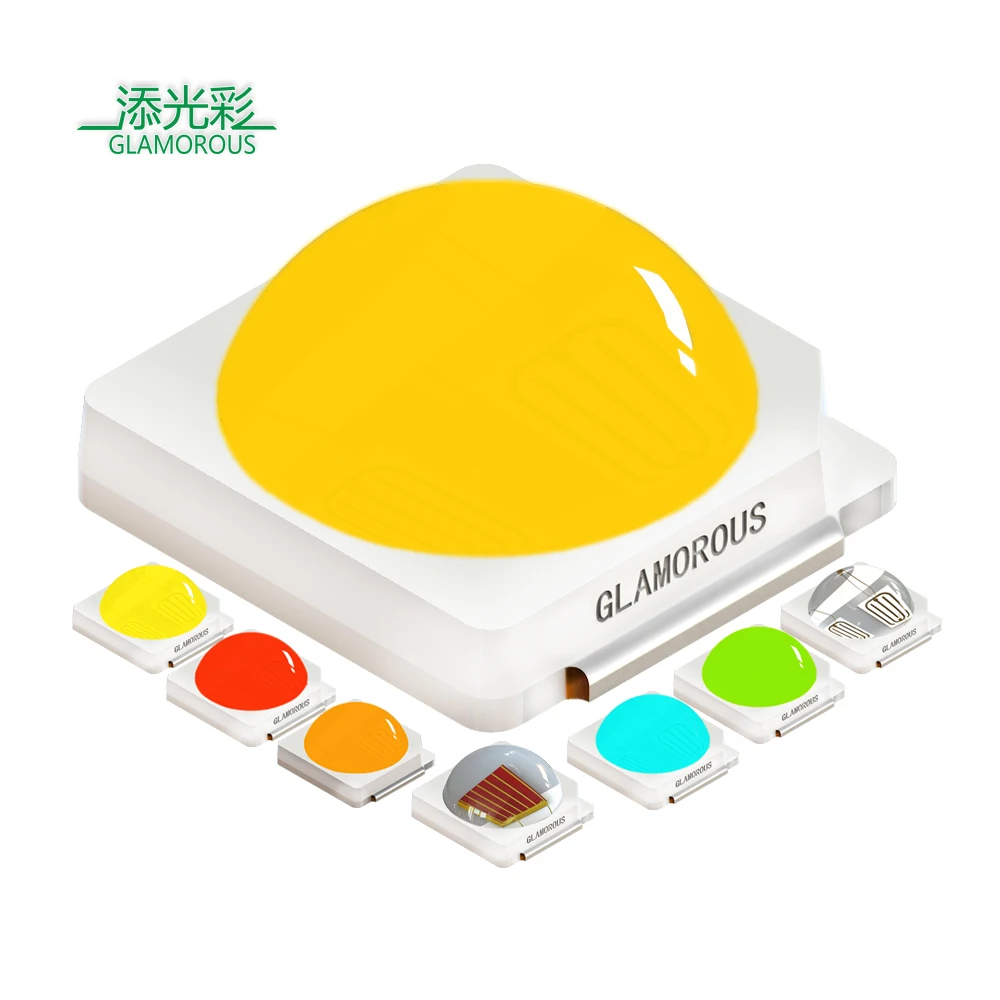

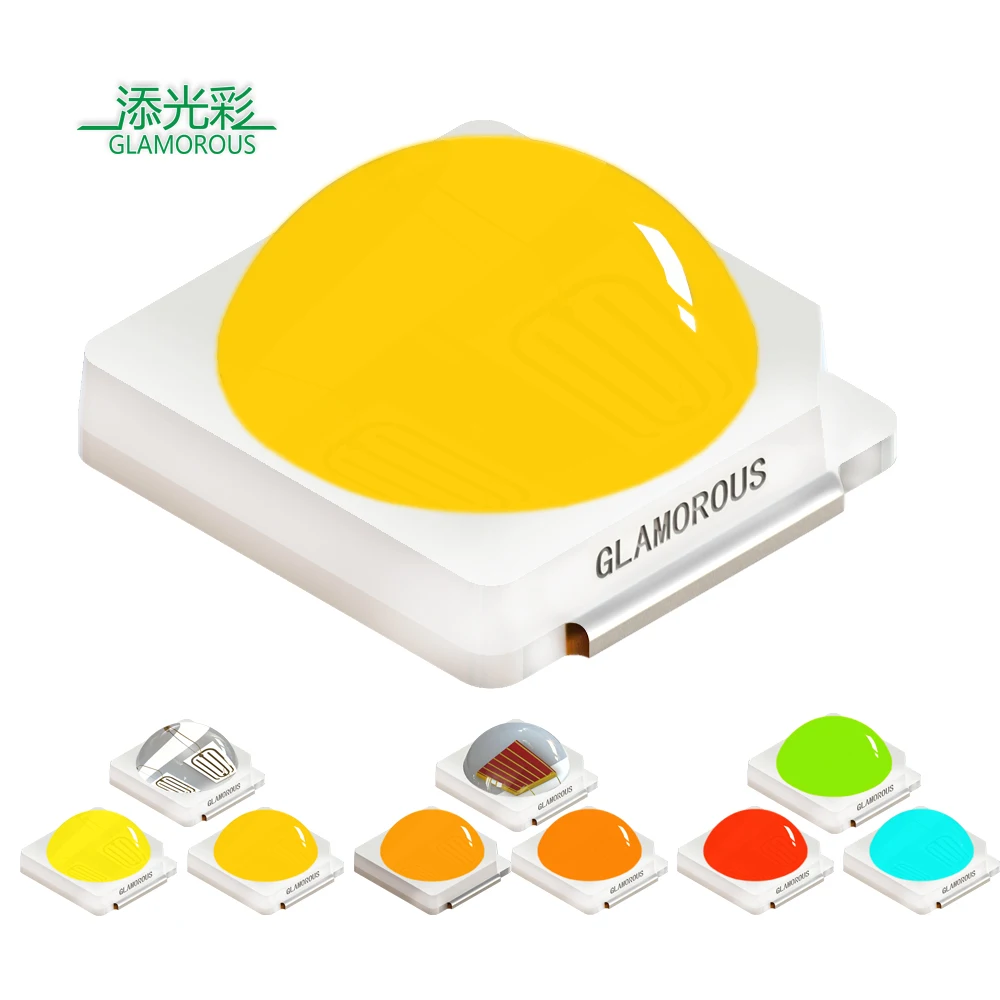

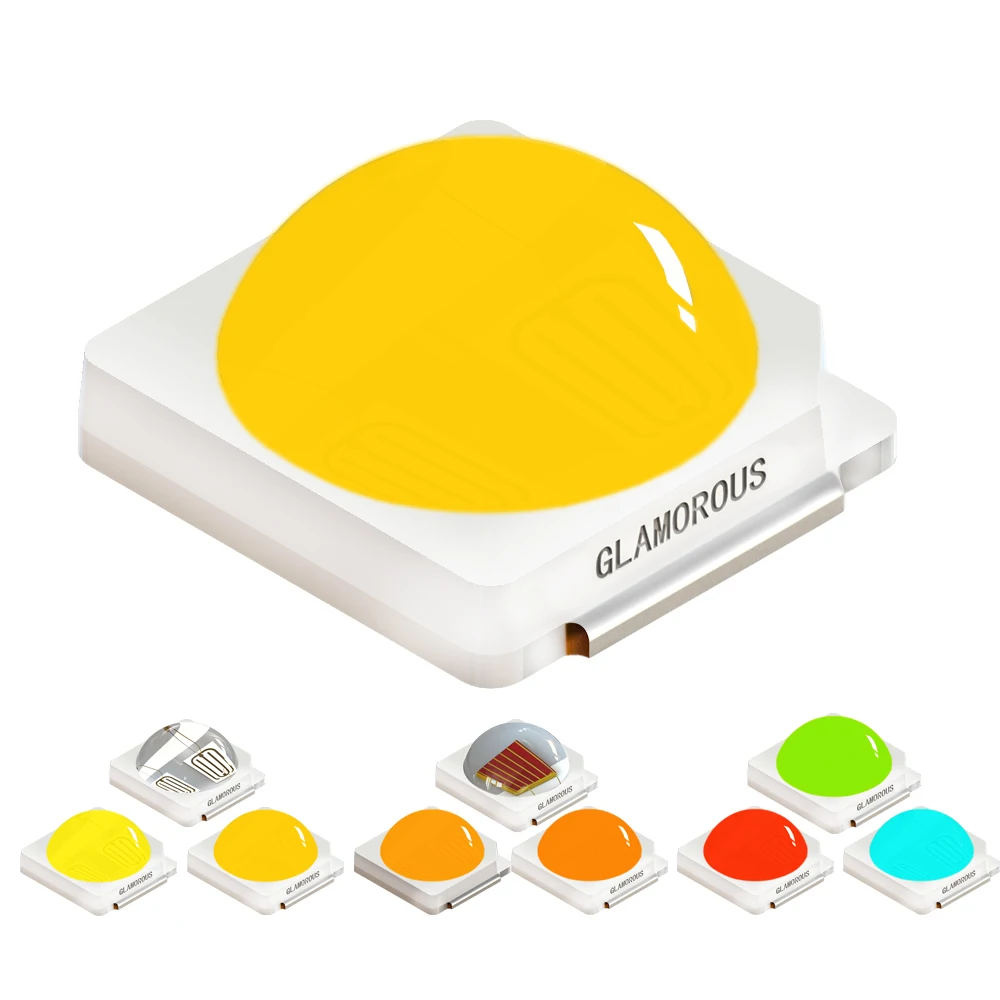

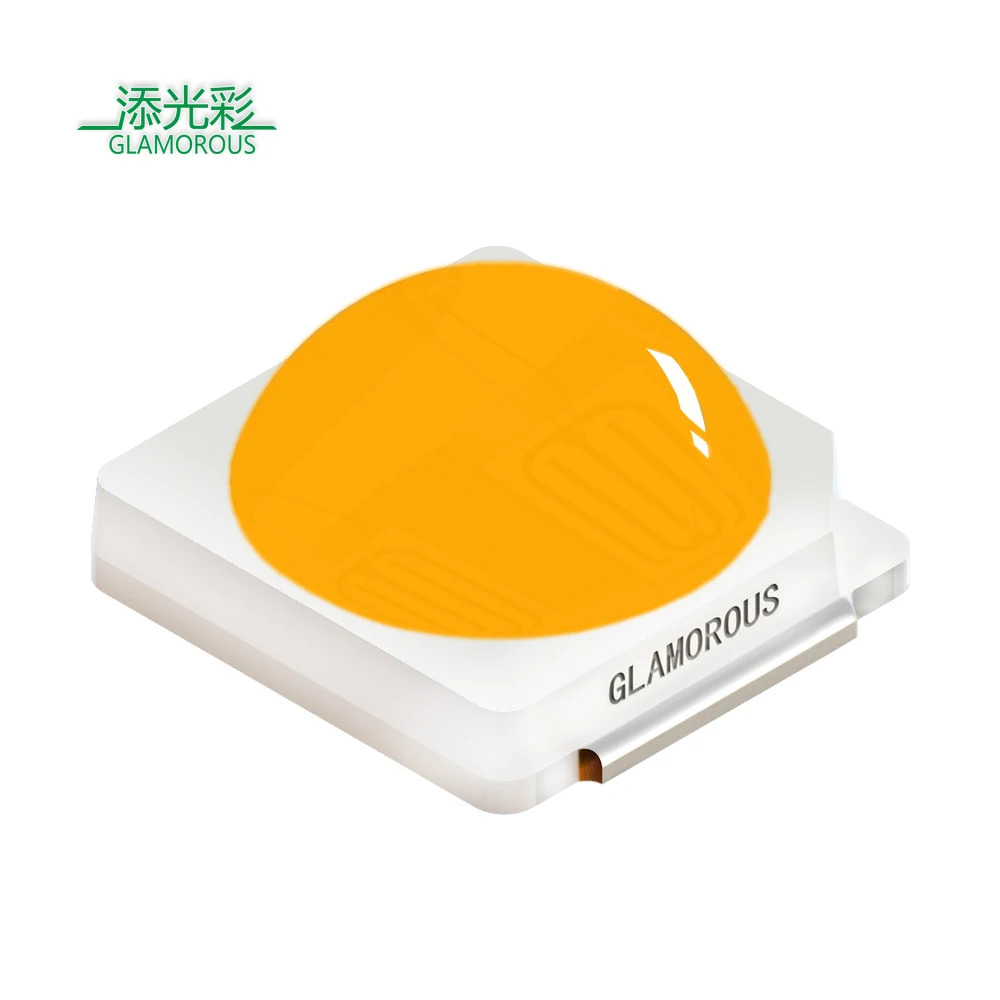

3030 LED SERIES SPECIFICATION | ||||||||||||
Product Name | Light Color | CCT/ Wavelength | Voltage | Current | Lumen | Remark | ||||||
1W 3030 with lens | Gold Yellow | 1800-2000K | 2.8-3.4V | 350MA | 80LM | CRI80,90 | ||||||
1W 3030 with lens | White | 3000-6500K | 2.8-3.4V | 350MA | 90-160LM | CRI80,90,97+ | ||||||
2W 3030 with lens | White | 3000-6500K | 6/9//18/36v | 350MA | 120-200LM | High Voltage Series | ||||||
3030 UV with lens | UV | 365-410nm | 3/6/9V | 350MA | / | 1W 1.5W 2W | ||||||
3030 Blue with lens | Blue | 410-440nm | 3/6/9V | 350MA | 8-15LM | 1W 1.5W 2W | ||||||
3030 Blue with lens | Blue | 440-470nm | 3/6/9V | 350MA | 18-22LM | 1W 1.5W 2W | ||||||
3030 Green with lens | Green | 520-530nm | 3/6/9V | 350MA | 60-120LM | 1W 1.5W 2W | ||||||

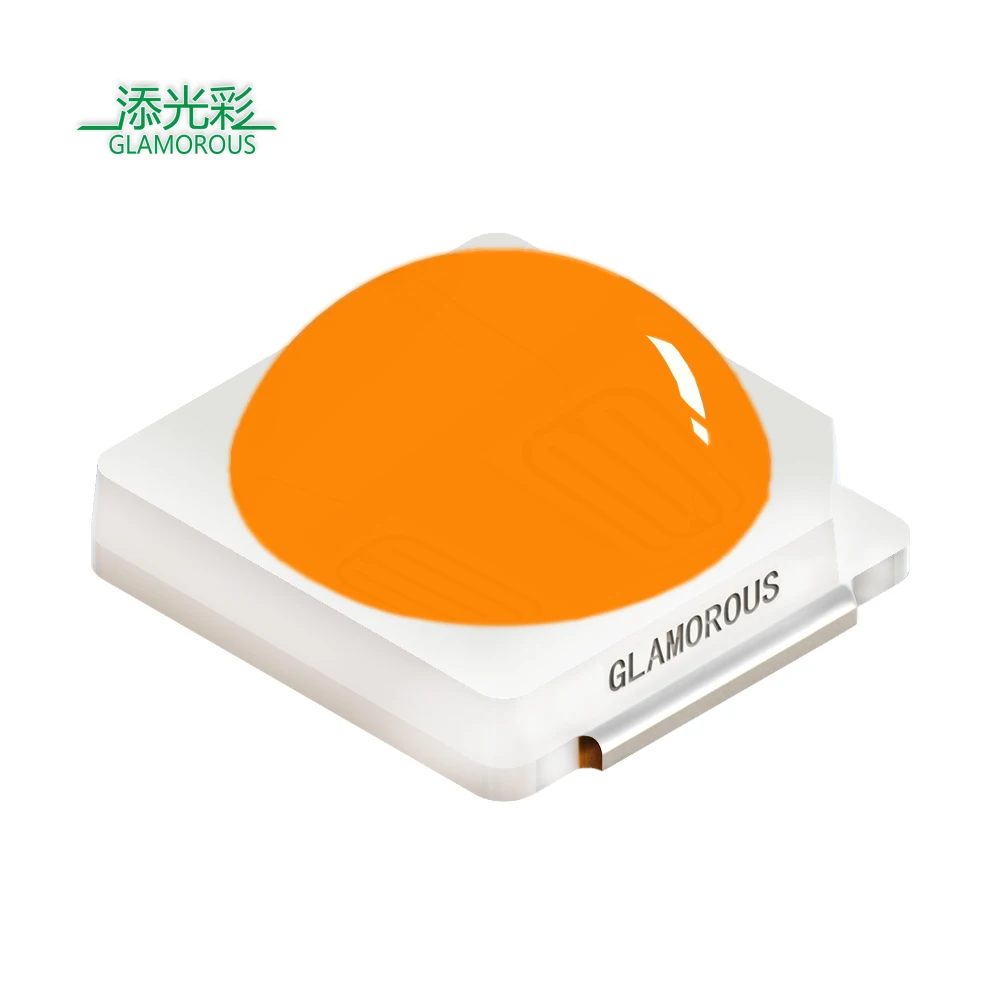

3030 Amber with lens | Yellow/Amber | 590-610nm | 2.0-2.6V | 350MA | 6-20LM | 1W 1.5W 2W | ||||||

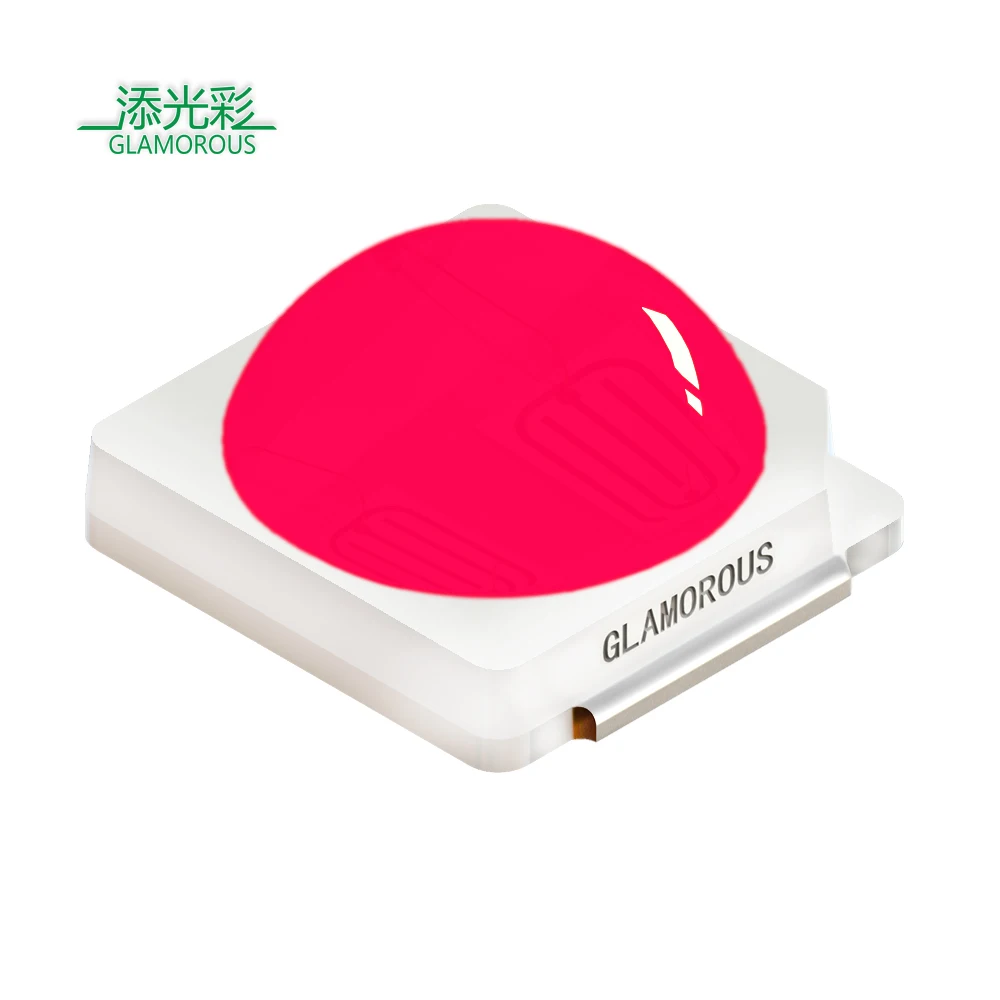

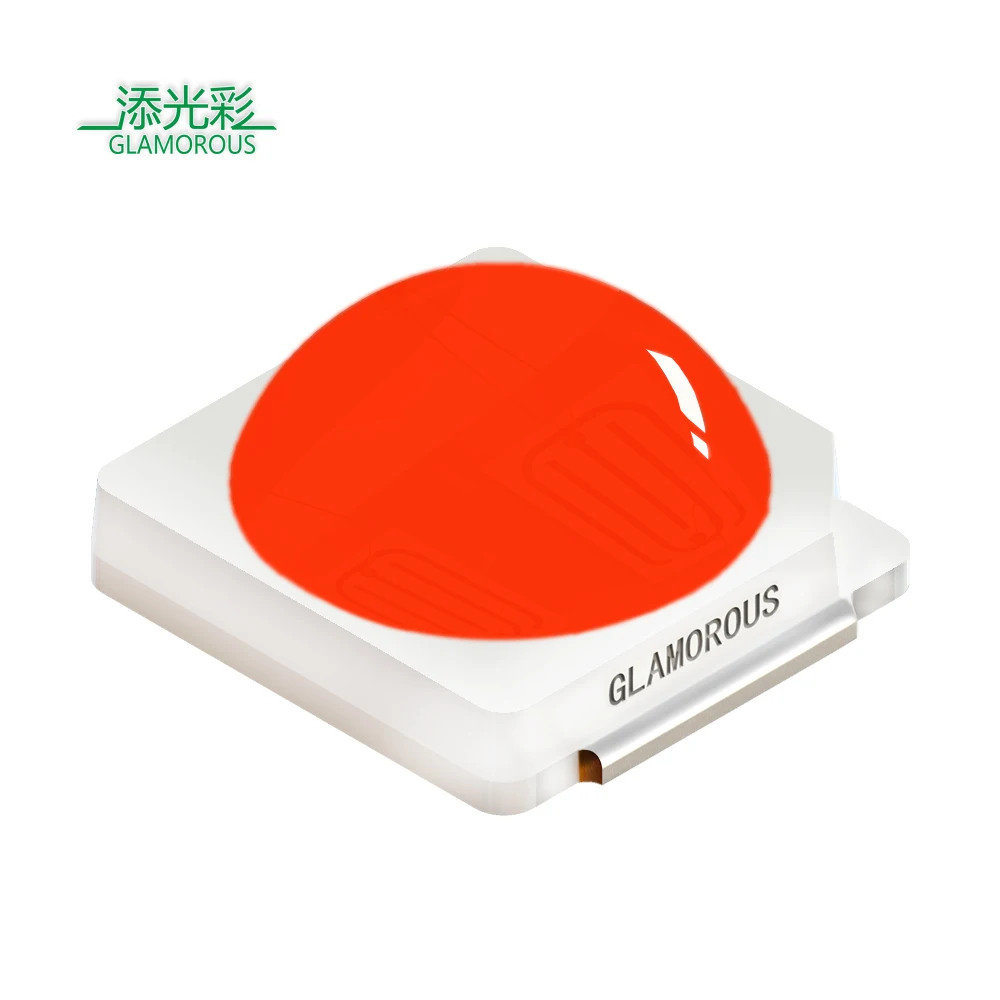

3030 Red with lens | Red | 620-630nm | 1.8-2.2V | 350MA | 35-45LM | 1W 1.5W 2W | ||||||
3030 Far Red with lens | Depp Red | 660-665nm | 2.0-2.6V | 350MA | 7-18LM | 1W 1.5W 2W | ||||||
3030 IR with lens | IR | 730-750-780nm | 1.4-1.8V | 350MA | / | 1W 1.5W 2W | ||||||
3030 IR with lens | IR | 850-1050nm | 1.2-1.6V | 350MA | / | 1W 1.5W 2W | ||||||
3030 PC Pink with lens | Phosphor pink | / | 3/6/9V | 350MA | 6-30LM | 1W 1.5W 2W | ||||||
3030 PC Green with lens | Phosphor Green | 510-530nm | 3/6/9V | 350MA | 60-120LM | Customized WD,WP | ||||||
3030 PC Color with lens | Phosphor Red | 640-660nm | 3/6/9V | 350MA | 10-25LM | / | ||||||

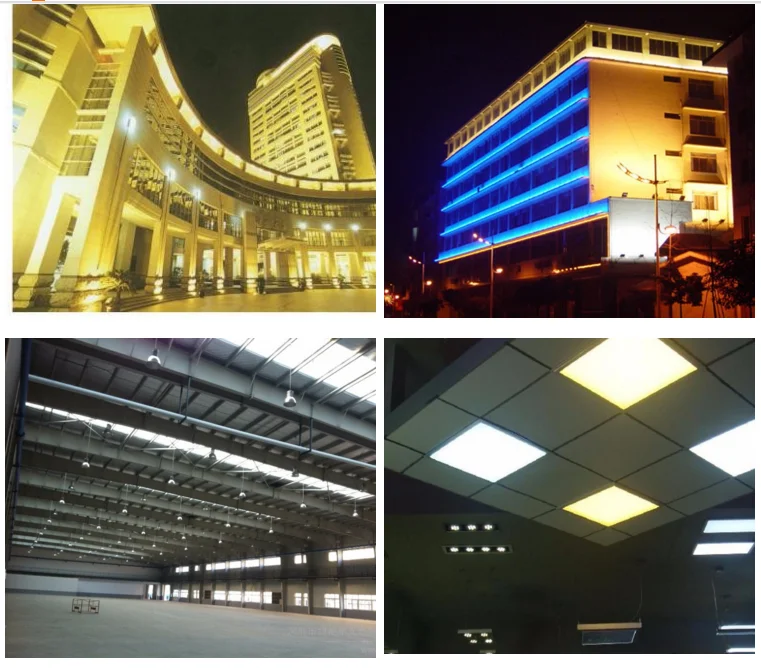

Application
Production and testing process
Certifications
Exhibitions and Visits

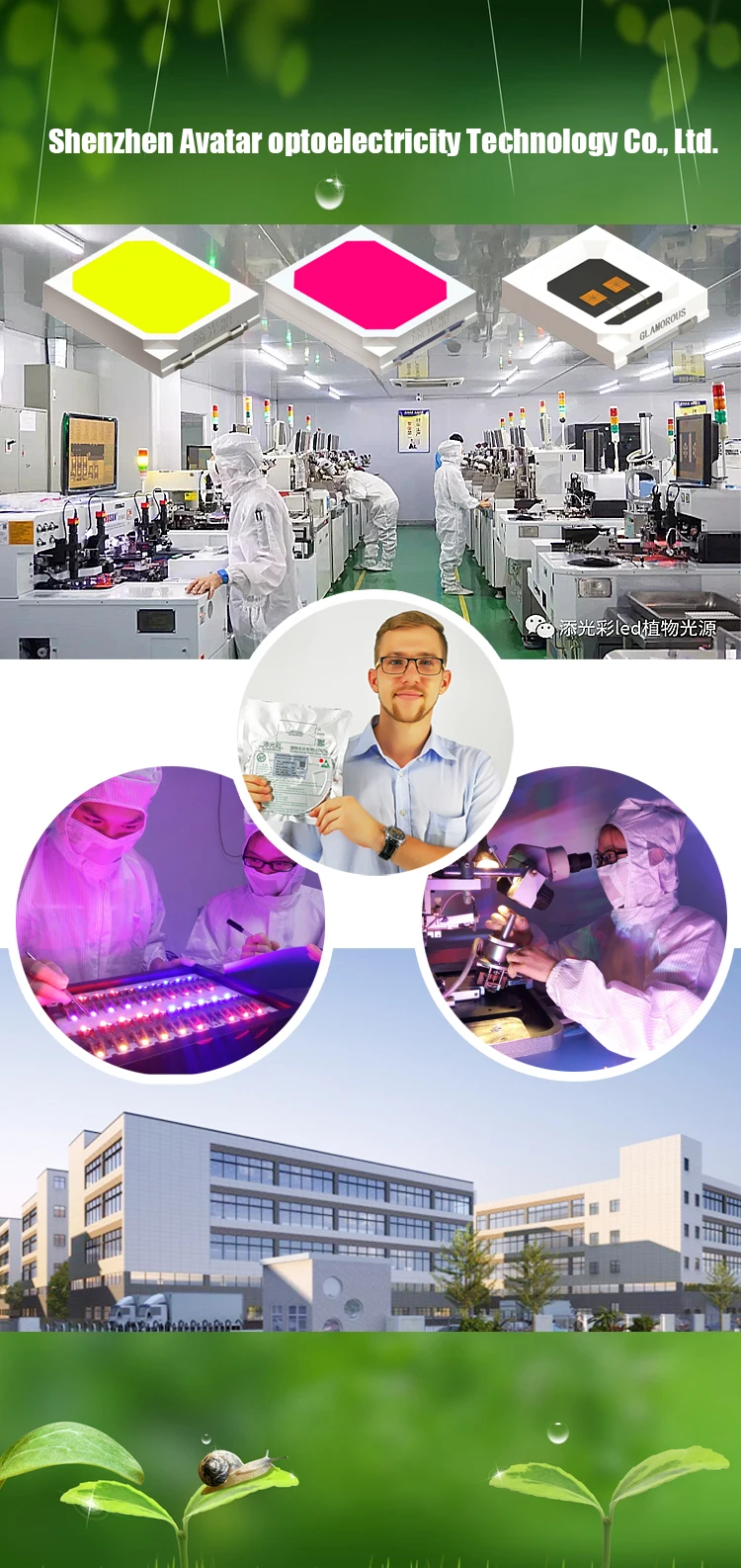

Company Profile
Belonging to Shenzhen Avatar Optoelectronic technology co., LTD, is a subsidiary of it, was founded in 2011, is a professional LED manufacturer that assembled R&D, designs, manufactures, and sales. Company has strong R&D team and built a set of scientific management system. We have world first-class automatic ASM and KS equipment, we
established standard production process and QC procedure, ensure each product will bear the examination and use of clients.
At present, the main products of our company is SMD LED 2835, 5730, 3528, 3030, 5050,3535 etc. Mainly focus on red, blue, green, yellow, orange, RGB, purple, pink light and full spectrum light series. Strictly according to ISO9001:2008 quality management system, rich experience has been accumulated. So far, we have get these quality certification such as CE, ROHS, 3C, LM-80, company has wined the name of "National high and new technology enterprise" and ISO9001 recognition in 2015.
We became the strategic cooperative partner of the Institute of Environmental and Sustainable Development of the Chinese Academy of Agricultural Sciences in 2016. Subsidiary research house(SHENZHEN GLAMOROUS LED PLANT LIGHTING) of Beijing Research Institute of Agricultural Technology. Appointed SMD supplier for the project of "Plant factory" in South China Agricultural University.
established standard production process and QC procedure, ensure each product will bear the examination and use of clients.
At present, the main products of our company is SMD LED 2835, 5730, 3528, 3030, 5050,3535 etc. Mainly focus on red, blue, green, yellow, orange, RGB, purple, pink light and full spectrum light series. Strictly according to ISO9001:2008 quality management system, rich experience has been accumulated. So far, we have get these quality certification such as CE, ROHS, 3C, LM-80, company has wined the name of "National high and new technology enterprise" and ISO9001 recognition in 2015.
We became the strategic cooperative partner of the Institute of Environmental and Sustainable Development of the Chinese Academy of Agricultural Sciences in 2016. Subsidiary research house(SHENZHEN GLAMOROUS LED PLANT LIGHTING) of Beijing Research Institute of Agricultural Technology. Appointed SMD supplier for the project of "Plant factory" in South China Agricultural University.
Packaging and shipping
FAQ
1. who are we?We are based in Guangdong, China, start from 2011,sell to Southeast Asia(25.00%),North America(15.00%),South America(10.00%),Oceania(10.00%),Western Europe(10.00%),Eastern Europe(10.00%),Eastern Asia(5.00%),Northern Europe(5.00%),Mid East(5.00%),Southern Europe(2.00%),Central America(2.00%),South Asia(1.00%),Africa(0.00%),Domestic Market(0.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
SMD LED Chips, 2835 SMD LED, LED Grow Lights, Hydroponic Growing System, Red Therapy Light
4. why should you buy from us not from other suppliers?
Strategic partner of the Institute of Environmental and Sustainable Development of the Chinese Academy of Agricultural Sciences in 2016. Subsidiary research house,Appointed supplier for the project of "Plant factory" in South China Agricultural University.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
