Product Overview
Description

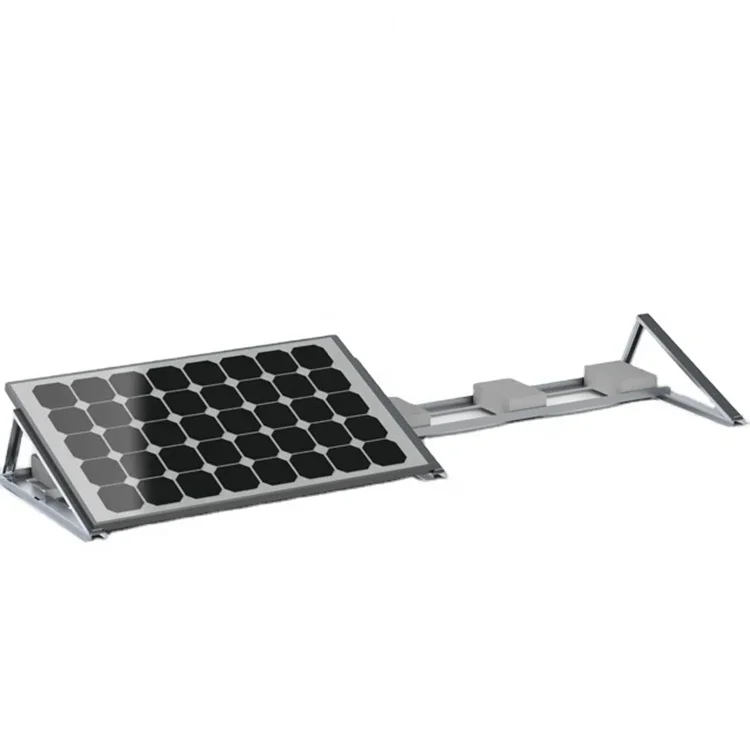

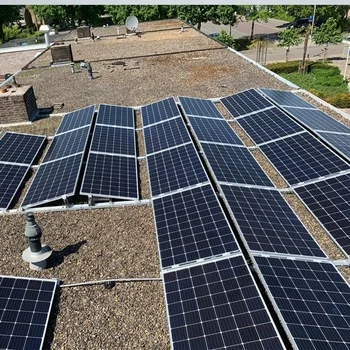

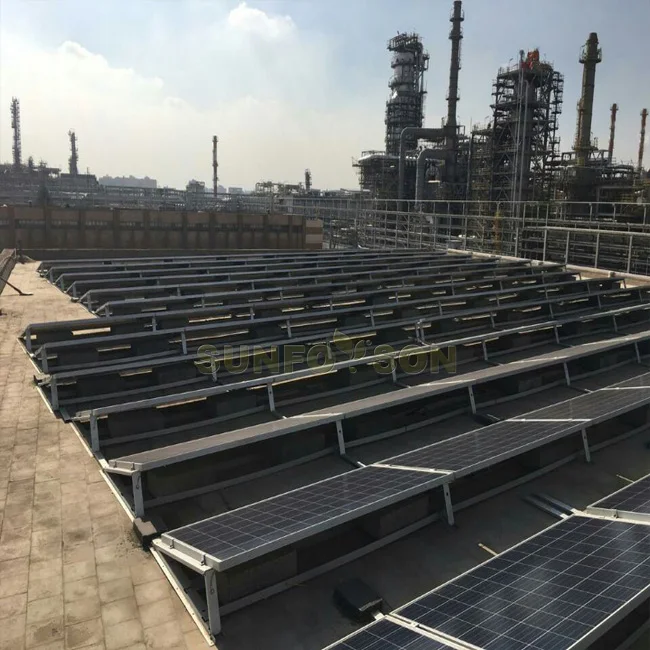

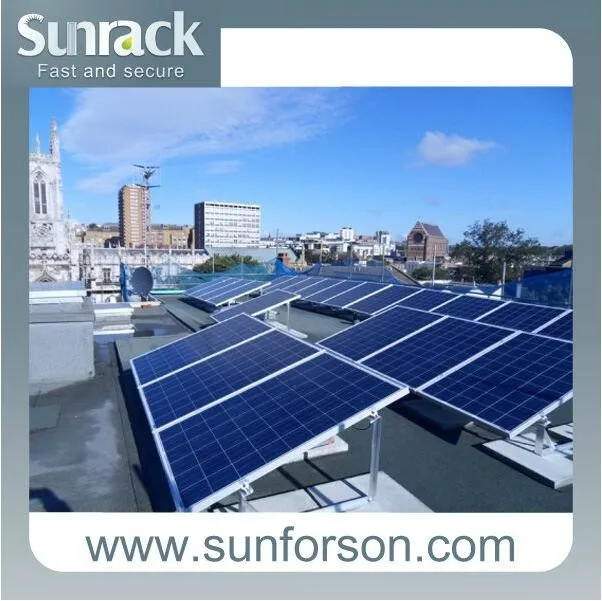

SFS-FR-02 Solar flat roof ballast mounting structure

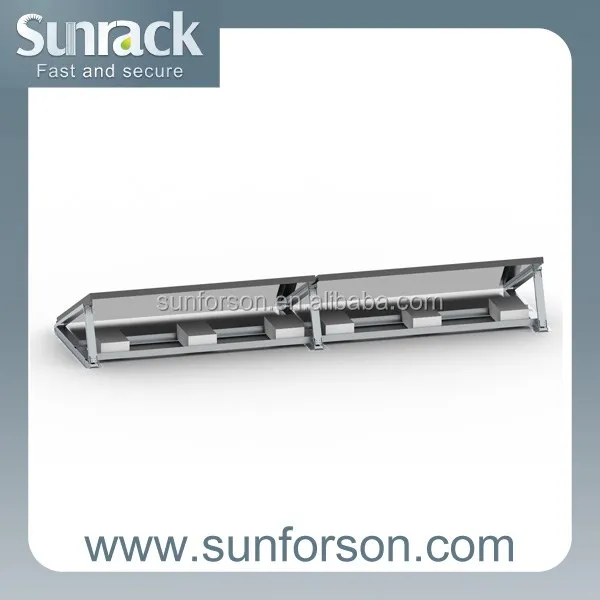

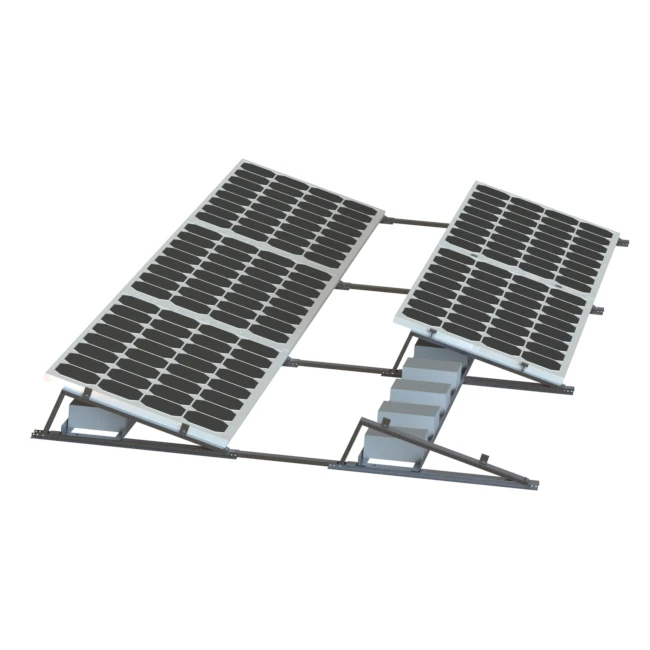

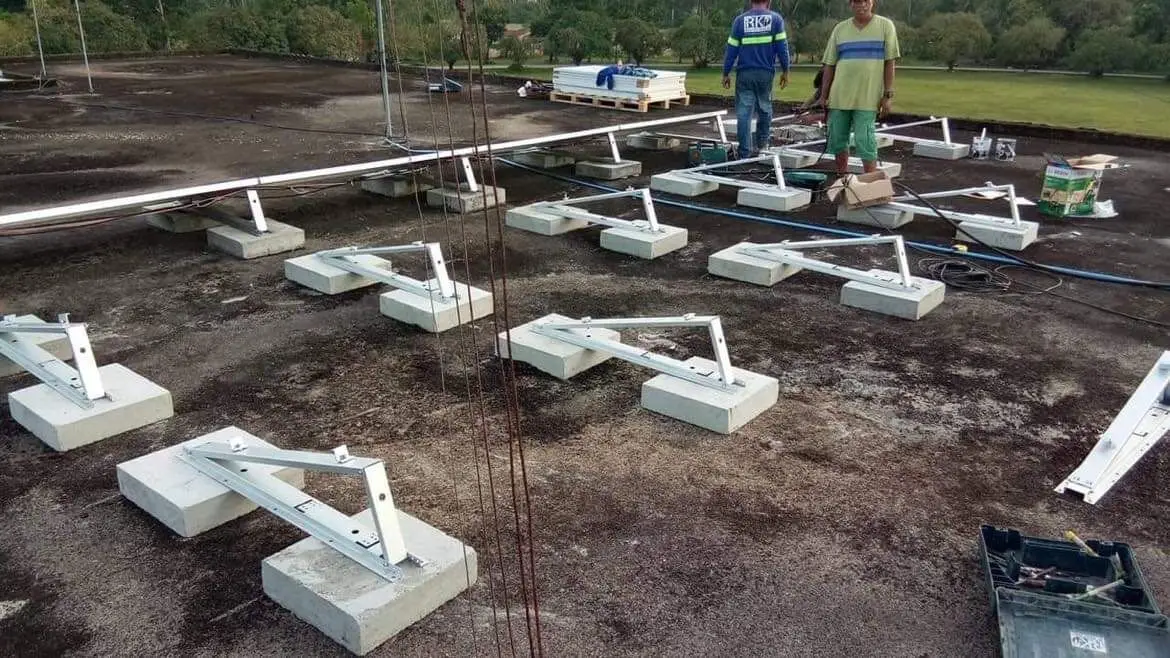

SunRack SFS-FR-02 ballast mounting system adopts foldable triangular to save cost both on installation and transportation. It is a modular structure, which can be expanded from one module to any scale while maximizing the roof usage. Our professional engineers will propose the size and weight of ballast for the project you are involved in.
pv aluminum mounting solar mounting system roof aluminum solar panel mounting bracket solar panel roof

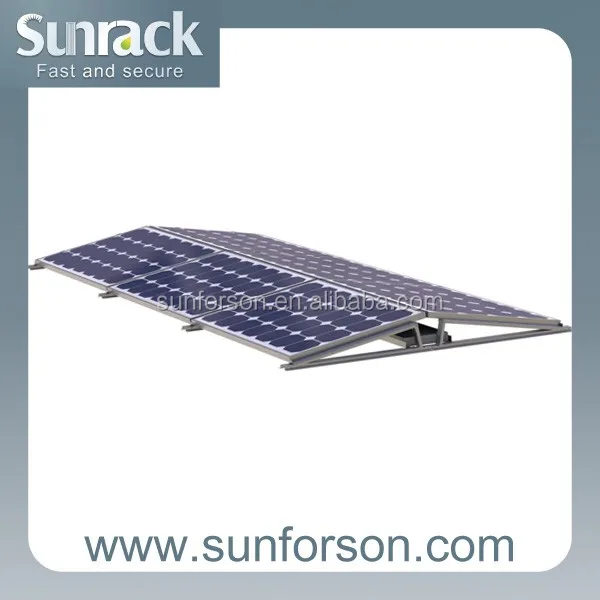

1,Cost competitive with modules in landscape and tilted angle from 5-15 degree
2,Easy and fast installation solution.Professional design and stable structure

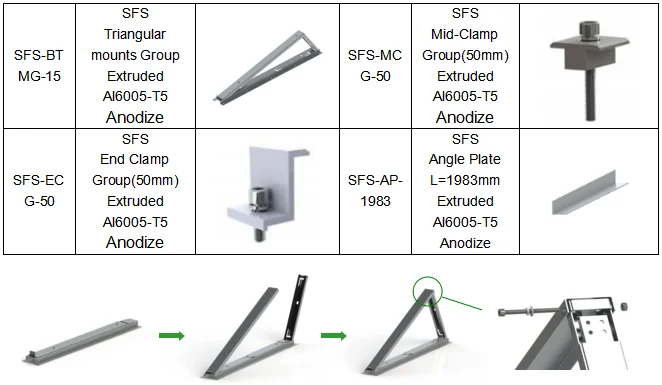

3,Pre-assembled parts to save cost and installation time
4,Modular extension for maximum usage of roof
1,Cost competitive with modules in landscape and tilted angle from 5-15 degree
2,Easy and fast installation solution.Professional design and stable structure
3,Pre-assembled parts to save cost and installation time
4,Modular extension for maximum usage of roof
Mount Type | Solar flat roof ballast mounting system | ||||||
Installation Site | Open ground/flat roof | ||||||
Panels | Solar panel for any size | ||||||
Structural materials | Aluminum, stainless steel | ||||||
Survival wind speed | Up to130mph (60m/s) | ||||||
Design snow pressure | Up to 30psf (1.4KN/m2) | ||||||
Inclination | Customizable | ||||||
Vertical or horizontal | Vertical or horizontal | ||||||
Design Standards | CE&AS / NZS 1170 | ||||||
Warranty | Design Life for 25 years, quality assurance for 10 years | ||||||
Necessary info. for Sunforson to design and quote the solar mounting structures:
1.Solar Panels Dimension: __mm (Length) x__mm (Width) x__mm (Thickness)
2.The layout of the solar panels __Nos in row, __Rows in total
3.How many panel are you going to install? __Nos
4.Maximum Wind load: __m/s or __km/h or __mph
5.Maximum Snow Load: __KN/m² (if have)
6.Solar mount tilt angle: __degree
2.The layout of the solar panels __Nos in row, __Rows in total
3.How many panel are you going to install? __Nos
4.Maximum Wind load: __m/s or __km/h or __mph
5.Maximum Snow Load: __KN/m² (if have)
6.Solar mount tilt angle: __degree
