PU 01 Or.1mm 50Bar NC Brass 1/4in 1/8in Small gas air oil fule water Solenoid Valve with connector type
- Category: >>>
- Supplier: Yuyao Hoyan Electronic Co. Ltd.
Share on (1601123083311):
Product Overview
Description

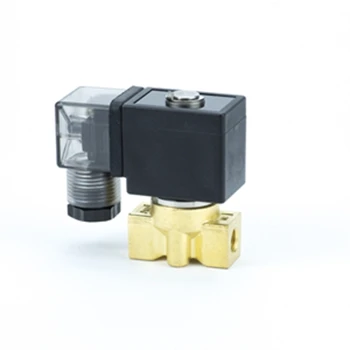

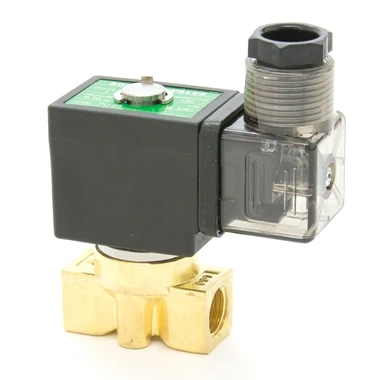

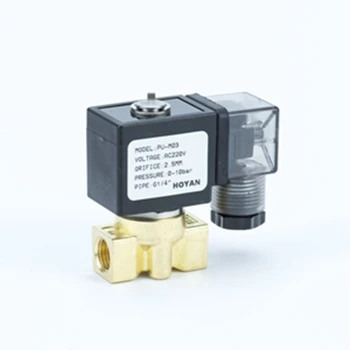

2 Way Brass Normally Close solenoid valve with connector
G BSP NPT 1/4in 1/8in
PU-01 ,Orifice 1mm ,
Pressure 0-50bar

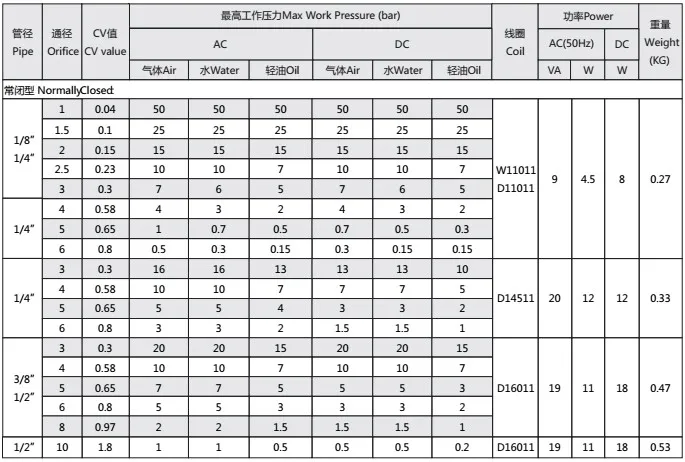

Model | Pipe | Orifice mm | CV | Max.Working Pressure(bar) | ||||||||||||||
AC | DC | |||||||||||||||||
Air | Water | Oil | Air | Water | Oil | |||||||||||||
PU-01 | 1/4in 1/8in | 1 | 0.04 | 50 | 50 | 40 | 50 | 50 | 40 | |||||||||
Voltage: 110V AC ,220V,380V AC , 12V DC ,24V DC . | ||||||||||||||||||
Seals : NBR: <80°C , EPDM: <120°C ,FKM: <150°C; | ||||||||||||||||||
Normally Close 1/4in 1/8in Brass valve D11011 | ||||||||||||||||||
Related Products
High Pressure Solenoid Valve Timer Drain Solenoid Valve
3 Way Solenoid Valve Pilot Solenoid Valve
Packing & Delivery
Packing :
1.Export Cartons
2.Packed according to the client requirements
Delivery:
Within 15 days after receipt of deposit
