48V Energy Storage Battery Pulley 5Kwh 10Kwh 15Kwh 51.2V 100Ah 200Ah 300Ah 280Ah Lifepo4 Lithium Ion Batteries With Bms
- Category: >>>
- Supplier: Keheng New Energy Technology (shenzhen) Co. Ltd.
Share on (1601123527481):
Product Overview
Description
Home Energy Storage lifepo4 Batteries
● Grade A lifepo4 cell longer cycle life,safer
● More than 6000 cycles of use 80%DOD
● Higher energy density，Charge faster

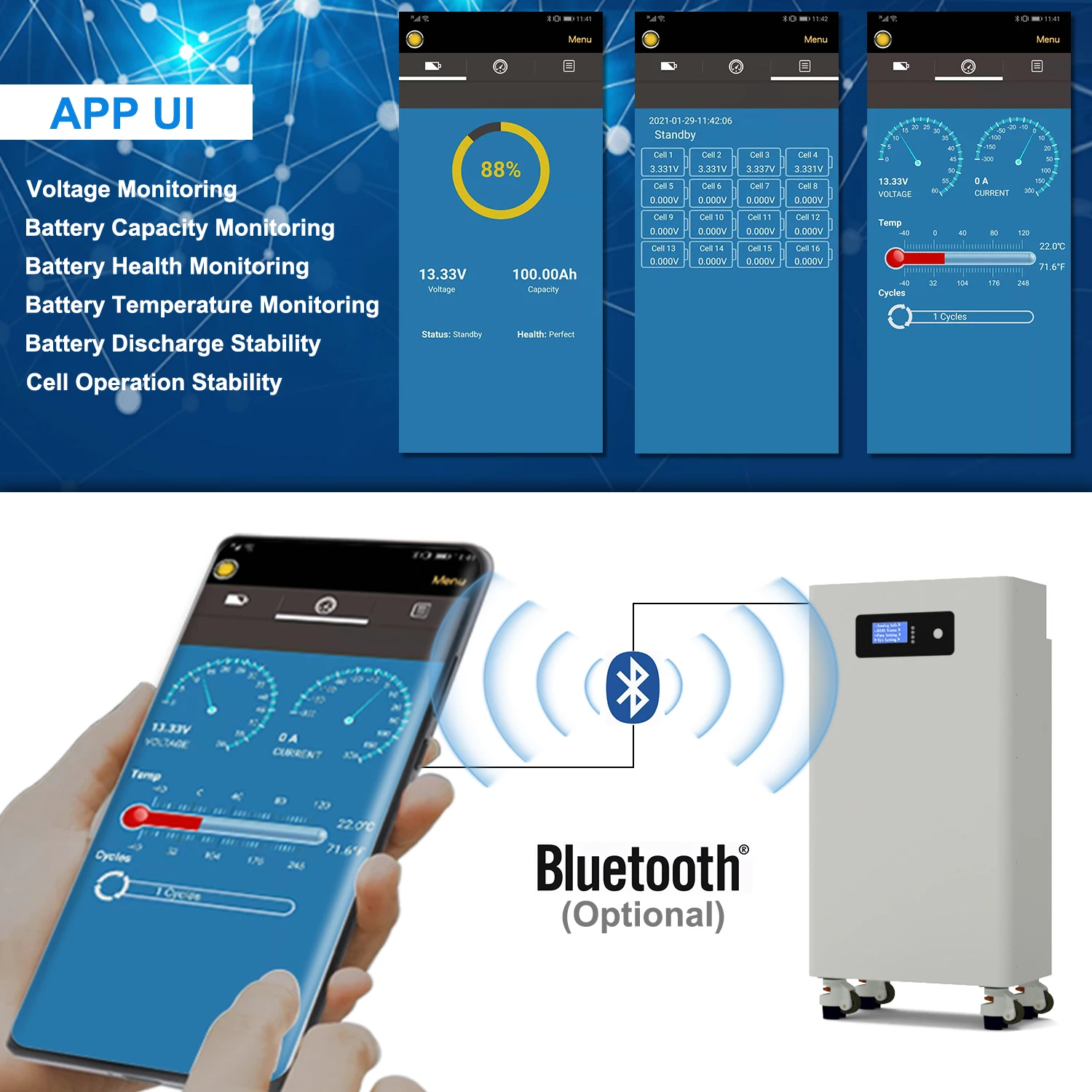

● Phone APP connects To bluetooth, TB monitoring optional,detect the battery status
● Suitable size, light weight, more convenient to use
● Equipped with pulleys for easier use and faster movement
● Factory direct sales with a wider range of customization options
● More than 6000 cycles of use 80%DOD
● Higher energy density，Charge faster
● Phone APP connects To bluetooth, TB monitoring optional,detect the battery status
● Suitable size, light weight, more convenient to use
● Equipped with pulleys for easier use and faster movement
● Factory direct sales with a wider range of customization options
OEM&ODM
Can be customized, we can according to the style you want to carry out detailed customization, can meet the custom logo, product specifications, parameters, size, battery control system, communication protocols, assembly requirements, and so on.
Why choose Keheng lithium ion battery？
keheng was established in 2008, now has a mature industrial chain, strong technical strength and extensive brand influence.With technological innovation，keheng has aquired around 100 technologies patents，able to develop and produce various types of lithium battery products independently.The products have passed ISO9000 Quality Management system, EU CE,EU ROHS,US FCC,and other certifications,and are sold well in more than 130 countries and regions around the world.
Model | KH-LFPL13440 | KH-LFPL14400 | KH-LFPL14336 | KH-LFPL15360 | |||

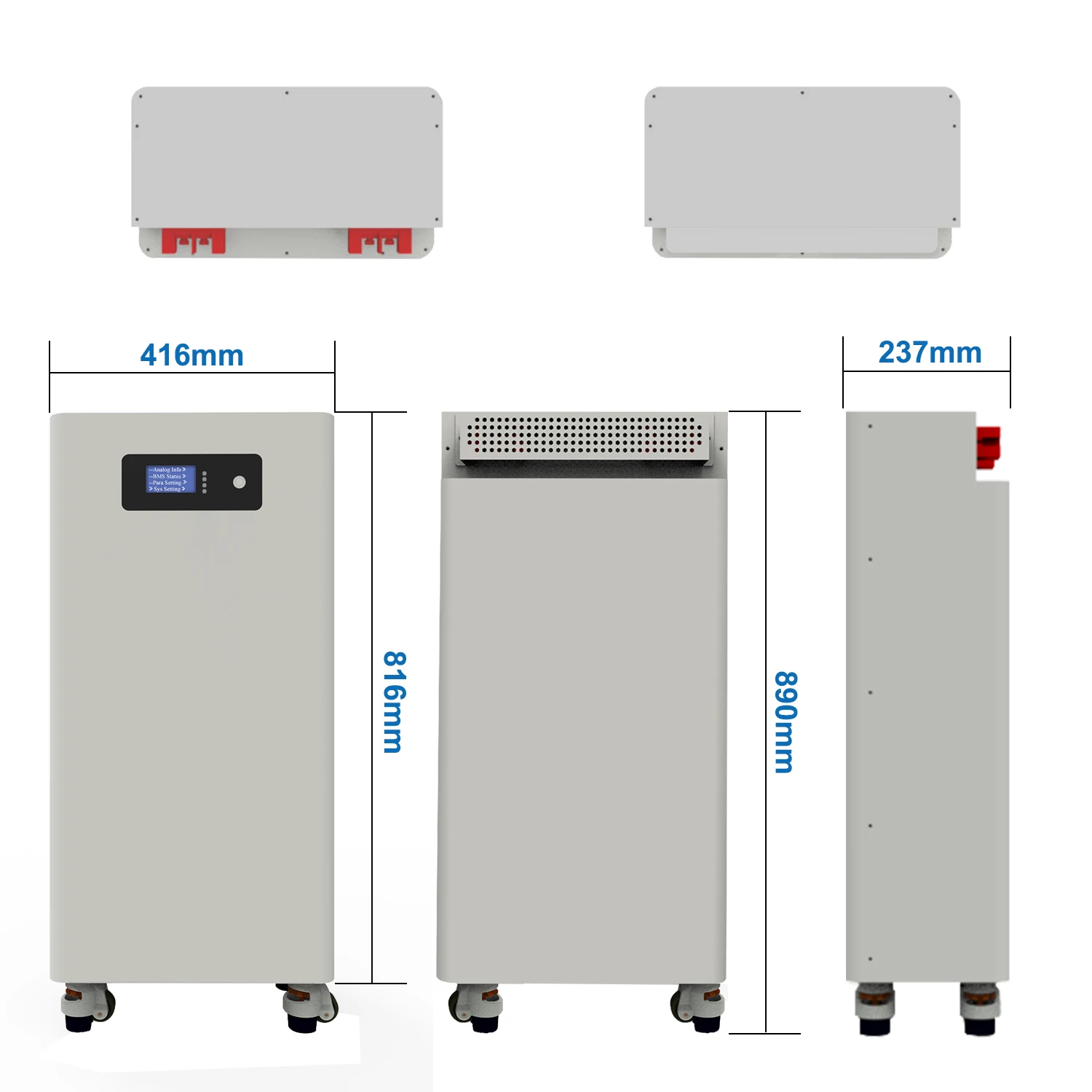

Dimension（mm）： | 890*416*237mm 35*16.4*9.3inch | 890*416*237mm 35*16.4*9.3inch | 890*416*237mm 35*16.4*9.3inch | 890*416*237mm 35*16.4*9.3inch | |||
Norminal Voltage： | 48v | 48v | 51.2v | 51.2v | |||
Working Voltage Range： | 41V~56.2V | 41V~56.2V | 42V~58.4V | 42V~58.4V | |||
Norminal capacity： | 280ah | 300ah | 280ah | 300ah | |||
Service life： | 6000 Cycle | 4500-6000 Cycle | 4500-6000 Cycle | 4500-6000 Cycle | |||
Display： | LCD display | LCD display | LCD display | LCD display | |||
Communication mode： | RS485/CAN/RS232 | ||||||
IP grade： | IP65 | IP65 | IP65 | IP65 | |||
Operating Temperature： | Charge: 0℃~50℃ （32°F~122°F） Discharge:-20℃~60℃ （-4°F~140°F） storage:-10℃~50℃ （14°F~122°F） | Charge: 0℃~50℃ （32°F~122°F） Discharge:-20℃~60℃ （-4°F~140°F） storage:-10℃~50℃ （14°F~122°F） | Charge: 0℃~50℃ （32°F~122°F） Discharge:-20℃~60℃ （-4°F~140°F） storage:-10℃~50℃ （14°F~122°F） | Charge: 0℃~50℃ （32°F~122°F） Discharge:-20℃~60℃ （-4°F~140°F） storage:-10℃~50℃ （14°F~122°F） | |||
Fast charge | Constant Current 60A Constant Voltage 58.4V | Constant Current 60A Constant Voltage 58.4V | Constant Current 60A Constant Voltage 58.4V | Constant Current 60A Constant Voltage 58.4V | |||
Casing: | SPCC | ||||||
Energy： | 13.4Kwh | 14.4Kwh | 14.3Kwh | 15.3Kwh | |||
Charging Mode(CC/CV): | At 0℃~45℃ temperature, charge to 57.6V at a constant current of 0.2C, and then, change continuously with constant voltageof 57.6V until the current was not more than 0.02C. | ||||||
Assistance Function： | Smart BMS, Mobile APP, Bluetooth, Wifi, Communication Protocol | ||||||
Application： | Home Energy Storage, RV energy storage, machinery backup power, agricultural irrigation system energy storage | ||||||

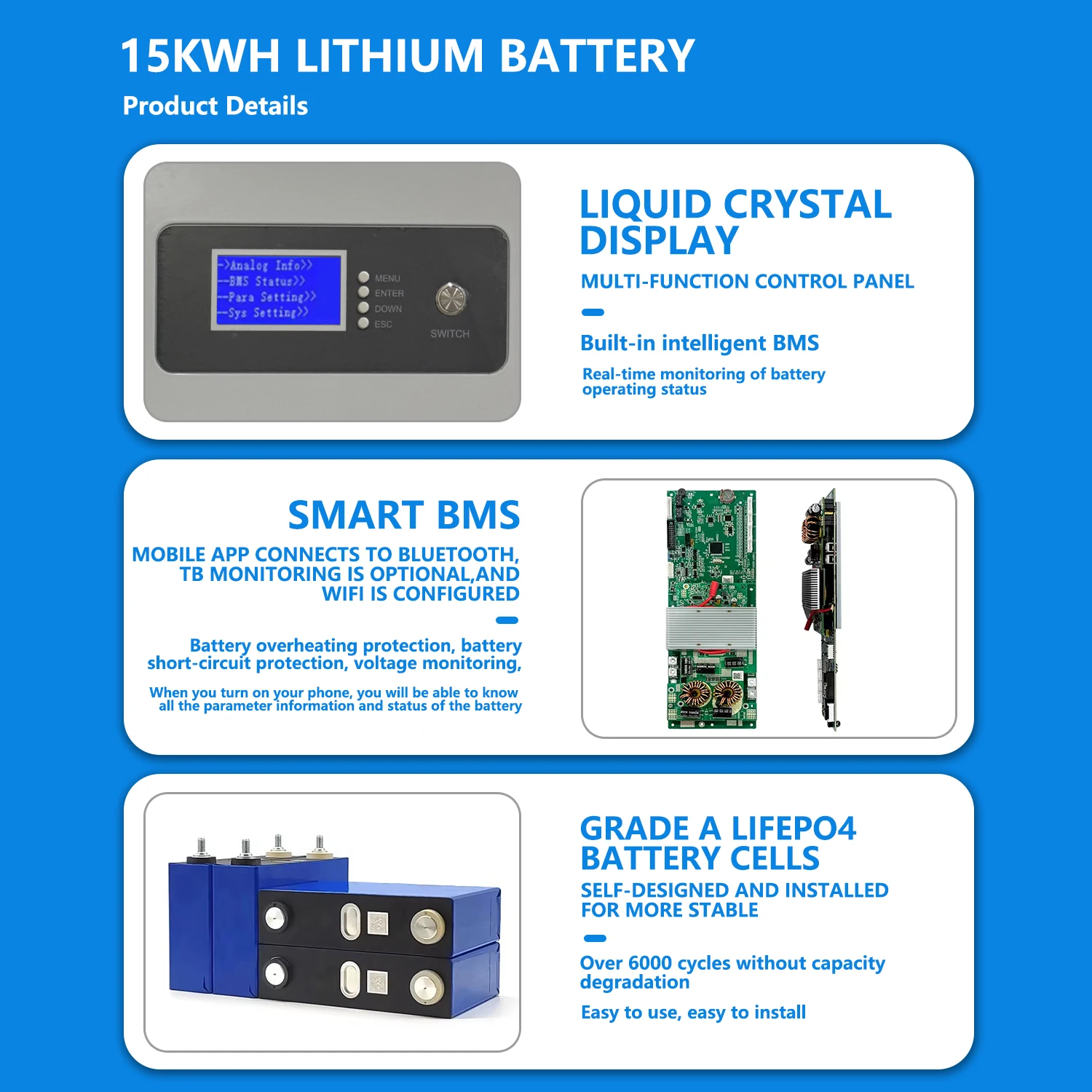

LED Control Panel
The control panel of the battery is composed of LED display and touch buttons, which can control the operation status of the battery, the communication match between the battery and other devices, when you want to check the internal parameters of the battery and the overall operation status of the battery, you can query through it, and when there is a malfunction of the battery, it will be shown directly on the LED display.
Battery Structure

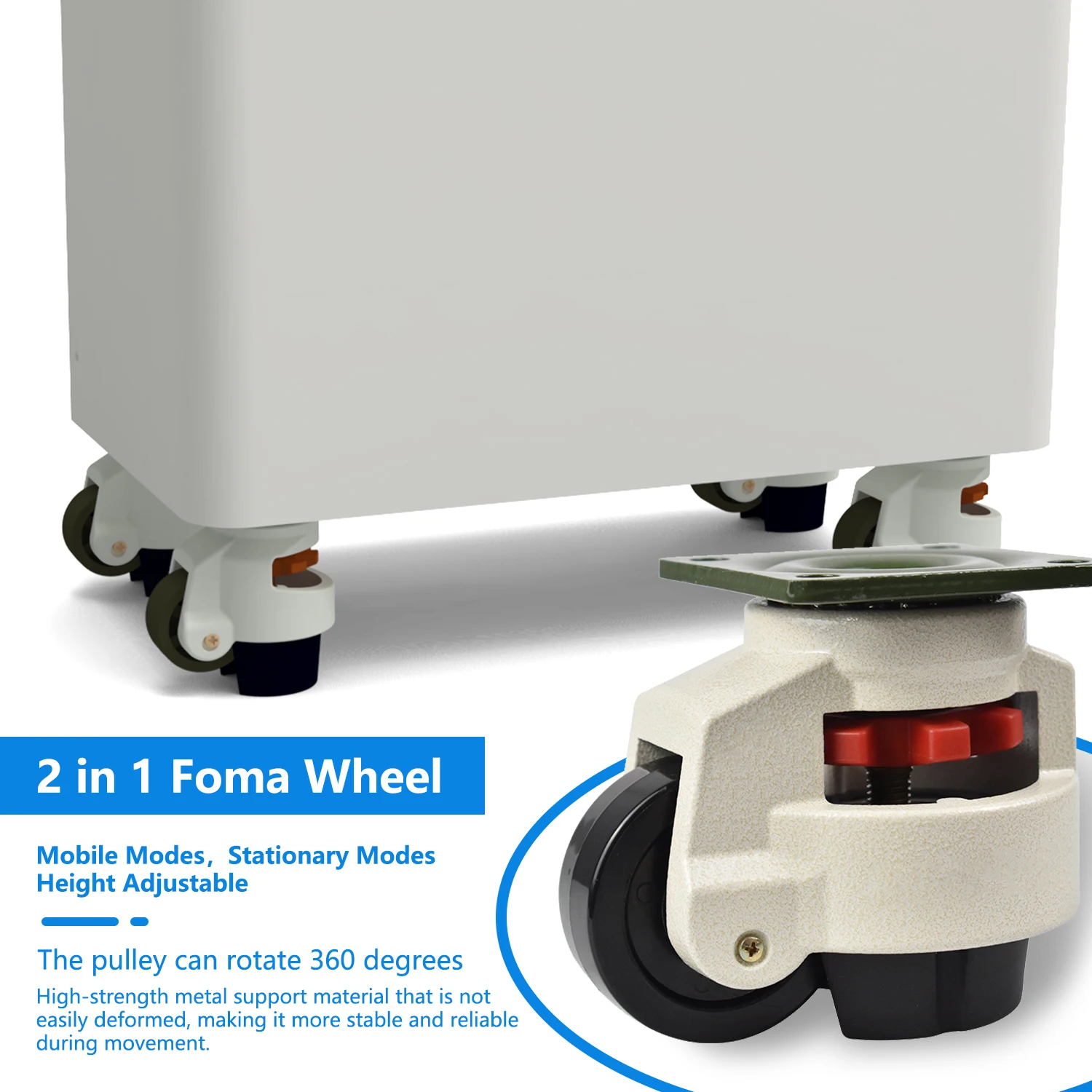

This battery with BMS is a battery system independently developed and designed by keheng, so it has a more stable internal battery structure, regular wiring, and seamless arrangement, which can greatly reduce the occurrence of short circuits during use of the battery. , circuit breakage, heating and other safety issues, making you feel more at ease when using it. It also comes with 2 and 1 pulley sets, which can reduce the resistance encountered by the battery during movement, making it easier to move.
LiFePo4 Battery Cells
The battery cells used by keheng are all grade A lithium battery cells, which have excellent battery safety, ultra-high battery stability, optimal energy density, fast charging and discharging rates, and have a very good ability to adapt to the temperature can be maintained between -20 ° C to 60 ° C stable battery function!
Battery Casing
Lithium battery shell, we use high-precision alloy materials, and plated with protective film and white lacquer, can to a certain extent to protect the battery from magnetic influences, the battery shell is lighter in weight, the strength of the anti-drop is greater, and can reach the IP65 level of protection, in the process of placing for a long time can be done to protect from the interference of charged dust, which will allow the battery's service life to be longer!
Keheng New Energy Technology (shenzhen) Co., Ltd. is a professional manufacturer of Lithium Ion batteries, battery packs, LiFePO4 storage battery. With eight advanced manufacturing lines, over 500 engineers and technicians and assembly line workers.
We canproduce 400000 batteries one day within 60000 squares meters. We are MSDS, UN38.3, CE,UL, KC, BIS, CB and ISO9001:2015 certified, KHbattery assures the consistency of the product quality and reliability. Serving a global customer base, it provides top quality batteries for solar Energy storage System, Electric scooter, medical devices, power tools, and RV helicopter, boat, etc.
We can also provide you with more solutions for battery systems. We have been providing OEM service to customers from USA, Europe, Japan, Korea, Taiwan, Middle East and other countries. We always want to be our customer's long-term partner for sustained growth. Our attention to details, uncompromising demand on quality and continuous improvement for excellence will set you part from your competitors.
We ensure that every customers will enjoy high quality, best price, fast delivery, and good service only provided by us. Trust Khbattery, we want to succeed together with you!
We canproduce 400000 batteries one day within 60000 squares meters. We are MSDS, UN38.3, CE,UL, KC, BIS, CB and ISO9001:2015 certified, KHbattery assures the consistency of the product quality and reliability. Serving a global customer base, it provides top quality batteries for solar Energy storage System, Electric scooter, medical devices, power tools, and RV helicopter, boat, etc.
We can also provide you with more solutions for battery systems. We have been providing OEM service to customers from USA, Europe, Japan, Korea, Taiwan, Middle East and other countries. We always want to be our customer's long-term partner for sustained growth. Our attention to details, uncompromising demand on quality and continuous improvement for excellence will set you part from your competitors.
We ensure that every customers will enjoy high quality, best price, fast delivery, and good service only provided by us. Trust Khbattery, we want to succeed together with you!
FAQ
Q1: Why you should choose us?
---More than 20 years factory experiences
---Professional sales team and R & D team
---Qualified product and competitive price
---Delivery in time
---Sincerely services
Q2: How can I make sure it's a secure transaction ?
A2: Alibaba can protect buyers' interest, all of our transation will go through alibaba platform.As you do the payment, the money will go directly to Alibaba bank account.After we send your the items and you comfirm the detailed information, Alibaba will release us the money.
Q3: What if I don't have export experience ?
A3: We have reliable forwarder agent which can ship items to you by sea/air/Express to your doorstep.Any way, we will help you choose the most suitable shipping service.
Q4: What kind of certification you have?
---UN38.3, MSDS, ISO9001,ISO14001, CE,ROHS,UL,and so on
Q5: How to solve the technical problem?
A5: 24 hours after-service consultancy just for you and to make your problem to solve easily.
Q6. What is your term of payment and delivery?
A6: Our term of payment is by T/T, 50% in advance for deposit and balance payment before shipment.And term of delivery is FOB SHENZHEN.
Q7. Is it OK to print my logo on product?
A7: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
---More than 20 years factory experiences
---Professional sales team and R & D team
---Qualified product and competitive price
---Delivery in time
---Sincerely services
Q2: How can I make sure it's a secure transaction ?
A2: Alibaba can protect buyers' interest, all of our transation will go through alibaba platform.As you do the payment, the money will go directly to Alibaba bank account.After we send your the items and you comfirm the detailed information, Alibaba will release us the money.
Q3: What if I don't have export experience ?
A3: We have reliable forwarder agent which can ship items to you by sea/air/Express to your doorstep.Any way, we will help you choose the most suitable shipping service.
Q4: What kind of certification you have?
---UN38.3, MSDS, ISO9001,ISO14001, CE,ROHS,UL,and so on
Q5: How to solve the technical problem?
A5: 24 hours after-service consultancy just for you and to make your problem to solve easily.
Q6. What is your term of payment and delivery?
A6: Our term of payment is by T/T, 50% in advance for deposit and balance payment before shipment.And term of delivery is FOB SHENZHEN.
Q7. Is it OK to print my logo on product?
A7: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
