ACCURL Automatic Metal Tube Cutter Laser Cutting Machine Three Chuck 12000W Pipe Laser Cutter
- Category: >>>
- Supplier: Accurl Cnc Machine(anhui) Manufactory Co. Ltd.
Share on (1601123648874):
Product Overview
Description
Products Description
ACCURL FIBER LASER TUBE CUTTING MACHINE
ACCURL® Laser tube cutting is specifically designed for businesses that care about high quality profile & tube cutting.full automatic Loading & Unloading requires less effort and time save for the operator.and Can cut column Crossed Lines at the end of branch pipe,and meet centrifugal and non-centrifugal.
*User friendlyFSCUT 5000 TwinCAT CNC control
* Unique features:
* Maximum simultaneous positioning speed: 120m/min.
* Acceleration speed: 13 m/ s2 (1.2G).
* CNC and CAM can calculate complex profiled sections
* Energy efficiency: greatly reduced power consumption.
* IPG Resonator. Power output from 1000W To 6000W
* Advanced Swiss RayTools AGcutting head (with air cross blast).
* φ8-440mm pipe processing range is optional
* The patented technology of three-chuck and zero-tail material high utilization of raw material.
* Effective high to low pressure gas exchange system.
* Automatic time and unit cost calculation function.
* Network connection from external.
* Smoke extraction (included in series models).
* The “L” shape of the machine assures total flexibility for processing round, square, rectangle “C” / “H” / “I” channel, and
angle.
* Unique features:
* Maximum simultaneous positioning speed: 120m/min.
* Acceleration speed: 13 m/ s2 (1.2G).
* CNC and CAM can calculate complex profiled sections
* Energy efficiency: greatly reduced power consumption.
* IPG Resonator. Power output from 1000W To 6000W
* Advanced Swiss RayTools AGcutting head (with air cross blast).
* φ8-440mm pipe processing range is optional
* The patented technology of three-chuck and zero-tail material high utilization of raw material.
* Effective high to low pressure gas exchange system.
* Automatic time and unit cost calculation function.
* Network connection from external.
* Smoke extraction (included in series models).
* The “L” shape of the machine assures total flexibility for processing round, square, rectangle “C” / “H” / “I” channel, and
angle.
MACHINE BODY
ACCURL steel frames bed adopts welding
structure, rough machining after annealing, then vibration aging treatment, and then finishing, can completely eliminate the
stress of welding and machining,good rigidity, high precision, can maintain long time use without deformation.
structure, rough machining after annealing, then vibration aging treatment, and then finishing, can completely eliminate the
stress of welding and machining,good rigidity, high precision, can maintain long time use without deformation.

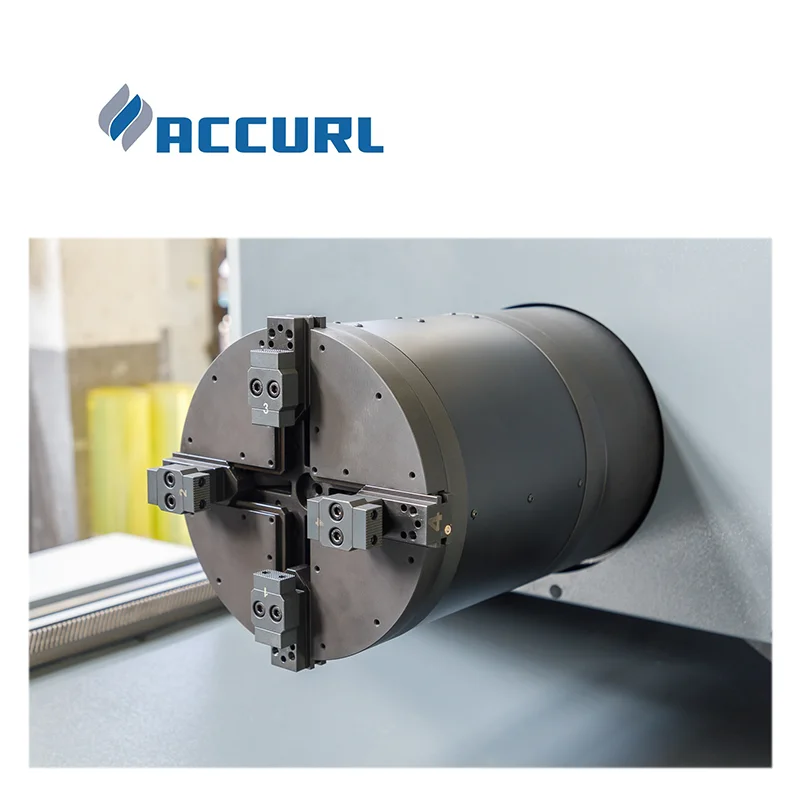

CHUNKS AND CLAWS
Two high quality rotate chuck move with synchronous rotation, which ensure tube holding more steady . It reduce tube vibration to minimum, with solid guarantee for high accuracy in complicate tube figure.Suitable for cutting tube with diameter range from Ø20mm to Ø320mm.
FRONT CHUNKS
The X、Y、Z linear Axis and A、B rotary Axis both adopt imported large torque servo motor, high precision, high speed, large torque,
large inertia, stable and durable performance, which ensures the high speed and acceleration of the whole machine.
large inertia, stable and durable performance, which ensures the high speed and acceleration of the whole machine.
MEDIUM CHUNKS
The three chuck real-time to maintain the pipe before and afterthree-point clamping positioning, cutting space-time running speed
can achieve max stable cutting, relative cutting efficiency to be high.
can achieve max stable cutting, relative cutting efficiency to be high.
REAR CHUNKS
Independent research and development of the chuck with good sealing and motion characteristics, can hold square tube, round tube,elliptical tube, flat tube, triangle tube, I-beam and other materials.

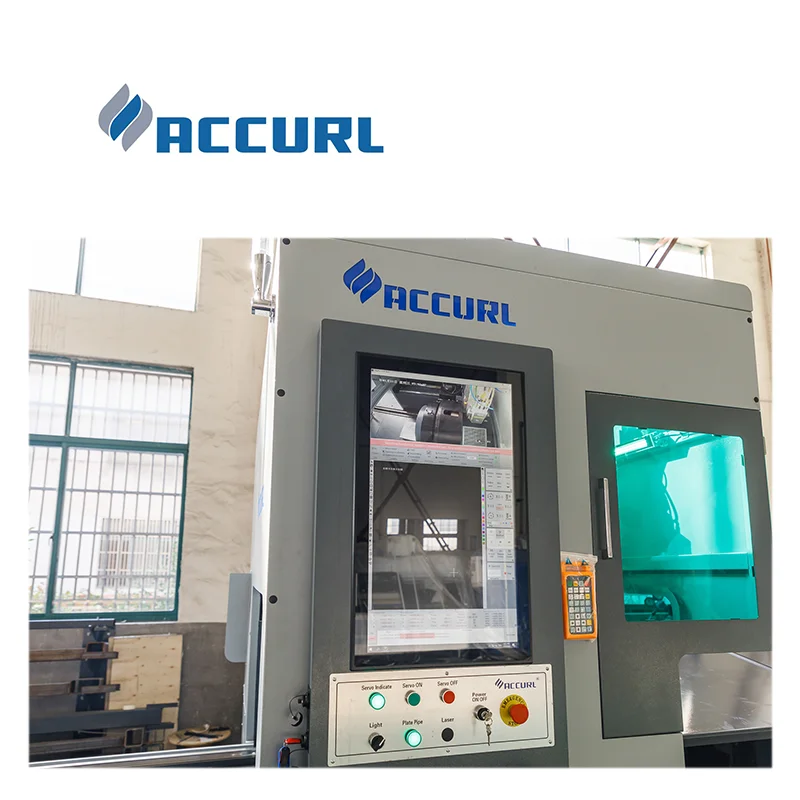

CNC CONTROL SYSTEM

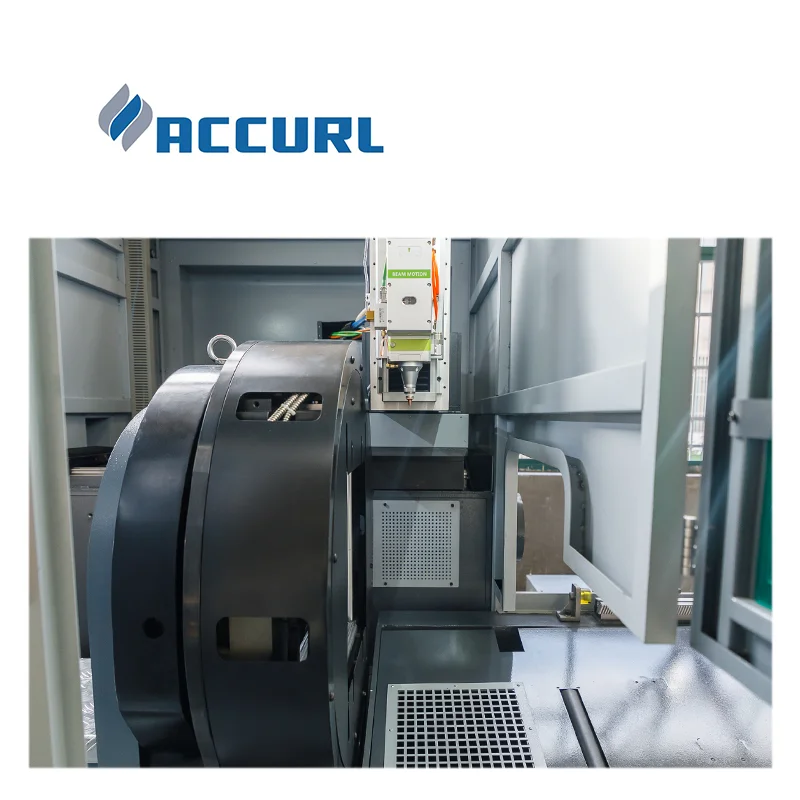

CUTTING HEAD RAYTOOLS
The RAYTOOLS AG comes with the external motor and the built-in drive unit through the linear driver and the focusing lens can automatically change the position in the range of 25mm. The user can set the focus continuously through the program to complete the rapid perpiercing of thick sheets or other different thickness and material sheets.
CUTTING HEAD PRECITEC LIGHTCUTTER AUTO FOCUS(OPTIONAL)
The cutting head LightCutter 2.0 is the perfect solution for efficient and cost-effective laser cutting. The new generation of our Light Cutter family is designed for cutting applications in the medium power range up to 4 kW and is characterized by a highcutting quality for all metals - especially mild steel, stainless steel and aluminum.
AUTOMATIC LOADING SYSTEM
SEMI-AUTOMATIC LOADING SYSTEM SAT-60

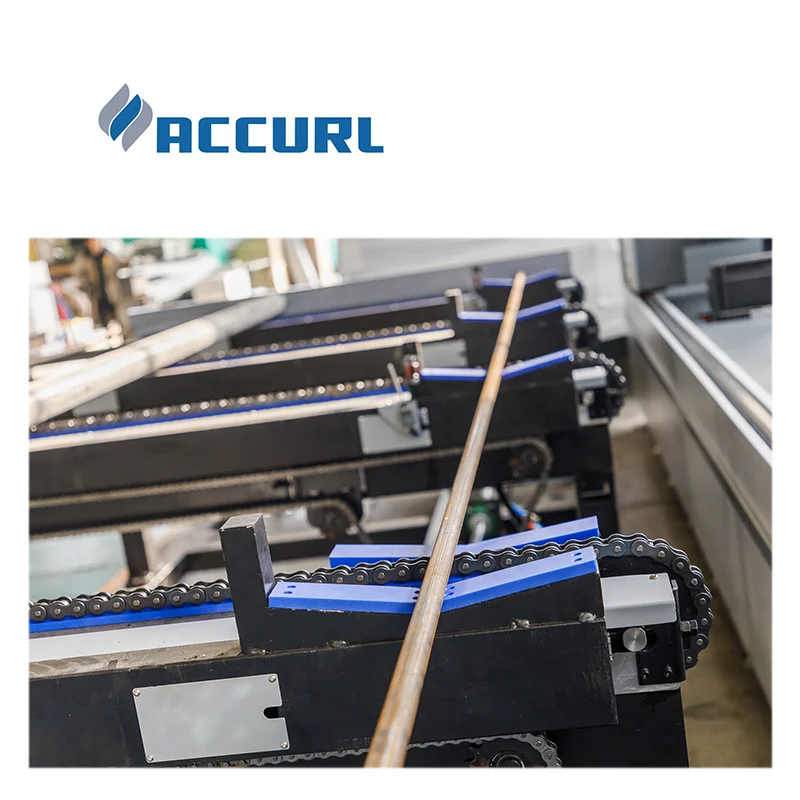

*Transmission module: Place the pipe on the loading belt manually and the belt will transport the pipe forward.
* Material Misalignment module: The pipe is separated from the root, misplaced to the loading jaws.
* Loading module: The loading jaws send the pipe to the loading support of the main bed one by one.
* Loading Size: The size range of loading material is Ø25- Ø120,square pipe 25-120,can load round pipe,single pipe bearing 120Kgs.
* Material Misalignment module: The pipe is separated from the root, misplaced to the loading jaws.
* Loading module: The loading jaws send the pipe to the loading support of the main bed one by one.
* Loading Size: The size range of loading material is Ø25- Ø120,square pipe 25-120,can load round pipe,single pipe bearing 120Kgs.
AUTOMATIC MECHANICAL LOADING SYSTEM ATL-60
* Height Limit module: Automatically distinguish the long and short sides of the rectangular tube to ensure that each rectangulartube is laid flat and forward.
* Material framemodule: The whole bundle of pipes is hoisted and loaded into the material frame.
* Length measuring module: Flatten the pipe to the length of the pipe and transfer the date to the host.
* Loading Size: The size range of loading material is φ25-120,square pipe 25-120,can load round pipe,single pipe bearing 120Kgs.The first loading time is less than of equal to 70s,and the subsequent loading time is less than or equal to 20s.
* Material framemodule: The whole bundle of pipes is hoisted and loaded into the material frame.
* Length measuring module: Flatten the pipe to the length of the pipe and transfer the date to the host.
* Loading Size: The size range of loading material is φ25-120,square pipe 25-120,can load round pipe,single pipe bearing 120Kgs.The first loading time is less than of equal to 70s,and the subsequent loading time is less than or equal to 20s.
Specification
Equipment System Parameters | ||||
Processing format and | Technical parameters | Remarks | ||
Scope of Pipe Processing | Circular Tube ：Ø 10mm- Ø 200mm Square Tube ：□ 10mm-□ 145mm Rectangular Pipe：100*180mm | |||
machining groove angle | Bevel 3D 5-Axis Cutting Head with angle ±60 | |||
Max cutting processing length | 6100 mm | |||
Y axis travel | 460 mm | |||
A, B itinerary | Unlimited rotation | |||
Z axis travel | 300 mm | |||
X,Y axis positioning | ±0.03 mm/m | |||
X,Y axis repeat | ±0.03 mm | |||
X axis Empty Speed | 140 m/min | |||
A,B,C-axis Max Speed | 120 rpm | |||
Length of blanking | 3000≤ mm | |||
Acceleration | 1.2G | |||
Max load of single tube | 300Kgs | |||
loading length | 3200mm-6100mm | |||
Tail length | 0≥ mm | To be achieved if the process layout conditions meet the. | ||
Appearance Size | 12500mm*2500mm*2500mm | |||
Power parameters | ||||
Supply rated voltage | 400V/50HZ,3PH | |||
Total power protection | IP54 | |||
