10 inch HD quad screen with 1080P or 720P night vision waterproof side dash camera system for bus travel and school buses
- Category: >>>
- Supplier: Dongguan Forescene Information Technology Co. Ltd
Share on (1601123720212):
Product Overview
Description
Product Description
YDV05L10-4701+4745 set include

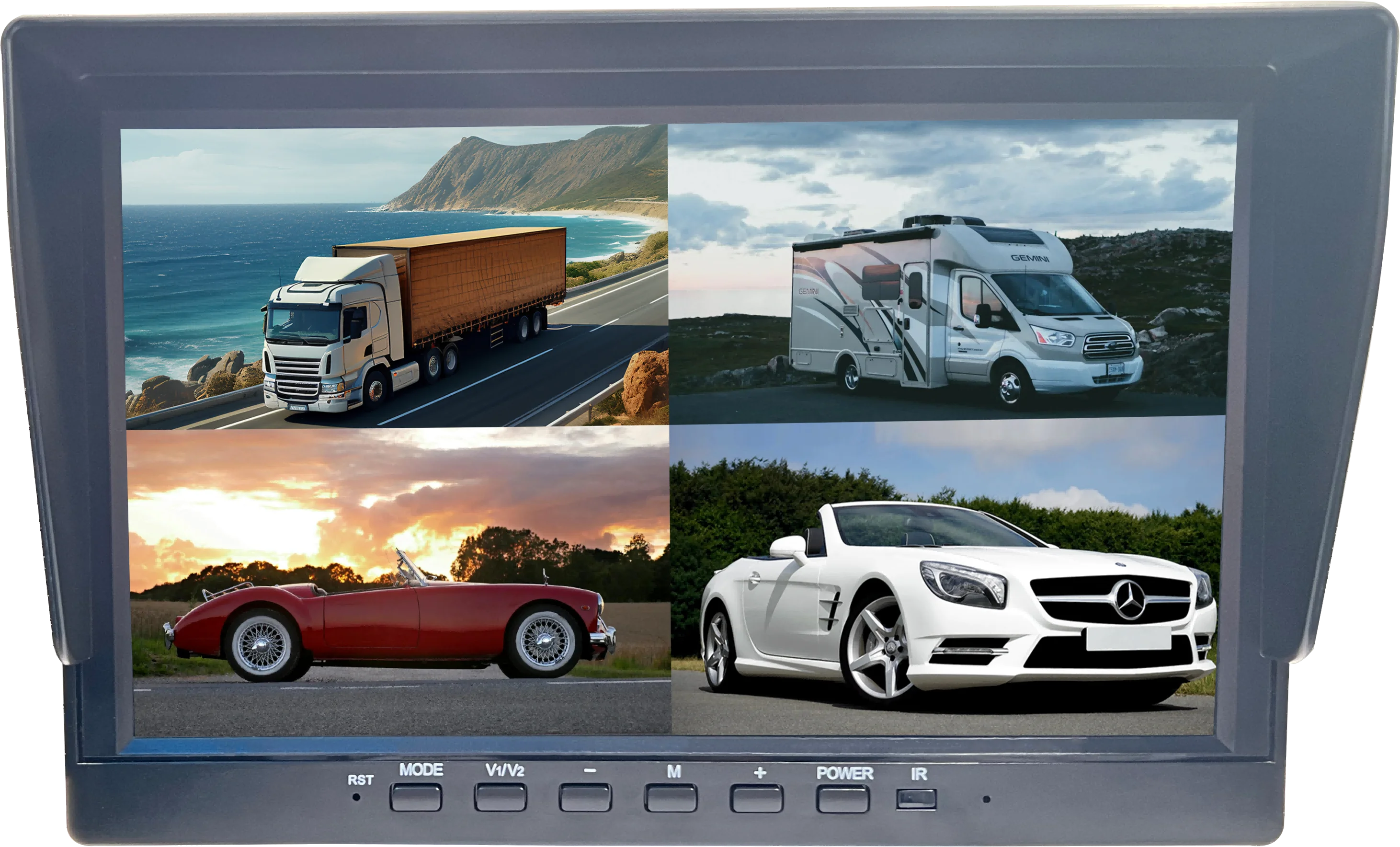

1) YDV05L10 monitor*1
2) YJ-4701 camera*2
3) YJ4745 camera*1
4) 5m cable*1
5) 10 cable*2
6) Remote controller*1
7) 64G TF card*1
Camera specifications

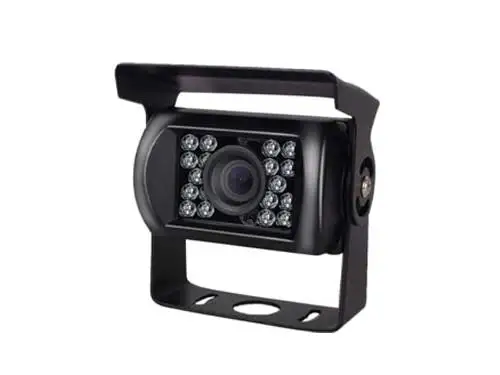

YJ4701
| item | part | specification |
| camera | cover material | aluminum alloy surface matte black |
| waterproof | over IP67 | |
| weight | 220g | |
| box size | 10*10*9cm | |
| PCB board | sensor/DSP | sensor:1/2.7 ISP:2MP |
| resolution | AHD720P(1280*720) | |
| signal system | PAL/NTSC | |
| minimum illumination | 0.001LUX/F2.0(IR ON) | |
| signal to noise rate | more than 48DB | |
| wide dynamic | wide dynamic 82db | |
| synchronization method | inner synchronization | |
| video output | line by line AHD-720P | |
| gain control | Auto | |
| Power consumption | less than 120mA@DC12V (Infrared off) less than 300mA@DC12V (Infrared on) | |
| Environmental humidity | 30%-85% | |
| working temperature | -20℃--+75℃ | |
| storage temperature | -40℃--+85℃ | |
| Lens | Focal length | 2.8mm |
| material | 4G glass | |
| aperture | F2.0 | |
| pixel | 2MP | |
| light board | LED | 18 pcs 850 IR,scattering 85° |
| Power consumption | 190ma(12V) |
YJ4745
| item | specification |
| working voltage | DC12V±0.5V |
| working current | IR close:less than 130ma@12V |
| IR on:less than 220ma@12V | |
| weight | 175g |
| resolution | front view:1280*720 |
| rear view:1280*720 | |
| signal system | PAL |
| signal to noise rate | more than 37.2db |
| dynamic range | more than 82db |
| illumination range | 0.001Lux~100000Lux |
| Horizontal resolution | more than 680 TV line |
| vertical resolution | more than 500TV line |
| Optical axis accuracy | ±0.2 degree |
| Lens | Horizontal angle: Front view H=102 ° ± 5°/ Rear view H=47 ° ± 5 ° |
| Vertical angle: Front view V=56 ° ± 5 °/ Rear view V=23 ° ± 5 ° | |
| working temperature | -40℃~+85℃ |
| storage temperature | -40℃~+95℃ |
| waterproof | N/A |
| working mode | day:front view full color,rear view full color |
| night:front view full color,rear view B/W(The fill light is automatically controlled by photosensitivity) | |
| audio function | Unipolar omnidirectional |
| ISP | FH8536H |
| Sensor | GC2053 |
Company Information
FAQ
Q1. What is your terms of packing?
Re: Packing goods in neutral white boxes and brown cartons. We can do OEM package for you. Welcome send your requirements in detail, we can design the package for you.
Q2. How about your lead time?
Re: 3 to 21 working days upon receipt of your payment. The specific lead time depends on the items and the quantity of your order.
Q3. What is your sample policy?
Re: We offer samples (no MOQ requirements for regular products), with sample costs, shipping and taxes paid by the buyer.
Q4. What is your payment terms?
Re: T/T(Bank transfer), Alipay.
Q5. How to get the best price?
Re: The order price can be negotiated. We will quote the latest best price according to your final purchase list. SEND INQUIRY and talk in detail.
