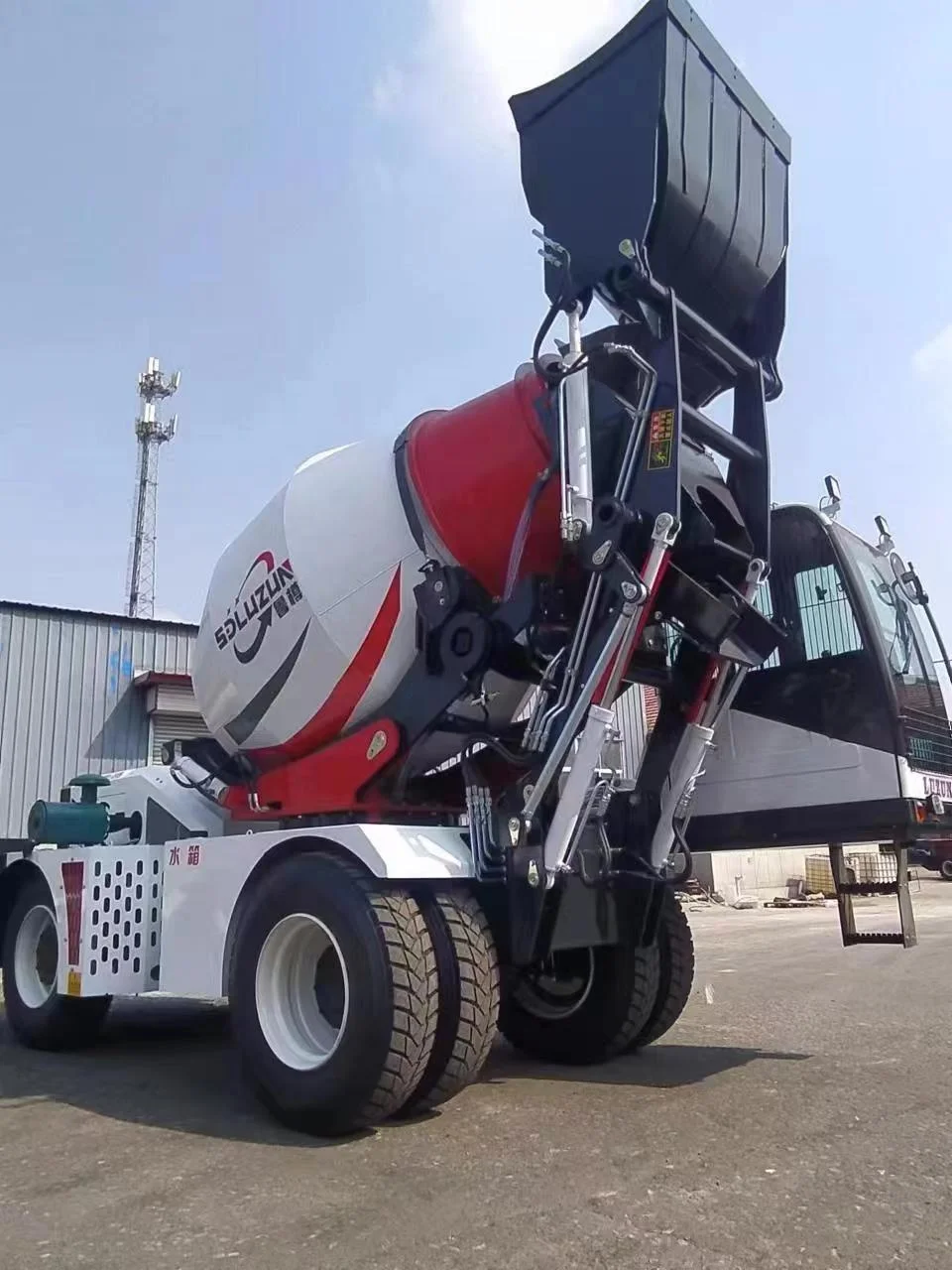

Self Loading Cement Mixer Truck Concrete Mixing LZ3500R
Self Loading Cement Mixer Truck Concrete Mixing LZ3500R
Self Loading Cement Mixer Truck Concrete Mixing LZ3500R
Self Loading Cement Mixer Truck Concrete Mixing LZ3500R
Self Loading Cement Mixer Truck Concrete Mixing LZ3500R
Self Loading Cement Mixer Truck Concrete Mixing LZ3500R
Self Loading Cement Mixer Truck Concrete Mixing LZ3500R

Self Loading Cement Mixer Truck Concrete Mixing LZ3500R

Share on (1601123726903):


Price:$20,600.00 - $21,600.00

Quantity:


Product Overview

Description

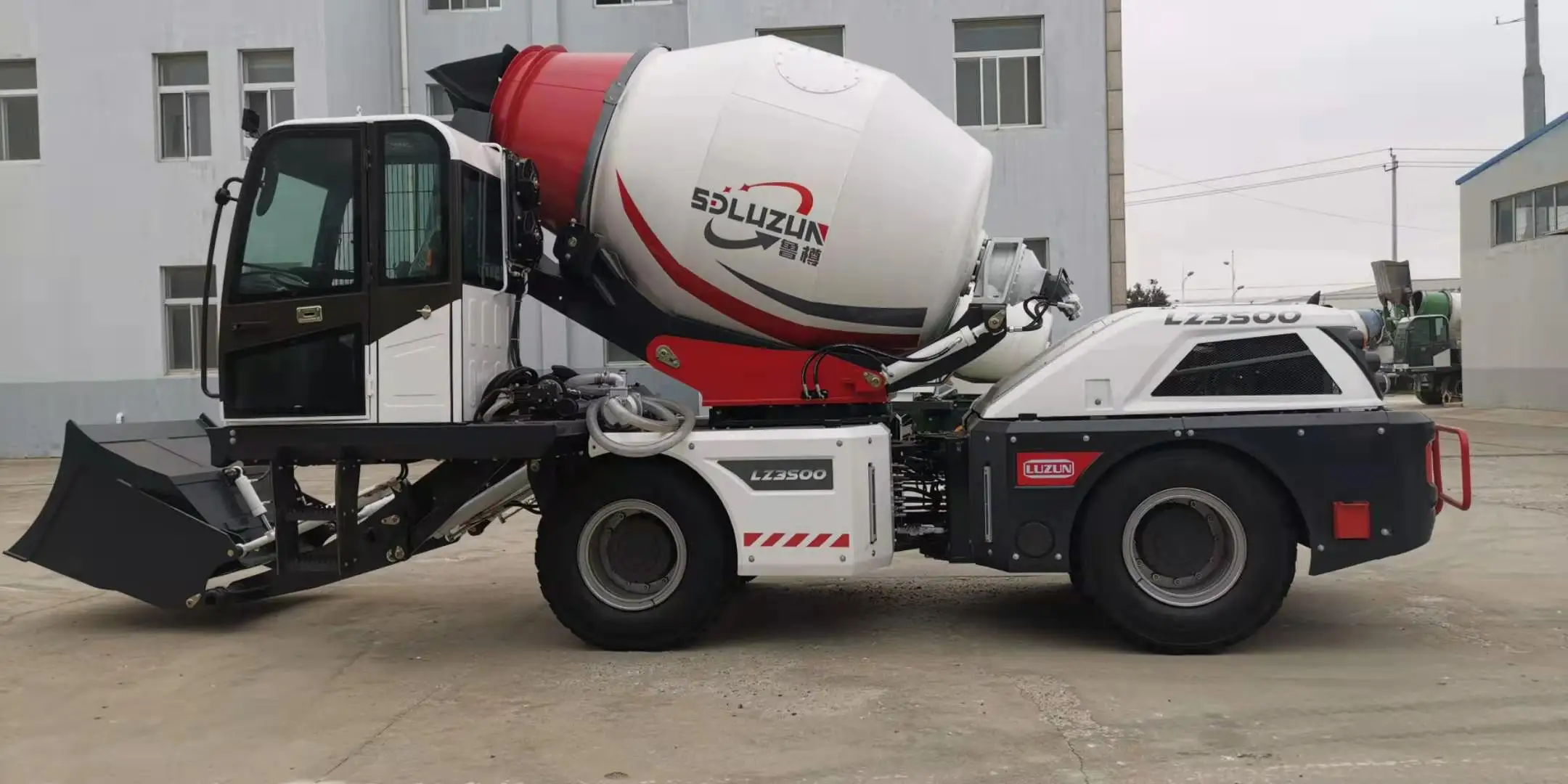

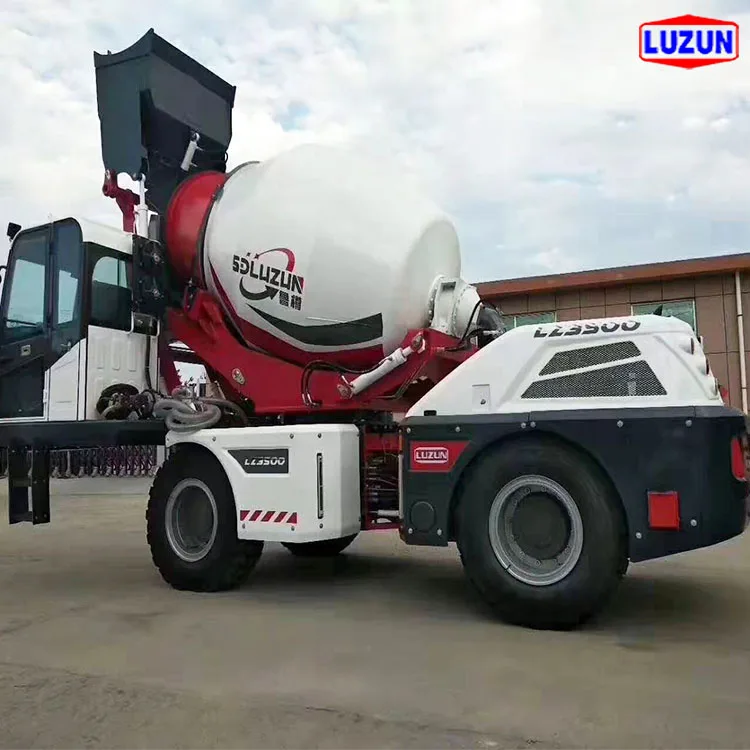

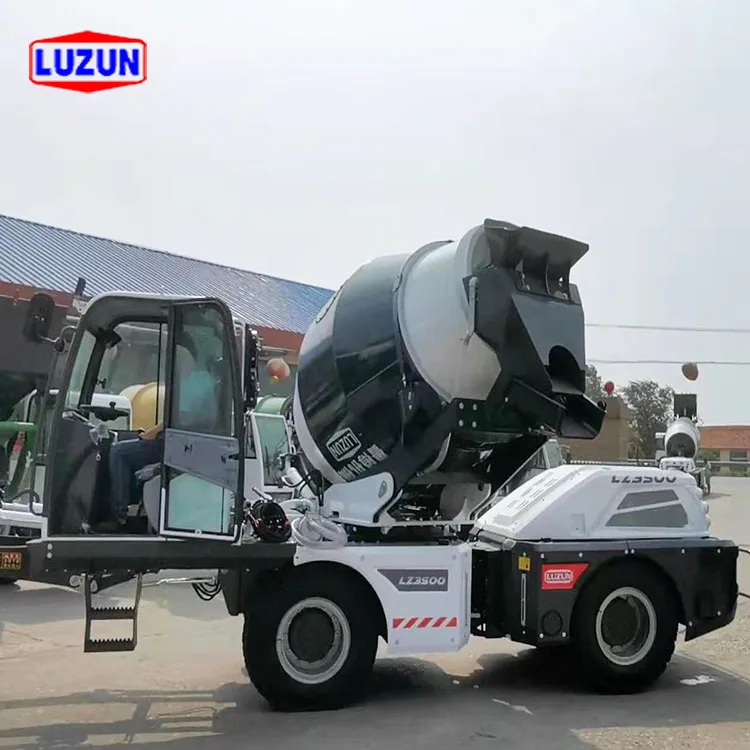

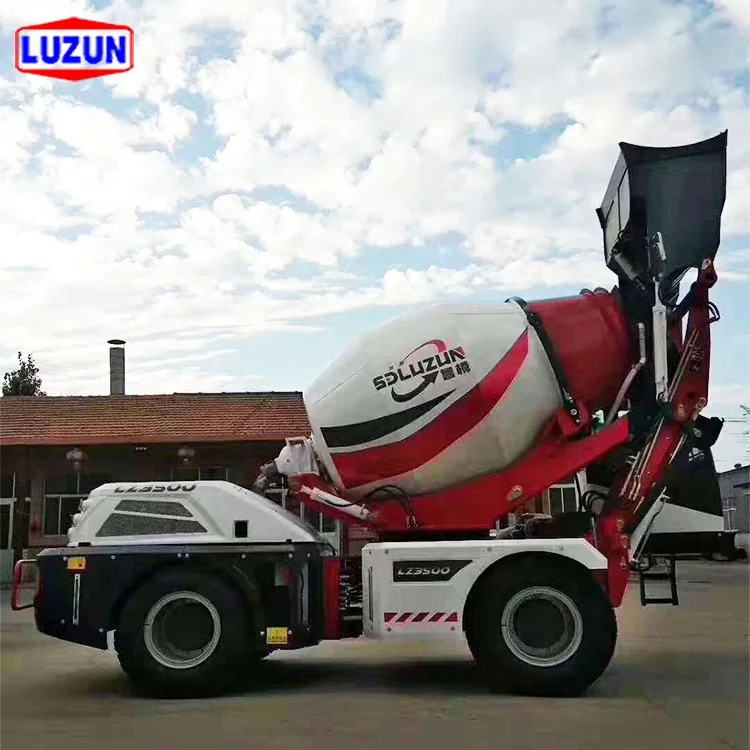

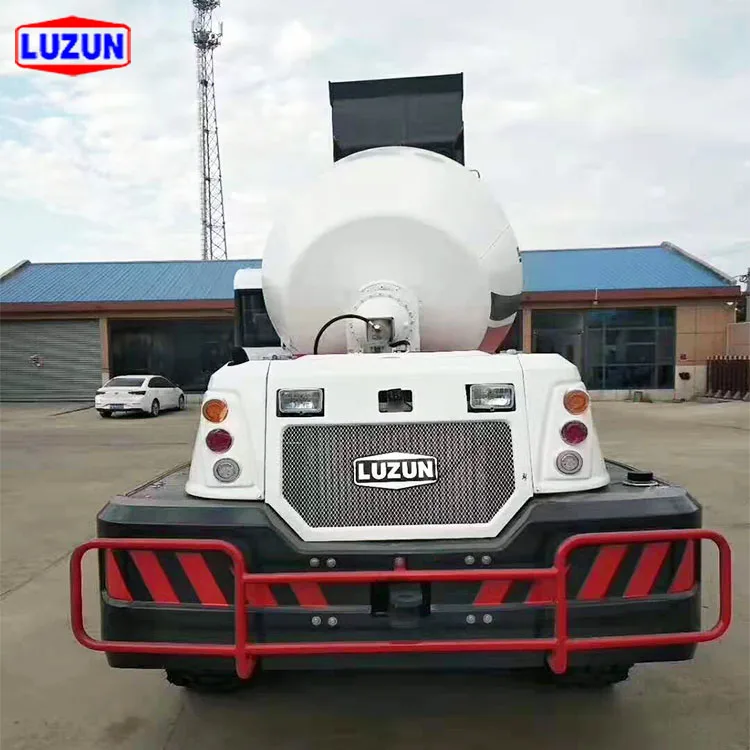

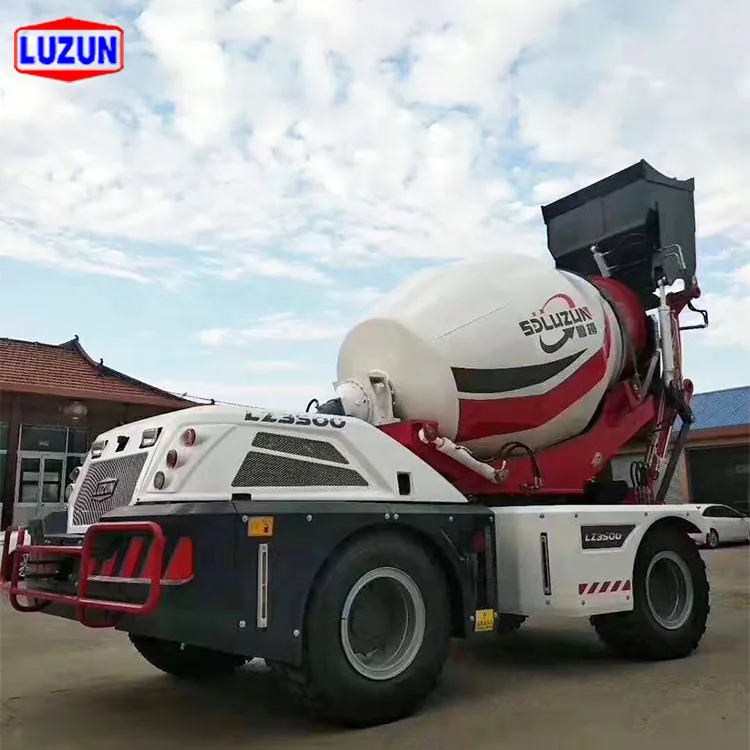

3.5M3 self loading mobile concrete mixer truck
LUZUN self loading concrete mixer truck is used to solve the problem that the prior mixer truck has a single function and can only carry out the concrete conveying task. The self loading mixer truck comprises a mixing body, and the body is equipped with a mixing drum. The drum is driven to rotate by the hydraulic mechanism. The drum is inclined, with an opening at the highest end. At the opening there is a feeding port fixed to the mixer truck. The drum is equipped with stirring screws. The two sides of the mixing drum are symmetrically provided with a boom. One end of the boom is hinged on the mixing body, and the body is further provided with a lifting cylinder to lift and lower the booms. A hopper is fixed between the two booms, and is provided with a door at the end near the feeding port. A discharging cylinder for controlling opening and closing of the door is provided on the hopper. The fully automatic loading mixer has a simple structure and is easy to use. It can realize the loading, mixing and unloading of concrete without excessive staff operation, which is economical and practical.










Product specifications


Engine
Yuchai/ Cummins
Rated Power
85KW/92KW
Type
4-cylinders/6-cylinders
Max Torque
390nm/2800rpm
Chassis
Integrated rigid chassis
Driving type
4*4
Tyre
16/70-20
Hopper volume
700L
Mixing volume
4.0cbm
Geometrical volume
5.5cbm
Concrete output
4.0cbm/batch, 16-20cbm/hour
Drum rotating speed
16rpm
Drum slewing angle
0/180/270
Water tank
2*260L
Water pump
24v self priming pump
Hydraulic gear pump
Permco/Sunny
Gradient
40% fully loaded
Max speed
35km/h
Size
6160*2800*3400mm
Weight
8500kg
Loading capacity
9600kg
Cab
colsed, with warm/cool air conditioner
Fuel tank
128L
Total hydraulic capacity
100L
Engine oil
20L, auto lubrication

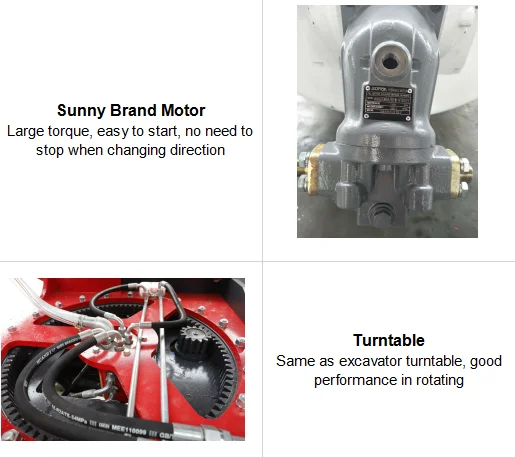

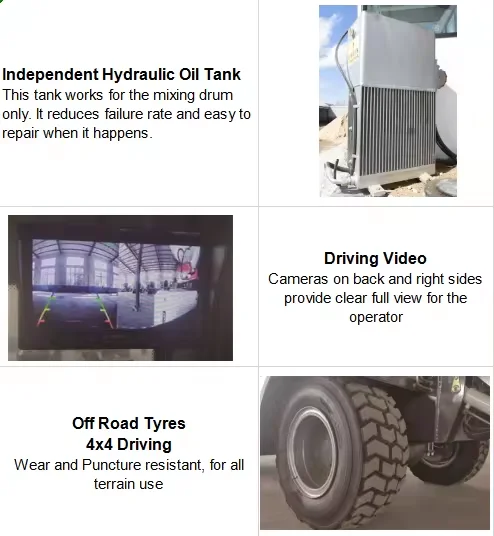

Product configuration








Sales and service network

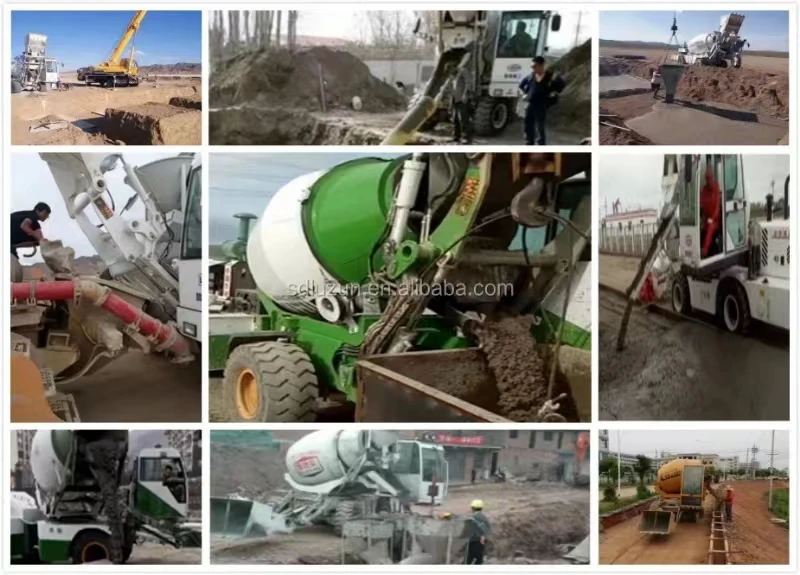

Successful Project

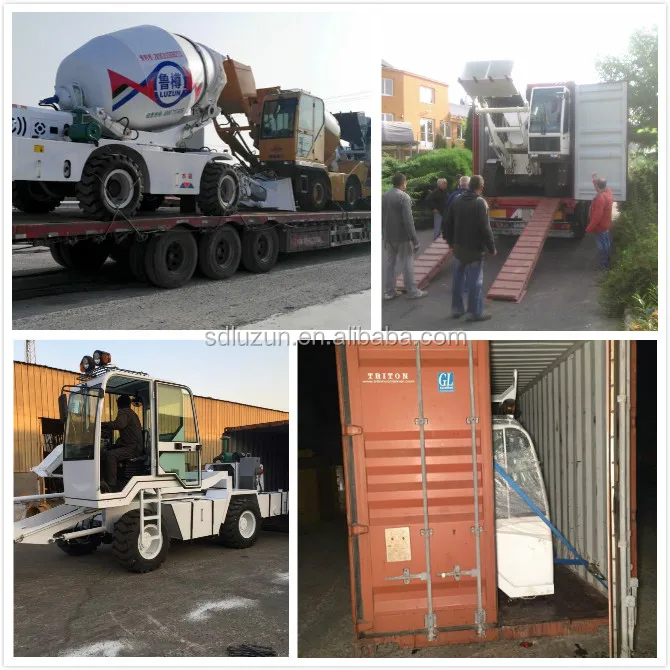

Packing&Delivery

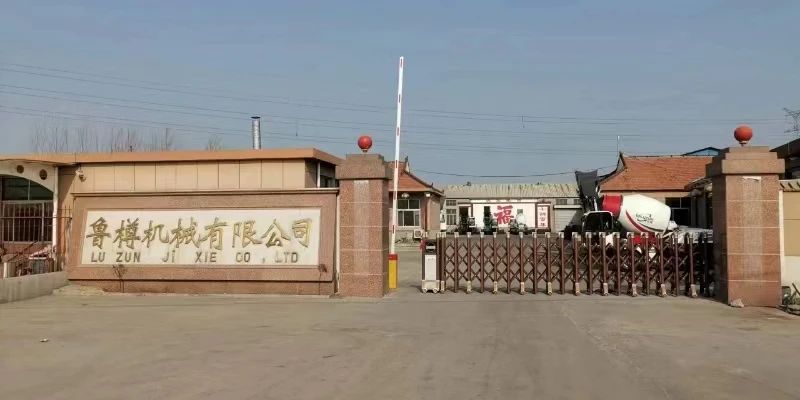

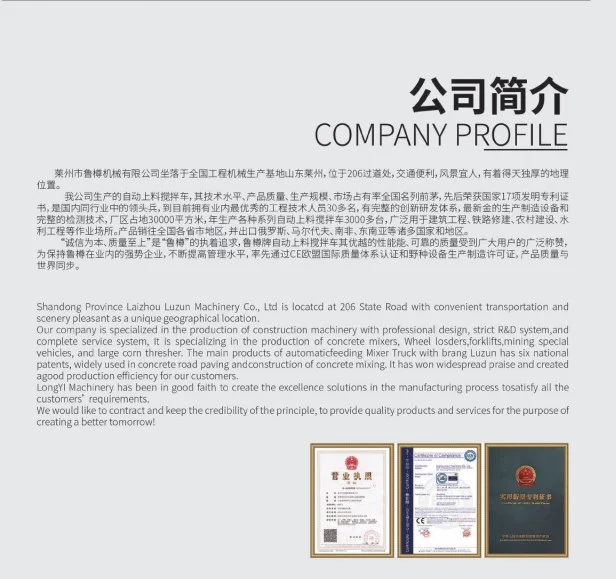

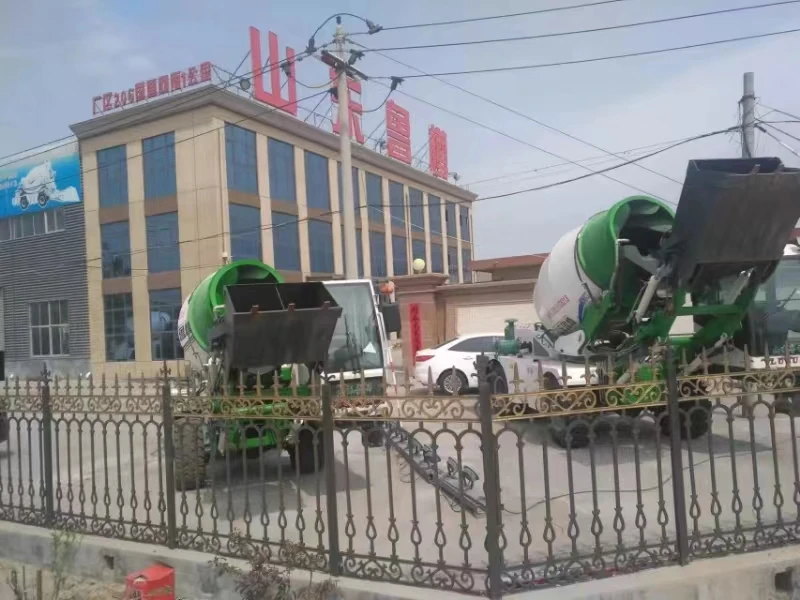

Company Profile












Recommend Products




FAQ


Q: What is your payment term?
A: Our payment term is T/T- 30% deposit, balance paid before delivery. Or 100% irrevocable L/C at sight.

Q: How soon can you deliver the mixer afther I place the order?
A: We keep fresh inventory. Most orders are delivered in less than 7 days.
If it is OEM, the order will be delivered in 15-20 days.

Q: Is your quality good?
A: We use advanced Italian technology and make improvement based on customer feedback. Till now our professional R&D team has
launched 13th generation mixers and registered 24 national patents.
Besides, we successfully passed the quality certification of CCC and CE.

Q: Do you have warranty?
A: Yes, we offer one year warranty based on the confidence on our quality.

Q: Can I be your agent?
A: Sure. You are welcome to be our agent. We will provide necessary support to you.

Q: Can I get a discount?
A: We sell diretly from factory. The price is better than trading companies.
But still discount is available based on the order quantity.

Please feel free to let us know if you have any further questions.
