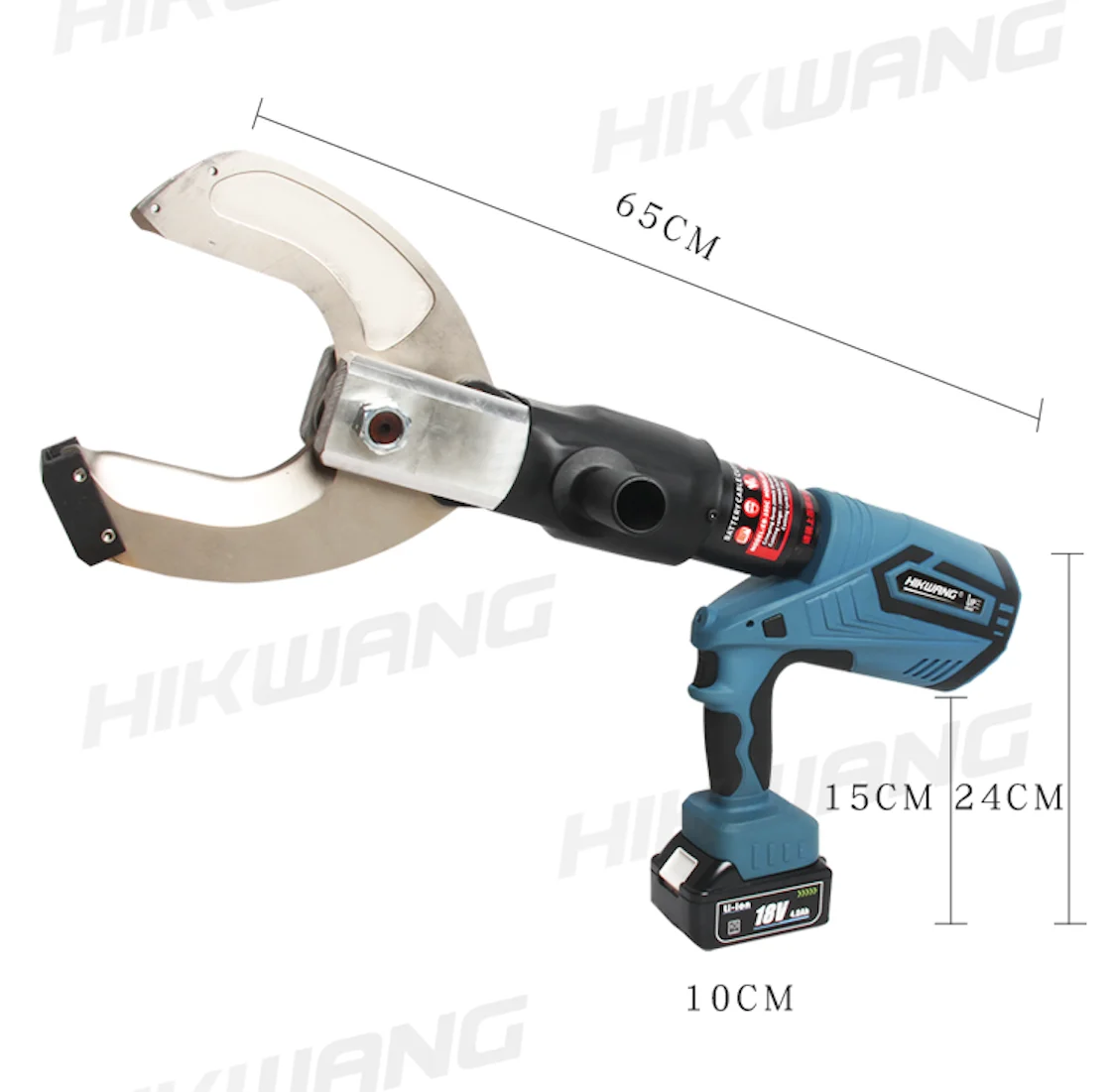

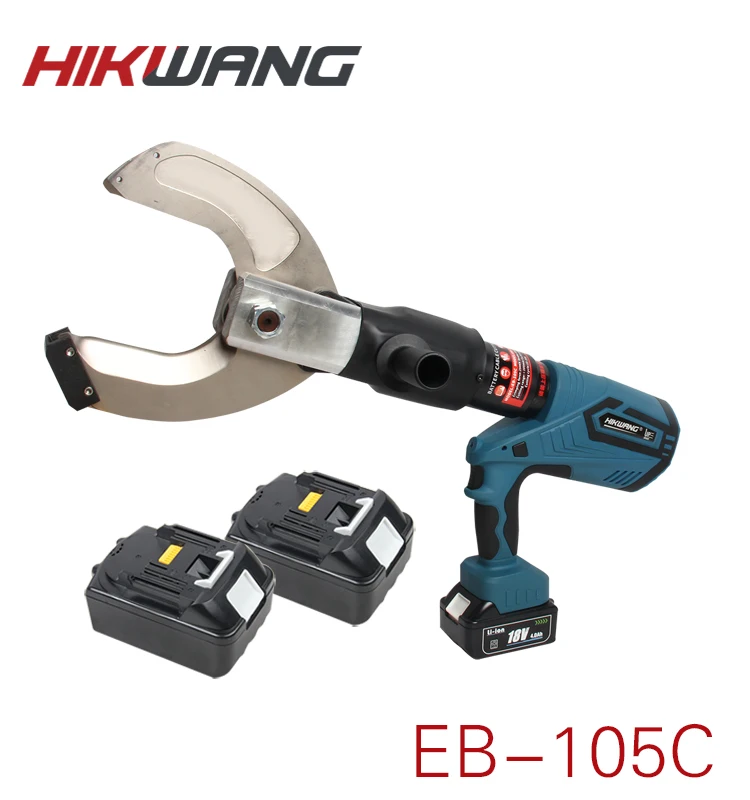

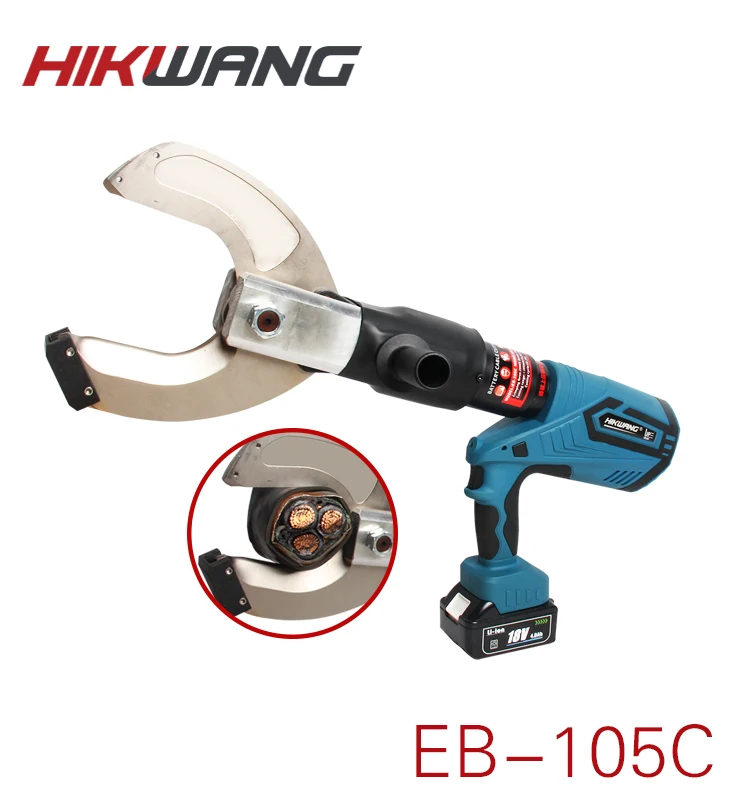

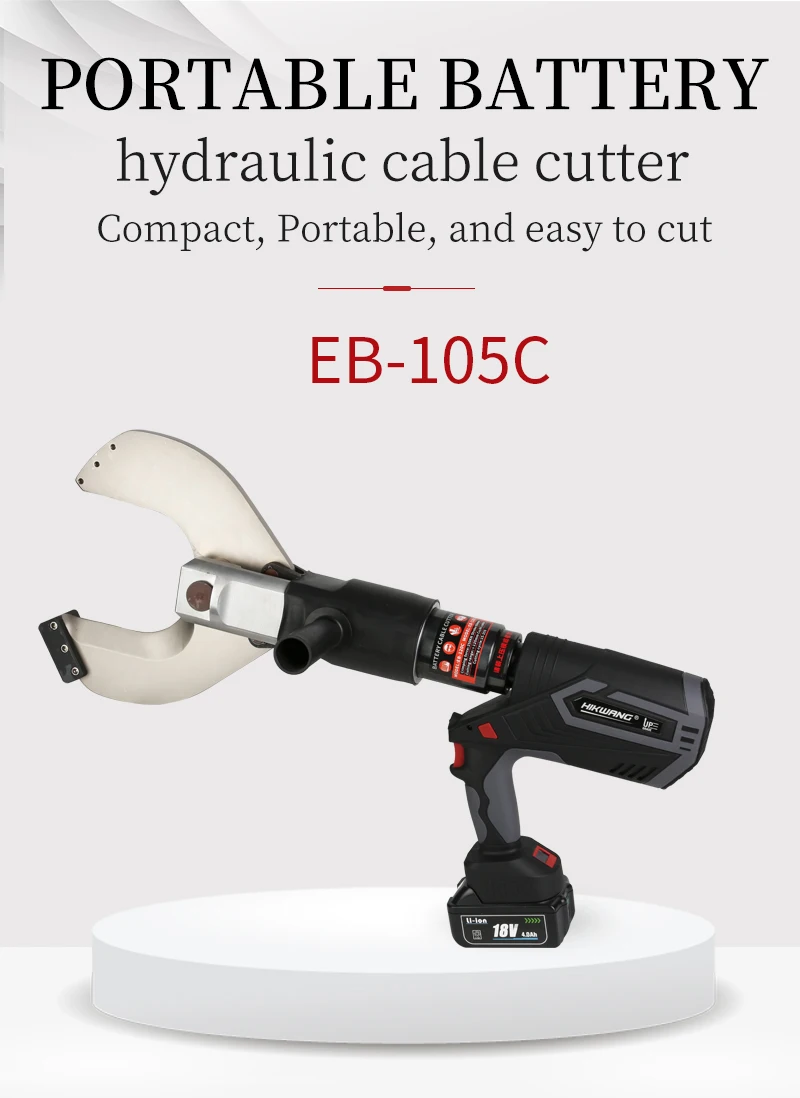

EB 105C hydraulic electric cable cutter plier battery powered cordless cutting tools 250kN capacity
- Category: >>>
- Supplier: Yuhuan Hengguang Hydraulic Tools Co. Ltd.
Share on (1601123737903):
Product Overview
Description
Product Overview

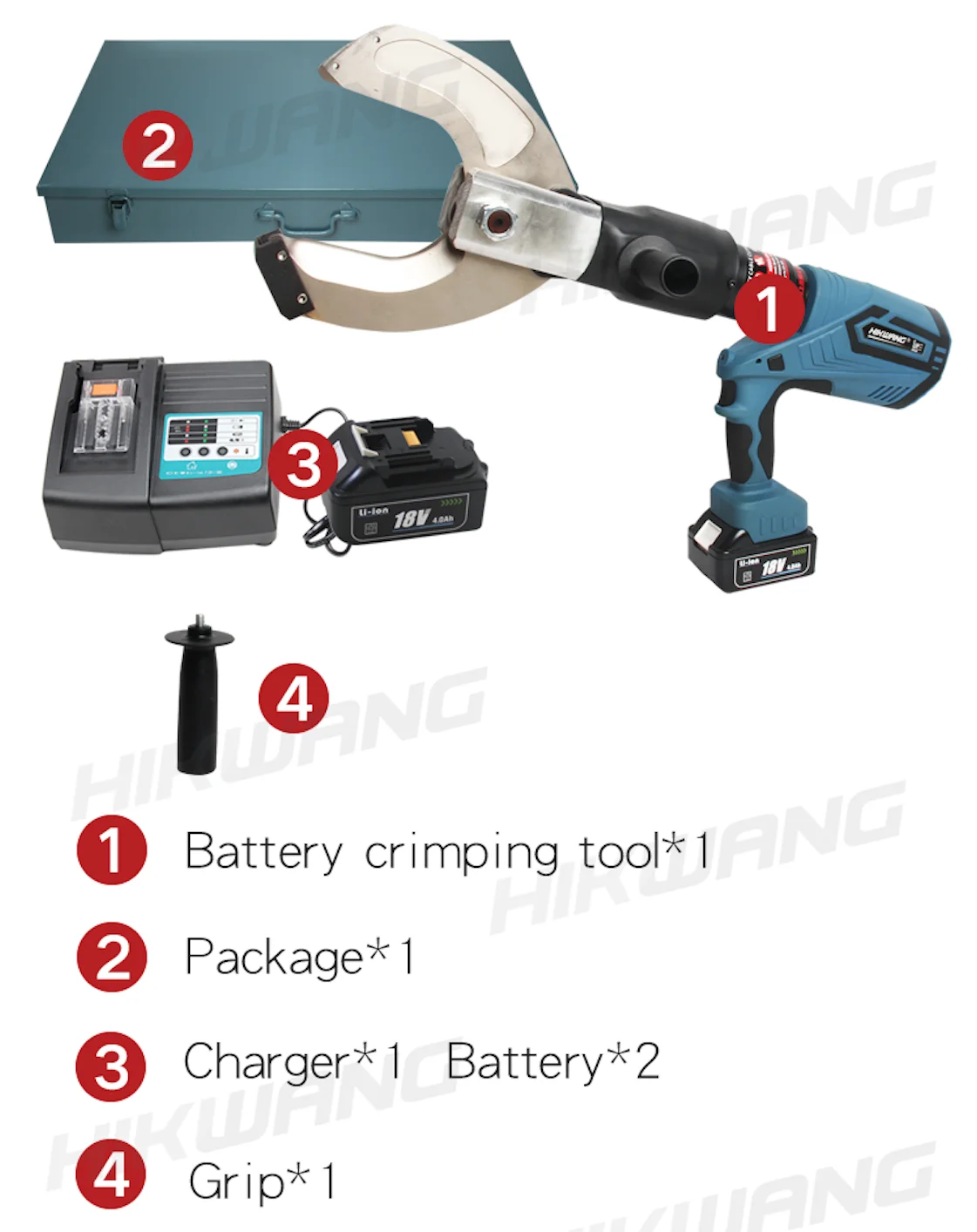

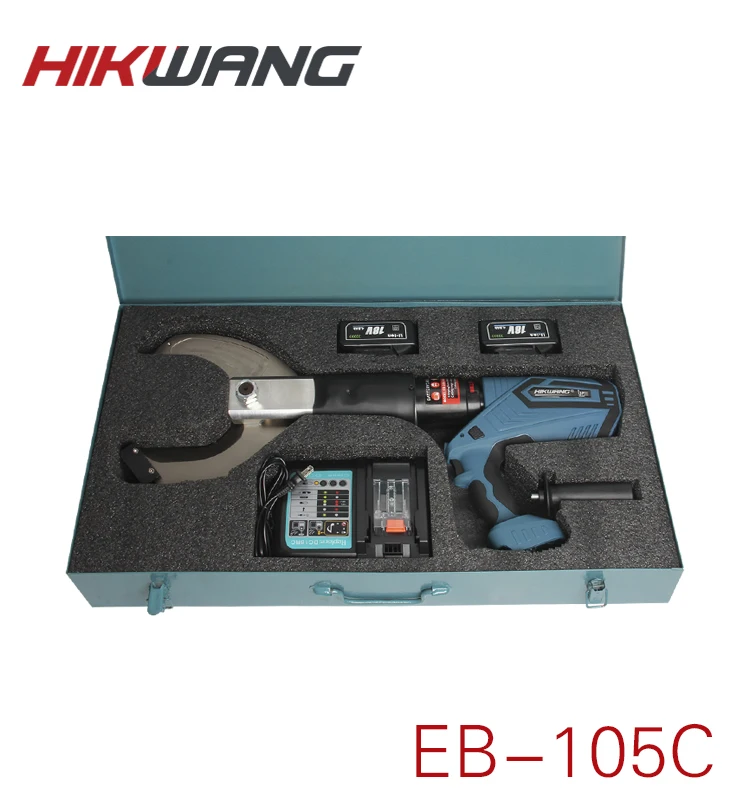

PACKAGE CONTENT

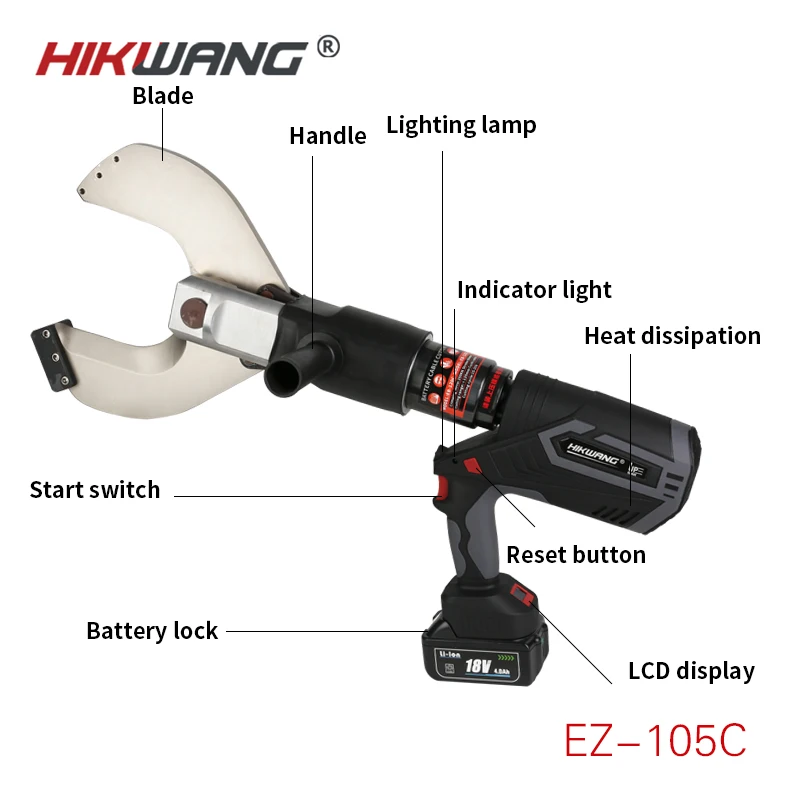

Open head, easy to cut

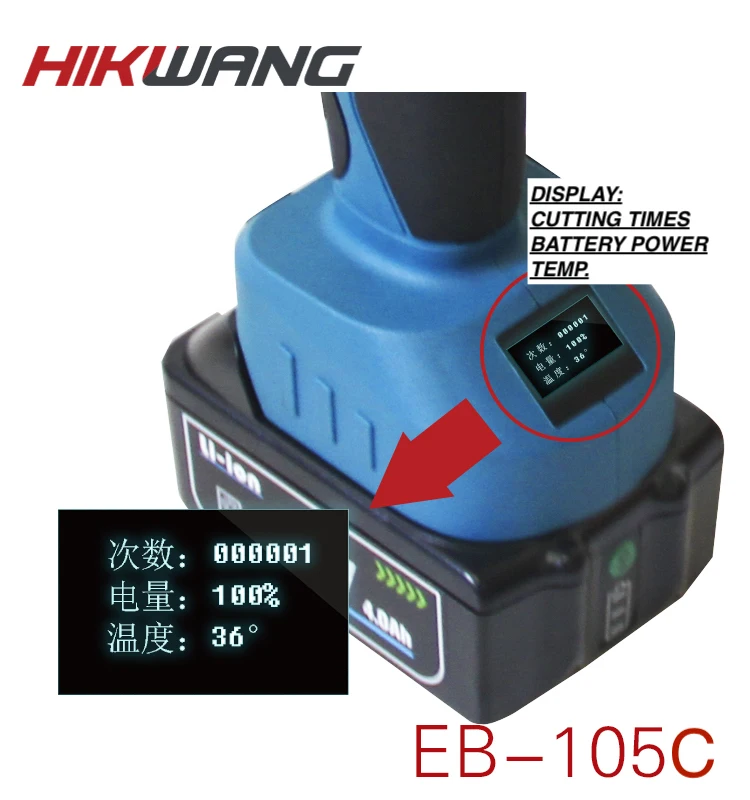

LCD DISPLAY
Cutting times
Electricity quantity(battery power)
Temperature
One-click start button
automatic retraction when operation is complete
High performance battery
provide strong power
○Return switch: One-click reset

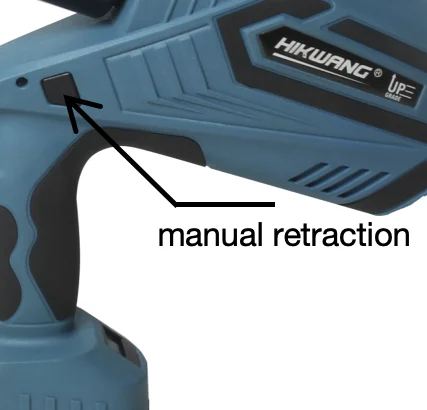

*Manual retraction in case of need.
○Audible buzzer and LED light in case of error
*When the temperature is over 60℃ under long time working, the fault signal sounds, and the tool can't continue to work until the temperature reduced to the normal.
*If a deviation from the set operation pressure or low battery ,an acoustic signal will sound and indicating lamp will flash.
Products Description
Technical Data
*Please allow errors in manual measurement.
Safety system inside.

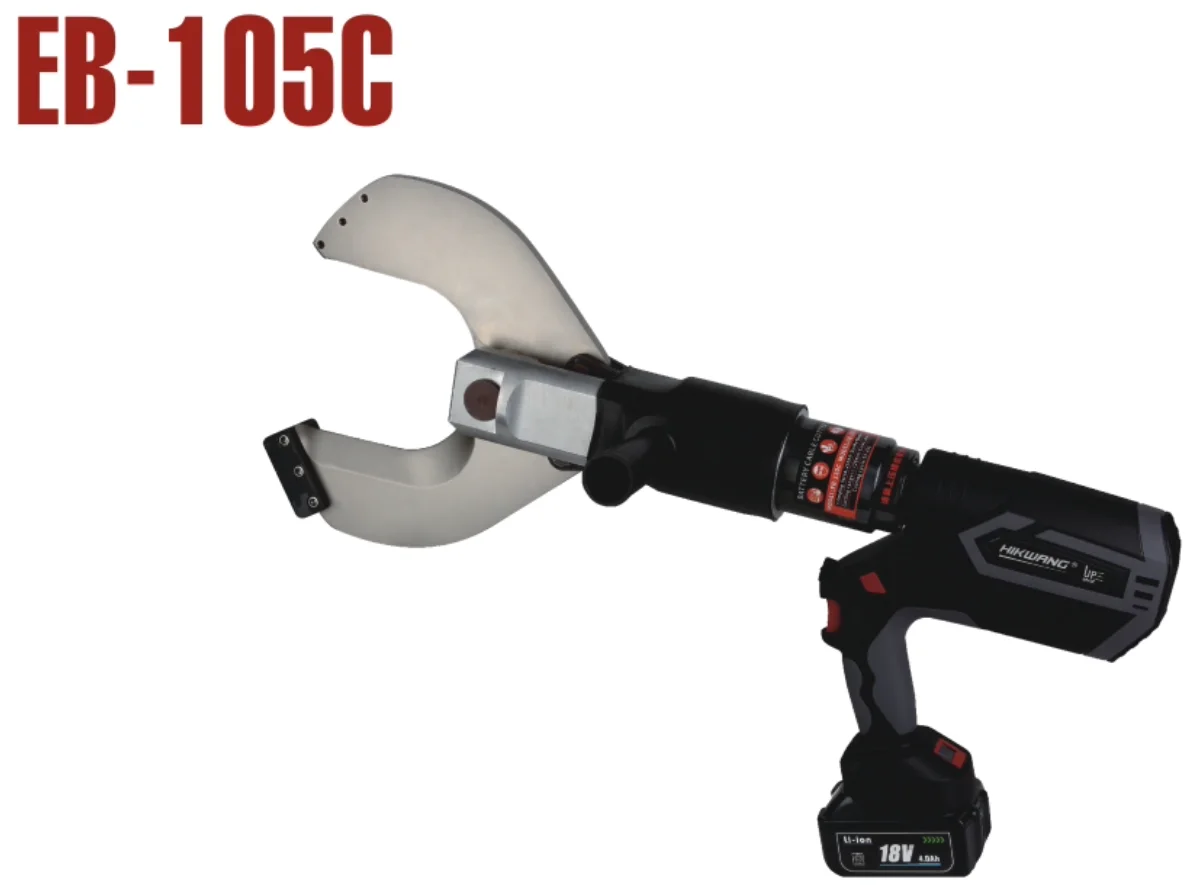

Model | EB-105C |
Cutting force | 250kN |
Stroke | 58mm |
Cutting range | 105 mm armored Cu/Al cable max |
Cutting/charge | 30times(depend on the size of cable) |
Operation Voltage | 18V, 4Ah |
Charging time | 2hours |
Package | plastic box |
Accessories | battery 2pcs |
charger 1pc | |
handle 1pc | |
Weight | N.W.10.97kg G.W.19.08kg |

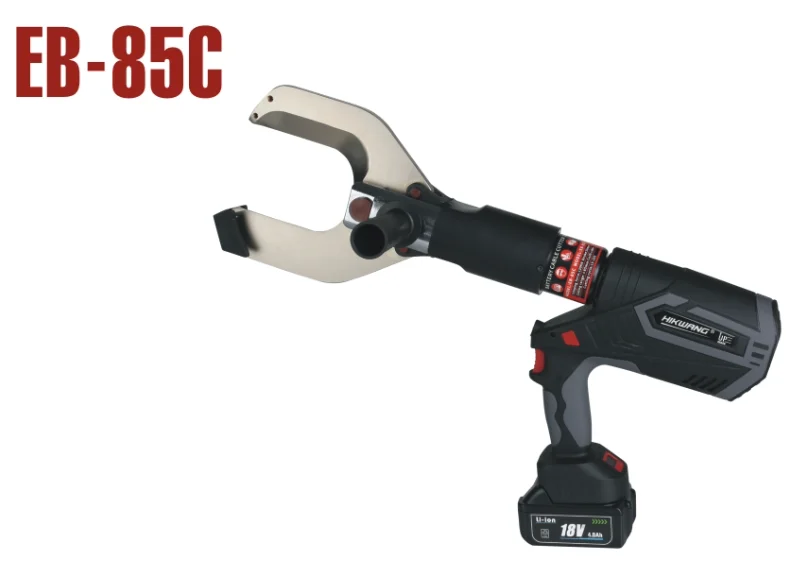

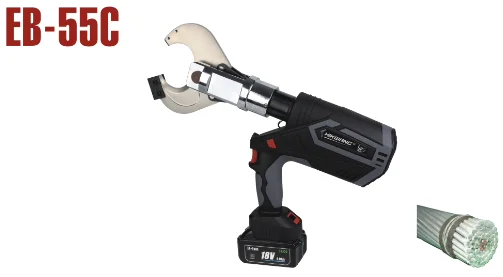

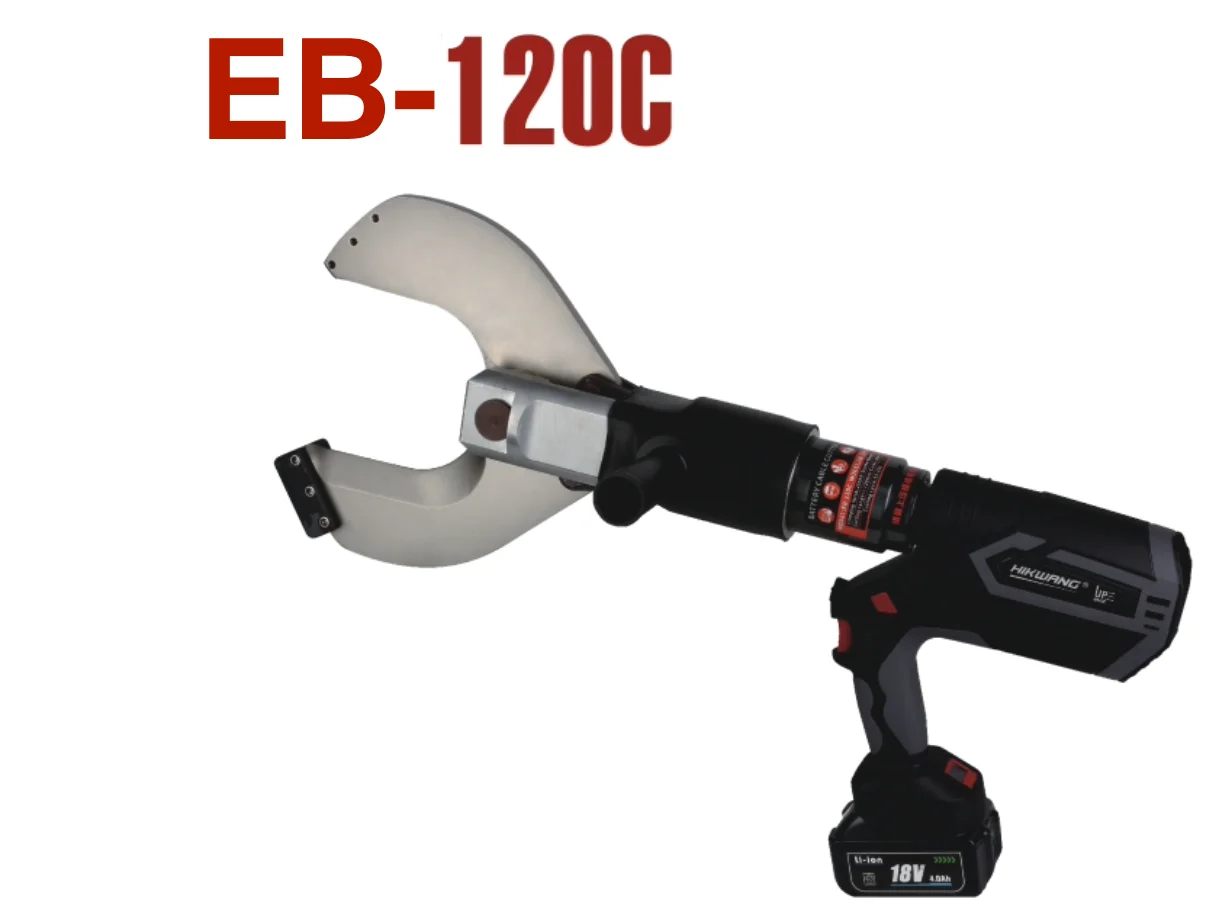

model num. | EB-55C | EB-85C | EB-105C | EB-120C |
cutting force | 60kN | 130kN | 250kN | 250kN |
stroke | 37mm | 57mm | 58mm | 66mm |
cutting range(φ) | armored Cu/Al cable 55mm max | armored Cu/Al cable 85mm max | armored Cu/Al cable 105mm max | armored Cu/Al cable 120mm max |
ACSR 55mm max | ||||
weight | N.W.4.61kg | N.W.7kg | N.W.10.07kg | N.W.11.38kg |
Related Products
Sales and Services Network
Small quantity :
By EMS, DHL or UPS: fast and convenient but expensive.
By Airi: save cost and fast but not convenient.
Big quantity :
By Fedex, DHL, UPS and TNT: fast but expensive.
By sea: cheap and slow.
We use the best material for package, insure the safety of the product.

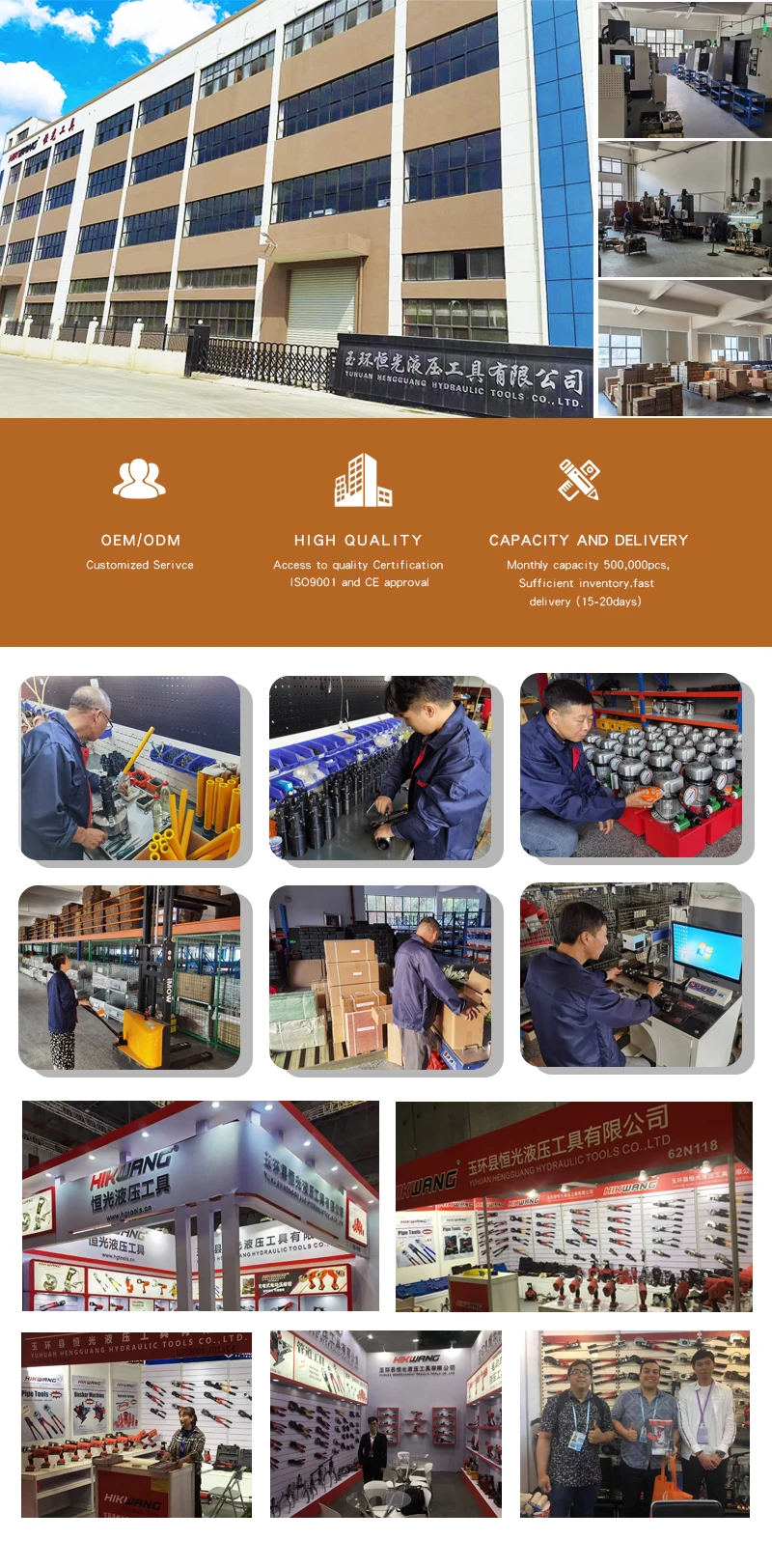

Company Profile
ABOUT US
Wherever it is sold, obtaining customers' praise.
YUHUAN HENGGUANG HYDRAULIC TOOLS CO.,LTD is a professional hydraulic tools and electrical construction tools manufacturer with more than 20 years experience .We carry out the quality system according to ISO9001, and our products are CE certified by ECM. Modern computer Aided Design and production facilities provide great potential for development and design performance. In the last few years, we have expanded our global market to many countries. We look very much forward to a further trustful and successful cooperation.
Why Choose Us
Latest craft Total upgrade
How is the products' quality so excellent?
At the beginning of the establishment of our factory,
we always insist on the concept of quality first.
From the selection of the raw material to the production of the finished product,
every step is strictly tested.

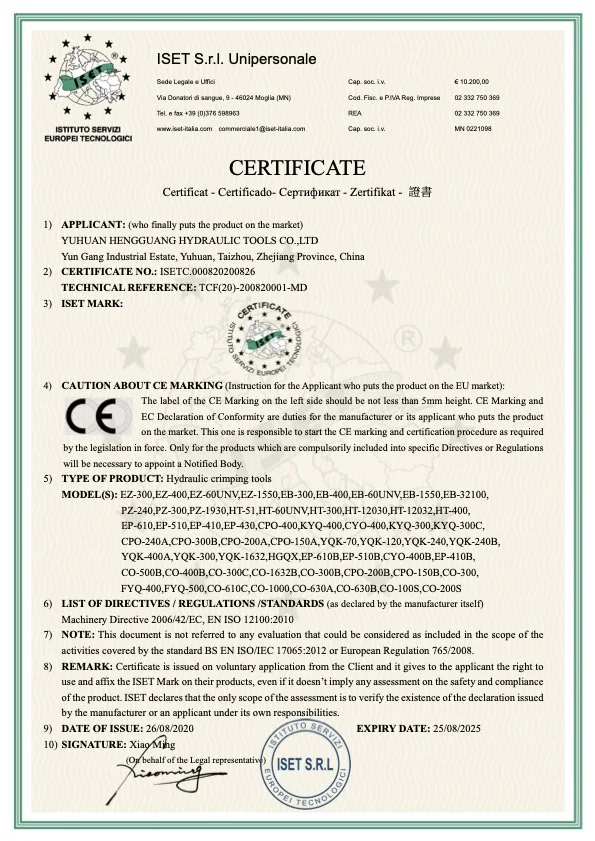

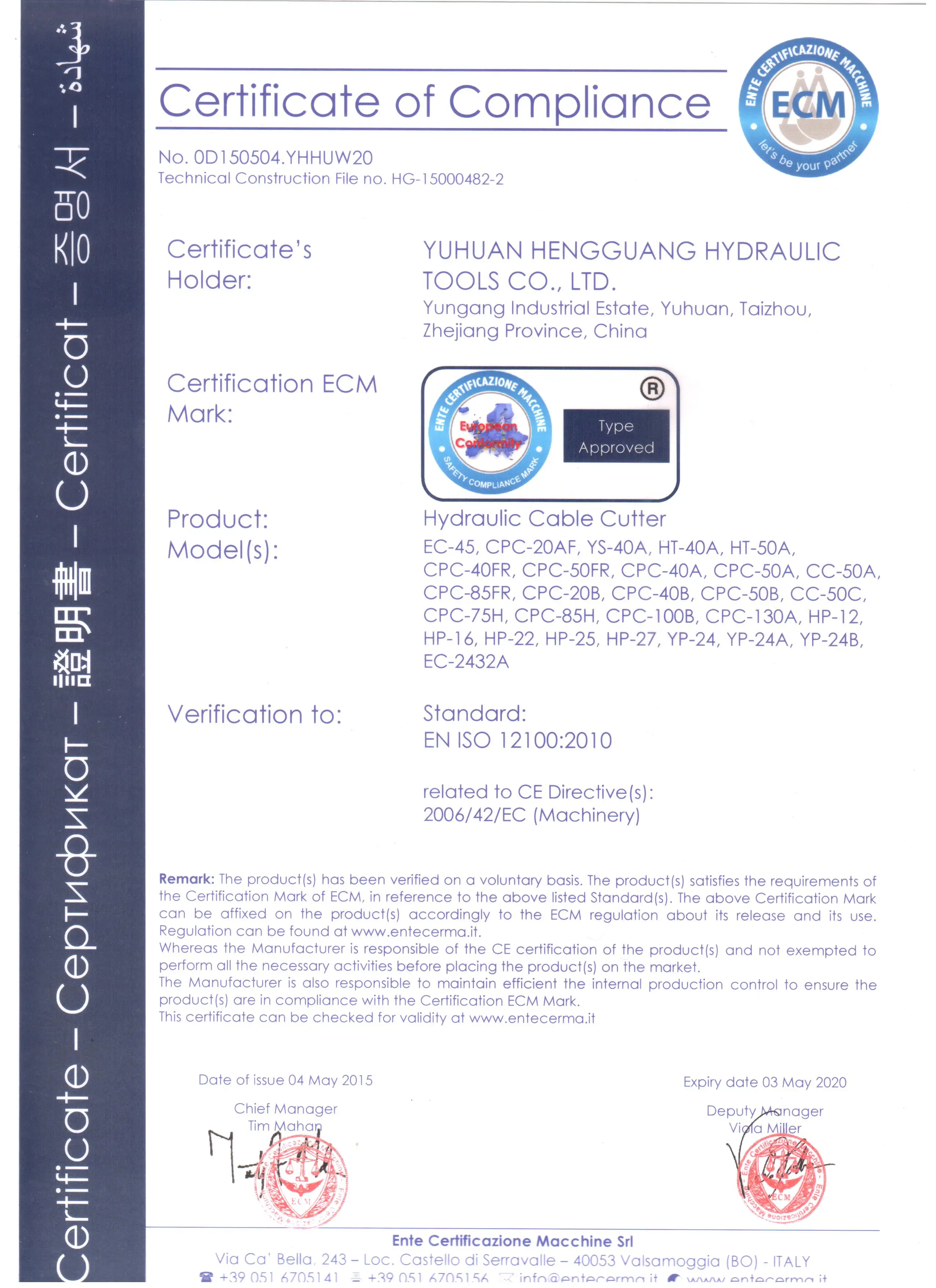

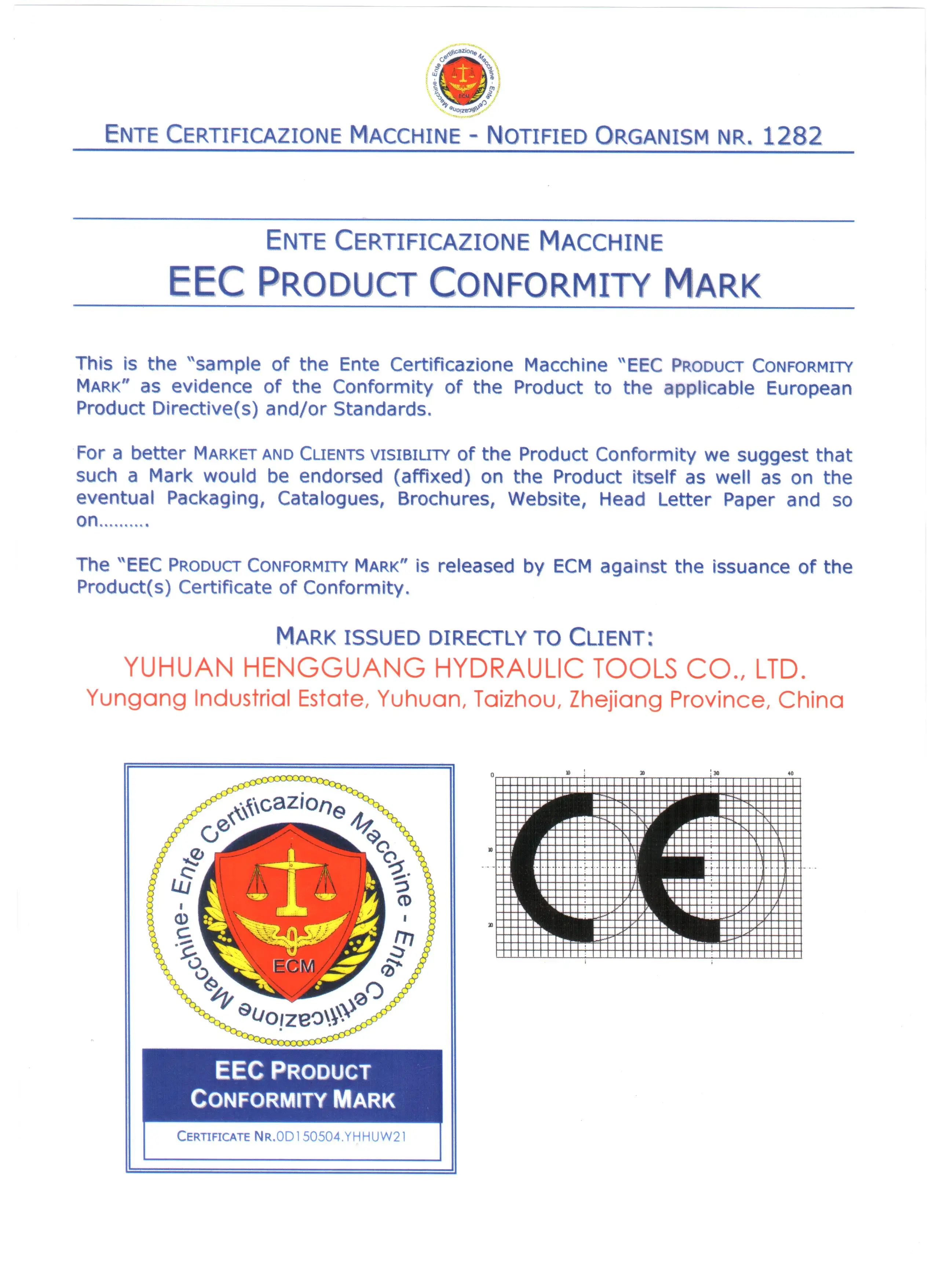

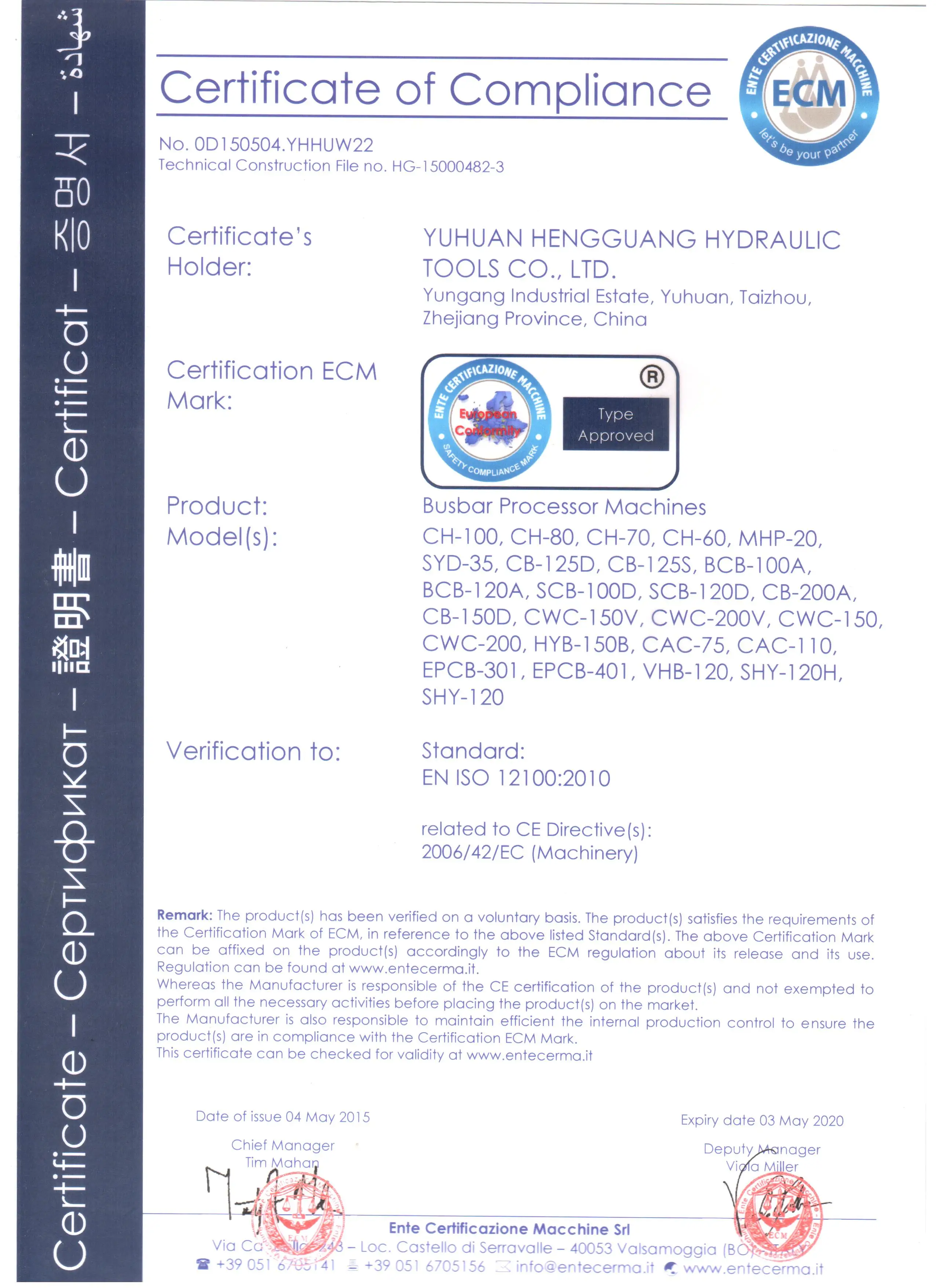

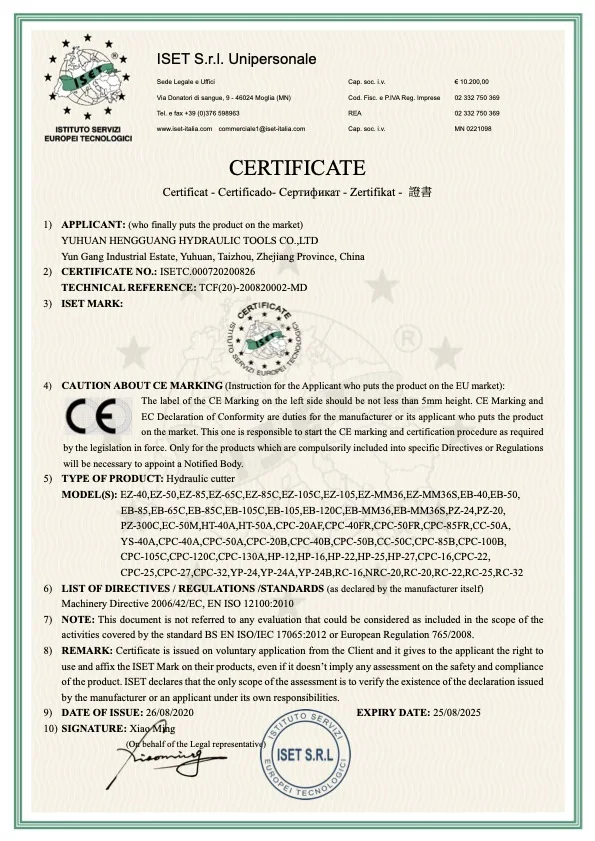

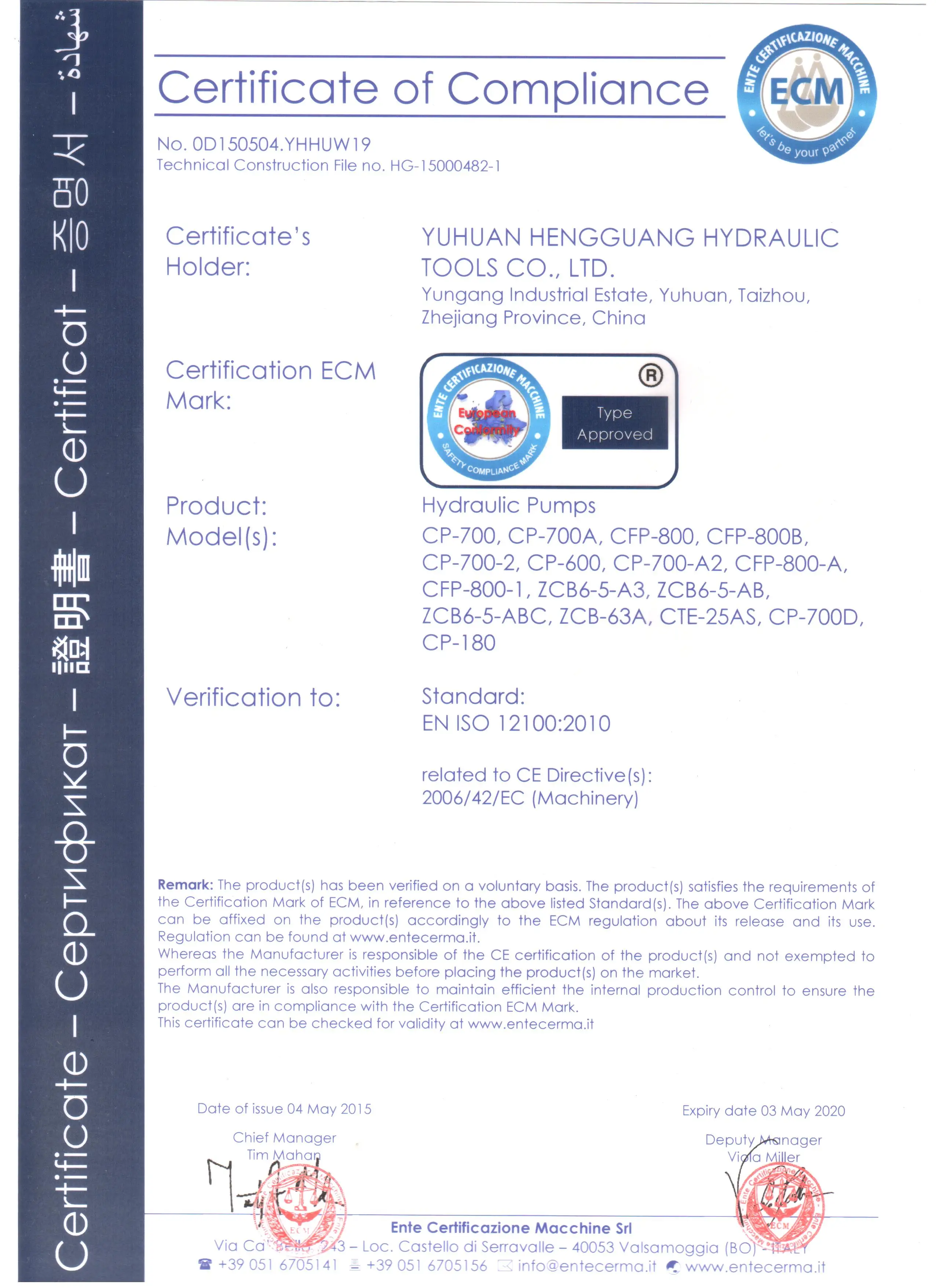

Certifications
FAQ
1.Q：Where is your factory located? How can I visit there?
A：Our factory is located in No. 223, Tianao Xinyuan, Chumen Town, Yuhuan, Taizhou, Zhejiang Province，China.
All our clients, from home or abroad, are warmly welcome to visit us.
2.Q：What's your price?
A：You can contact us to get latest price.
Please feel free to call or e-mail us.
( Send your Inquiry Details in the Below, Click "Send" Now! )
3.Q：How does your factory do regarding quality control？
A："Quality is priority." We always attach great importance to quality controlling from the beginning to the end. Our company has gained CE authentication.
