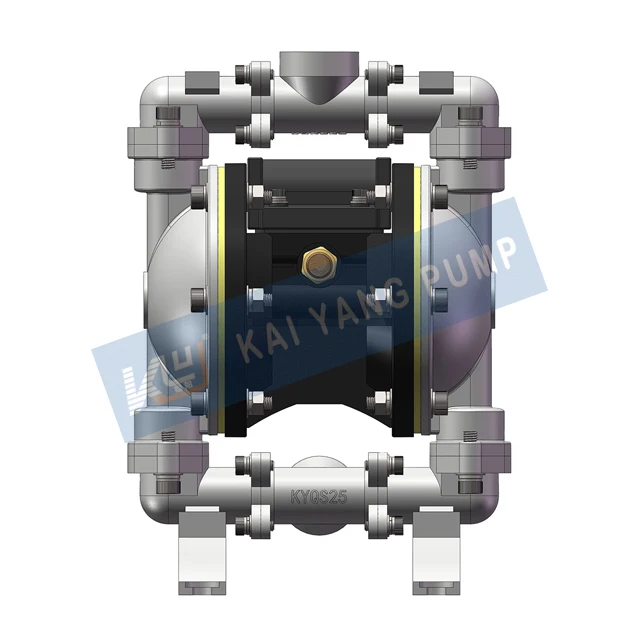

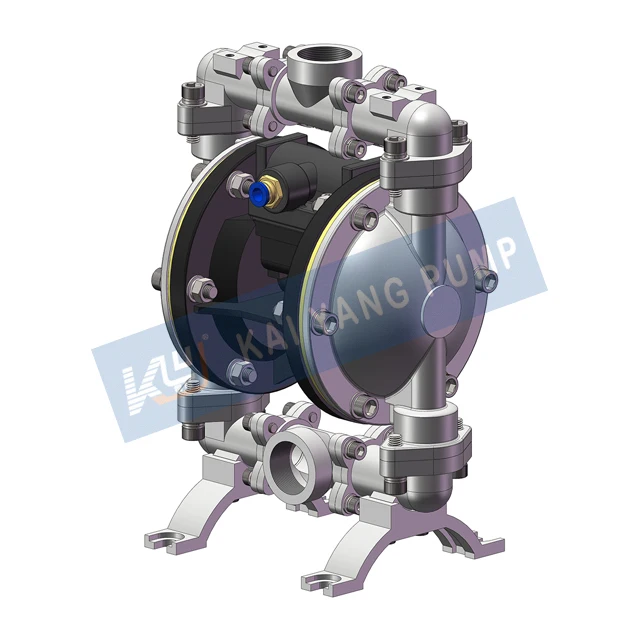

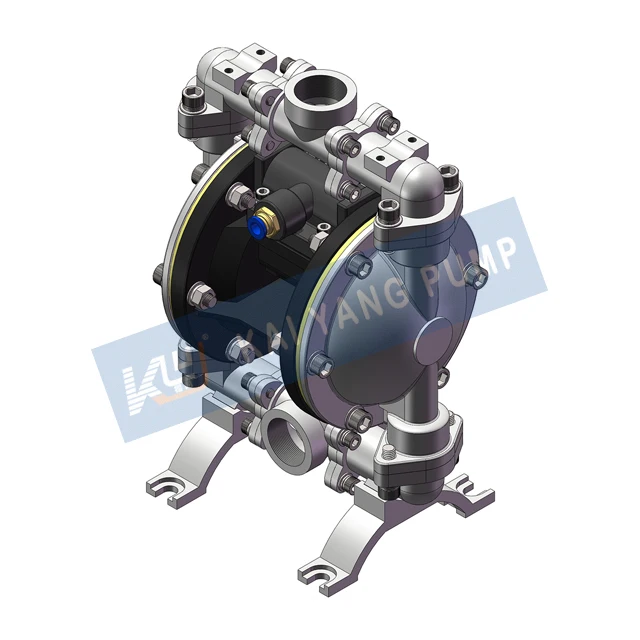

Stainless Steel 304 Pneumatic Double Diaphragm Pump Import And Export One Inch Small Flow Solid Particles
Stainless Steel 304 Pneumatic Double Diaphragm Pump Import And Export One Inch Small Flow Solid Particles
Stainless Steel 304 Pneumatic Double Diaphragm Pump Import And Export One Inch Small Flow Solid Particles
Stainless Steel 304 Pneumatic Double Diaphragm Pump Import And Export One Inch Small Flow Solid Particles
Stainless Steel 304 Pneumatic Double Diaphragm Pump Import And Export One Inch Small Flow Solid Particles

Stainless Steel 304 Pneumatic Double Diaphragm Pump Import And Export One Inch Small Flow Solid Particles

Share on (1601123740984):


Price:$125.00-135.00

Quantity:


Product Overview

Description

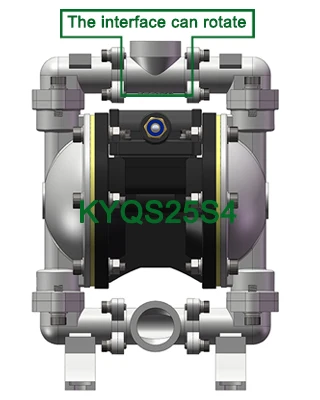

    KYQS25S4 Pump Parameters










































Pump Body Material:SS304
Air Motor Material:Polypropylene
Pump Weight:About 12.1 lbs
Air Inlet Size:3/8 in BSP(FNPT)
Fluid Inlet/Outlet Size:1 in BSP(FNPT)
Max.Suction Height:Dry:5m  Wet:8m
Max.Flow:17GPM
Max.Working Pressure:109PSI
Max.Permitted Grain:1/12 in

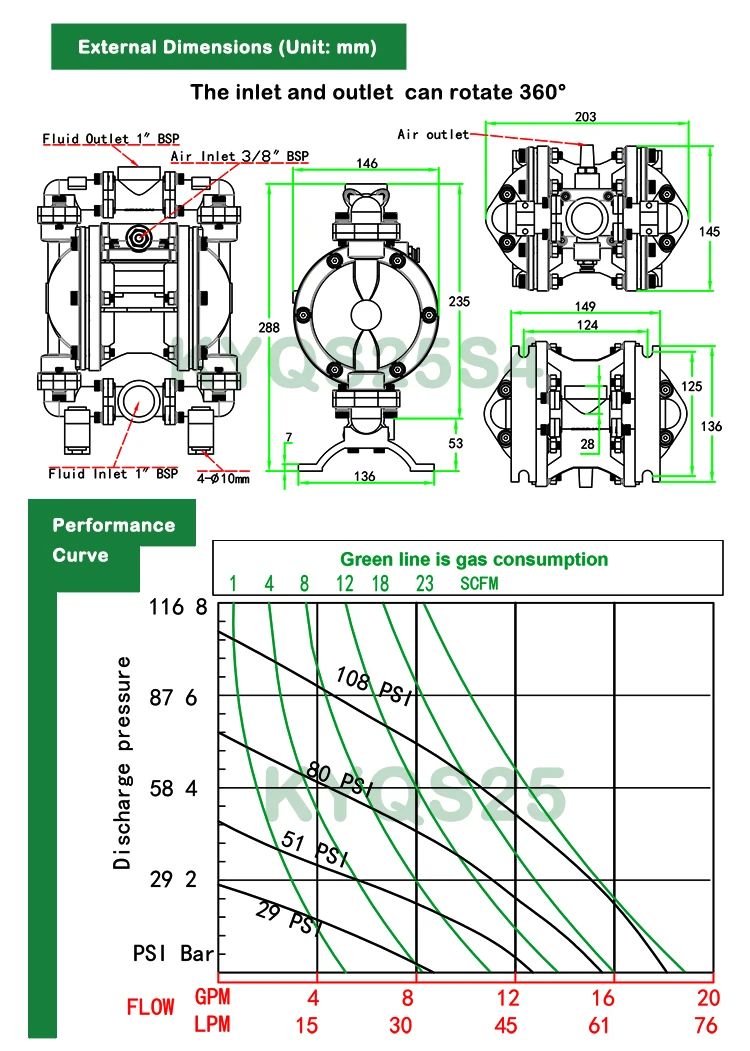

    Performance Curves And Dimensions










    The Meaning Of Pump Model










    Model Selection Table









    Installation Instruction Diagram













3.jpg4-1.jpg4-2.jpg5-1.jpg5-2.jpg5-3.jpg6A.jpg6 B.jpg
