Automatic Cold Forming Steel Frame Light Gauge C Shape Profiles Steel Villa Machine
- Category: >>>
- Supplier: Henan Wadjay Machinery Co. Ltd.
Share on (1601123972083):
Product Overview
Description
Description

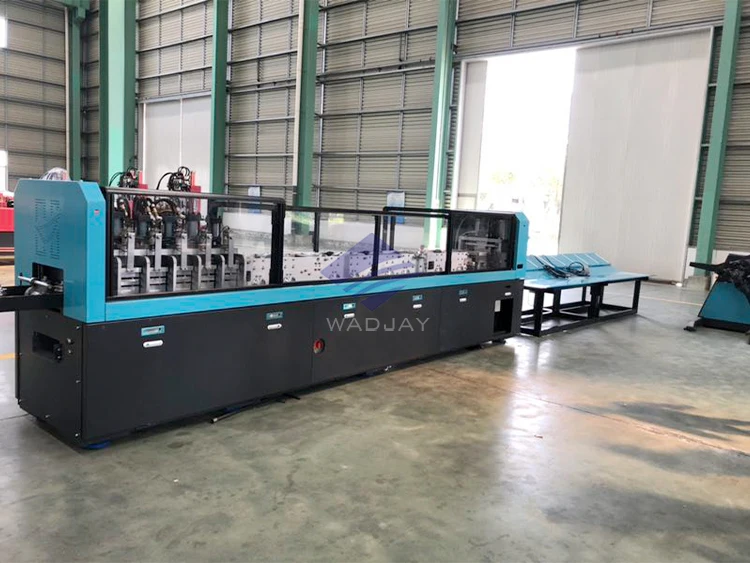

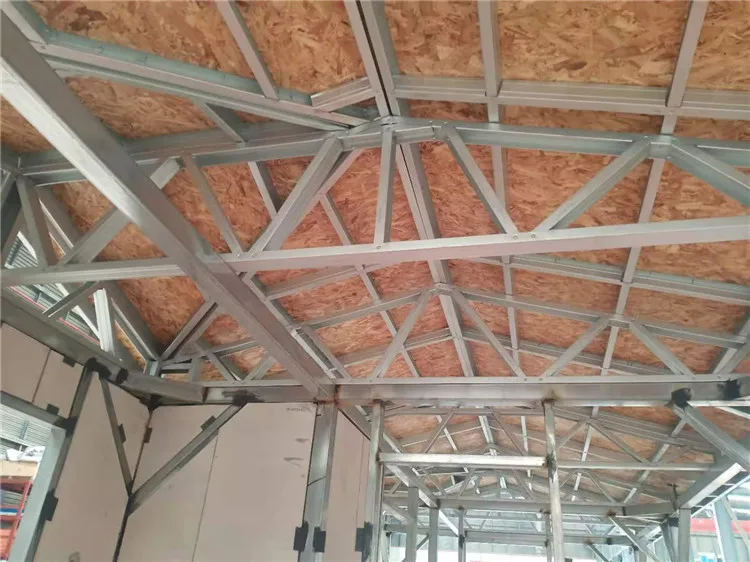

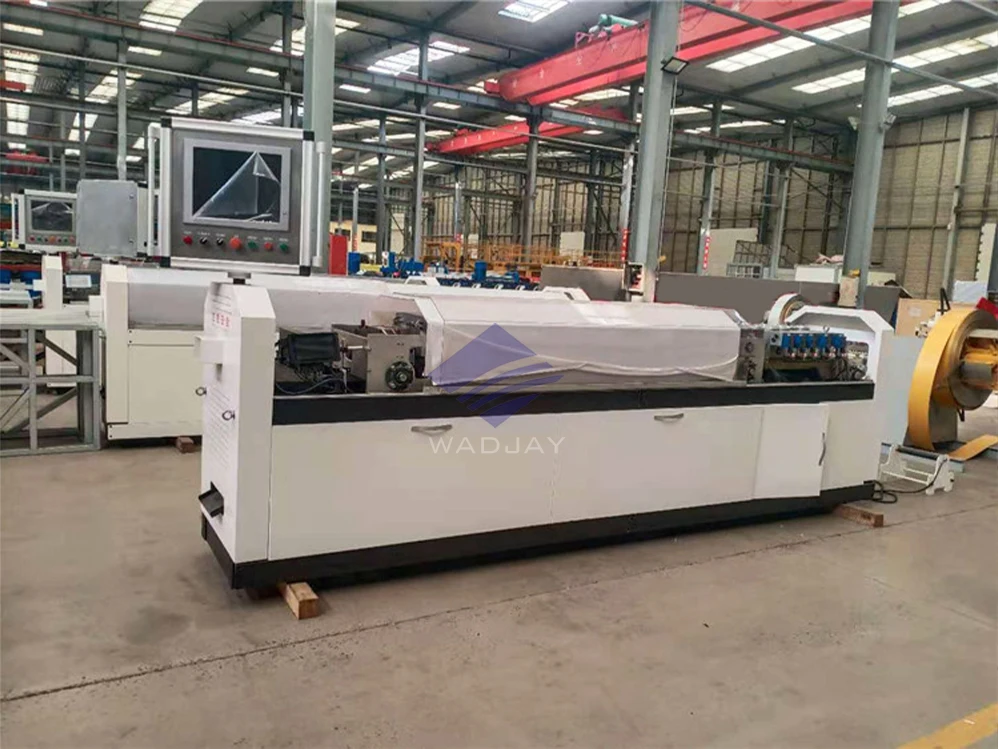

Light Gauge Steel Framing Machine ( Framecad Machine)
Introduction: Brand Light Gauge Steel Framing Machine (cold forming steel frame machine), and can automatic produce Light Gauge C shape profiles according to the input construction data With the help of designing software and control software, the machine can automatic running and saving lots of time in drafting, material reporting, data entry, manufacturing, and correcting all the errors.
Steel Framing Machine parameter:
1. Raw material: galvanized sheet, 0.75-1.2mm, 550 Mpa
2. Product size: 89 x 41 x 10mm; 140 x 41 x 10mm
3. Machine speed: Max. 100 m/min (not including cutting and punching)
Light Gauge Steel Villa Machine Main Components:
Uncoiler
1. Type: Mechanical Uncoiler, Hydraulic Uncoiler
2. Load capacity: 3T

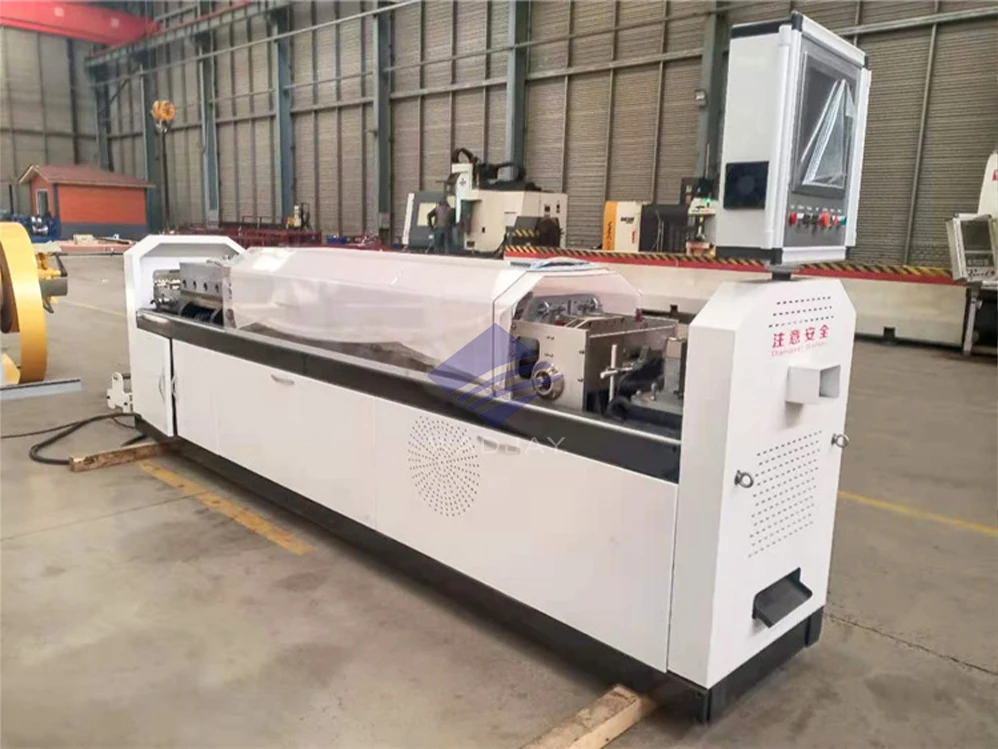

Main LGS Machine
Main LGS Machine
1. Speed: Max. 100m/min (excluded punching and cutting time)
2. Total weight: 3.5 T
3. Machine size: 5.2m x 1.6m x 1.5m
4. Roller stations: 12, including one set roller for purlin flange angle adjustment within 87-95 degree.
5. Drive type: servo motor 5.5Kw with high precision plant gear speed reducer.
6. Roller material: GCr15, numerical control machining with heat treatment and precision grinding. Hardness: HRC55-58
Hydraulic Punching System
1. The NC control software that installed in control computer will automatically read the BOM data which input through USB or Net, then machine will automatically generate product according designed parameters.
2. Control voltage: 220V, 50Hz
3. Control type: PC with Win8 operation system.
4. PLC brand: Panasonic
5. Relay: Schneider
6. Button: Schneider
7. Hydraulic valve: Rexroth
Specification
Technical Specification of LGS Light Gauge Steel Framing Machine
Raw Material | Type | Galvanized Sheet |
Thickness | 0.75-1.2 mm | |
LGS-89 | Web x Flange x Lip | 89 x 41 x 10 |
LGS-140 | Web x Flange x Lip | 140 x 41 x 10 |
Performance | Speed | Max. 100m/min (without cutting and punching) |
Weight | 4.5 T | |
Machine Size | 5.2 x 1.6 x 1.5m | |
Main Machine | Main Roller | Station 14 |
Main Drive | Servo Motor | |
Transmission Type | Chain | |
Punching & Cutting | Punching | Pre-Punching and Notching |
Length Tolerance | +/- 1mm | |
Profile Tolerance | +/- 1mm |
Details Image

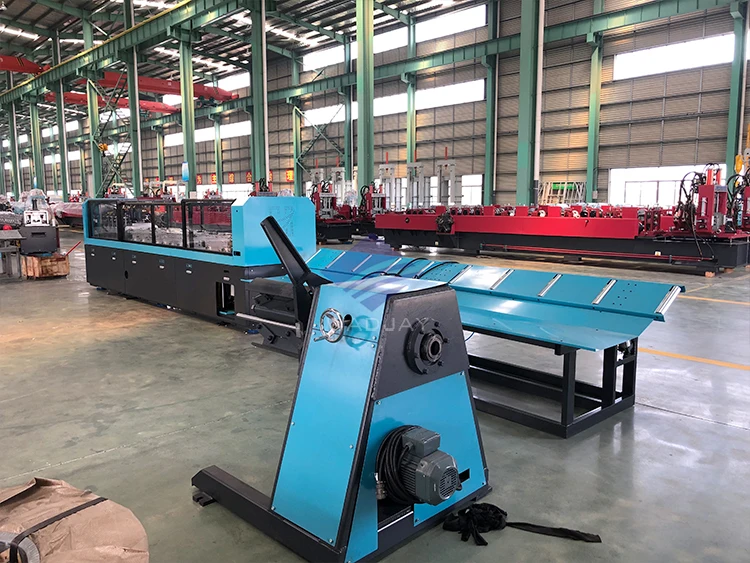

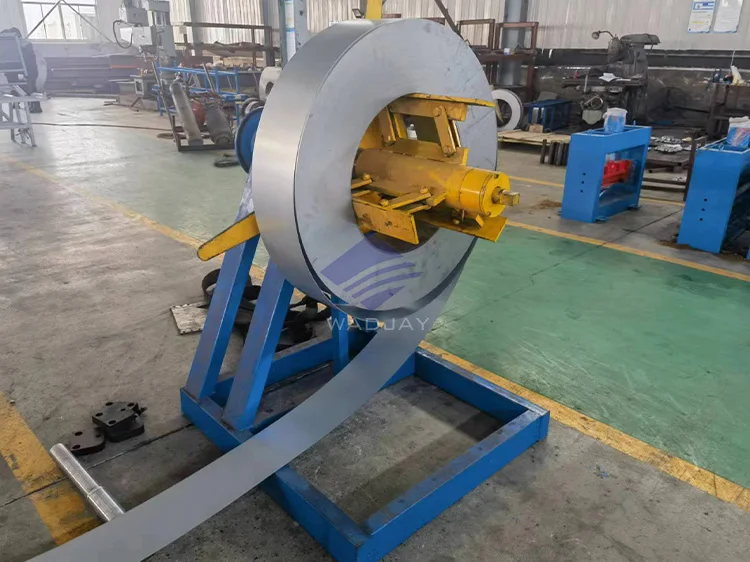

Decoiler:
This component holds the raw material coil and feeds it into the roll forming machine.

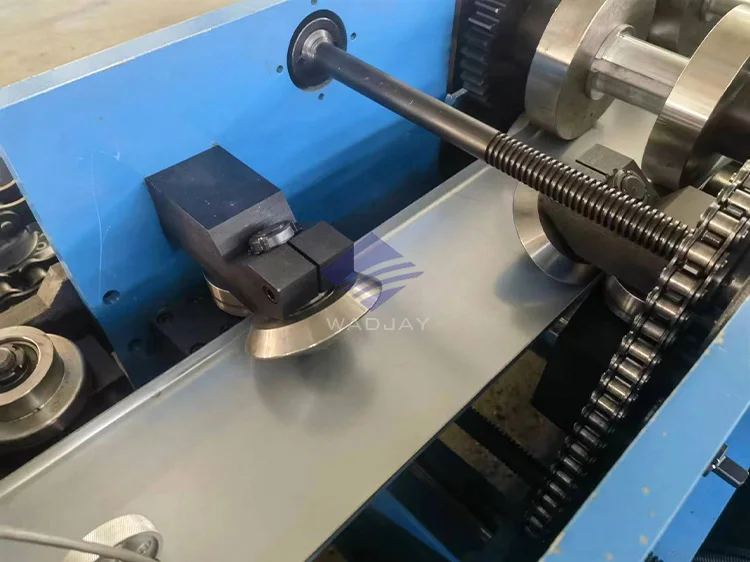

Roll Forming Stations:
Multiple sets of rollers gradually shape the material into the products profile.

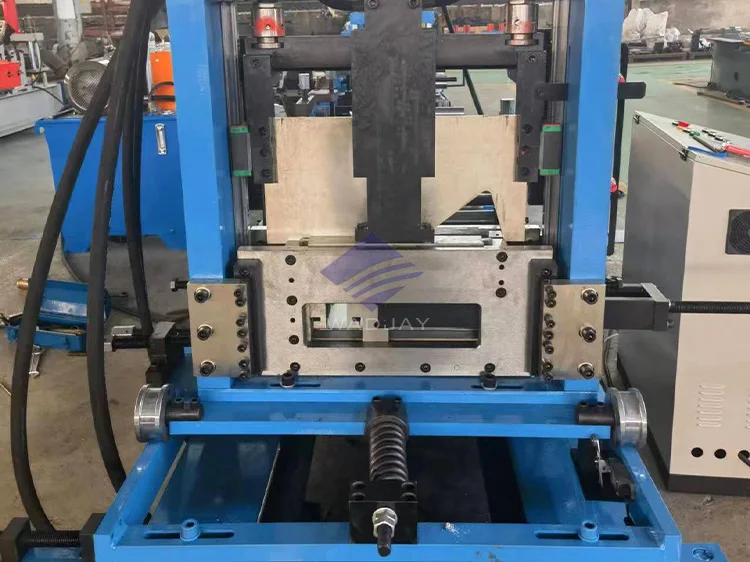

Cutting System:
The machine may include a cutting mechanism to trim the purlins to the desired length.

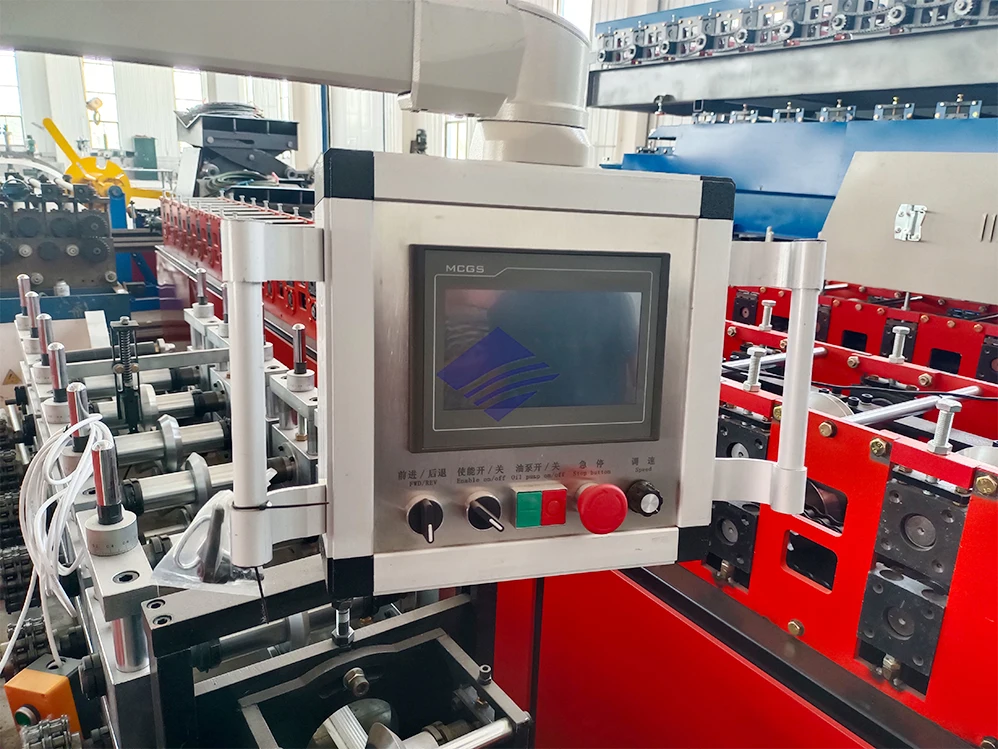

Control System:
Modern machines often have computerized control systems to precisely control the production process
