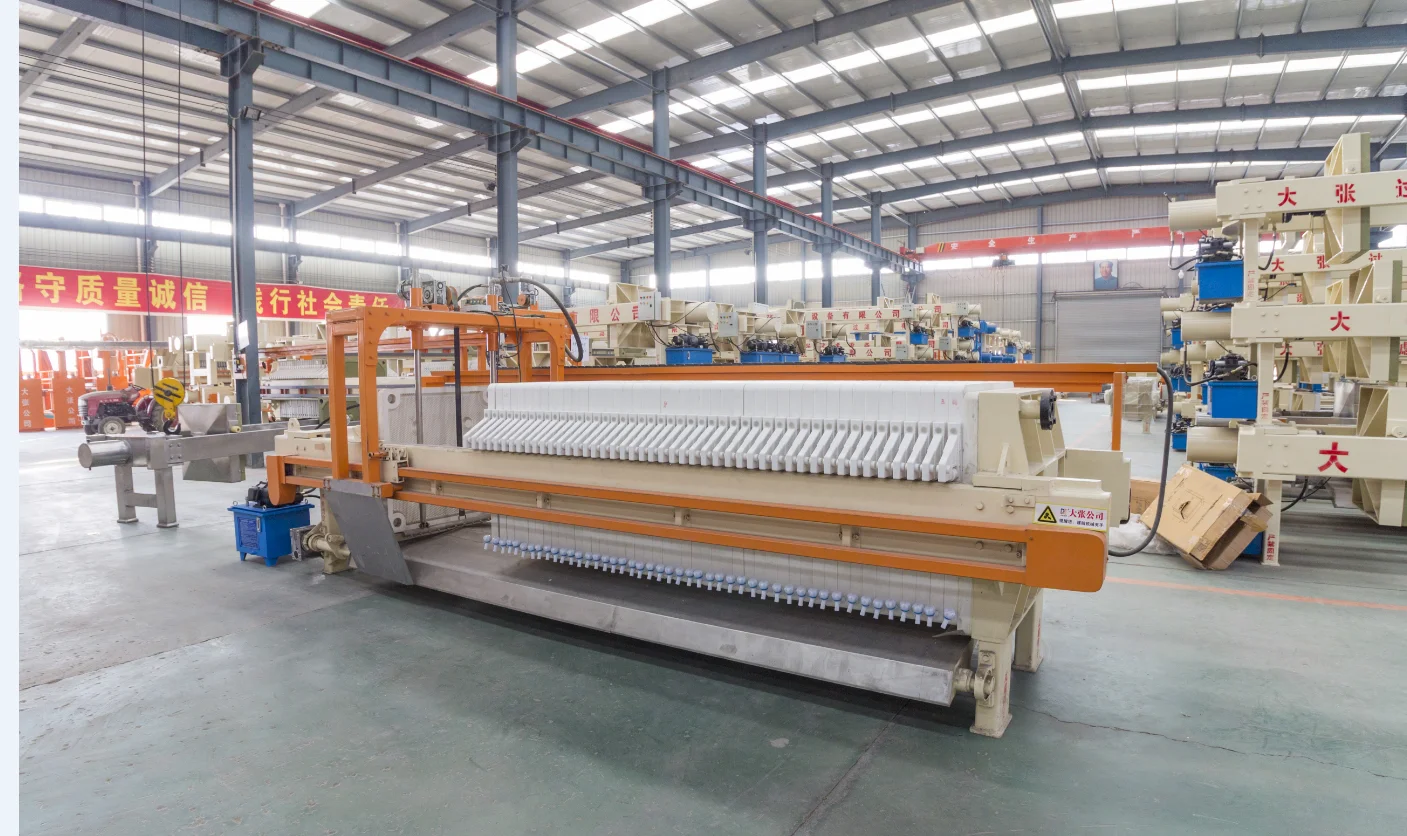

Steel plant sewage treatment chamber filter press
- Category: >>>
- Supplier: Henan Dazhang Filter Equipment Co. Ltd.
Share on (1601123974448):
Product Overview
Description
Why Choose Us
Henan Dazhang Filter Equipment Co., Ltd. is a professional filter press manufacturer. It has three subsidiaries in Shanghai and Yuzhou. Now Henan Dazhang is the biggest filter press based in the center of China. We are specialized in designing, producing and selling filter presses and other related equipment. We are also good at supplying our customers with comprehensive filtration solutions. Our company now covers an area of 30,000 square meters, with advanced equipment and strict QC procedures.
We don't aim at maximizing profits, don't aim at maximizing the scale of assets and don't lower quality to cater to the markets at low prices. We hold the management tent of "guaranteed quality, quality goods, morality first, credit foremost ". We take customers' needs as our developing basis and take customer satisfaction as our goal. If you are interestad in any of our products, please feel free to contact us.
We don't aim at maximizing profits, don't aim at maximizing the scale of assets and don't lower quality to cater to the markets at low prices. We hold the management tent of "guaranteed quality, quality goods, morality first, credit foremost ". We take customers' needs as our developing basis and take customer satisfaction as our goal. If you are interestad in any of our products, please feel free to contact us.
We are looking forward to cooperating with friends from all over the world.
Product Description

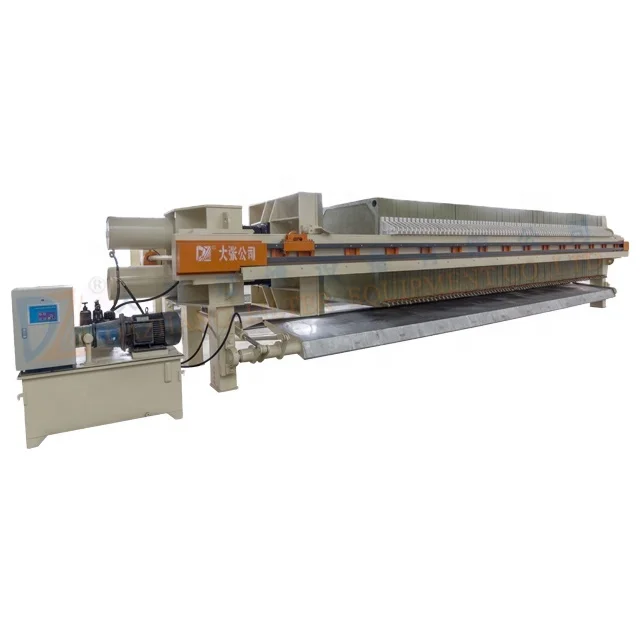

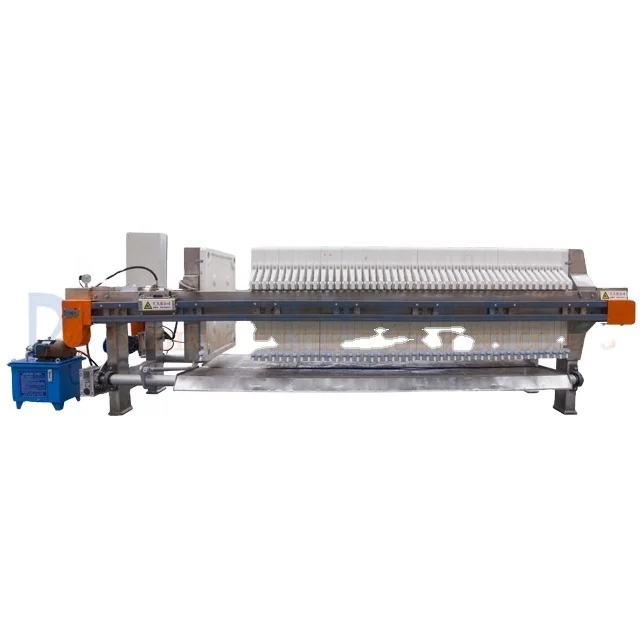

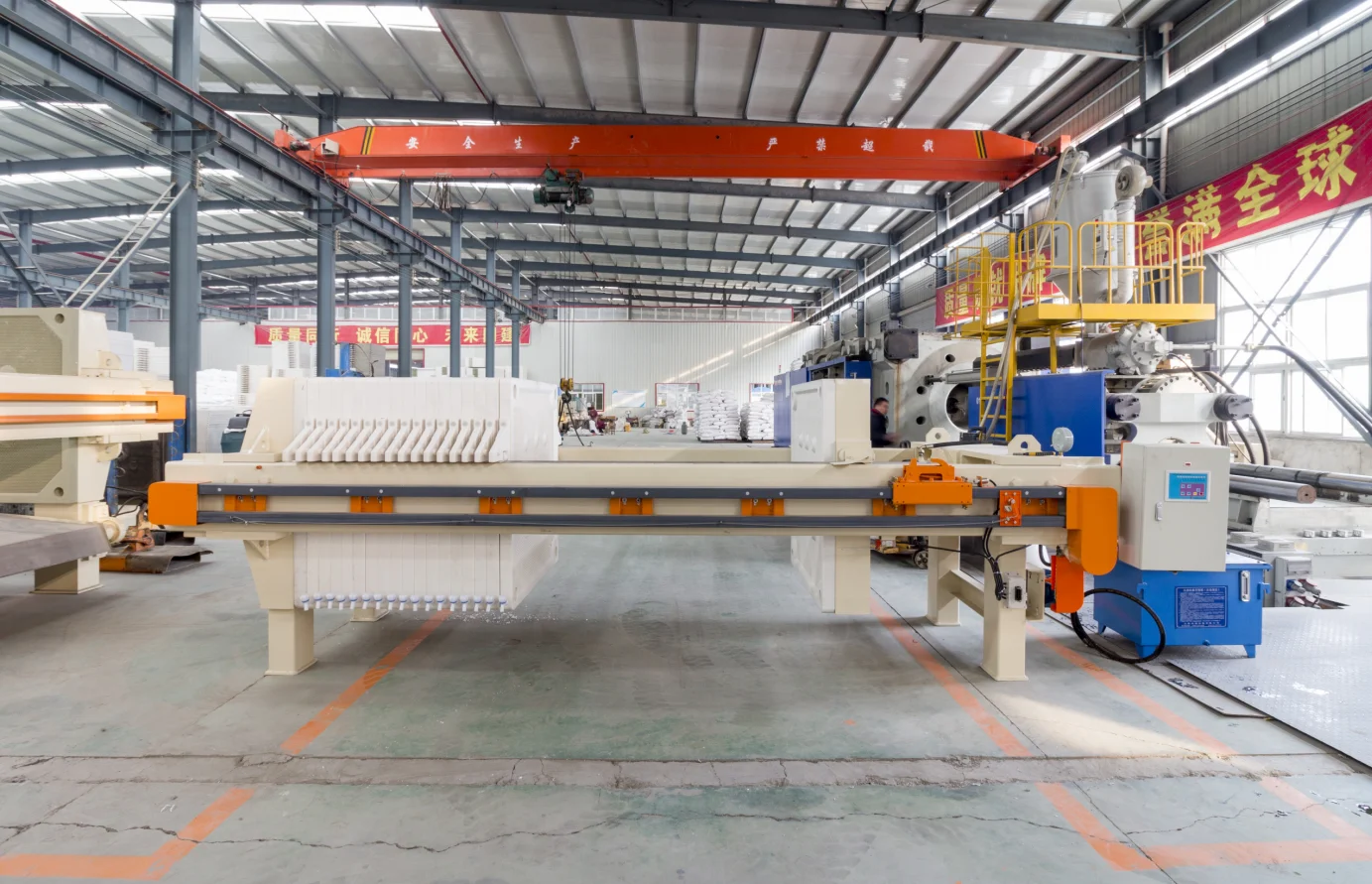

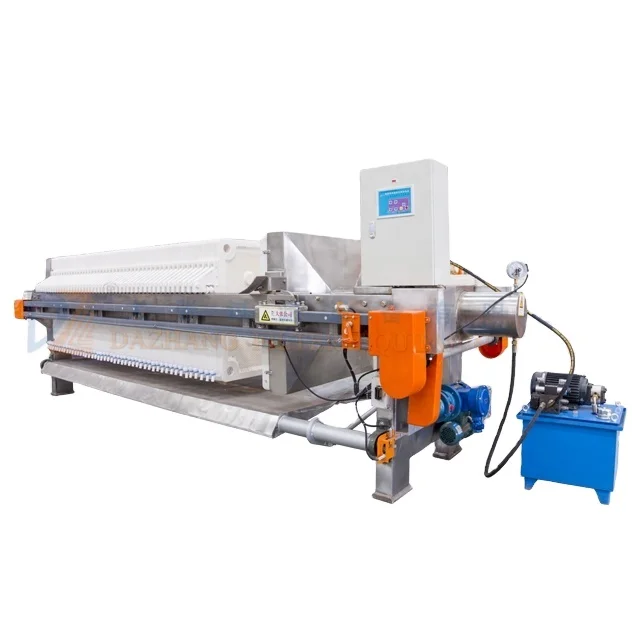

XMZ1250 Automatic Hydraulic Plate Filter Press Machine
Automatic Hydraulic Chamber/Plate Filter Press is used in chemical, petroleum, pharmaceutical, light industry, food, mineral processing, water treatment, electroplating, metallurgy, dyes, textile, etc. industries.
TYPE | Filter area (sqm) | Plate Size (mm) | Cake thickness (mm) | Filter chamber volume (L) | Number of plates | Filtration pressure (MPa) |
XMZ100/1250-30U | 100 | 1250x1250 | 30 | 1479 | 36 | 0.6 |
XMZ120/1250-30U | 120 | 1250x1250 | 30 | 1777 | 43 | 0.6 |
XMZ140/1250-30U | 140 | 1250x1250 | 30 | 2094 | 51 | 0.6 |
XMZ160/1250-30U | 160 | 1250x1250 | 30 | 2381 | 58 | 0.6 |
XMZ180/1250-30U | 180 | 1250x1250 | 30 | 2669 | 65 | 0.6 |
XMZ200/1250-30U | 200 | 1250x1250 | 30 | 2965 | 72 | 0.6 |
XMZ220/1250-30U | 220 | 1250x1250 | 30 | 3285 | 80 | 0.6 |
XMZ250/1250-30U | 250 | 1250x1250 | 30 | 3737 | 91 | 0.6 |
Main Features
1. Big pressing force(17-20MPa) can avoid leakage effectively.
2. Hydraulic station adopts ABB motor, it is steady in operation.
3. Auto closing and auto opening.
4. Labor saving.
5. It specially apply to models with large capacity, it can ensure good filtering effect.
Application of Filter Press:
It is widely applied in many fields such as coal washing industry, petroleum industry, chemical industry, ceramic industry,
pharmacy, food industry, textile industry, printing and dyeing industry, paper making industry, waste water treatment industry
etc.

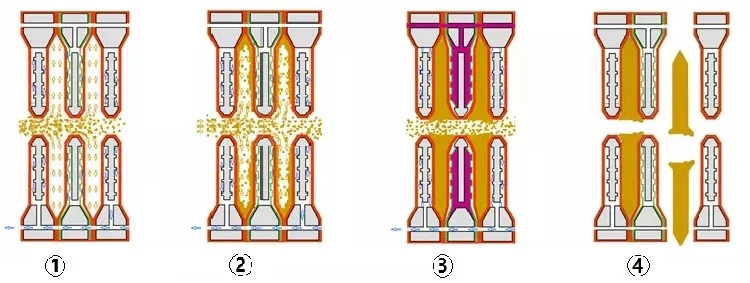

Working principle of Chamber Filter Press:
* 1. Slurry is pumped into the filter press. The solids are distributed evenly on the filter cloths during the feed (fill) cycle.
* 2. Solids begin to build on the filter cloth, trapping the ensuing particles and building a filter cake. The filter cake acts as a depth filter for solid/liquid separation. Filtrate exits the plates through the corner ports into the manifold.
* 3. When the correct valves in the manifold are open, the filtrate exits the press through the filtrate outlet. As the filter press feed pump builds pressure, the solids build within the chambers until they are completely full of filter cake.
* 4. Once the chambers are full, the fill cycle is complete and the filter press is ready to be emptied.
* 2. Solids begin to build on the filter cloth, trapping the ensuing particles and building a filter cake. The filter cake acts as a depth filter for solid/liquid separation. Filtrate exits the plates through the corner ports into the manifold.
* 3. When the correct valves in the manifold are open, the filtrate exits the press through the filtrate outlet. As the filter press feed pump builds pressure, the solids build within the chambers until they are completely full of filter cake.
* 4. Once the chambers are full, the fill cycle is complete and the filter press is ready to be emptied.
Product Description
Through the video, you can clearly understand the quality of our equipment, the filtrate is very clear, and the filter cake is very dry, bringing the greatest economic benefits to customers.

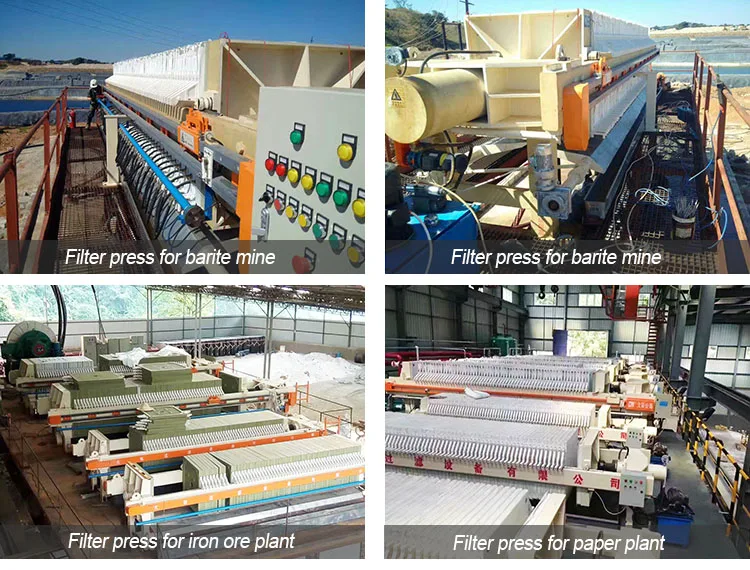

Product Case
