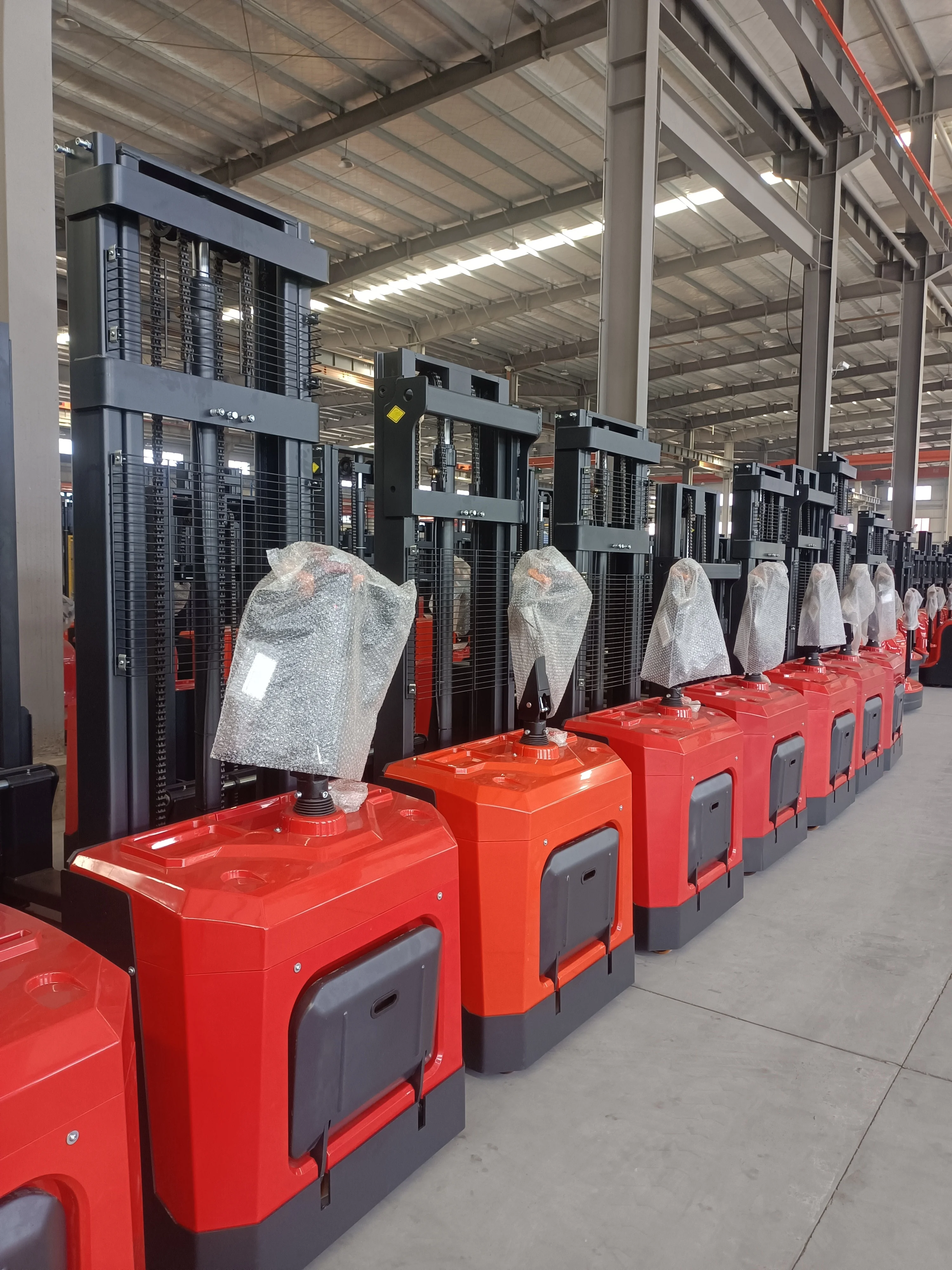

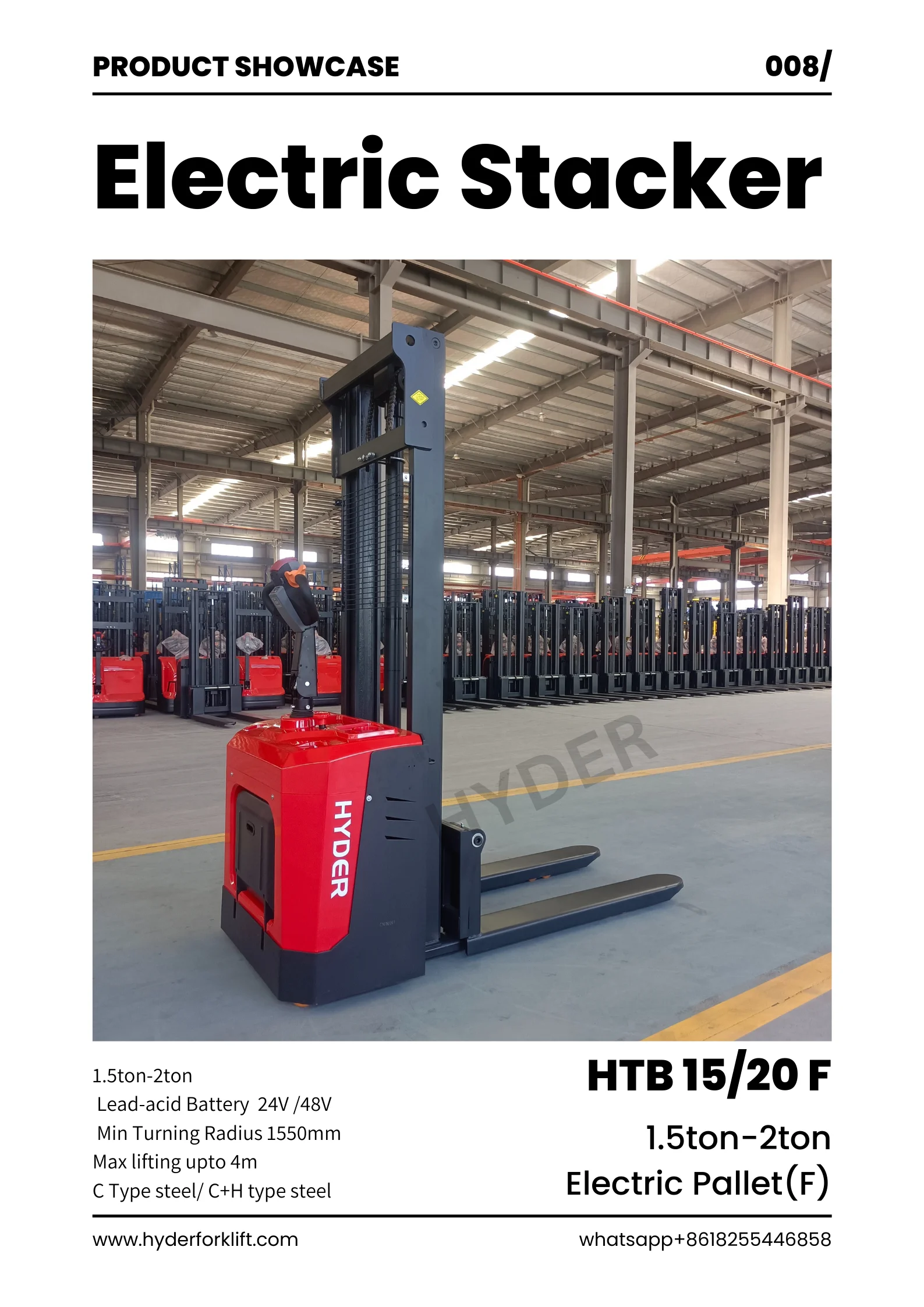

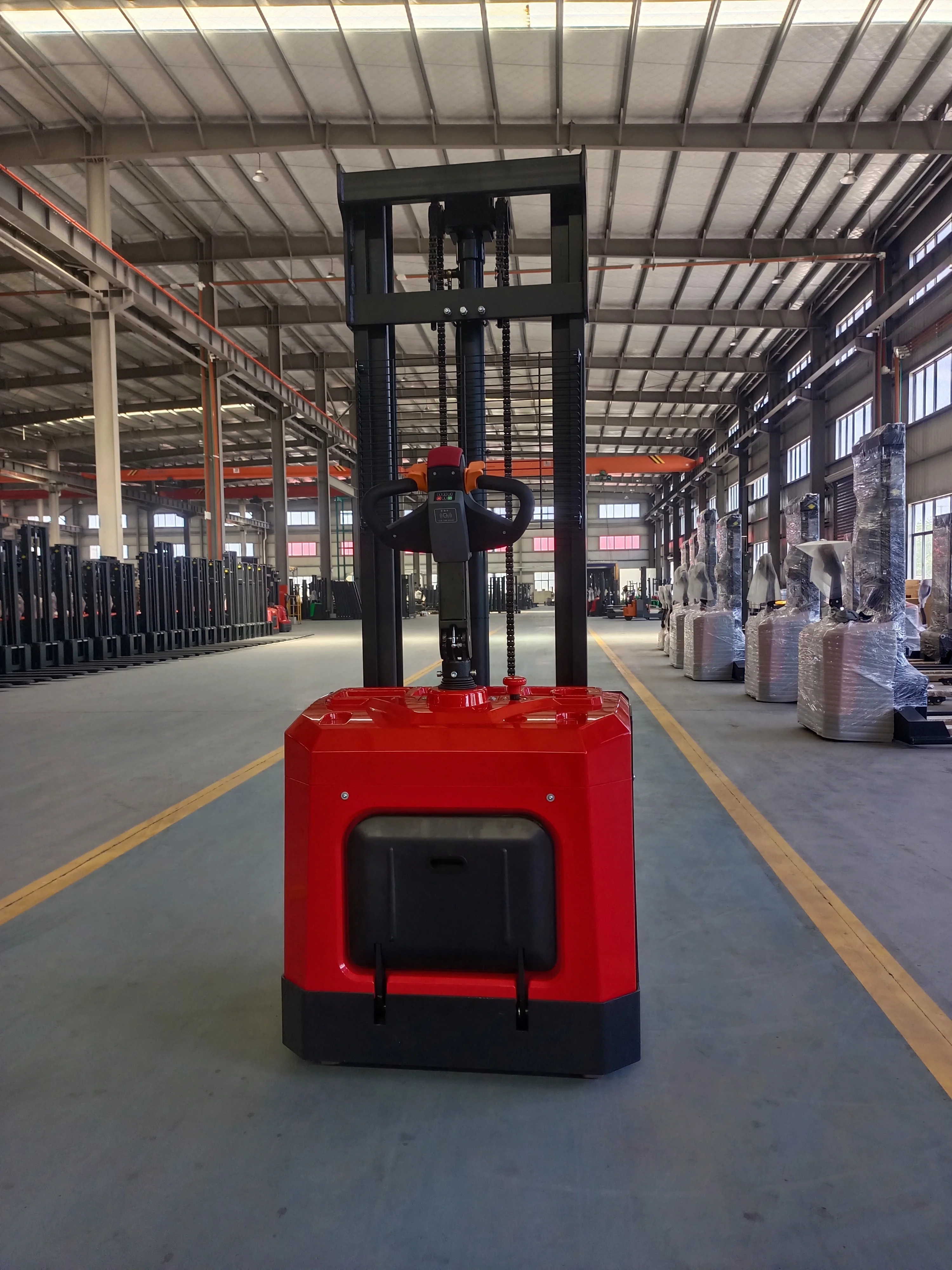

Hyder Small Size Ride on 1.5T Electric Stacker for Narrow Space Operation
- Category: >>>
- Supplier: Shanghai Hyder Industry Co. Ltd.
Share on (1601124010226):
Product Overview
Description
Product Description

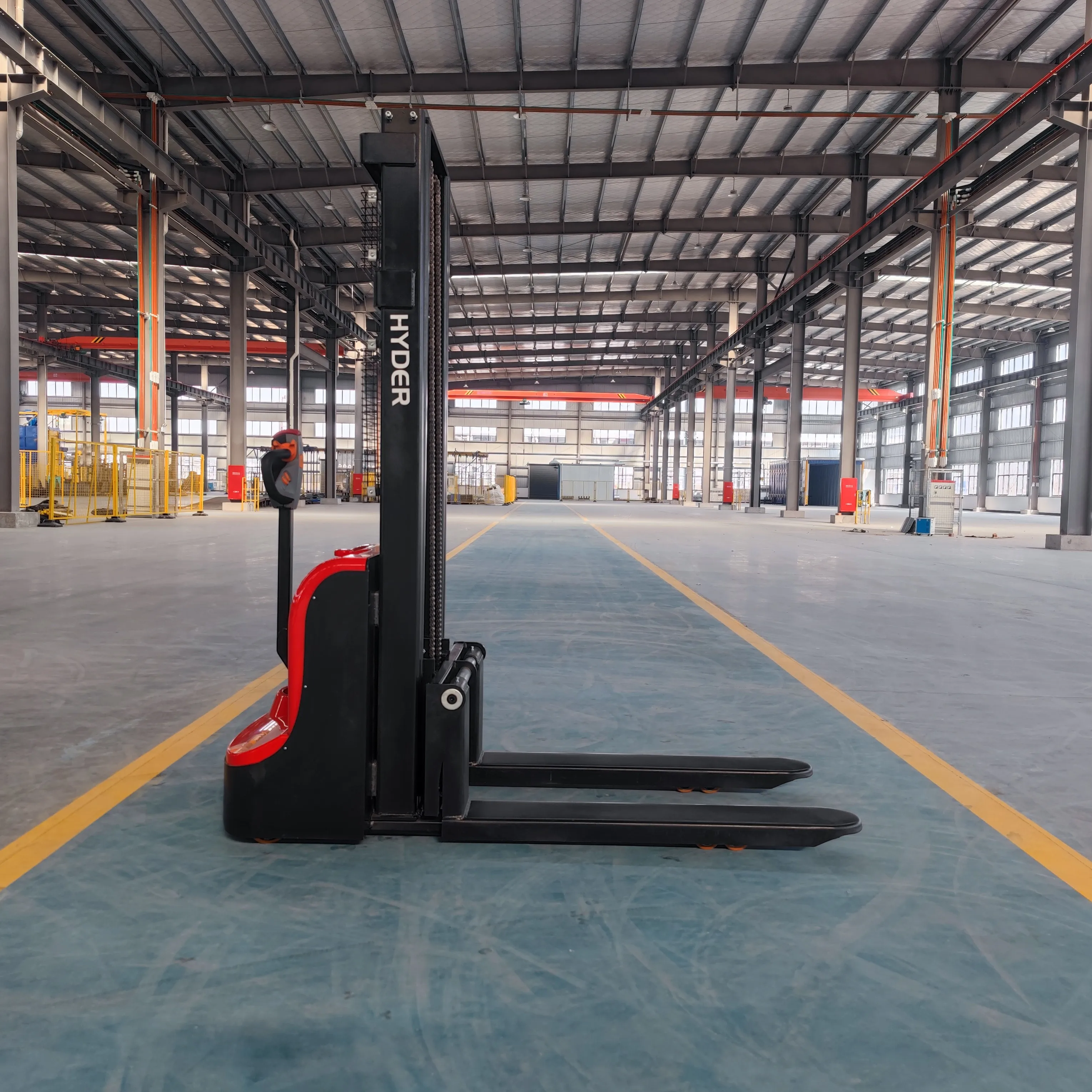

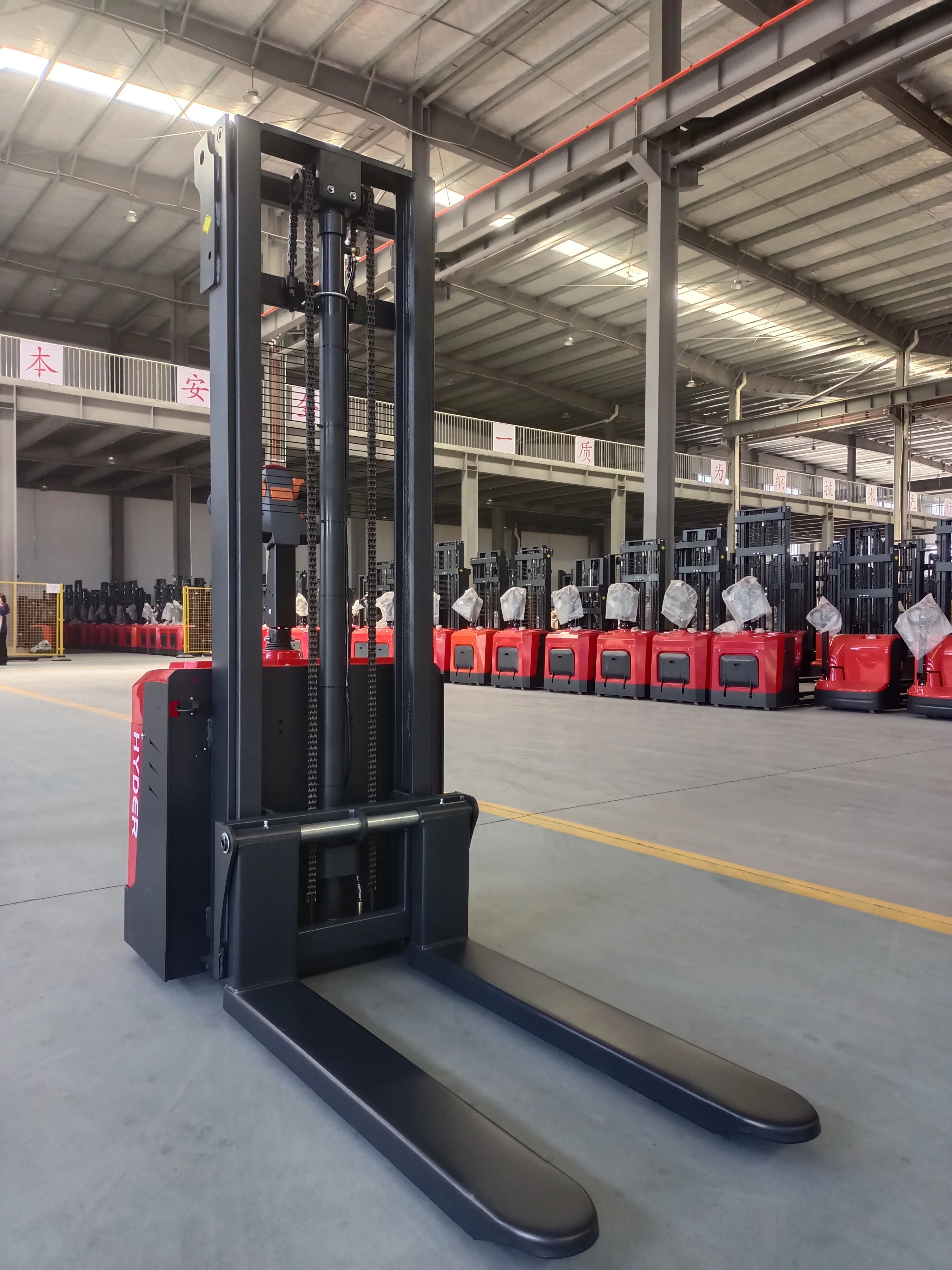

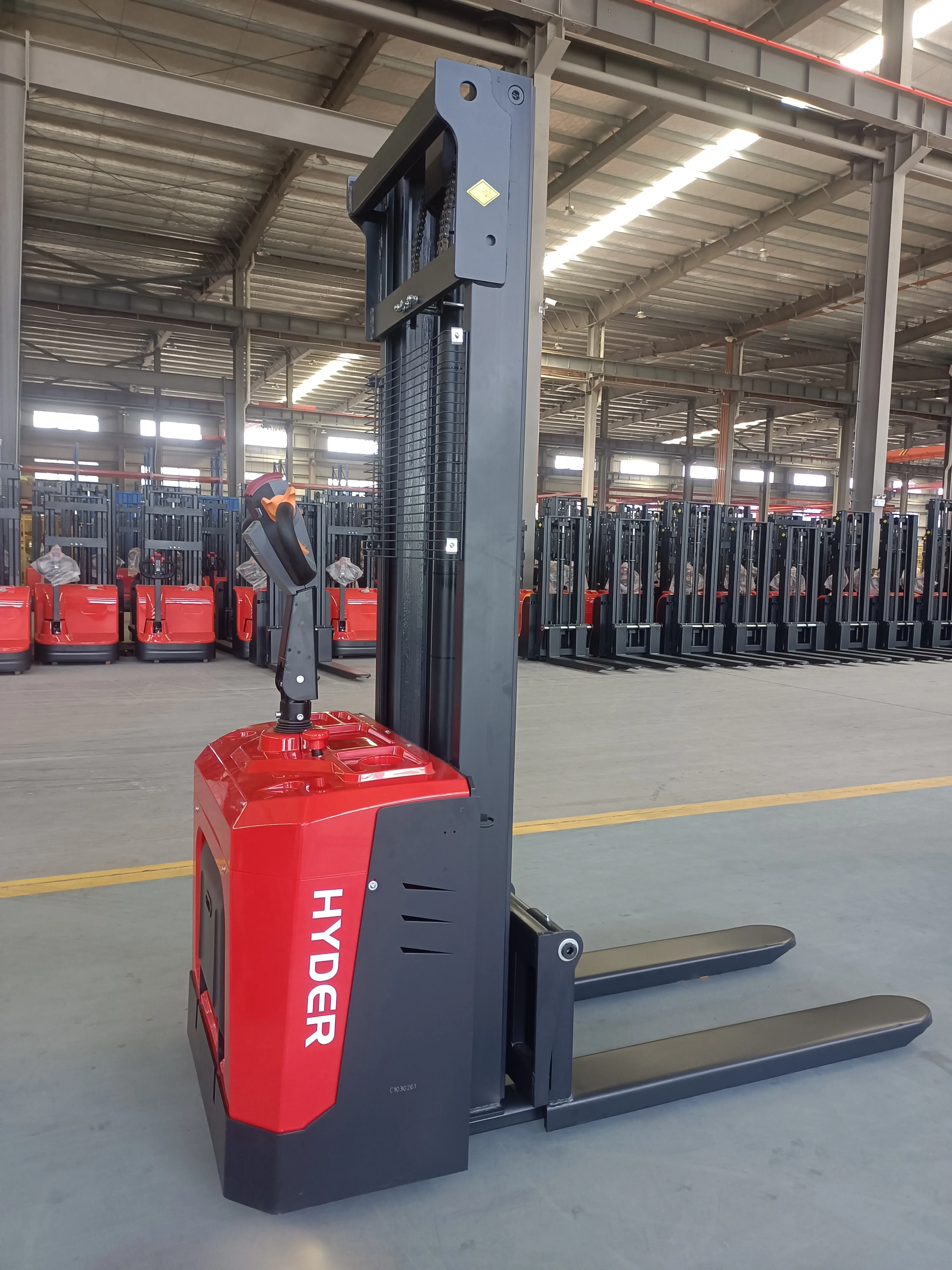

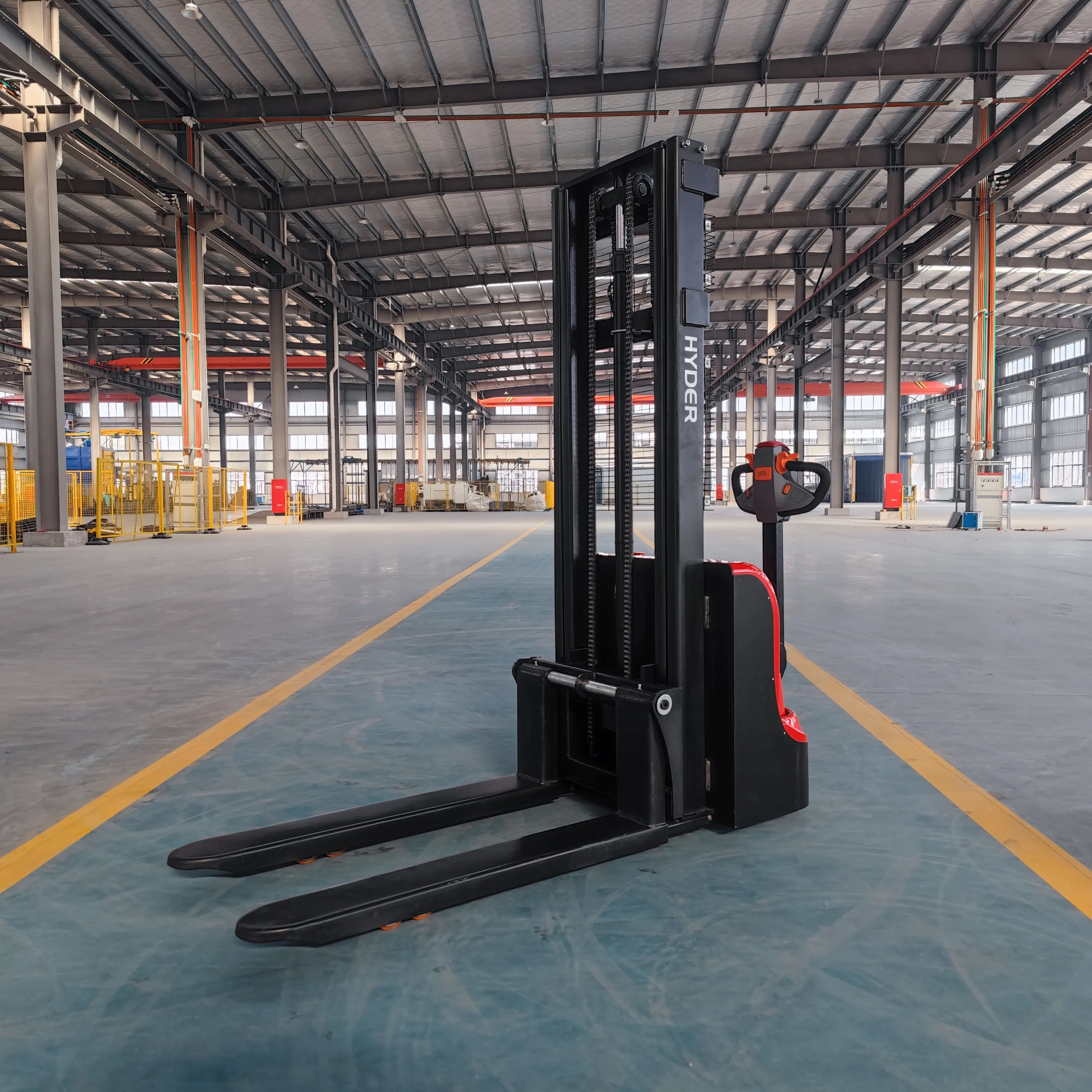

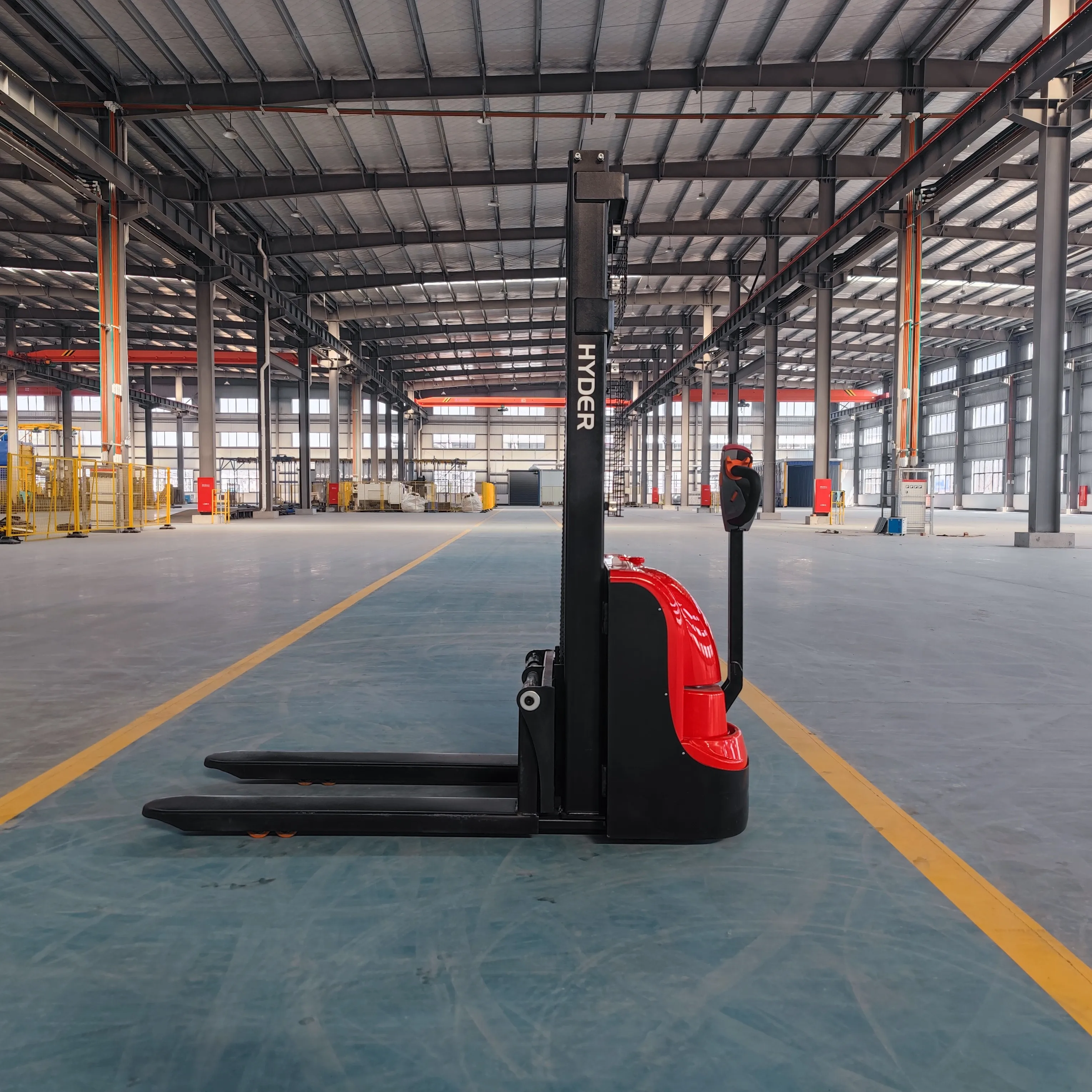

Detailed Images
Here are the enticing details of our featured model:
1.Superior Specifications:
Impressive 1.5-ton load capacity for handling a wide range of materials effortlessly.
Adjustable lifting range from 1.6m to 3m, providing the versatility you need for various warehouse applications.
Adjustable lifting range from 1.6m to 3m, providing the versatility you need for various warehouse applications.
2.Battery Options:
Choose from our reliable lead acid battery options: 48V 32Ah or 24V 80Ah. Opt for the configuration that best suits your operational requirements.
3.AC Motors:
Equipped with powerful AC motors for efficient and smooth operation. Experience enhanced performance and productivity with every use.
4.Quick Delivery:
Time is of the essence, and we understand that. Benefit from our streamlined processes and enjoy quick delivery to get your operations up and running without delay.
Specifications
Model | HTB15F | HTB20F | ||
Power Source | electric | electric | ||
Drive | Ride on | Ride on | ||
Load capacity | kg | 1500 | 2000 | |
Load centre | mm | 500 | 500 | |
Wheel base | mm | 1348 | 1348 | |
Self weight(with battery) | kg | 590 | 665 | |
Mast Steel | 12C | 12C+12H | ||
Tires | PU | PU | ||
Drive wheel( Dia.*W) | mm | ∅160×50 | ∅210×85 | |
Front Wheel(Dia.*W) | mm | ∅80×70 | ∅80×70 | |
Balance wheel( Dia.*W) | mm | ∅125×50 | ∅125×50 | |
No. of Wheels(F/R)（x=DRIVE） | 1x+2/4 | 1x+2/4 | ||
Front wheel distance | mm | 500 | 500 | |
Rear wheel distance | mm | 616 | 616 | |
Total height( Fork closed) | mm | 2090/1590/1840/2090/2340 | 2090/1590/1840/2090/2340 | |
Extend height( fork extended) | mm | 2090/2570/3070/3570/4070 | 2090/2570/3070/3570/4070 | |
Lifting height | mm | 1600/2000/2500/3000/3500 | 1600/2000/2500/3000/3500 | |
Minimum height of fork | mm | ≤90 | ≤90 | |
Handlebar height(Max/min) | mm | 1520/1050 | 1520/1050 | |
Overall length( pedal off/ on) | mm | 1870/2270 | 1870/2270 | |
Overall width | mm | 852 | 852 | |
Fork size | mm | 170/55/1100 | 170/55/1150 | |
Fork distance | mm | 680 | 680 | |
Mini Ground clearance | mm | 30 | 30 | |
Right angel stacking asile , pallet 1000x1200 | mm | 2700 | 2700 | |
Turning radius( without pedal) | mm | 1550 | 1550 | |
Drive speed( full load/ no load | km/h | 3.4/4 | 4/5 | |
Max lifting speed( No load) | mm/s | 100 | 75 | |
Max lifting sped(Full load) | 75 | 65 | ||
Max gradeability( full/no load) | % | 5/10 | 5/10 | |
Brake | electric maganetic | electric maganetic | ||
Drive motor | kw | DC0.8 | DC1.0 | |
Lifting motor | DC2.2 | DC2.2 | ||
Battery | V/Ah | 48V/4*30AH | 12V*4/32AH | |
Why choose us
1.Uncompromising quality: Our walkie pallet stackers are built to last, ensuring long-term durability and minimal maintenance.
2.Enhanced safety features: Prioritize the safety of your workforce with our stackers' advanced safety mechanisms.
Expert customer support: Count on our experienced team to assist you throughout your journey, providing exceptional service and guidance.
3.Seize this exceptional opportunity to equip your distribution business with top-of-the-line walkie pallet stackers at unmatched prices. Maximize productivity, streamline operations, and gain a competitive edge.
About Us

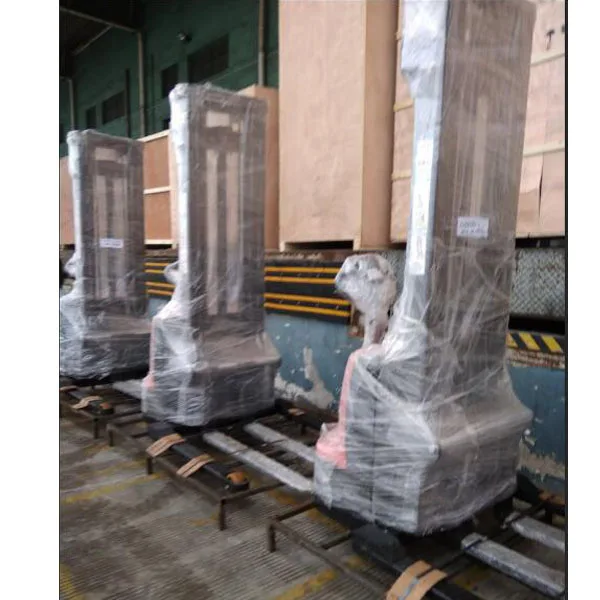

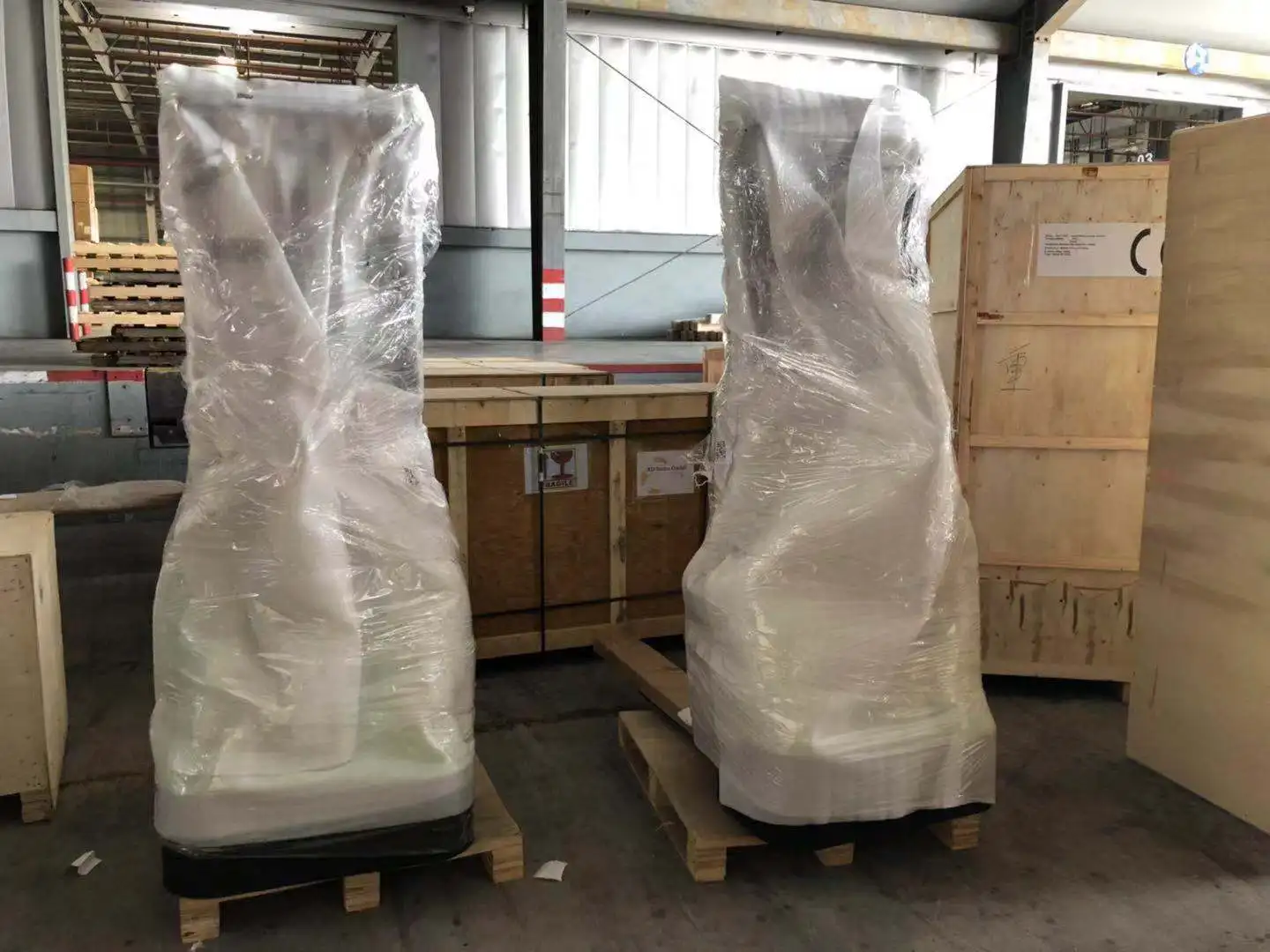

Product packaging
Certifications
Our Service
HYDER, Your Delivery Effective Resource!
1) Will reply and push the problems within 12hrs. The suitable solutions will be pointed out within 48hrs.
2) Operations and parts manuals will be sent with forklifts together. So consumers can read and identify different parts according to the guide instruction.
3) If necessary we will ask our engineers to train to your site or you can arrange related staffs to our site for training until the problems be solved.
4) We would like to appoint you as exclusive agency in your market. And offer you the best competitive price to support if you can finish agreed sales quantity. At the same time, we will transfer you all inquiries got from your market and share your more information and resource in the fields of forklifts.
5) If need we would like to support you demo forklifts with cost price to show to Exhibition. Catalogues,printing promotion gifts is free.
6) Annual Bonus will be offered once you finish target quantity.
Delivery
FAQ
Q:How do you guarantee the quality of your forklift and equipment?
A:Our forklifts and equipment with advanced technology design and we assemble it with high quality and famous brand parts. Strictly inspection before delivery
Q:How to solve and maintain once some problems happened?
A:Our engineer and sales team offer 24hrs full time service. We can give the best suitable solution to solve your problems as soon as possible. At the same time you also can ask your operators to come to our site for learning or we arrange our engineer to your site for training.
Q:What will benefit us if we become your exclusive distributor in promissory area?
A:We can invest professional exhibition supporting and give potential clients information from B2B website to you for developing. We make sure to provide you with the newest information and development tendency in the fields. A abundant bonus will be offered if you can finish target sales volume.
Q:Which kind of certificate do you have?
A:All our forklifts with CE certificate. We passed ISO and LPG forklift engine passed EPA approved.
Q:How long is the warranty of your forklift?
A:One year or 2000hrs which come first
