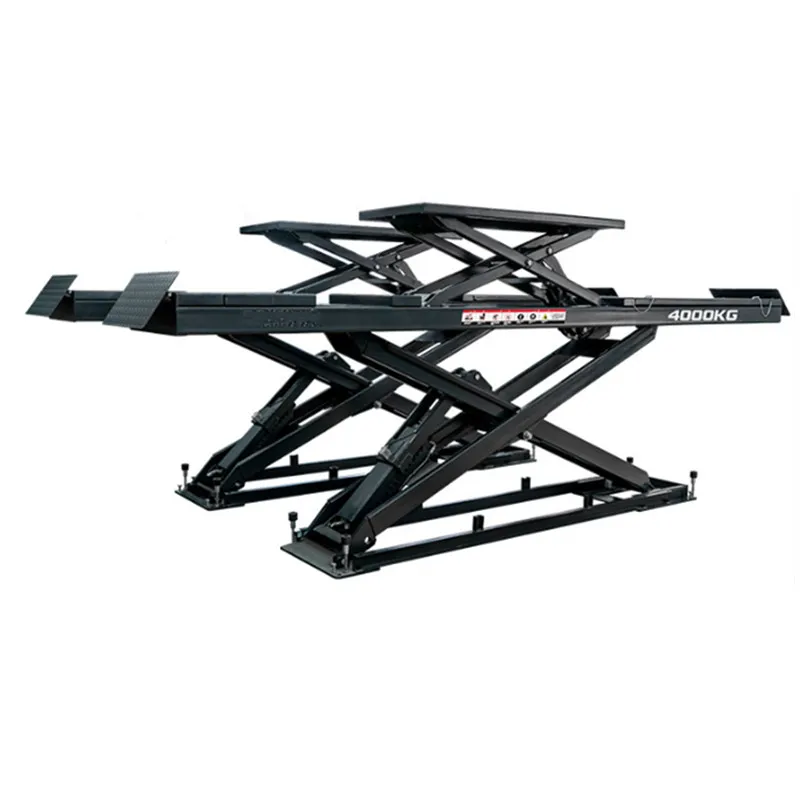

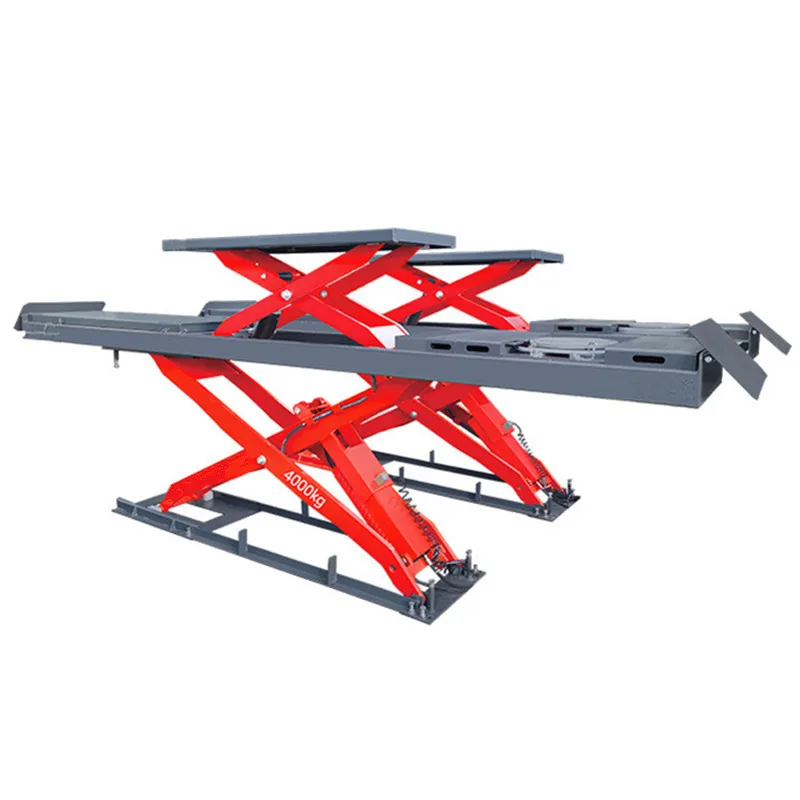

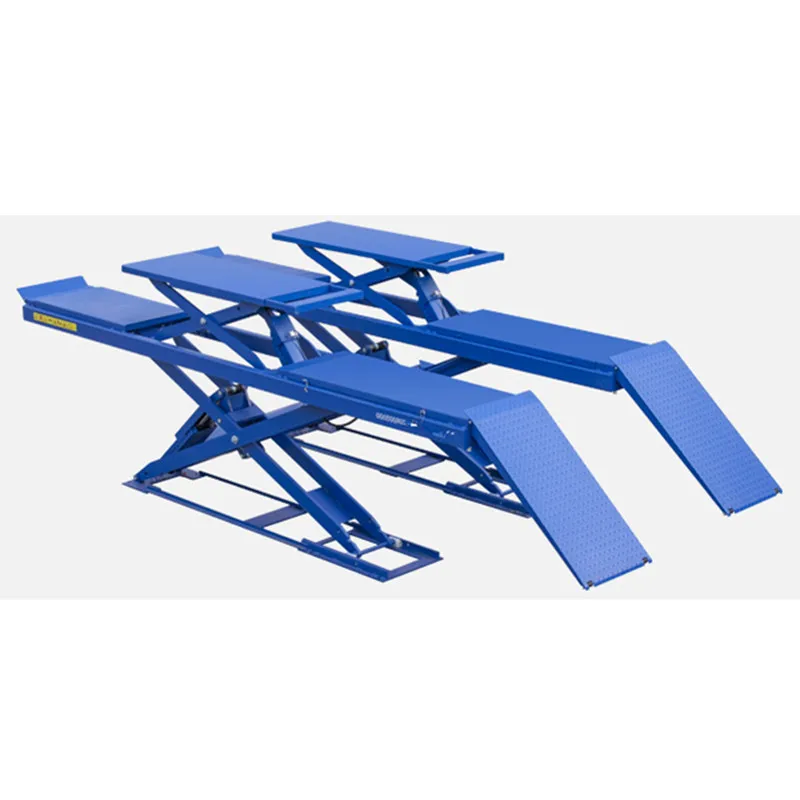

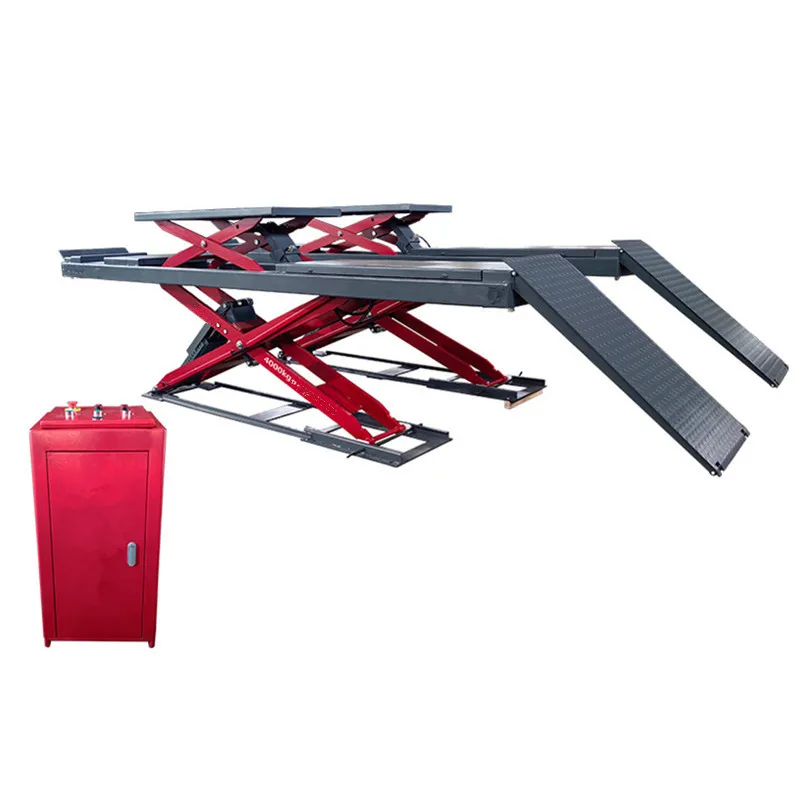

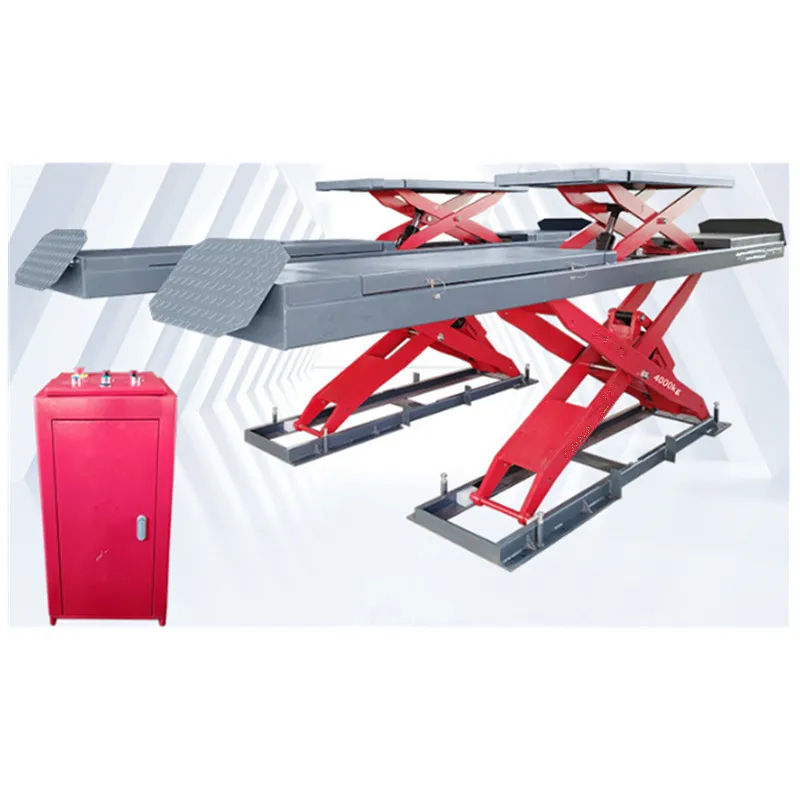

Hydraulic Wheel Alignment Scissor Basement Car Lift
- Category: >>>
- Supplier: Zouping Xinghuo Coating Equipment Co. Ltd.
Share on (1601124034200):
Product Overview
Description
Specification
No. | Project | Unit | Specification |
1 | Lifting weight | kg | 4000 |
2 | Scissors load-bearing | kg | 3000 |
3 | Platform length | mm | 4500 |
4 | Platform width | mm | 600 |
5 | Lifting height | mm | 1700 |
6 | Minimum floor height | mm | 350 |
7 | Secondary lifting height | mm | 450 |
8 | Lift time | s | 50-60 |
9 | Motor Power | kw | 2.2 |
10 | Voltage | v | 110/220/380 |
11 | Gross weight | kg | 1934 |
12 | Package Size | mm | 4560*620*450(2PCS) 410*480*920(1PCS) |
Products Detail
The sub-scissor platform can be pulled and extended.
Can be adjusted according to different models.
Can be adjusted according to different models.
The arm is welded with 14 thick ribs to prevent deformation.
The base plate is a split type base plate, which can be easily disassembled when the site is changed later.
The direction of the wire pipe is clear, the threading groove is stable, the oil pipe is not exposed, and it is not squeezed by the equipment, making it beautiful and elegant.
The cover has holes for easy access later.
5 thick manganese steel plates
The bottom is integrally formed with manganese steel plate to prevent deformation
5 thick manganese steel plates
The bottom is integrally formed with manganese steel plate to prevent deformation
The support arms of the mother scissors and daughter scissors are thickened
Manganese steel plate female scissor arm 25 thick
The scissor arms are 20 thick and sturdy and durable.
Manganese steel plate female scissor arm 25 thick
The scissor arms are 20 thick and sturdy and durable.
Each arm has an oil filling hole
Convenient for later maintenance and repair
Convenient for later maintenance and repair
Using pneumatic unlocking function
Simple and durable, low maintenance cost
Equipped with explosion-proof locking valve to effectively prevent accidents
Simple and durable, low maintenance cost
Equipped with explosion-proof locking valve to effectively prevent accidents
