Product Overview
Description
Product Introduction

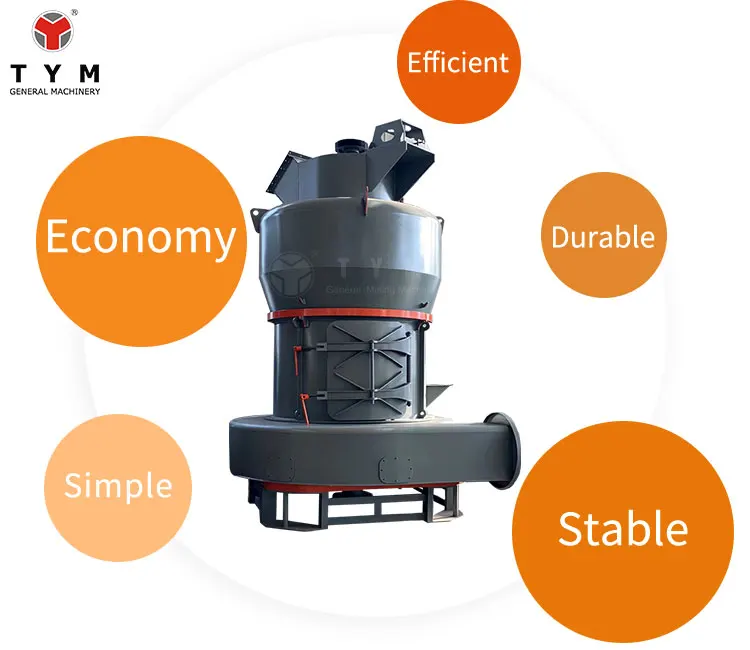

YGM Grinding Mill
Raymond grinder(Raymond mill)
is used to grind bartite,calcite,potash feldspar,talcum,marble,limestone,ceram and slag below scale 7 of Moth‘s hardness and 280-odd sorts of non-inflammable and non-explosive stuff in the traded of mining, building material,chemical engineering and metallurgy tor power generation and processing. The product size is adjustable on required in the range of 80-325 meshes.Some of the materials up to 2,500 mesh.
Usage of Mill
It is mainly used in the field of metallurgy, building materials, chemicals, mining and such mineral materials for grinding process. This mill can grind materials with Mos hardness below 9.3 and humidity below 6%, various non-flammable mineral materials.,such as quartz, feldspar, calcite, talcum, bate, fluorite, rare earth, marble, ceramics, bauxite, manganese ore, iron ore, copper ore, phosphate rock, iron oxide red, zircon sand, slag, water granulated slag, cement clinker, activated carbon, dolomite, granite, garnet, iron oxide yellow, bean cake, fertilizer, compound fertilizer, fly ash, bituminous coal, coking coal, lignite, magnesite sand, chromium oxide green, gold ore, red mud, clay, kaolin, coke, coal gangue, porcelain clay, kyanite, fluorspar, bentonite, medical stone rhyolite rocks, muddy green rock, pyrophyllite, shale, purple rock, Diego rock, basalt, gypsum, graphite, silicon carbide, insulation materials and so on.
Working principle
Material after jaw crusher, bucket elevator sent by the storage silo, by electromagnetic vibrating feeder evenly continuously sent to the host material for grinding, polishing powder separator after blowing blower in action sorting machines, powder after sorting by pipeline to the storage silos, and finally by the outlet valve output is finished. Entire production line work process pressure is negative, the first Tan blowing air through pipes accompanied powder into the storage silo upper cyclone collector, returned by the return air blower pipe to form air recycling. Secondly, powder collector with the bottom lock powder feeder, its role is to set the external positive pressure gas and powder isolated negative pressure gas, greatly improving the yield. Again, the bottom of the host residual air and dust were sent through a pipeline to filter baghouse dust and other impurities are adsorbed baghouse,effective protection of the environment.
Feature
1.The finished product has a wide range of particle size and can be adjusted arbitrarily.
2.The dust removal effect is fully in line with the national dust emission standard.
3.The internal grinding device of the mill adopts overlapping multi-stage seal with good sealing performance.
4.The running process of the mill is low noise and stable.
2.The dust removal effect is fully in line with the national dust emission standard.
3.The internal grinding device of the mill adopts overlapping multi-stage seal with good sealing performance.
4.The running process of the mill is low noise and stable.
Technical Parameter
model | number of rolles | diameter and height of rollers | diameter and height of ring(mm) | maximum size of input(mm) | capacity(t) | mainframe motor power(kw) | overall dimension(m) |
YGM65 | 3 | 210*150 | 650*150 | 15 | 0.4-1.8 | 15 | 4.1*3.3*4.5 |
YGM75 | 3 | 260*150 | 780*150 | 15 | 1-3 | 18.5 | 4.3*3.5*5.1 |
YGM85 | 3 | 270*140 | 830*140 | 20 | 1.2-4.6 | 22 | 5.3*4.1*5.2 |
YGM85B | 3 | 270*150 | 830*150 | 20 | 1.2-4.6 | 22 | 5.6*3.4*4.9 |
YGM95 | 4 | 310*170 | 950*170 | 20 | 2.1-5.6 | 37 | 7.1*5.9*7.9 |
YGM130 | 5 | 410*210 | 1280*210 | 30 | 3-9.5 | 75 | 7.85*8*9.7 |
YGM160 | 6 | 440*270 | 1600*270 | 35 | 8-16 | 132 | 12.55*5.7*8.355 |

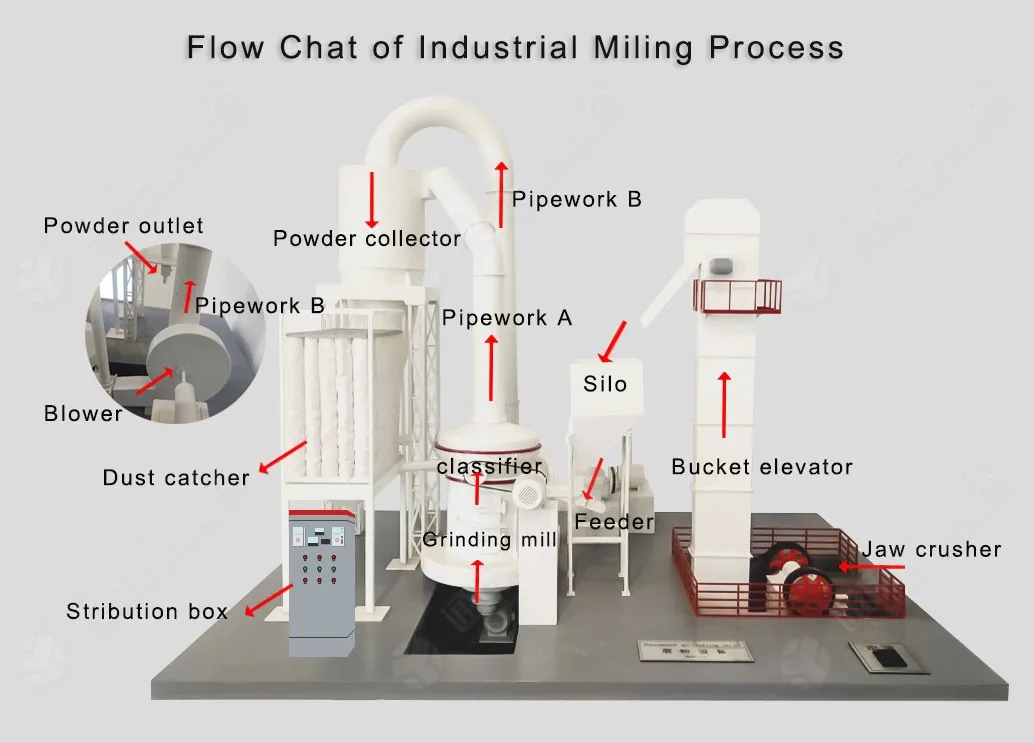

Industrial milling process

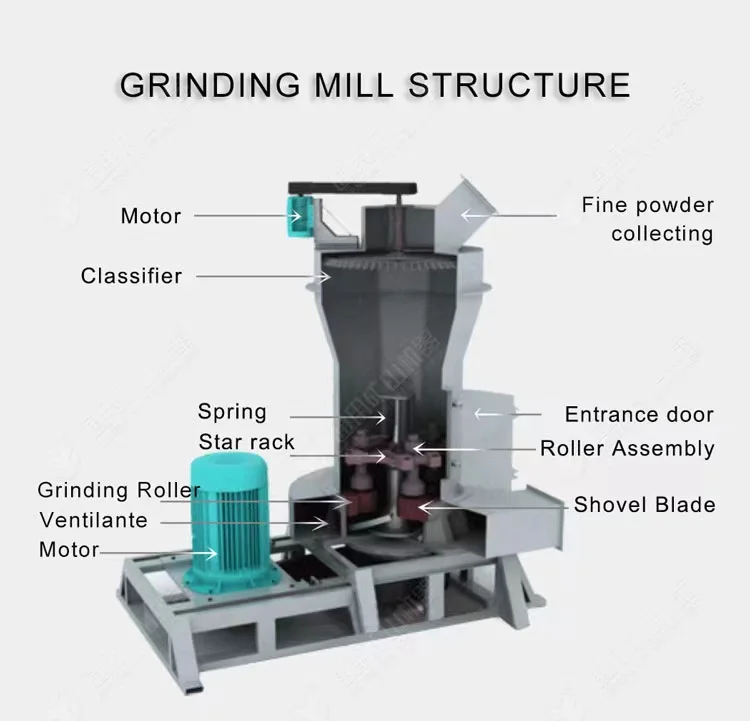

After the crusher crushes the raw materials to the required feeding size, the bucket elevator transports the materials to the hopper. Then the electromagnetic vibrating feeder is evenly sent to the grinding mill. During the co-rotation of the blade and the grinding roller, the material is shoveled and formed a bedding layer. The material is ground between the roller and the ring, we get the powder in the end.
The powder is brought to the classifier for powder selection by the air flow of the fan, and the fine powder that meets the fineness requirements enters the large cyclone collector through the pipeline with the air flow, and is separated and collected; The airflow is sucked into the blower by the return air pipe at the upper end of the large cyclone collector. The unsatisfactory powder is thrown by the blade to the outer wall and separated from the airflow, and the coarse powder falls into the grinding chamber for re-grinding due to the action of self-gravity. In order to ensure that the mill works under negative pressure, the increased airflow is discharged into the bag filter through the residual pipe between the fan and the main engine, and is discharged into the atmosphere after being purified.
The powder is brought to the classifier for powder selection by the air flow of the fan, and the fine powder that meets the fineness requirements enters the large cyclone collector through the pipeline with the air flow, and is separated and collected; The airflow is sucked into the blower by the return air pipe at the upper end of the large cyclone collector. The unsatisfactory powder is thrown by the blade to the outer wall and separated from the airflow, and the coarse powder falls into the grinding chamber for re-grinding due to the action of self-gravity. In order to ensure that the mill works under negative pressure, the increased airflow is discharged into the bag filter through the residual pipe between the fan and the main engine, and is discharged into the atmosphere after being purified.
Our Customers Site
Our factory is specialized in the production of Raymond grinding mill for more than 20 years, is the leading brand in the industry. We have accumulated rich practical experience, and the case sites cover more than 30 countries in the world, including mining, cement, metallurgy, chemical, construction waste and other fields. We can provide EPC project general contracting and other complete solutions.

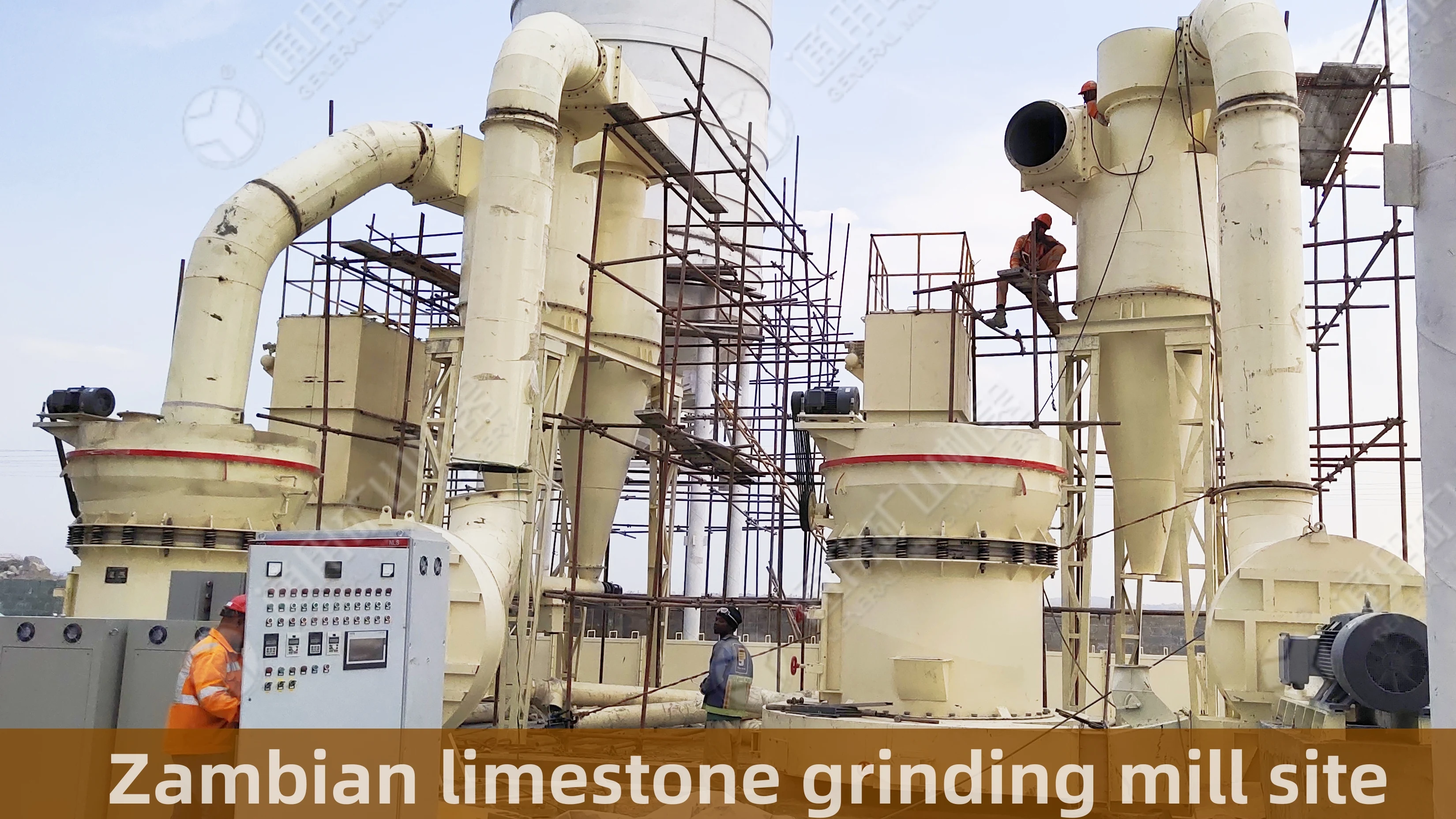

This is our limestone grinding mill site in Zambian！
The customer's requirements:
Raw material: limestone, capacity: 25 tons/hour, finished products: 200mesh.
Raw material: limestone, capacity: 25 tons/hour, finished products: 200mesh.
Equipment configuration: 2 sets YGM160.

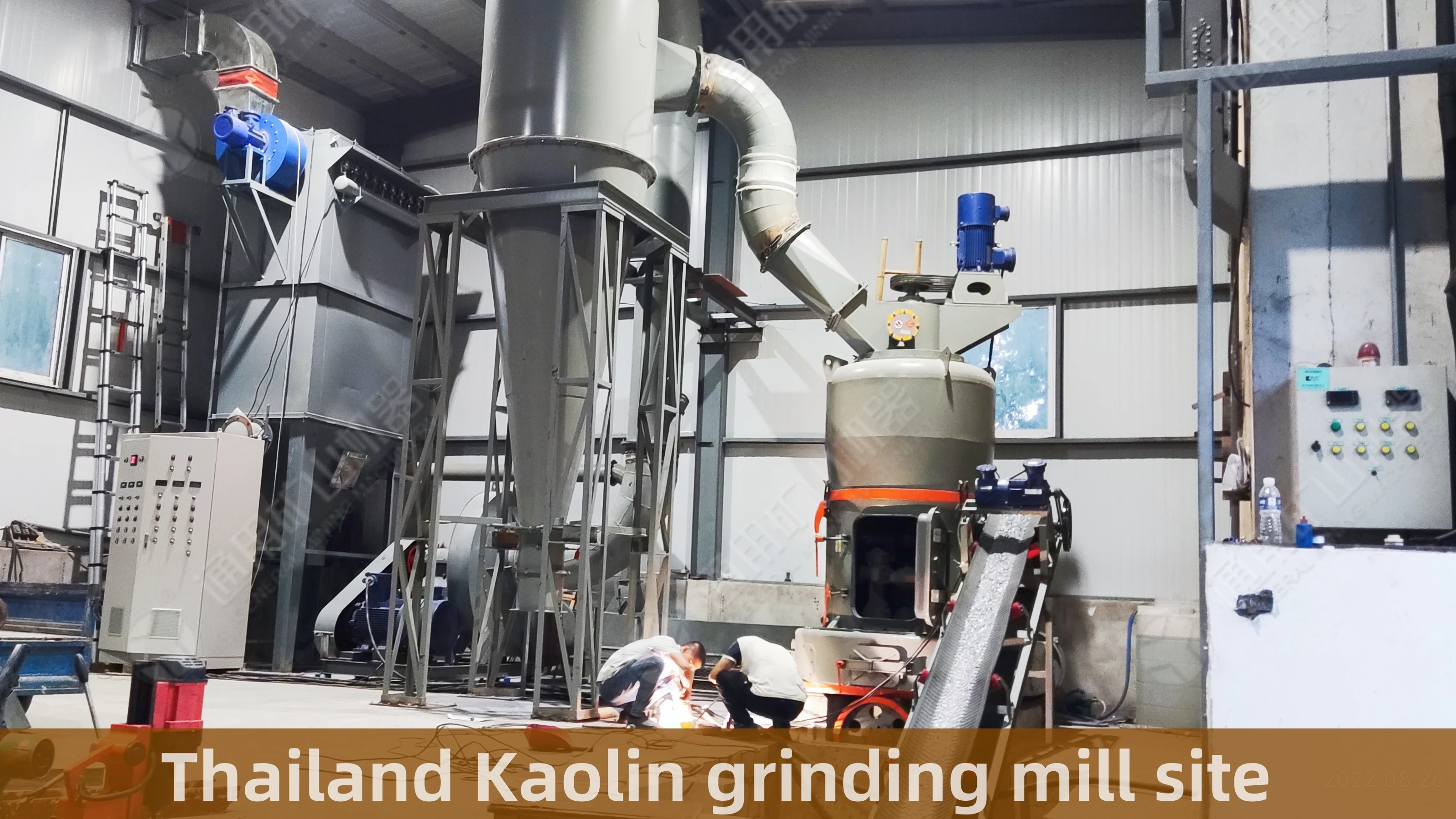

This is our Kaolin grinding mill site in Thailand！
The customer's requirements:
Raw material: Kaolin, capacity: 3 tons/hour, finished products: 325mesh.
Raw material: Kaolin, capacity: 3 tons/hour, finished products: 325mesh.
Equipment configuration: MTW110.

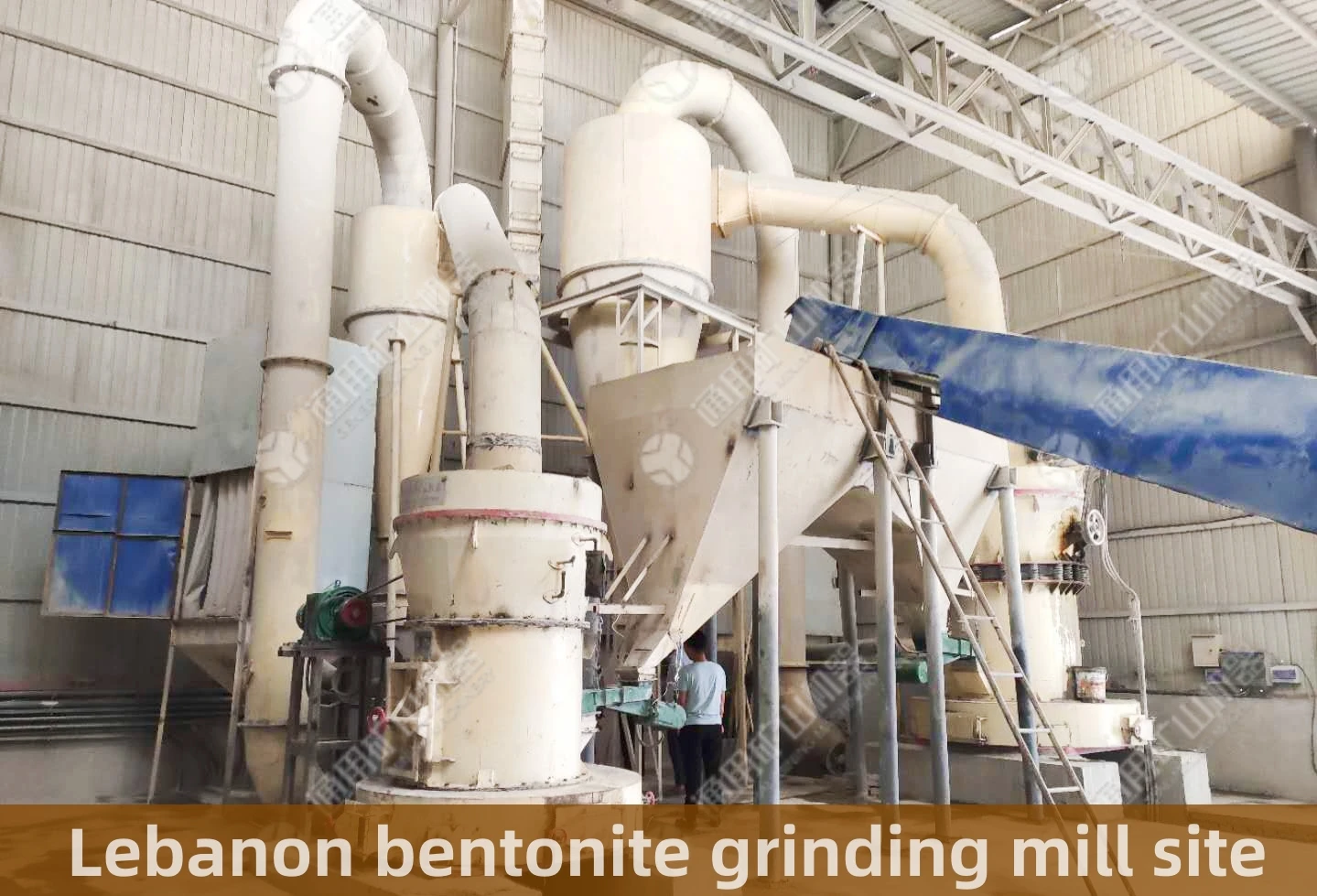

This is our bentonite grinding mill site in Lebanon！
The customer's requirements:
Raw material: Bentonite, capacity: 8 tons/hour, finished products: 200-250mesh.
Raw material: Bentonite, capacity: 8 tons/hour, finished products: 200-250mesh.
Equipment configuration: MTW110.

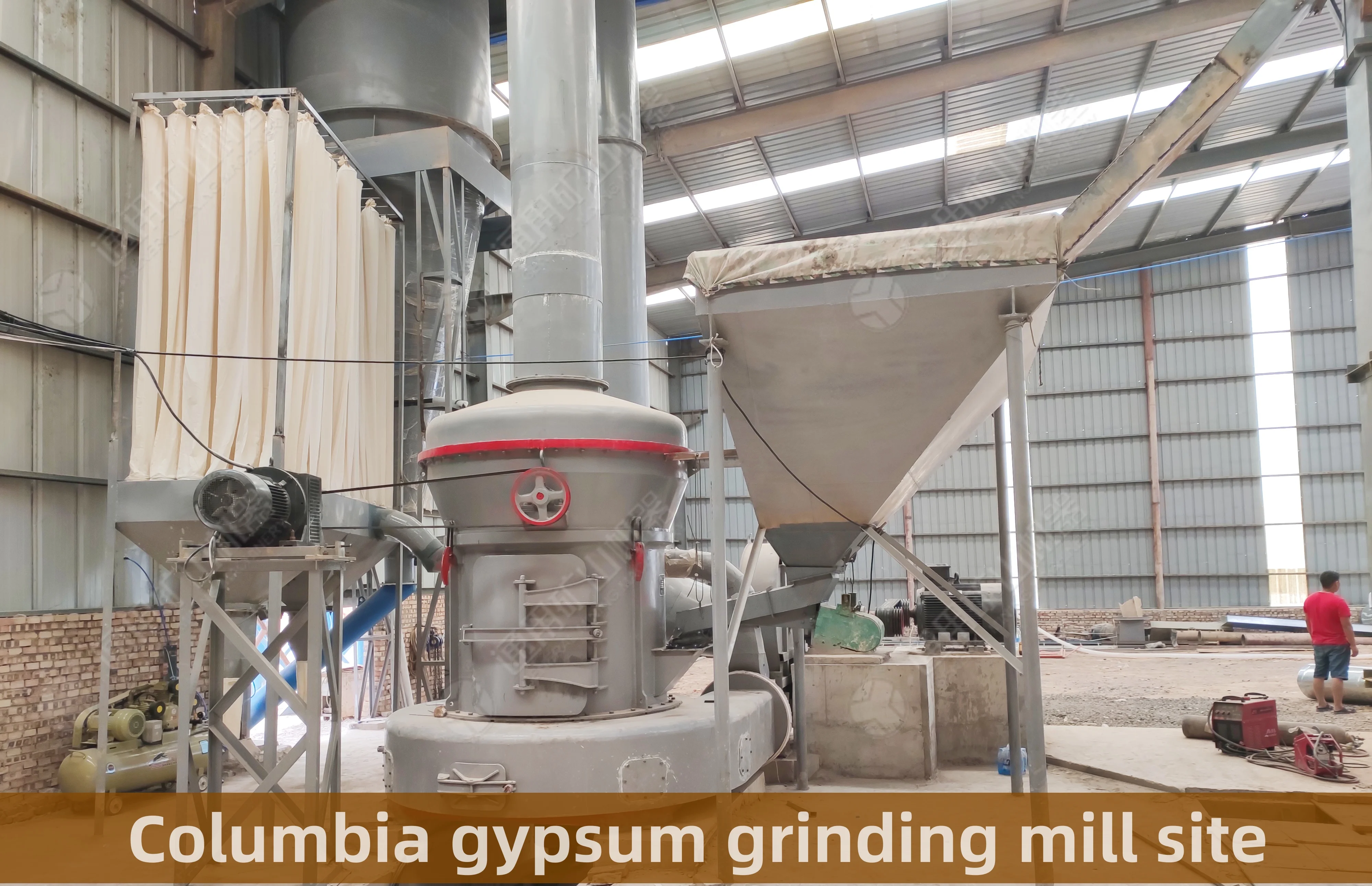

This is our bentonite grinding mill site in Columbia！
The customer's requirements:
Raw material: Gypsum, capacity: 8 tons/hour, finished products: 300mesh.
Raw material: Gypsum, capacity: 8 tons/hour, finished products: 300mesh.
Equipment configuration: YGM1500.
Company Information
Since in 2004, Zhengzhou General Mining Machinery Co.,Ltd has been the professional manufacturer of Grinding Mill, crushers and sand making machines,etc.
TYM is committed to helping more users around the world to obtain higher profits and faster return on value. Our main products are European Version Grinding Mill, Raymond Grinding Mill, High Pressure Suspension Roller Mill, Micro-powder Grinding Mill, Jaw Crushers, Impact Crushers, Hammer Crusher, Compound Crushers, Ball Mill, nine series of products with more than 30 kinds of specifications.
TYM is committed to helping more users around the world to obtain higher profits and faster return on value. Our main products are European Version Grinding Mill, Raymond Grinding Mill, High Pressure Suspension Roller Mill, Micro-powder Grinding Mill, Jaw Crushers, Impact Crushers, Hammer Crusher, Compound Crushers, Ball Mill, nine series of products with more than 30 kinds of specifications.

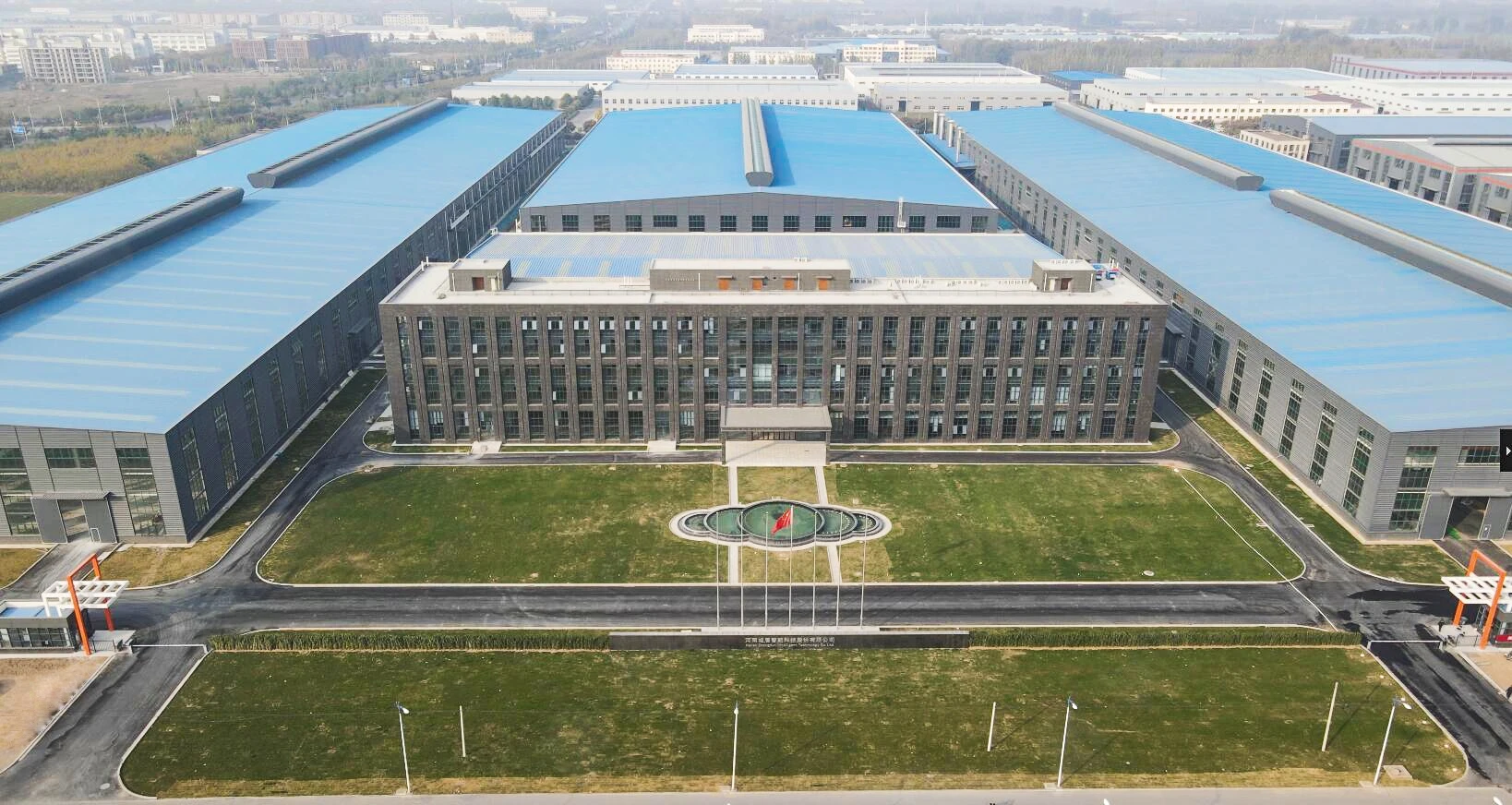

TYM factory
TYM factory covers an area of 120,000 square meters and manufactures TYM brand Mining Machinery,has passed international ISO:9001, GOST and CE certification.
Crushing equipment showroom!
Sand making equipment showroom!
Grinding mill showroom!
Grinding mill showroom!

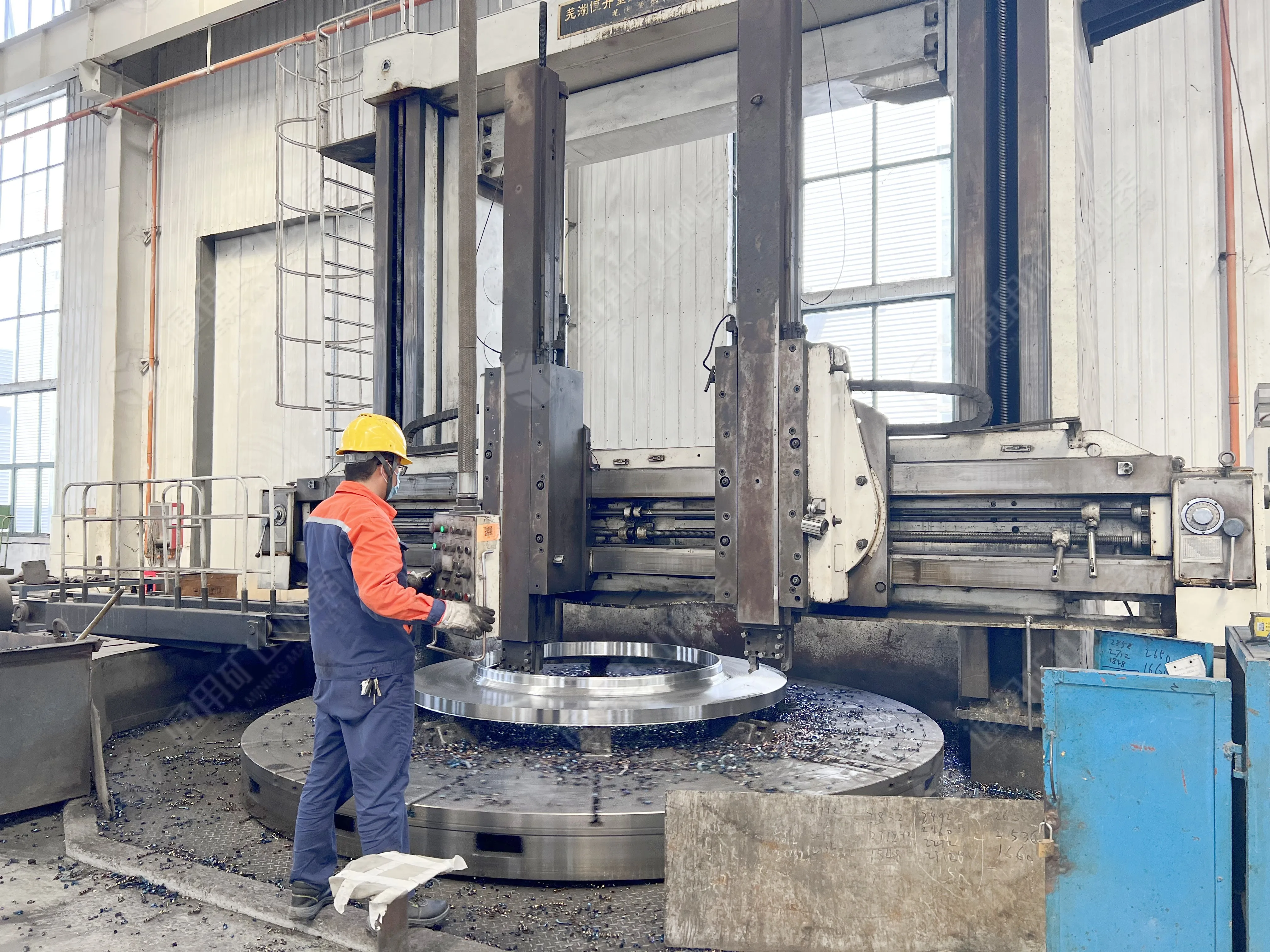

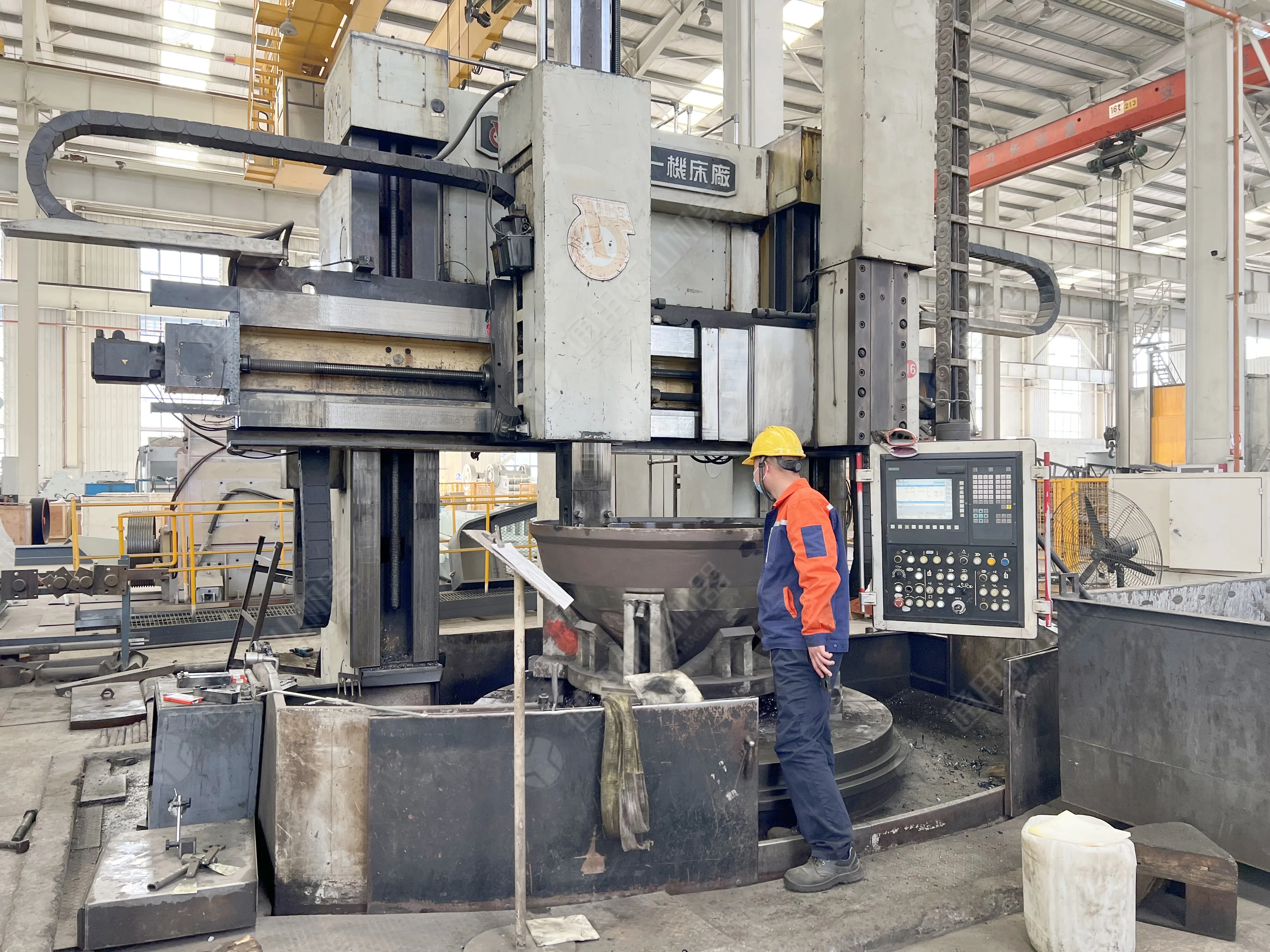

CNC manufacturing shop!
Improve production efficiency!
Shorten the production cycle!

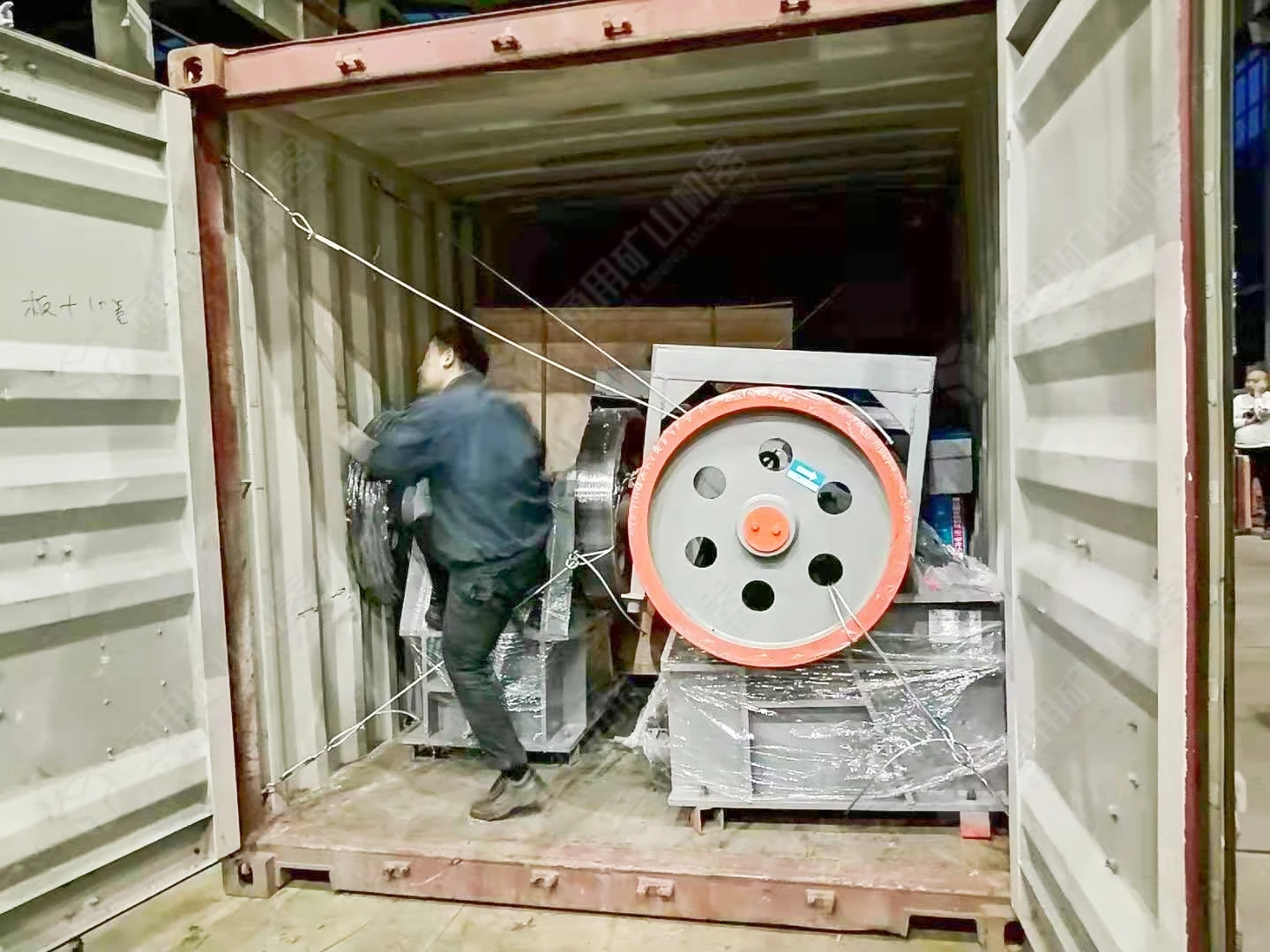

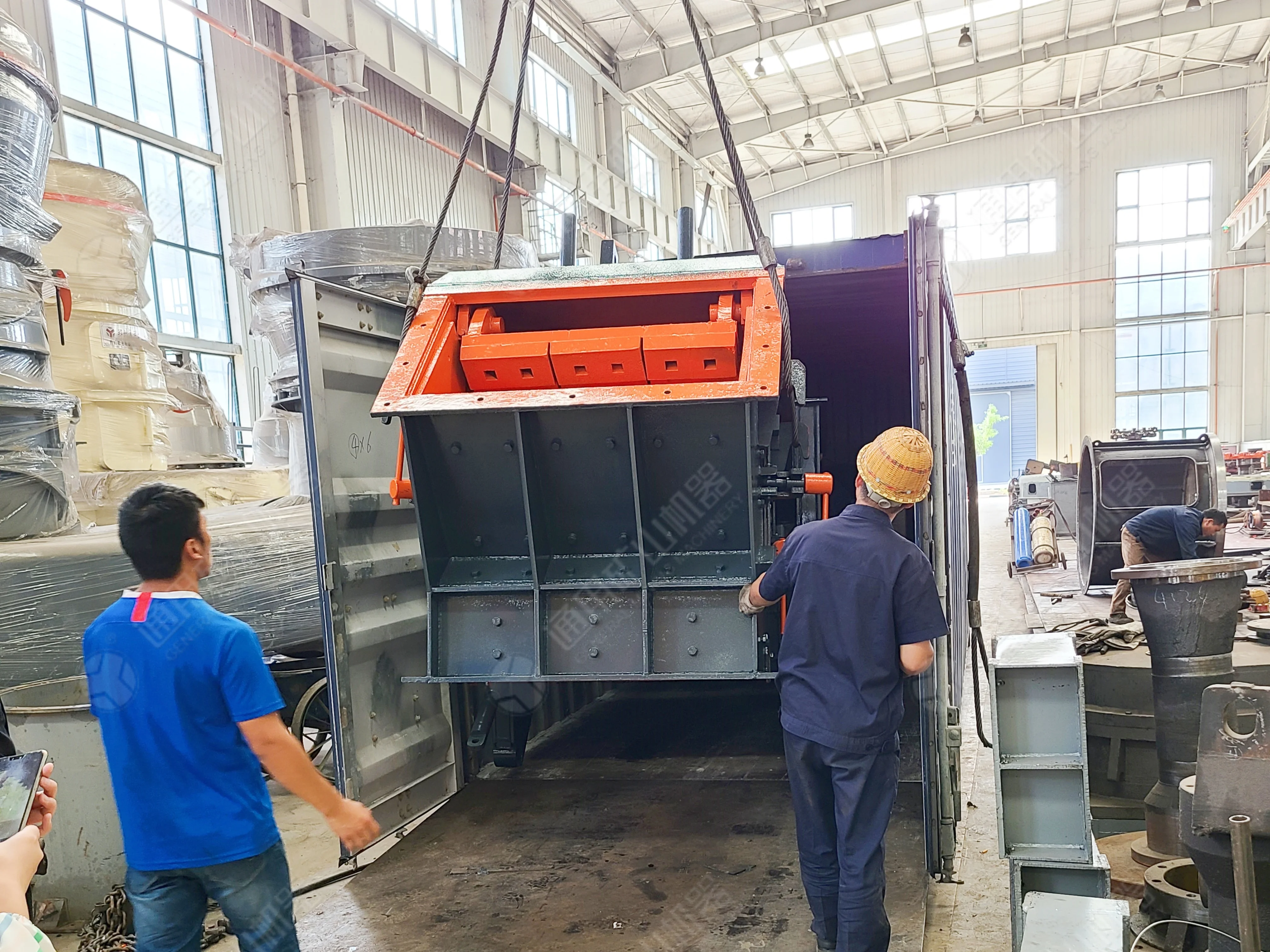

Packing & Shipping
The package of all equipment is accord with the standard protective measures.The packing is suitable for short and long distance transportation. The moisture proof, quake proof, protected against dampness, and rustproof protection measures were taken to ensure the machine shipping to customers safely. All the machine will be packaged by plastic film.

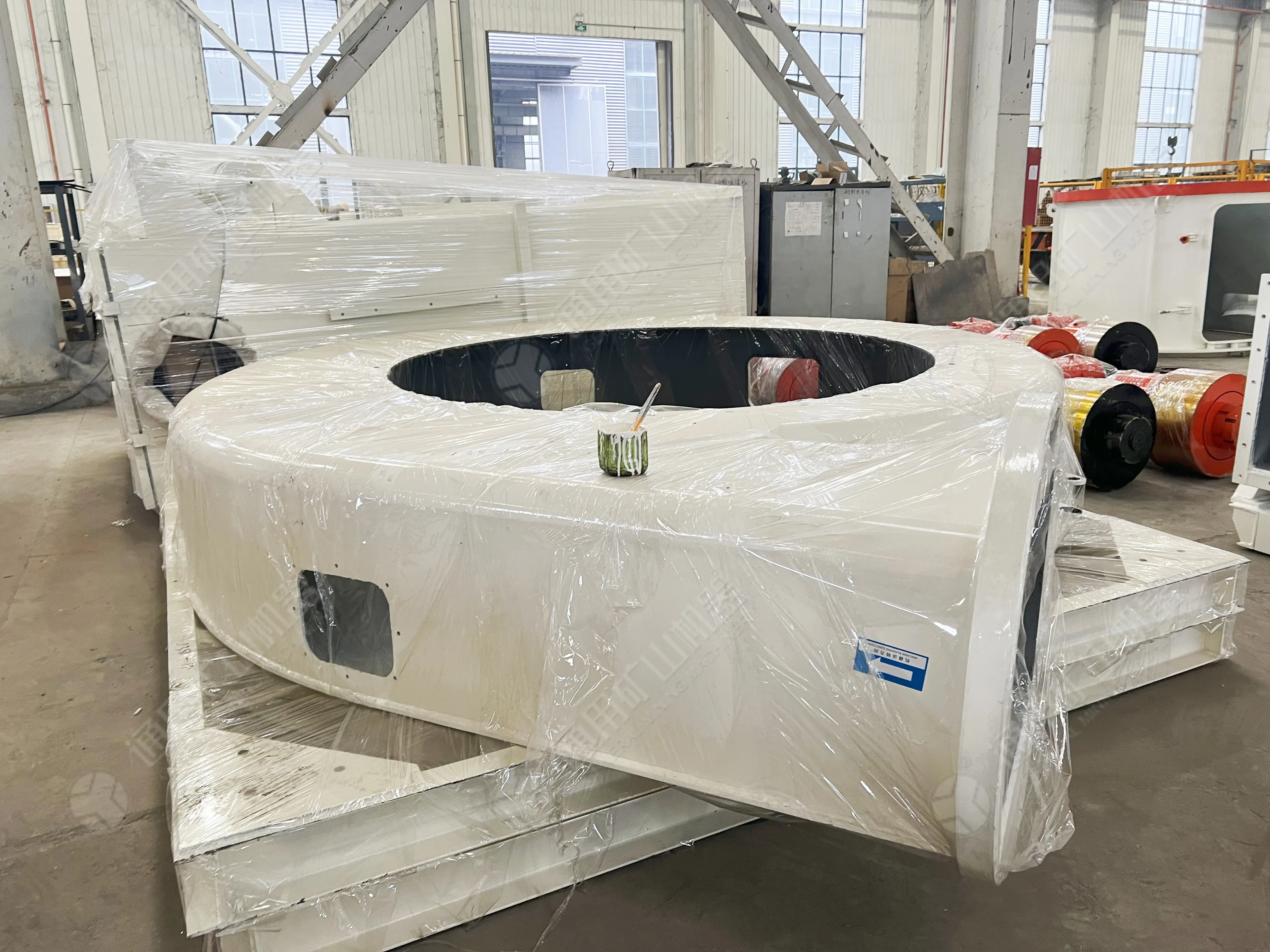

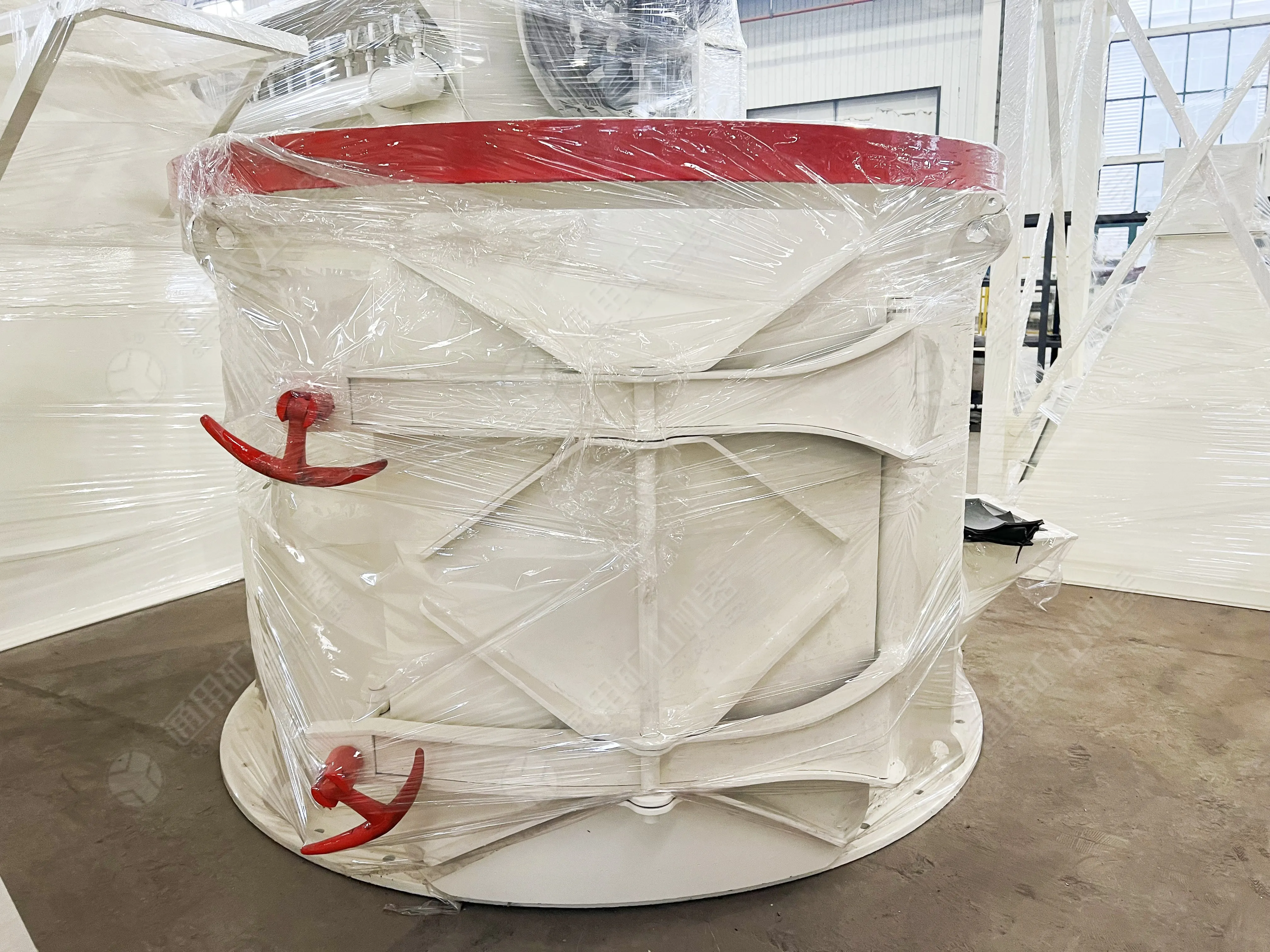

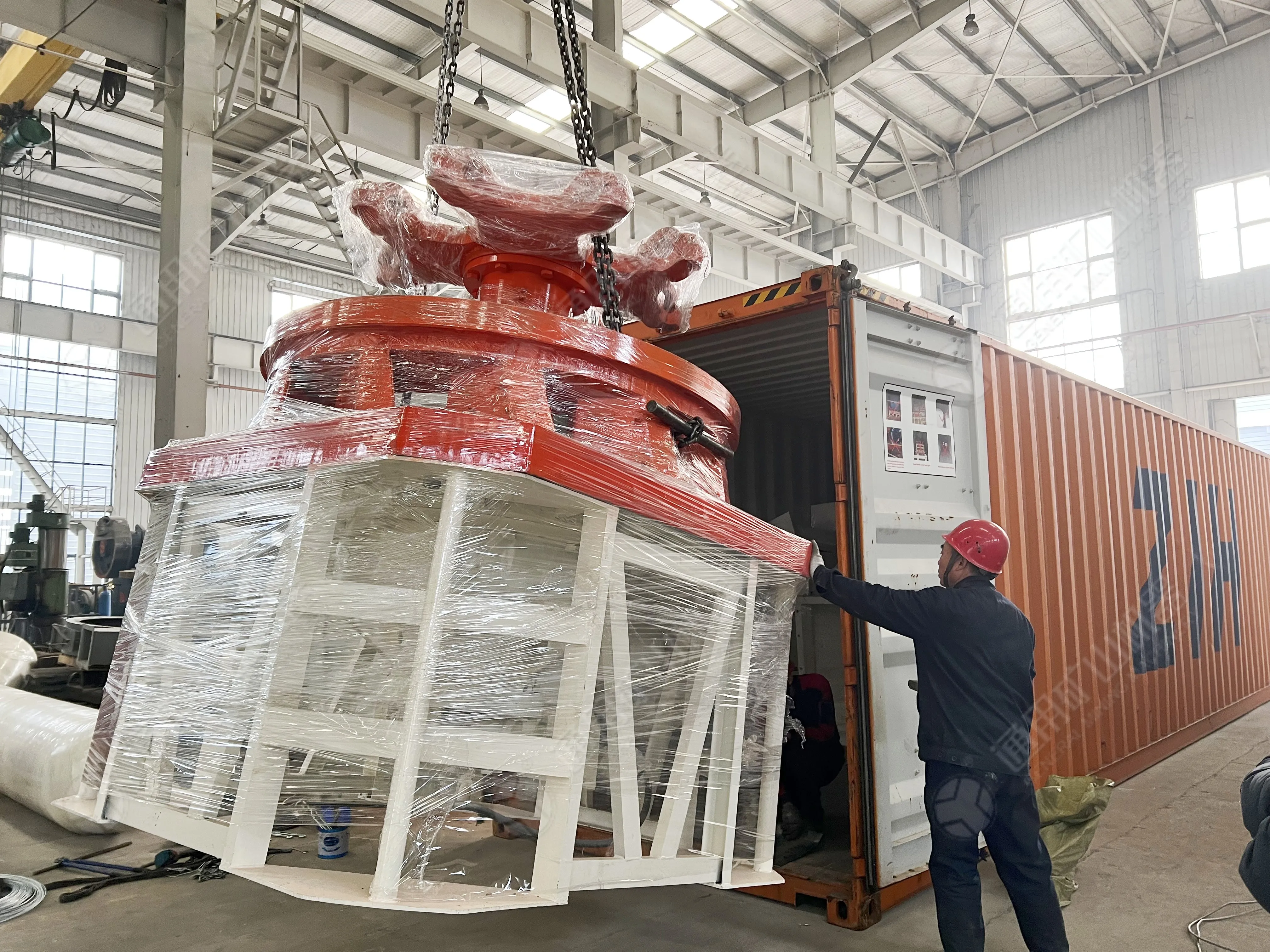

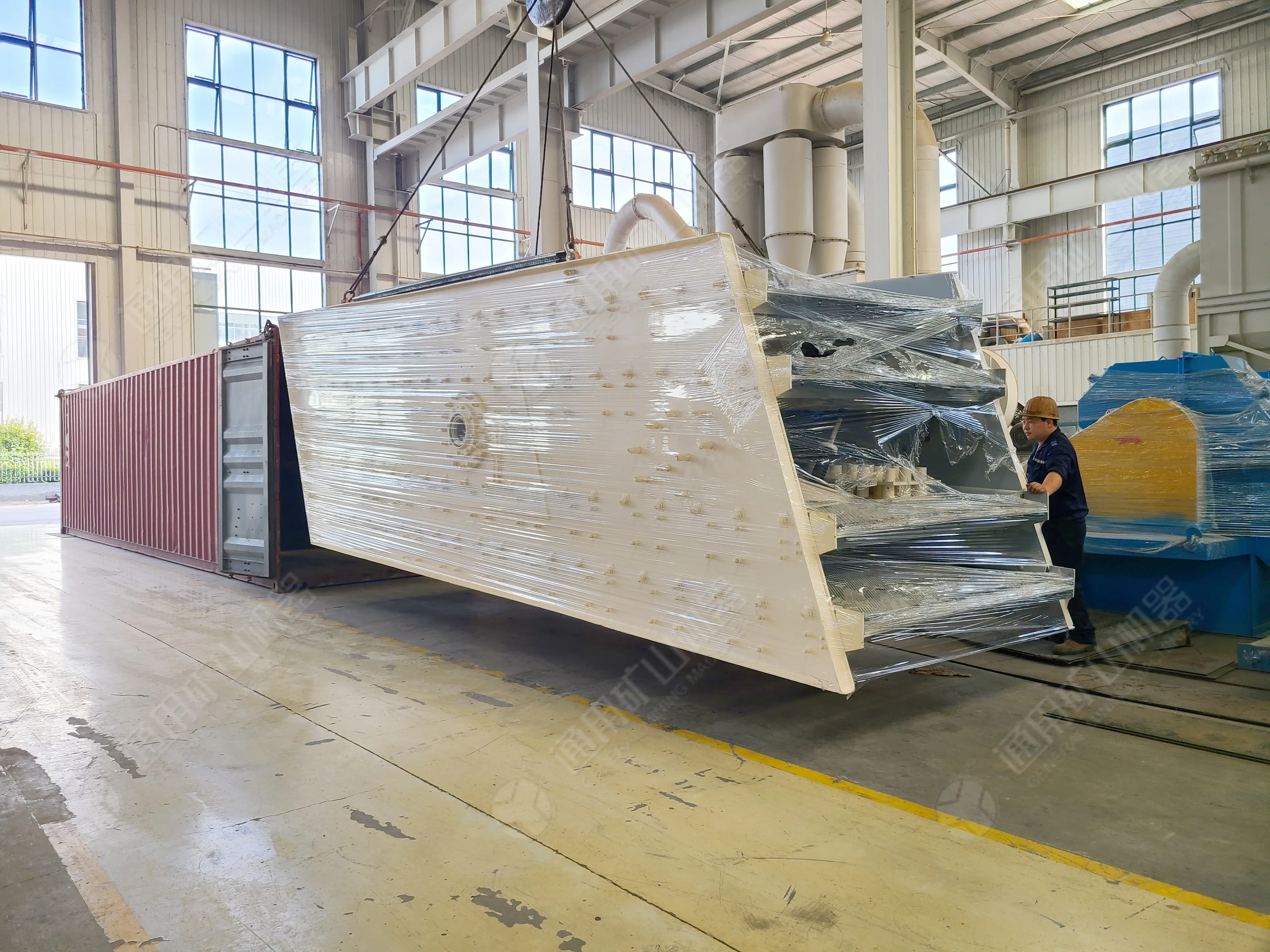

Plastic film packaging
Large items will be wrapped in plastic film, such as jaw crusher, impact crusher, cone crusher, main mill, pipe, etc.
Box wooden packing
Small parts will be packed in wooden box, such as bolts, rubber sleeves, springs, etc
Certifications
Our Services
Warranty
100% brand new when leaving the factory. The seller guarantee quality of the machines (excluding wearing parts) for a period of one year from the date of trial run finish under our technician's guidance, but not exceed 15 months from date on which machine leaves the factory.
Pre-sale services:100% brand new when leaving the factory. The seller guarantee quality of the machines (excluding wearing parts) for a period of one year from the date of trial run finish under our technician's guidance, but not exceed 15 months from date on which machine leaves the factory.
(1) Device model choice.
(2) According to customer's special requirements, design and manufacture of products.
(3) Training technical personnel for clients.
(4) The company is free of charge to the user on-site engineering and technical personnel planning site for the user to design the best processes and program.
Sale services:
We will send technicians to you for guiding the equipment installation and commissioning and staff training.
Sales tracking :
(1) product acceptance.
(2) to help customers develop construction programs.
After-sale services :
(1) Guiding customers' installation.
(2) On-site training of operators.
(3) Complete sets of equipment installed, 1-2 full-time technical staff to stay free of charge to help customers on-site production of 1 month, until the user' satisfaction.
